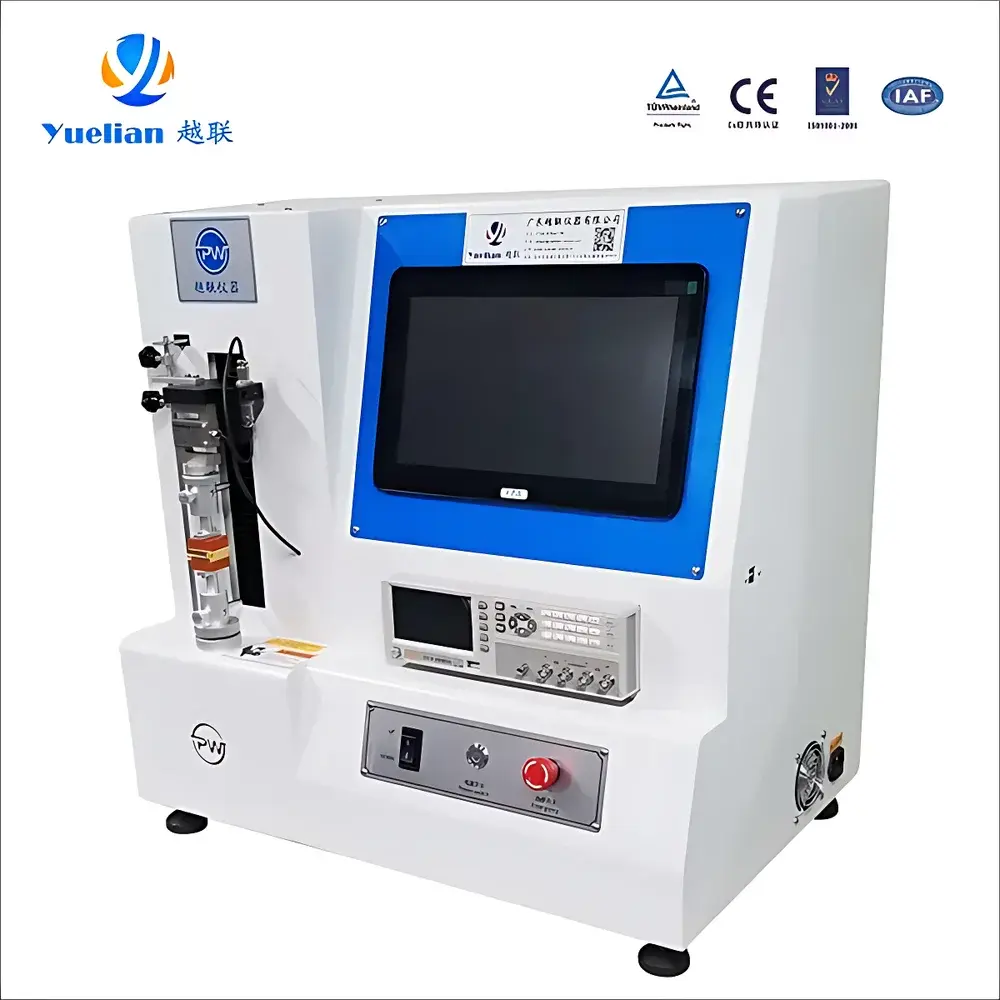

| Brand | YueLian / PW |
|---|---|
| Origin | Guangdong, China |
| Manufacturer Type | Authorized Distributor |
| Origin Category | Domestic (China) |
| Model | PW-FCR2 |
| Price Range | USD 6,800 – 8,500 (FOB) |
| Max Test Load | 5 kN |
| Load Cell Options | 10 N, 20 N, 50 N, 100 N, 200 N, 500 N, 1 kN |
| Force Resolution | 1/1,000,000 full scale |
| Accuracy | Better than ±0.5% of reading |
| Displacement Resolution | 1/1,000,000 full stroke |
| Effective Stroke | 50 mm |
| Speed Range | 0.01–500 mm/min (customizable) |
| Test Space Diameter | Ø140 mm |
| Dimensions (W×D×H) | 550 × 590 × 600 mm |
| Net Weight | 45 kg |
| Power Supply | 220 V, 50–60 Hz, 400 W |
| Interface | USB & RS-232 |
| Included Accessories | Dedicated compression fixture set, integrated four-wire resistance measurement module, ruggedized industrial tablet with pre-installed software |

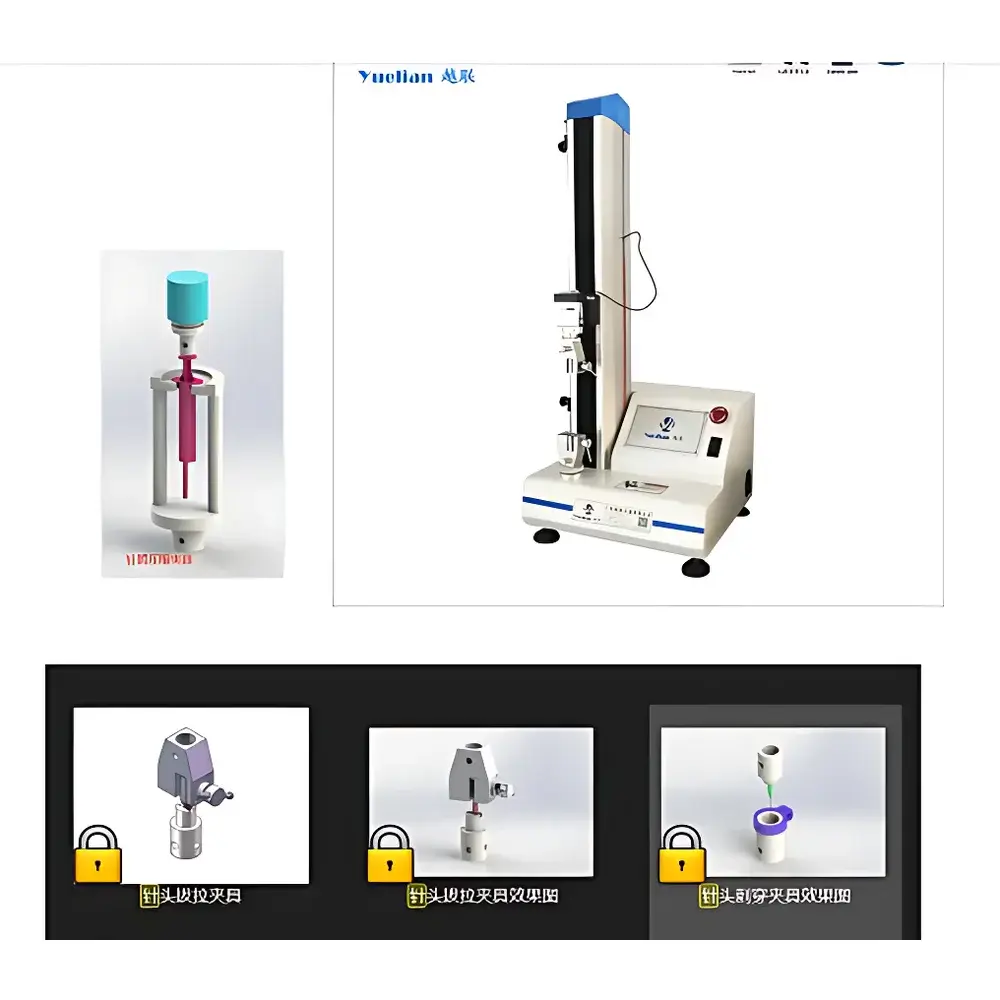

| Brand | PW |
|---|---|
| Origin | Guangdong, China |
| Manufacturer Type | Authorized Distributor |
| Country of Origin | China |
| Model | PW-90 |
| Price Range | USD 2,800–4,200 (FOB) |
| Max Test Load | 5 kN |
| Platen Spacing | 100 mm |
| Platen Dimensions | 100 mm × 100 mm |
| Load Capacity Options | 10 N, 20 N, 50 N, 100 N, 200 N, 500 N, 1 kN (dual-range configuration available) |
| Force Resolution | 1/500,000 full scale |
| Force Accuracy | ≤ ±0.5% FS |
| Stroke Resolution | 0.005 mm |
| Stroke Travel | 500 mm |
| Test Width | Ø55 mm |
| Speed Range | 5–500 mm/min (software-controlled) |
| Power Supply | 220 V, 50/60 Hz, 10 A |
| Motor Drive | Stepper motor with timing belt and precision ball screw transmission |
| Power Consumption | 180 W |
| Net Weight | ~28 kg |
| Dimensions (W×D×H) | 400 × 300 × 700 mm |
| Standard Accessories | One set of syringe-specific fixtures, PC-based testing software, USB communication cable |
| Compliance | ISO 11608-3:2022, ISO 10555-1:2013, ISO 10555-5:2013, ISO 10993-11, ISO 10993-17, ISO 11040-4/5/6/8, ISO 11607-1, ISO 13926-1/2/3, ISO 21881, ISO 7864:2016, ISO 80369-7, ISO 8872, ISO 9626:2016 |
| Brand | Yuelian |
|---|---|
| Origin | Guangdong, China |
| Model | YL-1102 |
| Application | Top-load compression strength testing of PET/HDPE beverage bottles and rigid packaging containers |
| Test Modes | Top-load compression, side-load compression, tensile strength (film), tear resistance (film) |
| Compliance | Designed for routine QC in food packaging manufacturing per ISO 8775, ASTM D4577, and GB/T 13525 |
| Key | Brand: Yuelian |
|---|---|
| Model | YL-6609PC-A / B / C / D |
| Max Load Capacity | 500 kg / 1000 kg / 2000 kg / 5000 kg |
| Test Space (W×D×H) | 80×80×100 cm / 100×100×120 cm / 120×120×120 cm / 150×150×150 cm |
| Load Resolution | 1/250,000 FS |
| Accuracy | ≤0.5% FS |
| Compression Speed Range | 0.1–300 mm/min (default test speed: 10 ±3 mm/min) |
| Load Units | kgf, g, N, kN, lbf, ton (user-selectable) |
| Holding Time Range | 0.1–9999999 min |
| Control Interface | PC-based software via RS-232 |
| Compliance Standards | TAPPI T804, ISTA 1A/2A/3A, JIS Z0212, GB/T 4857.3–2008, GB/T 4857.4–2008 |
| Brand | Yuelian |
|---|---|
| Origin | Guangdong, China |
| Manufacturer Type | Authorized Distributor |
| Country of Origin | China |
| Model | YL-1125 |
| Quotation | Upon Request |
| Load Capacity Options | 10 N to 50 kN (dual-range configuration available) |
| Force Resolution | 1/500,000 full scale |
| Force Accuracy | ±0.3% of reading |
| Displacement Resolution | 1/500,000 full stroke |
| Test Speed Range | 0.01–1000 mm/min (software-controlled) |
| Maximum Stroke | 1200 mm |
| Test Width | 420 mm |
| Drive System | Servo motor + precision ball screw + timing belt transmission |
| Power Supply | 220 V, 50/60 Hz, 10 A |
| Rated Power | 750 W |
| Dimensions (W×D×H) | 920 × 620 × 1990 mm |
| Weight | ~422 kg |
| Compliance Standards | ISO 7500-1, ASTM E4, EN 10002-1, GB/T 228, JJG 475, DIN 5122, JIS B7721/B7733, BS 1610 |
| Brand | Yuelian |
|---|---|
| Origin | Guangdong, China |
| Model | YL-D23 |
| Max. Test Load | 20 kN |
| Load Frame Stroke | 800 mm |
| Test Width (Distance Between Columns) | 420 mm |
| Crosshead Speed Range | 0.01–500 mm/min |
| Force Resolution | 1/500,000 of full scale |
| Force Accuracy | ±0.3% of reading |
| Displacement Resolution | 1/500,000 of stroke |
| Control System | PC-based servo control with USB interface |
| Compliant Standards | ISO 7500-1, ASTM E4, EN 10002-1, GB/T 228.1, GB/T 2792, ASTM D3330, JJG 475 |
| Brand | Yuelian |
|---|---|
| Origin | Guangdong, China |
| Model | YL-1102 |
| Max Test Force | 5 kN |
| Load Application Rate | 500 N/s |
| Platen Spacing | 200 mm |
| Platen Dimensions | 400 mm × 400 mm |
| Force Resolution | 1/10,000 of full scale |
| Force Accuracy | ≤ ±0.1% FS |
| Displacement Resolution | 0.005 mm |
| Stroke | 650 mm |
| Test Width | 140 mm |
| Speed Range | 50–600 mm/min (adjustable) |
| Power Supply | 1PH, AC 220 V, 50/60 Hz, 10 A |
| Weight | ~55 kg |
| Dimensions (W×D×H) | 650 × 260 × 1050 mm |
| Standard Fixture | 1 set |
| Key | Brand: Yuelian |
|---|---|
| Origin | Guangdong, China |
| Model | YL-S70 |
| Max. Test Force | 5 kN |
| Crosshead Speed Range | 0.01–500 mm/min |
| Max. Test Height | 700 mm |
| Platen Size | 550 mm × 550 mm |
| Force Resolution | 1/500,000 of full scale |
| Accuracy | Better than ±0.5% of reading |
| Data Acquisition Rate | 50 Hz |
| Effective Travel | 450 mm |
| Power Supply | 220 V, 50–60 Hz |
| Net Weight | 45 kg |
| Dimensions (W×D×H) | 520 × 590 × 1061 mm |
| Brand | Yuelian |
|---|---|
| Model | YL-1152 |
| Type | Electromechanical Universal Testing Machine (Compression-Focused Configuration) |
| Load Capacity Options | 1 kN, 2 kN, 5 kN, 10 kN, 20 kN, 50 kN, 100 kN, 200 kN (dual-range option available) |
| Force Resolution | 1/250,000 full scale |
| Force Accuracy | ≤ ±0.5% of reading |
| Displacement Resolution | 0.005 mm |
| Crosshead Travel | 1000 mm |
| Test Width | 550 mm |
| Speed Range | 0.5–500 mm/min (programmable) |
| Drive System | Servo motor + precision ball screw + synchronous timing belt |
| Power Supply | 220 V, 50/60 Hz, 10 A |
| Rated Power | 2500 W |
| Dimensions (W×D×H) | 108 × 85 × 205 cm |
| Weight | ~950 kg |
| Compliant Standards | ISO 7500-1, ASTM E4, EN 10002-1, EN 10002-2, DIN 51221, JIS B7721/B7733, GB/T 228.1, JJG 475 |
| Brand | Yuelian (Yuelian) |
|---|---|
| Origin | Guangdong, China |
| Model | YL-1151 |
| Capacity Options | 1 kN, 2 kN, 5 kN, 10 kN, 20 kN, 50 kN, 100 kN (dual-range configuration optional) |
| Force Resolution | 1/250,000 full scale |
| Force Accuracy | ≤ ±0.5% of reading |
| Displacement Resolution | 0.005 mm |
| Test Speed Range | 0.5–500 mm/min (PC-controlled) |
| Maximum Stroke | 1000 mm |
| Test Width | 550 mm |
| Drive System | Servo motor + precision ball screw + timing belt transmission |
| Power Supply | 220 V, 50/60 Hz, 10 A |
| Rated Power | 1800 W |
| Dimensions (W×D×H) | 920 × 750 × 1990 mm |
| Weight | ~800 kg |
| Compliance Standards | ISO 7500-1, ASTM E4, EN 10002-1, EN 10002-2, DIN 51221, JIS B7721/B7733, GB/T 228.1, JJG 475 |
| Brand | Yuelian |
|---|---|
| Origin | Guangdong, China |
| Model | YL-1151 |
| Load Capacity Options | 1 kN, 2 kN, 5 kN, 10 kN, 20 kN, 50 kN, 100 kN (dual-range configuration available) |
| Force Resolution | 1/250,000 full scale |
| Force Accuracy | ≤ ±0.5% of reading |
| Displacement Resolution | 0.005 mm |
| Test Speed Range | 0.5–500 mm/min (software-controlled) |
| Maximum Stroke | 1000 mm |
| Test Width | 550 mm |
| Drive System | Servo motor with precision ball screw and synchronous belt transmission |
| Power Supply | 220 V, 50/60 Hz, 10 A |
| Rated Power | 1800 W |
| Dimensions (W×D×H) | 92 × 75 × 199 cm |
| Weight | ~800 kg |
| Compliant Standards | ISO 7500-1, ASTM E4, EN 10002-1, EN 10002-2, DIN 51221, JIS B7721/B7733, GB/T 228, JJG 475-88 |
| Brand | Yuelian |
|---|---|
| Origin | Guangdong, China |
| Model | YL-1123 |
| Capacity Options | 10 N to 20 kN (dual-range configurable) |
| Load Resolution | 1/250,000 full scale |
| Load Accuracy | ≤ ±0.5% FS |
| Displacement Resolution | 0.005 mm |
| Test Speed Range | 0.01–1000 mm/min (PC-programmable) |
| Maximum Travel | 700 mm |
| Test Width | 350 mm |
| Drive System | Servo motor + precision ball screw + timing belt |
| Power Supply | 220 V, 50/60 Hz, 10 A |
| Power Consumption | 400 W |
| Dimensions (W×D×H) | 72 × 52 × 130 cm |
| Weight | ~115 kg |
| Compliant Standards | ISO 7500-1, ASTM E4, EN 10002-1, JJG 475-88, GB/T 228, DIN 5122, JIS B7721/B7733, BS 1610 |
| Brand | Yuelian |
|---|---|
| Origin | Guangdong, China |
| Model | YL-1125 |
| Capacity Options | 10 N – 50 kN (dual-range configurable) |
| Force Resolution | 1/250,000 full scale |
| Force Accuracy | ≤ ±0.5% FS |
| Displacement Resolution | 0.005 mm |
| Test Speed | 0.01–1000 mm/min (PC-controlled) |
| Maximum Travel | 1200 mm |
| Test Width | 420 mm |
| Drive System | Servo motor + precision ball screw + timing belt |
| Power Supply | 220 V, 50/60 Hz, 10 A |
| Power Consumption | 750 W |
| Dimensions (W×D×H) | 92 × 62 × 199 cm |
| Weight | ~422 kg |
| Compliance Standards | ISO 7500-1, ASTM E4, EN 10002-1, JJG 475-88, GB/T 228, DIN 5122, JIS B7721/B7733, BS 1610 |
