| Brand | PW |
|---|---|
| Origin | Guangdong, China |
| Manufacturer Type | Authorized Distributor |
| Country of Origin | China |
| Model | PWOCA-400CNC |
| Pricing | Upon Request |
| Brand | PW |
|---|---|
| Origin | Guangdong, China |
| Manufacturer Type | Authorized Distributor |
| Country of Origin | China |
| Model | PW-OMM443 |
| Price Range | USD 2,800 – 28,000 |
| Brand | PW |
|---|---|
| Origin | Guangdong, China |
| Manufacturer Type | Authorized Distributor |
| Country of Origin | China |
| Model | PW-OCA432 |
| Price Range | USD 2,800 – 28,000 |
| Brand | YueLian (PW) |
|---|---|
| Origin | Guangdong, China |
| Manufacturer Type | Authorized Distributor |
| Country of Origin | China |
| Model | PW-OVM500 |
| Price Range | USD 2,800 – 28,000 |
| Brand | Yuelian |
|---|---|
| Origin | Guangdong, China |
| Manufacturer Type | Authorized Distributor |
| Country of Origin | China |
| Model | YL-9980 |
| Pricing | Available Upon Request |
| Contact Angle Range | 0–180° |
| Measurement Accuracy | ±0.1° |
| Analysis Methods | Automatic Circle/Fitting Method, Manual Horizontal/Slope Tangent Method, Height-Width Method, User-Defined Tangent Method |
| Optical System | 2× Fixed-Magnification High-Definition Microscope with Adjustable LED Backlight |
| Imaging | High-Resolution CMOS Digital Camera |
| Motion Control | 3-Axis Motorized Sample Stage (X/Y/Z: ±50 mm / ±50 mm / ±30 mm), Extendable Base Plate (±30 mm vertical extension), Independent Syringe Stage (X/Y: ±100 mm), Microscope Translation (Z: ±80 mm, Fine Adjustment ±3 mm) |
| Sample Stage Dimensions | 240 mm × 120 mm |
| Max Sample Thickness | ≤80 mm |
| Overall Dimensions | 360 mm (W) × 480 mm (D) × 460 mm (H) |
| Software Features | Real-Time Video Capture & Playback, Frame-by-Frame Export, Multi-Image Batch Analysis, Surface Energy Calculation (Owens-Wendt, Wu, van Oss-Chaudhury-Good models), Audit-Trail-Ready Data Logging, Report Consolidation Across Sequential Measurements |
| Brand | YUELIAN / PW |
|---|---|
| Origin | Guangdong, China |
| Manufacturer Type | Authorized Distributor |
| Country of Origin | China |
| Model | PW-D200 |
| Price Range | USD 2,800 – 28,000 |
| Brand | ZEISS |
|---|---|
| Origin | Germany |
| Model | L3D 2 5M |
| Light Source | Blue-light LED-based structured illumination (not free-electron laser) |
| Detection Principle | Fringe projection photogrammetry with stereo camera triangulation |
| System Type | Contactless, markerless 3D optical coordinate measurement system |
| Compliance | Designed for industrial metrology applications aligned with VDI/VDE 2634 Part 2 and ISO 10360-8 standards |
| Brand | ZEISS |
|---|---|
| Origin | Germany |
| Manufacturer Type | Authorized Distributor |
| Origin Category | Imported |
| Model | COMET L3D |

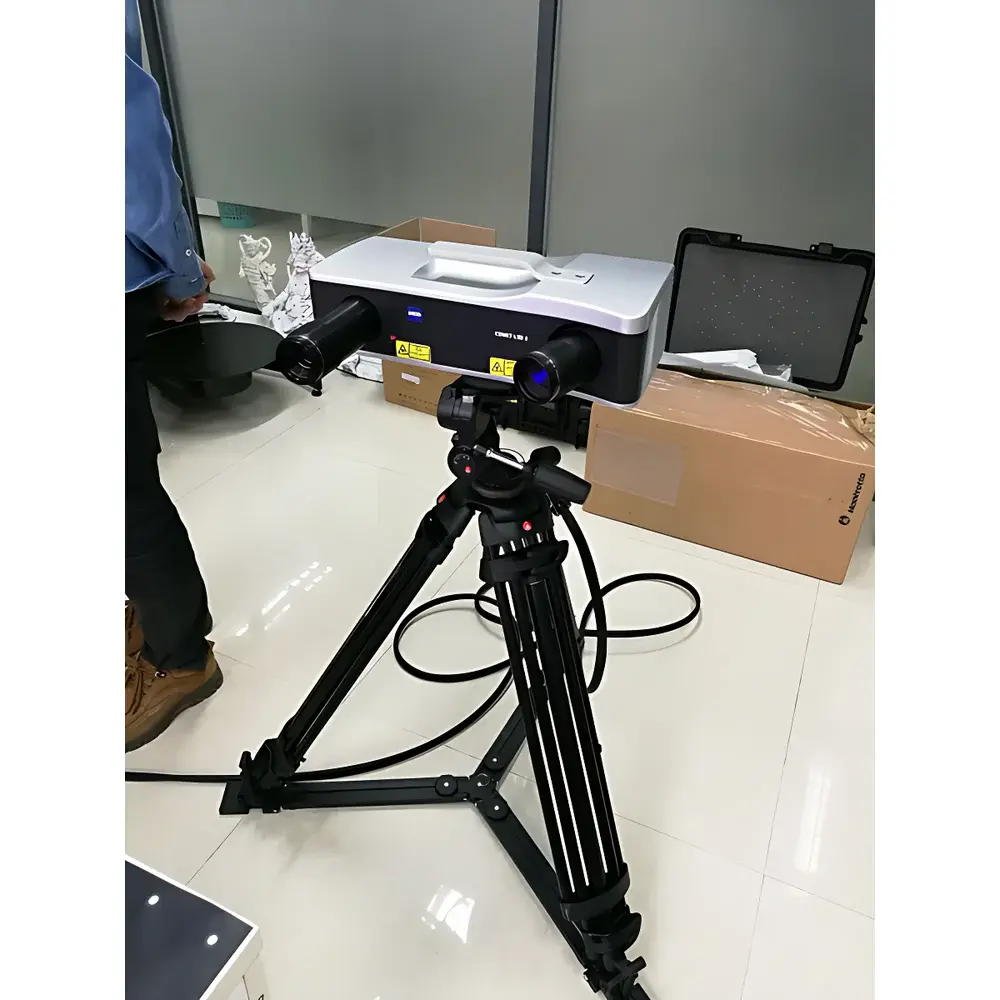

| Pricing | Available Upon Request |
| Measurement Principle | Structured Light Triangulation (Blue LED) |
| Resolution | Up to 5 MP (2448 × 2050 px) |
| Point Distance | 50–250 µm (configurable by measurement volume) |
| Acquisition Time | 1.5–2 s per scan |
| Measurement Volumes | 100 mm³ / 200 mm³ / 400 mm³ variants |
| Software | COMETplus v8.x (Windows-based, multi-core optimized) |
| Automation Support | COMETrotary (single-axis motorized turntable, ≤30 kg), COMETdual rotary (dual-axis tilt+rotate, ≤20 kg) |
| Compliance | ISO 10360-7, VDI/VDE 2634 Part 2, supports GLP/GMP audit trails via optional reporting modules |
| Brand | YueLian (PW) |
|---|---|
| Origin | Guangdong, China |
| Manufacturer Type | Authorized Distributor |
| Regional Classification | Domestic (China) |
| Model | PW-D100 |
| Pricing | Upon Request |
| Brand | Yuelian |
|---|---|
| Origin | Guangdong, China |
| Manufacturer Type | Authorized Distributor |
| Country of Origin | China |
| Model | YL-VMS |
| Optical System | Sony High-Resolution Color CCD Camera |
| Zoom Lens | NAVITAR Dual-Focus Zoom Objective (0.7×–4.5×) |
| Motion Control | Manual with Precision Linear Encoders on X-, Y-, and Z-Axes |
| Base Material | Granite |
| Illumination | Dual-Mode LED Cold Light (Surface & Edge) |
| Software | MCINS Manual Edition (2D Metrology Suite) |
| Data Export | CSV, TXT, DOCX, XLSX, DXF |
| Brand | ZEISS |
|---|---|
| Origin | Germany |
| Manufacturer Type | Authorized Distributor |
| Origin Category | Imported |

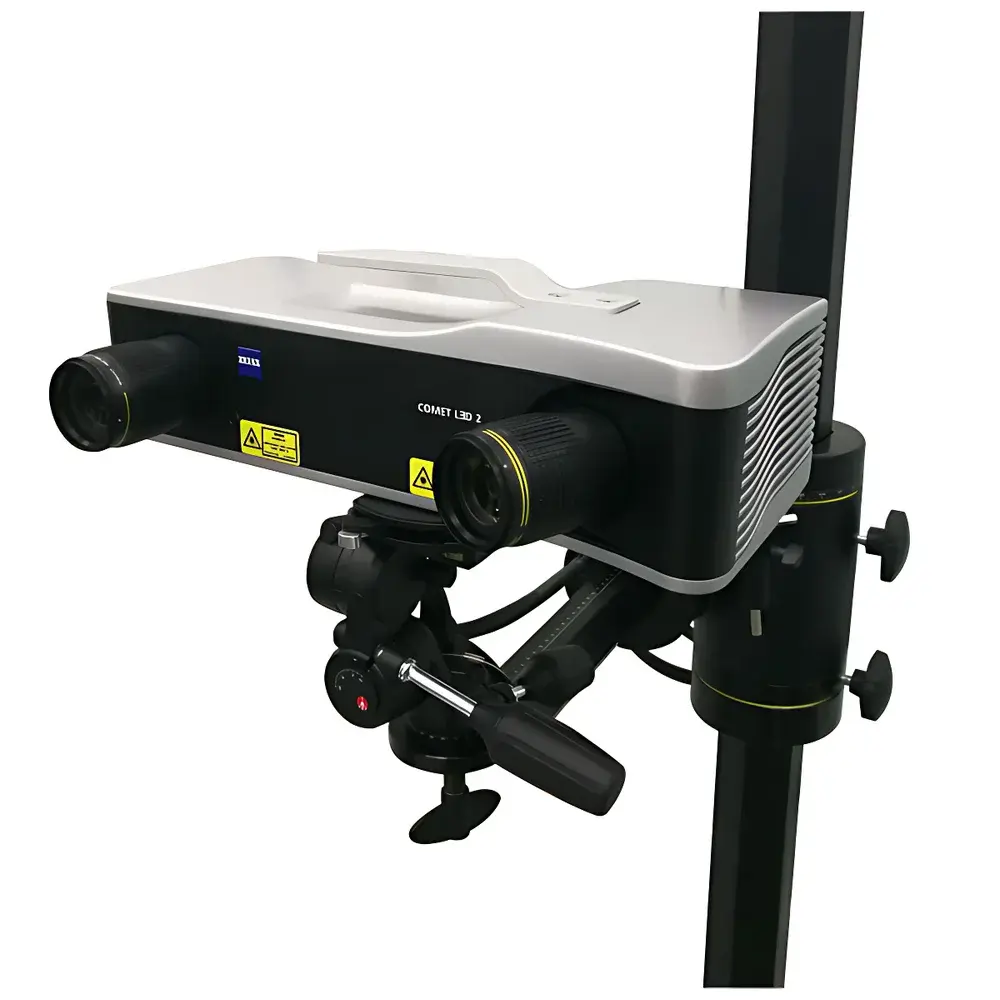

| Model | COMET L3 |
| Pricing | Available Upon Request |
| Measurement Principle | Structured Light (Blue LED) |
| Resolution | Up to 5 Mpx (2448 × 2050) |
| Point Distance | 50–250 µm (configurable by measurement volume) |
| Scan Speed | 1.5–2 s per frame |
| Measurement Volumes | 100 mm³ / 200 mm³ / 400 mm³ |
| Software | COMETplus (Windows-based, multi-core optimized) |
| Accessories | COMETrotary (single-axis motorized turntable, 30 kg capacity), COMETdual rotary (dual-axis tilt+rotate, 20 kg capacity) |
| Compliance | Designed for ISO/IEC 17025-aligned metrology workflows, supports traceable calibration and GLP/GMP documentation protocols |
| Brand | ZEISS |
|---|---|
| Origin | Germany |
| Manufacturer Type | Authorized Distributor |
| Import Status | Imported |
| Model | COMET5 1.4M |
| Effective Resolution | 1360 × 1024 pixels |
| Pixel Size | 1360 × 1024 |
| Measurement Volume Ranges (mm³) | 46×34×50 / 110×82×70 / 220×164×140 / 444×330×250 / 890×660×500 |
| 3D Point Spacing | 50 / 100 / 200 / 400 / 800 µm |
| Minimum Acquisition Time | 0.6 s |
| Interface | CAN bus + Gigabit Ethernet |
| Software Platform | COMETplus v8.x (64-bit Windows OS compatible) |
| Brand | Solutionix |
|---|---|
| Origin | South Korea |
| Model | REXCAN DS2 |
| Measurement Principle | Phase-Shift Optical Triangulation |
| 3D Scan Volume (DS2-L) | 80 mm × 60 mm × 60 mm |
| 3D Scan Volume (DS2-M) | 60 mm × 45 mm × 40 mm |
| Point Spacing | 0.05 mm / 0.065 mm |
| Triangulation Angle | 15° |
| Rotation Stage | 2-Axis (Tilting + Rotating) |
| Light Source | High-Stability LED (30,000 hr lifetime) |
| Interface | USB 2.0 High-Speed |
| Output Format | STL (ASCII/Binary) |
| Operating System | Windows XP (32-bit), Windows 7 (32/64-bit) |
| Dimensions (W×H×D) | 212 mm × 370 mm × 449 mm |
| Weight | 12.5 kg |
| Power Supply | AC 85–265 V, 47–63 Hz |
| Voltage-Free I/O Contacts | Yes |
| Brand | PW |
|---|---|
| Origin | Guangdong, China |
| Manufacturer Type | Authorized Distributor |
| Country of Origin | China |
| Model | PW-OMS322 |
| Price Range | USD 2,800 – 28,000 |
| Brand | ZEISS |
|---|---|
| Origin | Germany |
| Model | COMET5 2.0 |
| Camera Resolution | 1600 × 1200 pixels |
| Measurement Volumes (L×W×H) | 85×65×60 mm³ to 800×600×500 mm³ |
| 3D Point Spacing | 55–500 µm (configurable per field-of-view) |
| Acquisition Time | ≤ 0.6 s per scan |
| Interface | CAN bus + Gigabit Ethernet |
| Software Platform | COMETplus v8.x (64-bit, Windows 10/11) |
| Brand | YueLian (PW) |
|---|---|
| Origin | Guangdong, China |
| Manufacturer Type | Authorized Distributor |
| Product Origin | Domestic (China) |
| Model | PW-500 |
| Pricing | Upon Request |
| Brand | ZEISS |
|---|---|
| Origin | Germany |
| Manufacturer Type | Authorized Distributor |
| Origin Category | Imported |
| Model | COMET L3D |
| Price Range | USD 14,000 – 70,000 |
| Brand | Yuelian |
|---|---|
| Origin | Guangdong, China |
| Model | YH1100 |
| Product Type | Automated |
| Transmittance Range | 0–100% |
| Haze Repeatability | <0.1 (with φ20 mm aperture) |
| Illumination Geometry | 0/D (0° incident / Diffuse reception) |
| Integrating Sphere Diameter | φ154 mm |
| Light Source | 400–700 nm LED array |
| Detector | PD array compliant with CIE V(λ) 2° photopic luminosity function |
| Measurement Wavelength Range | 400–700 nm (customizable extension available) |
| Aperture Options | φ20 mm / φ15 mm / φ8 mm / φ4 mm (single fixed aperture per unit) |
| Sample Thickness Limit | <170 mm |
| Measurement Time | ~1.5 s |
| Haze Resolution | 0.01% |
| Haze Unit | % |
| Inter-instrument Agreement (φ20 mm) | <0.4% |
| Dimensions (L×W×H) | 290 × 211 × 511 mm |
| Weight | 7.6 kg |
| Power Supply | DC 24 V, 3 A adapter |
| Light Source Lifetime | >3 million measurements or ≥5 years |
| Display | 7-inch TFT capacitive touchscreen |
| Interfaces | USB, RS-232 serial (printer port) |
| Data Storage | 1,000 standards + 20,000 samples |
| Supported Languages | English, Simplified Chinese, Traditional Chinese |
| Operating Temperature | 0–40 °C |
| Storage Temperature | −20–50 °C |
| Compliance Standards | ASTM D1003, ASTM D1044, ISO 14782, ISO 13468, GB/T 2410, JJF 1303–2011, JIS K7105, JIS K7361, JIS K7136, CIE 15.2 |
| Brand | PW Optical Metrology Systems |
|---|---|
| Origin | Guangdong, China |
| Manufacturer Type | Authorized Distributor |
| Country of Origin | China |
| Model | PW-AM800 |
| Pricing | Upon Request |
| Brand | PW (Yuelian) |
|---|---|
| Origin | Guangdong, China |
| Manufacturer Type | Authorized Distributor |
| Country of Origin | PRC |
| Model | PW-OMV2018 |
| Price Range | USD 2,800 – 28,000 |
| Brand | PW |
|---|---|
| Origin | Guangdong, China |
| Manufacturer Type | Authorized Distributor |
| Country of Origin | China |
| Model | PW-OMV8060 |
| Price Range | USD 2,800 – 28,000 |
| Brand | PW |
|---|---|
| Origin | Guangdong, China |
| Manufacturer Type | Authorized Distributor |
| Product Origin | Domestic (China) |
| Model | PWC-100 |
| Price Range | USD 2,800 – 28,000 |
| Brand | ZEISS |
|---|---|
| Origin | Germany |
| Manufacturer Type | Authorized Distributor |
| Origin Category | Imported |
| Model | ZEISS METROTOM CT |
| Price Range | USD 1 – 999,000 |
