| Brand | NewOpto |
|---|---|
| Origin | USA |
| Manufacturer Type | Authorized Distributor |
| Origin Category | Imported |
| Model | Quantas Q1-1053 / Q2-1053 |
| Light Source Type | Infrared Pulsed Solid-State Laser |
| Illumination Mode | External Illumination |
| Wavelength | 1053 nm (1047 nm optional) |
| Fundamental Output Energy | 5–70 mJ |
| Harmonic Outputs | 527 nm (2–35 mJ), 351 nm (1–20 mJ), 263 nm (0.6–11 mJ), 211 nm (0.15–3.5 mJ) |
| Repetition Rate | 10 Hz (factory-fixed) |
| Pulse Width | < 8 ns |
| Pulse-to-Pulse Energy Stability | < 1 % rms (Q1), < 0.7 % rms (Q2) |
| Power Drift | ±3% |
| Beam Profile | Near TEM₀₀, >75% Gaussian |
| Beam Divergence | < 3 mrad (Q1A) to < 1.5 mrad (Q1C/Q1D) |
| Beam Diameter | 1.2–3.0 mm |
| Polarization | Linear, horizontal |
| Optical Jitter | < 1 ns rms |
| Laser Head Dimensions | 113 × 230 × 112 mm (Q1), 113 × 400 × 112 mm (Q2-1053) |
| Harmonic Generator | 113 × 242 × 112 mm |
| Controller Unit | 85 × 165 × 50 mm |
| Power Adapter | 50 × 125 × 32 mm |
| Operating Environment | 15–30°C, 10–80% RH (non-condensing), 90–230 VAC, 30 W, 47–63 Hz |
| Brand | PD-LD |
|---|---|
| Origin | USA |
| Component Type | Optical Element |
| Available Configurations | Lensed VBG, Chirped VBG (Transverse & Longitudinal), Fixed-Reflectivity VBG, Variable-Reflectivity VBG |
| Center Wavelength Range | 400 nm – 2500 nm |
| Typical Center Wavelengths | 785 nm, 808 nm, 976 nm, 1064 nm |
| Wavelength Accuracy | ±0.5 nm |
| FWHM Line-width | ≤1.0 nm |
| Thermal Wavelength Drift | ≤0.01 nm/°C |
| Polarization Dependent Loss | ≤0.1 dB |
| Operating Temperature | –40°C to +130°C |
| Storage Temperature | –40°C to +130°C |
| Acceptance Angle | ±5° |
| Standard Dimensions | Single Emitter (1.5 mm × 2.0 mm), Diode Bar (1.5 mm × 15 mm), 2D Array (15 mm × 15 mm), Wafer Format (30 mm × 30 mm) |
| Brand | ScanSci |
|---|---|
| Model | ScanSource |
| Spectral Range | 200–1100 nm (standard), optional down to 180 nm |
| Lamp Types | Deuterium (D₂) + Tungsten-Halogen (W) |
| Deuterium Power | 30 W |
| Tungsten Power | 9 W |
| Output Stability (Fluctuation) | ≤2×10⁻⁵ A.U. |
| Long-Term Drift | ±0.3 %/h (D₂), ±0.25 %/h (W) |
| External Control | Shutter, Lamp On/Off, Main Power On/Off |
| Fiber Coupling | SMA 905 |
| Deuterium Lamp Lifetime | 2000 h |
| Tungsten Lamp Lifetime | 2000 h |
| Cooling | Active (fan-cooled) |
| Dimensions | 157 × 178 × 250 mm |
| Compliance | CE, RoHS |
| Origin | USA |
|---|---|
| Supplier Type | Authorized Distributor |
| Import Status | Imported |
| Model | THz Lenses |
| Component Category | Optical Element |
| Substrate Materials | HRFZ-Si (High-Resistivity Float-Zone Silicon), TPX (Polymethylpentene) |
| Lens Types | Plano-Convex, Bi-Convex, Positive Meniscus, Hyper-/Hypo-/Hemispherical, Bullet, Diffractive (Fresnel, Beam Divider) |
| Diameter Range | 2 mm to 150 mm |
| EFL Tolerance | ±1% |
| Surface Quality | 80/50 Scratch-Dig |
| Surface Accuracy | ±0.01 mm (spherical), variable for aspheric profiles |
| Clear Aperture | ≥90% |
| Coating | Optional Anti-Reflection (AR) Coating for 0.1–3 THz band |
| Brand | Semrock |
|---|---|
| Origin | USA |
| Manufacturer Type | Authorized Distributor |
| Import Status | Imported |
| Model Series | RazorEdge® / EdgeBasic™ |
| Warranty | 5 Years |
| Lead Time for Custom Orders | 7 Days |
| Brand | Edmund Optics |
|---|---|
| Model | newopto |
| Detector Types | UV Si, Vis Si, NIR InGaAs, Extended InGaAs, PbS, PbSe |
| Spectral Ranges | 200–1000 nm (Si), 300–1000 nm (Si), 800–1600 nm (InGaAs), 800–1700 nm (InGaAs), 1000–1700 nm (InGaAs), 1200–2500 nm (InGaAs), 1200–2600 nm (InGaAs), 1000–2800 nm (PbS), 1000–4500 nm (PbSe) |
| Active Area Diameters | 1.0 mm, 2.0 mm, 2.5 mm, 3.0 mm, 5.0 mm, 10.0 mm, 11.0 mm |
| Cooling Options | Thermoelectric (TEC) cooling available |
| Output Interface | Analog voltage (0–5 V or ±5 V, configurable), compatible with oscilloscopes and DAQ systems |
| Integrated Pre-amplifier | Low-noise, transimpedance design |
| Compliance | RoHS-compliant construction |
| Brand | NewOpto |
|---|---|
| Origin | Zhejiang, China |
| Manufacturer Type | Authorized Distributor |
| Product Origin | Domestic (China) |
| Model | LLS-LEDs |
| Light Source Type | Solid-State LED |
| Illumination Mode | External Illumination |
| Connector Type | SMA 905 |
| Wavelength Range | 240 nm – 2100 nm |
| Spectral Options | UV, Visible, NIR, Broadband White (3000K–6500K CCT) |
| Coupling | FC/PC or SMA fiber-coupled output |
| Compliance | RoHS-compliant construction, CE-marked for laboratory use |
| Origin | USA |
|---|---|
| Manufacturer Type | Authorized Distributor |
| Origin Category | Imported |
| Model | NewOpto LS-1 / LS-2 |
| Price | Available Upon Request |
| Brand | NewOpto |
|---|---|
| Model | QP45-Q |
| Active Area | 6.7 × 6.7 mm² |
| Quadrant Configuration | Four electrically isolated, radially symmetric photodiode segments separated by a narrow gap (≤20 µm) |
| Spectral Range | Optimized for 1064 nm (high-responsivity InGaAs or Si-based epitaxial structure) |
| Reverse Bias | Up to 150 V |
| Dark Current | ≤3 nA per quadrant (at 150 V, 25°C) |
| Rise Time | ≤5 ns (50 Ω load) |
| Package | Hermetically sealed TO-8S metal can with quartz window |
| Operating Temperature | –10°C to +60°C |
| Compliance | RoHS-compliant, ISO 9001-manufactured components |
| Origin | Russia |
|---|---|
| Manufacturer Type | Authorized Distributor |
| Origin Category | Imported |

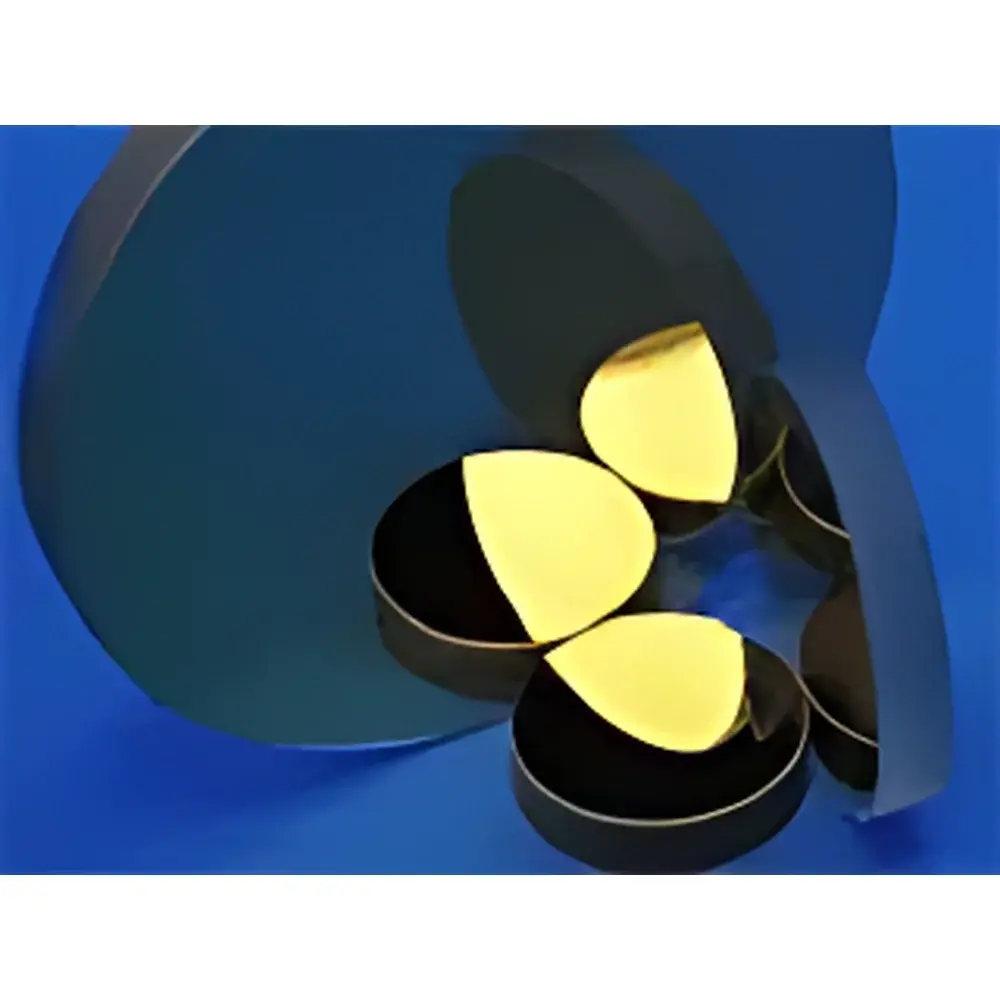

| Model | THz Mirrors |
| Price Range | USD 1,400 – 7,000 (FOB) |
| Component Category | Optical Element |
| Material | Fused Quartz |
| Type | Plano-Plano |
| Dimensional Tolerance | ±0.25 mm |
| Clear Aperture | ≥90% |
| Surface Quality (Polished) | 40/20 Scratch-Dig |
| Surface Roughness (Ground Side) | 2.5 Ra (µm) |
| Surface Accuracy | λ/2 @ 633 nm |
| Coating | Protected Gold |
| Gold Layer Thickness | 400 nm |
| Brand | NewOpto |
|---|---|
| Wavelength Range | 200–1100 nm |
| Core Diameter | 200 µm, 400 µm, 600 µm, or 1000 µm |
| Length | 2 m (custom lengths: 0.5 m / 1 m / 2 m) |
| Jacket Material | Plastic or Metal-Braided |
| Connector Type | SMA905 |
| Numerical Aperture | ~0.22 (typical for UV-grade silica fiber) |
| Operating Temperature | −40 °C to +85 °C |
| Compliance | RoHS-compliant construction |
| Fiber Type | High-OH synthetic fused silica (UV-optimized) |
| Brand | First Sensor |
|---|---|
| Origin | Germany |
| Model | 8AA0.4-9, 16AA0.13-9 (SOJ22GL & DIL18), 25AA0.04-9/25AA0.16-9 (BGA), 64AA0.04-9 (BGA), QA4000-9 (TO8Si) |
| Spectral Range | 760–910 nm |
| Quantum Efficiency | >80% |
| Package Types | SOJ22GL, DIL18, BGA, TO8Si |
| Temperature Compensation | NTC or PTC integrated |
| Element Count | 8, 16, 25 (5×5), 64 (8×8), Quadrant (4-element) |
| Origin | Israel |
|---|---|
| Manufacturer Type | Authorized Distributor |
| Origin Category | Imported |

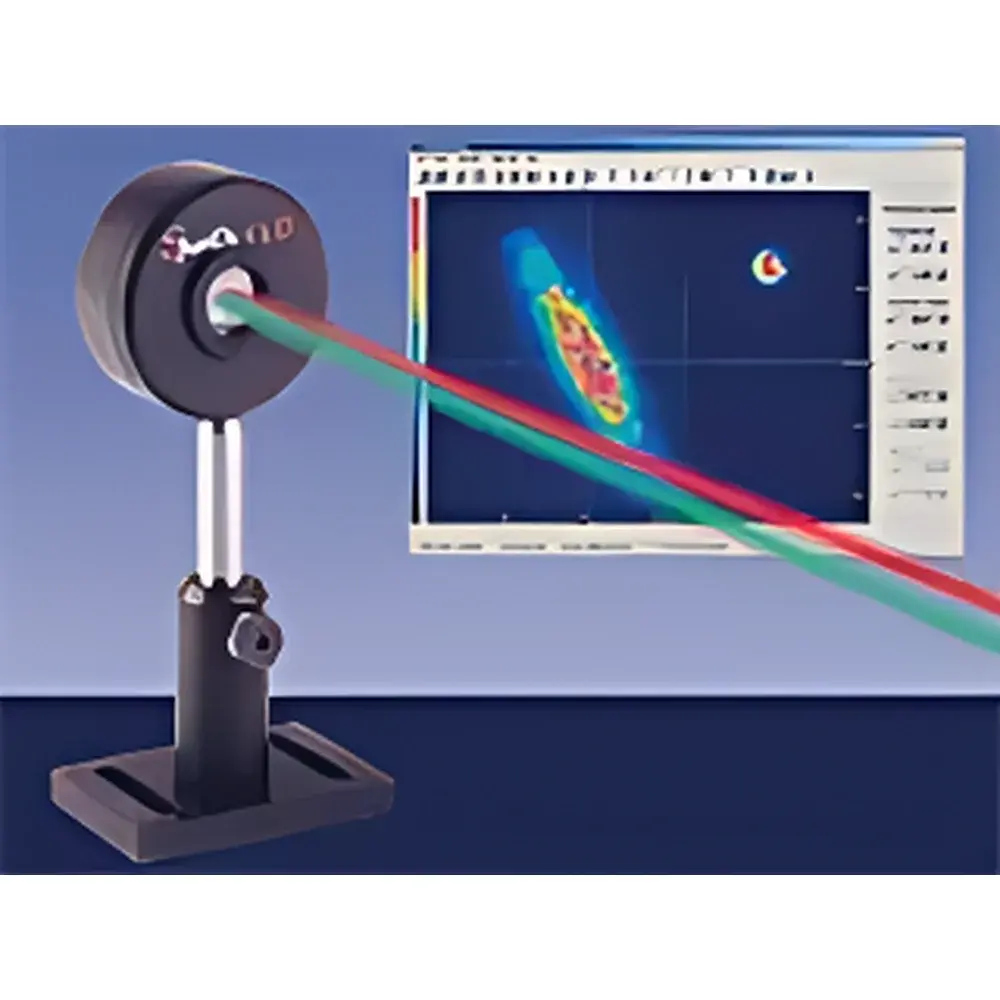

| Model | SpotOn CCD Series |
| Component Category | Optical Sensor Module |
| Spectral Range | 190–1550 nm |
| Position Accuracy | ±5 µm |
| Simultaneous Beam Tracking | Up to 3 beams |
| Interface Options | USB 2.0 or PCI |
| Detector Type | Monochrome CCD sensor |
| Brand | NewOpto |
|---|---|
| Origin | Zhejiang, China |
| Model | NewOpto-LEDs |
| Wavelength Range | 225–350 nm |
| Output Power Options | 1–3 mW, 3–5 mW, 10–15 mW, 30–50 mW |
| Emission Window Types | Flat or Hemispherical |
| Spectral FWHM | 12 nm (255 nm), ±5 nm (255–315 nm), ±10 nm (330–350 nm) |
| Package Formats | TO-39, TO-3, LCC |
| Drive Current | 80–900 mA |
| Illumination Mode | External (free-space) |
| Optional Accessories | Constant-current drivers (UVCLEAN-PS-DC-C), pulsed power supplies (UVCLEANPPS1μs/1A, UVCLEANPPS10ns/5.5A), SMA-fiber-coupled and pigtail configurations |
| Multi-wavelength Modules | 8-channel (TO-3), 12-channel (TO-5), 24-channel (LCC) |
| Brand | NewOpto |
|---|---|
| Model | Off-Axis Parabolic Mirror |
| Origin | Zhejiang, China |
| Component Category | Optical Element |
| Coating | Protected Aluminum (Al + SiO₂) |
| Surface Accuracy | λ/4 @ 633 nm (typical) |
| Surface Quality | 20–10 scratch-dig |
| Clear Aperture | ≥90% of nominal diameter |
| Focal Length Range | 25 mm to 500 mm (custom available) |
| Off-Axis Distance | 5 mm to 150 mm (configurable) |
| Substrate Material | Fused Silica or BK7 (standard) |
| Brand | BATOP |
|---|---|
| Origin | Germany |
| Model | SAM-1064-1-1ps-x |
| Component Type | Optical Element |
| Mounting Options | Unmounted (450 µm thickness), Mounted (4 mm × 4 mm chip), or Fiber-Pigtailed (FC/PC or FC/APC) |
| Wavelength | 1064 nm |
| Saturation Fluence | ~1 µJ/cm² (typ.) |
| Recovery Time | ~1 ps |
| Reflectivity (HR) | >99.9% at design wavelength |
| Cavity Structure | AlAs/GaAs Bragg stack with low-temperature GaAs (LT-GaAs) saturable absorber layer |
| Compliance | RoHS-compliant, ISO 9001-manufactured wafers |
| Brand | NewOpto |
|---|---|
| Type | Volume Bragg Grating (Transmission) |
| Center Wavelengths | 375, 405, 658, 780, 785, 794.7, 808, 885, 920, 938, 976, 981, 1064, 1532, C-band (1530–1565 nm) |
| Wavelength Tolerance | ±0.5 nm |
| Wavelength Drift | ≤0.2 nm |
| FWHM Bandwidth | 0.03–1 nm |
| Thermal Coefficient | 0.01 nm/°C |
| Diffraction Efficiency | 5–98% (typical >99.9% for optimized designs) |
| Reflectivity Tolerance | ±5% |
| Grating Slant Angle | <1° (customizable) |
| Standard Thickness | 0.3–3 mm |
| Custom Thickness Range | up to 30 mm |
| Standard Aperture | 0.5–25 mm |
| Substrate Material | Photo-thermo-refractive (PTR) glass |
| Polarization Sensitivity | Low (designed for unpolarized or linearly polarized input) |
| Damage Threshold | >5 J/cm² (ns pulses), >1 kW/cm² (CW, 1064 nm) |
| Brand | First Sensor |
|---|---|
| Origin | Germany |
| Model | 64AA0.04-9 |
| Type | APD Array Evaluation Module for LIDAR Applications |
| Bandwidth | 125 MHz |
| Package | Shielded OEM Module with PCB Integration |
| Compliance | RoHS, CE, ISO 9001 Certified Manufacturing |
| Supply Voltage | ±15 V DC |
| Operating Temperature Range | −10 °C to +60 °C |
| Output Interface | SMA coaxial (analog voltage) |
| HV Bias Control | Integrated ultra-low-noise high-voltage source (±500 V, <7.5 mV ripple) |
| Brand | Linos |
|---|---|
| Origin | Germany |
| Model | newopto |
| Wavelength Range | 355–1064 nm |
| Expansion Ratio | 2×–8× (variable, manual or motorized) |
| Max. Input Beam Diameter (1/e² Gaussian) | 3.4–8 mm |
| Max. Output Beam Diameter | 31 mm |
| Number of Lens Elements | 4 |
| Entrance Lens Material | Fused Silica (Quartz) |
| Mounting Diameter | 37.6 mm |
| Compliance | ISO 10110 optical surface specifications, RoHS-compliant housing |
| Brand | Thorlabs |
|---|---|
| Origin | USA |
| Model | NewOpto |
| Wavelength Range | 405 nm to 2000 nm |
| AR Coating Options | 395–415 nm, 350–700 nm, 600–1050 nm, 1050–1075 nm, 1050–1620 nm, 1.8–2.4 µm |
| Lens Diameter | 0.7–3.6 mm |
| Numerical Aperture (NA) | 0.15–0.60 |
| Focal Length | 4.02–18.75 mm |
| Connector Types | FC/PC, FC/APC, SMA |
| Compliance | RoHS, ISO 9001-certified manufacturing |
| Brand | Semrock |
|---|---|
| Origin | USA |
| Component Type | Hard-Coated Interference Filter |
| Mounting | 25 mm Diameter Aluminum Ring (Clear Aperture ≥ 21 mm) |
| Compliance | ISO 9001 Manufacturing, RoHS Compliant |
| Warranty | 5-Year Limited Warranty |
| Customization Lead Time | 7 Business Days |
| Brand | SET / Sensor Electronic Technology |
|---|---|
| Origin | USA |
| Model | UV TOP Series |
| Component Type | UV Light Source |
| Spectral Range | 240–370 nm |
| Package Options | TO-18, TO-39 |
| Emission Configurations | Flat Window (120° full-angle divergence), Hemispherical Lens (7° full-angle quasi-collimated), Spherical Lens (focused + 7° quasi-collimated), Fiber-Coupled |
| Wavelength Options | Discrete peaks from 240 nm to 355 nm (e.g., 275 nm, 310 nm) with ceramic SMD variants available |
| Optical Power Output | 10 µW to 800 µW (varies by wavelength, package, and lens type) |
| Viewing Angle | 7° (collimated), 120° (broad emission) |
| Compliance | RoHS-compliant packaging, JEDEC-standard hermetic sealing for TO-can variants |
| Brand | First Sensor |
|---|---|
| Origin | Germany |
| Model | SL21K-100k-A/GXX |
| Pressure Range | 100 kPa |
| Output Sensitivity | 40–70–130 mV @ 5 V excitation |
| Technology | STARe (Sensor Technology for Advanced Resistors) |
| Category | Optical Instrument Component |
| Compliance | RoHS, REACH, AEC-Q200 qualified (industrial variants) |
| Brand | NewOpto |
|---|---|
| Origin | Zhejiang, China |
| Manufacturer Type | Authorized Distributor |
| Product Origin | Domestic (China) |
| Model | Tunable External-Cavity Diode Laser (ECDL) |
| Light Source Type | Tunable Single-Frequency Semiconductor Laser |
| Illumination Mode | External Illumination |
| Wavelength Options | 780 nm, 852 nm |
| Output Power | Up to 30 mW (diode-dependent) |
| Linewidth (FWHM) | Typically <150 kHz |
| Tuning Range | Typical 10 nm per diode configuration |
| Tuning Mechanism | Cat’s-eye retroreflector + ultra-narrowband interference filter (replacing alignment-sensitive diffraction gratings) |
Show next
