| Brand | ART Photonics |
|---|---|
| Origin | Germany |
| Manufacturer Type | Authorized Distributor |
| Product Category | Imported Optical Component |
| Model | ART Fiber Series |
| Component Type | Optical Fiber Assembly |
| Core Shape | Round (custom shapes available) |
| Core Diameters | 100 µm, 200 µm, 300 µm, 400 µm, 600 µm, 800 µm |
| Core Material Options | High-OH Silica (0.18–1.2 µm), Low-OH Silica (0.35–2.5 µm) |
| Cladding | Fluorine-Doped Fused Silica |
| Numerical Aperture (Standard) | 0.22 ± 0.02 (Full Acceptance Angle: 25°) |
| Optional NA | 0.12 ± 0.02 (14°), 0.26 ± 0.02 (30°) |
| Protective Jacket Materials | Nylon, Tefzel®, Acrylate, Polyimide, Metal |
| Cable Tube | Polymer-Coated Stainless Steel |
| Length Range | 5 cm to 50 m |
| Connector Types | HP-SMA, D80 |
| Power Handling (HP-SMA) | 100 W (100 µm), 200 W (200 µm), 300 W (400 µm), 400 W (600 µm) |
| Power Handling (D80) | 150 W (100 µm), 400 W (200 µm), 600 W (400 µm), 800 W (600 µm) |
| Brand | ART Photonics |
|---|---|
| Origin | Germany |
| Model | newopto |
| Fiber Type | Chalcogenide (CIR) / Polycrystalline (PIR) |
| Transmission Range | 6500–1700 cm⁻¹ (CIR) / 3600–600 cm⁻¹ (PIR) |
| Max. Temp. | ≤90°C (CIR) / ≤100°C (PIR) |
| Total Length | 1 m (standard) |
| Shaft Length | 120 mm |
| Shaft Diameter | 10 mm |
| Shaft Material | PEEK |
| Protective Tube Material | PEEK |
| Connector | Long SMA (custom options available) |
| Detachable Loop Configuration | Single-loop, double-loop, triple-loop, and multi-loop variants |
| Brand | ART Photonics |
|---|---|
| Origin | Germany |
| Model | newopto |
| Fiber Types | PIR-900/1000 (AgCl:AgBr), CIR-500/550 (As-S-glass) |
| ATR Crystal Materials | Diamond, ZnSe, Cubic Zirconia |
| Transmission Ranges | 5.2–17 µm + 3.2–4.5 µm (Diamond), 3.2–17 µm (ZnSe), 1.5–6.5 µm (Cubic Zirconia) |
| Wavenumber Ranges | 600–1900 cm⁻¹ + 2300–3100 cm⁻¹ (Diamond), 600–3100 cm⁻¹ (ZnSe), 1550–6650 cm⁻¹ (Cubic Zirconia) |
| Operating Temperature | −150°C to +140°C (Diamond/ZnSe), −150°C to +90°C (Cubic Zirconia) |
| Max. Pressure | 200 bar (Diamond), 10 bar (ZnSe), 100 bar (Cubic Zirconia) |
| Total Length | 1.5 m (configurable: 1–5 m) |
| Shaft Length | 230 mm (configurable: 100–500 mm) |
| Shaft Diameter | 3–12 mm (standard options: 6.3 mm, 12 mm) |
| Shaft Material | Hastelloy C22 |
| Leg Length | 300 mm (configurable: 100–500 mm) |
| Protective Tube | Liquid-tight stainless steel conduit or KOPEX polymer tube |
| Minimum Bending Radius | 130 mm |
| Input/Output Connector | Long SMA (custom options available) |
| Compatible Process Interfaces | Ceramat-FOS, SensoGate-FOS |

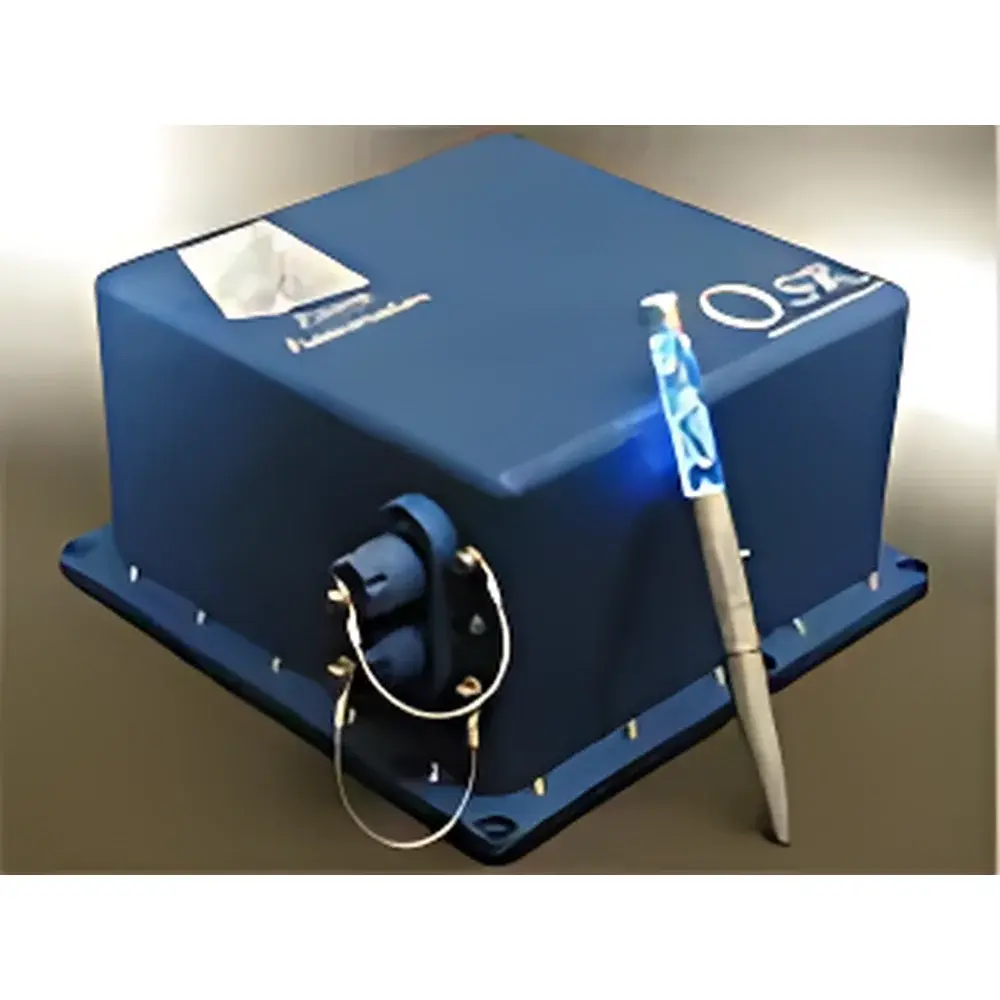

| Brand | Arete Associates |
|---|---|
| Origin | USA |
| Manufacturer Type | Authorized Distributor |
| Import Status | Imported |
| Model | NewOpto |
| Core Technology | Diode-Pumped Solid-State (DPSS) Q-Switched Laser |
| Wavelength Options | 1064 nm, 532 nm, 355 nm, 266 nm, 1572 nm |
| Pulse Energy Range | 10–200 mJ |
| Average Power | 1–6 W |
| Pulse Width | ~3 ns (FWHM) |
| Repetition Rate | 30–100 Hz |
| Beam Quality (M²) | <5 to <10 |
| Dimensions | 185×185×102 mm³ or 259×185×120 mm³ |
| Brand | Anteryon |
|---|---|
| Origin | Netherlands |
| Type | Glass-Molded Hybrid Aspheric Optical Lens |
| Component Category | Optical Element |
| Compliance | ISO 10110-5, ISO 9001-certified manufacturing |
| Surface Irregularity | λ/25 to λ/15 RMS (633 nm), typical |
| Coating Options | AR (400–700 nm), NIR (780–1100 nm), or custom broadband anti-reflection coatings |
| Mounting | Unmounted (standard) |
| Material Substrate | BK7, SF10, or fused silica (model-dependent) |
| Brand | A.L.S. GmbH / Advanced Laser Diode Systems |
|---|---|
| Origin | Germany |
| Model | PiLas Series |
| Wavelength Range | 375–2000 nm |
| Pulse Width | 20 ps – 1 ns (variable) |
| Peak Power | 20–1000 mW |
| Repetition Rate | Single-shot to 120 MHz |
| Output | Free-space or fiber-coupled (SMF/MMF) |
| Polarization Extinction Ratio | >23 dB |
| Timing Jitter | <3 ps RMS |
| Warm-up Time | <5 min |
| Laser Head Dimensions | 95 × 31 × 147 mm³ |
| Control Unit Dimensions | 235 × 88 × 326 mm³ |
| Options | DFB narrow-linewidth variants, TTL/NIM trigger conversion, thermal wavelength tuning, OEM single-box integration |
