| Origin | Israel |
|---|---|
| Manufacturer Type | Authorized Distributor |
| Origin Category | Imported |
| Model | BeamOn Series |
| Price Range | USD 1,400–7,200 (FOB) |
| Core Components | CCD-based beam analysis system with calibrated neutral-density filtering, USB 2.0 interface, and proprietary beam characterization software |
| Brand | Cobolt |
|---|---|
| Origin | Sweden |
| Model | DLC Series |
| Wavelength Range | 457–594 nm |
| Output Power Options | 25–300 mW per line |
| Spectral Linewidth | <1 MHz (<0.01 pm) |
| Spatial Mode | TEM₀₀, M² < 1.1 |
| Beam Diameter (aperture) | 700 µm |
| Beam Divergence (full angle) | <1.2 mrad |
| Beam Overlap | <250 µrad |
| Long-Term Power Stability (8 h) | <±3% (at ±3°C ambient) |
| Beam Pointing Stability | <25 µrad/°C |
| Polarization Ratio | >100:1 (linear) |
| Total Power Consumption | <70 W (typ. <30 W) |
| Operating Temperature | 10–40 °C |
| Heat Sink Thermal Resistance | 0.5 K/W |
| Dual Combiner Dimensions | 190 × 65 × 46 mm |
| Controller Dimensions | 190 × 72 × 28 mm |
| Communication Interface | RS-232 or USB |
| CDRH Compliance | Integrated key-switch |
| Warranty | 12 months (24 months on laser heads) |
| Brand | Cobolt |
|---|---|
| Origin | Sweden |
| Model | Cobolt THCure Series |
| Wavelength | 640 nm / 660 nm |
| Output Power (Fiber-Coupled) | ≤75 mW |
| Spatial Mode | TEM₀₀, M² = 1.1 |
| Mode Field Diameter (MFD) | 4.5 µm |
| Spectral Linewidth (FWHM) | <1.2 nm |
| Polarization Ratio | >100:1 |
| Relative Intensity Noise (RIN, 250 Hz–2 MHz) | <0.2% (rms) |
| Power Stability (8 h) | <0.5% |
| Modulation | Digital (DC–150 MHz), Analog (DC–2 MHz), Remote ON/OFF (DC–500 kHz) |
| Rise/Fall Times | <2.5 ns (digital), <200 ns (analog), <500 ns (ON/OFF) |
| Operating Baseplate Temperature | ≤50 °C |
| Total Power Consumption | <10 W |
| Fiber Type | 1 m single-mode or polarization-maintaining fiber with 3 mm jacketing |
| Numerical Aperture | 0.09 |
| Output Connector | FC/APC (non-collimated) |
| Communication Interface | RS-232 and USB |
| Warranty | 12 months |
| Brand | Cobolt |
|---|---|
| Origin | Sweden |
| Manufacturer Type | Authorized Distributor |
| Product Origin | Imported |
| Model | newopto |
| Price | Upon Request |
| Center Wavelength Range | 2–5 µm |
| Average Output Power | >100 mW |
| Repetition Rate | >10 kHz |
| Pulse Width | <5 ns |
| Pulse Energy | >5 µJ |
| Spectral Bandwidth | <1.5 nm |
| Tuning Range | >10 nm (via crystal temperature) |
| Beam Ellipticity | >0.90:1 |
| Collimated Beam Diameter | 1.5 mm |
| Full-Angle Beam Divergence | <3.5 mrad |
| Pulse-to-Pulse Timing Jitter | <1 µs |
| 8-Hour Long-Term Power Stability | <3% |
| Total System Power Consumption | <63 W |
| Operating Temperature | 10–40 °C |
| Laser Head Dimensions (L×W×H) | 125 × 70 × 45 mm |
| Controller Dimensions (L×W×H) | 190 × 72 × 28 mm |
| Communication Interface | RS-232 or USB |
| Warranty | 12 months |
| Brand | NewOpto |
|---|---|
| Origin | Zhejiang, China |
| Manufacturer Type | Authorized Distributor |
| Country of Origin | China |
| Model | newopto |
| Central Wavelengths | 1.0 μm, 1.3 μm, 1.5 μm, 1.6 μm |
| Output | Polarization-Maintaining (PM) Fiber |
| Output Power | 10–1000 mW |
| Linewidth | 1–1000 kHz |
| Tuning Range | 0–3 nm |
| Wavelength Stability | ±1 pm |
| Power Stability | ≤1% (RMS, 8 hrs) |
| Frequency Modulation Bandwidth | <0.1 GHz (amplitude), 10 Hz–100 kHz (repetition rate) |
| Frequency Noise | <300–500 Hz/√Hz @ 1 Hz |
| Intensity Noise | <−130 dB/Hz @ 1 Hz |
| Operating Temperature | 0–50 °C |
| Power Supply | 110–240 VAC, 50–60 Hz |
| Power Consumption | <2 W (per channel) |
| Dimensions | 326 × 161 × 78 mm³ |
| Weight | 1.5 kg |
| Brand | NewOpto |
|---|---|
| Origin | Zhejiang, China |
| Manufacturer Type | Authorized Distributor |
| Origin Category | Domestic (China) |
| Model | NewOpto Lasers |
| Core Technology | Monolithic Nd:YAG/Nd:YVO₄-based Passive Q-Switching |
| Key Specifications | Single Longitudinal Mode (SLM), Polarization Ratio >100:1, Spectral Linewidth ≤0.2 nm (FWHM), Repetition Rates from Single-Shot to 100 kHz, Pulse Widths from 350 ps to 2.5 ns, Output Wavelengths at 266, 355, 473, 532, 946, and 1064 nm |
| Package Options | SP (Standard Package), FP2 (Fiber-Pigtailed Compact Module), TO3 (TO-Can Style), ILM (Integrated Laboratory Module with Controller, Power Supply & Housing) |
| Dimensions | SP: 167.1×88.9×73.9 mm |
| FP2 | 50.5×34.0×25.5 mm |
| TO3 | 39.2×26.0×33.8 mm |
| ILM | 1315.0×114.3×86.4 mm |
| Brand | NewOpto |
|---|---|
| Origin | USA |
| Model | 473-10-100 |
| Wavelength | 473 nm |
| Pulse Energy | 10 µJ |
| Pulse Width | 2.5 ns |
| Repetition Rate | 100 Hz |
| Spectral Bandwidth | 0.2 nm |
| Output Type | Q-switched, TEM₀₀ |
| Cooling | Air-cooled |
| Beam Diameter (1/e²) | ~0.8 mm |
| Beam Divergence (full angle) | <1.5 mrad |
| Polarization | Linear, >100:1 |
| Power Supply | 100–240 VAC, 50/60 Hz |
| Compliance | CE, RoHS, FDA 21 CFR Part 1040.10 (Laser Product Safety) |
| Origin | Russia |
|---|---|
| Manufacturer Type | Authorized Distributor |
| Import Status | Imported |
| Model | HCL-10U |
| Core Technology | Gas Discharge Laser System |
| Wavelength | 325 nm (UV) |
| Output Power | 10.0 mW |
| Beam Mode | TEM₀₀ |
| Polarization Ratio | 100:1 |
| Beam Diameter | ~0.65 mm (typ.) |
| Divergence | <1.5 mrad (full angle) |
| Coherence Length | >30 cm |
| Warm-up Time | <15 min |
| Operating Voltage | 220 V AC, 50/60 Hz |
| Cooling | Forced-air |
| Lifetime | ≥5,000 hours (typ.) |
| Brand | Toptica |
|---|---|
| Origin | Germany |
| Manufacturer Type | Authorized Distributor |
| Origin Category | Imported |
| Model Series | Toptica/eagleyard |
| Pricing | Available Upon Request |
| Brand | MPB |
|---|---|
| Model | newopto |
| Emission Wavelength | 1020–1100 nm |
| Output Power | 10–20 mW (with PM preamplifier), 150 mW (with PM booster amplifier), 3000 mW (with high-power PM booster) |
| Pulse Duration | 2–50 ps |
| Repetition Rate | 30–100 MHz |
| Polarization | Linear, Fully Polarization-Maintaining (PM) Fiber Architecture |
| Operating Mode | Self-Starting Passive Mode-Locking |
| Brand | Cobolt |
|---|---|
| Origin | Sweden |
| Model | newopto |
| Output Power Options | 25 / 50 / 100 / 200 mW |
| Spectral Linewidth | <1 MHz (<0.01 pm) |
| Wavelength Stability | ±0.02 nm (typ. 2 pm over ±2°C and 8 h) |
| Spatial Mode | TEM₀₀, M² < 1.1 |
| Beam Diameter (at aperture) | 700 µm |
| Full-Angle Beam Divergence | <1.2 mrad |
| Intensity Noise (20 Hz–20 MHz, pk-pk) | <3% (typ. <2%) |
| Intensity Noise (20 Hz–20 MHz, rms) | <0.3% (typ. <0.2%) |
| Long-Term Power Stability (8 h) | <3% |
| Beam Pointing Stability | <10 µrad/°C (typ. 5 µrad/°C) |
| Polarization Ratio | >100:1 |
| Total System Power Consumption | <35 W (typ. <15 W) |
| Operating Temperature | 10–40 °C |
| Max. Laser Head Baseplate Temp. | 50 °C |
| Recommended Heat Sink Thermal Resistance | 0.5 K/W |
| Laser Head Dimensions | 103 × 60 × 40 mm³ |
| Controller Dimensions | 190 × 72 × 28 mm³ |
| Communication Interface | RS-232 or USB |
| Safety Compliance | CDRH Class 3B (key-switch enabled) or OEM auto-start mode |
| Warranty | 24 months |
| Brand | Cobolt |
|---|---|
| Origin | Sweden |
| Model | Cobolt |
| Wavelength Options | 473 nm, 491 nm, 515 nm, 532 nm, 561 nm, 594 nm |
| Max Output Power (Fiber-Coupled) | 35–150 mW |
| Fiber Type | 1 m Single-Mode or Polarization-Maintaining Fiber, 3 mm Jacket, NA < 0.12 |
| Polarization Extinction Ratio | > 100:1 |
| Output Connector | FC/APC (non-collimated, OEM-customizable) |
| Power Stability (8 h, ±3°C) | < 3% |
| Intensity Noise | Equivalent to Free-Space Version |
| Total System Power Consumption | < 35 W (typ. < 15 W) |
| Operating Temperature | 10–40 °C |
| Max Laser Head Baseplate Temp. | 50 °C |
| Laser Head Dimensions | 117 × 60 × 45 mm |
| Controller Dimensions | 192 × 72 × 28 mm |
| Communication Interface | RS-232 |
| Safety Compliance | CDRH-compliant (key-switch or auto-start variants) |
| Brand | NewOpto |
|---|---|
| Model | SL-01 / SL-02 |
| Wavelength | 633 nm |
| Output Power | >1.2 mW (SL-01), >2.4 mW (SL-02) |
| Polarization Ratio | >800:1 |
| Spatial Mode | TEM₀₀ |
| Beam Diameter | 0.63 mm |
| Beam Divergence | 1.3 mrad |
| Warm-up Time | <10 min |
| Frequency Stability (1 min) | ±2×10⁻⁹ (freq. stabilized mode) |
| Frequency Stability (1 hr) | ±5×10⁻⁹ |
| Frequency Stability (8 hr) | ±1×10⁻⁸ |
| Intensity Stability (1 min) | ±0.1% (intensity stabilized mode) |
| Intensity Stability (1 hr) | ±0.2% |
| Thermal Frequency Drift | <2 MHz/°C |
| Linewidth | <1 MHz (typical, single longitudinal mode) |
| Brand | NewOpto |
|---|---|
| Origin | Zhejiang, China |
| Manufacturer Type | Authorized Distributor |
| Product Category | Domestic |
| Model | NewOpto-XX |
| Price Range | USD 140 – 4,300 (based on configuration) |
| Wavelength Options | 375, 445, 473, 488, 515, 640, 660 nm |
| Wavelength Tolerance | ±5 nm |
| Output Power | 25–100 mW |
| Beam Divergence (full angle) | <1.1–1.7 mrad |
| Spatial Mode | TEM₀₀, M² < 1.2 |
| Beam Diameter at Aperture | 0.8 mm or 1.2 mm |
| Beam Ellipticity (Symmetry) | >0.90:1 |
| Intensity Noise (20 Hz–20 MHz, RMS) | <0.1% |
| Power Stability (8 h) | <1% (typ.), <0.1% (with TEC stabilization) |
| Spectral Linewidth (FWHM) | <1.2 nm (narrow-line variants), <2 nm (standard) |
| Polarization Extinction Ratio | >100:1 |
| Digital Modulation Bandwidth | DC–150 MHz |
| Digital Rise/Fall Time | <2.5 ns |
| Analog Modulation Bandwidth | DC–2 MHz |
| Analog Rise/Fall Time | <200 ns |
| Remote ON/OFF Bandwidth | DC–500 kHz |
| Rise/Fall Time (ON/OFF) | <500 ns |
| Max. Baseplate Temperature | 50 °C |
| Total Power Consumption | <10 W |
| Communication Interface | RS-232 or USB |
| CDRH Compliance | Yes (Class 3B/4 per model) |
| Warranty | 12 months |
| Brand | Duma Optronics |
|---|---|
| Origin | Israel |
| Model | SpotOn Series (SPOTUSB-L, SPOTUSB-N, SPOTUSB-Q, SPOTUSB-U, SPOTON-LA) |
| Spectral Range | 350–1100 nm |
| Position Accuracy | ±0.1 µm or ±0.025% of beam size |
| Active Area Options | 4×4 mm to 135×100 mm |
| Detector Types | Lateral-Effect PSD & Quadrant PSD |
| Interface | USB 2.0 (digital PnP), Analog Output Optional |
| Filter Options | NG4 / NG9 / NG10 housed ND filters (3/4"-32 thread) |
| Ambient Light Suppression | Optional 55-mm hood |
| Compliance | CE, RoHS |
| Origin | Germany |
|---|---|
| Manufacturer Type | Authorized Distributor |
| Origin Category | Imported |
| Model | CryLas FQCW-266 |
| Core Technology | Diode-Pumped Solid-State (DPSS) Q-Switched Frequency-Quadrupled Nd:YAG Laser |
| Output Wavelength | 266 nm |
| Output Power Options | 10 / 50 / 100 / 200 mW |
| Power Tunability | 20–110% of rated output |
| Spectral Linewidth | <300 kHz |
| Coherence Length | >1000 m |
| Beam Quality (M²) | <1.3 |
| Polarization Ratio | >100:1 (vertical) |
| Beam Diameter | 0.55 mm ±20% |
| Full Beam Divergence | <0.8 mrad |
| Beam Pointing Stability | <3 μrad/K |
| Power Stability (8 h) | <1% RMS |
| Intensity Noise (100 kHz–10 MHz) | <0.5% RMS |
| Warm-up Time | <15 min |
| Operating Temperature | 20–50 °C |
| Cooling Method | Conductive |
| Control Interfaces | RS232, USB |
| Safety Compliance | IEC 60825-1 Class 4 |
| Laser Head Dimensions | 379 × 270 × 91 mm |
| Control Unit Dimensions | 363 × 325 × 115 mm |
| Laser Head Weight | 17 kg |
| Control Unit Weight | 5.3 kg |
| Max. Power Consumption | 200 W |
| Brand | PD-LD |
|---|---|
| Origin | USA |
| Model | NewOpto |
| Wavelength Options | 532 nm, 647 nm, 780 nm, 785 nm, 808 nm, 936 nm, 976 nm, 1064 nm |
| Linewidth | < 1 cm⁻¹ |
| Wavelength Accuracy | ±0.5 nm |
| Thermal Tuning Stability | < 8 pm/°C |
| Output Configurations | Free-space (C-mount, TO-3/9 mm, 14-pin Butterfly, Coaxial) and Fiber-coupled (Single-mode & Multimode) |
| Power Range | 10 mW – 2.5 W (wavelength-dependent) |
| Packaging Options | C-mount, 14-pin Butterfly, Coaxial, CS-bars |
| Brand | MPB |
|---|---|
| Model | newopto |
| Emission Wavelength | 1120 nm |
| Wavelength Accuracy | ±0.5 nm |
| Spectral Linewidth (FWHM) | <0.05 nm (YFL-P-10-1120) / <0.1 nm (YFL-P-20-1120) |
| Degree of Polarization | >99% |
| Mode Field Diameter | 6–6.5 µm |
| ASE Suppression (0.1 nm bandwidth) | >60 dB |
| Long-Term Wavelength Stability | ±0.02 nm |
| Long-Term Output Power Drift | <3% |
| Relative RMS Intensity Noise | <2% |
| Tunable Range Option | 1060–1120 nm |
| Compliance | CE, RoHS, IEC 60825-1 Class 4 Laser Product |
| Brand | Cobolt |
|---|---|
| Origin | Sweden |
| Laser Type | Diode-Pumped Solid-State (DPSS) |
| Wavelength Range | 355–1064 nm |
| Spectral Linewidth | <1 MHz (<0.001 pm) |
| Spatial Mode | TEM₀₀, M² < 1.1 |
| Beam Pointing Stability | <10 µrad/°C (typ. 5 µrad/°C) |
| Polarization Ratio | >100:1 |
| Operating Temperature | 10–40 °C |
| Laser Head Dimensions | 103×60×40 mm (04-01 series) or 125×70×45 mm (05-01 series) |
| Controller Dimensions | 190×72×28 mm |
| Communication Interface | RS-232 or USB |
| Warranty | 24 months (12 months for Zouk model) |
| Brand | LDX Optronics |
|---|---|
| Origin | USA |
| Model | newopto |
| Wavelength Range | 445–1850 nm |
| Output Power | up to 10,000 mW (fiber-coupled) |
| Fiber Core Diameters | 100–800 µm |
| Numerical Aperture | NA 0.22 |
| Package Types | 9 mm SMA, 14-pin Butterfly, 9-pin HHL |
| Cooling | Passive (conduction-cooled) |
| Brand | Rainbow Photonics |
|---|---|
| Origin | Switzerland |
| Model | newopto |
| Wavelengths | 405 nm (blue), 532 nm (green) |
| Output Power | 1 mW / 3 mW (532 nm), 12 mW (405 nm) |
| Distribution Type | Authorized Import Distributor |
| Compliance | CE, RoHS, FDA 21 CFR Part 1040.10 (Class 3R / Class 3B per configuration) |
| Brand | Thorlabs |
|---|---|
| Origin | USA |
| Model | PM130D |
| Wavelength Range | 400–1100 nm |
| Power Range | 500 pW – 500 mW |
| Resolution | 100 pW |
| Sensor Type | Silicon Photodiode |
| Display | Digital LCD |
| Compliance | CE, RoHS, NIST-traceable calibration available |
| Origin | Sweden |
|---|---|
| Manufacturer Type | Authorized Distributor |
| Origin Category | Imported |
| Model Series | Cobolt Zouk / Calypso / Samba / Jive / Flamenco / Rumba |
| Core Technology | Solid-State Diode-Pumped Single-Longitudinal-Mode (SLM) Lasers |
| Wavelength Range | 355–1064 nm |
| Spectral Linewidth | <1 MHz (<0.01 pm) |
| Spatial Mode | TEM₀₀, M² < 1.1 |
| Power Stability (8 h) | <2% |
| Beam Pointing Stability | <10 µrad/°C (typ. 5 µrad/°C) |
| Polarization Ratio | >100:1 |
| Max Head Baseplate Temp | 50°C |
| Recommended Heat Sink Thermal Resistance | 0.2 K/W |
| Controller Interface | RS-232 or USB |
| Warranty | 24 months (Samba/Jive/Flamenco/Rumba), 12 months (Zouk/Calypso) |

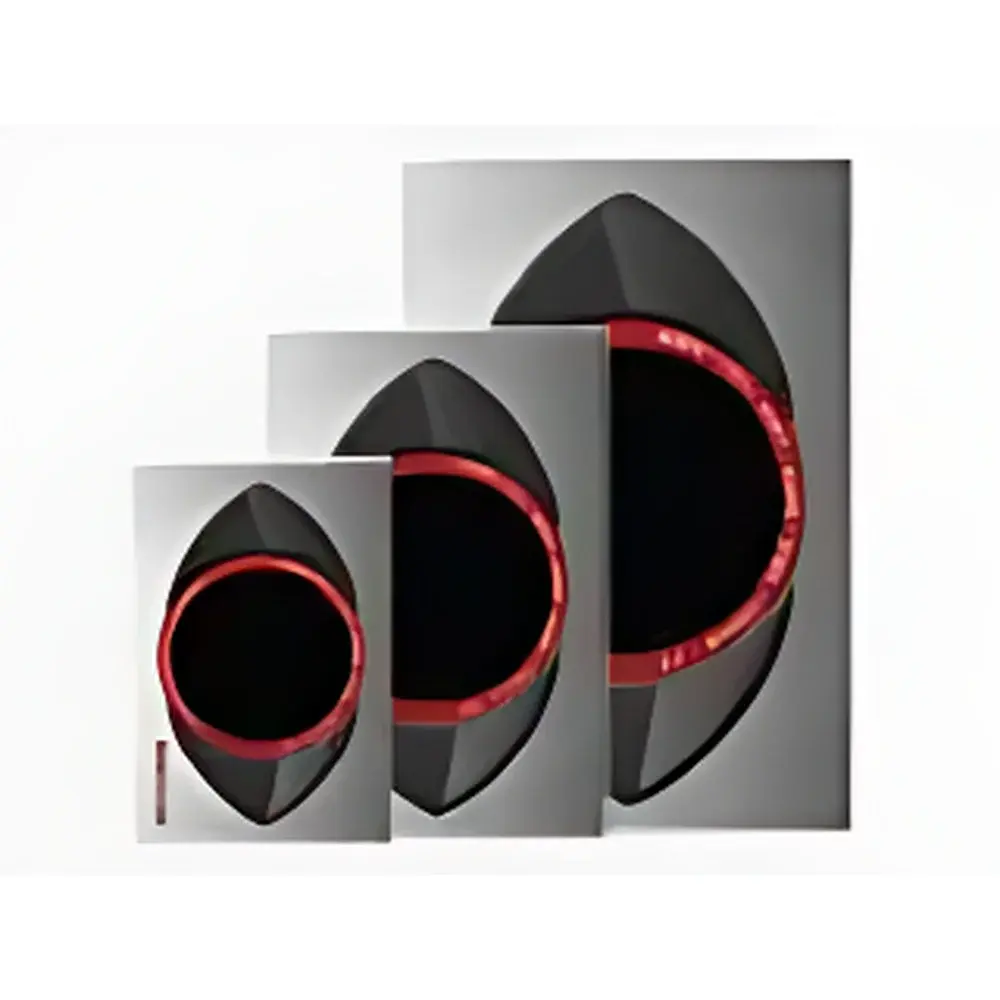

| Brand | NeTHIS |
|---|---|
| Origin | France |
| Model | TC-XX |
| Spectral Range | 0.1–3000 µm |
| Sensitive Diameter | 40 mm / 50 mm / 70 mm |
| Minimum Detectable Irradiance | 100 µW/cm² |
| Optical Damage Threshold | 1 W/cm² |
| Dimensions (TC-40/TC-50/TC-70) | 85×54 mm / 120×80 mm / 120×80 mm |
| Core Component | Semiconductor-based optothermal conversion element |
Show next
