| Brand | Axic |
|---|---|
| Origin | France |
| Manufacturer Type | Authorized Distributor |
| Origin Category | Imported |
| Model | SSDR400 |
| Heating Method | Hot-Wall |
| Application Field | Semiconductor & Advanced Materials |
| Deposition Rate | 1 µm/h (typical for diamond) |
| Base Vacuum | 1×10⁻⁶ mbar |
| Operating Pressure | 2–200 mbar |
| Chamber Internal Diameter | 6 inch (Ø152 mm) |
| Substrate Stage | Ø158 mm with Z-axis motion |
| Microwave Frequency | 915 MHz |
| Max Microwave Power | 36 kW |
| Process Duration Capability | Up to 500 h (continuous) |
| Brand | Axic |
|---|---|
| Origin | France |
| Manufacturer Type | Authorized Distributor |
| Origin Category | Imported |
| Model | SSDR150 |
| Heating Method | Hot-Wall |
| Application Domain | Semiconductor |
| Deposition Rate | 1 nm/s (typical for diamond growth) |
| Base Vacuum | 1×10⁻⁶ mbar |
| Operating Pressure Range | 20–400 mbar |
| Chamber Internal Diameter | 6 inch (Ø152 mm) |
| Microwave Power | 6 kW @ 2.45 GHz |
| Substrate Stage | Ø60 mm with Z-axis translation |
| Temperature Control | Up to 1200 °C (±2 °C stability) |

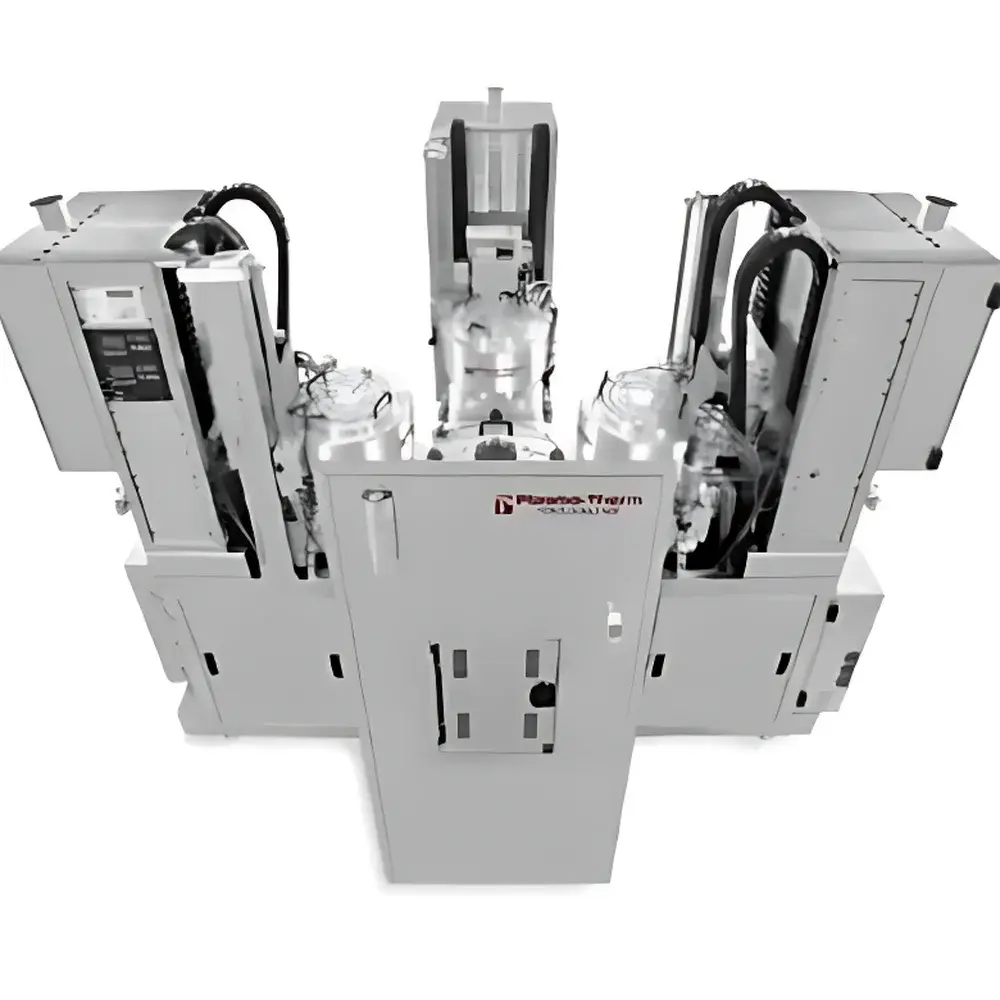

| Brand | Plasma-Therm |
|---|---|
| Origin | USA |
| Equipment Type | Imported Semiconductor CVD System |
| Model | PECVD Series |
| Heating Method | Hot-Wall |
| Application Domain | Semiconductor Fabrication, MEMS, III-V & Wide-Bandgap Devices (GaAs, SiC, CPV), LED, SOI, TSV |
