| Brand | Fluxim |
|---|---|
| Origin | Switzerland |
| Model | OPV/PSC |
| Sampling Rate | 60 MS/s |
| Time Resolution | 16 ns |
| Frequency Range | 10 mHz – 10 MHz |
| Current Resolution | < 100 pA |
| LED Rise Time | 100 ns |
| Current Range | ±100 mA |
| Voltage Range | ±12 V |
| Optional Modules | Multi-LED Source (360–1100 nm), Cryogenic Stage (−120 °C to +150 °C), Spectrometer Integration, SMU Extension (±60 V, 1 pA resolution) |

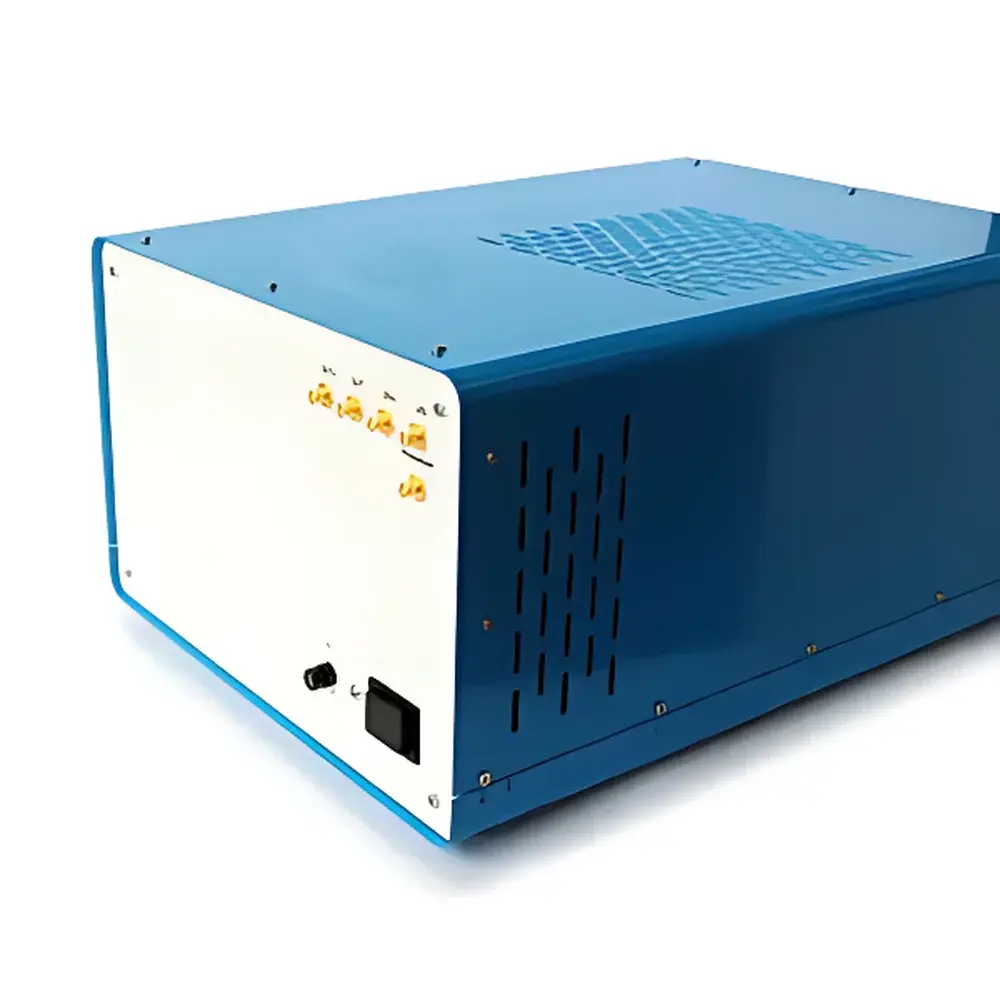

| Brand | Fluxim |
|---|---|
| Origin | Switzerland |
| Model | IMVS/IMPS |
| Sampling Rate | 60 MS/s |
| Time Resolution | 16 ns |
| Frequency Range | 10 mHz – 10 MHz |
| Current Resolution | <100 pA |
| LED Rise Time | 100 ns |
| Current Range | ±100 mA |
| Voltage Range | ±12 V (optional ±60 V with SMU module) |
| Spectral Coverage (Multi-LED) | 360–1100 nm |
| Temperature Range (optional cryo-thermo stage) | −120 °C to +150 °C |

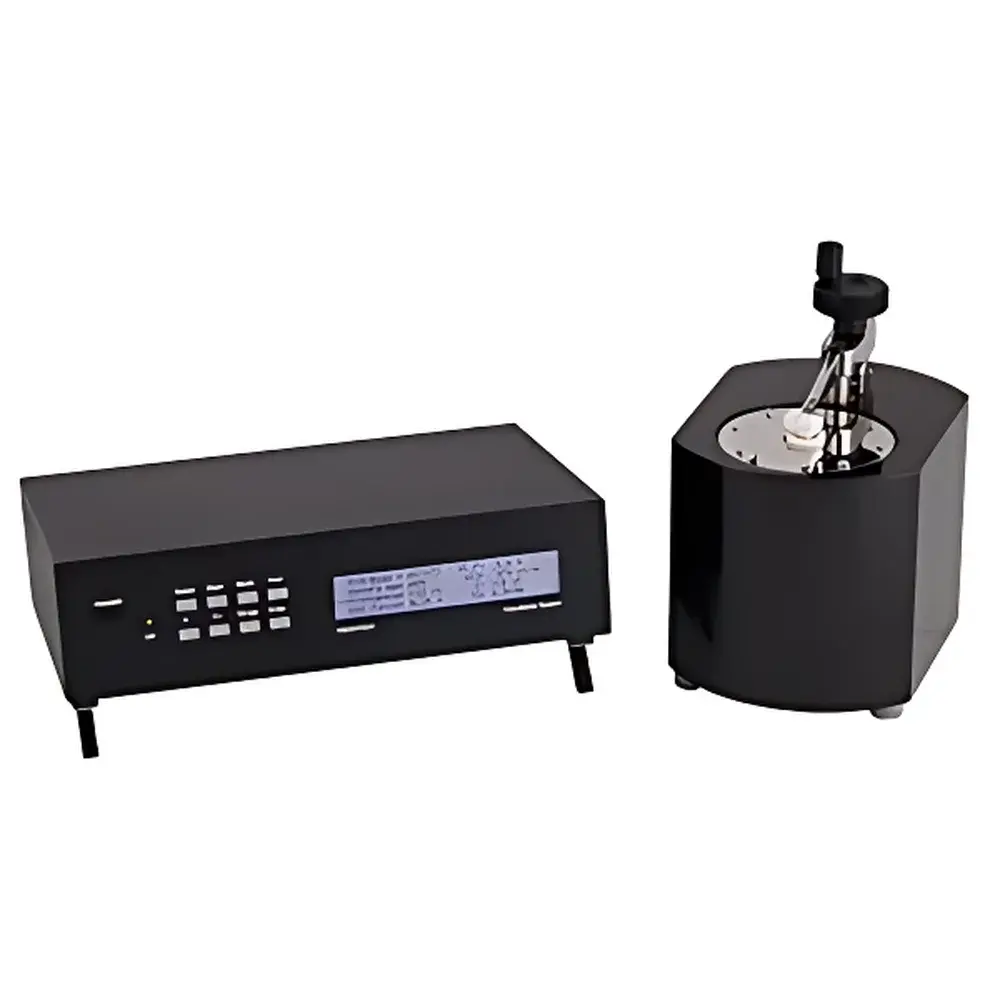

| Brand | Piezotest |
|---|---|
| Origin | Singapore |
| Model | PM200 |
| Price Range | USD 30,000–50,000 |
| d₃₃ Measurement Range | 0–10,000 pC/N |
| Resolution | 0.01 pC/N (lowest range) |
| Test Frequencies | 30–300 Hz (1 Hz step, calibrated at 110 Hz) |
| Static Force Range | 0–10 N |
| Dynamic Force Range | 0.05–0.5 N |
| Capacitance Range | 10 pF–0.1 µF |
| Loss Tangent (tanδ) Range | 0.0000–0.2000 |
| Max Sample Diameter | 136 mm |
| Max Sample Thickness (Polarization Direction) | 50 mm |
| Max Sample Mass | 1 kg |
| Compliance | ASTM D790, IEC 62047-18, ISO 20482 (referenced for piezoelectric characterization) |
| Brand | Fluxim |
|---|---|
| Origin | Switzerland |
| Model | TEL |
| Key Features | DC/AC/Transient operation modes |
| Measurement Capabilities | TEL, TPC, TPV, Photo-CELIV, Dark-CELIV, IMPS, IMVS, IS, CV, C-f, DLTS, SCLC, Pulse Voltage, MIS-CELIV, Delaytime-CELIV, Injection-CELIV |
| Sampling Rate | 60 MS/s |
| Time Resolution | 18 ns |
| Frequency Range | 10 mHz – 10 MHz |
| Current Resolution | <100 pA |
| LED Rise Time | 100 ns |
| Current Range | ±100 mA |
| Voltage Range | ±12 V (extendable to ±60 V with SMU module) |
| Spectral Coverage (Multi-LED) | 360–1100 nm |
| Temperature Range (optional cryo/heating stage) | −120 °C to +150 °C |

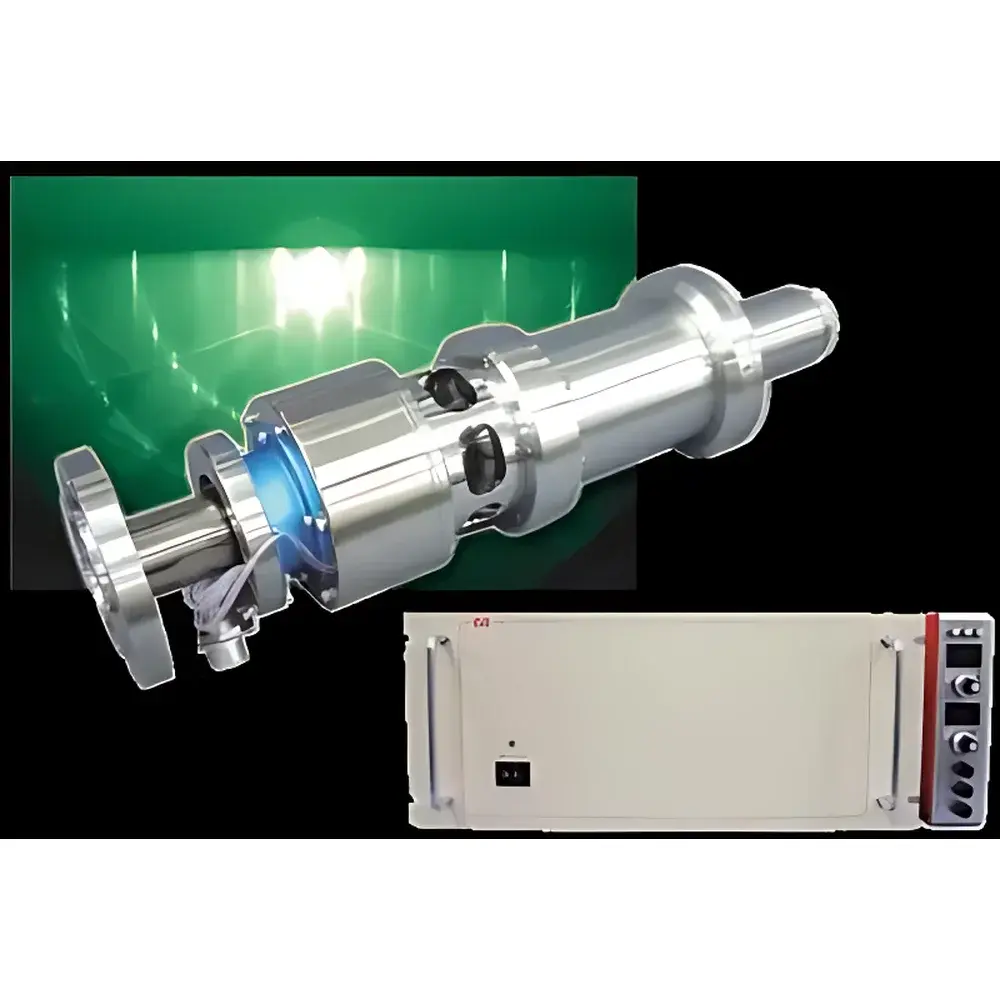

| Brand | k-Space |
|---|---|
| Origin | Japan |
| Manufacturer Status | Authorized Distributor |
| Origin Category | Imported |
| Model | RDA |
| Pricing | Upon Request |
| Brand | Fluxim |
|---|---|
| Origin | Switzerland |
| Model | PTC-TPV |
| Sampling Rate | 60 MS/s |
| Time Resolution | 18 ns |
| Frequency Range | 10 mHz – 10 MHz |
| Current Resolution | < 100 pA |
| LED Rise Time | 100 ns |
| Current Range | ±100 mA |
| Voltage Range | ±12 V |
| Optional Modules | Solar Cell & OLED Dual Configuration, Multi-Wavelength LED Source (360–1100 nm), Cryogenic/Heated Stage (−120 °C to +150 °C), Integrated Spectrometer, SMU Extension (±60 V, 1 pA current resolution) |
| Brand | Piezotest |
|---|---|
| Origin | Singapore |
| Model | PM300 |
| d₃₃ Range | 0–10,000 pC/N |
| Resolution | 0.01 pC/N (lowest range) |
| Adjustable Static Force | 0–10 N |
| Dynamic Force | 0.05–0.5 N |
| Test Frequency | 30–300 Hz (1 Hz step, calibrated at 110 Hz) |
| Capacitance Measurement | 10 pF–0.1 µF |
| Loss Tangent (tan δ) | 0.0000–0.2000 |
| Max Sample Dimensions | Ø136 mm × 50 mm (polarization direction) |
| Max Sample Weight | 1 kg |
| Compliance | ASTM D790, IEC 62047-18, ISO 6722 (referenced for piezoelectric characterization) |
