| Brand | SAN-EI |
|---|---|
| Origin | Japan |
| Model | XHS-50S1 |
| Illumination Mode | Steady-State |
| Spectral Range | 300–1800 nm |
| Spectral Mismatch | < ±10% (Factory Standard ≤ ±5%) |
| Spatial Non-Uniformity | < 2% (Class A) |
| Temporal Instability | < 1% (Class A+) |
| Effective Irradiation Area Options | 50 × 50 mm, 80 × 80 mm, 100 × 100 mm, 220 × 220 mm, 300 × 300 mm |
| Spectral Adjustment Capability | Yes |
| AM0 Extension Support | Yes |
| Intensity Tuning Range | ±30% |
| Compliance | IEC 60904-9:2020, JIS C 8912:2005, ASTM E927-05 |
| Brand | SAN-EI |
|---|---|
| Origin | Japan |
| Model | XES-50S2 |
| Illumination Mode | Steady-State |
| Spectral Match (AM1.5G) | ≤±12.5% (A+ Class) |
| Temporal Instability | <1% (A+ Class) |
| Spatial Uniformity | <2% (A Class) |
| Effective Irradiance Area | 50 mm × 50 mm |
| Nominal Irradiance | 1000 W/m² (1-sun) |
| Adjustable Irradiance Range | ±30% |
| Light Source | 150 W Xenon Arc Lamp |
| Lamp Lifetime | 2000 h (average) |
| Beam Direction | Adjustable for Glovebox Integration |
| Compliance | ASTM E927-23, IEC 60904-9 Ed. 3, JIS C 8912 |
| Brand | SAN-EI |
|---|---|
| Origin | Japan |
| Model | XHS Series |
| Illumination Mode | Steady-State |
| Spectral Range | 300–1800 nm |
| Spectral Mismatch | < ±10% (Factory Standard ≤ ±5%) |
| Spatial Non-Uniformity | < 2% (Class A) |
| Temporal Instability | < 1% (Class A+) |
| Effective Irradiation Area Options | 50×50 mm, 80×80 mm, 100×100 mm, 220×220 mm, 300×300 mm |
| Spectral Tunability | Yes |
| Intensity Adjustment Range | ±30% |
| Compliance | IEC 60904-9:2020, JIS C 8912:2005, ASTM E927-05 |
| Brand | SAN-EI |
|---|---|
| Origin | Japan |
| Model | RLES-500S |
| Illumination Mode | Steady-State |
| Effective Irradiation Area | 500 mm × 500 mm |
| Spectral Range | 300–1200 nm |
| Spectral Match (AM1.5G) | < ±12.5% (Class A+) |
| Irradiance Uniformity | < 2% (Class A) |
| Temporal Instability (LTI) | < 1% (Class A+) |
| Initial Irradiance | 1.3 sun |
| LED Lifetime | 20,000 h |
| Working Distance | 510 mm (for Class A uniformity) |
| Cooling Method | Air-cooled |
| Light Chamber Dimensions | W 900 × H 780 × D 1177 mm |
| Power Supply Dimensions | W 652 × H 693 × D 786 mm |
| Optional Window Glass | KG2 / KG5 / BK5 |
| Brand | SAN-EI (San-Ei Electric Mfg. Co., Ltd.) |
|---|---|
| Origin | Japan |

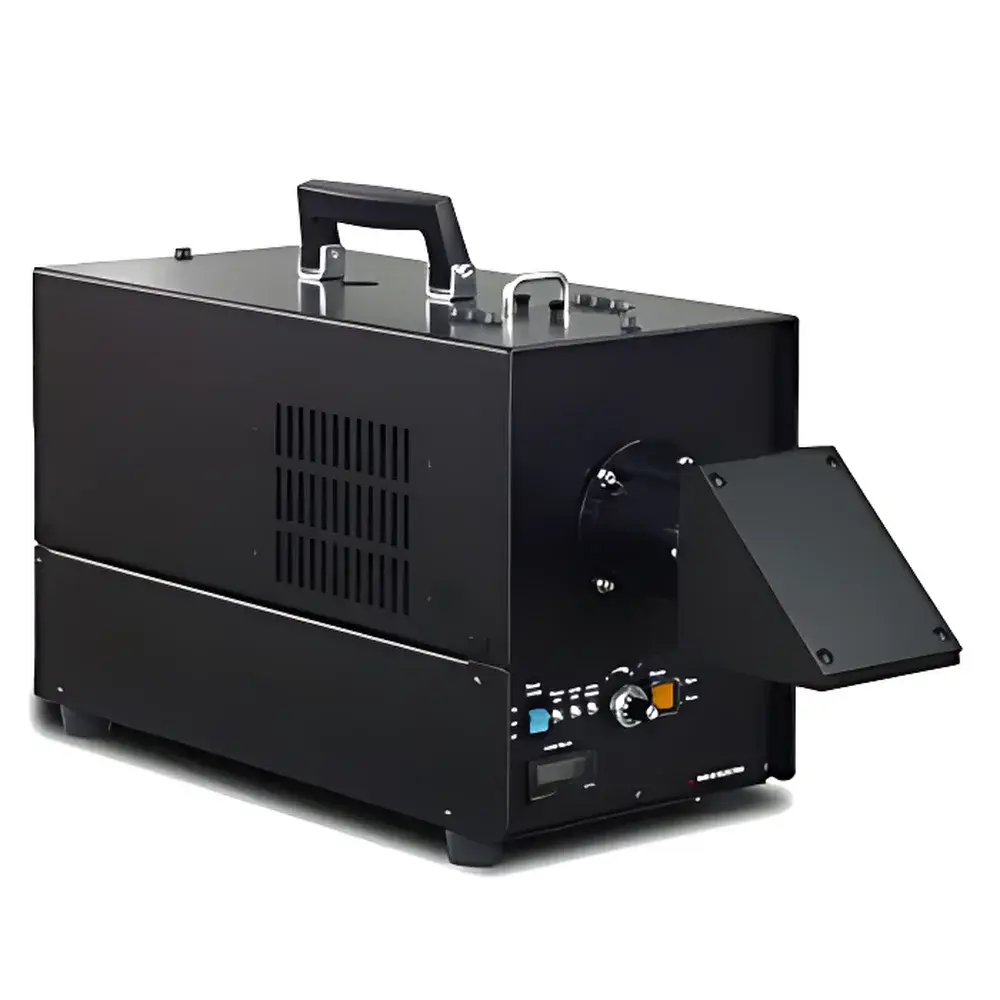

| Model | XES-40S3 |
| Illumination Area | 40 mm × 40 mm to 300 mm × 300 mm |
| Spectral Match (AM1.5G) | Class A+ |
| Irradiance Instability | <1% (Class A+) |
| Spatial Uniformity | <2% (Class A) |
| Initial Output | 1.0 sun |
| Beam Direction Options | Vertical down / vertical up / horizontal left / horizontal right |
| Compliance | JIS C 8912, ASTM E927-05, IEC 60904-9:2007 Ed2 |
| Safety Features | Integrated lamp overheat protection & lamp usage hour counter |
| Control Mode | Steady-state operation |
| Optional Functions | Spectral bandpass filtering, neutral density attenuation |
| Brand | SAN-EI |
|---|---|
| Origin | Japan |
| Model | XES |
| Light Source | Xenon Arc Lamp (150–3000 W) |
| Illumination Area Options | 40×40 mm to 300×300 mm (customizable) |
| Spectral Match Class | A+A+A per JIS C 8912, IEC 60904-9:2007, and ASTM E927-05 |
| Irradiance Uniformity | <2% (Class A) |
| Temporal Instability | <1% over ≥1 h (Class A+) |
| Spectral Mismatch | ≤±12.5% (AM1.5G or AM0 filter, Class A+) |
| Nominal Irradiance | 1000 W/m² (adjustable ±30%) |
| Lamp Lifetime | 1000–2000 h |
| Shutter Timing Range | 0.1 s – 9990 h |
| Remote Control | Yes |
| Safety Features | Thermal cutoff, interlocked shutter, auto-cooling post-shutdown, lamp hour counter |
| Brand | Open Instruments |
|---|---|
| Origin | Imported |
| Manufacturer Type | Authorized Distributor |
| Model | LUMiKON MINI |
| Trigger Mode | Steady-State |
| Dimensions (W×H×D) | 32.5 × 37 × 20.8 cm |
| Imaging Sensor | 26 MP (upgradable to 61 MP) |
| Uniformity | >95% |
| Illumination Range | 0.01–1.2 suns (AM1.5G equivalent) |
| Core Output Metrics | Quantitative iVoc, iFF, iMPP, and PL intensity maps |
| Environmental Compatibility | Glovebox-integrated (O₂ < 0.1 ppm, H₂O < 0.1 ppm) |
| Calibration | Absolute radiometric PL calibration with NIST-traceable reference source |
| Brand | SAN-EI |
|---|---|
| Origin | Japan |
| Model | XHS-180/220S1 |
| Illumination Mode | Steady-State |
| Spectral Mismatch | < ±5% (AM0) or < ±10% (AM1.5G), A+ Class |
| Spectral Range | 300–1800 nm |
| Spatial Non-Uniformity | < 2%, Class A |
| Temporal Instability | < 1%, Class A+ |
| Adjustable Irradiance | 30–100% |
| Illuminated Area Options | 50×50 mm, 80×80 mm, 100×100 mm, 220×220 mm, 300×300 mm (customizable) |
| Spectral Tunability | Yes |
| Compliance | ASTM E927-22, IEC 60904-9 Ed. 3 (2020), JIS C 8912 |
| Brand | SAN-EI |
|---|---|
| Origin | Japan |
| Model | XES-50S1 |
| Classification | AAA-Class (A+A+A) Steady-State Solar Simulator |
| Illumination Area Options | 2″×2″, 4″×4″, 6″×6″, 8″×8″, 10″×10″, 12″×12″, 500 mm × 500 mm (customizable) |
| Spectral Mismatch (AM1.5G) | < ±12.5% (A+ Class) |
| Spatial Non-Uniformity | < 2% (A Class) |
| Temporal Instability | < 1% (A+ Class) |
| Irradiance Range | ≥1.2 suns (adjustable, higher intensities available on request) |
| Light Source | Short-Arc Xenon Lamp (150 W – 10,000 W options) |
| Output Configuration | Quad-directional beam delivery |
| Compliance | ASTM E927-22, IEC 60904-9 Ed. 3 (2020), JIS C 8912:2018 |
| Operating Mode | Continuous (Steady-State) |
| Brand | SAN-EI |
|---|---|
| Origin | Japan |
| Model | XHS |
| Illumination Mode | Steady-State |
| Spectral Range | 300–1100 nm (optional 300–1900 nm) |
| Collimation Half-Angle | <0.3° (customizable) |
| Intensity Stability | <2% (over 1 h) |
| Illumination Distance | 20–1500 mm (customizable) |
| Beam Orientation | Vertical (customizable) |
| Spectral Match | AM1.5G and/or AM0 |
| Uniformity & Illuminated Area | Custom-engineered per application requirements |
| Brand | Open Instruments |
|---|---|
| Origin | Imported |
| Manufacturer Type | Authorized Distributor |
| Model | LUMiKON MAX |
| Trigger Mode | Steady-State |
| Camera Resolution | 61 MP |
| Pixel Size (with optional telecentric lens) | 3.6 µm/pixel |
| Uniformity | <5% |
| Sample Stage Compatibility | Si, Perovskite, Perovskite/Si Tandem (23 × 23 cm), Upgradable to Triple-Junction & III–V Devices |
| Illumination Range | 0.01–1.2 suns (AM1.5G equivalent) |
| Optional Features | Temperature-Controlled Stage, IBC-Compatible Stage, Lock-in Thermography (DLI-T), Point-Scan TRPL Spectroscopy, N₂ Enclosure with Real-Time Humidity/Temperature Monitoring |
| Software | Python-API Enabled, iVoc Imaging, Time-Normalized PL Analysis, iFF/iMPP/Pseudo-JV Extraction |
| Brand | SAN-EI |
|---|---|
| Origin | Japan |
| Model | A+A+A+ |
| Illumination Mode | Steady-State |
| Spectral Match Class | A+ (per IEC 60904-9:2020, ASTM E927-05, JIS C 8912) |
| Spatial Non-Uniformity | <1% (A+) |
| Temporal Instability | <1% over ≥1 h (A+) |
| Spectral Mismatch | <±5% (typical, factory-calibrated), <±10% (IEC limit) (AM1.5G or AM0) |
| Effective Irradiation Area | 50×50 mm to 300×300 mm (customizable) |
| Light Source | Xenon arc lamp (150–3000 W) and/or halogen lamp |
| Irradiance Range | 70–130% of 1000 W/m² (continuously adjustable) |
| Lamp Lifetime | 1000–2000 h |
| Shutter Timing | 0.1 s – 9990 h |
| Safety Features | Thermal cutoff, auto-cooling post-shutdown, interlocked safety lock, adjustable beam direction |
| Remote Control Interface | Standard Ethernet/RS-232/GPIB |
| Optional Integration | Keithley 2400/2600 Series SMUs, NIST-traceable reference cells (20×20 mm, KG5/KG2/quartz window), IV/QE/IPCE software suite with MPPT, bias stability, and repeatability protocols |
| Brand | SAN-EI |
|---|---|
| Origin | Japan |
| Model | XEF-150 |
| Illumination Mode | Steady-State |
| Spectral Class | AM1.5G A+ (per ASTM E927, IEC 60904-9, JIS C 8912) |
| Spatial Non-Uniformity | <2% (Class A) |
| Temporal Instability | <1% (Class A+) |
| Spectral Mismatch | <±12.5% (AM1.5G, Class A+) |
| Effective Irradiation Area | 2"×2" (standard), customizable up to 500 mm × 500 mm |
| Light Source | 150 W–300 W short-arc xenon lamp |
| Output Flexibility | Multi-directional fiber-coupled delivery |
| Intensity Control | Continuously adjustable (0–1.5+ suns) |
| Compliance | ASTM E927-23, IEC 60904-9 Ed.3, JIS C 8912:2021 |
| Brand | Fluxim |
|---|---|
| Origin | Switzerland |
| Model | Litos Lite |
| Light Source Type | Steady-State LED Solar Simulator |
| Spectral Class | AAA (IEC 60904-9 Ed. 3) |
| Number of Independent Test Channels | 56 |
| Voltage Scan Range | ±10 V |
| Maximum Current per Channel | 50 mA |
| Spectral Tunability | Yes (A++/A-Class adjustable) |
| LED Lifetime | >10,000 h |
| Temperature Control Range | RT to 150 °C |
| Environmental Control | O₂ and RH regulation |
| Compliance | ISOS-L, ISOS-O, ISOS-D protocols |
| Feedback Control | Real-time irradiance stabilization |
| Measurement Modes | J-V sweeps, MPPT, Voc, Jsc, long-term stability tracking |
| Brand | Open Instruments |
|---|---|
| Origin | Imported |
| Manufacturer Type | Authorized Distributor |
| Model | LUMiKON MINI |
| Trigger Mode | Steady-State |
| Dimensions (W×H×D) | 32.5 × 37 × 20.8 cm |
| Imaging Sensor | 26 MP monochrome scientific CMOS (upgradable to 61 MP) |
| Uniformity | >95% (±5% irradiance variation across FOV) |
| Illumination Range | 0.01–1.2 suns (AM1.5G-equivalent, calibrated broadband LED source) |
| Real-Time Outputs | Quantitative PL intensity, implied Voc (iVoc), implied Fill Factor (iFF), implied Maximum Power Point (iMPP) maps |
| Spectral Capability | Optional point-scanning mode for full PL spectra (bandgap & compositional mapping) |
| Environmental Integration | Glovebox-compatible (O₂ < 0.1 ppm, H₂O < 0.1 ppm), no sample transfer required |
| Brand | Greatcell |
|---|---|
| Origin | Italy |
| Model | HYPIV10 / HYPIV20 (A+A+A+ Class) |
| Illumination Mode | Steady-State |
| Spectral Range | 360–1100 nm |
| Spectral Mismatch | < ±12.5% (AM1.5G, A+ Class) |
| Irradiance Instability | < 1% (A+ Class) |
| Irradiance Non-Uniformity | < 1% (A+ Class) |
| Adjustable Irradiance | 0.1–1.0 sun (1% step resolution) |
| Light Spot Size | 10×10 cm (HYPIV10), 20×20 cm (HYPIV20), 30×30 cm (custom) |
| LED Array | 20 independently controlled spectral channels |
| Lifetime | >20,000 h |
| Working Distance | 8.5 cm (HYPIV10), 9.5 cm (HYPIV20) |
| Housing Dimensions | L22×W22×H12 cm (HYPIV10), L42×W42×H20 cm (HYPIV20) |
| Mounting Arm Length | 20 cm (HYPIV10), 35 cm (HYPIV20) |
| Compliance | ASTM E927-05, IEC 60904-9:2020 (AAA & A+A+A+), JIS C 8912, TÜV Rheinland PV Certification Requirements |
| Brand | SAN-EI |
|---|---|
| Origin | Japan |
| Model | XEF-300 |
| Illumination Mode | Steady-State |
| Spectral Class | AAA (ASTM/IEC/JIS 3A) |
| Spectral Match (AM1.5G) | < ±12.5% (A+ Class) |
| Spatial Non-Uniformity | < 2% (A Class) |
| Temporal Instability | < 1% (A+ Class) |
| Spectral Range | 300–1200 nm |
| Effective Irradiation Area | 2" × 2" (customizable up to 500 mm × 500 mm) |
| Light Source | 150–300 W Short-Arc Xenon Lamp |
| Optical Delivery | Fiber-Coupled Output |
| Beam Direction | Adjustable |
| Compliance | ASTM E927-23, IEC 60904-9 Ed. 3, JIS C 8912 |
