| Brand | Oxford Instruments |
|---|---|
| Origin | USA |
| Model | 5000 Series |
| Max Anode Current | 1.0 mA |
| Max Anode Voltage | 50 kV |
| Max Power | 50 W |
| Filament Nominal Voltage | 2.0 V @ 50 kV, 1 mA |
| Filament Max Current | 1.7 A |
| Stability (4 hr) | ±0.2% |
| Nominal Focal Spot Size | 110 µm |
| Anode Material Options | W, Mo, Rh (custom anodes available) |
| Beryllium Window Thickness Options | 75 µm, 125 µm, 250 µm |
| Approx. Weight | 1.816 kg (4 lbs) |
| Cooling Method | Compressed Air @ 150 CFM |
| Beam Divergence Angle | 25° |
| Brand | Oxford Instruments |
|---|---|
| Origin | United Kingdom |
| Model | X-Pulse |
| Instrument Type | Low-Field NMR Analyzer |
| Sample Form | Liquid |
| Operating Frequency | 60 MHz |
| Data Acquisition Mode | Pulsed Fourier Transform |
| Signal-to-Noise Ratio | >180:1 |
| Spectral Resolution | <0.35 Hz |
| ¹H Quantitative Reproducibility | Excellent |
| Brand | Oxford Instruments |
|---|---|
| Origin | Germany |
| Manufacturer Type | Authorized Distributor |
| Origin Category | Imported |
| Model | alphaCART |
| Instrument Type | Portable Confocal Raman Microscope |
| Laser Options | 532 nm, 633 nm, 785 nm (custom wavelengths available) |
| Spectral Range | ~90–3500 cm⁻¹ (laser-dependent) |
| Spatial Resolution | Diffraction-limited |
| Spectral Resolution | High across full range |
| Detector | Scientific-grade low-noise CCD spectrometer camera |
| Brand | Oxford Instruments |
|---|---|
| Origin | Germany |
| Model | alpha300 access |
| Instrument Type | Confocal Micro-Raman Spectrometer |
| Spectral Range | 90–9000 cm⁻¹ |
| Spectral Resolution | ≤0.2 cm⁻¹ |
| Spatial Resolution | Lateral 350 nm, Axial 800 nm |
| Minimum Wavenumber | 10 cm⁻¹ |
| Spectral Reproducibility | ≤±0.02 cm⁻¹ |
| Brand | Oxford Instruments |
|---|---|
| Origin | United Kingdom |

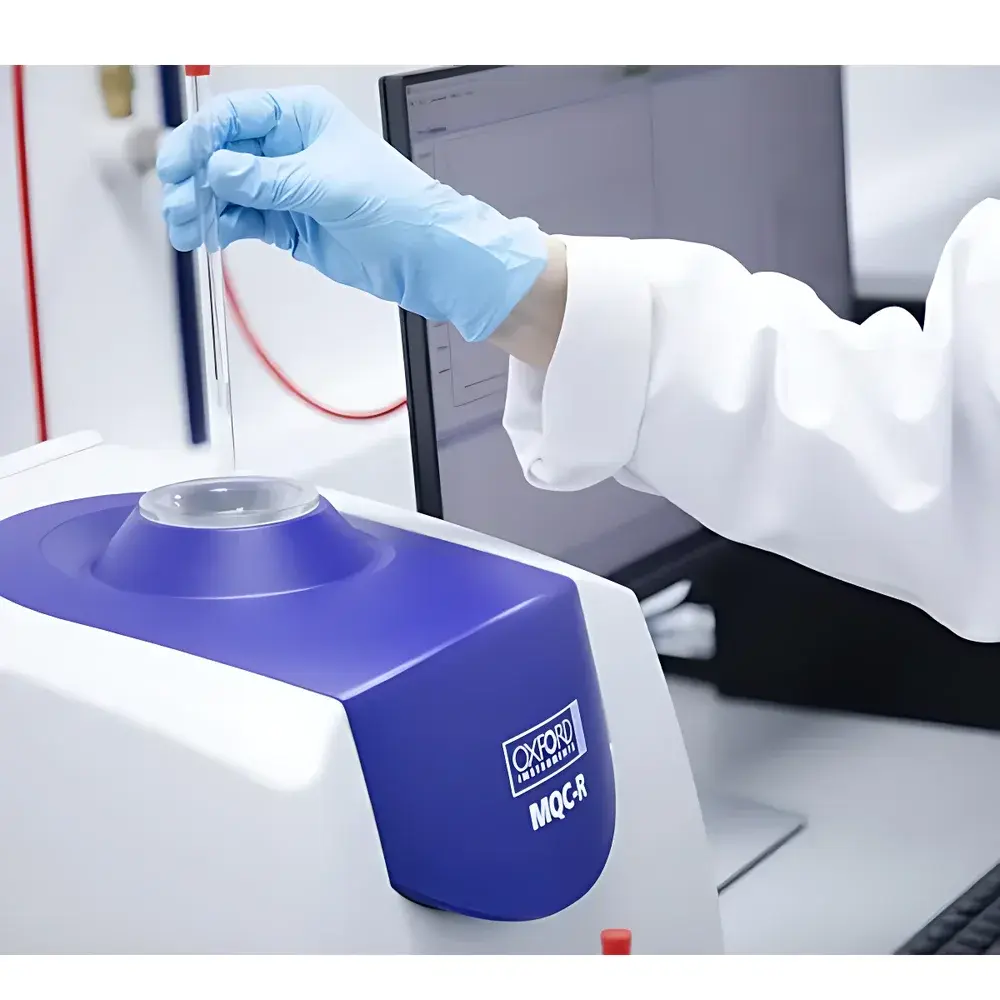

| Model | MQC-R |
| Magnet Frequency | 23 MHz |
| Probe Diameter Range | 10–26 mm |
| Sample Volume Capacity | Up to 14 mL |
| Temperature Control Range (Liquid) | –5 °C to +70 °C |
| Pulsed Field Gradient (PFG) Strength | >3.0 T/m |
| Nuclei Support | ¹H, ¹⁹F, and other quadrupolar/non-quadrupolar nuclei via configurable probes |
| Configurability | Modular hardware and software options for TD-NMR experiments including 1D/2D relaxation, diffusion, and distribution analysis |

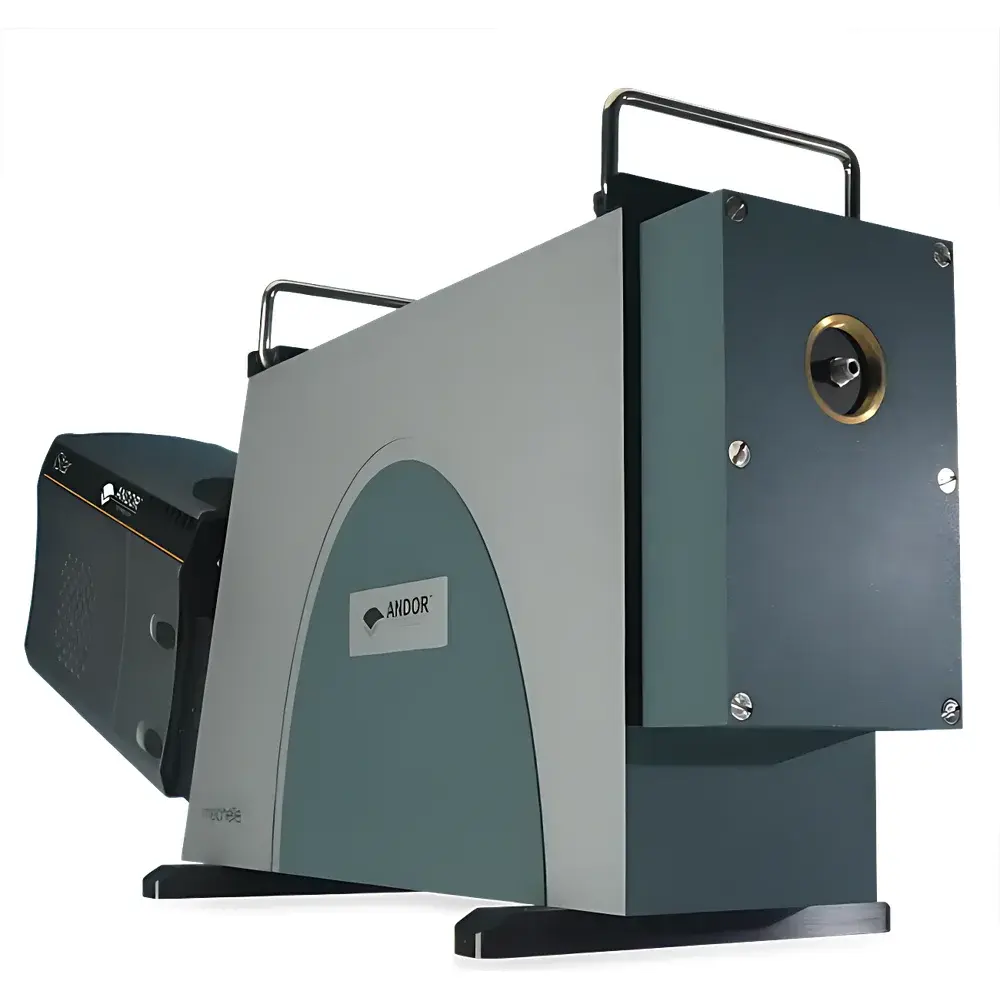

| Brand | Oxford Instruments |
|---|---|
| Origin | United Kingdom |
| Model | Mechelle 5000 |
| Wavelength Range | 200–975 nm |
| Optical Configuration | Fixed-grating, pre-aligned echelle spectrograph |
| Detector Integration | Integrated CCD/CMOS detector option |
| Cooling | Thermoelectric (TE) cooled detector |
| Purge Environment | N₂-purged optical path |
| Temperature Stabilization | Auto-temperature correction system |
| Mechanical Design | Compact, rigid monolithic housing |
| Moving Parts | None |

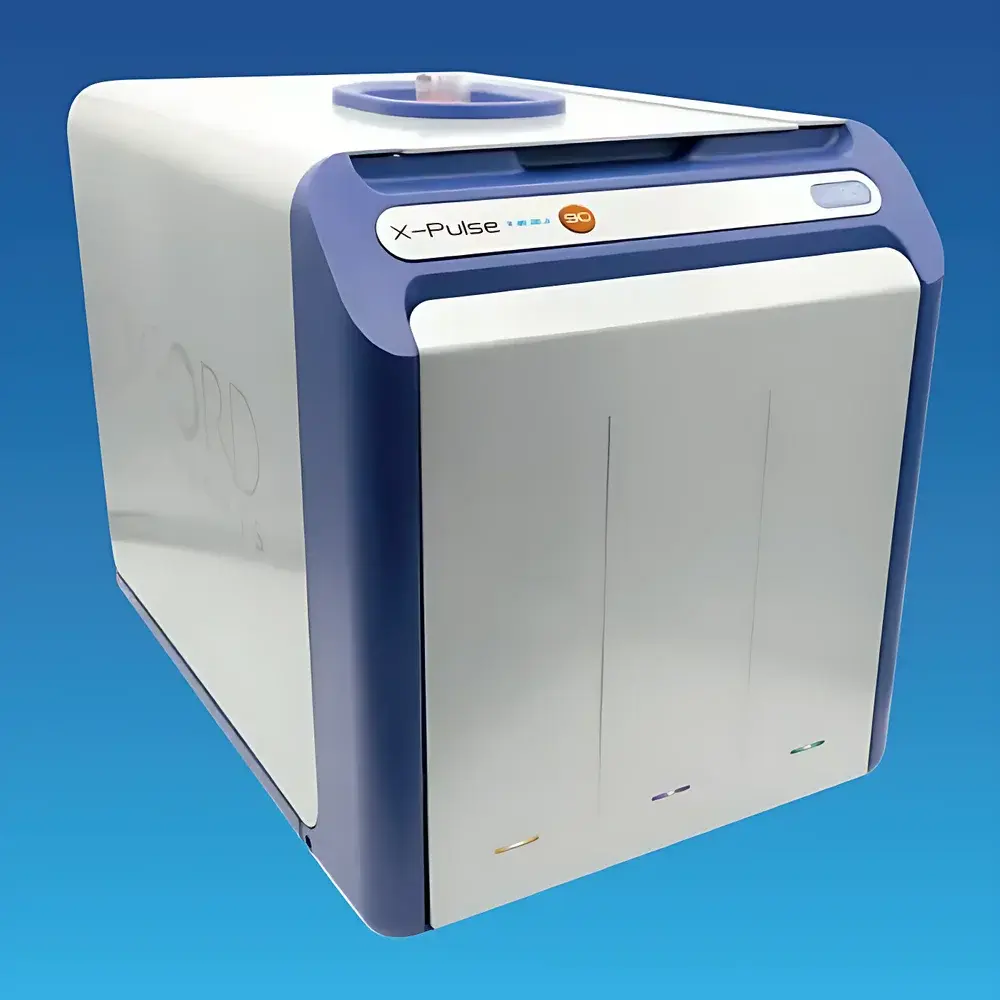

| Brand | Oxford Instruments |
|---|---|
| Origin | United Kingdom |
| Manufacturer Type | Authorized Distributor |
| Origin Category | Imported |
| Model | X-Pulse 90 |
| Instrument Type | High-Field Benchtop NMR Spectrometer |
| Sensitivity | 240:1 for 1% ethylbenzene |
| Resolution | < 0.35 Hz (50% peak height) / < 15 Hz (0.55% peak height) |
| Brand | Oxford Instruments |
|---|---|
| Origin | United Kingdom |
| Model | AZtecLive |
| Detector Active Area | Up to 170 mm² |
| Maximum Quantitative Count Rate | 400 kcps |
| Maximum Mapping Count Rate | 1,000 kcps |
| Detector Type | Silicon Drift Detector (SDD) with Extreme Electronics Architecture |
| Compliance | Designed for integration with field-emission and tungsten SEM platforms per IEC 61000-4 EMC standards |

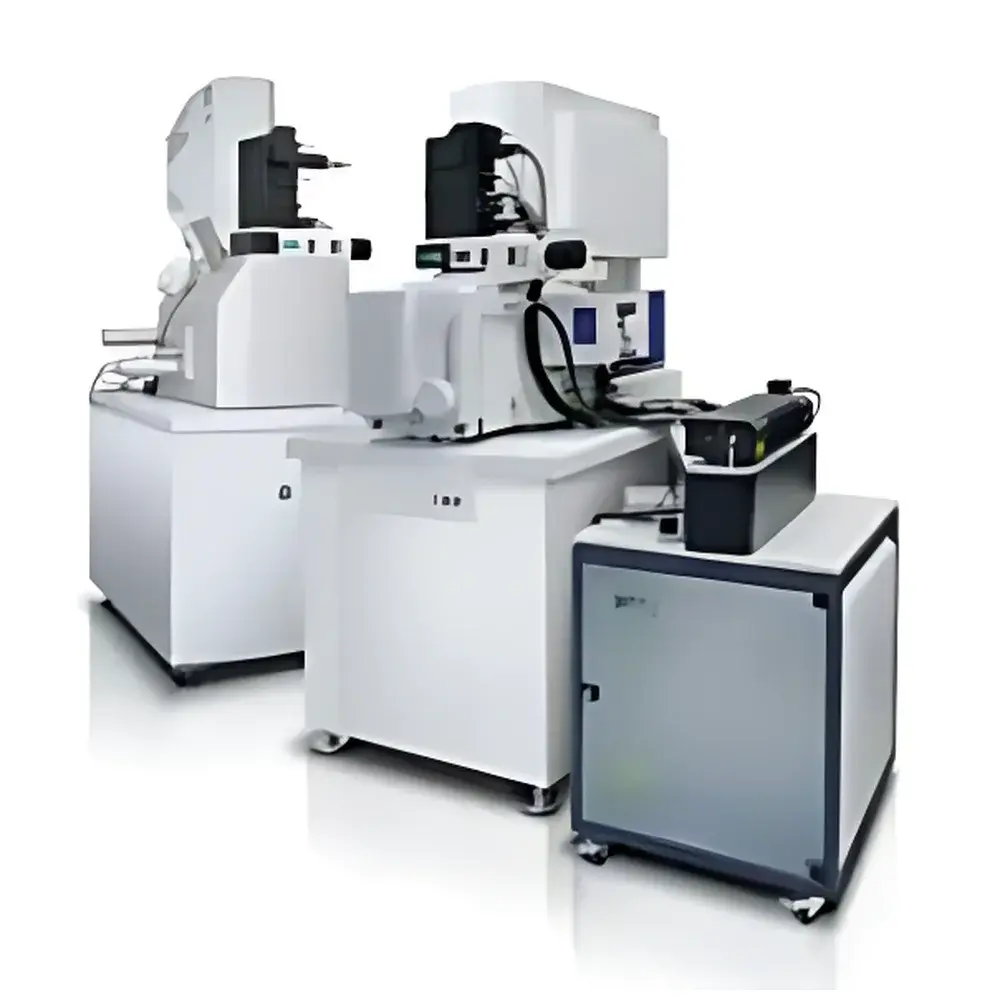

| Brand | WITec |
|---|---|
| Origin | Germany |
| Manufacturer | WITec GmbH (Oxford Instruments Distribution Partner) |
| Instrument Type | Confocal Raman Microscope Integrated with SEM |
| Spectral Range | 90–9000 cm⁻¹ |
| Spectral Resolution | ≤1 cm⁻¹ |
| Wavenumber Accuracy | ≤ ±0.02 cm⁻¹ |
| Spatial Resolution | Lateral 360 nm, Axial 900 nm |
| Minimum Detectable Wavenumber | 100 cm⁻¹ |
| Sensitivity | SNR >20:1 for Si third-order Raman peak |
| Brand | Oxford Instruments |
|---|---|
| Origin | Germany |
| Model | cryoRaman |
| Instrument Type | Confocal Micro-Raman Spectrometer |
| Spectral Range | 400–1000 nm |
| Spectral Resolution | <1 cm⁻¹ |
| Spatial Resolution (lateral) | <400 nm |
| Minimum Wavenumber Shift | ±10 cm⁻¹ |
| Spectral Reproducibility | 0.02 cm⁻¹ |

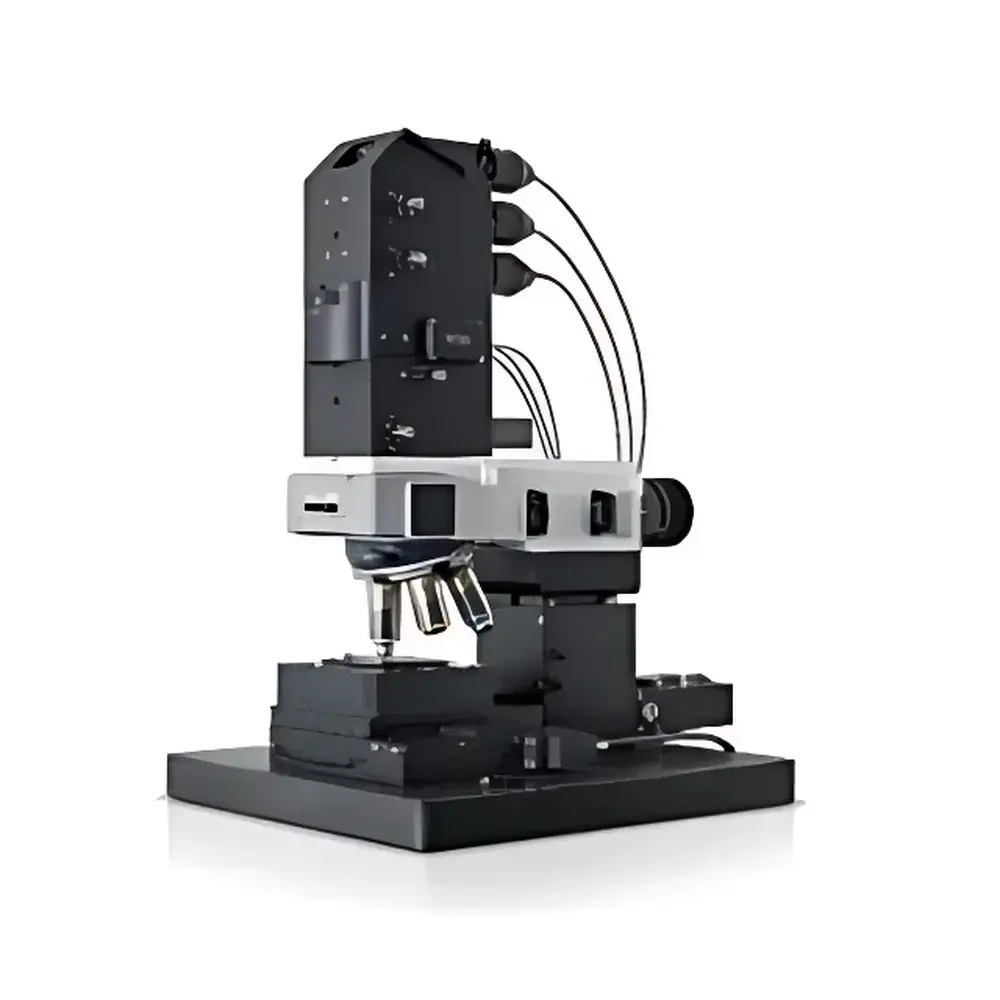

| Brand | Oxford Instruments |
|---|---|
| Origin | Germany |
| Manufacturer Type | Authorized Distributor |
| Product Origin | Imported |
| Model | alpha300 R |
| Instrument Type | Confocal Micro-Raman Spectrometer |
| Spectral Range | 90–9000 cm⁻¹ |
| Spectral Resolution | ≤0.2 cm⁻¹ |
| Spatial Resolution | Lateral 350 nm, Axial 800 nm |
| Minimum Wavenumber | 10 cm⁻¹ |
| Spectral Reproducibility | ≤±0.02 cm⁻¹ |

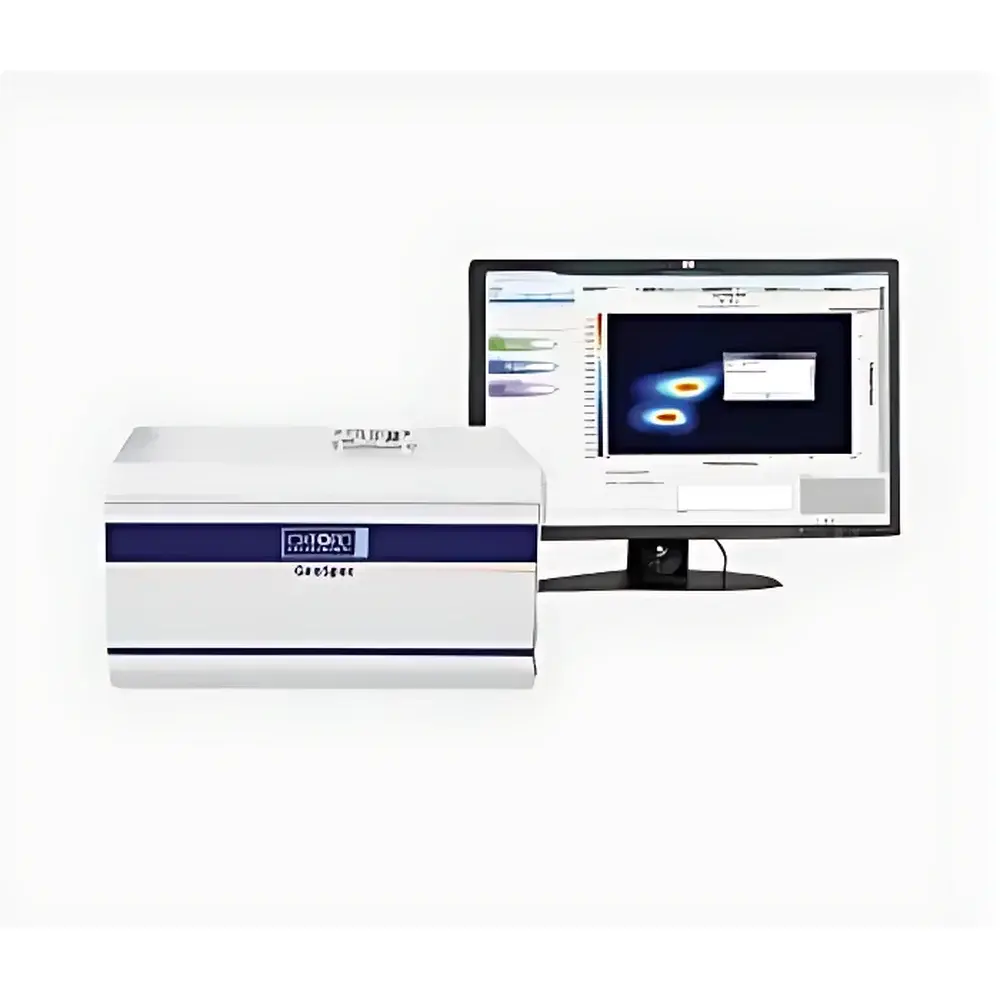

| Brand | Oxford Instruments |
|---|---|
| Origin | United Kingdom |
| Model | GeoSpec |
| Frequency Options | 2 MHz, 12 MHz, 20 MHz (up to 23 MHz) |
| Sample Type | Solid rock cores |
| Field Strength | Low-field NMR |
| Core Diameter Compatibility | 1 in to 6 in (25.4 mm to 152.4 mm) |
| Software Platform | LithoMetrix (base), GIT Suite (optional upgrade) |
| Gradient Capability | Pulsed Field Gradient (PFG) enabled |
| Operating Environment | Compatible with P5 high-pressure/high-temperature (HPHT) probe unit |
| Detection Technology | Q-Sense RF detection for short echo times (TE) |
| Application Scope | Rock physics characterization, porosity quantification, fluid typing, T₂ distribution analysis, capillary pressure modeling, diffusion-weighted imaging |
| Brand | Oxford Instruments |
|---|---|
| Origin | United Kingdom |

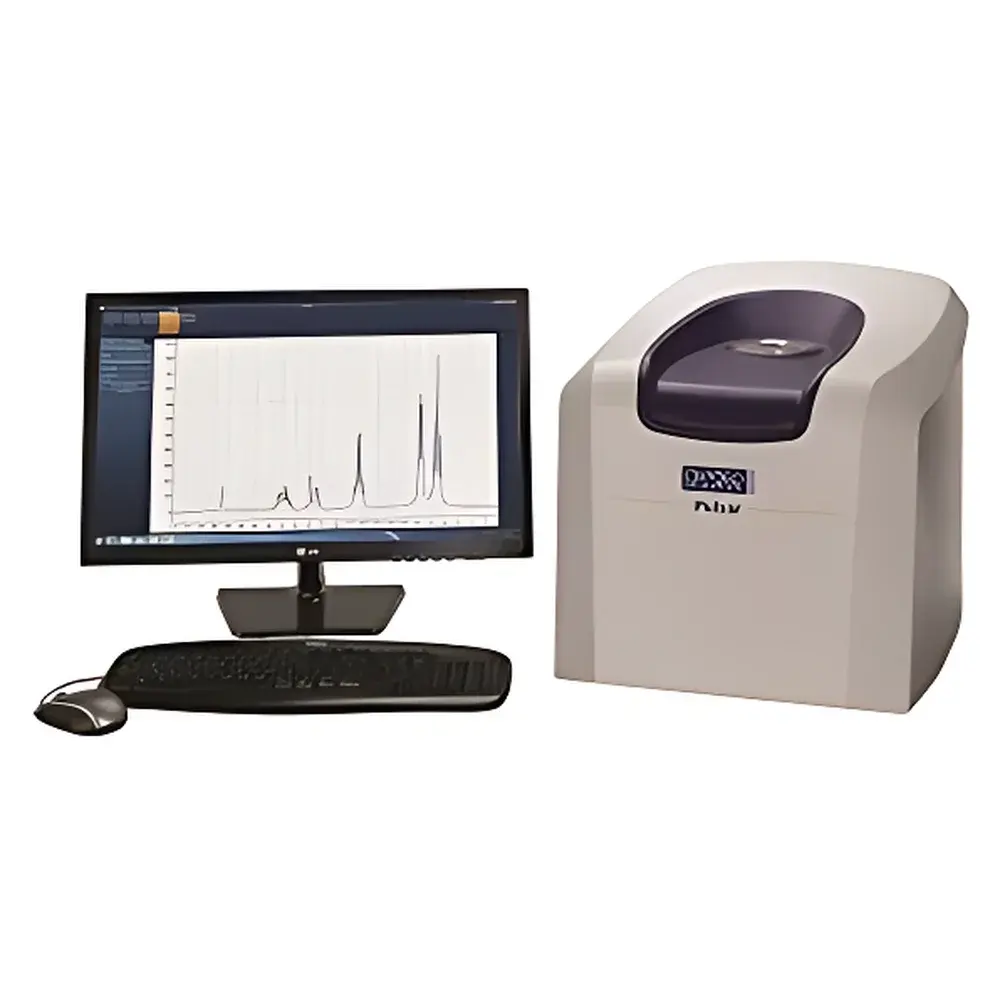

| Model | NMR Pulsar |
| Instrument Type | Low-Field Benchtop NMR Analyzer |
| Sample Compatibility | Solid and Liquid Samples |
| Sensitivity | High |
| Resolution | < 0.5 Hz (1H, in D2O or CDCl3) |
| Operating Frequency | 60 MHz (¹H) |
| Magnet Type | Permanent Rare-Earth Magnet |
| Cryogen-Free Operation | Yes (No Liquid He or N2 Required) |
| Probe Configuration | Single-Tuned or Dual-Tuned (¹H/¹⁹F |
| Field Homogeneity | Automated Shimming System for High Spectral Uniformity |

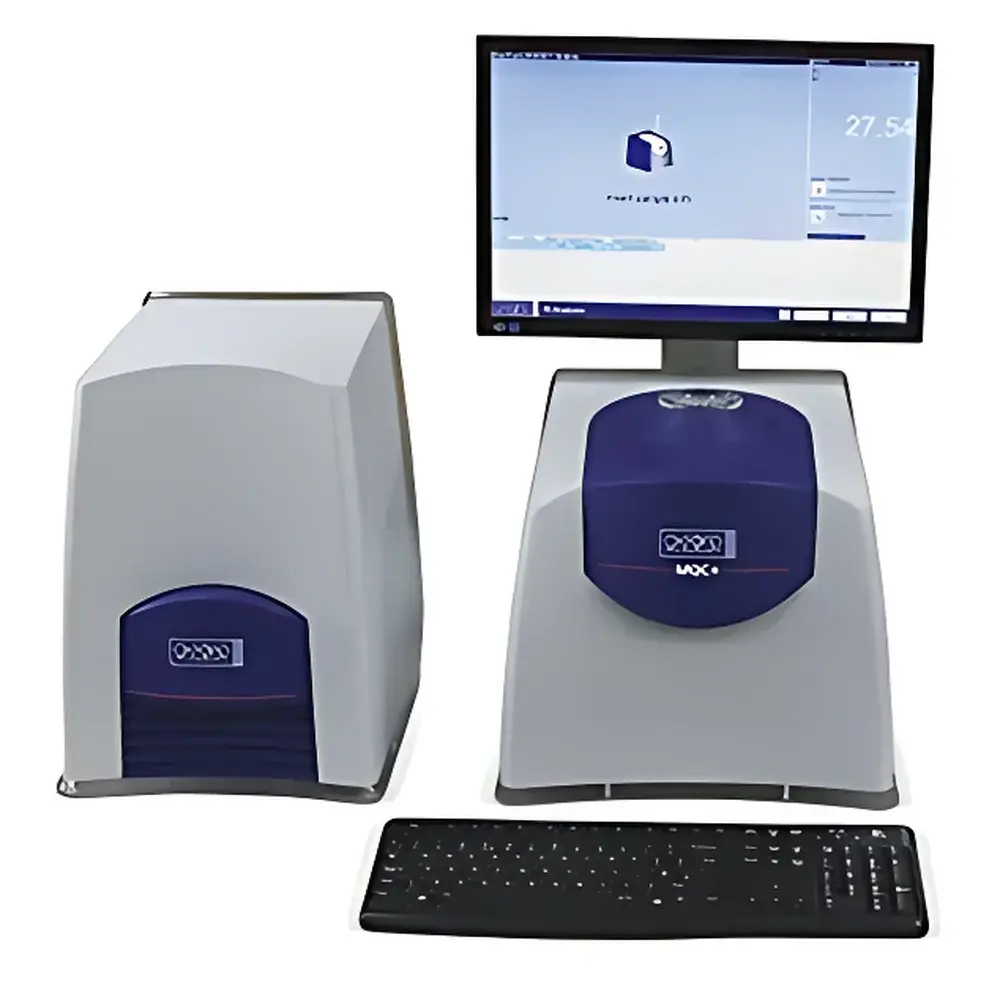

| Brand | Oxford Instruments |
|---|---|
| Origin | United Kingdom |
| Model | MQC+ |
| Instrument Type | Low-Field NMR Analyzer |
| Sample Types | Solid-Liquid Dual-Phase |
| Resolution | <1 Hz |
| Dimensions (Standard Configuration) | 235 mm (diameter) / 0.2 mL sample volume |
| Brand | Oxford Instruments |
|---|---|
| Origin | USA |
| Manufacturer Type | General Distributor |
| Origin Category | Imported |
| Model | UltraBright |
| Price Range | USD 0 – 9,999 |
| Max Anode Current | 1.0 mA |
| Max Anode Voltage | 50 kV |
| Max Power | 50 W |
| Filament Nominal Voltage | 2.0 V @ 50 kV, 1 mA |
| Filament Max Current | 1.7 A |
| Stability (after 4 hrs) | ±0.2% |
| Nominal Focal Spot Size | 110 µm |
| Anode Materials | W, Mo, Rh (custom options available) |
| Beryllium Window Thickness | 125 µm (optional: 75 µm or 250 µm) |
| Approx. Weight | 1.816 kg (4 lbs) |
| Cooling Method | Compressed Air @ 150 CFM |
| Beam Divergence Angle | 25° |

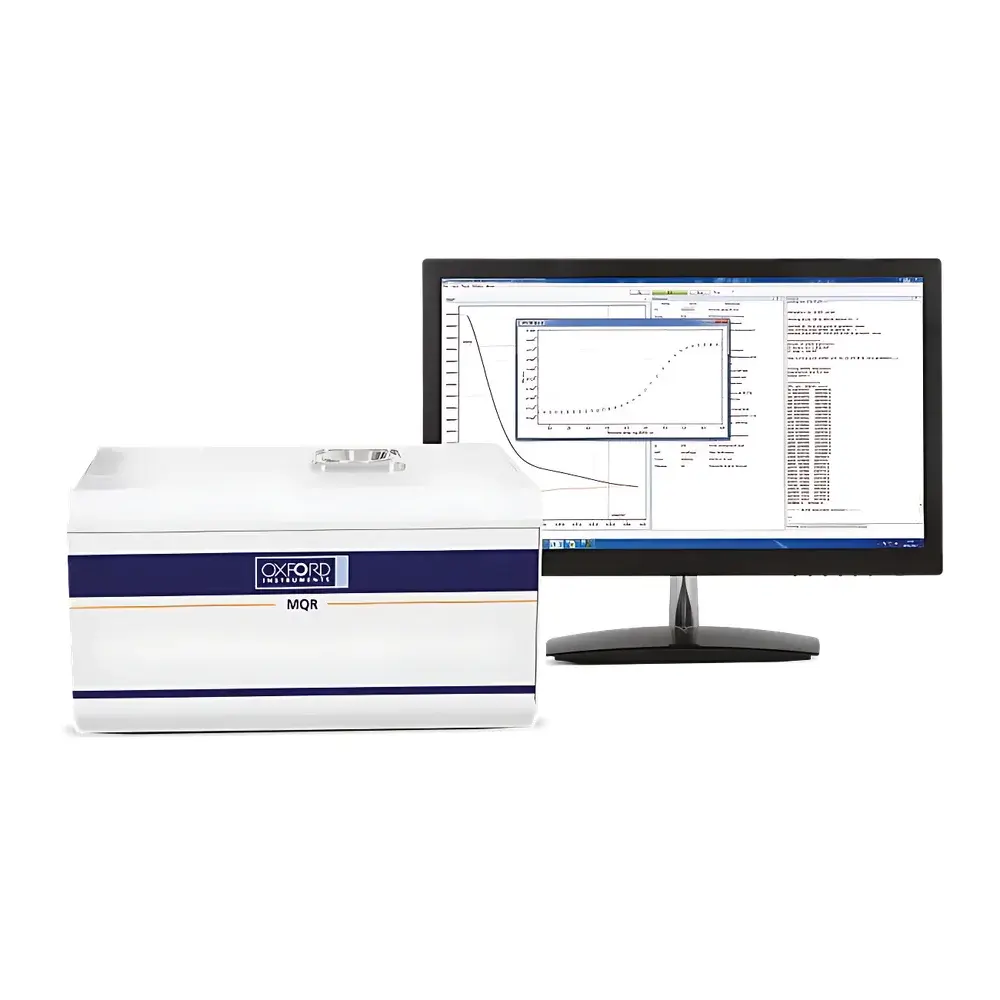

| Brand | Oxford Instruments |
|---|---|
| Origin | United Kingdom |
| Model | MQR |
| Field Strength | 0.54 T (23 MHz ¹H) |
| Operating Frequency | 23 MHz (¹H) |
| Probe Options | 10 mm, 18 mm, 26 mm diameter |
| Sample Compatibility | Solid and liquid samples (dual-phase) |
| Pulse Sequence Capability | User-programmable via Application Developer software |
| Gradient Options | Bipolar PFG (1D), 3-axis PFG (MRI-capable) |
| Temperature Control | Optional VT probe |
| Data Analysis | 1D/2D inverse Laplace transform, T₁/T₂/D diffusion correlation, phase-resolved component analysis |
| Software Environment | Open-data architecture with Python-compatible API |
| Compliance | Designed for GLP/GMP-aligned workflows |

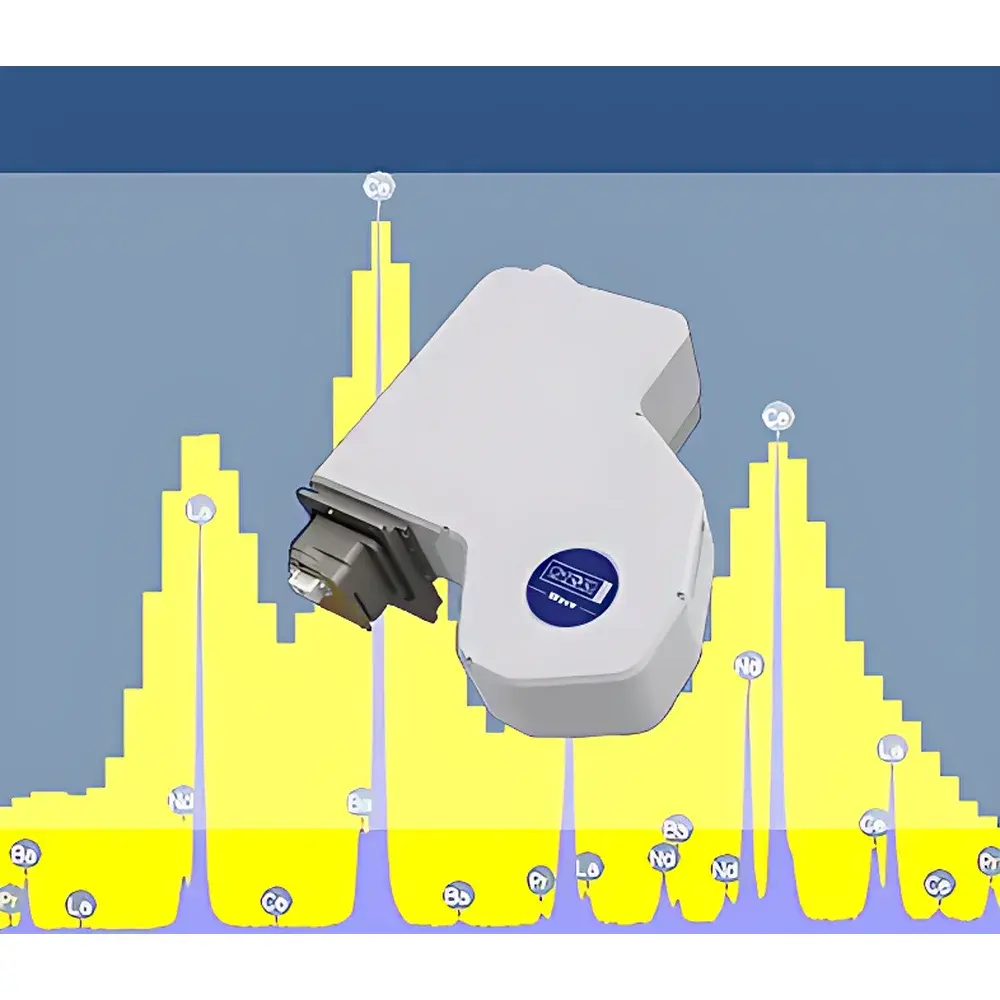

| Brand | Oxford Instruments |
|---|---|
| Origin | United Kingdom |

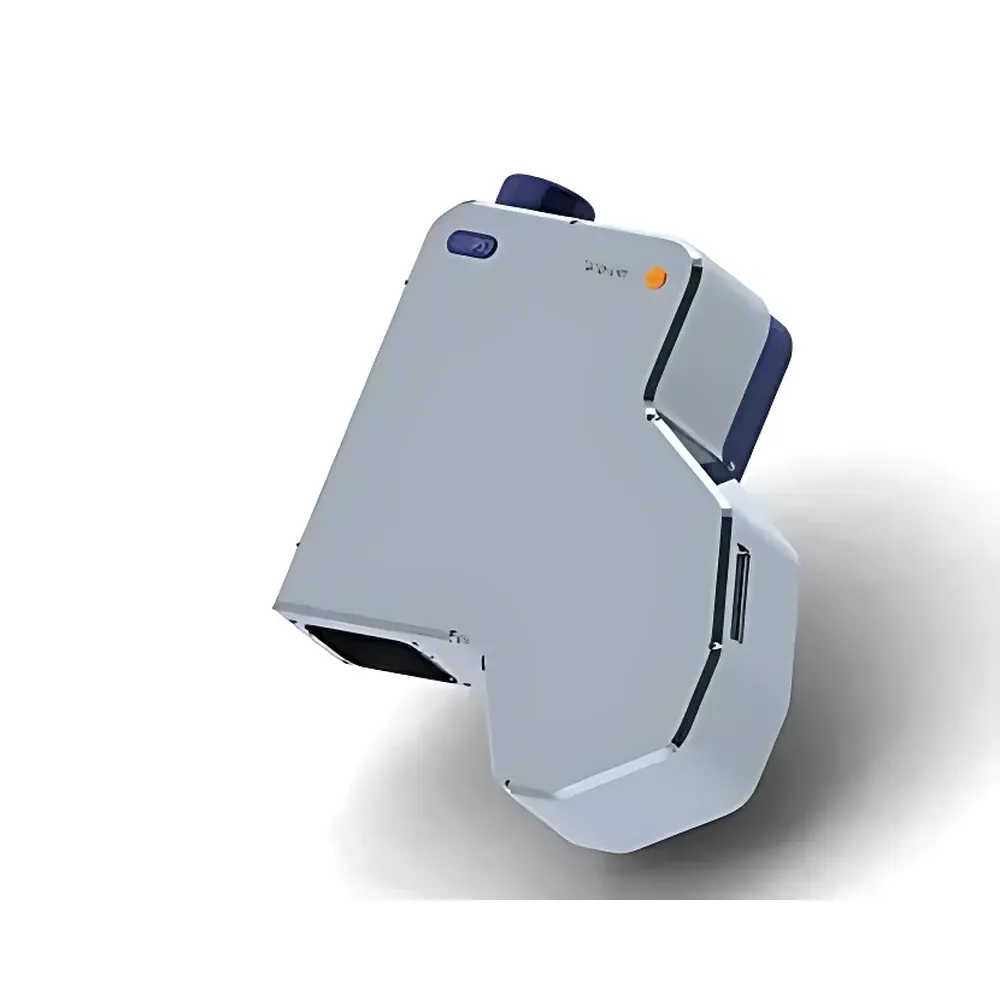

| Model | Wave500, Wave700 |
| Detector Integration | Ultim Max EDS |
| Geometry | Focusing Rowland Circle with Curved Crystals |
| Energy Resolution | <10 eV at Mn Kα |
| Detection Limit | <100 ppm (typical, matrix-dependent) |
| Slit Mechanism | Motorized Incident Slit for Resolution/Background Optimization |
| Mounting Configuration | Tilted Geometry for Enhanced SEM Compatibility and Reproducible Sample Positioning |
| Compliance | Designed for integration with Zeiss SEM platforms (e.g., GeminiSEM, Sigma, Merlin) |
| Brand | Oxford Instruments |
|---|---|
| Origin | United Kingdom |
| Manufacturer Type | Authorized Distributor |
| Origin Category | Imported |
| Model | WDS |
| Price | USD 185,000 (FOB UK) |
