| Brand | Oxford Instruments |
|---|---|
| Origin | United Kingdom |
| Model | AZtecPharma |
| Compliance | FDA 21 CFR Part 11, EU Annex 11, GxP-aligned |
| Software Platform | AZtecLive-based |
| User Authentication | Integrated Windows Active Directory / LDAP |
| Audit Trail | Immutable, timestamped, user-attributed, inspector-accessible |
| Digital Signature | Enforced per action (acquisition, processing, reporting) |
| SOP Integration | Configurable acquisition profiles with version-controlled parameters |
| Real-time EDS Imaging | Elemental mapping with live spectral overlay comparison |
| Brand | Oxford Instruments |
|---|---|
| Origin | United Kingdom |
| Manufacturer Type | Authorized Distributor |
| Origin Category | Imported |
| Model | TKD |
| Price Range | USD 1,400 – 7,000 |
| Brand | Oxford Instruments |
|---|---|
| Origin | United Kingdom |
| Model | AZtecWave |
| Detector Type | Wavelength Dispersive Spectrometer (WDS) with Integrated EDS Compatibility (Ultim Max) |
| Roland Circle Radius | 210 mm |
| Energy Resolution | <10 eV (Mn Kα, typical) |
| Detection Limit | <100 ppm (matrix-dependent) |
| Peak-to-Background Ratio | >10,000:1 (typical for major elements) |
| Optical Geometry | Focusing Johann-type spectrometer with bent crystals |
| Incident Slit | Motorized, variable width |
| Installation | Tilt-mounted for minimal working distance dependency |
| Software Platform | AZtecWave v4.x or later |
| Brand | Oxford Instruments |
|---|---|
| Origin | United Kingdom |
| Model | AZtecBattery |
| Detector Compatibility | Ultim Max / Xplore / UltimExtreme EDS detectors |
| Maximum Field Count | 10,000 fields per sample |
| Max Particle Count | 200,000 particles per sample |
| Throughput | Up to 30,000 particles/hour |
| EDS Count Rate Capability | Up to 400 kcps |
| Effective Detector Area | Up to 170 mm² |
| Software-Enabled Capabilities | Automated particle detection, multi-threshold contrast segmentation, morphology-based filtering, Z-focus stabilization across large-area scans, cross-field particle reconstruction, customizable classification logic, ASTM/ISO-compliant reporting templates, FDA 21 CFR Part 11-ready audit trail (optional configuration) |
| Brand | Oxford Instruments |
|---|---|
| Origin | United Kingdom |
| Model | OmniGIS II |
| Gas Port Configuration | Single-port, multi-source compatible |
| Gas Capacity | Up to 3 primary gas sources + 2 auxiliary gases |
| Control Architecture | Pressure-feedback regulated flow control |
| Vacuum Compatibility | Adaptive operation across wide chamber pressure range (10⁻⁷ mbar to 10⁻¹ mbar) |
| Integration | Designed for SEM and FIB platforms |
| Compliance | CE-marked |
| Software Interface | Native integration with AZtec GIS Control Suite (v5.0+) |
| Brand | Oxford Instruments |
|---|---|
| Origin | United Kingdom |
| Manufacturer Type | Authorized Distributor |
| Origin Category | Imported |

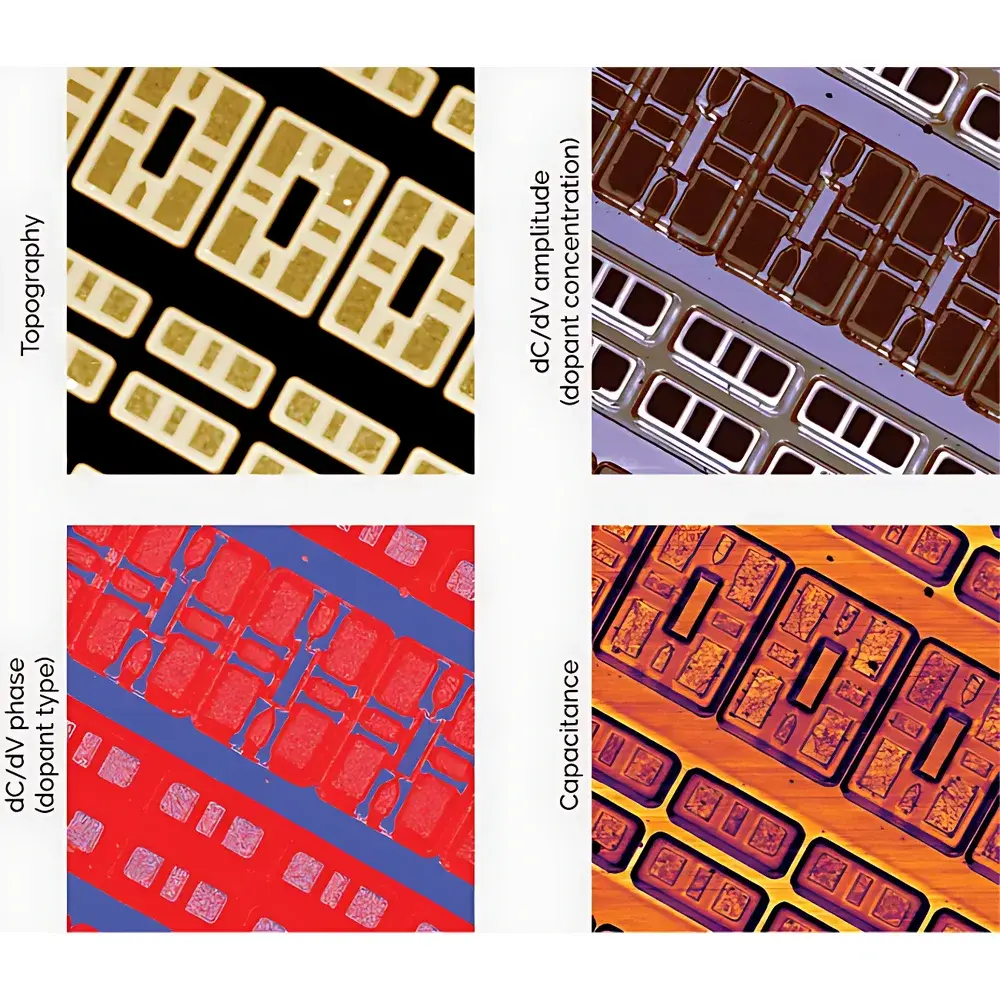

| Model | Fast-Scan Scanning Capacitance Microscope (SCM) |
| Price Range | USD 25,000 – 65,000 |
| Brand | Oxford Instruments |
|---|---|
| Origin | United Kingdom |
| Model | OmniProbe (OP350, OP400, Cryo) |
| Drive Technology | Piezoelectric actuation |
| Positioning Resolution | Sub-nanometer |
| Operating Temperature Range (Cryo) | –180 °C to room temperature |
| Port Compatibility | Standard SEM/FIB vacuum feedthroughs (e.g., 60 mm, 80 mm) |
| Control Interface | Digital USB/Ethernet with real-time image-synchronized calibration |
| Compliance | Designed for GLP/GMP-aligned workflows |
| Brand | Oxford Instruments |
|---|---|
| Origin | United Kingdom |
| Model | Relate Correlative Imaging Software |
| Data Format Support | Aztec H5oina, AFM native formats (e.g., Gwyddion, Nanoscope, SPIP) |
| Primary Function | Multi-modal correlative analysis of SEM/TEM, EDS, EBSD, and AFM datasets |
| Compatibility | Integrated with Oxford Instruments Aztec and Symmetry platforms |
| Licensing | Node-locked or floating license options |
| Compliance | Supports GLP/GMP-aligned documentation workflows, audit-trail-ready metadata logging |
