| Brand | Oxford Instruments |
|---|---|
| Origin | United Kingdom |
| Model | TritonXL |
| Minimum Base Temperature | < 5 mK |
| Refrigeration Power | 1000 µW at 100 mK |
| Maximum Magnetic Field Compatibility | Up to 16 T |
| Integrated Cryocoolers | Dual 1.5 W Pulse Tube Refrigerators |
| Standard Warranty | 3 years (covers all system components, including third-party cryocoolers, pumps, and electronics) |
| Service Support | Factory-authorized service network across UK, Germany, USA, China, Japan, and India |
| Vibration Mitigation | Remote pump rack, rigid floor-standing cryostat support, electrical isolation between cryostat, gas lines, and pump station |
| Gas Handling System | Dry, oil-free pumping stack (roots + diaphragm + turbomolecular pumps), fully welded pneumatic circuit with high-integrity solenoid valves |
| Sample Access | Top- and bottom-loading options |
| RF Wiring Capacity | Up to 72 semi-rigid coaxial lines with optimized attenuators |
| Optical Integration | Optional fiber feedthroughs or optical windows |
| Control Interface | Advanced software suite with remote command protocol (TCP/IP), hardware interlocks, and audit-trail-capable operation logging |
| Brand | Oxford Instruments |
|---|---|
| Origin | United Kingdom |
| Model | Triton |
| Cooling Power | >12 µW @ 20 mK (Triton 500), >6 µW @ 20 mK (Triton 300) |
| Base Temperature | < 10 mK |
| Sample Space | Ø290 mm × H240 mm (extendable to 440 mm) |
| Magnetic Field Compatibility | Up to 14 T |
| Helium-3 Inventory | 18 L (Triton 500), 11 L (Triton 300) |
| Cool-down Time | < 24 h |
| Operating Temperature Range | 10 mK – 30 K (full field) |
| Cryocooler | 1–2 W Pulse Tube Refrigerator |
| Compliance | Fully compatible with ISO/IEC 17025-aligned lab infrastructure, supports GLP/GMP audit trails via optional integrated logging |
| Brand | Oxford Instruments |
|---|---|
| Origin | United Kingdom |
| Model | Optistat Dry |
| Temperature Range | < 3 K to 300 K |
| Cool-down Time | ≤120 min to 10 K |
| Optical Aperture | Up to 28 mm diameter |
| Numerical Aperture | f/1 |
| Electrical Feedthroughs | Up to 12 leads |
| Cooling Options | Air-cooled or water-cooled cryocooler |
| Vibration Level | < 10 µm (when mounted on optical table) |
| Compliance | Designed for ISO/IEC 17025-compliant laboratories, compatible with GLP/GMP data integrity requirements |
| Brand | Oxford Instruments |
|---|---|
| Origin | United Kingdom |

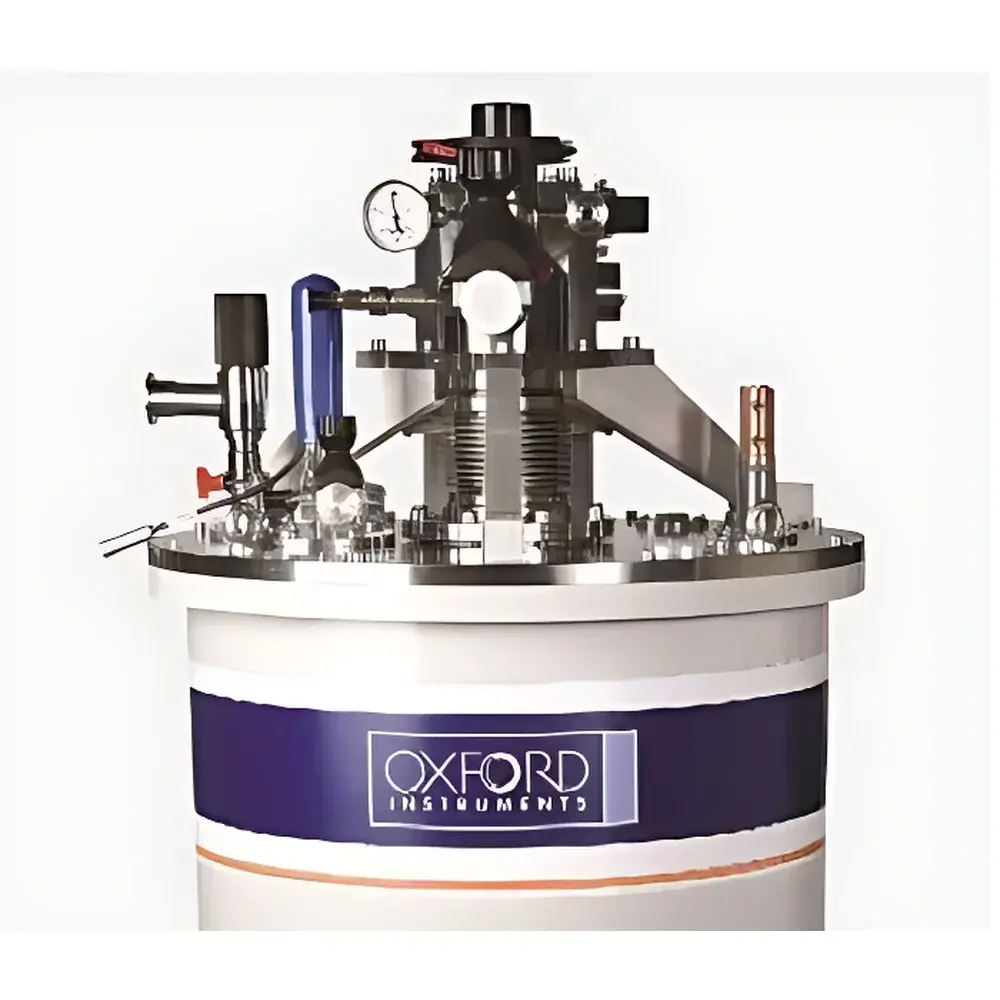

| Model | TeslatronPT |
| Maximum Magnetic Field | 18 T |
| Temperature Range | 1.5 K to 300 K (standard VTI) |
| Sample Bore Diameter | 50 mm |
| Cooling Method | Single-pulse-tube cryocooler |
| Sample Access | Top-loading probe mechanism |
| Vibration Level | Ultra-low (suitable for SQUID, STM, and optical spectroscopy) |
| Internal Cold Trap | Yes |
| Gas Exchange Mode | Static exchange gas (no forced flow across sample) |
| Compliance | Designed for GLP/GMP-adjacent research environments |
| Brand | Oxford Instruments |
|---|---|
| Origin | United Kingdom |
| Model | SpectromagPT |
| Temperature Range | 1.6 K – 300 K |
| Magnetic Field Strength | Up to 7 T |
| Optical Access | Dual-axis (parallel & perpendicular to field) |
| Sample Chamber Diameter | 30 mm |
| Temperature Stability (standard probe) | ±0.1 K |
| Cool-down Time (room temp → 4 K) | ~40 h |
| Probe Cool-down Time (to <2 K, cold insert) | <90 min |
| Field Ramp Time (to max field) | ≤60 min |
| Continuous Operation Duration | >4 weeks |
| Cryocooler Type | Closed-cycle, helium-free |
| Sample Exchange | Top-loading, no lock-in mechanism required |
| Thermal Environment | Static exchange gas cooling (no convective flow) |
| Optional Sample Stage | ±15 mm axial translation + 360° rotation about vertical axis |
| Brand | Oxford Instruments |
|---|---|
| Origin | United Kingdom |

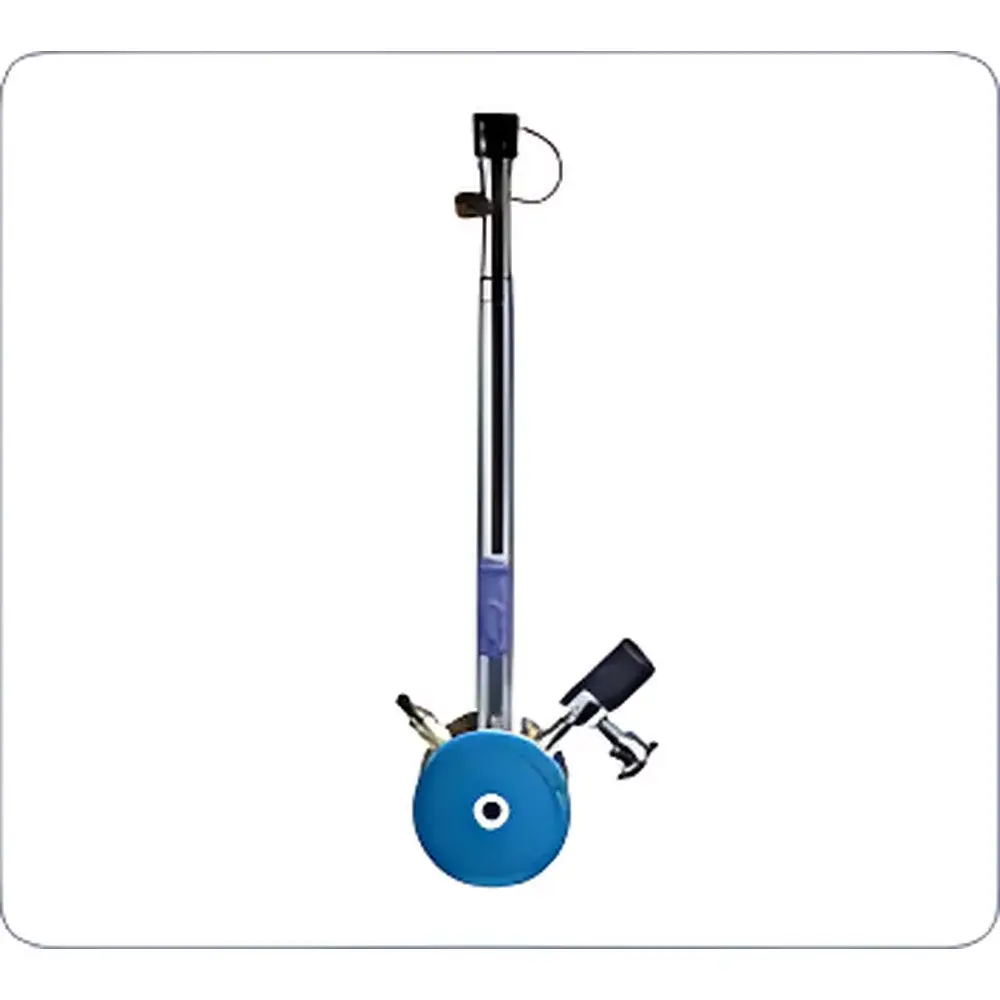

| Model | MicrostatHiRes |
| Temperature Range | 2.7 K – 500 K (with optional rotary pump) / 3.4 K – 500 K (standard) |
| Base Temperature Stability | ±0.1 K |
| Helium Consumption at 4.2 K | < 0.70 L/hr (with low-loss transfer line) |
| Cool-down Time from RT to 4.2 K | ~15 min (with pre-cooled transfer line) |
| Working Distance | 2.2 mm |
| Sample Vibration | < 20 nm (measured in SEM environment) |
| Mass | 1.5 kg |
| Controller | Mercury iTC |
| Communication Interfaces | RS232, USB (serial emulation), TCP/IP, GPIB |
| Software Integration | LabVIEW driver library and virtual instrument support |
| Compliance | Designed for GLP/GMP-adjacent research environments |
| Brand | Oxford Instruments |
|---|---|
| Origin | United Kingdom |
| Model | PlasmaPro 100 Cobra |
| Wafer Capacity | Single-wafer and batch processing up to 200 mm |
| Temperature Range | −150 °C to +400 °C |
| Electrode Cooling/Heating | Liquid nitrogen, recirculating chiller, or resistive heating |
| RF Power Delivery | Top-mounted electrode with dual-frequency (LF/RF) capability |
| ICP Source Options | 65 mm, 180 mm, 300 mm |
| Process Pressure Range | Wide operational window enabled by high-pumping-speed vacuum system |
| Substrate Thickness Compatibility | Up to 10 mm |
| Backside He–cooling | Integrated electrostatic chuck with helium backside cooling |
| Endpoint Detection | Real-time optical emission spectroscopy (OES) monitoring |
| Chamber Architecture | Symmetric, low-inductance plasma chamber with uniform gas distribution and high-conductance pumping path |
| Brand | Oxford Instruments |
|---|---|
| Origin | United Kingdom |
| Model | Microstat |
| Temperature Range | 1.5 K to 300 K (depending on configuration) |
| Cooling Method | Closed-cycle helium cryocooler or liquid helium flow cryostat |
| Optical Access | Dual windows (UV to FIR transmission, optional AR coatings) |
| Electrical Feedthroughs | Up to 24 low-noise coaxial or twisted-pair leads |
| Footprint | Compact benchtop design (< 300 mm × 300 mm base) |
| Vibration Isolation | Active/passive hybrid stage stabilization |
| Compliance | CE, UKCA, RoHS |
| Brand | Oxford Instruments |
|---|---|
| Origin | United Kingdom |
| Model | Proteox |
| Cooling Principle | Continuous He-3/He-4 Dilution Refrigeration |
| Base Temperature | ≤ 10 mK (typical) |
| Experimental Bore Diameter | 360 mm |
| Secondary Insert Capacity | Up to 2 × ISO100 feedthroughs |
| Additional Feedthroughs | Up to 2 × KF40 + 2 × KF25 |
| Thermal Management | Patented Gas-Gap Heat Switch System |
| Magnet Integration | Fully compatible with Oxford Instruments superconducting magnets |
| Software Platform | Web-based, cross-platform control with audit-trail logging |
| Maintenance Cycle | Extended via automated gas-handling bypass system |
| Sample Exchange | Optional bottom-loading rapid sample transfer mechanism integrated at secondary insert level |
| Compliance | Designed for GLP/GMP-aligned laboratory environments |
| Brand | Oxford Instruments |
|---|---|
| Origin | United Kingdom |
| Manufacturer Type | Authorized Distributor |
| Origin Category | Imported |
| Model | Optistat |
| Price Range | USD 13,500 – 40,500 (FOB UK) |
| Brand | Oxford Instruments |
|---|---|
| Origin | United Kingdom |
| Model | Proteox 5 mK |
| Cooling Principle | Helium-3/Helium-4 Dilution Refrigeration |
| Base Temperature | < 5 mK |
| Magnet Compatibility | Integrated or Standalone Oxford Superconducting Magnets (up to 18 T) |
| Cryogenic Architecture | Dry, Helium-Free Operation |
| System Configuration | Turnkey Cryostat with Vibration-Isolated Mixing Chamber and Thermal Anchoring Stages |
