| Brand | Oxford Instruments |
|---|---|
| Origin | United Kingdom |
| Model | iXon 888 |
| Pixel Size | 13 µm |
| Sensor Type | Back-Illuminated Electron-Multiplying CCD |
| Quantum Efficiency | >95% (peak) |
| Cooling | Thermoelectric (−80 °C typical operating temperature) |
| Readout Modes | EMCCD and conventional CCD |
| Frame Rate | Up to 30 fps at full resolution (configurable via ROI and binning) |
| Interface | USB 3.0 |
| Brand | Oxford Instruments |
|---|---|
| Origin | United Kingdom |
| Model | iXon Ultra 897 |
| Pixel Size | 16 µm |
| Readout Speed | 17 MHz (full frame) |
| Frame Rate | 56 fps (512 × 512), 595 fps (128 × 128 ROI) |
| Cooling | Thermoelectric to −100 °C |
| Quantum Efficiency | Extended back-illuminated response (EX2 technology) |
| Gain Calibration | RealGain™ and EMCAL™ |
| Interface | USB 2.0 with raw data access |
| Operating Modes | EMCCD and conventional CCD |
| Software Features | OptAcquire, iCam, Counting Conversion, Edge Suppression |
| Brand | Oxford Instruments |
|---|---|
| Origin | United Kingdom |
| Model | iDus |
| Effective Pixels | 1024 |
| Pixel Size | 25 µm |
| Cooling | TE-cooled to –100 °C (iDus 401/420), –95 °C (iDus 416), –90 °C (iDus 491/492) |
| Sensor Types | Back-illuminated deep-depletion CCD, front-illuminated CCD, InGaAs (1.7 µm & 2.2 µm cutoff) |
| Peak Quantum Efficiency | up to 95% (CCD), >85% (1.7 µm InGaAs), >70% (2.2 µm InGaAs) |
| Key Technology | UltraVac™ vacuum architecture, single fused-silica window, fringe suppression, open-electrode design (optional) |
| Brand | Oxford Instruments |
|---|---|
| Origin | France |
| Manufacturer Type | Authorized Distributor |
| Origin Category | Imported |
| Model | C-RED New Space |
| Effective Pixels | 640 × 512 |
| Pixel Size | 15 µm |
| Full-Frame Frame Rate | 600 fps |
| Windowed Mode (32 × 4) | 32,066 fps |
| Read Noise | <30 e⁻ |
| Dynamic Range | 93 dB (True 16-bit mode) |
| Operating Temperature Range | -40 °C to +65 °C |
| Sensor Material | InGaAs (VGA array) |
| Cooling | Advanced passive/thermoelectric hybrid thermal management |
| Brand | Oxford Instruments |
|---|---|
| Origin | United Kingdom |
| Model | Newton |
| Sensor Pixel Size | 13.5 × 13.5 µm or 26 × 26 µm |
| Cooling | Thermoelectric (TE) to –100°C |
| Readout Speed | Multi-Megahertz (up to 3 MHz) |
| Quantum Efficiency | Up to 95% |
| Vacuum Technology | UltraVac™ |
| Sensor Architecture | EMCCD or conventional CCD |
| Spectral Acquisition Rate | >1600 spectra/sec (Newton 920) |
| Pixel Array Options | 1024 × 255, 2048 × 512, or 1600 × 400 |
| Brand | Oxford Instruments |
|---|---|
| Origin | France |
| Model | C-RED One |
| Sensor Format | 320 × 256 |
| Pixel Size | 24 µm |
| Spectral Range | J/H/K bands (0.9–2.5 µm) |
| Readout Noise | Sub-electron |
| Max Frame Rate | 3500 fps (full frame) / 10 kHz (ROI) |
| Cooling | Integrated pulse-tube cryocooler to 90 K |
| Vacuum System | Sealed, autonomous regeneration |
| Vibration Reduction | 10× active suppression |
| Readout Modes | Global reset, rolling reset, single readout, CDS, multiple non-destructive reads (MDR) |
| Brand | Oxford Instruments |
|---|---|
| Origin | France |
| Model | C-RED 3 |
| Resolution | 640 × 512 pixels |
| Pixel Size | 15 µm |
| Readout Speed | Up to 600 fps (full frame) |
| Integration Time | < 5 µs (electronic shutter) |
| Cooling | Uncooled |
| Form Factor | Compact OEM-ready design |
| Power Consumption | < 5 W |
| Interface | Camera Link HS or 10 GbE |
| Spectral Range | 0.9–1.7 µm |
| Brand | Oxford Instruments |
|---|---|
| Origin | France |
| Model | C-RED 2 |
| Effective Resolution | 640 × 512 pixels |
| Pixel Size | 15 µm |
| Frame Rate | up to 600 fps |
| Read Noise | <30 e⁻ |
| Electronic Shutter Pulse Width | <5 µs |
| Maximum Exposure Time | 60 s |
| Dynamic Range | 93 dB |
| ADC Resolution | True 16-bit |
| Brand | Oxford Instruments |
|---|---|
| Origin | France |
| Model | OCAM² |
| Sensor Type | Back-illuminated Frame-transfer EMCCD (OCAM²K) / Split-frame EMCCD with Embedded Electronic Shutter (OCAM²S) |
| Resolution | 240 × 240 pixels |
| Pixel Size | 24 µm |
| Maximum Frame Rate | 2067 fps (up to 3700 fps in binning mode) |
| Read Noise | Sub-electron (≤0.7 e⁻ rms) |
| Quantum Efficiency | >95% (400–900 nm) |
| Minimum Integration Time | <1 µs (OCAM²S, with 50 ns timing precision) |
| Image Transfer Time | 12 µs per frame |
| Output Latency | As low as 43 µs post-exposure |
| Clocking Speed | Up to 7 Mlines/s |
| Spectral Range | 400–900 nm |
| Cooling | Peltier-cooled (−40 °C typical operating temperature) |
| Compliance | CE, RoHS, ISO 9001-manufactured |
| Software Interface | GenICam-compliant, supports GigE Vision and custom SDKs |
| Brand | Oxford Instruments |
|---|---|
| Origin | France |

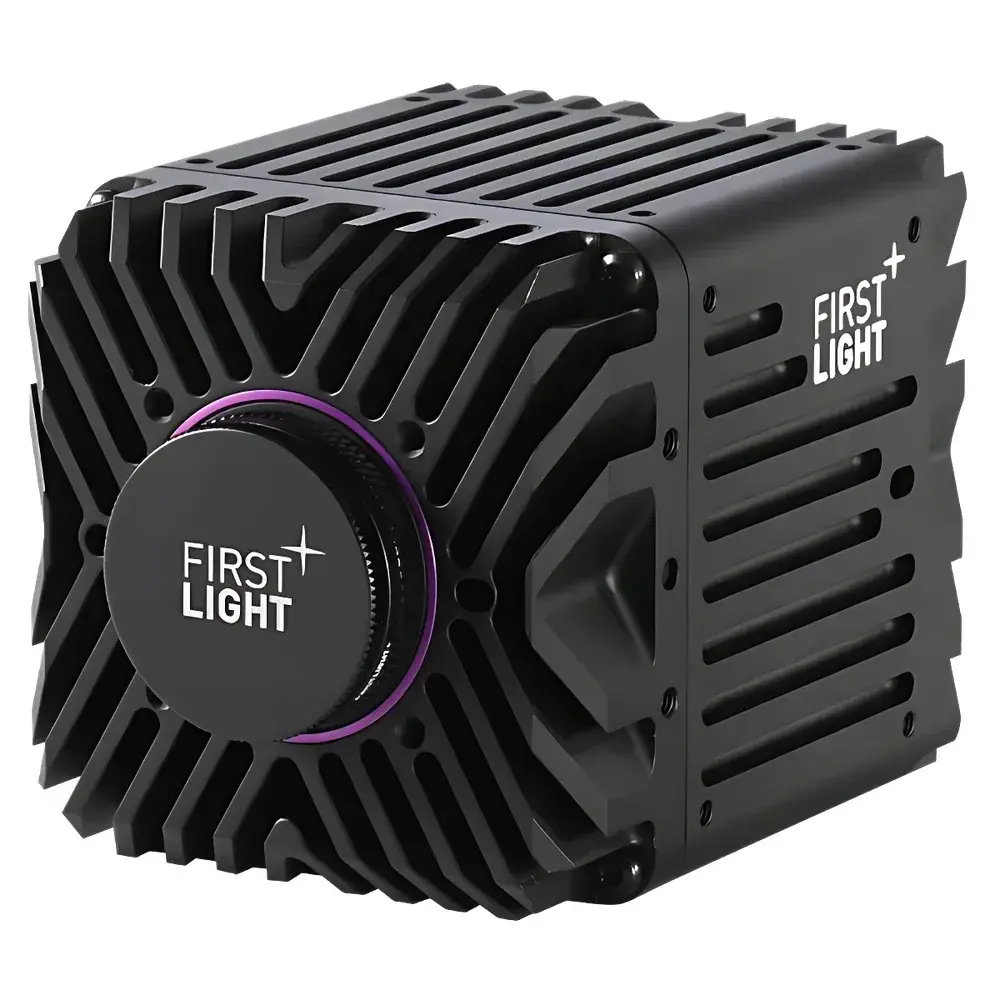

| Model | C-RED 2 Lite |
| Effective Resolution | 640 × 512 |
| Pixel Size | 15 µm |
| Detector Type | InGaAs PIN photodiode array |
| Electronic Shutter Pulse Width | < 5 µs |
| Cooling | Passive thermoelectric stabilization (fanless) + optional water-cooled cold plate |
| Brand | Oxford Instruments |
|---|---|
| Origin | United Kingdom |
| Model | iKon-M (912 & 934 variants) |
| Sensor Format | 512 × 512 (iKon-M 912) / 1024 × 1024 (iKon-M 934) |
| Effective Pixels | 4 Megapixel (iKon-M 934) |
| Pixel Size | 24 µm (iKon-M 912) / 13 µm (iKon-M 934) |
| Quantum Efficiency | >90% (iKon-M 912), up to 95% (iKon-M 934) |
| Read Noise | ≤3 e⁻ RMS |
| Full Well Capacity | 300,000 e⁻ (iKon-M 912) |
| Cooling | TE-cooled UltraVac™ vacuum enclosure to –100 °C |
| Readout Speeds | 50 kHz to 5 MHz |
| Dark Current | <0.0001 e⁻/pix/sec at –100 °C |
| Compliance | CE, RoHS, ISO 9001 certified manufacturing |
| Brand | Oxford Instruments |
|---|---|
| Origin | France |
| Model | C-RED 2 ER |
| Effective Pixels | 640 × 512 |
| Pixel Size | 15 µm |
| Frame Rate | 600 fps (full frame), up to 32,066 fps (region-of-interest) |
| Spectral Range | 1.1–1.9 µm (C-RED 2 ER 1.9) or 1.2–2.2 µm (C-RED 2 ER 2.2) |
| Read Noise | < 50 e⁻ (1.9 µm version), < 40 e⁻ (2.2 µm version) |
| Cooling | Integrated dual-stage thermoelectric cooler (ΔT ≤ 60 °C vs. ambient) |
| Brand | Oxford Instruments |
|---|---|
| Origin | United Kingdom |
| Manufacturer Type | Authorized Distributor |
| Origin Category | Imported |
| Model | iKon-XL CCD |
| Price Range | USD 13,500 – 68,000 (est.) |
| Effective Pixels | 16.8 Megapixel |
| Pixel Size | 15 × 15 µm |
| Sensor Type | Back-Illuminated CCD (e2v CCD231-84 or CCD230-84) |
| Cooling Method | Thermoelectric (TE) with ColdSpace™ |
| Operating Temperature | −100 °C |
| Quantum Efficiency | Up to 95% (deep-depletion NIR-enhanced) |
| Read Noise | ≤ 2.1 e⁻ |
| Full Well Capacity | 350,000 e⁻ |
| Digitization | 18-bit ADC |
| Interface | USB 3.0 or Fiber Optic |
| Readout Modes | Single-channel or Quad-channel (quadrant-balanced) |
