| Key | Max Load Capacity: 2500 N |
|---|---|
| Load Cell Accuracy | 0.01% |
| Measuring Accuracy | < ±0.5% |
| Valid Width | 150 mm |
| Stroke | 300 mm (extendable) |
| Test Speed Range | 0.001–300 mm/min |
| Speed Accuracy | ±0.5% |
| Stroke/Displacement Accuracy | ±0.5% |
| Safety Features | Electronic Limit Switch, Emergency Stop |
| Unit Weight | ~45 kg |
| Brand | Qinji |
|---|---|
| Origin | Shanghai, China |
| Model | QJ211S Glass-Specific |
| Max Load | 10 kN |
| Accuracy Class | 0.5 |
| Effective Test Width | 320 mm |
| Stroke (Tensile) | 500/800 mm |
| Speed Range | 0.01–300 mm/min |
| Speed Accuracy | ±0.5% of reading |
| Force Resolution | 500,000 counts (full-scale, no range switching) |
| Displacement Accuracy | ±0.5% of reading |
| Strain Measurement Accuracy | ±0.5% of reading |
| Load Cell | High-Precision U.S.-Sourced Sensor |
| Controller | Panasonic Full-Digital AC Servo System |
| Control Mode | Full-Digital Closed-Loop (Constant Load, Constant Displacement, Constant Strain) |
| Safety Protection | Software Diagnostics, Electronic Limit Switches, Overload Protection (110% FS), Automatic Return Post-Test |
| Weight | ~145 kg |
| Brand | Qinji |
|---|---|
| Model | QJ210A-5000N |
| Load Capacity | 0–5 kN |
| Load Accuracy | ±0.5% of full scale |
| Effective Test Width | 150 mm |
| Max Travel Distance | 800 mm |
| Speed Range | 0.01–500 mm/min |
| Speed Accuracy | ±0.5% of set value |
| Displacement Accuracy | ±0.5% of reading |
| Deformation Accuracy | ±0.5% of reading |
| Force Resolution | 500,000 counts (full-scale, no range switching) |
| Power Supply | 200 V AC, 400 W |
| Dimensions (L×W×H) | 590 × 355 × 1640 mm |
| Net Weight | ~85 kg |
| Brand | Qinskey |
|---|---|
| Origin | Shanghai, China |
| Model | QJ211S |
| Type | Electromechanical Universal Testing Machine |
| Load Capacity | 20 kN |
| Accuracy Class | 0.5 |
| Effective Force Range | 0.02–100% of full scale |
| Force Resolution | 500,000 counts (no internal/external range switching, constant resolution) |
| Effective Test Width | 460 mm |
| Effective Vertical Travel (excluding fixtures) | 1500 mm |
| Speed Range | 0.001–1000 mm/min (programmable) |
| Speed Accuracy | ±0.5% of indicated value |
| Displacement Measurement Accuracy | ≤0.2% of indicated value |
| Strain/Deformation Measurement Accuracy | ≤0.2% of indicated value |
| Noise Level | ≤76 dB(A) |
| Continuous Operational Duration | ≥2000 h |
| Critical Component Service Life | ≥8000 h |
| Overload Protection | Automatic shutdown at >110% of rated load |
| Motor Power | 0.75 kW |
| Dimensions (W×D×H) | ≈670×600×2220 mm |
| Weight | ≈195 kg |
| Brand | Qingji |
|---|---|
| Model | QJ-211S2 |
| Type | Electromechanical Universal Testing Machine |
| Load Capacity | 0.01 N to 30 kN |
| Load Accuracy | ±0.5% of reading |
| Effective Test Width | 420 mm |
| Effective Test Height (excluding fixtures) | 800 mm |
| Crosshead Speed Range | 0.001–500 mm/min |
| Speed Accuracy | ±0.5% of set value |
| Displacement Measurement Accuracy | ±0.5% of reading |
| Strain/Deformation Measurement Accuracy | ±0.5% of reading |
| Resolution | 300,000 counts full-scale, no internal range switching |
| Power | 750 W |
| Dimensions (W×D×H) | 700 × 420 × 1600 mm |
| Weight | 145 kg |
| Compliance | Meets ISO 7500-1 Class 0.5, ASTM E4, ASTM E8/E21, GB/T 228.1–2021 |
| Brand | Qinji |
|---|---|
| Origin | Shanghai, China |
| Model | QJ215 |
| Load Capacity Options | 50 kN / 100 kN / 200 kN / 300 kN / 500 kN |
| Maximum Test Diameter | ≤ Φ5000 mm |
| Accuracy Class | Class 1 / Class 0.5 |
| Load Accuracy | ±0.5% of reading |
| Speed Range | 0.01–1000 mm/min (standard speed: 300 mm/min) |
| Speed Accuracy | ±0.15% of reading |
| Displacement Resolution | 0.01 mm |
| Control Interface | Full Chinese GUI with PC-integrated real-time curve display, data logging, and report generation |
| Brand | Qingji |
|---|---|
| Origin | Shanghai, China |
| Model | QJ211 |
| Maximum Load Capacity | 30 kN |
| Load Cell Accuracy | 0.01% |
| Test Accuracy | < ±0.5% |
| Control System | Full PC-based Windows OS Interface |
| Effective Test Width | ~420 mm |
| Effective Tensile Stroke | ~800 mm |
| Test Speed Range | 0.001–500 mm/min |
| Speed Accuracy | ±0.5% |
| Displacement Measurement Accuracy | ±0.5% |
| Strain Measurement Accuracy | ±0.5% |
| Safety Protection | Electronic stroke limit, emergency stop button, overload auto-shutdown |
| Machine Weight | ~140 kg |
| Origin | Shanghai, China |
|---|---|
| Manufacturer Type | Authorized Distributor |
| Origin Category | Domestic (China) |
| Model | QJWE Series |
| Price | ¥55,000 CNY |
| Instrument Type | Electro-Hydraulic Servo Testing Machine |
| Load Capacity Options | 50 kN, 100 kN, 300 kN, 600 kN, 1000 kN, 2000 kN |
| Force Measurement Accuracy | ±1% of full scale |
| Resolution | ≤0.5% of full scale |
| Compression Space | 550–700 mm |
| Tension Space | 550–700 mm |
| Round Specimen Grip Range | φ6–12 mm to φ20–70 mm (model-dependent) |
| Flat Specimen Grip Thickness | 0–15 mm to 0–40 mm |
| Piston Stroke | 200–250 mm |
| Bending Span Adjustment | 400–1000 mm |
| Shear Specimen Diameter | φ10–φ30 mm |
| Overall Dimensions (L×W×H) | 640×550×1800 mm to 1255×866×4700 mm |
| Motor Power | 1.5 kW or 3.25 kW, 3-phase |
| Machine Weight | 1200 kg or 6600 kg |
| Origin | Shanghai, China |
|---|---|
| Manufacturer Type | Authorized Distributor |
| Origin Category | Domestic (PRC) |
| Model | QJ212-100KN |
| Instrument Type | Electro-Hydraulic Servo Testing Machine |
| Max Test Load | 100 kN |
| Force Measurement Accuracy | ±0.5% of reading (from 1% FS) |
| Force Control Stability | ±1% of reading |
| Crosshead Speed Range | 0.01–180 mm/min |
| Stroke | 200 mm |
| Extensometer | Imported linear encoder |
| Deformation Range | up to 25 mm (multiple ranges available) |
| Deformation Accuracy | ±0.5% |
| High-Temperature Furnace | Φ50 mm chamber × 450 mm length |
| Temperature Range | RT to 1200 °C |
| Temperature Control Accuracy | ±0.5 °C |
| Temp. Resolution | 0.1 °C |
| Uniform Temperature Zone Length | >150 mm |
| Creep Load Control | Imported servo system |
| Load Adjustment | 0–100 kN continuous, stepless |
| Load Resolution | 0.1 N |
| Furnace Power | 3 kW |
| Weight | 850 kg |
| Origin | Shanghai, China |
|---|---|
| Manufacturer Type | Authorized Distributor |
| Origin Category | Domestic (PRC) |
| Model | QJ212 |
| Instrument Type | Electromechanical Universal Testing Machine |
| Load Capacity Options | 10–500 kN |
| Effective Test Width | 500 mm |
| Max. Travel Distance | 600 / 800 mm (configurable) |
| Speed Range | 0.001–1000 mm/min |
| Speed Accuracy | ±1% of indicated value |
| Displacement Accuracy | ±0.5% of indicated value |
| Strain Measurement Accuracy | ±0.5% of indicated value |
| Force Resolution | ±1/250,000 full scale (constant across entire range) |
| Overload Protection | Activates at >110% of selected load cell capacity |
| Power Supply | 1.5 kW |
| Dimensions (W×D×H) | 960 × 650 × 2000 mm |
| Weight | 1200 kg |
| Compliance Standards | ISO 6892-1, ASTM E4, ASTM D638, ASTM D882, ASTM D1938, ISO 37, ISO 179, DIN 53455, JIS K7113 |
| [Origin | Shanghai, China |
|---|---|
| Type | Electromechanical Universal Testing Machine |
| Max Load Capacity | 10 kN |
| Load Accuracy Class | 0.5 |
| Force Resolution | 500,000 counts (full-scale, no range switching) |
| Effective Test Width | 320 mm |
| Effective Vertical Travel | 500 mm |
| Speed Range | 0.01–500 mm/min (standard configuration: up to 300 mm/min) |
| Speed Accuracy | ±0.5% of indicated value |
| Displacement Accuracy | ±0.5% of indicated value |
| Strain Measurement Accuracy | ±0.5% of indicated value |
| Motor Power | 400 W |
| Net Weight | 145 kg |
| Compliance | ASTM E4, E8, E21, ISO 6892-1, GB/T 228.1, JIS Z 2241, DIN 50125] |
| Brand | Qinji |
|---|---|
| Origin | Shanghai, China |

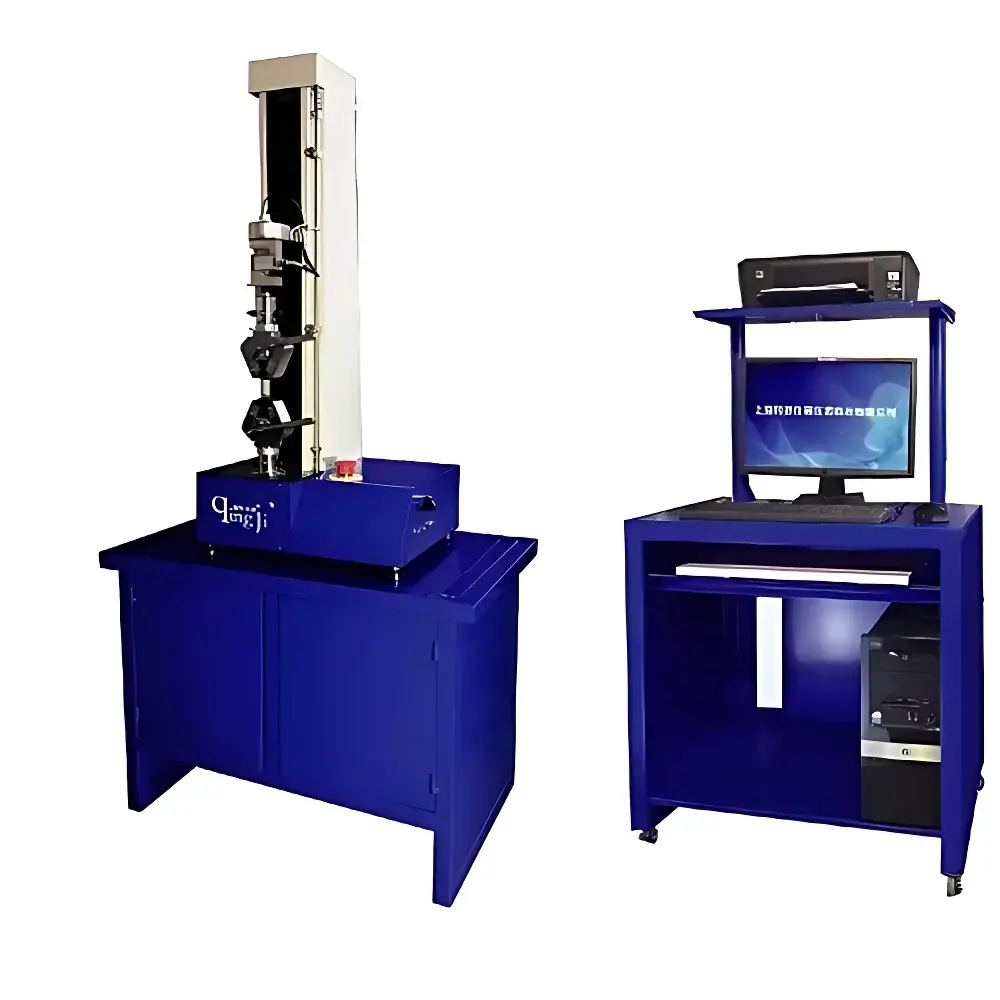

| Model | QJ210 |
| Instrument Type | Electromechanical Universal Testing Machine |
| Load Capacity | 2500 N |
| Force Accuracy Class | 0.5 |
| Effective Test Width | 150 mm |
| Effective Test Height | 300 mm |
| Crosshead Speed Range | 0.001–500 mm/min |
| Speed Accuracy | ±0.5% of reading |
| Force Resolution | 500,000 counts (full-scale, no range switching) |
| Displacement Accuracy | ±0.5% of reading |
| Strain Measurement Accuracy | ±0.5% of reading |
| Safety Protection | Dual electronic and mechanical limit switches, overload protection at 110% of full scale, emergency stop button |
| Power | 200 W |
| Dimensions (L×W×H) | 430 × 315 × 855 mm |
| Net Weight | 40 kg |
| Brand | Qinsun |
|---|---|
| Origin | Shanghai, China |
| Model | QJ210A |
| Load Capacity | 0.001 N to 5000 N |
| Load Accuracy | ±0.5% |
| Speed Range | 0.001–1000 mm/min |
| Speed Accuracy | ±0.5% |
| Displacement Accuracy | ±0.5% |
| Strain Measurement Accuracy | ±0.5% |
| Effective Test Width | 150 mm |
| Maximum Extension Travel | 300 mm (extendable) |
| Safety Features | Electronic stroke limit, emergency stop button |
| Weight | ~45 kg |
| Compliance | ASTM D638, ISO 527, GB/T 1040, JIS K7113, DIN 53455, YY/T 0149, QC/T 263 |
| Brand | Qingji |
|---|---|
| Origin | Shanghai, China |
| Manufacturer Type | Authorized Distributor |
| Origin Category | Domestic (China) |
| Model | QJ211S-5KN |
| Load Capacity | 5 kN |
| Load Accuracy | ±0.5% FS |
| Effective Test Width | 400 mm |
| Effective Stroke | 500 mm |
| Test Speed Range | 0.01–500 mm/min |
| Speed Accuracy | ±0.5% of indicated value |
| Displacement Resolution | 0.025 µm |
| Force Resolution | 500,000 counts (full-scale, no range switching) |
| Position Measurement Accuracy | ±0.5% of reading |
| Deformation Measurement Accuracy | ±0.5% of reading |
| Overload Protection | Activates at >110% of rated load |
| Motor | 400 W, 220 V AC |
| Dimensions (L×W×H) | 500 × 450 × 1650 mm |
| Weight | 165 kg |
| Brand | Qingji |
|---|---|
| Model | QJ211S Series |
| Type | Electromechanical Universal Testing Machine |
| Max Load Capacity | 10 kN |
| Accuracy Class | 0.5 |
| Effective Test Width | 320 mm |
| Effective Stroke (Tensile) | 500 / 800 mm |
| Speed Range | 0.01–300 mm/min |
| Speed Accuracy | ±0.5% of reading |
| Force Resolution | 500,000 counts (full-scale, no range switching) |
| Displacement & Strain Accuracy | ±0.5% of reading |
| Load Cell | High-precision U.S.-sourced sensor |
| Controller | Panasonic full-digital AC servo system |
| Control Mode | Closed-loop control of stress, strain, and displacement |
| Compliance | GB, ISO, ASTM, JIS, DIN, EN, YB, JT, JG, SY, SL, HG, YY, QC, QB, YD, BB standards |
| Weight | ~145 kg |
| Brand | Qingji |
|---|---|
| Model | QJ210 |
| Type | Electronic Universal Testing Machine |
| Max Load Capacity | 2500 N |
| Load Accuracy | Class 0.5 |
| Effective Test Width | 150 mm |
| Effective Stroke | 300 mm |
| Test Speed Range | 0.01–1000 mm/min |
| Speed Accuracy | ±0.5% of reading |
| Displacement Measurement Accuracy | ±0.5% of reading |
| Force Resolution | 500,000 counts (full-scale, no range switching) |
| Motor Power | 200 W |
| Dimensions (L×W×H) | 430 × 315 × 855 mm |
| Weight | 40 kg |
| Compliance | GB, ISO, ASTM, JIS |
| Brand | Qingji |
|---|---|
| Model | QJ-210 |
| Type | Electromechanical Universal Testing Machine |
| Load Capacity | 0–2.5 kN |
| Load Accuracy | ±0.5% |
| Speed Range | 0.001–300 mm/min |
| Speed Accuracy | ±0.5% |
| Stroke Accuracy | ±0.5% |
| Displacement Accuracy | ±0.5% |
| Effective Width | 150 mm |
| Max Stroke | 300 mm (extendable) |
| Safety Features | Electronic travel limit protection, emergency stop button |
| Unit Weight | ~45 kg |
| Origin | Shanghai, China |
|---|---|
| Manufacturer Type | Authorized Distributor |
| Origin Category | Domestic (PRC) |
| Model | QJCLR8731 |
| Quotation | USD 14,000 (FOB Shanghai) |
| Instrument Type | Hydraulic Actuated Thermal Shock Tester |
| High-Temp Chamber Range | +60 °C to +150 °C |
| Low-Temp Chamber Range | −10 °C to −40 °C |
| Temperature Stability | ±2 °C |
| Temperature Uniformity | ±2 °C |
| Recovery Time | ≤5 min |
| Heating Rate (Typical) | 40 min (−10 °C → +150 °C) |
| Cooling Rate (Typical) | 60–90 min (+150 °C → −40 °C) |
| Controller | Imported 7.5″ TFT LCD Touchscreen Controller (256-color, wide viewing angle, adjustable backlight, bilingual English/Chinese interface) |
| Safety Protections | Fuseless circuit breaker, compressor high-pressure/overheat/overcurrent protection, chamber overtemperature cutoff, fan overload protection |
| Standard Accessories | Two sample racks, one Ø50 mm cable/port access hole |
| Origin | Shanghai, China |
|---|---|
| Manufacturer Type | Authorized Distributor |
| Origin Category | Domestic (PRC) |
| Model | QJ211S2 |
| Price | USD 7,700 (FOB Shanghai) |
| Instrument Type | Electromechanical Universal Testing Machine |
| Max Load Capacity | 10 kN |
| Accuracy Class | ISO 7500-1 / ASTM E4 Class 0.5 |
| Test Speed Range | 0.01–500 mm/min |
| Effective Test Width | 320 mm |
| Vertical Test Space | 500 mm |
| Force Resolution | 500,000 counts (full-scale, no range switching) |
| Displacement Accuracy | ≤ ±0.2% of reading |
| Speed Accuracy | ±0.5% of set value |
| Safety Features | Electronic travel limit, overload protection (110% FS), emergency stop, motorized return |
| Power | 400 W AC |
| Net Weight | 145 kg |
| Brand | Qinji |
|---|---|
| Origin | Shanghai, China |
| Model | QJ211-H |
| Instrument Type | Electronic Universal Testing Machine |
| Load Capacity | 0.00 N to 30 kN |
| Load Accuracy | ±0.5% |
| Effective Test Width | 320 mm |
| Effective Tensile Stroke | 500 mm (optional 800 mm) |
| Test Speed Range | 0.01–300 mm/min |
| Speed Accuracy | ±0.5% of reading |
| Displacement Measurement Accuracy | ±0.5% of reading |
| Deformation Measurement Accuracy | ±0.5% of reading |
| Load Cell Resolution | 500,000 counts (single-range, no auto-ranging) |
| Control System | Panasonic全-digital AC servo controller |
| Data Acquisition | High-precision U.S.-sourced load cell |
| Safety Protection | Software-based diagnosis, electronic travel limit, overload protection at 110% capacity |
| Power Requirement | 2–5 kW |
| Net Weight | ~145 kg |
| Origin | Shanghai, China |
|---|---|
| Manufacturer Type | Authorized Distributor |
| Origin Category | Domestic (PRC) |

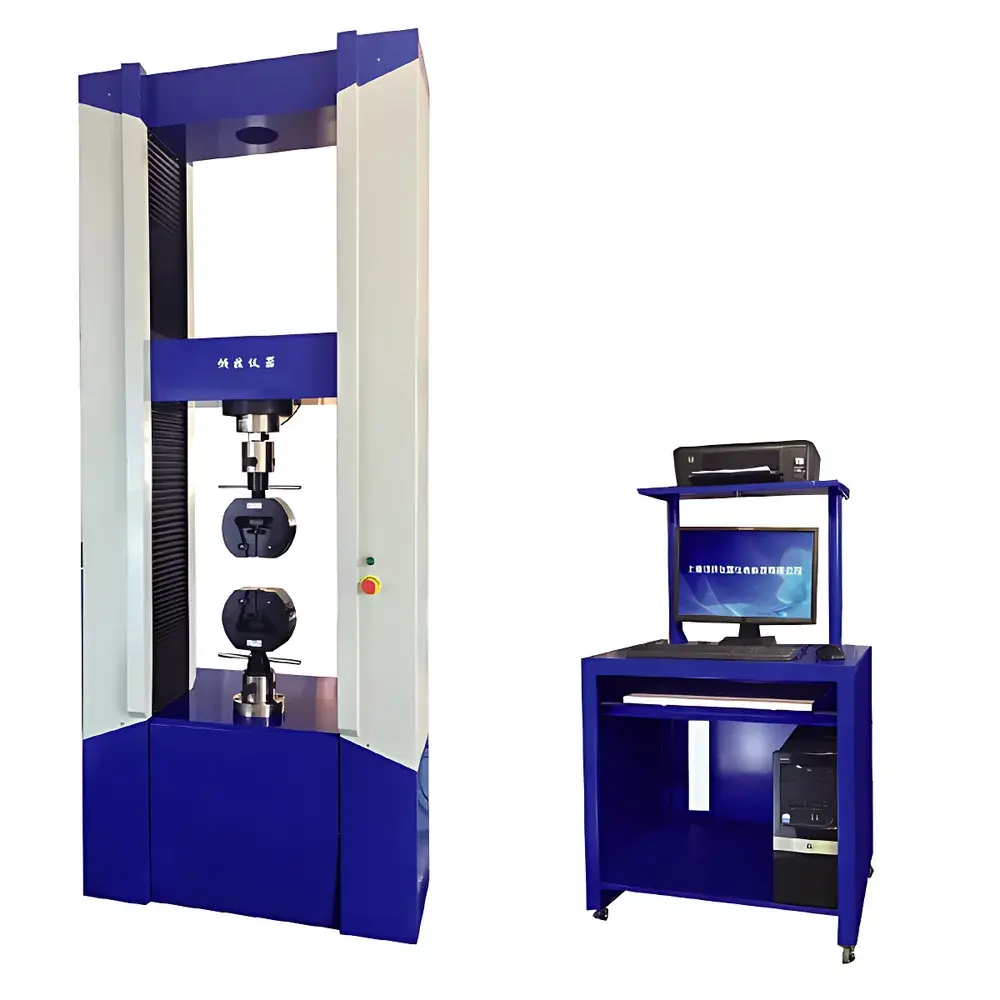

| Model | QJ212C |
| Price | USD 9,400 (FOB Shanghai) |
| Instrument Type | Electromechanical Universal Testing Machine |
| Load Capacity | 10–500 kN (selectable ranges) |
| Force Resolution | ±1/250,000 full scale, no range switching required |
| Effective Test Width | 500 mm |
| Max. Tensile Travel | 600 mm / 800 mm (configurable) |
| Test Speed | 5–300 mm/min (continuous, closed-loop controlled) |
| Force Accuracy | ±1% of reading |
| Displacement Accuracy | ±1% of reading |
| Strain Measurement Accuracy | ±1% of reading |
| Crosshead Movement | Dual-speed motorized lift (fast/slow + jog control) |
| Safety Protection | Electronic travel limit switches, overload protection at 110% capacity |
| Power Supply | 3-phase 380 VAC, 4 kW |
| Dimensions (W×D×H) | 960 × 650 × 2000 mm |
| Weight | ~1450 kg |
| Brand | Qinsun |
|---|---|
| Origin | Shanghai, China |
| Model | QJ212 |
| Instrument Type | Electromechanical Universal Testing Machine |
| Load Capacity | 0–500 kN |
| Load Accuracy | ±0.5% |
| Force Resolution | ±1/250,000 (full-scale, no range switching) |
| Effective Test Width | 500 mm |
| Effective Tensile Travel | 600 mm or 800 mm |
| Test Speed Range | 0.001–1000 mm/min |
| Speed Accuracy | ±0.5% of indicated value |
| Displacement Measurement Accuracy | ±0.5% of indicated value |
| Strain/Deformation Measurement Accuracy | ±0.5% of indicated value |
| Safety Protection | Electronic limit switches, overload protection at 110% of full scale |
| Dimensions (W×D×H) | 1000 × 680 × 2450 mm |
| Weight | 1250 kg |
| Key | Origin: Shanghai, China |
|---|---|
| Manufacturer Type | Authorized Distributor |
| Product Origin | Domestic (PRC) |
| Model | Pull-Off |
| Instrument Type | Electromechanical Universal Testing Machine |
| Load Capacity | 10 kN |
| Load Cell Accuracy | ±0.01% FS |
| Force Measurement Accuracy | ±0.5% of reading |
| Test Speed Range | 0.001–300 mm/min |
| Effective Test Stroke | ≥200 mm |
| Power Supply | AC 220 V, 50/60 Hz |
| Dimensions (W×D×H) | 600 × 300 × 300 mm |
| Weight | ~40 kg |
| Brand | Qinsun |
|---|---|
| Model | QJ211S |
| Type | Electromechanical Universal Testing Machine |
| Load Capacity | 0.00 N to 30 kN |
| Load Accuracy | ±0.5% of reading |
| Effective Test Width | 420 mm |
| Vertical Test Space (excluding fixtures) | 800 mm |
| Crosshead Speed Range | 0.001–500 mm/min |
| Speed Accuracy | ±0.5% of set value |
| Displacement Measurement Accuracy | ±0.5% of reading |
| Strain/Deformation Measurement Accuracy | ±0.5% of reading |
| Force Resolution | 300,000 counts (full-scale, single-range, constant resolution) |
| Motor Power | 750 W |
| Dimensions (W×D×H) | 700 × 420 × 1600 mm |
| Weight | 145 kg |
| Compliance | Meets ISO 7500-1 Class 0.5, ASTM E4, ASTM E8/E21, GB/T 228.1 |
Show next
