| Brand | Qinskey |
|---|---|
| Origin | Shanghai, China |
| Model | QJ212C |
| Maximum Test Load | 500 kN |
| Load Range | 0.02–100% of full scale (FS) |
| Load Accuracy | Class 0.5 per ISO 7500-1 / ASTM E4 |
| Crosshead Travel | 500 mm |
| Displacement Resolution | ±0.5% of reading |
| Effective Test Width | 520 mm |
| Effective Tensile Stroke | 800 mm |
| Speed Range | 0.01–1000 mm/min (standard: 300 mm/min) |
| Speed Accuracy | ±0.5% of set value |
| Strain Measurement Accuracy | ±0.5% of reading |
| Load Cell | High-precision U.S.-sourced load sensor |
| Controller | Panasonic all-digital AC servo drive system |
| Control System | Full-digital closed-loop control supporting constant load, constant strain, and constant displacement modes |
| Safety Protection | Software-based diagnostics, electronic limit switches, overload protection at 110% of rated capacity |
| Power Requirement | 2–5 kW |
| Dimensions (W×D×H) | 1000 × 680 × 2450 mm |
| Weight | ~1450 kg |
| Key | Origin: Shanghai, China |
|---|---|
| Manufacturer Type | Authorized Distributor |
| Country of Origin | China |
| Model | QJ211B |
| Maximum Test Load | 30 kN |
| Load Range | 0–30 kN (adjustable) |
| Load Accuracy Class | Class 1 (per ISO 7500-1) |
| Crosshead Travel | 420 mm |
| Displacement Resolution | ±0.5% of reading |
| Temperature Range | –7 °C to +350 °C (stable at 350 °C) |
| Heating/Cooling Rate | ≥5 °C/min |
| Temperature Control Resolution | 0.1 °C |
| Test Speed Range | 0.01–500 mm/min (extendable to 1000 mm/min) |
| Speed Accuracy | ±0.5% |
| Strain Measurement Accuracy | ±0.5% |
| Safety Features | Electronic limit switches, emergency stop circuit |
| Machine Weight | 265 kg |
| Origin | Shanghai, China |
|---|---|
| Manufacturer Type | Authorized Distributor |
| Origin Category | Domestic (PRC) |

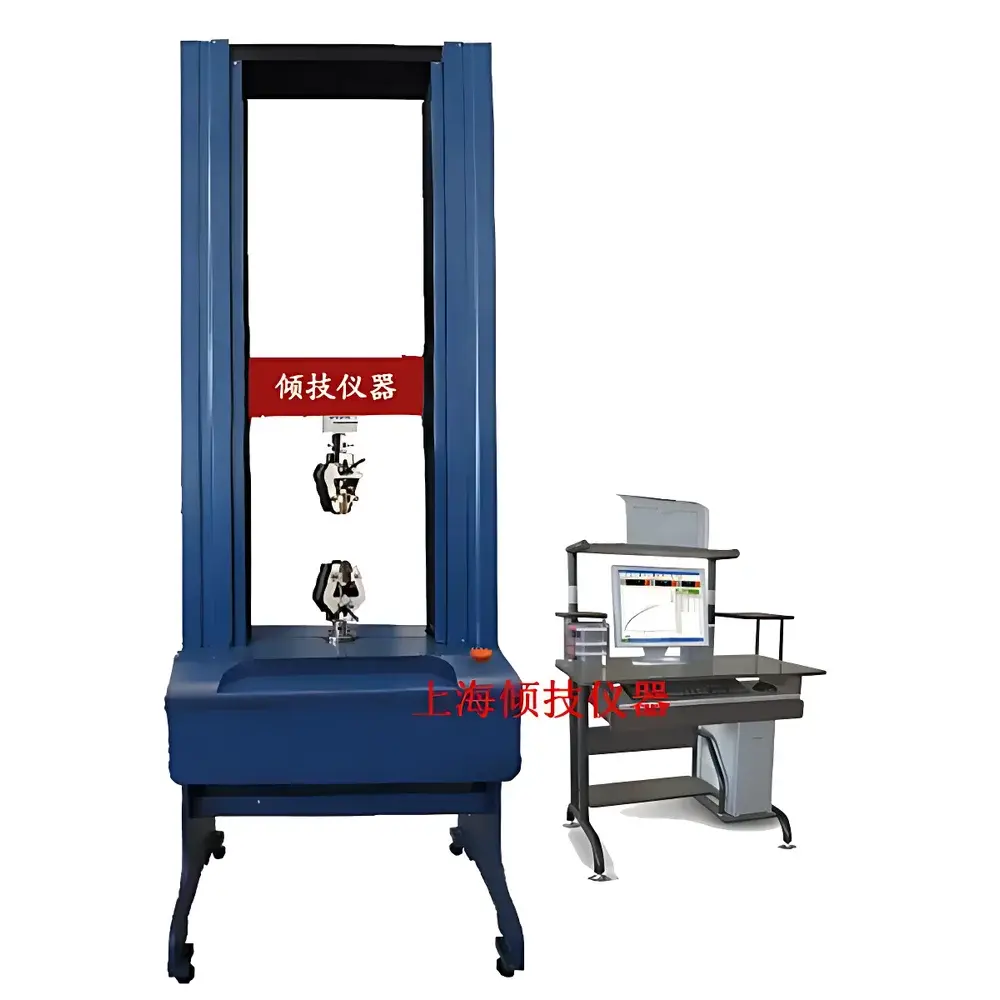

| Model | QJ211 |
| Quotation | USD 6,750 (FOB Shanghai) |
| Instrument Type | Electromechanical Universal Tensile Tester |
| Max Test Load | 200 kN |
| Force Measurement Range | 1%–100% of Full Scale (FS) |
| Force Accuracy | ±0.5% of reading |
| Travel Distance | 800 mm |
| Displacement Resolution | 0.001 mm |
| Speed Range | 0.001–500 mm/min (programmable, closed-loop controlled) |
| Speed Accuracy | ±0.5% of set value |
| Crosshead Effective Width | 420 mm |
| Load Cell | High-precision USA-made strain-gauge sensor (500,000-count resolution, no internal range switching) |
| Control System | Panasonic全数字 AC servo drive & controller |
| Software Platform | Full-digital closed-loop test management system supporting constant load, constant strain, constant displacement, and multi-step ramp profiles |
| Safety Features | Dual-mode overload protection (10% over full scale), electronic limit switches, real-time software diagnostics, automatic return-to-start |
| Power Supply | 220 VAC, 50 Hz, 750 W |
| Dimensions (L×W×H) | 690 × 465 × 1970 mm |
| Net Weight | 280 kg |
| Compliance | ASTM E4, ASTM E8, ISO 6892-1, GB/T 228.1–2021, JJG 475–2018 |

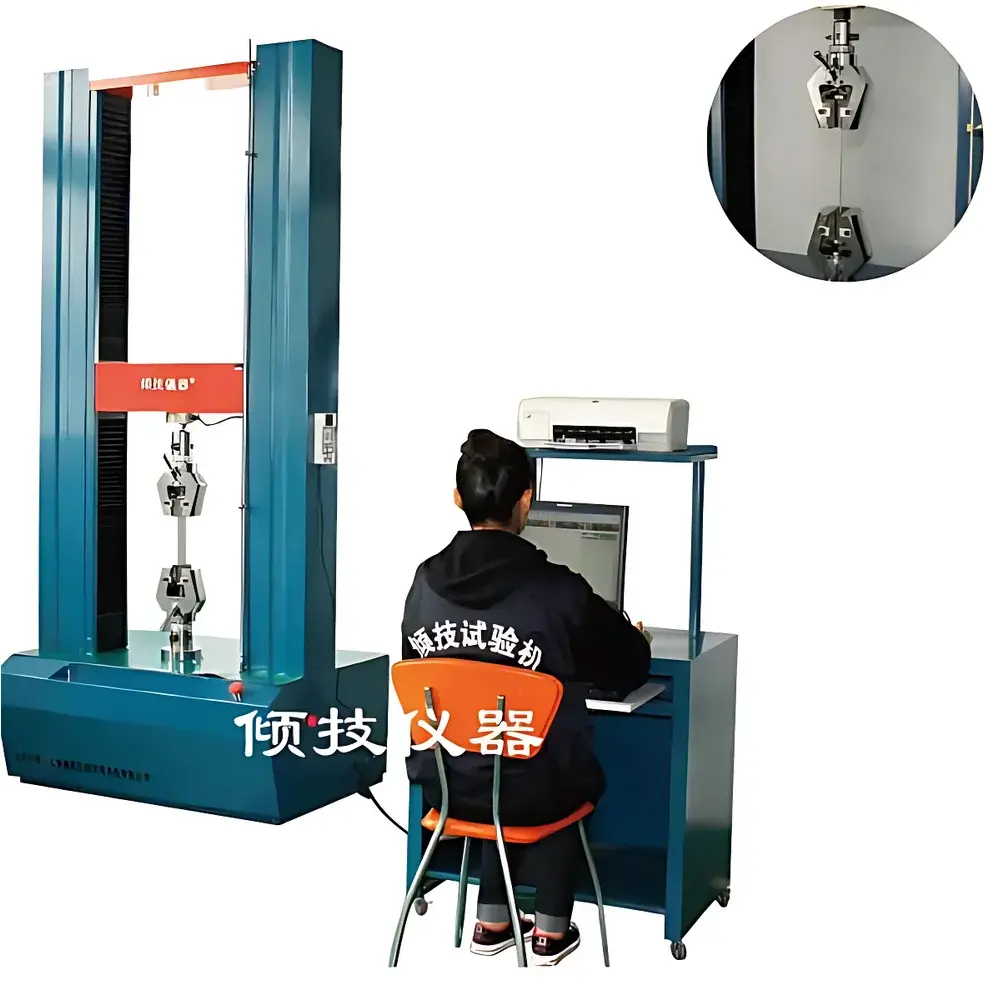

| Brand | Qingji |
|---|---|
| Origin | Shanghai, China |
| Model | QJ212 |
| Type | Electromechanical Universal Testing Machine |
| Max Load Capacity | 10–500 kN (configurable) |
| Load Resolution | ±1/250,000 full scale |
| Effective Test Width | 500 mm |
| Effective Stroke | 600 or 800 mm |
| Test Speed Range | 0.001–1000 mm/min |
| Speed Accuracy | ±1% of indicated value |
| Displacement Accuracy | ±0.5% of indicated value |
| Strain Measurement Accuracy | ±0.5% of indicated value |
| Safety Protection | Electronic limit switches, overload protection (110% F.S.), emergency stop |
| Power Supply | 1.5 kW |
| Dimensions (W×D×H) | 960 × 650 × 2000 mm |
| Weight | 1200 kg |
| Compliance | ISO 6892-1, ASTM E4, ASTM E8, ASTM D638, ISO 527, DIN 53455, JIS Z2241 |
| Brand | Qinsun |
|---|---|
| Origin | Shanghai, China |
| Model | QJ211 |
| Max Load Capacity | 30 kN |
| Load Cell Accuracy | ±0.5% FS |
| Measurement Accuracy | < ±0.5% |
| Control System | Full Digital Display Controller |
| Effective Test Width | ~420 mm |
| Effective Stroke | ~800 mm |
| Test Speed Range | 0.01–500 mm/min |
| Speed Accuracy | ±0.5% |
| Displacement Accuracy | ±0.5% |
| Safety Features | Electronic Limit Switches, Emergency Stop Button |
| Unit Weight | ~2650 kg |
| Origin | Shanghai, China |
|---|---|
| Manufacturer Type | Authorized Distributor |
| Origin Category | Domestic (China) |
| Model | QJ211B |
| Price | USD 7,700 (approx.) |
| Instrument Type | Electromechanical Tensile Tester |
| Max Test Load | 30 kN |
| Load Range | 0–30 kN (fully adjustable) |
| Load Accuracy | ±1% FS or ±0.5% FS |
| Test Stroke | 420 mm |
| Displacement Resolution | ±0.5% of reading |
| Brand | Qinji |
|---|---|
| Origin | Shanghai, China |
| Model | QJ310 Desktop |
| Max Test Load | 2500 N or 5000 N |
| Load Accuracy | < ±0.5% of full scale |
| Stroke Range | 200 mm |
| Displacement Resolution | 0.001 mm |
| Speed Range | 0.001–300 mm/min |
| Dimensions (W×D×H) | 600 × 300 × 300 mm |
| Weight | ~40 kg |
| Power Supply | AC 220 V, 50/60 Hz |
| Brand | Qinsun |
|---|---|
| Origin | Shanghai, China |
| Model | QJ210A |
| Maximum Test Load | 5 kN (adjustable up to 30 kN full-scale) |
| Force Accuracy | ±0.5% of reading |
| Effective Test Width | 150 mm |
| Stroke | 800 mm (extendable) |
| Test Speed Range | 0.001–500 mm/min |
| Speed Accuracy | ±0.5% |
| Displacement Accuracy | ±0.5% |
| Safety Features | Electronic stroke limit protection, emergency stop button |
| Unit Weight | ~85 kg |
| Control System | PC-based closed-loop control with real-time data acquisition and ASTM/ISO-compliant reporting |
| Origin | Shanghai, China |
|---|---|
| Manufacturer Type | Authorized Distributor |
| Origin Category | Domestic (PRC) |
| Model | QJ211B |
| Instrument Type | Electromechanical Tensile Tester |
| Max Test Load | 30 kN |
| Load Measurement Range | Full Scale (FS) |
| Load Accuracy | ±1% FS |
| Travel Range | 1 mm |
| Displacement Resolution | 1 mm |
| Temperature Range | –60 °C to +300 °C (within uniform zone) |
| Temperature Ramp Rate | ≥5 °C/min |
| Temperature Controller Resolution | 0.1 °C |
| Load Cell Accuracy | ±0.01% FS |
| Overall System Test Accuracy | ≤±0.5% FS |
| Effective Width | 420 mm |
| Effective Test Length | ~800 mm (extendable) |
| Test Speed Range | 0.001–500 mm/min (standard) |
| Control Mode | Dual-mode — PC-based closed-loop control + digital panel operation |
| Origin | Shanghai, China |
|---|---|
| Manufacturer Type | Authorized Distributor |
| Origin Category | Domestic (China) |
| Model | QJ211 |
| Price Range | USD 7,000–14,000 |
| Instrument Type | Electromechanical Universal Testing Machine |
| Max Load Capacity | 30 kN |
| Load Cell Accuracy | 0.01% FS |
| Test Accuracy | < ±0.5% |
| Control Interface | Windows-based PC Control with Real-time Data Acquisition |
| Effective Test Width | ~420 mm |
| Effective Stroke | ~800 mm |
| Speed Range | 0.001–500 mm/min |
| Speed Accuracy | ±0.5% |
| Displacement Measurement Accuracy | ±0.5% |
| Strain/Deformation Measurement Accuracy | ±0.5% |
| Safety Features | Electronic Limit Switches, Emergency Stop Button |
| Net Weight | ~140 kg |
| Brand | Qingji |
|---|---|
| Origin | Shanghai, China |

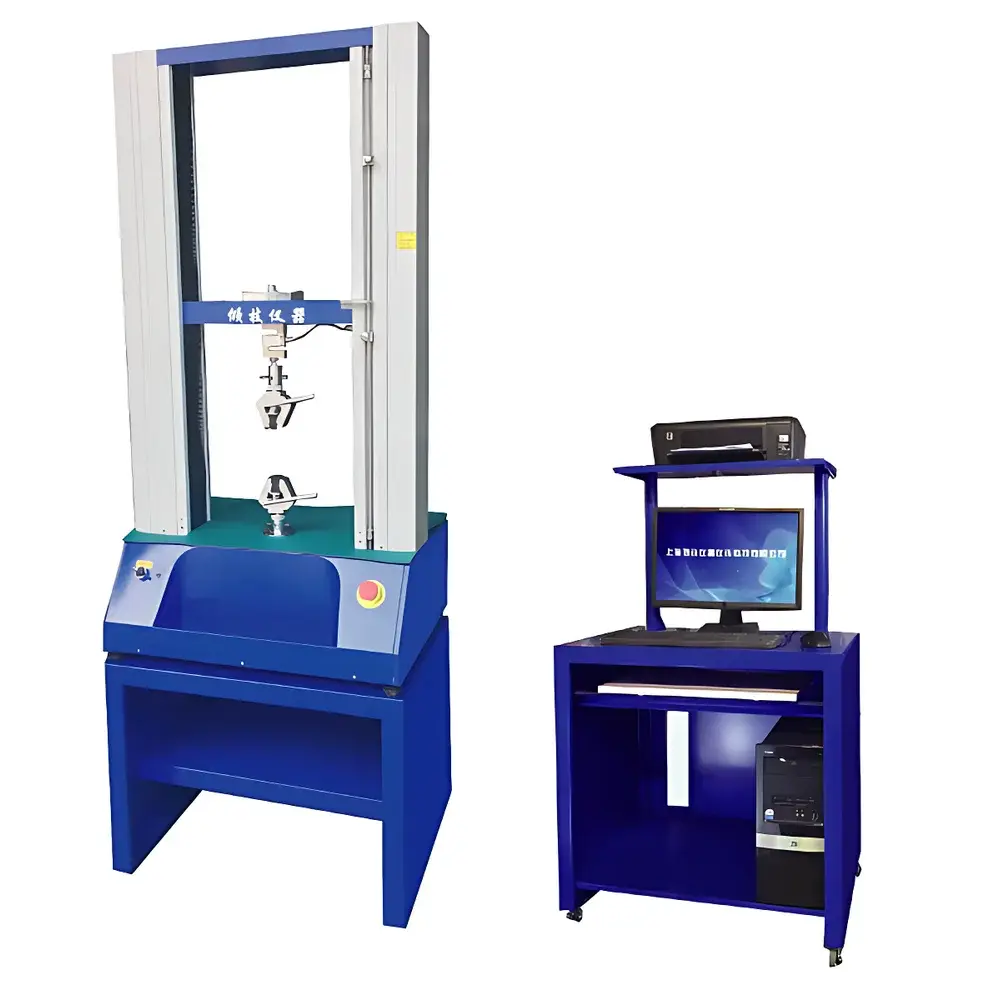

| Model | QJ211S |
| Maximum Load Capacity | 30 kN |
| Load Measurement Range | 0–30 kN |
| Load Accuracy | ±0.5% of reading |
| Crosshead Travel | 800 mm (excluding fixtures) |
| Displacement Resolution | 0.001 mm |
| Effective Test Width | 420 mm |
| Speed Range | 0.001–500 mm/min |
| Speed Accuracy | ±0.5% of set value |
| Displacement Accuracy | ±0.5% of reading |
| Deformation Measurement Accuracy | ±0.5% of reading |
| Power Supply | 750 W |
| Dimensions (W×D×H) | 700 × 420 × 1600 mm |
| Weight | 145 kg |
| Origin | Shanghai, China |
|---|---|
| Manufacturer Type | Authorized Distributor |
| Origin Category | Domestic (PRC) |

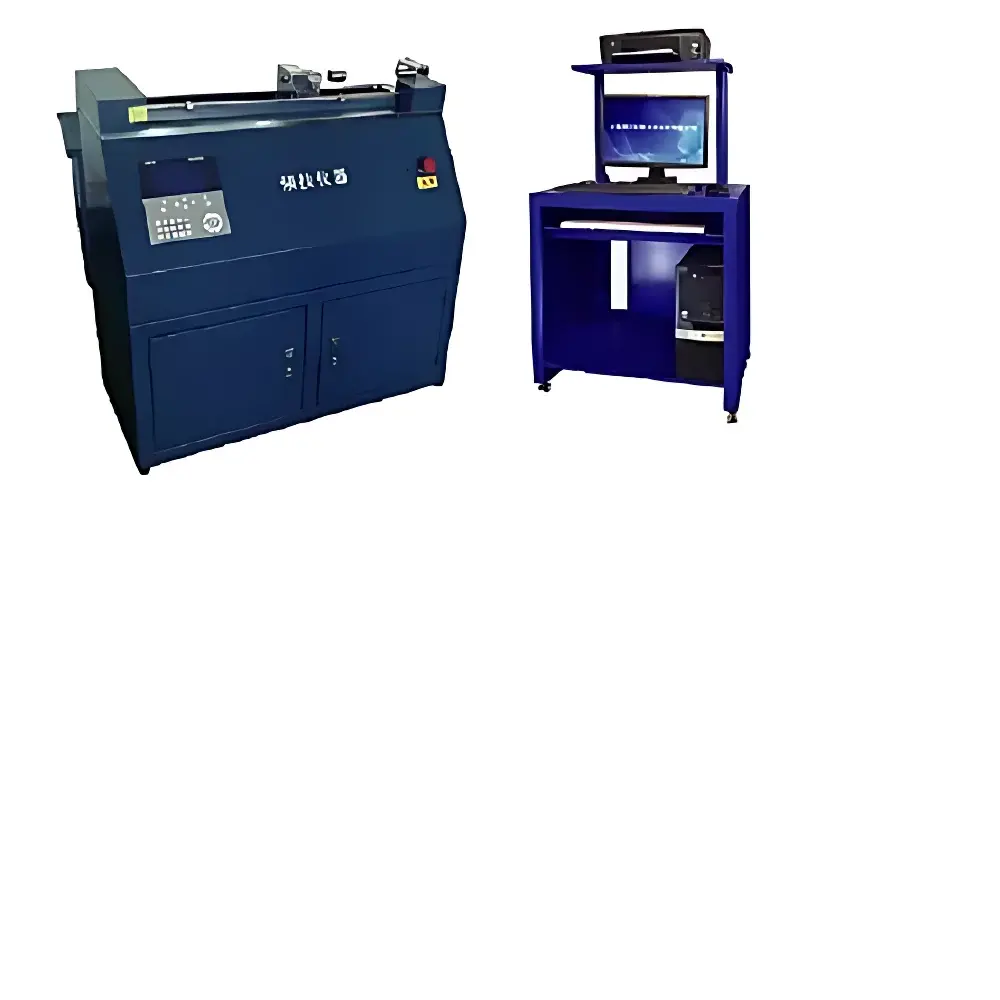

| Model | QJ310 |
| Price | USD 4,200 (FOB Shanghai) |
| Instrument Type | Electromechanical Tensile Testing Machine |
| Maximum Test Load | 2.5 kN or 5.0 kN (selectable) |
| Load Measurement Range | 0.2%–100% of Full Scale |
| Load Accuracy | ±0.5% FS |
| Stroke | 500 mm |
| Displacement Resolution | 0.001 mm (20-bit A/D, 500,000-count resolution) |
| Load Cell Accuracy | ±0.01% FS |
| Speed Range | 0.001–300 mm/min (programmable in closed-loop mode) |
| Effective Test Space (H) | ≥200 mm |
| Power Supply | AC 220 V ±10%, 50/60 Hz |
| Dimensions (W×D×H) | 600 × 300 × 300 mm |
| Net Weight | ~40 kg |
| Brand | Qinsun |
|---|---|
| Model | QJ211 |
| Maximum Load Capacity | 30 kN |
| Accuracy Class | 0.5 |
| Effective Test Width | 420 mm |
| Effective Stroke | 800 mm |
| Speed Range | 0.001–500 mm/min |
| Speed Accuracy | ±0.5% of reading |
| Load Accuracy | ±0.5% of reading |
| Load Resolution | 500,000 counts (full-scale, no range switching) |
| Displacement Accuracy | ±0.5% of reading |
| Strain Measurement Accuracy | ±0.5% of reading |
| Motor Power | 750 W |
| Net Weight | 145 kg |
| Safety Features | Electronic travel limit, overload protection (110% F.S.), manual/auto return, jog-controlled crosshead movement |
| Compliance | Designed to meet ISO 527-1/2, ASTM D638, and GB/T 1040.1–1040.5 requirements for rigid plastic tensile testing |
| Origin | Shanghai, China |
|---|---|
| Manufacturer Type | Authorized Distributor |
| Origin Category | Domestic (PRC) |

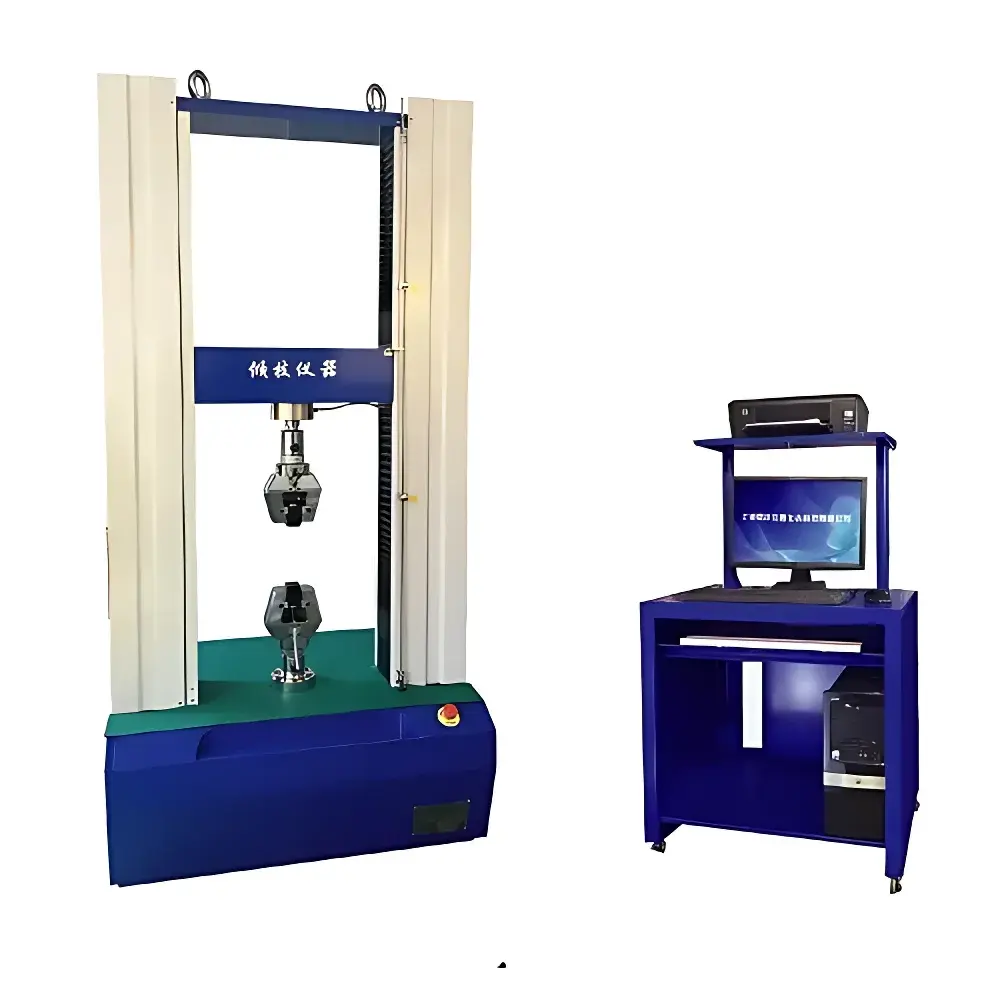

| Model | QJ212 |
| Price | USD 7,700 (approx.) |
| Instrument Type | Electromechanical Universal Testing Machine |
| Maximum Test Load | 500 kN |
| Adjustable Load Range | Full-scale 500 kN (no range switching required) |
| Force Accuracy Class | ISO 7500-1 Class 1 |
| Crosshead Travel | 500 mm |
| Displacement Resolution | ±0.5% of reading |
| Origin | Shanghai, China |
|---|---|
| Manufacturer Type | Authorized Distributor |
| Origin Category | Domestic (PRC) |

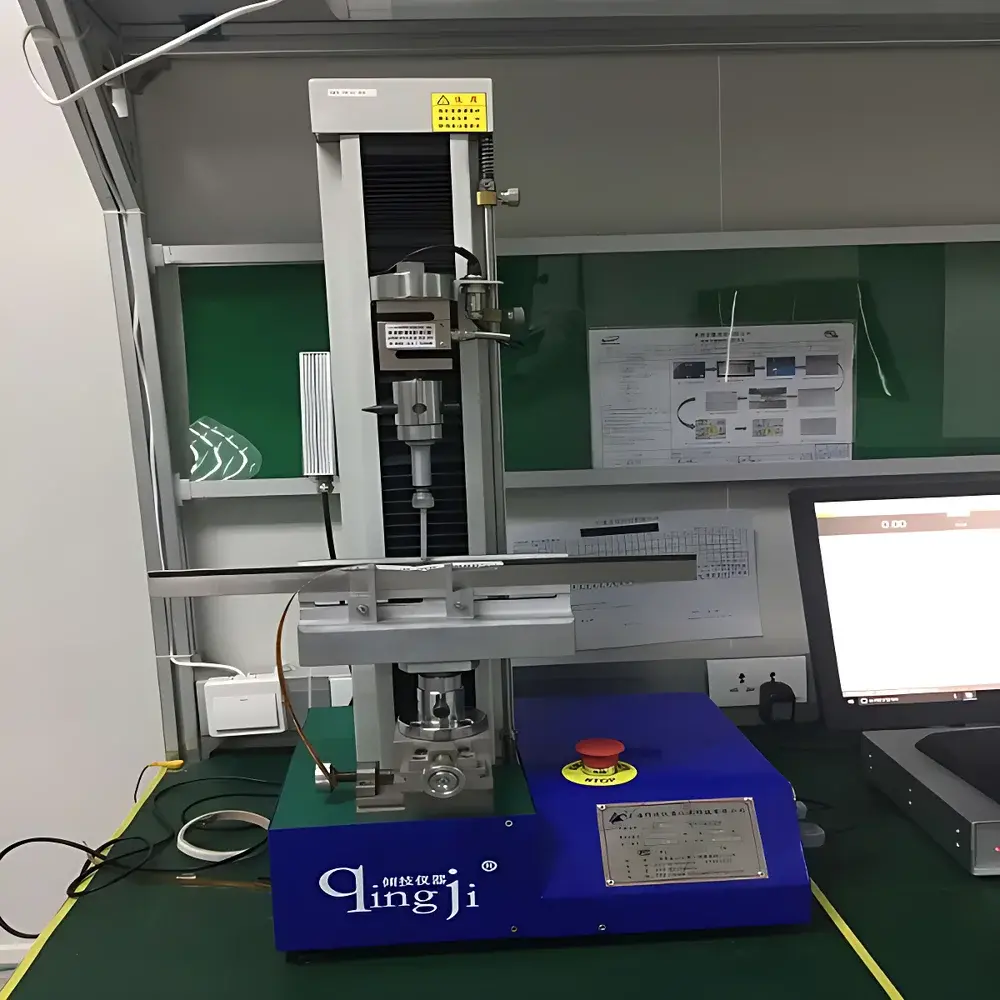

| Model | QJ210 |
| Quotation | USD 4,200 (FOB Shanghai) |
| Instrument Type | Dedicated Bond Strength Tester |
| Max Test Load | 2500 N |
| Force Measurement Range | 0.2–100% of Full Scale |
| Force Accuracy | ±0.5% FS |
| Stroke | 300 mm |
| Displacement Resolution | ±0.5% of reading |
| Effective Test Width | 150 mm |
| Crosshead Speed Range | 0.01–1000 mm/min |
| Speed Accuracy | ±0.5% of set value |
| Load Cell Resolution | 500,000 counts (single-range, no auto-ranging) |
| Dimensions (L×W×H) | 430 × 315 × 855 mm |
| Weight | 40 kg |
| Motor Power | 200 W |
| Safety Features | Electronic travel limit, overload protection (110% FS), manual/auto return, dual-speed lift control |
| Origin | Beijing, China |
|---|---|
| Manufacturer Type | Authorized Distributor |
| Origin Category | Domestic (PRC) |
| Model | QJ211S |
| Price | USD 6,300 (FOB) |
| Instrument Type | Electromechanical Universal Testing Machine |
| Max Test Load | 30 kN |
| Load Range | 0–30 kN (fully adjustable) |
| Load Accuracy Class | ISO 7500-1 Class 1 |
| Stroke | 800 mm |
| Displacement Resolution | ±0.5% of reading |
| Load Cell Accuracy | 0.01% FS |
| Speed Range | 0.001–500 mm/min |
| Speed Accuracy | ±0.5% |
| Effective Test Width | 420 mm |
| Weight | ~140 kg |
| Safety Features | Dual electronic stroke limit, emergency stop button, overload auto-shutdown |
| Control Interface | Windows-based PC control with real-time data acquisition and closed-loop feedback |
| Brand | Qinsen |
|---|---|
| Origin | Shanghai, China |
| Model | QJ212-500KN |
| Type | Electromechanical Universal Tensile Testing Machine |
| Max Test Load | 500 kN |
| Load Range | 0.02–100% of full scale (FS) |
| Load Accuracy | ±0.5% of reading |
| Crosshead Travel | 800 mm |
| Displacement Resolution | ±0.5% of reading |
| Force Resolution | 500,000 counts (full-scale, no range switching) |
| Effective Test Width | 520 mm |
| Speed Range | 0.01–1000 mm/min (standard configuration: 300 mm/min) |
| Speed Accuracy | ±0.5% of set value |
| Strain Measurement Accuracy | ±0.5% of reading |
| Load Cell | High-precision U.S.-sourced load sensor |
| Controller | Panasonic fully digital AC servo drive system |
| Control Mode | Full-digital closed-loop control supporting constant load, constant strain, and constant displacement testing |
| Safety Protection | Software diagnostics, electronic limit switches, overload protection at 110% FS |
| Power Supply | 2–5 kW |
| Dimensions (W×D×H) | 1000 × 680 × 2450 mm |
| Weight | ~1450 kg |
| Brand | Qinji |
|---|---|
| Origin | Shanghai, China |
| Model | QJDW311 |
| Maximum Load Capacity | Up to 10,000 kN |
| Force Sensor Accuracy | ±0.01% FS |
| Test Accuracy Class | Class 1 (per ISO 7500-1 & ASTM E4) |
| Repeatability | ≤1% |
| Displacement Measurement Accuracy | ≤1% |
| Strain/Deformation Measurement Accuracy | ≤1% |
| Control System | Full PC-based closed-loop control |
| Test Space | Custom-engineered per application requirement |
| Actuation Type | Hydraulic |
| Brand | Qinji |
|---|---|
| Origin | Shanghai, China |
| Model | QT-210A-5KN |
| Max Test Load | 5 kN |
| Load Range | 0–5000 N |
| Load Accuracy | ±0.5% FS |
| Crosshead Travel | 800 mm |
| Displacement Resolution | 0.001 mm |
| Speed Range | 0.001–800 mm/min |
| Speed Accuracy | ±0.5% |
| Displacement Measurement Accuracy | ±0.5% |
| Deformation Measurement Accuracy | ±0.5% |
| Control System | Windows-based PC interface with digital servo drive |
| Safety Features | Electronic limit protection, emergency stop button |
| Weight | ~85 kg |
| Brand | Qinsun |
|---|---|
| Origin | Shanghai, China |
| Model | QJ210 |
| Maximum Load Capacity | 2500 N (configurable) |
| Load Cell Accuracy | 0.01% |
| Measurement Accuracy | < ±0.5% |
| Control Mode | Full CNC or PC-controlled with thermal printer interface |
| Valid Test Width | 120 mm |
| Effective Stroke | 300 mm (extendable) |
| Test Speed Range | 0.001–300 mm/min |
| Speed Accuracy | ±0.5% |
| Stroke Accuracy | ±0.5% |
| Displacement Accuracy | ±0.5% |
| Safety Features | Electronic stroke limit protection, emergency stop button |
| Unit Weight | ~45 kg |
| Origin | Shanghai, China |
|---|---|
| Manufacturer Type | Authorized Distributor |
| Origin Category | Domestic (PRC) |
| Model | QJ211S |
| Quotation | USD 7,700 (FOB Shanghai) |
| Instrument Type | Electromechanical Tensile Testing Machine |
| Maximum Test Load | 10 kN |
| Force Measurement Range (FS) | 0.2%–100% |
| Force Accuracy | ±0.5% of reading |
| Test Stroke | 500 mm |
| Displacement Resolution | 0.001 mm (500,000-count load cell resolution) |
| Effective Test Width | 320 mm |
| Crosshead Speed Range | 0.01–500 mm/min (standard configuration: 300 mm/min) |
| Speed Accuracy | ±0.5% of set value |
| Displacement Measurement Accuracy | ±0.5% of reading |
| Deformation Measurement Accuracy | ±0.5% of reading |
| Motor Power | 400 W |
| Net Weight | 145 kg |
| Origin | Shanghai, China |
|---|---|
| Manufacturer Type | Authorized Distributor |
| Origin Category | Domestic (China) |

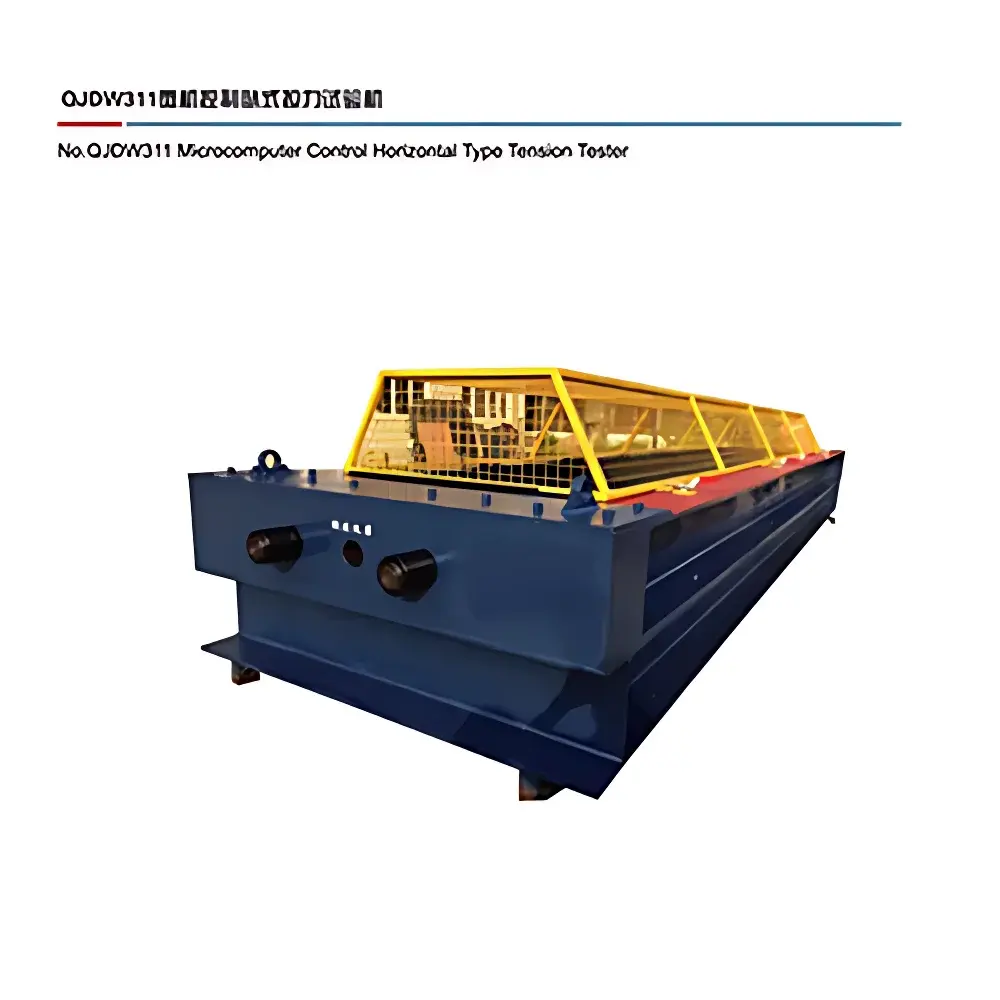

| Model | QJDW311 |
| Quotation | USD 17,000 (approx.) |
| Instrument Type | Hydraulic Tensile Testing Machine |
| Max Test Load | 3000 kN |
| Load Measurement Range | 4–100% of full scale |
| Load Accuracy | ≤ ±1% FS |
| Displacement Resolution | 0.001 mm |
| Displacement Accuracy | ±0.5% of reading |
| Crosshead Speed Range | 0.01–50 mm/min (programmable) |
| Maximum Stroke | 1500 mm |
| Effective Test Length | 10 m |
| Internal Span Width | 800 mm |
| Overall Machine Length | 17,000 mm |
| Power Supply | 7.5 kW |
| Machine Weight | ≈ 30,000 kg |
| Compliance | GB/T 228.1–2021, ISO 6892-1:2019, ASTM E8/E8M |
| Origin | Shanghai, China |
|---|---|
| Manufacturer Type | Authorized Distributor |
| Origin Category | Domestic (PRC) |
| Model | QJ210A |
| Quotation | USD 4,200 (FOB Shanghai) |
| Instrument Type | Electromechanical Universal Testing Machine |
| Maximum Test Load | 5 kN |
| Force Measurement Range | 0.2%–100% of Full Scale (FS) |
| Force Accuracy | ±0.5% of reading (per ISO 7500-1 Class 0.5) |
| Crosshead Travel | 800 mm |
| Effective Test Width | 150 mm |
| Displacement Resolution | ±0.5% of indicated value |
| Test Speed Range | 0.01–500 mm/min (adjustable in real time) |
| Speed Accuracy | ±0.5% of set value |
| Position Feedback | High-precision encoder coupled with servo-controlled actuation |
| Load Cell | Imported U.S.-made precision strain-gauge sensor |
| Controller | Panasonic全数字交流伺服控制系统 (Panasonic digital AC servo drive & controller) |
| Safety Protection | Dual-mode—software-based overload diagnosis + hardware electronic limit switches |
| Power Supply | 200 V AC, 400 W |
| Dimensions (L×W×H) | 590 × 355 × 1640 mm |
| Net Weight | 85 kg |
| Compliance | Fully configurable to ASTM D412, ISO 37, GB/T 528, JIS K6251, DIN 53504, and other elastomer-specific tensile standards |
| Brand | Qinsun |
|---|---|
| Origin | Shanghai, China |
| Model | QJ211 New |
| Max. Test Load | 1 kN |
| Force Measurement Range | 0.2–100% FS |
| Force Accuracy | ±0.5% of reading |
| Crosshead Travel | 800 mm |
| Displacement Resolution | 0.001 mm |
| Test Speed Range | 0.001–500 mm/min |
| Speed Accuracy | ±0.5% of set value |
| Position Accuracy | ±0.5% of reading |
| Load Cell | High-precision U.S.-sourced strain gauge sensor |
| Control System | Panasonic full-digital AC servo controller |
| Software | Full-closed-loop test platform supporting constant load, constant strain, and constant displacement modes |
| Effective Test Width | 420 mm |
| Power Supply | 220 V, 50 Hz, 750 W |
| Dimensions (L×W×H) | 690 × 465 × 1970 mm |
| Weight | 280 kg |
| Compliance | ASTM E8/E21, ISO 6892-1, GB/T 228.1, JJG 475 |
Show next
