| Brand | Yacheng / PILOTECH |
|---|---|
| Origin | Shanghai, China |
| Manufacturer Type | Direct Manufacturer |
| Product Category | Domestic |
| Model | YC-01 |
| Instrument Type | Benchtop Spray Freeze Dryer |
| Application Scope | R&D and Analytical Laboratories |
| Maximum Batch Capacity | 3 L per cycle |
| Spray Freezing Rate | 300–2500 mL/h |
| Collection Efficiency | ≥98% (based on 15% dextrin solution) |
| Construction Material | SUS304 Stainless Steel |
| Control System | PLC with 10-inch Color Touchscreen |
| Integrated Refrigeration | Built-in Compressor (No External Chiller Required) |
| Power Supply | 220 V AC, 3 kW |
| Heating Method | Radiant Heating with Adjustable Temperature Setpoint |
| Footprint | ~1 m² |
| Vacuum Interface & Compressed Air Inlet | Standard Fitted |
| Brand | Yacheng / PILOTECH |
|---|---|
| Origin | Shanghai, China |
| Manufacturer Type | Direct Manufacturer |
| Product Origin | Domestic (China) |
| Model | YC-1800 |
| Pricing | Upon Request |
| Max Feed Rate | 1500 mL/h |
| Minimum Sample Volume | 50 mL (varies with solids content) |
| Inlet Air Temperature Range | 110–150 °C |
| Temperature Control Accuracy | ±1 °C (PID-controlled) |
| Nozzle Orifice Options | 0.5, 0.7, 1.0, 1.5, 2.0 mm (stainless steel) |
| Power Supply | 4 kW / 380 V AC |
| Construction | Full 316L stainless steel |
| Atomization | Two-fluid pneumatic nozzle system |
| Integrated Needle Cleaner | Auto-adjustable frequency |
| Noise Level | Compliant with ISO 7779 laboratory noise standards |
| [Brand | PILOTECH |
|---|---|
| Origin | Shanghai, China |
| Manufacturer Type | OEM Manufacturer |
| Model | YC-029 |
| Max Feed Rate | 10,000 mL/h |
| Inlet Air Temperature Range | 105–300 °C |
| Particle Size Output | 1–120 µm |
| Construction Material | 304 Stainless Steel (Drying Chamber, Cyclone, Collection Vessel & Tubing) |
| Control System | Color LCD Touchscreen with Real-Time PID Temperature Regulation (±2 °C) |
| Noise Level | <60 dB(A) |
| Power Consumption | 20 kW] |
| Brand | Pilotech |
|---|---|
| Origin | Shanghai, China |
| Manufacturer Type | Direct Manufacturer |
| Country of Origin | China |
| Model | YC-029 |
| Sample Type Compatibility | Aqueous solutions only |
| Maximum Feed Rate | 10,000 mL/h |
| Inlet Air Temperature Range | 105–300 °C |
| Particle Size Distribution | 1–120 µm |
| Heating Power | 20 kW |
| Noise Level | <60 dB(A) |
| Control Interface | Bilingual (English/Chinese) touchscreen |
| Material Construction | AISI 304 stainless steel (drying chamber, cyclone, collection bottle, and tubing) |
| Temperature Control Accuracy | ±2 °C (PID-based) |
| Nozzle Orifice Diameter | 3.0 mm (optional) |
| Minimum Feed Volume | 200 mL per run |
| Brand | Yacheng / PILOTECH |
|---|---|
| Origin | Shanghai, China |
| Manufacturer Type | OEM Manufacturer |
| Product Category | Domestic |

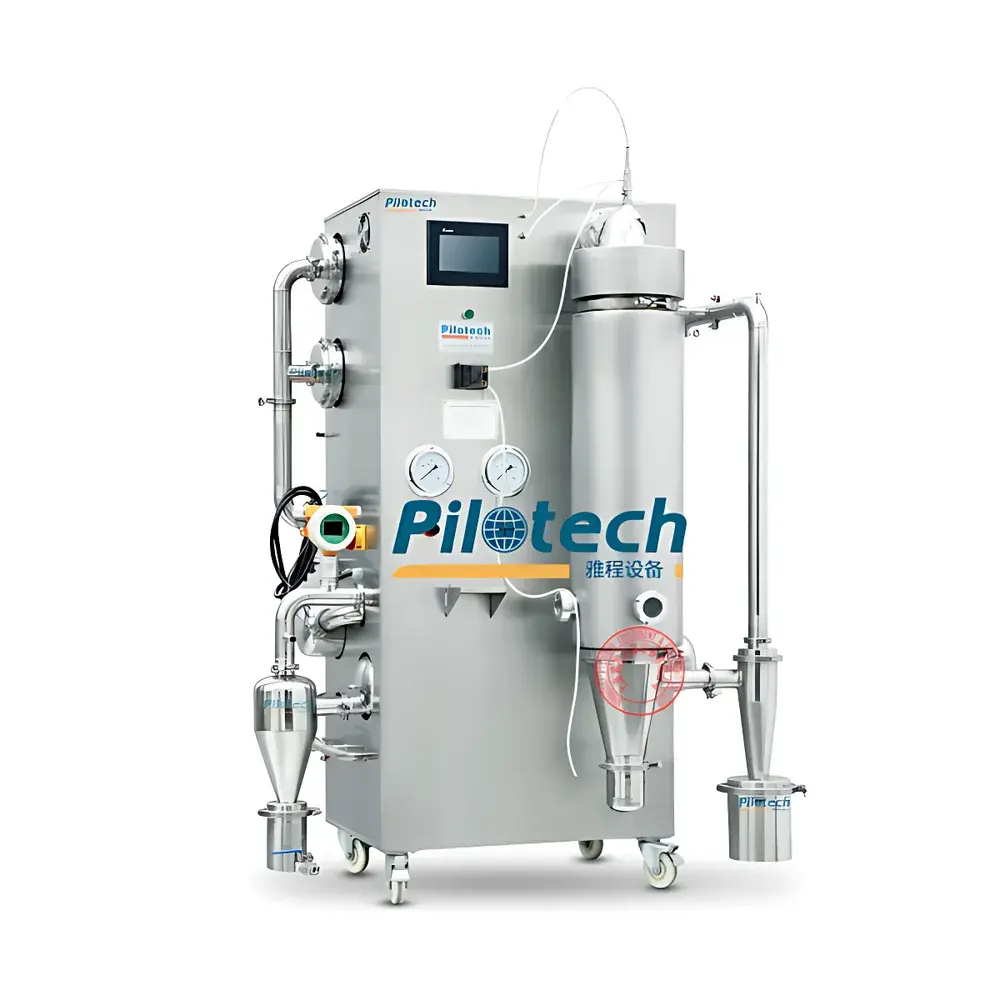

| Model | YC-018A |
| Sample Type Compatibility | Multiphase Liquids (Aqueous & Organic Solutions) |
| Maximum Feed Rate | 3000 mL/h |
| Inlet Air Temperature Range | Up to 200 °C |
| Particle Size Distribution | 1–80 µm |
| Oxygen Monitoring Threshold | Auto-Shutdown at ≥2.5% O₂ |
| Nozzle Diameter | Standard 1.5 mm (Optional: 0.5 / 0.8 / 1.0 / 2.0 mm) |
| Temperature Control Accuracy | ±2 °C (PID) |
| Integrated Solvent Recovery | Yes (Condensation-Based) |
| Nitrogen Recirculation System | Yes |
| Optional Cryogenic Cooling Module | Available |
| Brand | Yacheng / PILOTECH |
|---|---|
| Origin | Shanghai, China |
| Manufacturer Type | Direct Manufacturer |
| Product Category | Domestic |

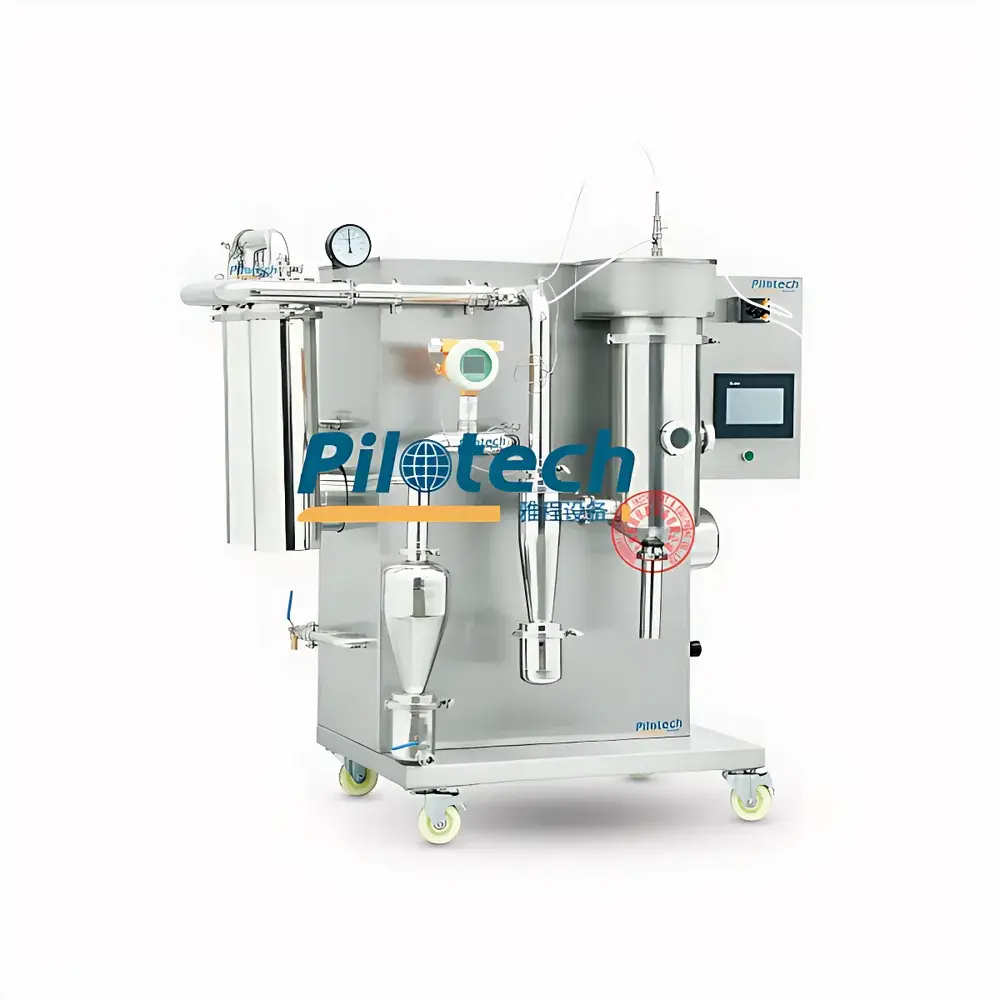

| Model | YC-015A |
| Max Feed Rate | 1500 mL/h |
| Inlet Air Temperature Range | Up to 200 °C |
| Particle Size Output | 1–25 µm |
| Solvent Compatibility | Water & Common Organic Solvents (e.g., ethanol, acetone, ethyl acetate, chloroform) |
| Oxygen Monitoring Threshold | Auto-Shutdown at ≥2.5% O₂ |
| Nozzle Diameter | Standard 1.0 mm (optional: 0.5/0.8/1.5/2.0 mm) |
| Minimum Sample Volume | 30 mL |
| PID Temperature Control Accuracy | ±1 °C |
| Brand | Yacheng / PILOTECH |
|---|---|
| Origin | Shanghai, China |
| Manufacturer Type | OEM Manufacturer |
| Model | YC-050 |
| Extraction Vessel Capacity | 50 L |
| Batch Feed Range | 0.3–10 kg |
| Heating Method | Jacketed Thermal Oil Circulation (Pressure-Free) |
| Condenser Area | 2 m² |
| Vacuum Range | 0 to −0.08 MPa |
| Temperature Control Accuracy | ±2 °C |
| Heating Power | 18 kW (380 V) |
| Cooling Water Consumption | 2 t/h at <0.3 MPa |
| Material of Construction | SUS304 Stainless Steel (Contact Parts) |
| Concentration Density Range | 1.10–1.38 (w/w, herbal extract) |
| Optional Ultrasound Module | 15–60 kHz, focused transducer configuration |
| Brand | Pilotech |
|---|---|
| Origin | Shanghai, China |
| Manufacturer | Yes |
| Type | Domestic |
| Model | YC-020 |
| Price | USD 7,700 (FOB Shanghai) |
| Extraction Vessel Volume | 25 L |
| Batch Feed Capacity | 0.3–5 kg |
| Minimum Feed | 0.3 kg |
| Evaporation Rate (Water) | 4–6 kg/h |
| Vacuum Degree (Evaporator Chamber) | –0.08 MPa |
| Temperature Control Accuracy | ±2 °C |
| Heating Power | 4.5 kW @ 380 V |
| Cooling Water Consumption | 1 t/h @ < 0.3 MPa |
| Construction Material | SUS304 Stainless Steel |
| Overall Dimensions | 1500 × 800 × 1900 mm |
| Footprint | ~2.4 m² |
| Brand | Yacheng / PILOTECH |
|---|---|
| Origin | Shanghai, China |
| Manufacturer Type | Direct Manufacturer |
| Country of Origin | China |
| Model | YC-018 |
| Sample Type | Aqueous solutions only |
| Max Feed Rate | 3000 mL/h |
| Inlet Air Temperature Range | 105–280 °C |
| Particle Size Range | 1–80 µm |
| Brand | Yacheng / PILOTECH |
|---|---|
| Origin | Shanghai, China |
| Manufacturer Type | Direct Manufacturer |
| Country of Origin | China |
| Model | YC-510 |
| Sample Type | Aqueous solutions only |
| Max Feed Rate | 500 mL/h |
| Inlet Air Temperature Range | 50–200 °C |
| Particle Size Distribution | 1–25 µm |
| Vacuum Level | −0.08 MPa |
| Temperature Control Accuracy | ±1 °C |
| Nozzle Diameter | 1.0 mm standard (optional: 0.5/0.8/1.5/2.0 mm) |
| Power Rating | 3.5 kW |
| Minimum Sample Volume | 10–20 mL (dependent on solids content) |
| Brand | YaCheng / PILOTECH |
|---|---|
| Origin | Shanghai, China |
| Manufacturer Type | Direct Manufacturer |
| Model | YC-018 |
| Sample Type | Aqueous solutions only |
| Max Feed Rate | 3000 mL/h |
| Inlet Air Temperature Range | 105–280 °C |
| Particle Size Output | 1–80 µm |
| Brand | YaCheng / PILOTECH |
|---|---|
| Origin | Shanghai, China |
| Manufacturer Type | Direct Manufacturer |
| Country of Origin | China |
| Model | YC-500 |
| Sample Compatibility | Aqueous solutions (organic solvents with optional YC-501 nitrogen recirculation system) |
| Max Feed Rate | 500 mL/h |
| Inlet Air Temperature Range | Up to 200 °C |
| Outlet Air Temperature Range | As low as 80 °C (solvent-dependent) |
| Particle Size Distribution | 1–25 µm |
| Nozzle Orifice | 1.0 mm standard (0.5/0.8/1.5/2.0 mm optional) |
| Construction | Full SUS304 stainless steel |
| Power Supply | 2 kW / 220 V |
| Display | Color LCD touchscreen with real-time animation and parameter monitoring (inlet temp, fan frequency, peristaltic pump speed, needle cleaning frequency) |
| Origin | Shanghai, China |
|---|---|
| Manufacturer Type | Authorized Distributor |
| Origin Category | Domestic (China) |
| Model | YC-020 |
| Price | USD 7,700 (FOB Shanghai) |
| Extraction Vessel Volume | 25 L |
| Batch Feed Capacity | 0.3–5 kg |
| Minimum Feed | 0.3 kg |
| Evaporation Rate (Water) | 4–6 kg/h |
| Concentrated Extract Density Range | 1.10–1.38 g/mL |
| Vacuum Level in Evaporator Chamber | –0.08 MPa (absolute) |
| Temperature Control Accuracy | ±2 °C |
| Heating Power | 4.5 kW @ 380 V AC |
| Cooling Water Consumption | 1 m³/h @ <0.3 MPa pressure |
| Construction Material | AISI 304 stainless steel |
| Overall Dimensions (W×D×H) | 1500 × 800 × 1900 mm |
| Footprint | ~2.4 m² |
| Brand | Yacheng / PILOTECH |
|---|---|
| Origin | Shanghai, China |
| Manufacturer Type | Direct Manufacturer |
| Country of Origin | China |
| Model | YC1800 |
| Quotation | Upon Request |
| Sample Types | Aqueous Mixtures, Water-Based Solutions |
| Max Feed Rate | 1500 mL/h |
| Inlet Air Temperature Range | 105–200 °C |
| Particle Size Distribution | 1–25 µm |
| Brand | Yacheng / PILOTECH |
|---|---|
| Origin | Shanghai, China |
| Manufacturer Type | OEM/ODM Manufacturer |
| Product Origin | Domestic (China) |
| Model | YC-010 |
| Pricing | Upon Request |
| Brand | Yacheng / PILOTECH |
|---|---|
| Origin | Shanghai, China |
| Manufacturer Type | Direct Manufacturer |
| Country of Origin | China |
| Model | YC-500 |
| Max Feed Rate | 500 mL/h |
| Temperature Range | Up to 200 °C (Inlet), Down to 80 °C (Outlet) |
| Particle Size Range | 1–25 µm |
| Solvent Compatibility | Aqueous solutions |
| Nozzle Diameter | 1.0 mm standard (0.5/0.8/1.5/2.0 mm optional) |
| Construction Material | Full SUS304 stainless steel |
| Power Supply | 2 kW / 220 V |
| Brand | Pilotech |
|---|---|
| Origin | Shanghai, China |
| Manufacturer Type | OEM Manufacturer |
| Product Origin | Domestic (China) |
| Model | YC-019 |
| Sample Type | Aqueous solutions only |
| Max Feed Rate | 5000 mL/h |
| Inlet Air Temperature Range | 105–350 °C |
| Particle Size Range | 1–100 µm |
| Recovery Efficiency | Up to 92% |
| Nozzle Orifice | 2.0 mm standard (0.5/0.8/1.0/1.5 mm optional) |
| Drying Time | 1.0–1.5 s |
| Temperature Control Accuracy | ±2 °C (PID) |
| Construction Material | 304 Stainless Steel (drying chamber, cyclone, collection tubing) |
| Compressor | Oil-free air compressor |
| Display | Color LCD touchscreen with real-time animation |
| Brand | PiloTech |
|---|---|
| Origin | Shanghai, China |
| Manufacturer | Yes |
| Country of Origin | China |
| Model | YC-010 |
| Extraction Chamber Volume | 10 L |
| Temperature Control Accuracy | ±2 °C |
| Brand | YaCheng / PILOTECH |
|---|---|
| Origin | Shanghai, China |
| Manufacturer Type | Direct Manufacturer |
| Model | YC-501 |
| Sample Compatibility | Aqueous and organic solvent-based solutions |
| Max Feed Rate | 500 mL/h |
| Inlet Air Temperature Range | Up to 200 °C |
| Particle Size Output | 1–25 µm |
| Control Interface | 7-inch color touchscreen with programmable microprocessor |
| Drying Atmosphere | Nitrogen-closed loop (O₂ monitoring & control) |
| Construction Material | Full SUS304 stainless steel |
| Nozzle Type | Concentric two-fluid atomizer (standard 1.0 mm |
| Power Requirement | 2.5 kW / 220 V |
| Compliance | Designed for GLP-compliant labs |
| Brand | YaCheng / PILOTECH |
|---|---|
| Origin | Shanghai, China |
| Manufacturer Type | OEM Manufacturer |
| Product Category | Domestic Laboratory Equipment |
| Model | YC-501 |
| Quotation | Upon Request |
| Sample Compatibility | Aqueous & Organic Solvent Solutions |
| Max Feed Rate | 500 mL/h |
| Inlet Air Temperature Range | Up to 200 °C |
| Particle Size Output | 1–25 µm |
| Control Interface | 7-inch Color Touchscreen with Real-time Process Animation |
| Atomization | Coaxial Two-Fluid Nozzle (Standard 1.0 mm |
| Construction Material | Full SUS304 Stainless Steel (Including Drying Chamber, Cyclone, and Collection Vessel with Observation Window) |
| Integrated N₂ Recirculation System | Yes (with Condenser, Oxygen Monitoring, and Heat Exchanger) |
| Power Supply | 2.5 kW / 220 V AC |
| Minimum Feed Volume | 10–20 mL (dependent on solids content) |
| Outlet Air Temperature Range | ≥40 °C (solvent-dependent) |
| Safety Compliance | Inert Atmosphere Operation (O₂ < 5% vol), Explosion-Proof Enclosure Design, Closed-Loop Solvent Recovery |
| Brand | Yacheng / PILOTECH |
|---|---|
| Origin | Shanghai, China |
| Manufacturer Type | Direct Manufacturer |
| Country of Origin | China |
| Model | YC-015 |
| Max Feed Rate | 1500 mL/h |
| Particle Size Range | 1–25 µm |
| Inlet Air Temperature Range | Up to 250 °C |
| Drying Residence Time | 1.0–1.5 s |
| Temperature Control Accuracy | ±1 °C (PID-controlled) |
| Noise Level | <60 dB(A) |
| Standard Nozzle Orifice | 1.0 mm (optional: 0.5/0.8/1.5/2.0 mm) |
| Construction | 316 Stainless Steel + Borosilicate Glass |
| Power Supply | 3.5 kW / 220 V AC, Single-phase |
| Brand | PiloTech |
|---|---|
| Origin | Shanghai, China |
| Manufacturer Type | OEM/ODM Manufacturer |
| Country of Origin | China |
| Model | YC-029 |
| Max Feed Rate | 10,000 mL/h |
| Inlet Air Temperature Range | 105–300 °C |
| Particle Size Output | 1–120 µm |
| Sample Compatibility | Aqueous Solutions Only |
| Heating Power | 20 kW |
| Noise Level | <60 dB(A) |
| Control Interface | Bilingual (English/Chinese) Touchscreen LCD |
| Construction Material | AISI 304 Stainless Steel (Drying Chamber, Cyclone, Collection Vessel & Tubing) |
| Temperature Control Accuracy | ±2 °C (PID-based) |
| Nozzle Orifice | 3.0 mm (optional) |
| Minimum Sample Volume | 200 mL |
| Real-time Display | Inlet Temp, Peristaltic Pump Speed, Fan Frequency |
| Brand | Yacheng / PILOTECH |
|---|---|
| Origin | Shanghai, China |
| Manufacturer Type | OEM Manufacturer |
| Product Origin | Domestic (China) |
| Model | YC-050 |
| Pricing | Upon Request |
| Brand | PiloTech |
|---|---|
| Origin | Shanghai, China |
| Manufacturer Type | OEM Manufacturer |
| Country of Origin | China |
| Model | YC-015A |
| Sample Compatibility | Aqueous & organic solvent-based solutions (e.g., ethanol, acetone, ethyl acetate, chloroform, DMF) |
| Max Feed Rate | 1500 mL/h |
| Inlet Air Temperature Range | Ambient to 200 °C |
| Particle Size Distribution | 1–25 µm |
| Oxygen Monitoring Threshold | Auto-shutdown at ≥2.5% O₂ |
| Nozzle Orifice | 1.0 mm standard (0.5/0.8/1.5/2.0 mm optional) |
| Temperature Control Accuracy | ±1 °C (PID-regulated) |
| Integrated Solvent Recovery | Yes (condenser + heat exchanger) |
| Inert Gas System | Nitrogen-closed loop with real-time O₂ monitoring |
Show next
