| Brand | ZHONGHUAN FURNACE |
|---|---|
| Origin | Tianjin, China |
| Model | SG-G03163 |
| Max Temperature | 1600°C |
| Temperature Control Accuracy | ±1°C |
| Rated Power | 6.5 kW |
| Heating Element | Silicon Molybdenum (MoSi₂) Rods |
| Internal Chamber Dimensions | Φ150 × 180 mm |
| Lift Stroke | 320 mm |
| Empty-Chamber Ramp Time to 1600°C | <40 min |
| Chamber Material | Polycrystalline Mullite Fiber (Vacuum-Formed) |
| Cooling System | Auto-Activated Surface-Cooling Fan (Triggered at ≥50°C surface temp) |
| Control System | Domestic 50-Stage Programmable PID Controller (Optional Import 40-Stage) |
| Communication Interface | RS-485 (Modbus RTU compatible) |
| Compliance | Designed for GLP-compliant thermal processing per ISO/IEC 17025 laboratory requirements |
| Brand | ZHONGHUAN FURNACE |
|---|---|
| Origin | Tianjin, China |
| Model | 1600°C Dual-Zone Gradient Tube Furnace |
| Maximum Temperature | 1600°C (dual-zone independent control) |
| Temperature Uniformity | ±1°C (within hot zone) |
| Control Accuracy | ±1°C |
| Heating Elements | SiC rods (up to 1500°C) and MoSi₂ rods (up to 1700°C) |
| Power Rating | 7 kW |
| Internal Chamber Dimensions | 796 × 1150 × 650 mm (L × W × H) |
| Heating Rate Profile | ≤5°C/min (≤500°C), ≤10°C/min (500–800°C), ≤5°C/min (800–1000°C), ≤3°C/min (1000–1400°C), ≤2°C/min (1400–1600°C) |
| Sealing Technology | Dual-ring flange sealing system |
| Cooling Safety System | Auto-activated exhaust fan at surface temperature ≥50°C |
| Communication Interface | RS-485 (supports up to 200 units in networked configuration) |
| Compliance | Designed for GLP-compliant lab environments |
| Brand | ZHONGHUAN FURNACE |
|---|---|
| Origin | Tianjin, China |
| Model | Triple-Zone Tube Furnace (1200℃) |
| Max Temperature | 1200℃ |
| Temperature Control Accuracy | ±1℃ |
| Max Power | 4.8 kW |
| Heating Rate | ≤10℃/min (0–1000℃), ≤5℃/min (1000–1200℃) |
| Heating Element | OCr27Al7Mo2 High-Resistance Alloy Wire |
| Internal Chamber Dimensions | 360 × 815 × 555 mm (W × L × H) |
| Configuration | Three Independent Heating Zones |
| Vacuum Compatibility | Yes |
| Atmosphere Control | Dual-gas inlet/outlet with micro-adjustable flow |
| Safety Features | Auto-Power-Off on Door Opening, Over-Temperature Cut-Off, Leakage Protection |
| Control System | AI-based PID + Fuzzy Logic + Self-Tuning |
| Communication Interface | RS-485 for PC connectivity and multi-furnace network control (up to 200 units) |

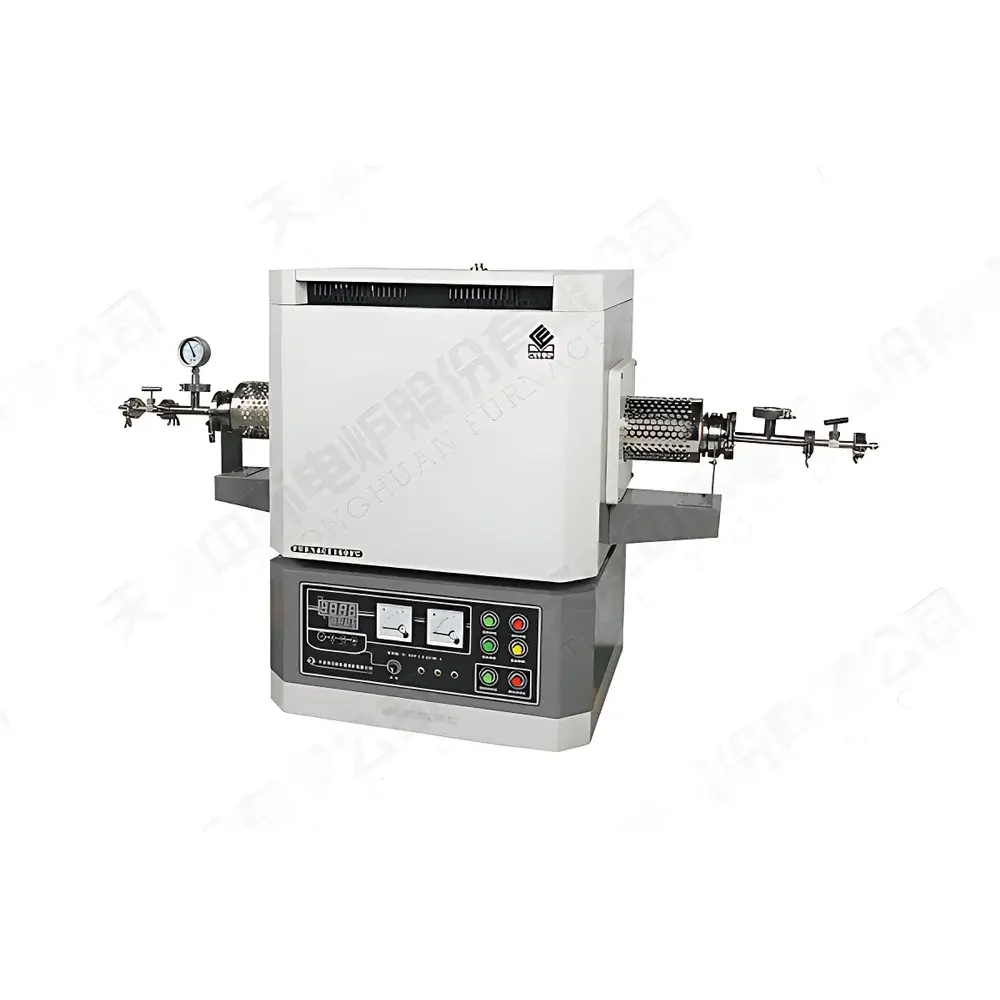

| Brand | ZHONGHUAN FURNACE |
|---|---|
| Origin | Tianjin, China |
| Model | 1600℃ Single-Zone Tube Furnace |
| Maximum Temperature | 1600℃ |
| Temperature Control Accuracy | ±1℃ |
| Rated Power | 4 kW |
| Heating Rate | ≤5℃/min (≤500℃), ≤10℃/min (500–800℃), ≤5℃/min (800–1000℃), ≤3℃/min (1000–1400℃), ≤2℃/min (1400–1600℃) |
| Heating Element | Silicon Molybdenum (MoSi₂) Rods |
| Internal Chamber Dimensions | 520 × 600 × 803 mm (L×W×H) |
| Gas Connection | Quick-Release Flange with Dual-Ring Sealing |
| Cooling System | Auto-Activated Surface-Cooling Fan (triggered at ≥50℃ surface temp) |
| Safety Features | Over-Temperature Cut-off, Earth-Leakage Protection |
| Control Interface | RS-485 Port for PC Integration |
| Programmable Controller | 50-Step Ramp-Soak Profile (Domestic), 40-Step (Imported Option) |
| Optional Upgrade | Full-Color Touchscreen HMI with Real-Time Curve Plotting, Historical Data Logging, Alarm Management, and Bilingual (Chinese/English) UI |
| Brand | ZHONGHUAN FURNACE |
|---|---|
| Origin | Tianjin, China |

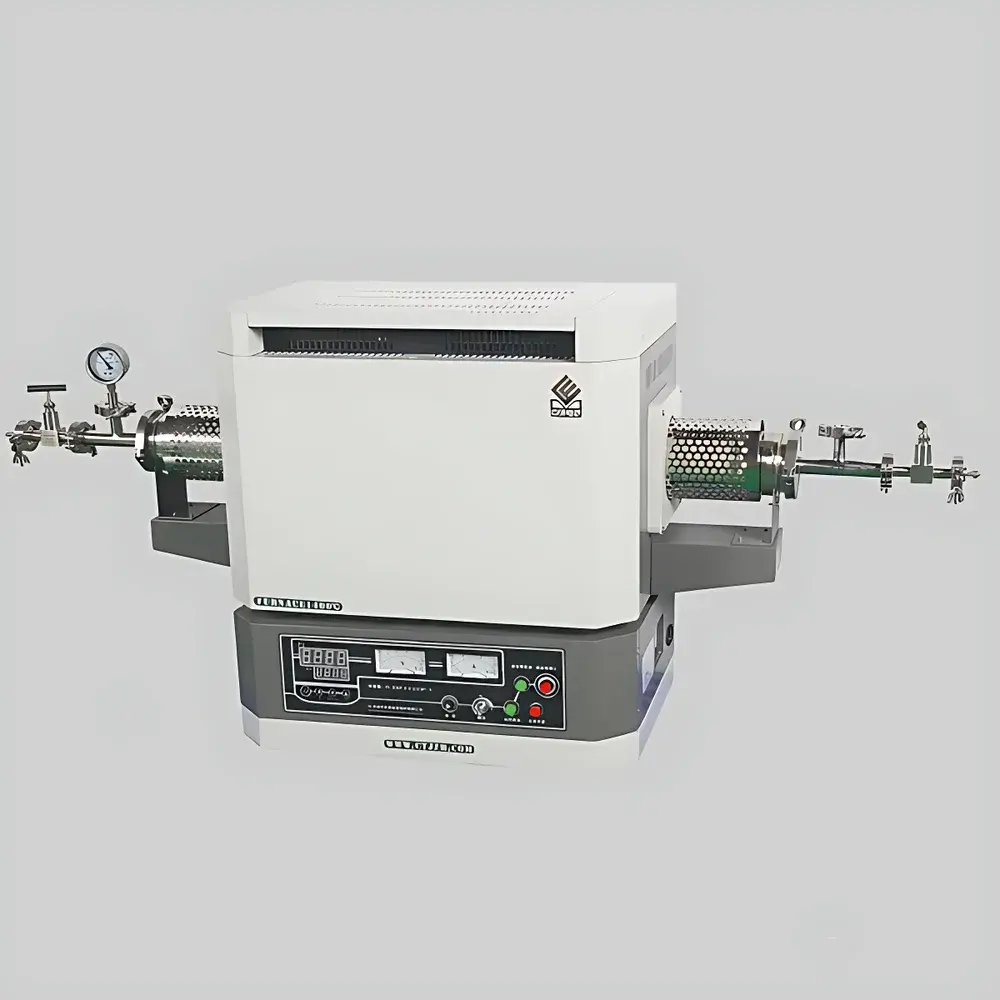

| Model | 1400°C Dual-Zone Vacuum & Atmosphere Tube Furnace |
| Maximum Temperature | 1400°C |
| Temperature Control Accuracy | ±1°C |
| Rated Power | 7.5 kW |
| Heating Rate (to max temp) | ≤5°C/min (≤500°C), ≤10°C/min (500–800°C), ≤5°C/min (800–1000°C), ≤3°C/min (1000–1200°C), ≤2°C/min (1200–1400°C) |
| Heating Element | Silicon Carbide Rods |
| Internal Chamber Dimensions | 530 × 836 × 785 mm (W × H × D) |
| Heating Configuration | Dual Independent Temperature Zones |
| Atmosphere Compatibility | Vacuum, Inert, Reducing, Oxidizing (with optional gas control system) |
| Vacuum Level | Down to 10⁻³ Pa (with optional vacuum pump package) |
| Safety Features | Over-Temperature Cut-Off, Earth-Leakage Protection, Auto-Cooling Fan Activation at Surface Temp ≥50°C |
| Control Interface | RS-485 for PC connectivity |
| Brand | Zhonghuan Furnace |
|---|---|
| Origin | Tianjin, China |

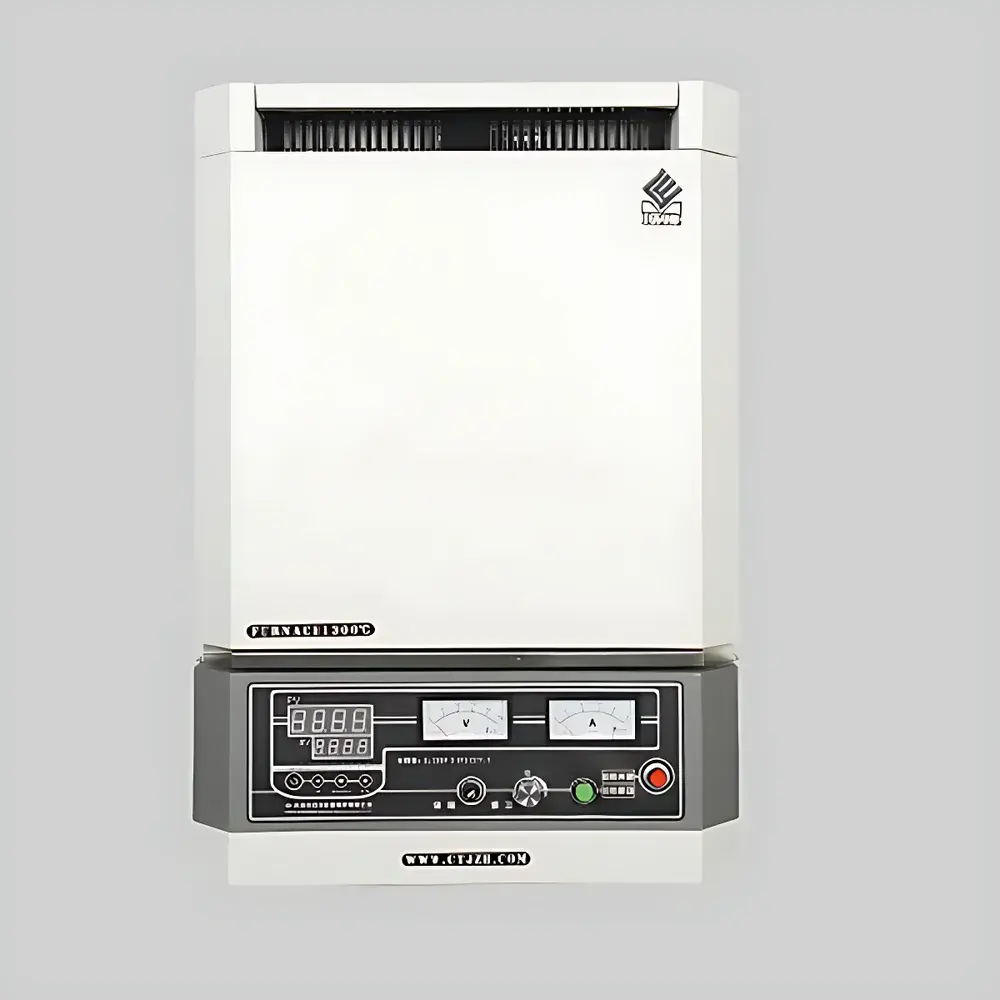

| Model | ZHX-03173 |
| Instrument Type | Box-Type Muffle Furnace |
| Max Temperature | 1700 °C |
| Temperature Control Accuracy | ±1 °C |
| Rated Power | 4 kW |
| Heating Element | Silicon-Molybdenum (MoSi₂) Rods |
| Internal Chamber Dimensions | 150 × 140 × 140 mm |
| Chamber Volume | 3 L |
| Voltage | 220 V AC, Single-Phase |
| Weight | 140 kg |
| External Dimensions | 667 × 629 × 1023 mm |
| Brand | ZHONGHUAN FURNACE |
|---|---|
| Origin | Tianjin, China |
| Model | ZHX-18173 |
| Instrument Type | Box-Type Muffle Furnace |
| Max. Operating Temperature | 1700 °C |
| Temperature Control Accuracy | ±1 °C |
| Rated Power | 18 kW |
| Internal Chamber Dimensions | 300 × 250 × 250 mm |
| Heating Element | Silicon-Molybdenum (MoSi₂) Rods |
| Voltage Requirement | 380 V AC (Three-Phase) |
| Cooling System | Auto-Activated Surface-Cooling Fan (Triggered at ≥50 °C External Surface Temp) |
| Brand | ZHONGHUAN FURNACE |
|---|---|
| Origin | Tianjin, China |
| Model | 1600°C Triple-Zone Vacuum & Atmosphere Tube Furnace |
| Maximum Temperature | 1600°C |
| Temperature Control Accuracy | ±1°C |
| Rated Power | 8 kW |
| Heating Rate (to max temp) | ≤5°C/min below 500°C |
| Heating Element | Silicon Molybdenum (MoSi₂) Rods |
| Internal Chamber Dimensions | 530 × 835 × 1425 mm (W × H × L) |
| Furnace Type | Horizontal Tube Furnace |
| Vacuum & Atmosphere Compatibility | Yes |
| Control Interface | RS-485 for PC connectivity |
| Programmable Stages | 50 segments (domestic controller), 40 segments (imported controller) |
| Safety Features | Over-temperature cutoff, earth-leakage protection |
| Insulation Material | Polycrystalline mullite fiber vacuum-formed board |

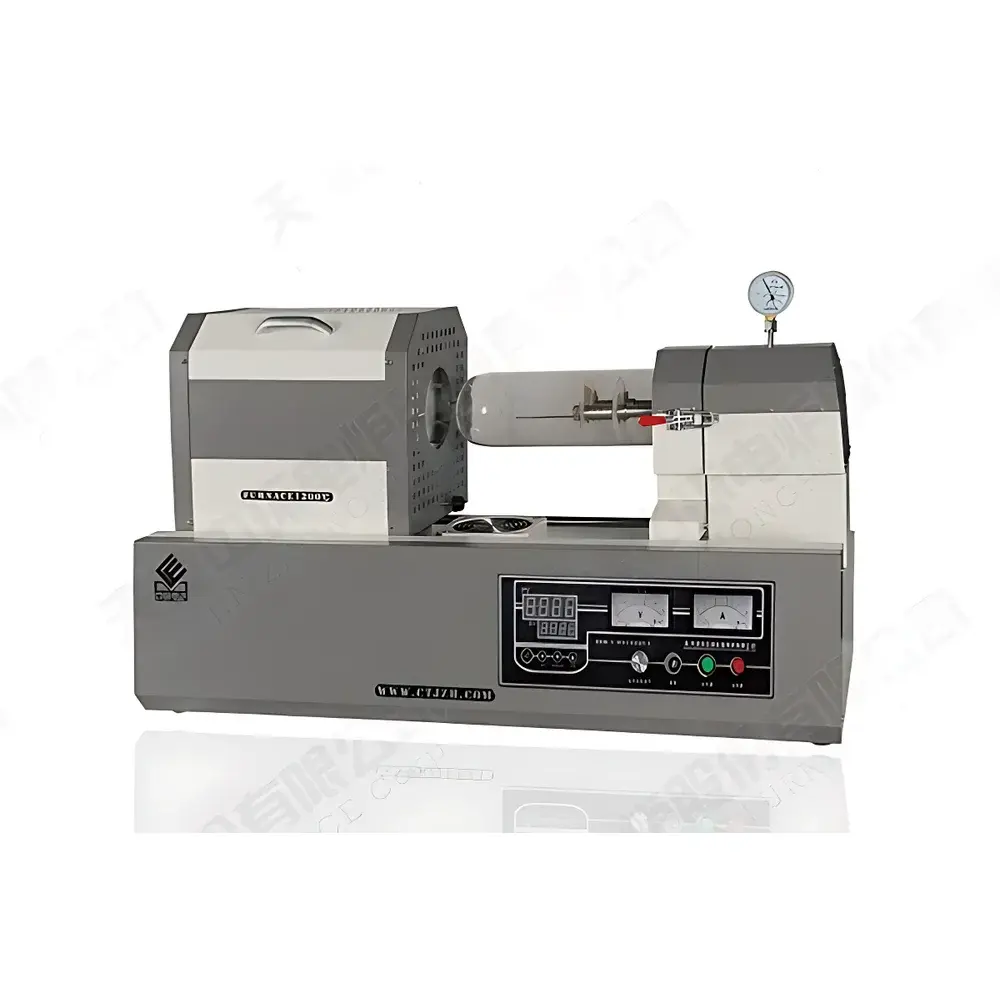

| Brand | ZHONGHUAN FURNACE |
|---|---|
| Origin | Tianjin, China |
| Instrument Type | Tube Furnace |
| Max Temperature | 1000 °C |
| Temperature Control Accuracy | ±1 °C |
| Max Power | 9 kW |
| Heating Rate (RT→900 °C) | 30 °C/s |
| Heating Rate (900→1000 °C) | 10 °C/s |
| Heating Method | Infrared Lamp Array |
| Internal Chamber Dimensions | 950 × 350 × 530 mm |
| Heating Zone Length | 300 mm |
| Uniform Temperature Zone Length | 100 mm |
| Quartz Tube Dimensions | Φ110 × 380 mm |
| Tube Material | High-Purity Fused Quartz |
| Sliding Stroke | 355 mm |
| Sliding Mechanism | Manual Linear Translation |
| Weight | 45 kg |
| Voltage/Frequency | 220 V AC, 50/60 Hz |
| Programmable Controller | 50-Step Ramp-Soak Profile |
| Standard Accessories | Vacuum/Atmosphere Gas Train (with Dual-Range Pressure Gauge), One Quartz Tube, One Quartz Sample Holder (76 mm), Pair of High-Temperature Gloves |
| Brand | ZHONGHUAN FURNACE |
|---|---|
| Origin | Tianjin, China |
| Model | 1200°C Sliding Dual-Zone Tube Furnace |
| Maximum Temperature | 1200°C |
| Temperature Control Accuracy | ±1°C |
| Total Rated Power | 3.2 kW |
| Heating Rate (to max temp) | ≤5°C/min below 500°C |
| Heating Element Material | High-Resistance Alloy Wire OCr27Al7Mo2 |
| Internal Chamber Dimensions | 1600 × 360 × 740 mm |
| Heating Configuration | Two independently controlled horizontal zones with synchronized sliding mechanism |
| Sealing Technology | Dual-ring flange sealing system |
| Cooling Safety System | Ambient-surface temperature-triggered axial cooling fan (activates at ≥50°C surface temp) |
| Control Interface | RS-485 port for PC connectivity and multi-furnace networked operation |
| Programmable Temperature Profile | Up to 50 segments (domestic controller) or 40 segments (imported controller) |
| Compliance | Designed for GLP-compliant lab environments |
| Brand | ZHONGHUAN FURNACE |
|---|---|
| Origin | Tianjin, China |

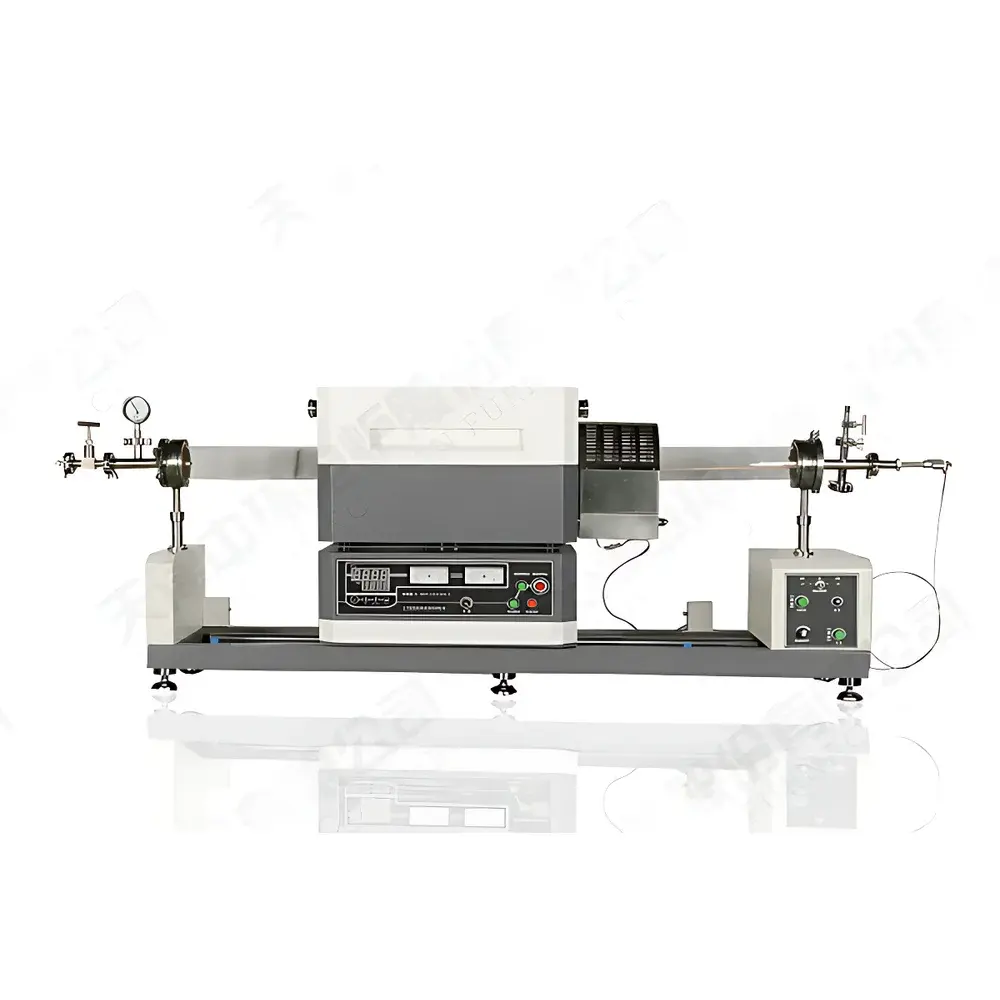

| Model | 1200℃ Sliding Multi-Zone Tube Furnace |
| Maximum Temperature | 1200℃ |
| Temperature Control Accuracy | ±1℃ |
| Total Power Rating | 4.8 kW |
| Heating Rate | ≤5℃/min (≤500℃), ≤10℃/min (500–800℃), ≤5℃/min (800–1000℃), ≤2℃/min (1000–1200℃) |
| Heating Element Material | OCr27Al7Mo2 High-Resistance Alloy Wire |
| Internal Chamber Dimensions | 1900 × 360 × 740 mm |
| Heating Zone Configuration | Sliding Dual-Zone with Independent Thermal Control |
| Sealing Technology | Dual-Ring Flange Sealing |
| Cooling System | Auto-Activated Surface-Cooling Fan (Triggered at ≥50℃ surface temperature) |
| Control Interface | RS-485 Port for PC Integration |
| Programmable Controller | 50-Stage Domestic System / 40-Stage Imported System |
| Safety Features | Door-Interlocked Power Cut-off, Over-Temperature Cut-off & Alarm, Earth-Leakage Protection |
| Brand | ZHONGHUAN FURNACE |
|---|---|
| Origin | Tianjin, China |
| Model | 1600℃ Triple-Zone Gradient Tube Furnace |
| Type | Horizontal Tube Furnace |
| Max Temperature | 1400℃–1600℃–1400℃ (Three Independent Zones) |
| Temperature Uniformity | ±1℃ (at setpoint, steady-state) |
| Power Rating | 8 kW |
| Heating Rate | ≤5℃/min (≤500℃), ≤10℃/min (500–800℃), ≤5℃/min (800–1000℃), ≤3℃/min (1000–1400℃), ≤2℃/min (1400–1600℃) |
| Heating Elements | SiC Rods (1500℃ max surface temp) & MoSi₂ Rods (1700℃ max surface temp) |
| Chamber Dimensions (L×W×H) | 796×1150×650 mm |
| Cooling | Intelligent Air-Cooling System with Thermal-Triggered Fan Activation (activated at ≥50℃ external surface temp) |
| Control Interface | RS-485 port for PC connectivity |
| Programmable Controller | 50-segment domestic PID controller or 40-segment imported intelligent controller with auto-tuning, fuzzy logic, and ramp-soak profiles |
| Brand | ZHONGHUAN FURNACE |
|---|---|
| Origin | Tianjin, China |
| Model | ZHX-B03173 (1700°C) / ZHX-B03183 (1800°C) |
| Chamber Dimensions (W×D×H) | 150×140×150 mm (ZHX-B03173), 150×140×140 mm (ZHX-B03183) |
| Effective Volume | 3 L |
| Rated Power | 5 kW (ZHX-B03173), 6 kW (ZHX-B03183) |
| Voltage | 220 V AC, Single-Phase |
| Max. Heating Rate | ≤10°C/min (<1200°C), ≤5°C/min (1200–1600°C), ≤3°C/min (1600–1700°C), ≤2°C/min (1700–1800°C) |
| Temperature Uniformity | ±5°C (at 1700°C), ±6°C (at 1800°C) |
| Control Accuracy | ±1°C |
| Heating Element | 0Cr27Al7Mo2 High-Resistance Alloy Wire |
| Hot Zone Insulation | Polycrystalline Molybdenum Fiber (ZHX-B03173), Zirconia Composite Fiber (ZHX-B03183) |
| Safety Features | Automatic Door-Interlocked Power Cut-off, Over-Temperature Alarm & Shutdown, Ground-Fault Circuit Interruption, Surface-Cooling Fan Activation at ≥50°C |
| Interface | RS-485 Serial Port (Modbus RTU), Optional Ethernet Integration & PC-Based Supervisory Software (Up to 200 Units) |

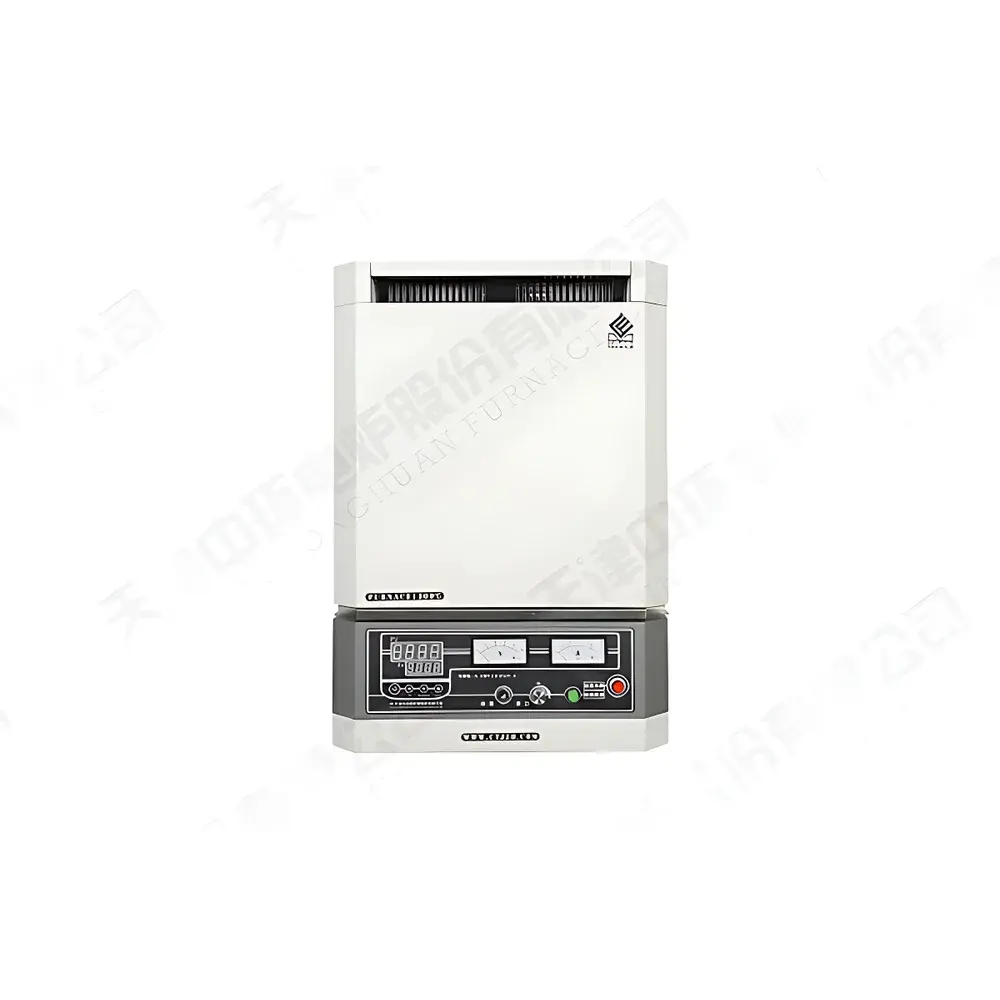

| Brand | ZHONGHUAN FURNACE |
|---|---|
| Origin | Tianjin, China |
| Model | ZHX Series (Benchtop) |
| Max Temperature | 1800°C |
| Control Accuracy | ±1°C |
| Max Power | 5 kW |
| Internal Chamber Dimensions | 190 × 180 × 150 mm |
| Heating Element | Silicon Molybdenum (MoSi₂) Rods |
| Insulation Material | Advanced Composite Refractory |
| Cooling | Automatic Surface-Cooling Fan (Activated at ≥50°C Surface Temp) |
| Safety Features | Door-Interlocked Power Cut-off, Over-Temperature Cut-off & Alarm, Earth-Leakage Protection |
| Control Interface | RS-485 Port for PC Integration |
| Optional | Full-Color Touchscreen with Real-Time Curve, Historical Data Logging, and Multi-Furnace Network Control (up to 200 units) |
| Brand | ZHONGHUAN FURNACE |
|---|---|
| Origin | Tianjin, China |

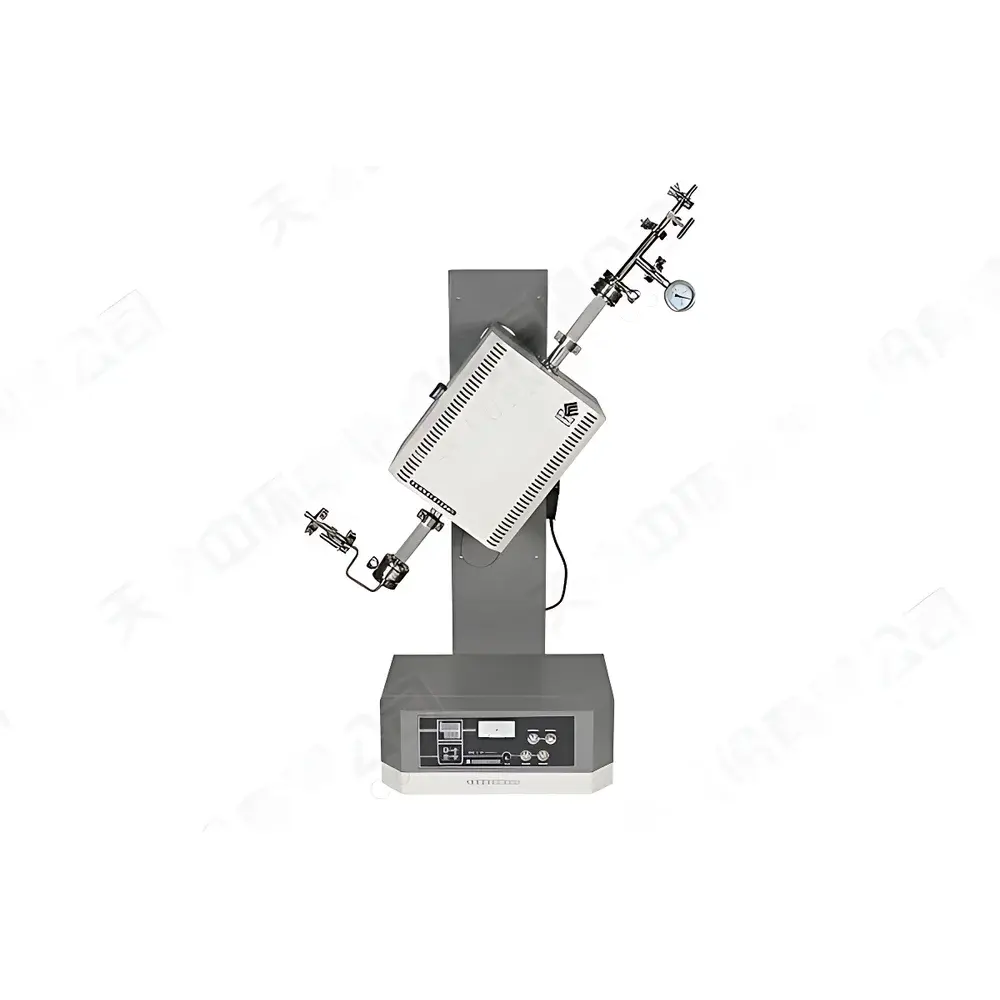

| Model | SK-G03123K-D / SK-G04123K-D |
| Max Temperature | 1200 °C |
| Control Accuracy | ±1 °C |
| Max Power | 1.2 kW |
| Heating Rate | ≤5 °C/min (≤500 °C), ≤10 °C/min (500–800 °C), ≤5 °C/min (800–1000 °C), ≤2 °C/min (1000–1200 °C) |
| Heating Element | OCr27Al7Mo2 High-Resistance Alloy Wire |
| Chamber Dimensions | 310 × 310 × 310 mm (L×W×H) |
| Tube Options | Φ30/24×700 mm or Φ40/34×700 mm Quartz |
| Vacuum Compatibility | Low-to-Medium Vacuum (via optional vacuum system) |
| Atmosphere Control | Dual-gas inlet with micro-adjustable mass flow capability |
| Weight | 75 kg |
| Voltage | 220 V AC |

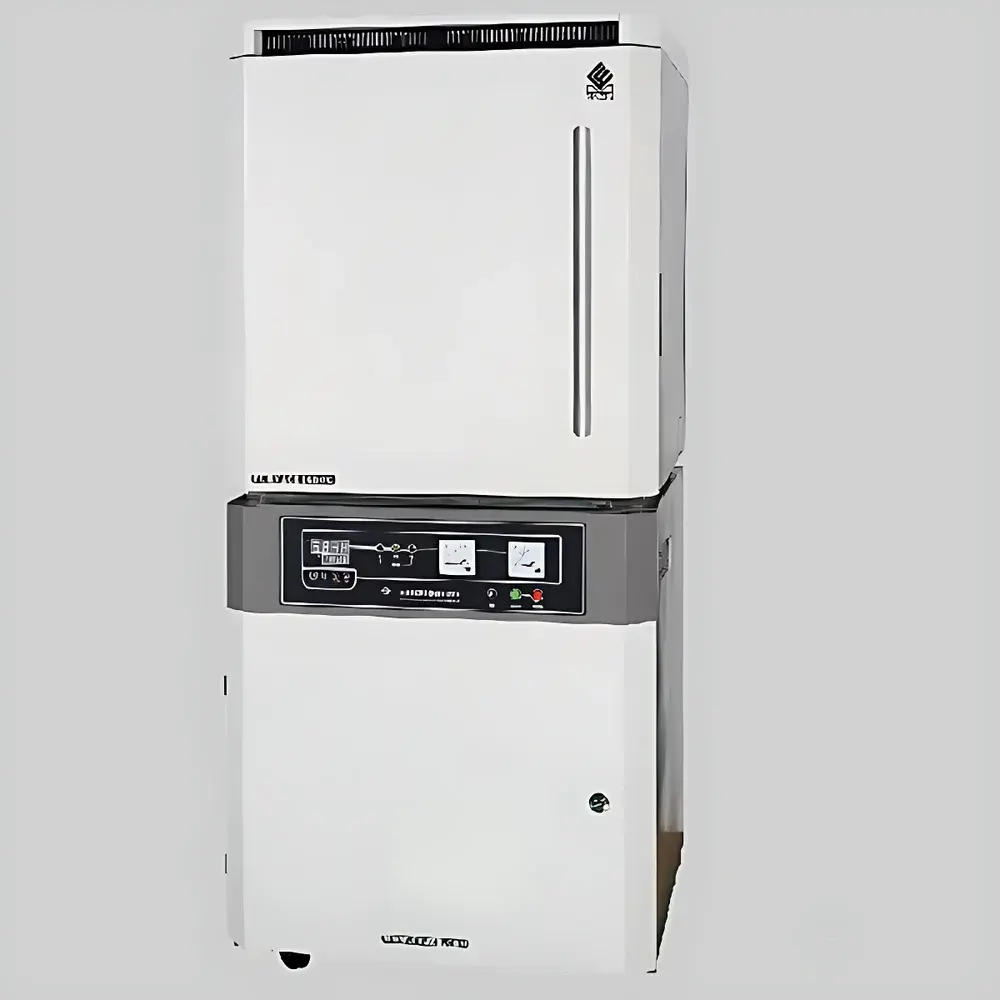

| Brand | ZHONGHUAN FURNACE |
|---|---|
| Origin | Tianjin, China |
| Model | ZHX-18173M |
| Instrument Type | Box-Type Muffle Furnace |
| Maximum Temperature | 1700 °C |
| Temperature Control Accuracy | ±1 °C |
| Rated Power | 18 kW |
| Heating Element | Silicon-Molybdenum (MoSi₂) Rods |
| Internal Chamber Dimensions | 300 × 250 × 250 mm (L × W × H) |
| Chamber Volume | 18 L |
| Rated Voltage | 380 V (3-phase) |
| External Dimensions | 765 × 750 × 1600 mm |
| Net Weight | 350 kg |

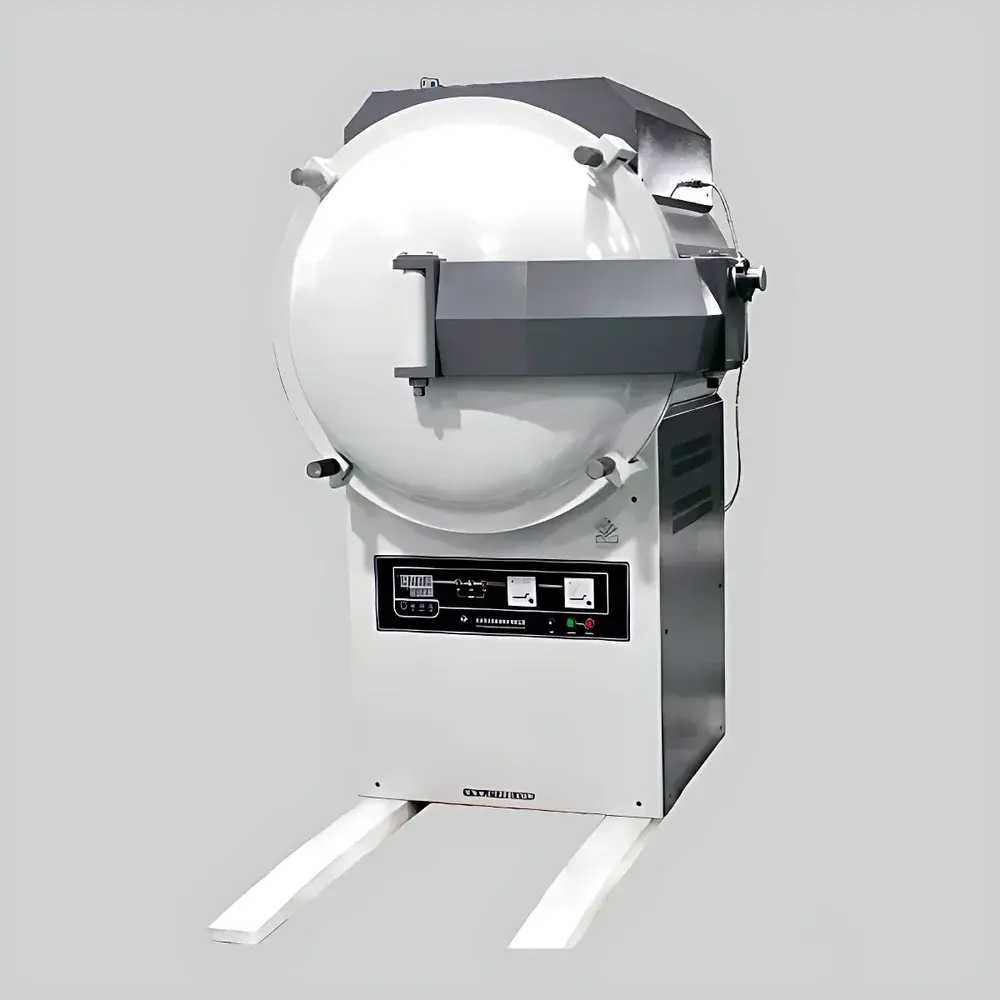

| Brand | ZHONGHUAN FURNACE |
|---|---|
| Origin | Tianjin, China |
| Model | ZHX-1600VAC |
| Instrument Type | Box Furnace |
| Max Temperature | 1600°C |
| Temperature Control Accuracy | ±1°C |
| Max Power | 1 kW |
| Heating Rate to Max Temp | <40 min |
| Heating Element | Silicon Molybdenum (MoSi₂) Rods |
| Internal Chamber Dimensions | 600 × 1400 × 600 mm |
| Chamber Material | Polycrystalline Mullite Fiber (Vacuum-Formed) |
| Sealing Technology | Rectangular O-Ring Vacuum Seal |
| Cooling System | Surface-Temperature-Triggered External Air-Cooling Fan (Activated at ≥50°C) |
| Control System | AI-PID with Self-Tuning & Programmable Ramp/Soak Profiles |
| Programmable Segments | 50 (Domestic Controller) / 40 (Imported Controller) |
| Communication Interface | RS-485 for PC Integration |
| Compliance | Designed for GLP-compliant thermal processing environments |
| Brand | ZHONGHUAN FURNACE |
|---|---|
| Origin | Tianjin, China |

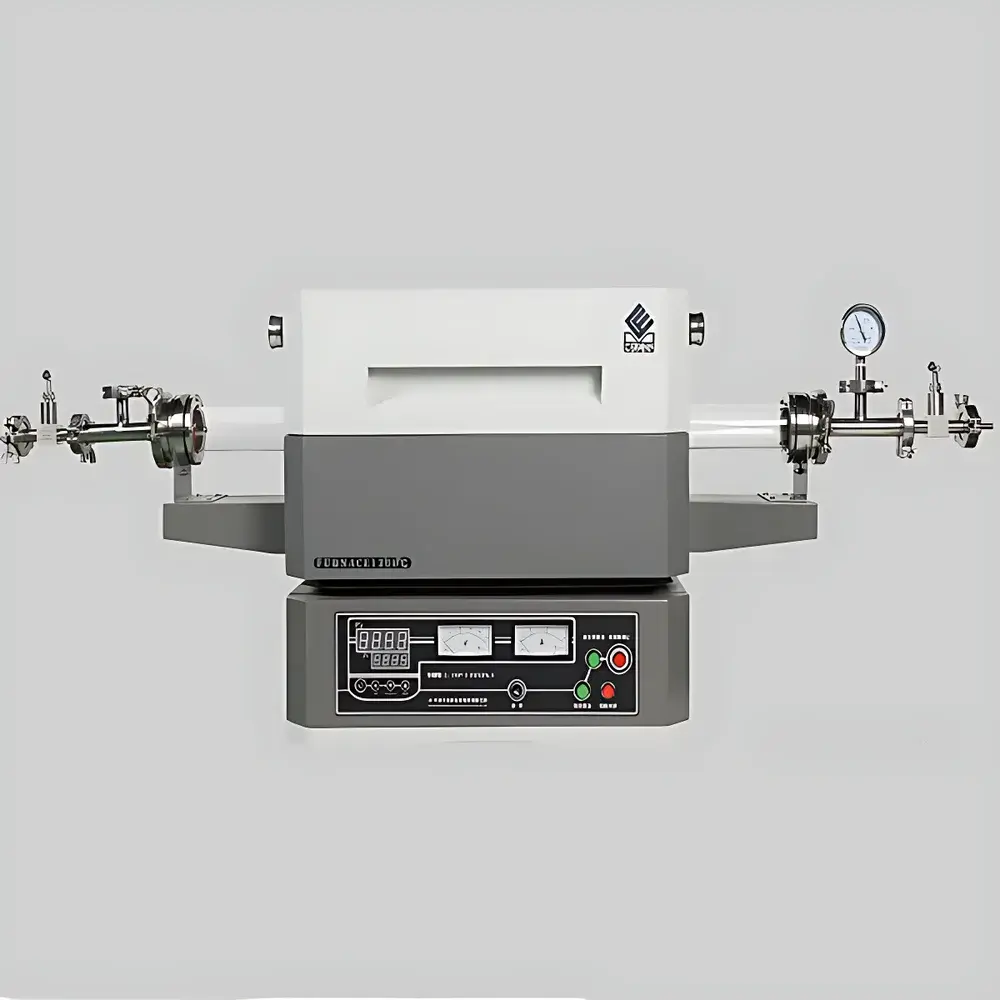

| Model | 1200℃ Multi-Zone Vacuum & Atmosphere Tube Furnace |
| Max Temperature | 1200℃ |
| Temperature Control Accuracy | ±1℃ |
| Max Power | 6 kW |
| Heating Rate | ≤5℃/min (≤500℃), ≤10℃/min (500–800℃), ≤5℃/min (800–1000℃), ≤2℃/min (1000–1200℃) |
| Heating Element | OCr27Al7Mo2 High-Resistance Alloy Wire |
| Internal Chamber Dimensions | 360 × 1035 × 555 mm |
| Heating Zone Configuration | Dual-zone (top/bottom split design with 110° rearward tilt) |
| Brand | ZHONGHUAN FURNACE |
|---|---|
| Origin | Tianjin, China |

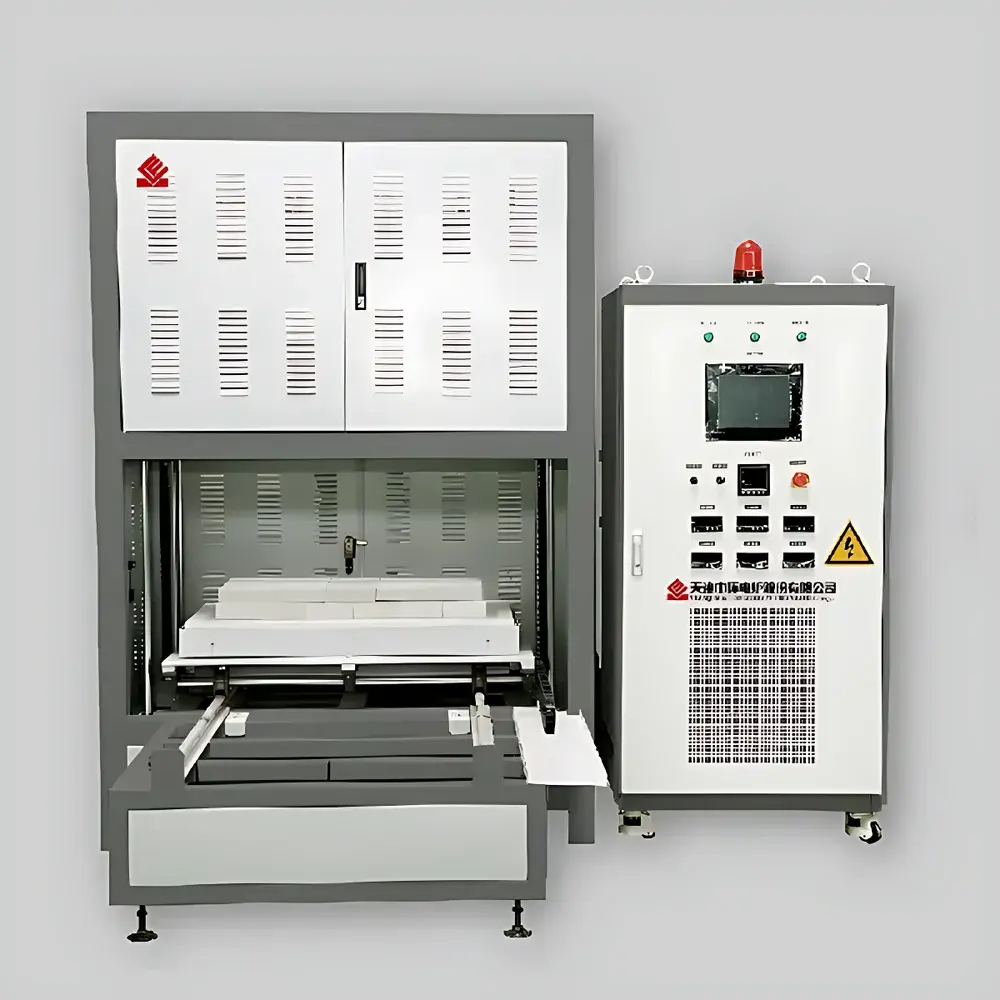

| Model | ZHX-220173M / ZHX-Y220173M |
| Type | Box-Type Muffle Furnace |
| Max. Operating Temperature | 1700 °C |
| Temperature Control Accuracy | ±1 °C |
| Rated Power | 54 kW |
| Heating Element | Silicon Molybdenum (MoSi₂) Rods |
| Internal Chamber Dimensions | 600 × 600 × 600 mm (L × W × H) |
| Cooling | Intelligent Surface Temperature Management with Auto-Activated Exhaust Fan (triggered at ≥50 °C surface temp) |
| Safety Features | Door-Interlocked Power Cut-off, Over-Temperature Protection, Earth-Leakage Circuit Interruption |
| Control Interface | RS-485 Port for PC Integration |
| Programmability | Up to 40-Step Ramp/Soak Profiles (with Imported Controller) |
| Brand | ZHONGHUAN FURNACE |
|---|---|
| Origin | Tianjin, China |
| Model | VT-1600V |
| Max Temperature | 1600 °C |
| Temperature Control Accuracy | ±1 °C |
| Max Power | 7 kW |
| Heating Rate | ≤5 °C/min (≤500 °C), ≤10 °C/min (500–800 °C), ≤5 °C/min (800–1000 °C), ≤2 °C/min (1000–1400 °C), ≤2 °C/min (1400–1600 °C) |
| Heating Element | Silicon Molybdenum (MoSi₂) Rods |
| Chamber Dimensions (L×W×H) | 600 × 660 × 1260 mm |
| Configuration | Vertical Single-Zone Tube Furnace |
| Brand | ZHONGHUAN FURNACE |
|---|---|
| Origin | Tianjin, China |

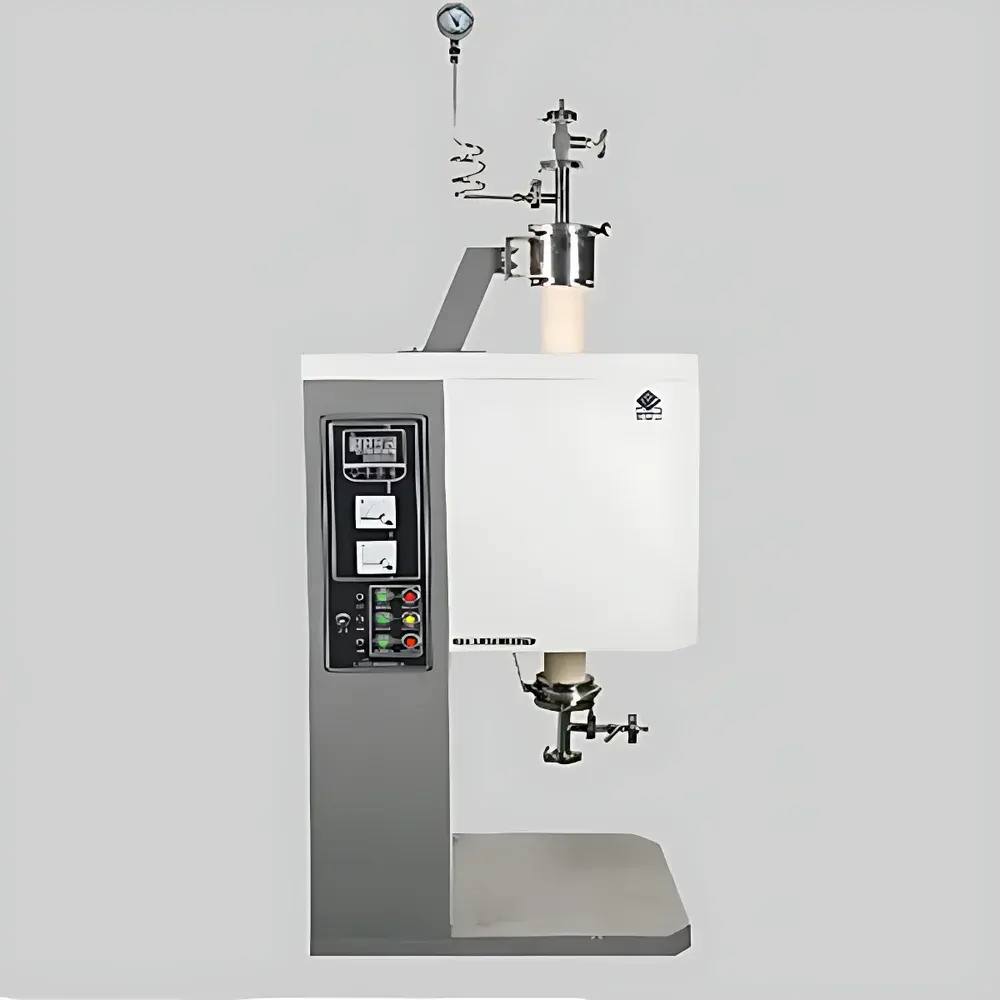

| Model | VT-1200V |
| Max Temperature | 1200 °C |
| Temperature Control Accuracy | ±1 °C |
| Max Power | 3 kW |
| Heating Rate | ≤5 °C/min (≤500 °C), ≤10 °C/min (500–800 °C), ≤5 °C/min (800–1000 °C), ≤3 °C/min (1000–1200 °C) |
| Heating Element | OCr27Al7Mo2 high-resistance alloy wire |
| Internal Chamber Dimensions | 590 × 420 × 1130 mm (L × W × H) |
| Sealing | Dual-ring flange with adjustable gas inlet/outlet |
| Safety Features | Automatic power cutoff upon door opening, overtemperature cut-off with audible alarm, earth leakage protection |
| Control System | AI-based PID controller with self-tuning, programmable up to 50 segments (domestic version), RS-485 interface for PC connectivity and multi-furnace supervision |
| Brand | ZHONGHUAN FURNACE |
|---|---|
| Origin | Tianjin, China |

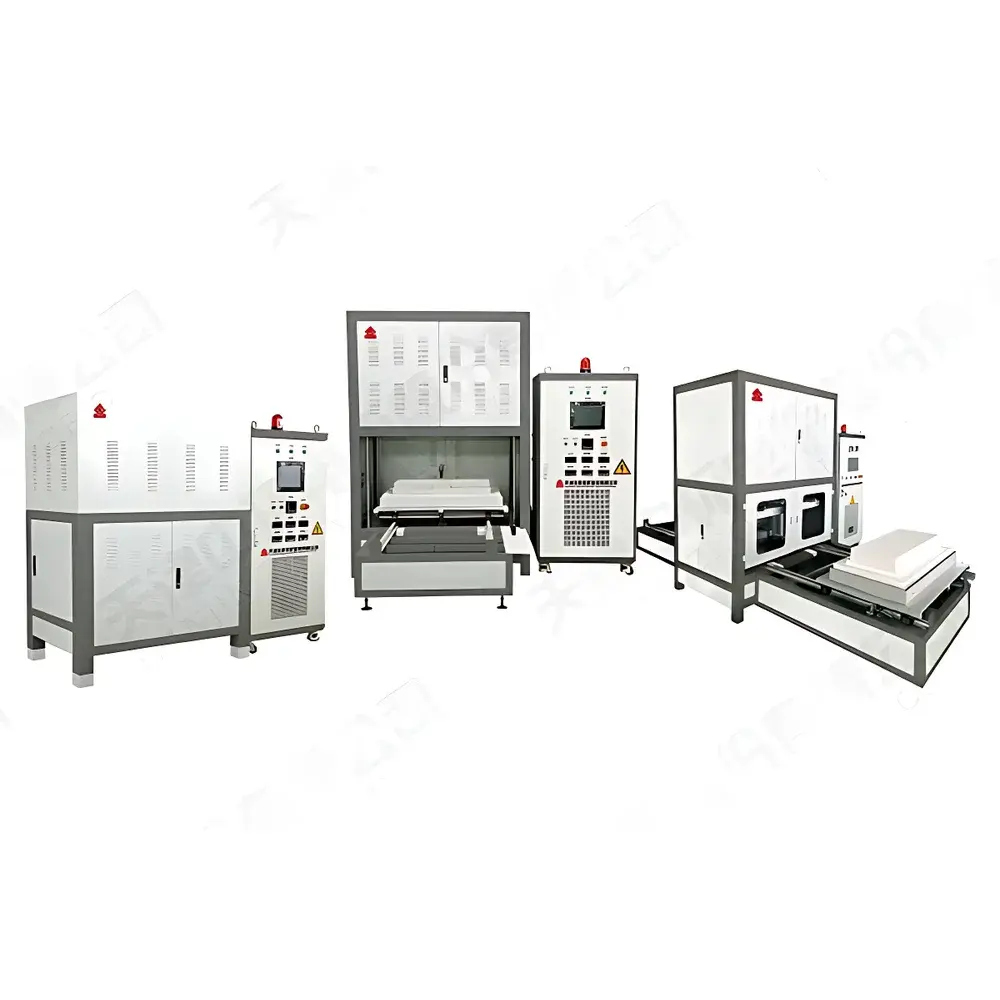

| Model | 1800°C Medium-Sized Intelligent Automatic Sintering & Annealing Furnace |
| Type | Box-Type Muffle Furnace |
| Max Temperature | 1800°C |
| Temperature Control Accuracy | ±0.5°C |
| Max Power | 57 kVA |
| Heating Element | Silicon Molybdenum (MoSi₂) Rods |
| Internal Chamber Dimensions | 860 × 340 × 300 mm |
| Heating Configuration | Peripheral U-Shaped MoSi₂ Elements |
| Control System | 100-Stage PID Programmable Controller with Over-Temperature & Thermocouple Break Protection |
| 炉 Door Operation | Motor-Driven Automatic Vertical Lift (Bottom- or Top-Mounted Configurations Available) |
| Insulation Material | High-Purity Alumina-Silica Ceramic Fiber Modules |
| Energy Efficiency | >40% Reduction vs. Conventional Refractory Brick Furnaces |
| Brand | ZHONGHUAN FURNACE |
|---|---|
| Origin | Tianjin, China |

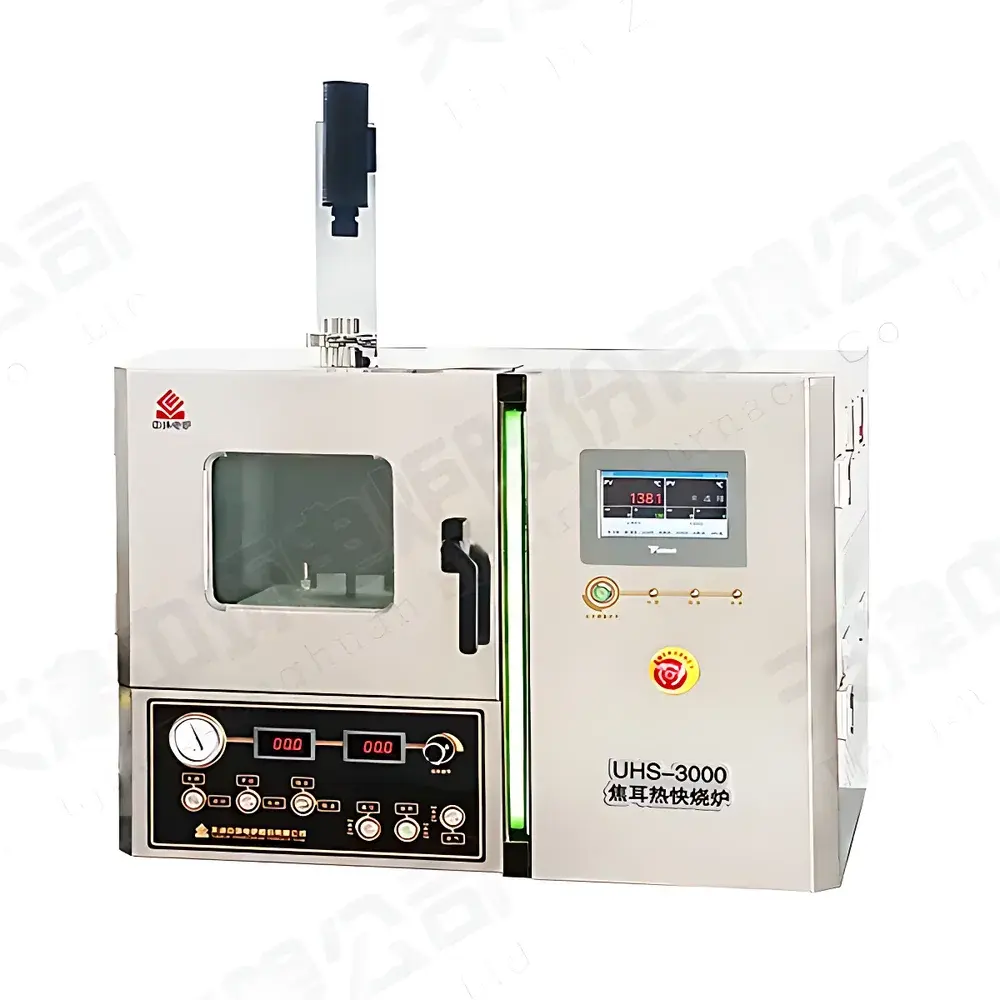

| Model | UHS-3000 |
| Instrument Type | Box-Type Furnace |
| Max Temperature | 3000 °C |
| Temperature Control Accuracy | ±2 °C |
| Max Power | 10 kW |
| Heating Rate (to max temp) | 10–500 °C/s |
| Heating Element | Graphite foil, graphite boat, and other conductive carbon-based substrates |
| Cooling Method | Forced-air cooling |
| Vacuum Chamber Material | 304 stainless steel with radiation-shielded viewport |
| Base Vacuum | –0.1 MPa (with 4 L single-stage pump) |
| Gas Control | Three-port system (inlet, exhaust, vacuum) |
| Electrical Supply | 380 V, 3-phase |
| Brand | ZHONGHUAN FURNACE |
|---|---|
| Origin | Tianjin, China |

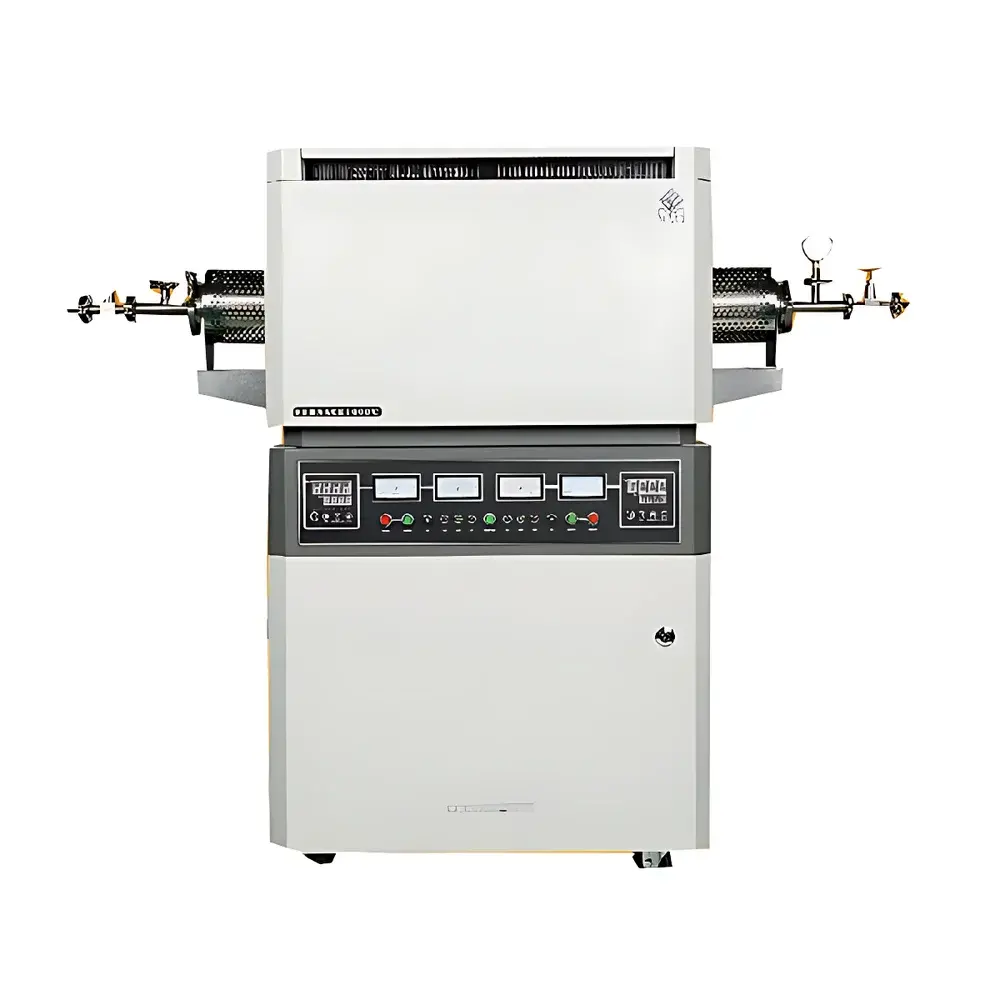

| Model | 1600℃ Dual-Zone Vacuum & Atmosphere Tube Furnace |
| Maximum Temperature | 1600℃ |
| Temperature Control Accuracy | ±1℃ |
| Rated Power | 8 kW |
| Heating Rate (to max temp) | ≤5℃/min (≤500℃), ≤10℃/min (500–800℃), ≤5℃/min (800–1000℃), ≤3℃/min (1000–1400℃), ≤2℃/min (1400–1600℃) |
| Heating Element | Silicon Molybdenum (MoSi₂) Rods |
| Internal Chamber Dimensions | 530 × 835 × 1425 mm (W × H × L) |
| Furnace Type | Horizontal Tube Furnace |
| Compliance | Designed for ASTM E1112, ISO 9001-compliant manufacturing processes |
| Software Interface | RS-485 port supporting Modbus RTU protocol for multi-furnace networked control |
Show next
