| Brand | SRS (Stanford Research Systems) |
|---|---|
| Origin | USA |

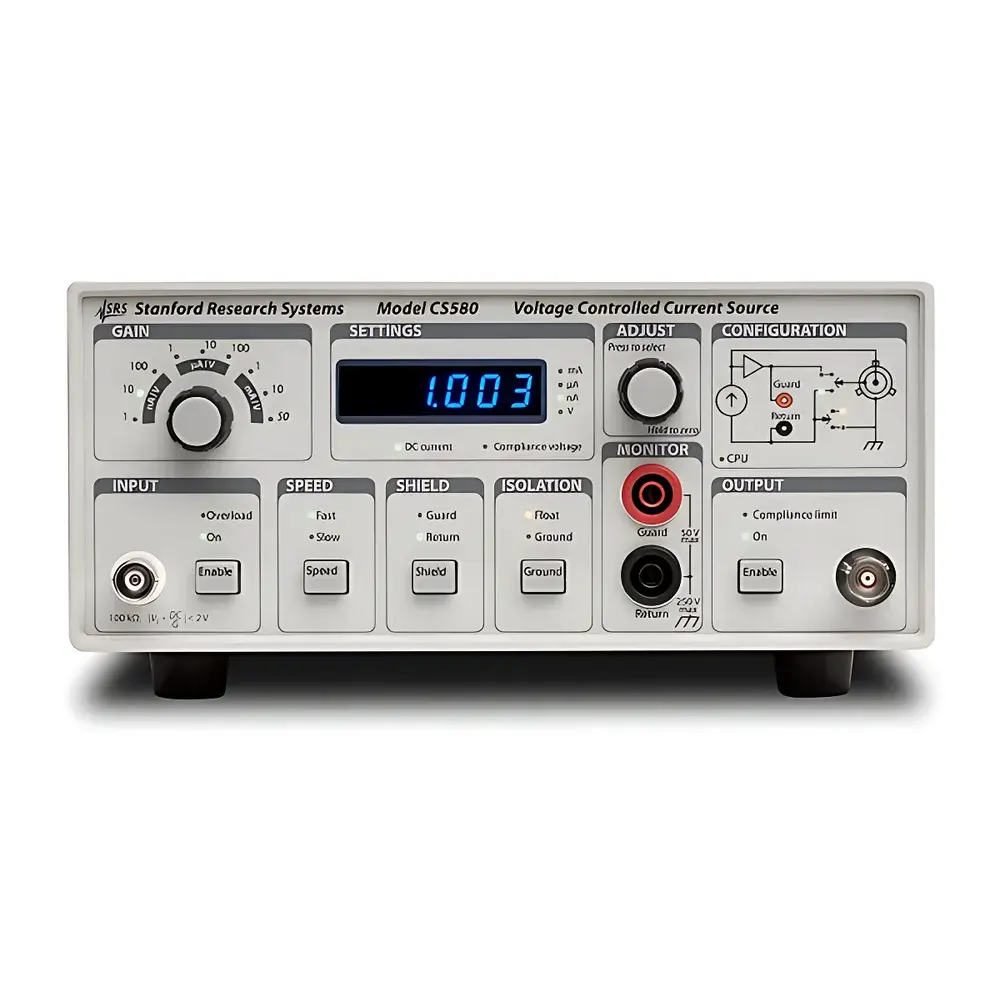

| Model | CS580 |
| Compliance | Imported Instrument |
| Output Compliance Voltage | ±50 V |
| Current Range | 100 fA to 100 mA (source/sink) |
| Transconductance Gain | 1 nA/V to 50 mA/V (selectable ranges) |
| AC Bandwidth | Up to 150 kHz |
| DC Bias Superposition | Yes |
| Noise Floor | Ultra-low (sub-pA/√Hz typical) |
| Leakage Current | <10 fA |
| Thermal Drift | <10 pA/°C |
| Interfaces | RS-232, Optical Fiber (isolated remote control) |
| Application Context | X-ray instrumentation, cryogenic transport measurements, quantum device characterization |
