| Brand | Alpao |
|---|---|
| Origin | France |

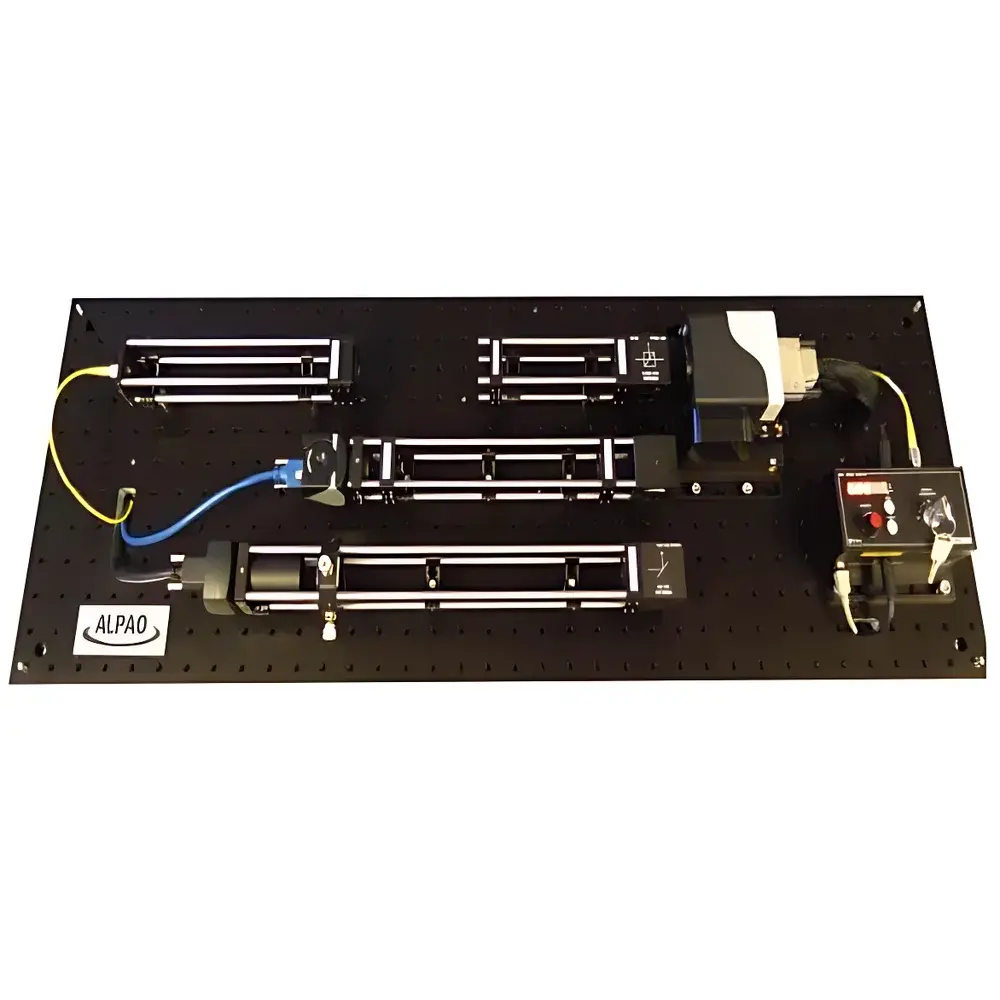

| Model | AOS-0 |
| Deformable Mirror Options | DM69 (69 actuators, 10.5 mm pupil) or DM97-15 (97 actuators, 13.5 mm pupil) |
| Wavefront Sensor Options | HASO4 First (VIS, 32×40 res., λ/100 RMS acc., 400–1100 nm) or WFS-VIS (23×23 res., λ/20 RMS acc., 250–1100 nm) |
| Max Closed-Loop Bandwidth | 800 Hz |
| Min Settling Time | 800 µs |
| Mirror Surface Flatness (Closed Loop) | ≤7.0 nm RMS |
| Tip/Tilt Stroke (PV, wavefront) | ≥60 µm |
| Focus/Astigmatism Stroke (PV, wavefront) | ≥40 µm |
| Operating Temperature | −10 to +35 °C |
| Coating | Protected Silver |
| Wavefront Sensor Interface | USB 3.0 or Camera Link |
| Imaging Monitor Camera | IDS UI-3240 (1280×1024, 60 fps, 10-bit, 60 dB DR) |
| Brand | Alpao |
|---|---|
| Origin | France |
| Model | WFS-VIS |
| Sensor Type | EMCCD |
| Spectral Range | 250–1100 nm |
| Max Acquisition Frequency | 1838 Hz (WFS-VIS-69) |
| Microlens Array | 8×8 to 23×23 |
| Microlens Pitch | 133–307 µm |
| Quantum Efficiency | >90% @ 600 nm |
| Dynamic Range (Tip-Tilt/Focus, PtV) | 10–20 µm |
| Residual WFE Error (Closed-Loop) | 20 nm RMS |
| Absolute Precision | λ/20 RMS |
| Repeatability | 10 nm RMS |
| Typical Noise | <0.1 electron RMS |
| Operating Temperature | 0–30 °C |
| Interface | Camera Link |
| Compatible Deformable Mirrors | DM69, DM97-15, DM277, DM468 |
| Brand | Alpao |
|---|---|
| Origin | France |
| Model | DM Series |
| Actuator Count | 69–820 |
| Pupil Diameter | 7.2–45.0 mm |
| Max Wavefront Stroke (PtV) | 80–120 µm |
| Settling Time | 500–1600 µs |
| Bandwidth (−3 dB) | 400–2000 Hz |
| Hysteresis Error | <2% |
| Nonlinearity Error | <3% |
| Coating | Protected Silver (R > 96.5% @ 0.5–2.0 µm) |
| Operating Temperature | −10 to 35 °C |
| Drive Voltage | ±1 V |
| Power Consumption | <10 W |
| Brand | Alpao |
|---|---|
| Origin | Beijing, China (Distributed) |
| Model | WFS-SWIR |
| Spectral Range | 0.9–1.7 µm |
| Sensor Type | InGaAs |
| Max Acquisition Frequency | 3 kHz |
| Microlens Array | up to 23×23 |
| Microlens Pitch | 167–264 µm |
| Quantum Efficiency | >90% @ 600 nm, >70% @ 1500 nm |
| Dynamic Range (Tip-Tilt/Focus, PtV) | 10–15 µm |
| Residual WFE Error (Closed-Loop) | 20 nm RMS |
| Absolute Precision | λ/20 RMS |
| Repeatability | 10 nm RMS |
| Typical Read Noise | <150 e⁻ (high gain), <700 e⁻ (low gain) |
| Operating Temperature | 0–30 °C |
| Interface | Camera Link |
| Recommended Deformable Mirror Compatibility | DM69 / DM97 / DM277 / DM468 |
| Brand | Acktar |
|---|---|
| Origin | Israel |

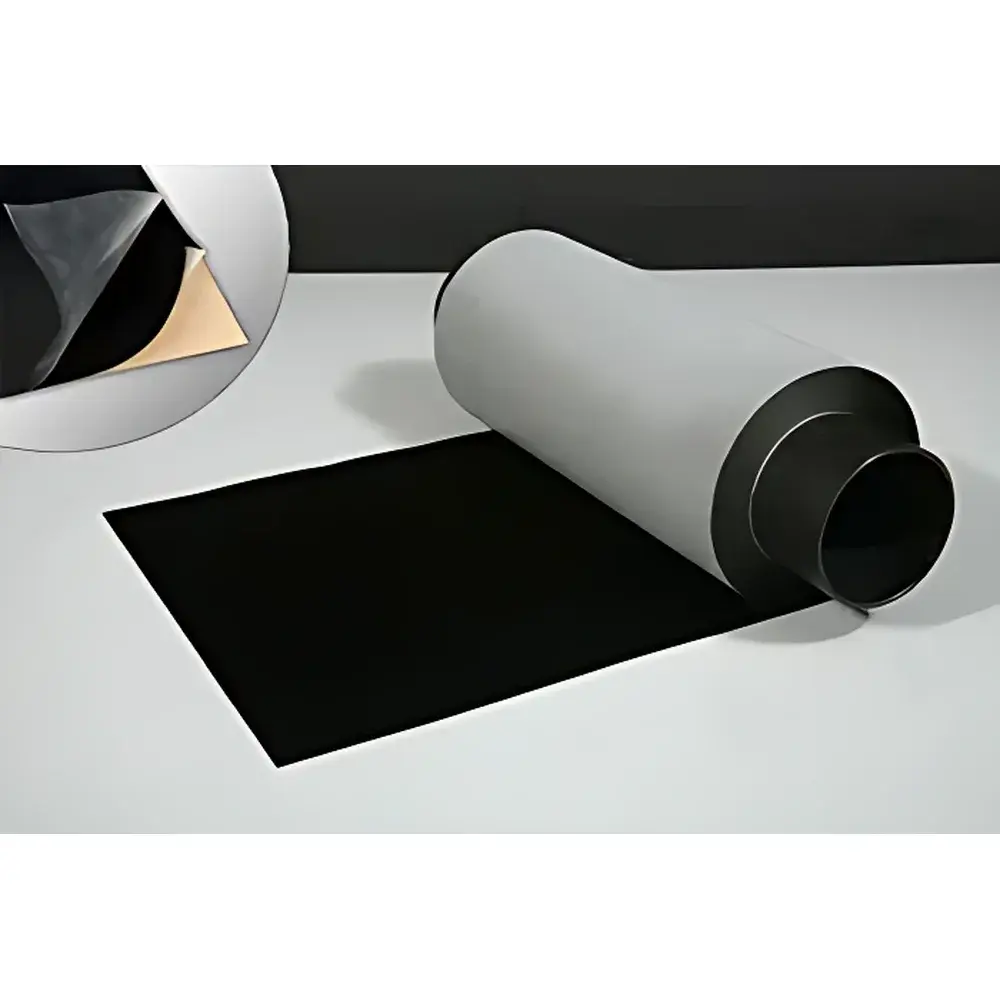

| Model | Metal Velvet |
| Component Category | Optical Element |
| Substrate | Aluminum Foil |
| Coating Thickness | 5–7 μm |
| Operating Temperature (with Hi-Temp Adhesive) | Long-Term –40 °C to +180 °C, Short-Term up to +300 °C |
| Operating Temperature (Without Adhesive) | Long-Term –196 °C to +350 °C, Short-Term up to +400 °C |
| Humidity Resistance | MIL-C-48497A Compliant |
| Abrasion Resistance | Low (requires protective handling) |
| Width | Up to 300 mm |
| Thickness (Foil + Coating) | ~110 μm |
| Optional Adhesive Layer | 25–60 μm (customizable) |
| Storage | 21 °C / 50% RH |
| Standard Shelf Life | 6 Months from Shipment |
| Brand | Acktar |
|---|---|
| Origin | Israel |

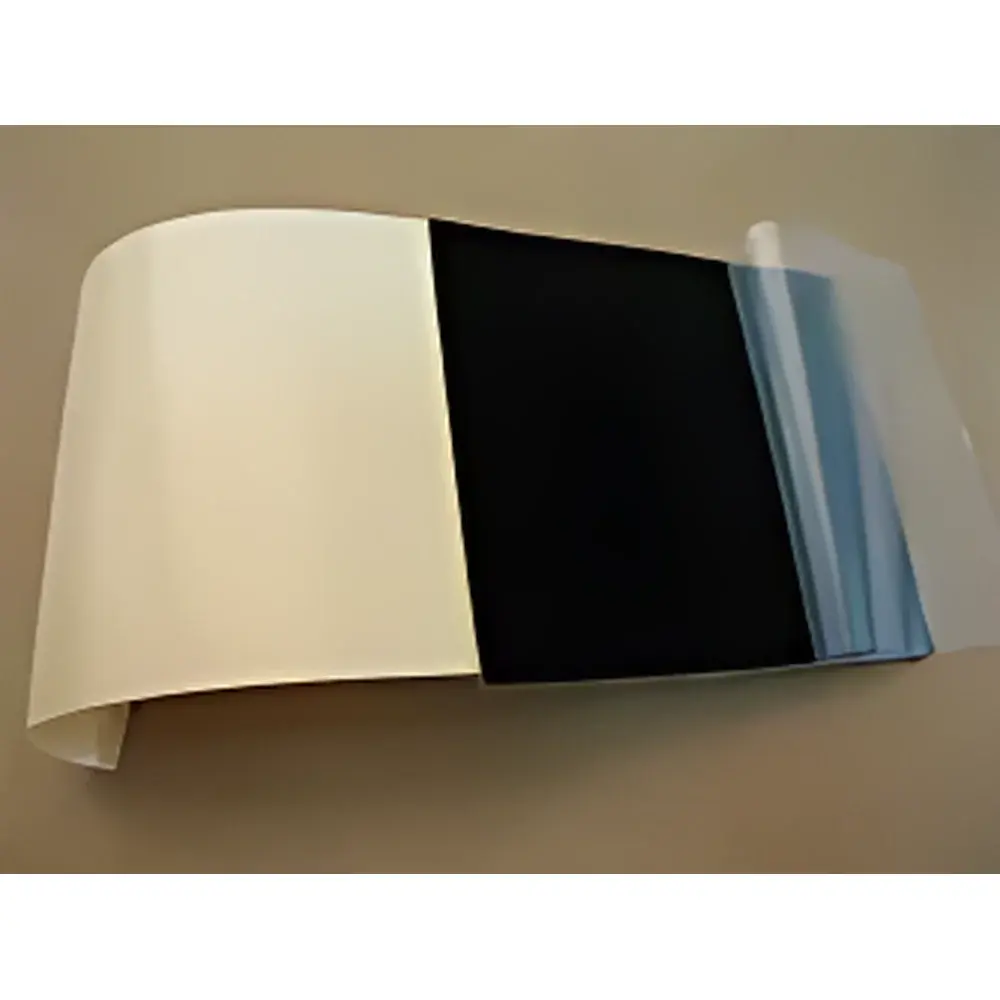

| Model | Spectral Black |
| Component Category | Optical Element |
| Substrate | Aluminum Foil (standard), Optional Metals/Plastics |
| Coating Thickness | 5 μm ± 2 μm |
| Operating Temperature (coated, no adhesive) | Long-term −196 °C to +350 °C, Short-term up to +400 °C |
| With Hi-Temp Adhesive | Long-term −40 °C to +180 °C, Short-term up to +300 °C |
| Humidity Resistance | MIL-STD-810G Method 507.5 Cycle B1, ISO/CD 12592.2 Task 10, MIL-C-48497A |
| Abrasion Resistance | Moderate |
| Chemical Composition | Fully Inorganic |
| Width | Up to 300 mm |
| Standard Thickness | 125 μm (foil) |
| Optional Adhesive Layer | 25–60 μm |
| Storage | 21 °C / 50% RH |
| Standard Shelf Life | 6 months from shipment |
