| Brand | Photo Research |
|---|---|
| Origin | USA |
| Model | PR-740/745 |
| Detector Type | Cooled 512-pixel CCD |
| Spectral Resolution | Up to 0.781 nm/pixel |
| Minimum Luminance | 0.000017 cd/cm² |
| Spectral Bandwidth Options | 2 nm, 5 nm, 8 nm |
| Display | High-Resolution Full-Color Touchscreen |
| Interface Options | USB, RS-232, Bluetooth (up to 100 m range) |
| Calibration | User-performed via SpectraWin Remote Mode & Built-in Self-Calibration Software |
| Optical Accessories | Eight interchangeable apertures |
| Compliance | ASTM E308, CIE 15:2018, ISO/CIE 11664, USP <1058> (analytical instrument qualification framework) |
| Brand | Novanta |
|---|---|
| Origin | United Kingdom |
| Manufacturer | Cambridge Technology (a Novanta company) |
| Model | Versia-2D |
| Aperture | 14 mm |
| Scan Angle | ±21° |
| Repeatability | <2 µrad |
| Long-Term Drift | <25 µrad (24 h, single axis, after 30 min warm-up) |
| Thermal Drift | <10 µrad/°C (offset), <10 ppm/°C (gain) |
| Wavelength Range | CO₂ (9.2–10.6 µm, up to 200 W), Fiber (1040–1090 nm, up to 200 W), Green (532 nm), UV (353–357 nm) |
| Interface Options | XY2-100 (16-bit), NVL-100 (20-bit) |
| IP Rating | IP54 |
| Power Supply | 48 V DC, 5 A RMS |
| Operating Temperature | 15–40 °C |
| Weight | 2.12 kg |
| Dimensions (L×W×H) | 99 × 99 × 132.2 mm |
| Brand | TEO |
|---|---|
| Origin | Beijing, China |
| Manufacturer Type | Authorized Distributor |
| Product Origin | Domestic (China) |
| Model | Ture8-based Integrated Glare Measurement System |
| Price | USD 27,500 (approx. ¥200,000) |
| Imaging Luminance Meter | Ture8 (PR-930 equivalent) |
| Sensor | Instrument-grade monochrome CCD |
| Resolution | 3296 × 2472 (≥8.1 MP) |
| FOV (8 mm lens) | 150° × 120° |
| FOV (14 mm lens) | 60° × 50° |
| Luminance Range | 0.005–5×10⁶ cd/m² (with ND filters) |
| Luminance Accuracy | ±5% (8 mm lens, CIE 1931-weighted) |
| Calibration Suite | Uniform-field, lens distortion, gradient, stray-light, illuminance, luminance/chrominance, and geometric scaling calibration |
| Compliant Standards | CIE 117:1995 (UGR), CIE 112:1994 (GR), CIE 140:2000 & CIE 150:2003 (TI), ISO/CIE joint guidance on glare assessment in lighting design |
| Brand | Radiant Zemax |
|---|---|
| Origin | USA |
| Model | PM-1200 Series |
| Sensor Type | 12-bit CCD with CIE-matched optical filters |
| Measurement Capabilities | Luminance (cd/m²), Illuminance (lux), Radiance (W/sr·m²), Irradiance (W/m²), Luminous Intensity (cd), Radiant Intensity (W/sr) |
| Spatial Resolution | Up to 2.3 megapixels (configurable by model variant) |
| Dynamic Range | >1,000,000:1 (with electronic exposure control) |
| Compliance | ISO/CIE-compliant photometric and radiometric calibration traceable to NIST |
| Software Platform | ProMetric® v3.x or later (supports ASTM E308, CIE 15:2018, IEC 62368-1, and MIL-STD-3009 NVIS requirements) |
| Brand | Laser Quantum |
|---|---|
| Origin | United Kingdom |
| Manufacturer Type | Authorized Distributor |
| Product Type | Imported OEM Solid-State Laser System |
| Model | Gem473 / Gem532 / Gem561 / Gem660 / Gem671 |
| Wavelengths | 473 nm, 532 nm, 561 nm, 660 nm, 671 nm |
| Output Power Range | 50 mW to 2 W (model-dependent) |
| Beam Diameter | 0.75–1.0 mm ± tolerance |
| Spatial Mode | TEM₀₀ |
| Power Stability | ≤ 1.0% RMS |
| Beam Pointing Stability | < 10 µrad/°C |
| Noise Level | 0.6–1.5% (10 Hz–10 kHz) |
| Polarization Ratio | >100:1, Vertical |
| Coherence Length | ~7.5 mm (473/561 nm), ~25 µm (532/660/671 nm) |
| Spectral Bandwidth | 30–40 GHz |
| Divergence | < 0.8–1.5 mrad |
| Warm-up Time | 10–15 min |
| Operating Temperature | 15–40 °C |
| Brand | Laser Quantum |
|---|---|
| Origin | United Kingdom |
| Model | GigaJet Series |
| Type | Solid-State Femtosecond Oscillator |
| Repetition Rate | 500 MHz or 1 GHz |
| Central Wavelength | 800 ± 20 nm (GigaJet & GigaJet Ultra), 750–850 nm tunable (GigaJet Tune) |
| Pulse Duration | ≤30 fs (GigaJet), ≤50 fs (GigaJet Tune), ≤15 fs (GigaJet Ultra) |
| Average Power | 0.8–1.8 W (GigaJet), 0.7–1.4 W (GigaJet Tune), 0.75–1.5 W (GigaJet Ultra) |
| Pulse Energy | 0.8–3.6 nJ (GigaJet), 0.7–1.4 nJ (GigaJet Tune), 0.75–1.5 nJ (GigaJet Ultra) |
| Beam Diameter (FWHM) | 0.8 ± 0.3 mm |
| Spatial Mode | Near TEM₀₀ |
| Beam Divergence | 2.0 ± 0.5 mrad |
| Polarization Ratio | >100:1, horizontal |
| Pump Requirement | 5 W, 532 nm, TEM₀₀, vertically polarized |
| Operating Temperature | 21 ± 5 °C |
| Origin | Germany |
|---|---|
| Manufacturer Type | Authorized Distributor |
| Origin Category | Imported |
| Model | InnoSlab |
| Core Technology | Solid-State Diode-Pumped Slab Laser |
| Beam Shaping Capability | Customizable (Gaussian, 1D Top-Hat, 2D Square Top-Hat) |
| Wavelength Options | 1064 nm / 532 nm / 355 nm / 266 nm |
| Pulse Energy | Up to 60 mJ |
| Pulse Width | < 4 ns |
| Peak Power | Up to 7 MW |
| Repetition Rate | Up to 150 kHz |
| Average Output Power | Up to 600 W |
| Beam Quality | M² < 2.0 |
| Polarization Ratio | >100:1 |
| Energy Stability (RMS) | ≤4% |
| Beam Ellipticity (Far-Field) | <10% |
| Beam Diameter | 3 mm (nominal) |
| Divergence (Full Angle) | 225–500 µrad |
| Warm-up Time | 15–30 min |
| Brand | CVI |
|---|---|
| Origin | USA |
| Manufacturer Type | Authorized Distributor |
| Origin Category | Imported |
| Model | 35LAS450 |
| Core Technology | Gas Laser System |
| Wavelength | 488 nm |
| Output Power | 50 mW |
| Gain Medium | Ar⁺ (Argon Ion) |
| Beam Mode | TEM₀₀ |
| Cooling Method | Forced-Air |
| Compliance | CE, RoHS, FDA 21 CFR Part 1040.10 |
| Brand | TEO |
|---|---|
| Origin | Beijing, China |
| Manufacturer Type | Authorized Distributor |
| Regional Classification | Domestic (PRC) |
| Model | TEO |
| Price Range | USD 70,000 – 112,000 |
| Brand | Powerlase |
|---|---|
| Origin | United Kingdom |
| Model | Polaris i200 |
| Wavelength | 1064 nm |
| Pulse Width | 10 ps |
| Average Power | up to 200 W |
| Pulse Energy | up to 1 mJ |
| Repetition Rate | 10–1000 kHz |
| Burst Mode | configurable (1–10 pulses per burst) |
| Long-Term Power Stability (RMS) | < 1.0% |
| Laser Type | Diode-Pumped Solid-State (DPSS), Nd:YAG-based |
| Origin | UK |
|---|---|
| Manufacturer Type | Authorized Distributor |
| Origin Category | Imported |
| Model | SPARK-1040 |
| Output Power | 0.5–3 W |
| Wavelength | 1040 nm |
| Pulse Duration | 170 fs – 2.5 ps |
| Spectral Bandwidth | 20–40 nm |
| Repetition Rate | 100 MHz (standard), optional 80–200 MHz with lock-to-clock synchronization |
| Amplitude Noise | <140 Hz RMS (measured over 50 hours) |
| Beam Quality | M² < 1.1 |
| Polarization | Linear |
| Beam Divergence | <2 mrad |
| Beam Diameter (1/e²) | 0.5 mm (standard), optional 0.5–2 mm |
| Interface | Ethernet |
| Laser Head Dimensions | 404 × 249 × 65 mm |
| Controller Dimensions | 483 × 285 × 86 mm |
| Laser Head Weight | 7.5 kg |
| Controller Weight | 2 kg |
| Power Supply | 110–240 V AC, 50–60 Hz, 80 W max |

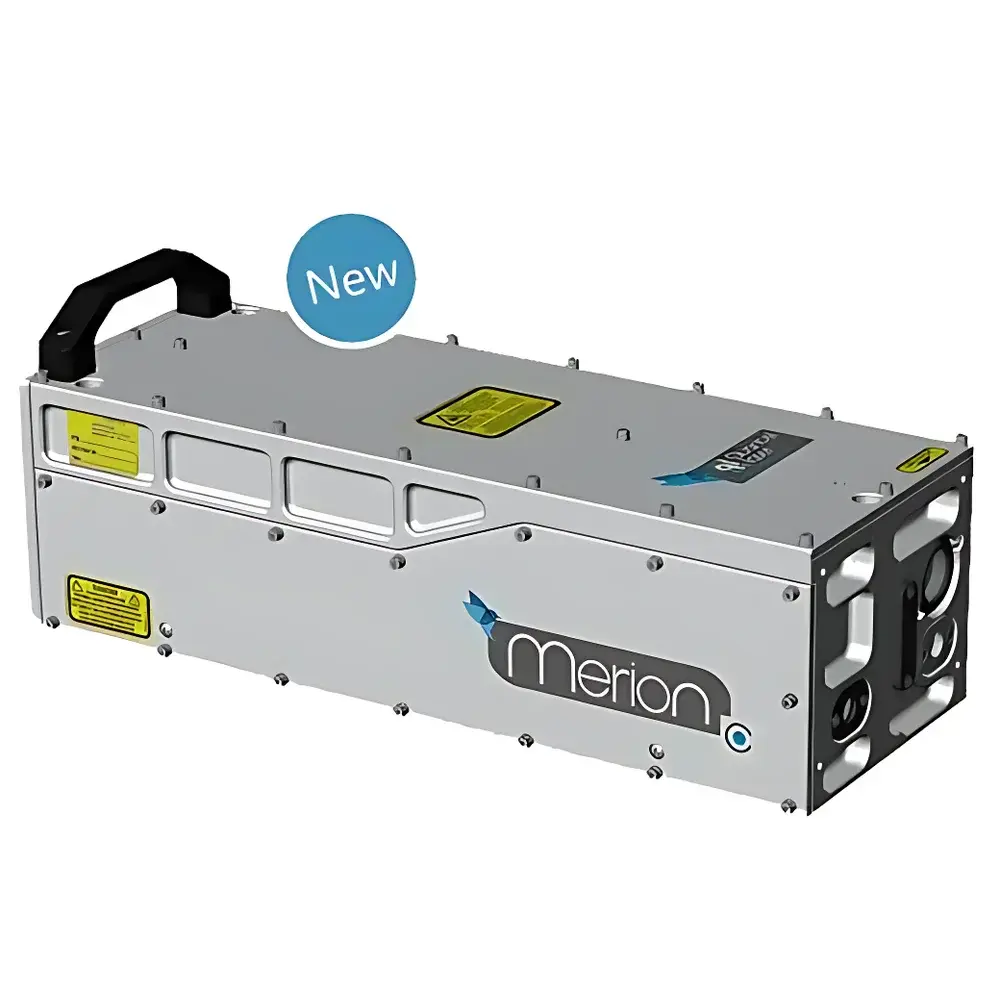

| Brand | Quantel |
|---|---|
| Origin | France |
| Model | Merion C |
| Type | Diode-Pumped Solid-State (DPSS) Q-Switched Laser |
| Output Wavelengths | 1064 nm, 532 nm, 355 nm |
| Repetition Rate | Up to 400 Hz |
| Pulse Energy | 100 mJ @ 1064 nm, 50 mJ @ 532 nm, 30 mJ @ 355 nm |
| Pulse Width | < 10 ns @ 1064 nm |
| Beam Divergence | < 5 mrad @ 1064 nm (S4), < 1 mrad @ 1064 nm (G4) |
| Pulse-to-Pulse Energy Stability | < 0.5% (p-p) |
| Cooling | Internal recirculating water cooling |
| Laser Head Dimensions | 120.1 × 416.1 × 150.2 mm |
| Power Supply Dimensions | 177.4 × 482.6 × 457.2 mm |

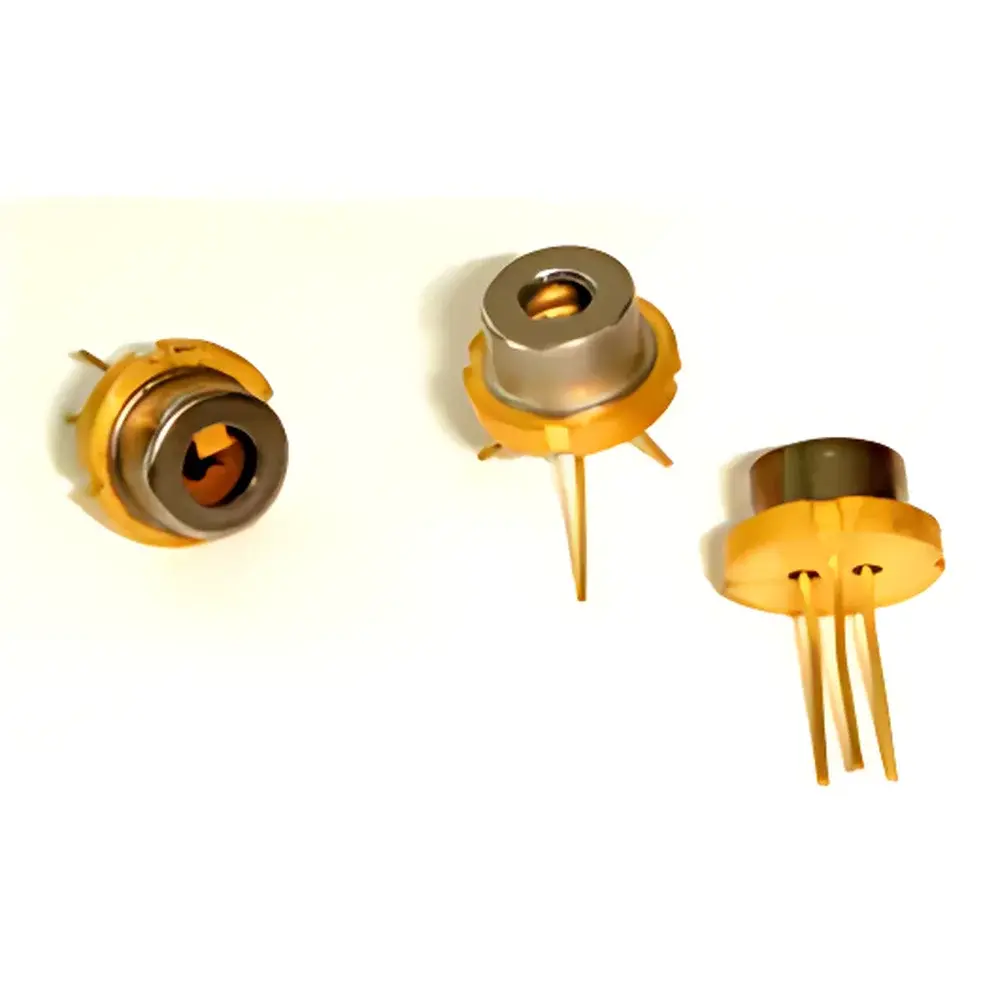

| Brand | FLC |
|---|---|
| Origin | USA |
| Manufacturer Type | Authorized Distributor |
| Import Status | Imported |
| Model | 1 |
| Core Construction | Solid-State Laser Device |
| Wavelength Range | 375–3100 nm |
| Output Power | 1–500 mW |
| Packaging Options | TO-can, Butterfly, C-mount, Coaxial, Fiber-Pigtailed |
| Optional Integrations | Thermoelectric (TE) Coolers, Monitor Photodiodes, FC/PC or SMA Fiber Coupling Interfaces |

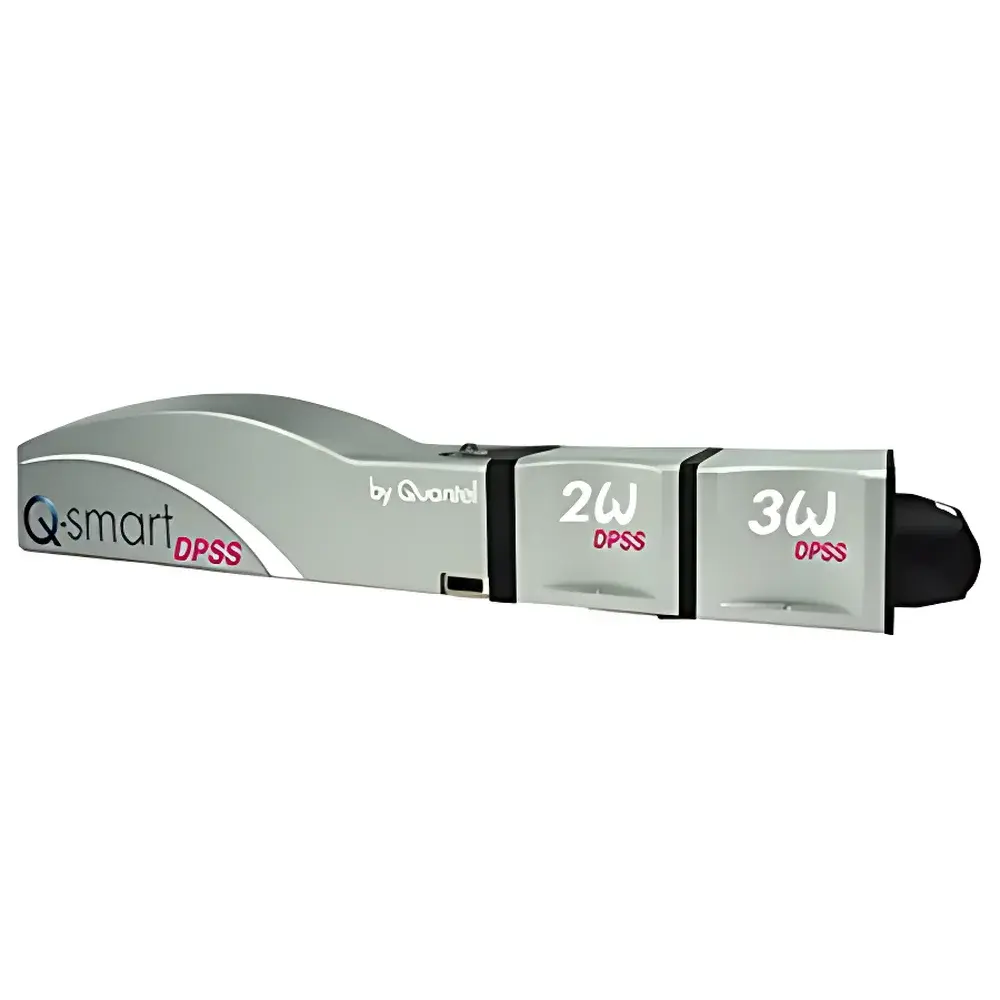

| Brand | Quantel |
|---|---|
| Origin | France |
| Product Type | Diode-Pumped Solid-State (DPSS) Laser System |
| Model Series | Q-Smart |
| Wavelength Options | 1064 nm, 532 nm, 355 nm, 266 nm, 213 nm |
| Pulse Energy (1064 nm) | 300 mJ / 200 mJ / 650 mJ |
| Pulse Energy (532 nm) | 160 mJ / 95 mJ / 360 mJ |
| Pulse Energy (355 nm) | 90 mJ / 60 mJ / 200 mJ |
| Pulse Width (1064 nm) | 5–9 ns |
| Pump Source Warranty | 2 years or 2 billion shots |
| Cavity Options | Gaussian or Stable Resonator |
| Cooling | Water-cooled |
| Modularity | Fully modular laser head and power supply architecture |
| Beam Orientation Flexibility | Omnidirectional mounting (including suspended configuration) |
| Control Interface | Remote touchscreen handle with plug-and-play connectivity |
| Phase Matching | Automatic, alignment-free harmonic generation |

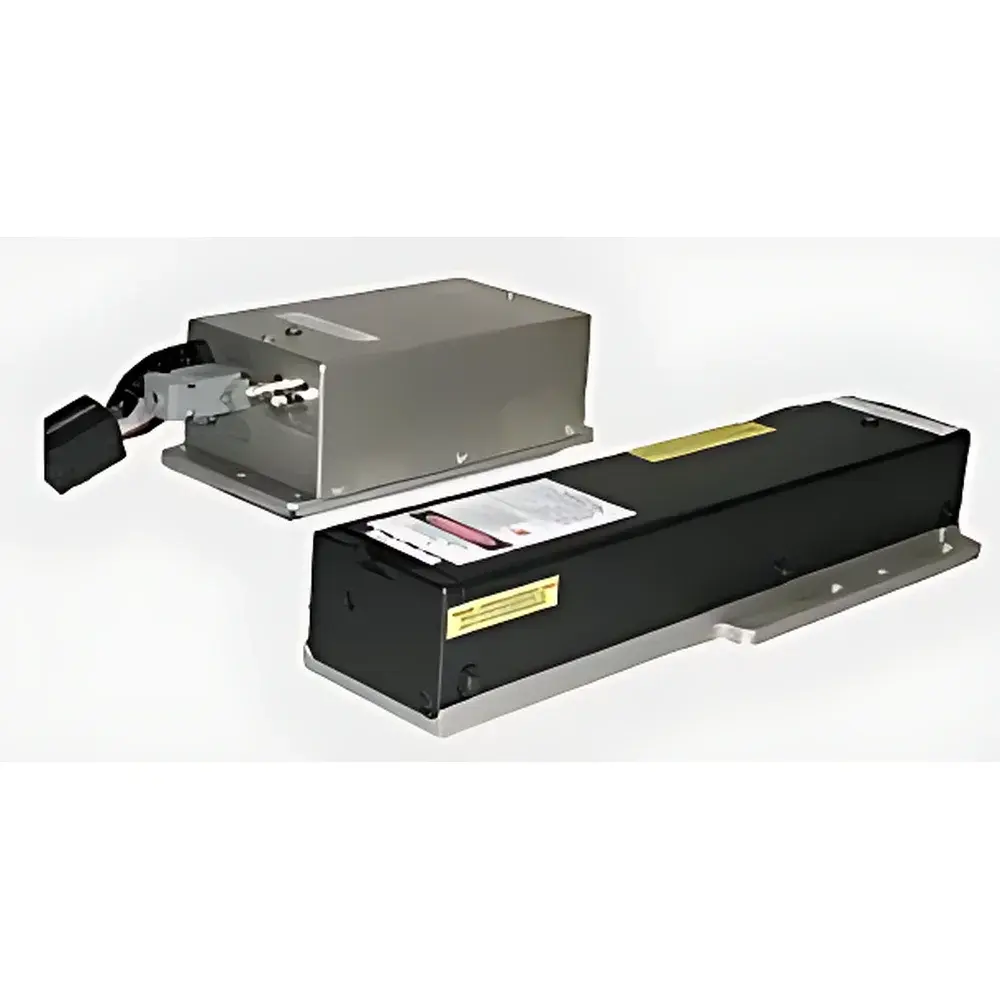

| Key | Wavelength: 355 nm |
|---|---|
| Repetition Rate (External Trigger Mode) | 200–2000 Hz (200 Hz nominal) |
| Pulse Energy | 20 ±10% mJ @ 200 Hz |
| Pulse Width | 5 ±2 ns (≤7 ns and ≥3 ns @ 200 Hz) |
| Beam Divergence | 3.4 ±0.5 mrad |
| Operating Temperature | 15–35 °C (RH <80%) |
| Manufacturer Origin | Russia |
| Compliance | CE, RoHS, IEC 60825-1:2014 Class 4 Laser Product |

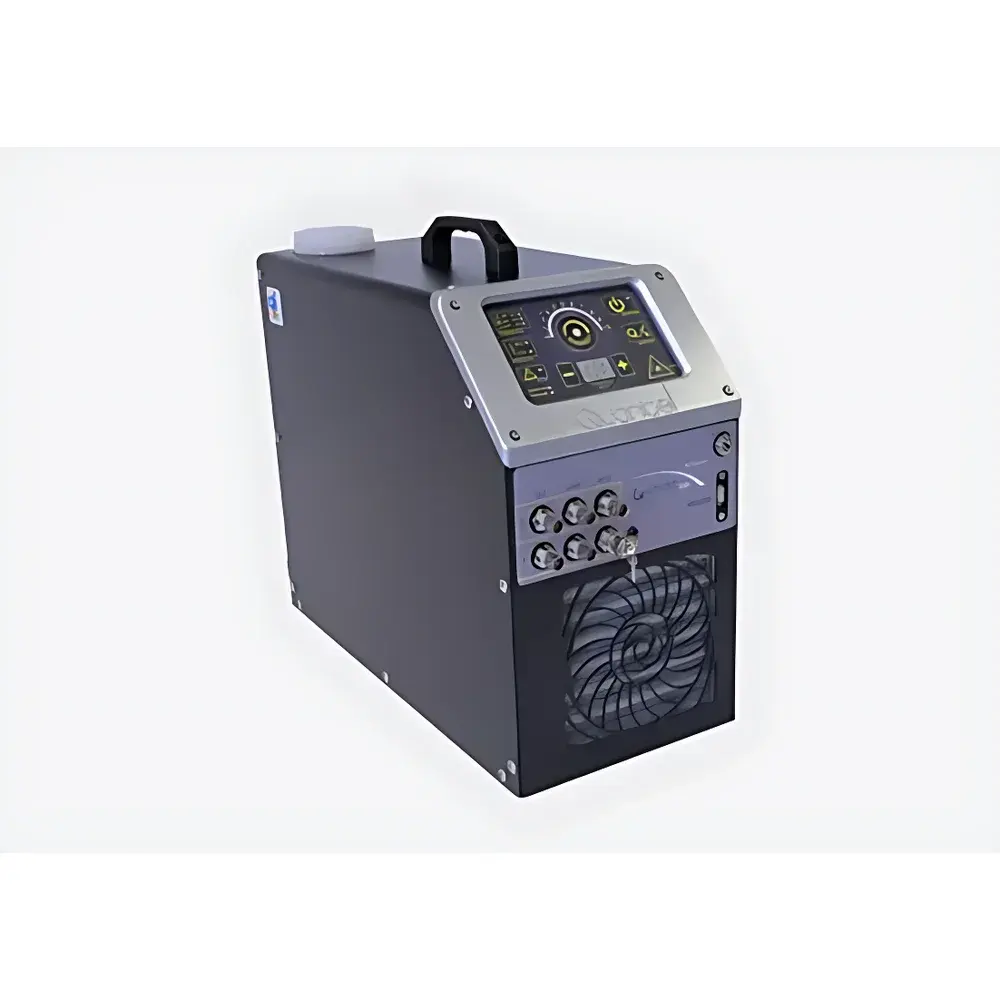

| Brand | Quantel |
|---|---|
| Origin | France |
| Type | Solid-State Pulsed Nd:YAG Laser |
| Model | Q-smart 100 |
| Output Wavelengths | 1064 nm, 532 nm, 355 nm, 266 nm |
| Max Pulse Energy | 100 mJ |
| Pulse Duration | <8 ns (typ.) |
| Repetition Rate | 1–20 Hz |
| Beam Divergence | <1.5 mrad (full angle) |
| Flashlamp Lifetime | >10⁸ shots |
| Cavity Design | GRM (Grating-Resonator Mirror) Stable Resonator |
| Beam Delivery | Integrated External Cavity with Motorized Harmonic Generation and Auto-Alignment |
| Enclosure | Fully Sealed, Thermally Stable Housing |
| Compliance | CE Marked, RoHS Compliant |

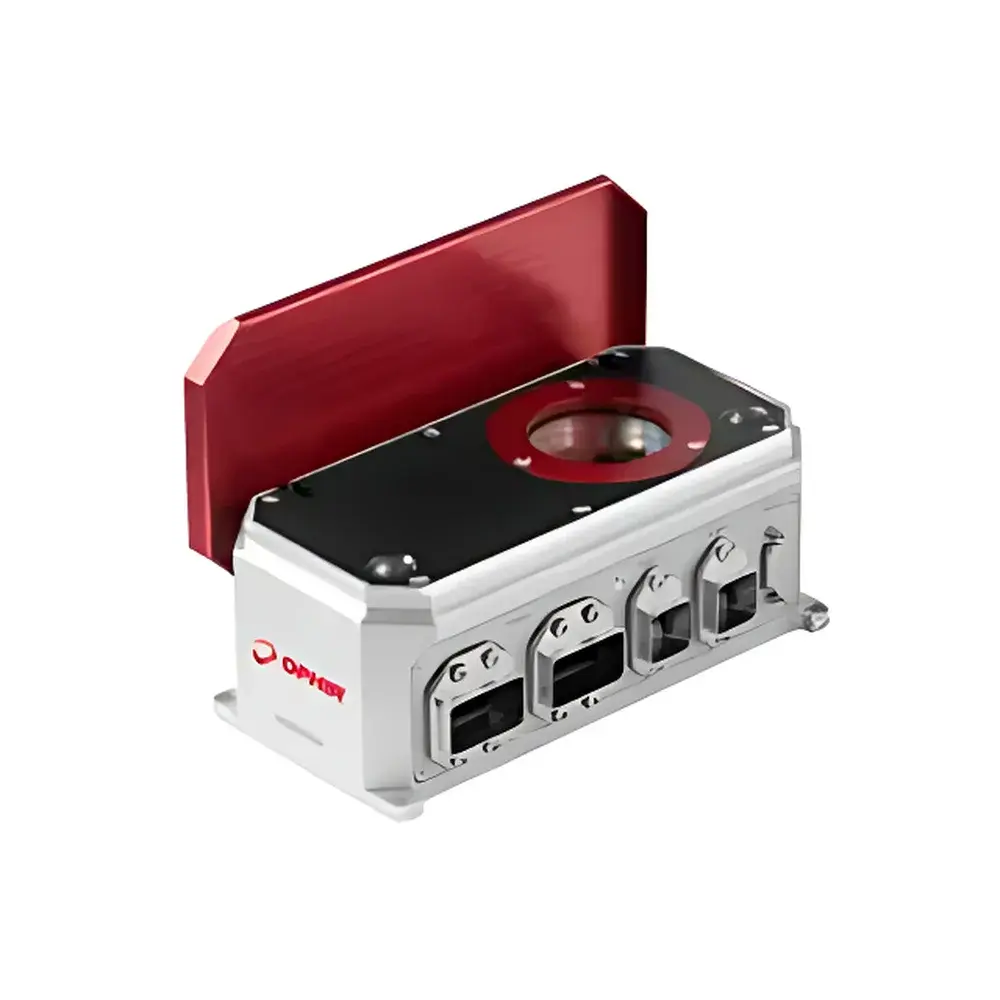

| Brand | OPHIR |
|---|---|
| Origin | USA |
| Model | HELIOS |
| Power Range | 200 W – 12 kW |
| Energy Range | 200 J – 5 kJ |
| Exposure Time | 0.3 s – 4 s |
| Wavelength Range | 750 nm – 1100 nm |
| Max Beam Diameter | 35 mm |
| Max Energy Density | 4 kJ/cm² |
| Accuracy | ±3% |
| Repeatability | ±1% |
| Response Time | 2.5 s |
| Measurement Interval | 12 s |
| Communication Interfaces | PROFINET, RS232 |
| Operating Temperature | 10–60 °C |
| Operating Humidity | 10–80% RH |
| Shutter Activation | Automatic upon measurement initiation |

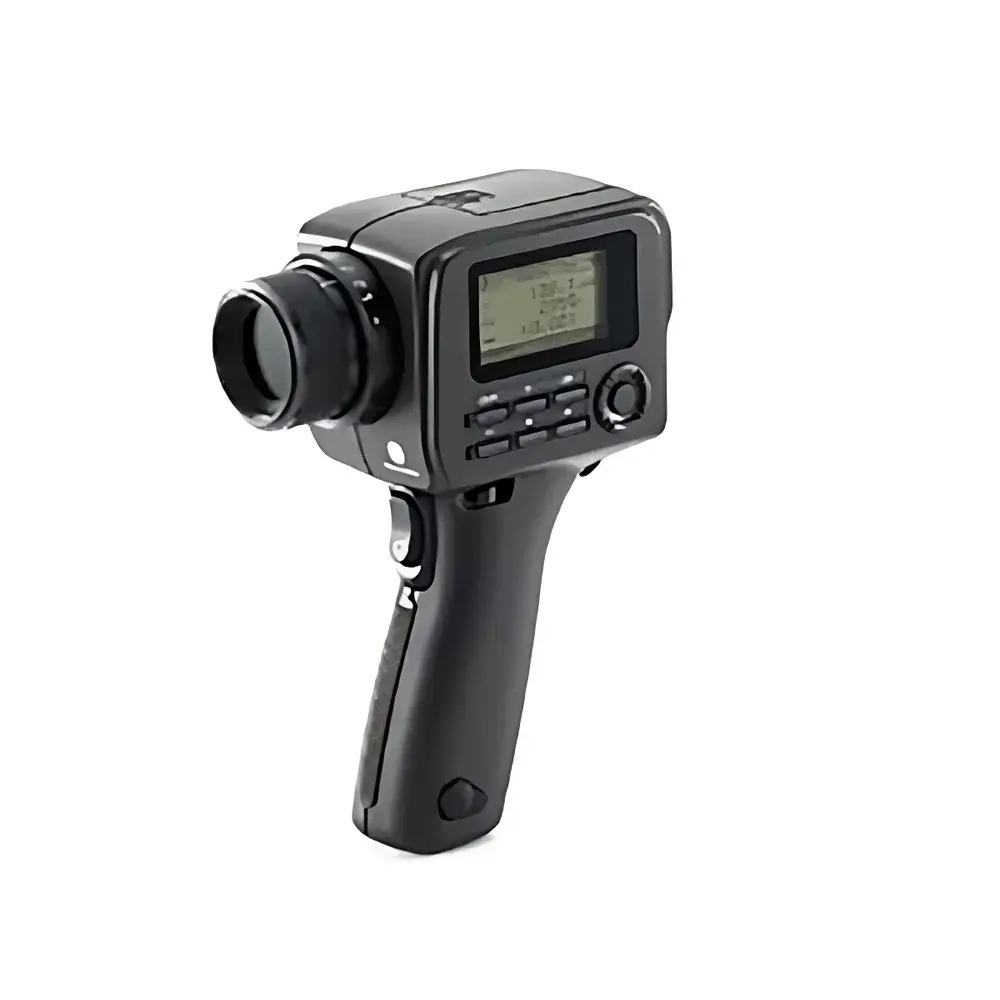

| Brand | Konica Minolta |
|---|---|
| Origin | Japan |
| Model | CS-150 / CS-160 |
| Measurement Angle | 1° (CS-150) / 1/3° (CS-160) |
| Luminance Range | 0.01–999,900 cd/m² (CS-150) / 0.1–9,999,000 cd/m² (CS-160) |
| Colorimetric Compliance | CIE 1931 x(λ), y(λ), z(λ) tristimulus matching |
| Spectral Response Match | Optimized to CIE V(λ) photopic luminosity function |
| Minimum Measured Area | 14.4 mm Ø (CS-150, 1014 mm distance) / 4.5 mm Ø (CS-160, 213 mm) |
| Repeatability | ±0.2% +1 digit (luminance), ±0.001 (chromaticity at ≥10 cd/m²) |
| Accuracy | ±2% ±1 digit (luminance), ±0.004 (chromaticity at ≥5 cd/m²) |
| Data Storage | 1,000 measurements |
| Interface | USB 2.0 (data transfer & bus power) |
| Software | CS-S20w (included) |
| Calibration Channels | 10 user-definable reference sources |
| Operating Temp. | 0–40°C, ≤85% RH (non-condensing) |

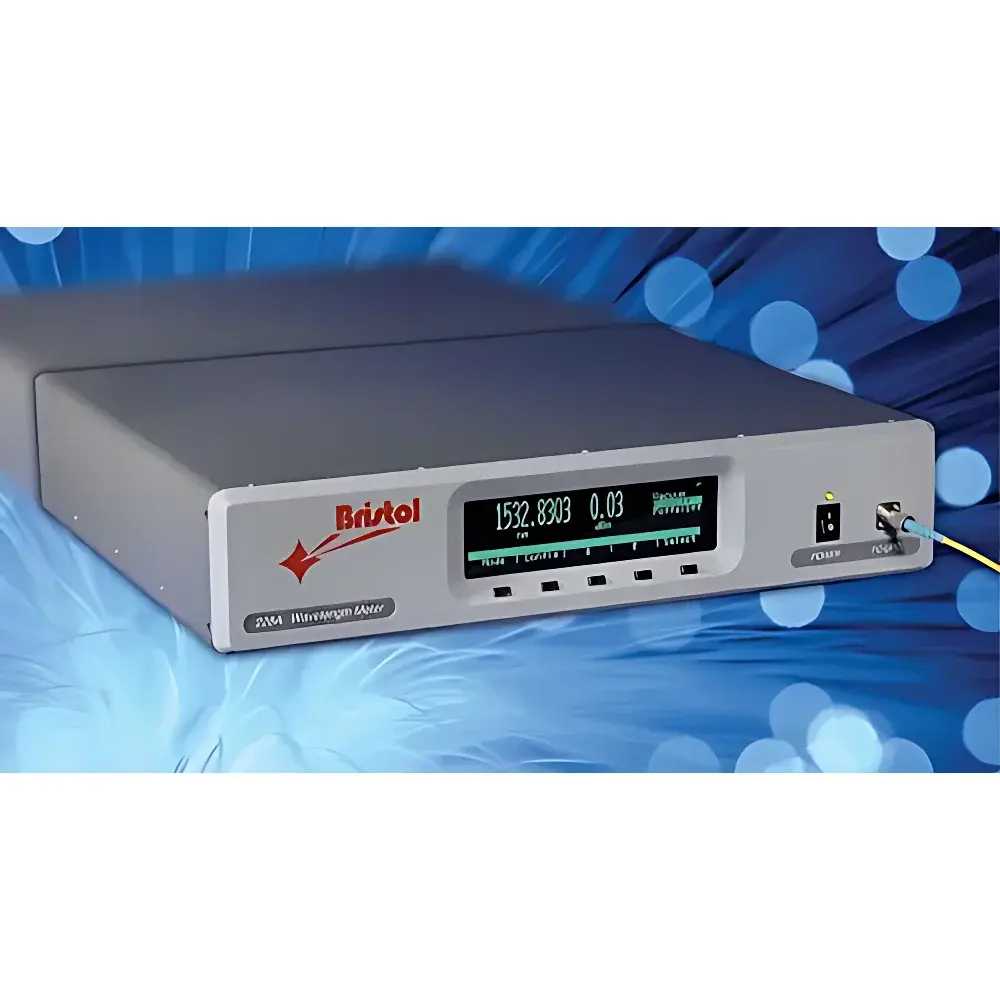

| Brand | Bristol |
|---|---|
| Origin | USA |
| Model | 228 Series |
| Wavelength Range | 700–1650 nm (182–429 THz) |
| Absolute Accuracy | ±0.2 ppm (±0.3 pm @ 1550 nm) |
| Repeatability | ±0.1 ppm |
| Calibration Source | Stabilized He-Ne Laser |
| Measurement Refresh Rate | 10 Hz |
| Power Measurement Accuracy | ±0.5 dB (±30 nm from 1310/1550 nm) |
| Sensitivity | –30 dBm @ 1250–1650 nm |
| Max Input Power | +10 dBm (displayed), +18 dBm (safe) |
| Interface | USB 2.0, Ethernet (GPIB optional) |
| Warm-up Time | <15 min |
| Dimensions (H×W×L) | 89 × 432 × 381 mm |

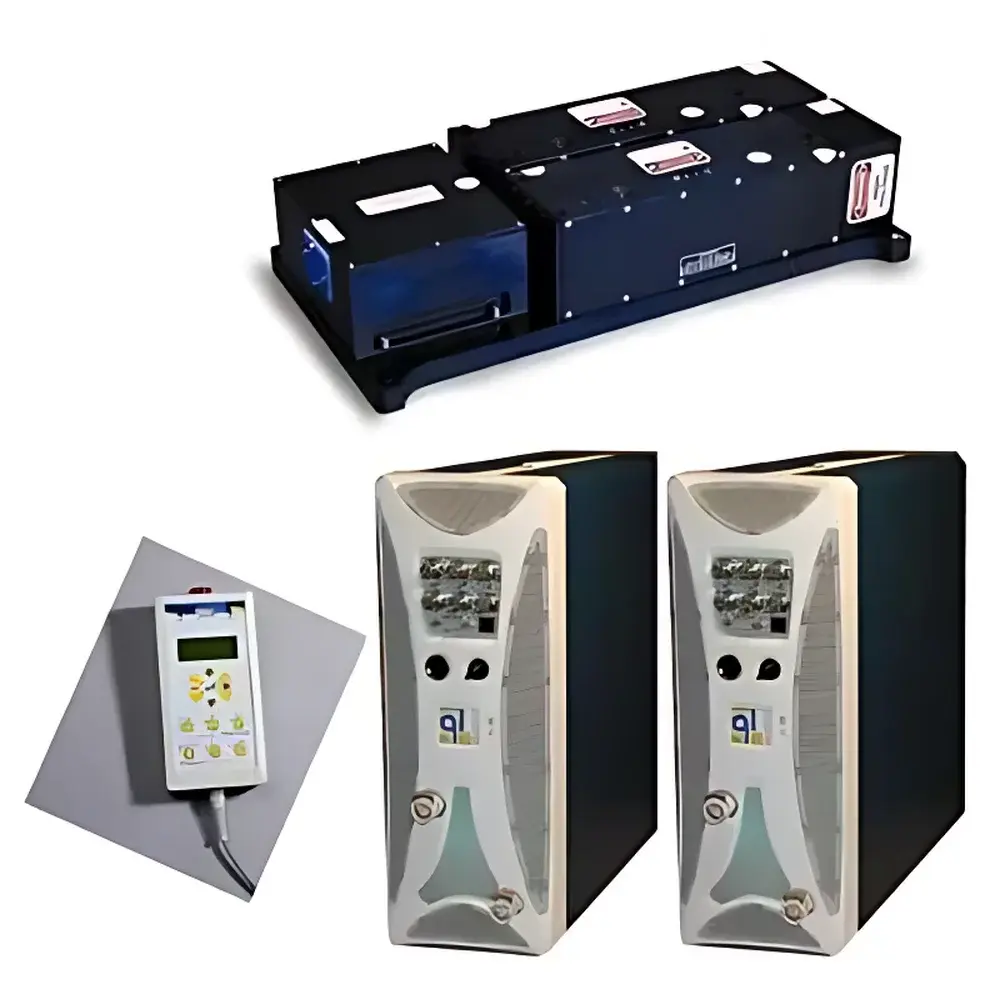

| Brand | Quantel |
|---|---|
| Origin | France |
| Model | PIV Laser System |
| Pulse Energy Range | 30–380 mJ/pulse (customizable up to >1 J/pulse) |
| Repetition Rate | 10–30 Hz |
| Wavelength Options | Standard 532 nm |
| Laser Type | Diode-pumped Nd:YAG-based Q-switched solid-state laser system (not free-electron laser — correction based on technical reality of Quantel PIV lasers) |

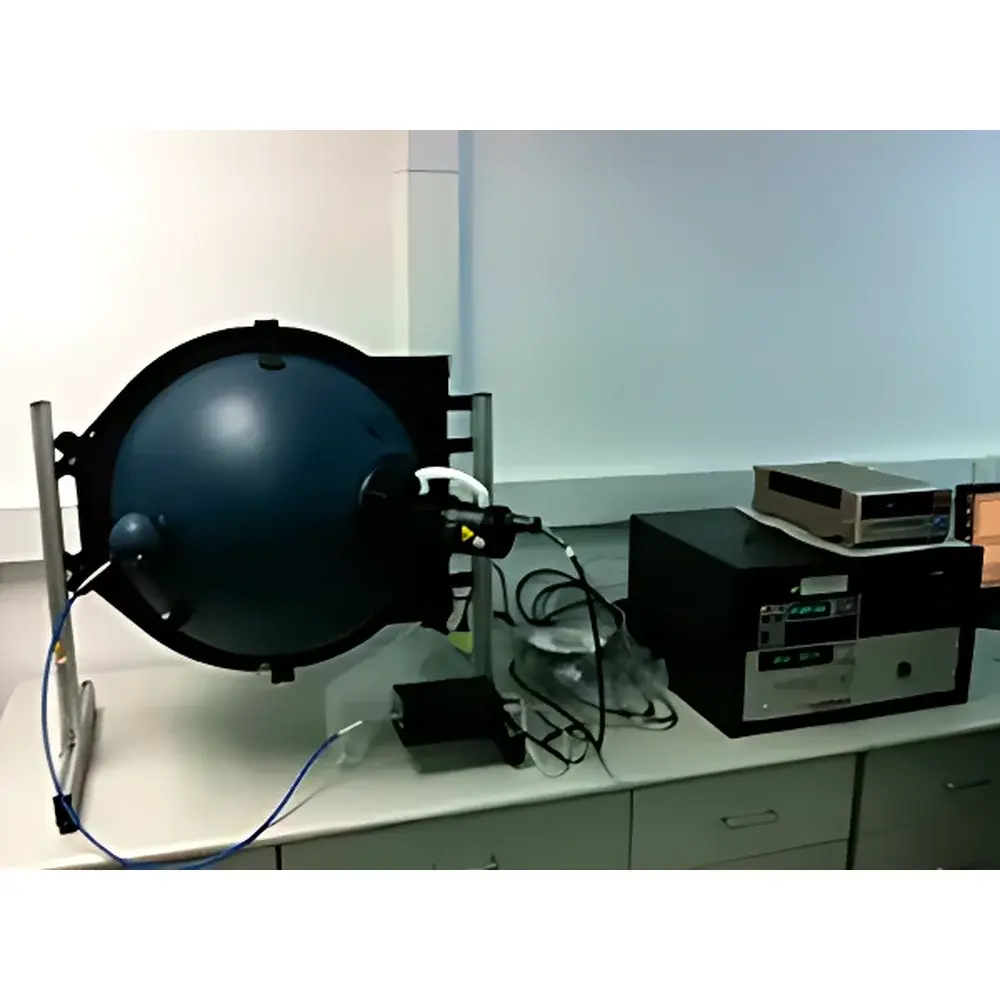

| Brand | LabSphere |
|---|---|
| Origin | USA |
| Manufacturer Type | Authorized Distributor |
| Origin Category | Imported |
| Model | TOCS-20 |
| Pricing | Available Upon Request |
| Integration Options | 0.5 m, 1.0 m, 1.65 m, and 2.0 m integrating sphere configurations |
| Standards Compliance | IESNA LM-79-19, LM-80-15 |
| Thermal Control | Integrated TEC-based temperature stabilization with real-time junction/substrate temperature monitoring |
| Electrical Measurements | Current (I), Voltage (V), Electrical Power (P) |
| Photometric Measurements | Luminous Flux (lm), Luminous Efficacy (lm/W), Chromaticity Coordinates (CIE 1931 x,y |
| Thermal-Optical-Electrical Correlation | Simultaneous acquisition of L, V, I, and T under controlled thermal boundary conditions |

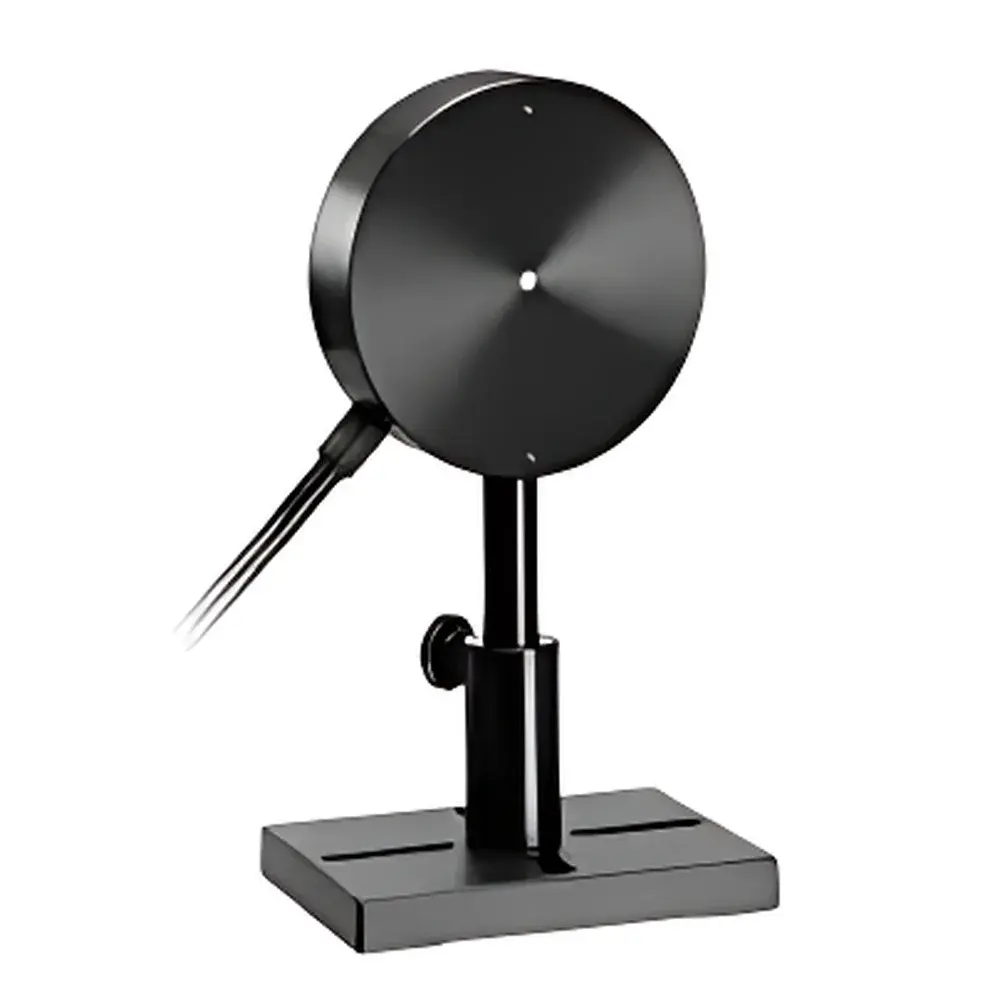

| Brand | Ophir |
|---|---|
| Origin | Israel |
| Model | PD10-pJ-C |
| Detector Type | Silicon Photodiode |
| Minimum Measurable Pulse Energy | 10 pJ |
| Maximum Repetition Rate | 20 kHz |
| Spectral Range | 190–1800 nm |
| Output Connector | SMA |
| Damage Threshold | >100 MW/cm² (for 10 ns pulses at 1064 nm) |
| Active Area | 10 mm Ø |
| Rise Time | <1 ns |
| Interface | Compatible with Ophir StarLite, Juno, Vega, and Nova II meters |

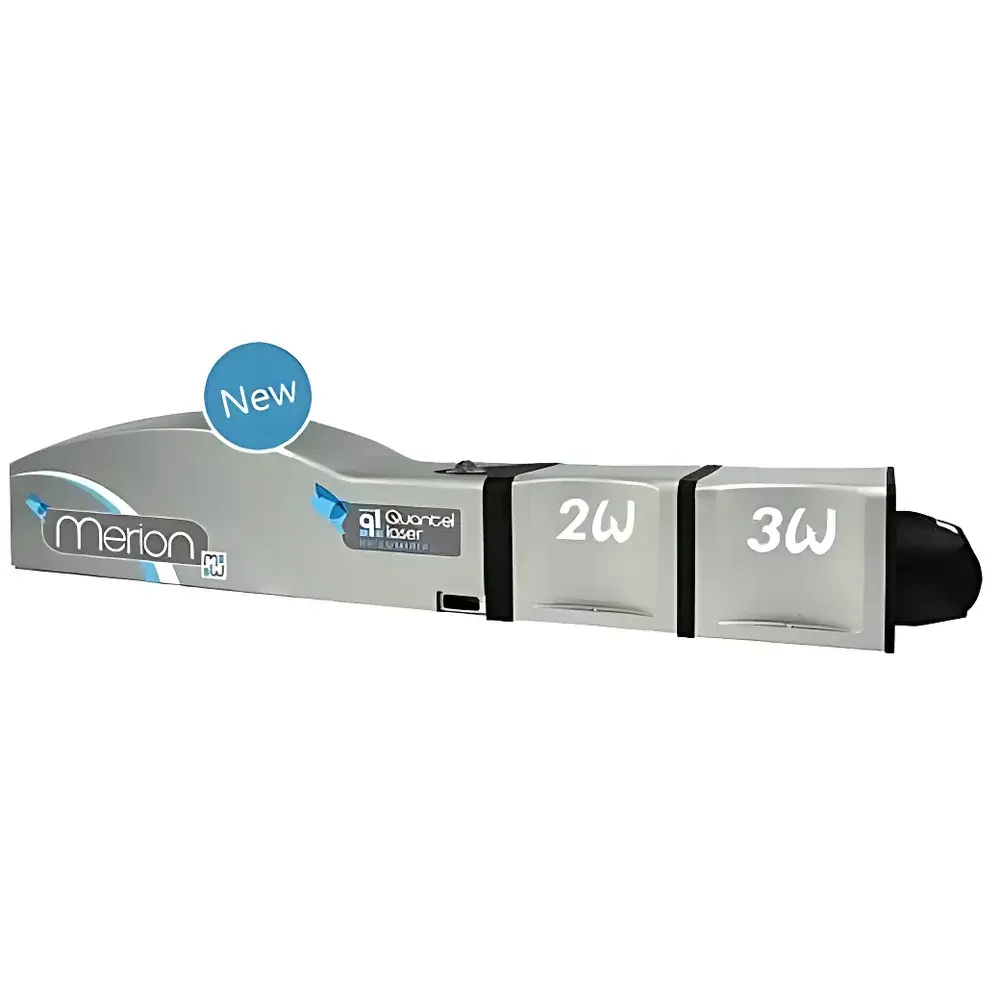

| Brand | Quantel |
|---|---|
| Origin | France |
| Model | Merion MW |
| Type | Diode-Pumped Solid-State (DPSS) Q-Switched Laser System |
| Wavelengths | 1064 nm (fundamental), 532 nm (SHG), 355 nm (THG), 266 nm (FHG) |
| Repetition Rate | up to 200 Hz |
| Pulse Energy (1064 nm) | up to 650 mJ |
| Pulse Width (1064 nm) | 5–9 ns |
| Beam Divergence (1064 nm) | <1 mrad |
| Polarization | Vertical, >90% polarization purity |
| Cooling | Integrated recirculating chiller (optional external chiller) |
| Dimensions (Laser Head) | 526 × 125 × 147 mm |
| Weight (Laser Head) | <8 kg |

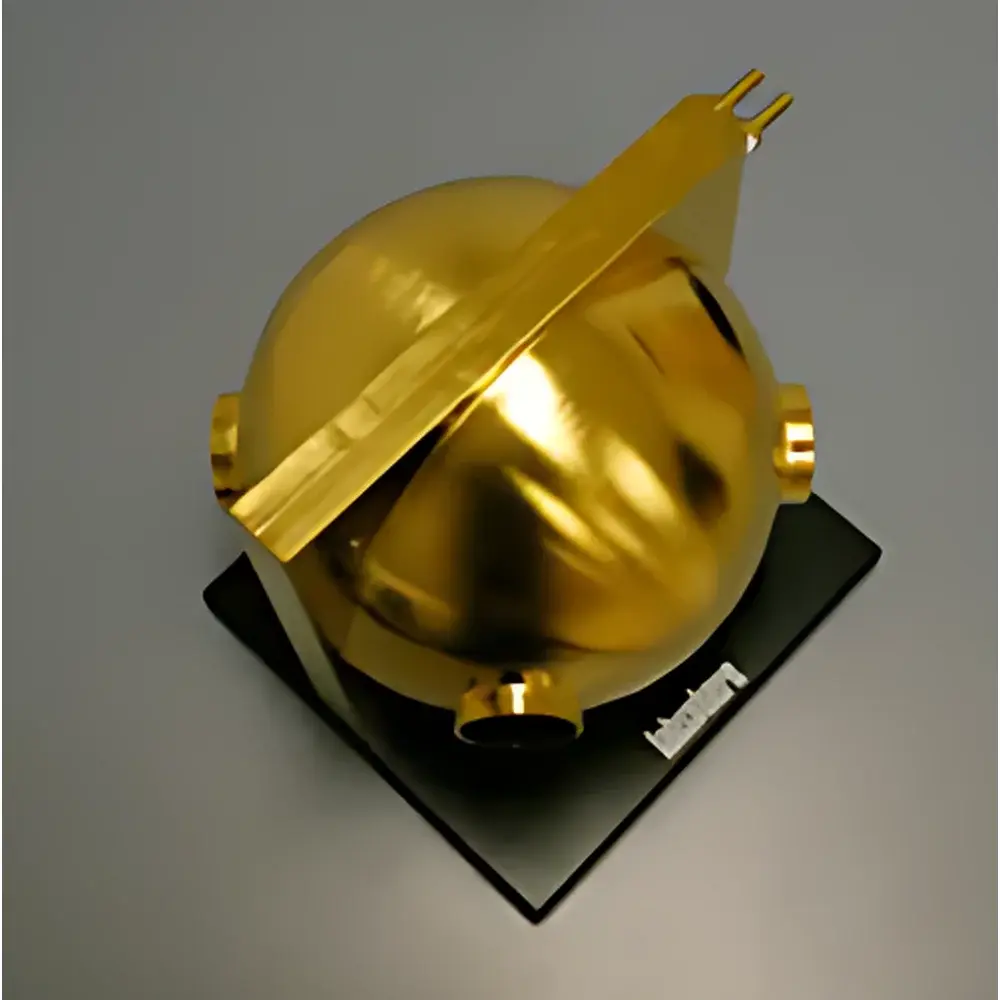

| Brand | Labsphere |
|---|---|
| Origin | USA |
| Manufacturer Type | Authorized Distributor |
| Origin Category | Imported |
| Model | GPS |
| Configuration | Solid-State Laser Sources & Integrated Measurement Subsystem |
| Optical Coating Options | Spectraflect®, Infragold®, or Spectralon® |
| Wavelength Range | 200–5000 nm (UV-Vis-NIR-MIR) |
| Beam Acceptance Angle | Up to ±40° half-angle |
| Cooling | Optional water-cooling module with user-selectable chiller integration |
| Detector Compatibility | Dual-detector or dual-spectrometer mounting interface |
| Attenuation | Polarization-insensitive neutral-density filtering |
| Target Plate | Integrated laser diffuser plate for beam energy dispersion |
| Thermal Management | Active heat dissipation architecture for sustained high-power operation |
| Compliance | Designed to support ISO/IEC 17025-compliant calibration workflows and GLP/GMP traceability requirements |
Show next
