| Brand | Artray |
|---|---|
| Origin | Japan |
| Model | ARTCAM-2020UV-USB3 |
| Sensor Type | Back-Illuminated CMOS |
| Shutter Type | Rolling Shutter |
| Resolution | 2048 × 2048 |
| Pixel Size | 6.5 µm |
| A/D Bit Depth | 12-bit |
| Frame Rate | 45 fps |
| Spectral Range | 200–400 nm (UV) |
| Interface | USB 3.0 |
| Brand | Andor |
|---|---|
| Origin | United Kingdom |
| Model | iKon-M Deep-Cooling |
| Cooling | UltraVac™ TE to –100 °C |
| Quantum Efficiency | up to 95% |
| Read Noise | exceptionally low (model-dependent, e.g., <3 e⁻ rms for 934) |
| Pixel Formats | 512×512, 1024×1024 |
| Pixel Size | 13 µm × 13 µm or 24 µm × 24 µm |
| Readout Speed | up to 8.0 MHz full-frame (model-specific) |
| Sensor Type | front-illuminated or deep-depletion back-illuminated CCD |
| Compliance | CE, RoHS, FDA 21 CFR Part 11-ready software support |
| Brand | Andor |
|---|---|
| Origin | United Kingdom |
| Model | iKon-L 936 Series |
| Sensor | E2V CCD, 2048 × 2048 pixels |
| Pixel Size | 13.5 µm × 13.5 µm |
| Active Area | 27.6 mm × 27.6 mm |
| Cooling | Thermoelectric (TE), down to −100 °C |
| Readout Noise | as low as 2.9 e⁻ |
| Full-Well Capacity | 100,000 e⁻ |
| Maximum Readout Speed | 5 MHz |
| Frame Rate | 0.95 fps (at full resolution) |
| Dynamic Range | 16-bit |
| Quantum Efficiency | up to 95% |
| Interface | USB 2.0 |
| Mount | Standard F-mount |
| Shutter | Integrated 45 mm mechanical shutter |
| Key Technologies | UltraVac™ vacuum sealing, Fringe Suppression Technology™ (FST™) for etalon artifact reduction (BR-DD variant) |
| Brand | Andor |
|---|---|
| Origin | United Kingdom |
| Model | iXon+ DU888 |
| Sensor Format | 1024 × 1024 Frame Transfer EMCCD |
| Active Area | 13.3 × 13.3 mm |
| Pixel Size | 13.3 µm |
| Readout Speed | 30 MHz |
| Full-Frame Frame Rate | 26 fps @ 1024 × 1024 |
| Binned Frame Rate | 93 fps @ 512 × 512 |
| Quantum Efficiency | Enhanced via EX2 coating (peak >95% in visible, extended NIR response) |
| Cooling | -95 °C thermoelectric with UltraVac™ vacuum seal |
| Dark Current | <0.0001 e⁻/pix/s at -95 °C |
| EM Gain Range | 1–3000× (linear, calibrated) |
| RealGain™ Technology | Real-time, hardware-based linear gain calibration |
| EMCAL™ | On-chip EM gain auto-calibration for long-term stability |
| CIC Suppression | Optimized pixel clocking + False Noise Filter (FNF) algorithm |
| Output Interface | USB 3.0 |
| Data Output Modes | Counts, electrons, photons (quantitative photon counting) |
| Etaloning Suppression | Edge-optimized coating & optical design for reduced NIR fringing |
| Baseline Stability | <0.5 ADU RMS over 1 hr |
| Vacuum Warranty | 7 years (UltraVac™) |
| Brand | Andor |
|---|---|
| Origin | United Kingdom |
| Model | SR750 |
| Spectral Resolution | Up to 0.02 nm |
| Optical Design | Czerny-Turner |
| Grating Options | Triple-grating turret (user-recorded per unit) |
| Detector Interfaces | Dual-output ports (CCD/ICCD, InGaAs, MCT, etc.) |
| Wavelength Range | Up to 12 µm (with appropriate detector & silver-coated optics) |
| Stray Light Rejection | Optimized multi-path optical layout with low crosstalk |
| Optional Coating | Enhanced silver coating for improved IR reflectivity |
| Accessories | Fiber optic coupling, flange mounts, motorized slits, shutters, adjustable leveling feet |
| Compliance | Designed for integration into GLP/GMP and ISO/IEC 17025-compliant spectroscopic workflows |
| Brand | Andor |
|---|---|
| Origin | United Kingdom |
| Series | iKon-M912 |
| Sensor | E2V CCD, 512 × 512 pixels |
| Pixel Size | 24 µm × 24 µm |
| Imaging Area | 12.3 mm × 12.3 mm |
| Cooling | Thermoelectric (TE), down to −100 °C |
| Readout Speed | Up to 5 MHz |
| Frame Rate | 8 fps |
| Dynamic Range | 16-bit |
| Quantum Efficiency | Up to 95% |
| Vacuum Technology | UltraVac™ |
| Interface | USB 2.0 |
| Mount | C-mount |
| Noise Performance | Ultra-low read noise (typ. < 3 e⁻ RMS at slowest speed) |
| Brand | Spiricon |
|---|---|
| Origin | USA |
| Detector Type | Phosphor-Coated Silicon CCD |
| Spectral Response Range | 1440–1605 nm |
| Pixel Size | 9.9 × 9.9 µm (SP503-1550), 4.4 × 4.4 µm (SP620-1550 & GRAS20-1550), 8.4 × 9.8 µm (SP-1550MG) |
| Resolution | 640 × 480 (SP503-1550 & SP-1550MG), 1600 × 1200 (SP620-1550 & GRAS20-1550) |
| Active Area | 6.3 × 4.7 mm (SP503-1550), 7.1 × 5.4 mm (SP620-1550 & GRAS20-1550), 4.7 × 5.4 mm (SP-1550MG) |
| Dynamic Range | 30 dB |
| Minimum Detectable Irradiance | 70 nW/cm² |
| Interface | USB 2.0 (SP503-1550), USB 2.0 (SP620-1550), Frame Grabber (SP-1550MG), FireWire 1394b (GRAS20-1550) |
| Brand | Ophir |
|---|---|
| Origin | Israel |
| Model | SP503U-1550 |
| Detector Type | Phosphor-Converted Silicon CCD |
| Spectral Response Range | 1440–1605 nm (NIR) |
| Output Correction | BeamGage® Linearization Algorithm |
| Compliance | ASTM E1290, ISO 11146-1/-2, USP <857>, FDA 21 CFR Part 11 (Software Audit Trail Enabled) |
| Brand | Artray |
|---|---|
| Origin | Japan |
| Model | ARTCAM-407UV-WOM |
| Sensor Type | CCD |
| Shutter Type | Global Shutter |
| Spectral Response | 200–900 nm |
| Resolution | 1360 × 1024 |
| Pixel Size | 4.65 µm |
| A/D Bit Depth | 10-bit |
| Frame Rate | 12 fps |
| Interface | USB 2.0 (standard) |
| Sensor Format | 1/2.5″ optical format |
| Quantum Efficiency (peak UV) | >45% at 254 nm |
| Brand | Artray |
|---|---|
| Origin | Japan |
| Model | ARTCAM-640P-THERMO |
| Detector Type | Uncooled Microbolometer |
| Spectral Response Range | 8–14 µm |
| Pixel Pitch | 17 µm |
| Thermal Sensitivity (NETD) | <75 mK |
| Operating Pixel Ratio | >99.5% |
| Temperature Measurement Range | 0–150 °C |
| Interface | USB 3.0 / Gigabit Ethernet |
| Resolution | 640 × 480 (VGA) |
| Brand | Artray |
|---|---|
| Origin | Japan |
| Model | ARTCAM-L1024DTNIR, ARTCAM-L1024DBTNIR, ARTCAM-L512TNIR, ARTCAM-L256TNIR |
| Resolution | 1024 × 1, 1024 × 1, 512 × 1, 256 × 1 pixels |
| Pixel Size | 25 × 100 µm, 25 × 25 µm, 25 × 25 µm, 50 × 50 µm |
| Spectral Response Range | 900–1700 nm, 900–1700 nm, 950–1700 nm, 950–1700 nm |
| Detector Material | InGaAs |
| Cooling | Thermoelectric (TE) cooled (for DT/DB variants) |
| Interface | Camera Link or GigE Vision (model-dependent) |
| Compliance | CE, RoHS, ISO 9001-certified manufacturing |
| Brand | Artray |
|---|---|
| Origin | Japan |
| Model | ARTCAM-2350SWIR |
| Spectral Range | 1000–2350 nm |
| Resolution | 320 × 256 pixels |
| Pixel Pitch | 30 µm × 30 µm |
| Interface | Camera Link |
| Max Frame Rate | 320 fps |
| Cooling Temperature | −75 °C (thermoelectric) |
| A/D Resolution | 16-bit |
| Brand | Andor |
|---|---|
| Origin | United Kingdom |
| Model | Zyla 5.5 |
| Sensor Resolution | 2560 × 2160 |
| Pixel Size | 6.5 µm × 6.5 µm |
| Active Sensor Area | 16.6 mm × 14.0 mm |
| Readout Speeds | 560 MHz (280 MHz × 2) / 200 MHz (100 MHz × 2) |
| Dynamic Range | 25,000:1 |
| Read Noise | ≤0.9 e⁻ (rolling shutter, 216 MHz mode) |
| Cooling | 0 °C (air-cooled), –10 °C (water-cooled) |
| Full-Well Capacity | 30,000 e⁻ |
| Peak Quantum Efficiency | 57% |
| Shutter Modes | Global and Rolling |
| Max Frame Rate | 100 fps at full resolution (10-tap mode) |
| Brand | Andor |
|---|---|
| Model | Newton SO |
| Detector Type | Back-Illuminated, Deep-Depletion CCD |
| Vacuum Interface | 6-inch CF152 Conflat Flange (Rotatable Knife-Edge) |
| Quantum Efficiency | Up to 95% (at selected X-ray/EUV/VUV wavelengths) |
| Read Noise | <3 e⁻ RMS (typical, at slowest readout speed) |
| Cooling | Thermoelectric (TE) to –100°C (ambient-dependent) |
| Pixel Size | 13.5 µm |
| Readout Modes | Full Frame, Sub-Frame (Crop Mode), Multiple Region of Interest (ROI) |
| Maximum Frame Rate | >1,000 fps (in optimized Crop Mode) |
| Data Interface | USB 2.0 |
| Onboard Features | Integrated Filter Wheel Slot (mechanical, motorized optional), Shutter Control, Trigger I/O (TTL-compatible) |
| Compliance | CE, RoHS, UL/CSA recognized power supply |
| Brand | Andor |
|---|---|
| Origin | United Kingdom |
| Model | iKON-XL |
| Sensor Format | 4096 × 4096 pixels |
| Pixel Size | 15 µm |
| Active Image Area | 61.4 mm × 61.7 mm |
| Sensor Type | Back-Illuminated (BI), BR-DD options available |
| Readout Depth | 18-bit |
| Cooling Technology | ColdSpace™ vacuum-sealed thermoelectric cooling to –100 °C |
| Cooling Method | No liquid nitrogen or cryocooler required |
| Vacuum Integrity | Maintenance-free sealed vacuum chamber |
| Shutter | Field-replaceable mechanical shutter |
| Readout Modes | Multi-port parallel readout with quantitative uniformity |
| Timestamping | iRig-B hardware timestamping, 10 ms resolution |
| Interface | USB 3.0 + optional fiber-optic data link for long-distance transmission |

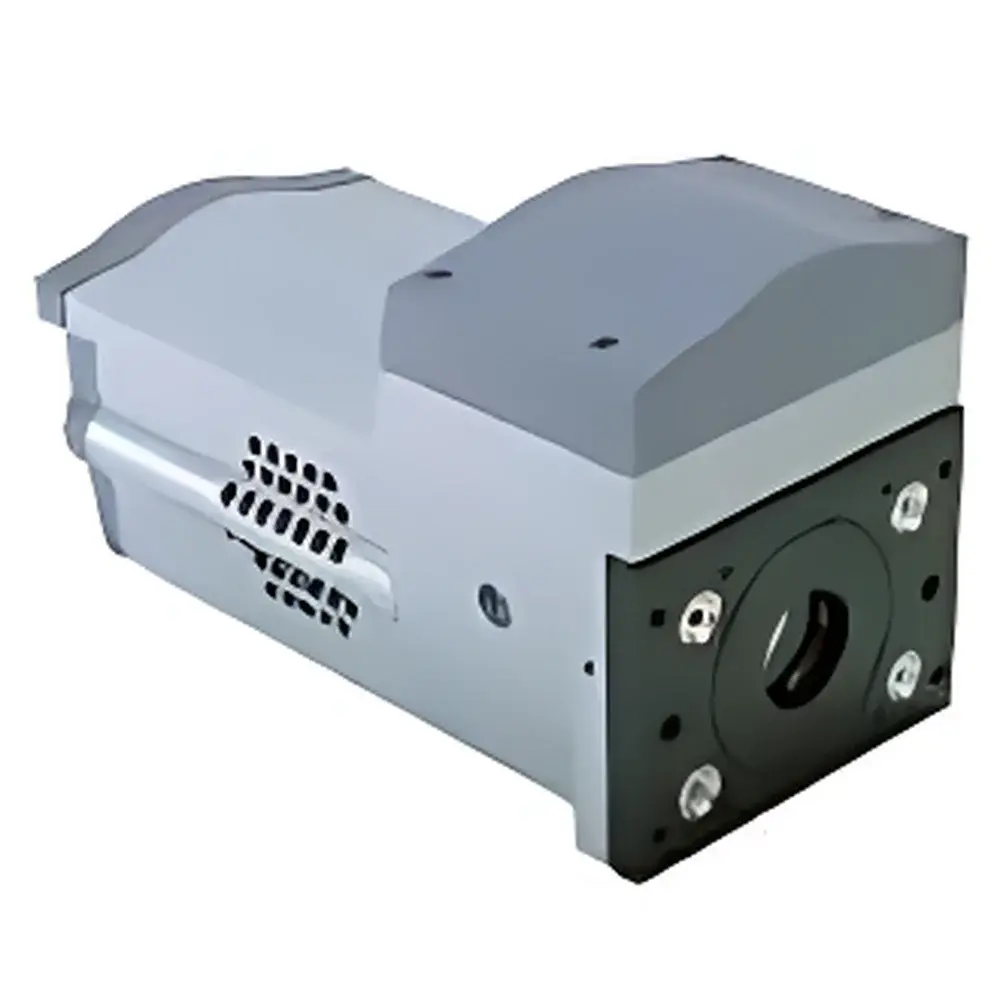

| Brand | Andor |
|---|---|
| Origin | United Kingdom |
| Model | iStar Series |
| Sensor Format | 512 × 512 or 1024 × 1024 |
| Image Intensifier Diameter | 18 mm or 25 mm |
| Phosphor Screen | P43 or P46 |
| Minimum Optical Gate Width | 2 ns |
| Delay Resolution | 25 ps |
| Total Trigger-to-Gate Delay | 40 ns |
| Gating Technology | Intelligate™ Synchronized MCP–Photocathode Gating |
| Onboard Digital Delay Generator | Yes |
| Remote Control Interface | Wireless |
| UV Response | Optimized for deep-UV with >10⁷ on/off contrast ratio |
| Compliance | Designed for GLP/GMP-compliant time-resolved imaging workflows requiring traceable timing control |

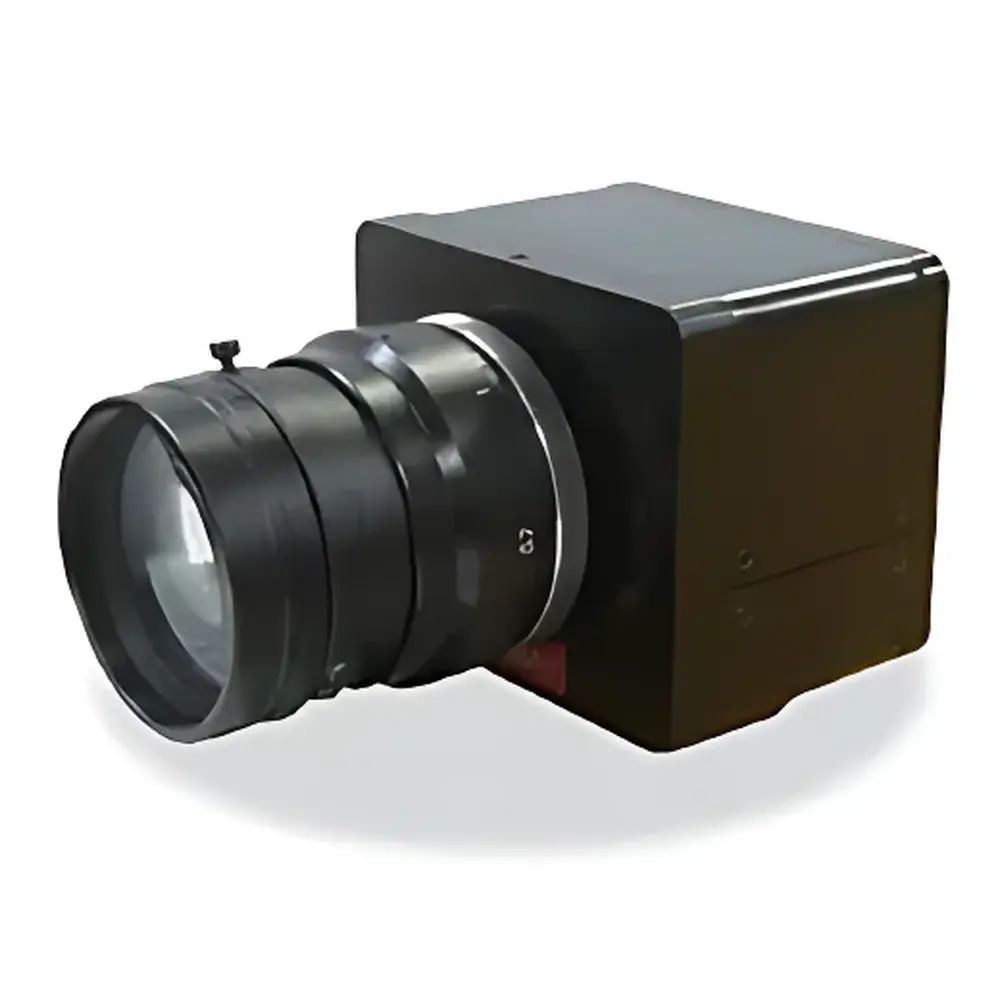

| Brand | Artray |
|---|---|
| Origin | Japan |
| Model | ARTCAM TNIR Series |
| Spectral Range | 900–1700 nm |
| Resolution Options | 640×512, 320×256, 128×128 pixels |
| Pixel Pitch | 20 µm (standard), up to 30 µm |
| Frame Rate | up to 258 fps |
| Interface | USB 3.0 / USB 2.0 |
| Analog Video Output | Optional |
| A/D Resolution | 12–14 bit |
| Shutter Type | Global |
| Target Applications | SWIR imaging, industrial inspection, laser beam profiling, semiconductor metrology, R&D |

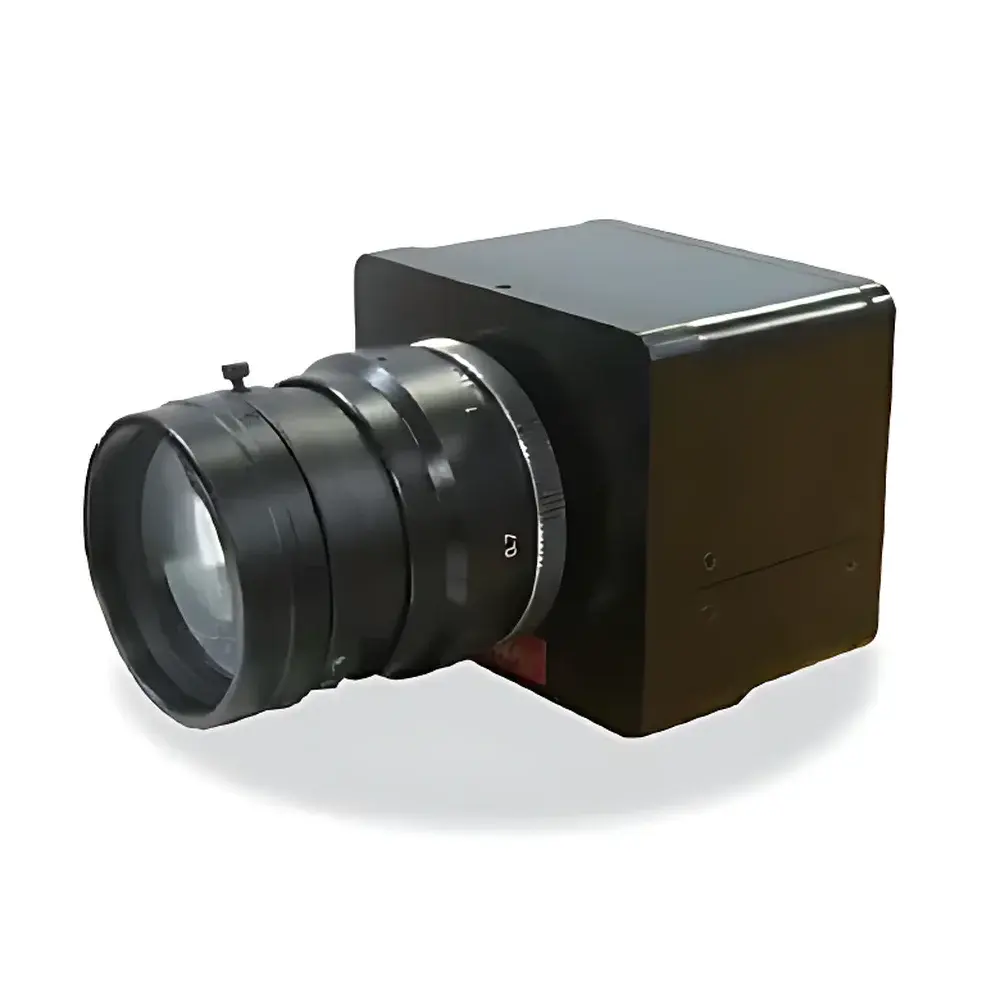

| Brand | Artray |
|---|---|
| Origin | Japan |
| Model | ARTCAM-130XQE-WOM |
| Spectral Response Range | 400–1200 nm |
| Resolution | 1280 × 1024 |
| Pixel Size | 10 µm × 10 µm |
| Shutter Type | Rolling Shutter |
| Frame Rate | 28 fps |
| Interface | USB 2.0 |

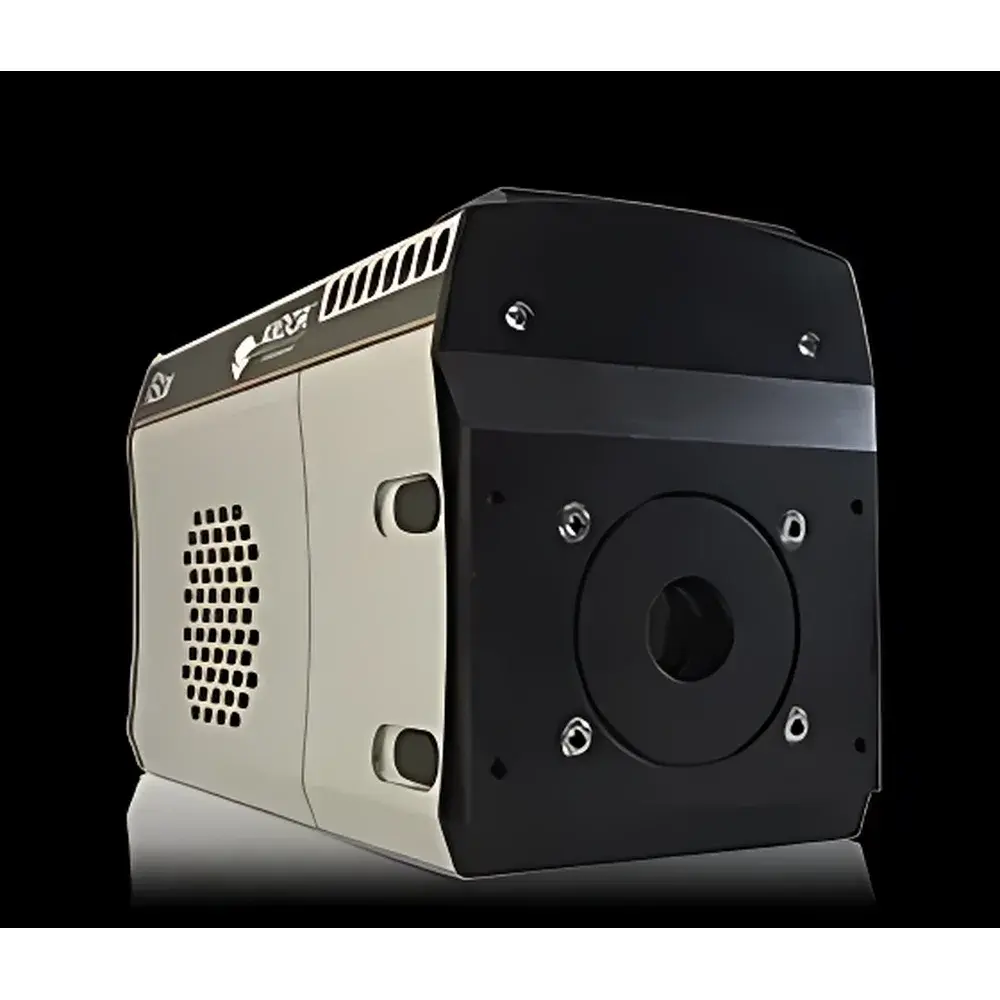

| Brand | Andor |
|---|---|
| Origin | United Kingdom |
| Model | DH334 |
| Sensor Format | 1024 × 1024 CCD |
| Pixel Size | 13 × 13 µm (100% fill factor) |
| Effective Imaging Area | 13.3 × 13.3 mm (18 mm intensifier) / 19.5 × 19.5 mm (25 mm intensifier) |
| Optical Gate Width | < 2 ns |
| Read Noise | 4 e⁻ |
| Spectral Range | 120–1100 nm (intensifier-dependent) |
| Peak Quantum Efficiency | 50% (Gen II), 45% (Gen III) |
| Fiber-Optic Taper Magnification | 1:1 or 1.5:1 |
| Frame Rate | 4 fps |
| Cooling | Thermoelectric to –40 °C |
| Trigger Delay Resolution | 10 ps |
| Minimum Trigger-to-Gate Delay | 19 ns |
| Gate Contrast Ratio | ≥1:10⁸ (deep UV compatible) |
| Interface | USB 2.0 |
| Phosphor Options | P43, P46 |
| Brand | Andor |
|---|---|
| Origin | USA |
| Model | Balor 17F-12 |
| Effective Pixels | 16.9 MP |
| Pixel Size | 12 µm |
| Diagonal Sensor Size | 70 mm |
| Max Frame Rate | 54 fps |
| Readout Time | 18.5 ms |
| Read Noise | < 3 e⁻ |
| Full Well Capacity | High (12 µm pixel) |
| Cooling | Vacuum-Sealed Thermoelectric |
| Brand | Andor |
|---|---|
| Origin | United Kingdom |
| Model | iDus Series |
| Sensor Formats | 1024 × 127 pixels |
| Available Sensor Types | 7 distinct back-illuminated and deep-depletion CCD variants |
| Cooling | Thermoelectric (TE) cooled to –95 °C |
| Read Noise | <3 e⁻ (typ. at 1 MHz readout) |
| Quantum Efficiency | Up to 95% (peak, back-illuminated) |
| Pixel Size | 26 µm × 26 µm (standard) |
| Interface | USB 2.0 or PCIe (model-dependent) |
| Compliance | CE, RoHS, UKCA |
| Brand | SRS/Stanford Research Systems |
|---|---|
| Origin | USA |
| Product Type | Scientific CCD Imaging Camera |
| Models | 8K-7U-32, CCD180-512-SFT, CCD180-1M-SFT, CAM1M-100-SFT, CAM512, CAM512-UVC, CAM1M100 |
| Sensor Architecture | Back-Illuminated CCD |
| Pixel Format | Linear (8K×1) and Area (512×512 to 1024×1024) |
| Pixel Size | 7–18 µm |
| Readout Modes | Frame Transfer, Bidirectional Shift |
| Max Frame Rate | Up to 17 kHz (line-scan), 492 fps (area-scan with 2×2 binning) |
| Readout Noise | <25 e⁻ rms (typical) |
| Fill Factor | 100% |
| Output Interface | Camera Link |
| Quantum Efficiency | Enhanced in UV (200–400 nm) |
| Brand | Andor |
|---|---|
| Origin | United Kingdom |
| Model | NewtonEM |
| Sensor Architecture | Electron-Multiplying CCD (EMCCD) |
| Pixel Format | 1600 × 200 or 1600 × 400 |
| Pixel Size | 16 µm × 16 µm |
| Cooling | Thermoelectric (TE), down to –100 °C |
| Vacuum Encapsulation | UltraVac™ |
| Interface | USB 2.0 |
| Quantum Efficiency Options | Multiple back-illuminated sensor variants available |
| Single-Photon Sensitivity | Yes |
| Primary Application Domain | Low-Light Spectroscopy, Time-Resolved Fluorescence, Raman, UV-Vis-NIR Spectral Imaging |
| Brand | Andor |
|---|---|
| Origin | United Kingdom |
| Model | iKon-M934 Series |
| Sensor | E2V CCD, 1024 × 1024 pixels |
| Pixel Size | 13 µm × 13 µm |
| Imaging Area | 13.3 mm × 13.3 mm |
| Full Well Capacity | 100,000 e⁻ |
| Readout Noise | as low as 2.9 e⁻ |
| Readout Speed | up to 5 MHz |
| Frame Rate | 4.4 fps |
| Cooling Temperature | down to −100 °C |
| Quantum Efficiency | up to 95% |
| Interface | USB 2.0 |
| Mount | C-mount |
| Features | UltraVac™ vacuum sealing, Fringe Suppression Technology™ (for BR-DD & BEX2-DD variants), software-selectable readout speed, 16-bit dynamic range, integrated mechanical shutter |
Show next
