| Brand | Novanta |
|---|---|
| Origin | United Kingdom |
| Manufacturer | Cambridge Technology (a Novanta company) |
| Model | Versia-2D |
| Aperture | 14 mm |
| Scan Angle | ±21° |
| Repeatability | <2 µrad |
| Long-Term Drift | <25 µrad (24 h, single axis, after 30 min warm-up) |
| Thermal Drift | <10 µrad/°C (offset), <10 ppm/°C (gain) |
| Wavelength Range | CO₂ (9.2–10.6 µm, up to 200 W), Fiber (1040–1090 nm, up to 200 W), Green (532 nm), UV (353–357 nm) |
| Interface Options | XY2-100 (16-bit), NVL-100 (20-bit) |
| IP Rating | IP54 |
| Power Supply | 48 V DC, 5 A RMS |
| Operating Temperature | 15–40 °C |
| Weight | 2.12 kg |
| Dimensions (L×W×H) | 99 × 99 × 132.2 mm |
| Brand | Laser Quantum |
|---|---|
| Origin | United Kingdom |
| Manufacturer Type | Authorized Distributor |
| Product Type | Imported OEM Solid-State Laser System |
| Model | Gem473 / Gem532 / Gem561 / Gem660 / Gem671 |
| Wavelengths | 473 nm, 532 nm, 561 nm, 660 nm, 671 nm |
| Output Power Range | 50 mW to 2 W (model-dependent) |
| Beam Diameter | 0.75–1.0 mm ± tolerance |
| Spatial Mode | TEM₀₀ |
| Power Stability | ≤ 1.0% RMS |
| Beam Pointing Stability | < 10 µrad/°C |
| Noise Level | 0.6–1.5% (10 Hz–10 kHz) |
| Polarization Ratio | >100:1, Vertical |
| Coherence Length | ~7.5 mm (473/561 nm), ~25 µm (532/660/671 nm) |
| Spectral Bandwidth | 30–40 GHz |
| Divergence | < 0.8–1.5 mrad |
| Warm-up Time | 10–15 min |
| Operating Temperature | 15–40 °C |
| Brand | Laser Quantum |
|---|---|
| Origin | United Kingdom |
| Model | GigaJet Series |
| Type | Solid-State Femtosecond Oscillator |
| Repetition Rate | 500 MHz or 1 GHz |
| Central Wavelength | 800 ± 20 nm (GigaJet & GigaJet Ultra), 750–850 nm tunable (GigaJet Tune) |
| Pulse Duration | ≤30 fs (GigaJet), ≤50 fs (GigaJet Tune), ≤15 fs (GigaJet Ultra) |
| Average Power | 0.8–1.8 W (GigaJet), 0.7–1.4 W (GigaJet Tune), 0.75–1.5 W (GigaJet Ultra) |
| Pulse Energy | 0.8–3.6 nJ (GigaJet), 0.7–1.4 nJ (GigaJet Tune), 0.75–1.5 nJ (GigaJet Ultra) |
| Beam Diameter (FWHM) | 0.8 ± 0.3 mm |
| Spatial Mode | Near TEM₀₀ |
| Beam Divergence | 2.0 ± 0.5 mrad |
| Polarization Ratio | >100:1, horizontal |
| Pump Requirement | 5 W, 532 nm, TEM₀₀, vertically polarized |
| Operating Temperature | 21 ± 5 °C |
| Origin | Germany |
|---|---|
| Manufacturer Type | Authorized Distributor |
| Origin Category | Imported |
| Model | InnoSlab |
| Core Technology | Solid-State Diode-Pumped Slab Laser |
| Beam Shaping Capability | Customizable (Gaussian, 1D Top-Hat, 2D Square Top-Hat) |
| Wavelength Options | 1064 nm / 532 nm / 355 nm / 266 nm |
| Pulse Energy | Up to 60 mJ |
| Pulse Width | < 4 ns |
| Peak Power | Up to 7 MW |
| Repetition Rate | Up to 150 kHz |
| Average Output Power | Up to 600 W |
| Beam Quality | M² < 2.0 |
| Polarization Ratio | >100:1 |
| Energy Stability (RMS) | ≤4% |
| Beam Ellipticity (Far-Field) | <10% |
| Beam Diameter | 3 mm (nominal) |
| Divergence (Full Angle) | 225–500 µrad |
| Warm-up Time | 15–30 min |
| Brand | CVI |
|---|---|
| Origin | USA |
| Manufacturer Type | Authorized Distributor |
| Origin Category | Imported |
| Model | 35LAS450 |
| Core Technology | Gas Laser System |
| Wavelength | 488 nm |
| Output Power | 50 mW |
| Gain Medium | Ar⁺ (Argon Ion) |
| Beam Mode | TEM₀₀ |
| Cooling Method | Forced-Air |
| Compliance | CE, RoHS, FDA 21 CFR Part 1040.10 |
| Brand | Powerlase |
|---|---|
| Origin | United Kingdom |
| Model | Polaris i200 |
| Wavelength | 1064 nm |
| Pulse Width | 10 ps |
| Average Power | up to 200 W |
| Pulse Energy | up to 1 mJ |
| Repetition Rate | 10–1000 kHz |
| Burst Mode | configurable (1–10 pulses per burst) |
| Long-Term Power Stability (RMS) | < 1.0% |
| Laser Type | Diode-Pumped Solid-State (DPSS), Nd:YAG-based |
| Origin | UK |
|---|---|
| Manufacturer Type | Authorized Distributor |
| Origin Category | Imported |
| Model | SPARK-1040 |
| Output Power | 0.5–3 W |
| Wavelength | 1040 nm |
| Pulse Duration | 170 fs – 2.5 ps |
| Spectral Bandwidth | 20–40 nm |
| Repetition Rate | 100 MHz (standard), optional 80–200 MHz with lock-to-clock synchronization |
| Amplitude Noise | <140 Hz RMS (measured over 50 hours) |
| Beam Quality | M² < 1.1 |
| Polarization | Linear |
| Beam Divergence | <2 mrad |
| Beam Diameter (1/e²) | 0.5 mm (standard), optional 0.5–2 mm |
| Interface | Ethernet |
| Laser Head Dimensions | 404 × 249 × 65 mm |
| Controller Dimensions | 483 × 285 × 86 mm |
| Laser Head Weight | 7.5 kg |
| Controller Weight | 2 kg |
| Power Supply | 110–240 V AC, 50–60 Hz, 80 W max |
| Brand | Quantel |
|---|---|
| Origin | France |
| Model | Merion C |
| Type | Diode-Pumped Solid-State (DPSS) Q-Switched Laser |
| Output Wavelengths | 1064 nm, 532 nm, 355 nm |
| Repetition Rate | Up to 400 Hz |
| Pulse Energy | 100 mJ @ 1064 nm, 50 mJ @ 532 nm, 30 mJ @ 355 nm |
| Pulse Width | < 10 ns @ 1064 nm |
| Beam Divergence | < 5 mrad @ 1064 nm (S4), < 1 mrad @ 1064 nm (G4) |
| Pulse-to-Pulse Energy Stability | < 0.5% (p-p) |
| Cooling | Internal recirculating water cooling |
| Laser Head Dimensions | 120.1 × 416.1 × 150.2 mm |
| Power Supply Dimensions | 177.4 × 482.6 × 457.2 mm |
| Brand | FLC |
|---|---|
| Origin | USA |
| Manufacturer Type | Authorized Distributor |
| Import Status | Imported |
| Model | 1 |
| Core Construction | Solid-State Laser Device |
| Wavelength Range | 375–3100 nm |
| Output Power | 1–500 mW |
| Packaging Options | TO-can, Butterfly, C-mount, Coaxial, Fiber-Pigtailed |
| Optional Integrations | Thermoelectric (TE) Coolers, Monitor Photodiodes, FC/PC or SMA Fiber Coupling Interfaces |
| Brand | Quantel |
|---|---|
| Origin | France |
| Product Type | Diode-Pumped Solid-State (DPSS) Laser System |
| Model Series | Q-Smart |
| Wavelength Options | 1064 nm, 532 nm, 355 nm, 266 nm, 213 nm |
| Pulse Energy (1064 nm) | 300 mJ / 200 mJ / 650 mJ |
| Pulse Energy (532 nm) | 160 mJ / 95 mJ / 360 mJ |
| Pulse Energy (355 nm) | 90 mJ / 60 mJ / 200 mJ |
| Pulse Width (1064 nm) | 5–9 ns |
| Pump Source Warranty | 2 years or 2 billion shots |
| Cavity Options | Gaussian or Stable Resonator |
| Cooling | Water-cooled |
| Modularity | Fully modular laser head and power supply architecture |
| Beam Orientation Flexibility | Omnidirectional mounting (including suspended configuration) |
| Control Interface | Remote touchscreen handle with plug-and-play connectivity |
| Phase Matching | Automatic, alignment-free harmonic generation |
| Key | Wavelength: 355 nm |
|---|---|
| Repetition Rate (External Trigger Mode) | 200–2000 Hz (200 Hz nominal) |
| Pulse Energy | 20 ±10% mJ @ 200 Hz |
| Pulse Width | 5 ±2 ns (≤7 ns and ≥3 ns @ 200 Hz) |
| Beam Divergence | 3.4 ±0.5 mrad |
| Operating Temperature | 15–35 °C (RH <80%) |
| Manufacturer Origin | Russia |
| Compliance | CE, RoHS, IEC 60825-1:2014 Class 4 Laser Product |
| Brand | Quantel |
|---|---|
| Origin | France |
| Type | Solid-State Pulsed Nd:YAG Laser |
| Model | Q-smart 100 |
| Output Wavelengths | 1064 nm, 532 nm, 355 nm, 266 nm |
| Max Pulse Energy | 100 mJ |
| Pulse Duration | <8 ns (typ.) |
| Repetition Rate | 1–20 Hz |
| Beam Divergence | <1.5 mrad (full angle) |
| Flashlamp Lifetime | >10⁸ shots |
| Cavity Design | GRM (Grating-Resonator Mirror) Stable Resonator |
| Beam Delivery | Integrated External Cavity with Motorized Harmonic Generation and Auto-Alignment |
| Enclosure | Fully Sealed, Thermally Stable Housing |
| Compliance | CE Marked, RoHS Compliant |
| Brand | Bristol |
|---|---|
| Origin | USA |
| Model | 228 Series |
| Wavelength Range | 700–1650 nm (182–429 THz) |
| Absolute Accuracy | ±0.2 ppm (±0.3 pm @ 1550 nm) |
| Repeatability | ±0.1 ppm |
| Calibration Source | Stabilized He-Ne Laser |
| Measurement Refresh Rate | 10 Hz |
| Power Measurement Accuracy | ±0.5 dB (±30 nm from 1310/1550 nm) |
| Sensitivity | –30 dBm @ 1250–1650 nm |
| Max Input Power | +10 dBm (displayed), +18 dBm (safe) |
| Interface | USB 2.0, Ethernet (GPIB optional) |
| Warm-up Time | <15 min |
| Dimensions (H×W×L) | 89 × 432 × 381 mm |
| Brand | Quantel |
|---|---|
| Origin | France |
| Model | PIV Laser System |
| Pulse Energy Range | 30–380 mJ/pulse (customizable up to >1 J/pulse) |
| Repetition Rate | 10–30 Hz |
| Wavelength Options | Standard 532 nm |
| Laser Type | Diode-pumped Nd:YAG-based Q-switched solid-state laser system (not free-electron laser — correction based on technical reality of Quantel PIV lasers) |
| Brand | Quantel |
|---|---|
| Origin | France |
| Model | Merion MW |
| Type | Diode-Pumped Solid-State (DPSS) Q-Switched Laser System |
| Wavelengths | 1064 nm (fundamental), 532 nm (SHG), 355 nm (THG), 266 nm (FHG) |
| Repetition Rate | up to 200 Hz |
| Pulse Energy (1064 nm) | up to 650 mJ |
| Pulse Width (1064 nm) | 5–9 ns |
| Beam Divergence (1064 nm) | <1 mrad |
| Polarization | Vertical, >90% polarization purity |
| Cooling | Integrated recirculating chiller (optional external chiller) |
| Dimensions (Laser Head) | 526 × 125 × 147 mm |
| Weight (Laser Head) | <8 kg |
| Brand | Labsphere |
|---|---|
| Origin | USA |
| Manufacturer Type | Authorized Distributor |
| Origin Category | Imported |
| Model | GPS |
| Configuration | Solid-State Laser Sources & Integrated Measurement Subsystem |
| Optical Coating Options | Spectraflect®, Infragold®, or Spectralon® |
| Wavelength Range | 200–5000 nm (UV-Vis-NIR-MIR) |
| Beam Acceptance Angle | Up to ±40° half-angle |
| Cooling | Optional water-cooling module with user-selectable chiller integration |
| Detector Compatibility | Dual-detector or dual-spectrometer mounting interface |
| Attenuation | Polarization-insensitive neutral-density filtering |
| Target Plate | Integrated laser diffuser plate for beam energy dispersion |
| Thermal Management | Active heat dissipation architecture for sustained high-power operation |
| Compliance | Designed to support ISO/IEC 17025-compliant calibration workflows and GLP/GMP traceability requirements |
| Brand | FLC |
|---|---|
| Model | PL |
| Type | Single-Mode, Independently Addressable Laser Diode Array |
| Wavelength Options | 675 nm, 830 nm |
| Output Power | 5 mW (675 nm), 50 mW (830 nm) |
| Beam Count | 8 |
| Emitter Architecture | Monolithic Array with Individual Anode/Cathode Access |
| Construction | Hermetically Sealed TO-Can or Butterfly Package (Configurable) |
| Operating Temperature Range | −10 °C to +50 °C |
| Storage Temperature | −40 °C to +85 °C |
| Compliance | RoHS 2011/65/EU, REACH (EC) No. 1907/2006, IEC 60825-1:2014 Class 3B Laser Safety |
| Brand | Amplitude |
|---|---|
| Origin | France |
| Product Type | Diode-Pumped Nd:Glass Amplifier System |
| Model | Titan Series |
| Wavelength | 532 nm / 1064 nm |
| Pulse Energy | 6 J @ 532 nm, 8 J @ 1064 nm (Single Beam) |
| Repetition Rate | 1 Hz or 5 Hz |
| Pulse Width | ~12 ns |
| Energy Stability | 1.2% RMS (1000 shots), 1.0% RMS (1000 shots) |
| Energy Drift | ≤5% over 8 hours |
| Beam Profile | Top-Hat (Flat-Top) |
| Temporal Jitter | 0.5 ns RMS |
| Polarization | Vertical @ 532 nm |
| Optional Configuration | Dual-Pulse Mode (two 12 ns pulses with adjustable inter-pulse delay) |
| Brand | Amplitude |
|---|---|
| Origin | France |
| Model | Premiumlite |
| Type | Solid-State Diode-Pumped Disk Amplifier Laser System |
| Output Wavelengths | 1064 nm / 532 nm (YAG), 1053 nm / 527 nm (Glass) |
| Repetition Rate | Up to 10 Hz (YAG), up to 0.1 Hz (Glass) |
| Pulse Energy | Up to 75 J @ 1064 nm (YAG), up to 260 J @ 1053 nm (Glass) |
| Beam Profile | Circular, Super-Gaussian (≥20th order) |
| Beam Diameter | 44 mm ± 2.5 mm (YAG), 80 mm ± 2.5 mm (Glass) |
| Pulse Width | 6 ns ± 2 ns (YAG), 20 ns ± 2 ns (Glass) |
| RMS Pulse Stability | <1% (1064 nm), <1.5% (532 nm) for YAG |
| Pointing Stability | ≤50 µrad |
| Divergence | ≤500 µrad |
| Polarization | Linear or Circular |
| Long-Term Stability | ≤3% p-v (8 h, YAG), ≤5% p-v (8 h, Glass) |
| Brand | Amplitude |
|---|---|
| Origin | France |
| Product Type | MOPA-based Pulsed Laser Amplifier |
| Model Series | Agilite |
| Wavelength Options | 1064 nm / 532 nm (Nd:YAG & Nd:YLF) |
| Pulse Width Range | Agilite: 30 ns – 10 µs |
| Intrepid | 300 ps – 15 ns |
| Output Energy | Up to 4 J per pulse |
| Beam Diameter | 6 mm / 9 mm / 12 mm |
| Beam Quality | M² < 1.7 |
| Spectral Linewidth | < 2× transform-limited |
| Pulse-to-Pulse Stability | < 2.5% RMS |
| Timing Jitter | < 2 ns RMS |
| Repetition Rate | 1–20 Hz |
| Harmonic Generation | Standard SHG option available |
| Application Role | Seed source for multi-stage amplifier systems (e.g., Nd:glass amplifiers) |
| Compliance | Designed for integration into ISO/IEC 17025-compliant laser laboratories and high-energy physics testbeds |

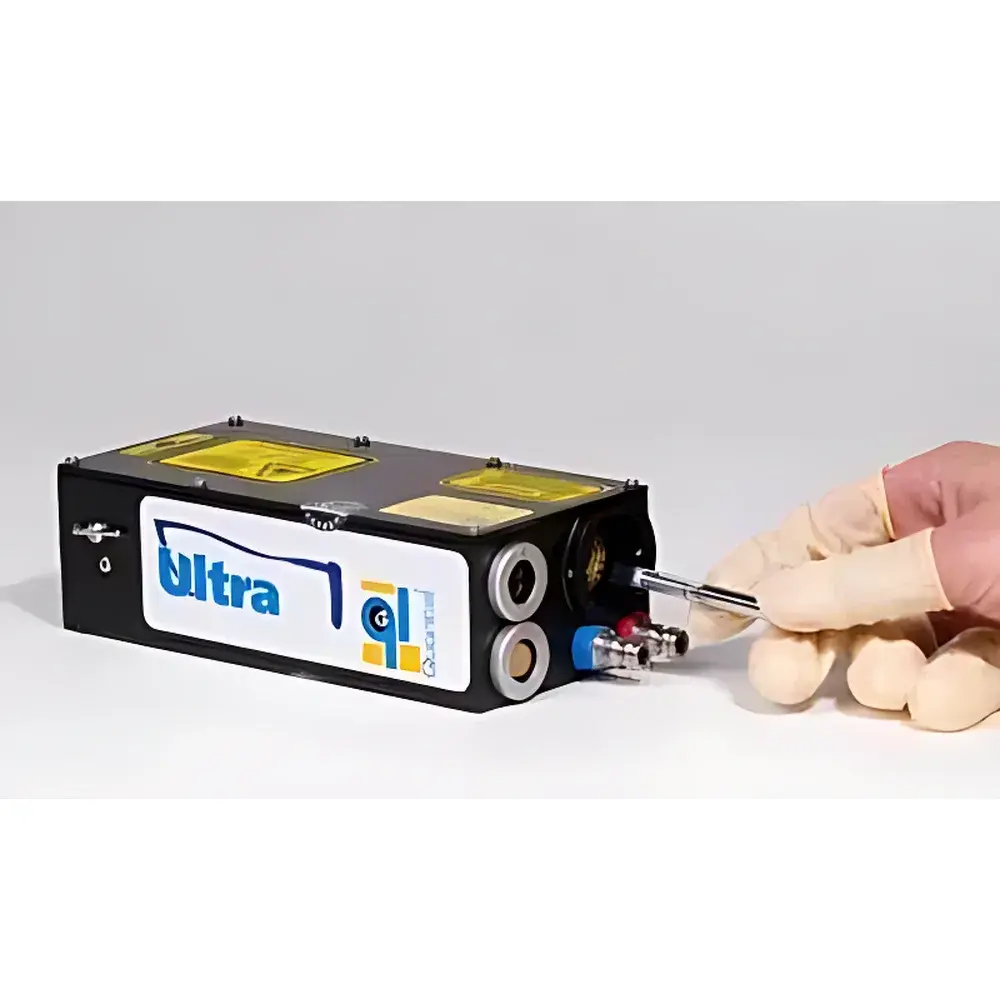

| Brand | Quantel |
|---|---|
| Origin | France |
| Model Series | Ultra, CFR |
| Laser Type | Flashlamp-Pumped Q-Switched Nd:YAG |
| Wavelength Options | 1064 nm, 532 nm, 355 nm, 266 nm, 213 nm, 1570 nm |
| Cooling | Air-Cooled |
| Operation Mode | Q-Switched Pulsed |
| Pulse Energy Range | Up to Several Hundred mJ (Model-Dependent) |
| Repetition Rate | 1–20 Hz (Configurable) |
| Beam Quality | TEM₀₀ (Diffraction-Limited, M² < 1.3) |
| Stability | < ±1% RMS Pulse Energy Over 8 Hours |
| Environmental Rating | IP54 Equivalent |
| Compliance | CE, RoHS, IEC 60825-1:2014 (Class 4 Laser Product) |
| Brand | Laser Quantum |
|---|---|
| Origin | United Kingdom |
| Model | Opus532 / Opus660 / Opus1064 |
| Type | Solid-State Continuous-Wave (CW) Lasers |
| Wavelength | 532 nm / 660 nm / 1064 nm |
| Output Power | 2–6 W / 1–1.5 W / 4–10 W |
| Beam Diameter | 1.85±0.2 mm / 0.85±0.2 mm / 1.85±0.2 mm |
| Spatial Mode | TEM₀₀ |
| Beam Ellipticity | <1_1.15 / <1_1.2 / — |
| Spectral Bandwidth | 45 GHz / 30 GHz / 80 GHz |
| Beam Divergence | <0.4 mrad / <1.5 mrad / <0.6 mrad |
| M² Factor | <1.1 / <1.2 / <1.5 |
| Power Stability (RMS) | <0.2% / <1.0% / <0.2% |
| Pointing Stability | <2 μrad/°C / <10 μrad/°C / <10 μrad/°C |
| Intensity Noise (RMS, 10 Hz–100 MHz / 10 Hz–50 kHz / 10 Hz–1 MHz) | ≤0.08% / ≤0.6% / ≤0.15% |
| Polarization Ratio | >100:1 |
| Polarization Orientation | Vertical |
| Beam Angle | ≤1 mrad |
| Operating Temperature | 15–40 °C |
| Warm-up Time | 10 minutes |
| Brand | Moglabs |
|---|---|
| Model | CEL Series |
| Type | External-Cavity Diode Laser (ECDL) |
| Wavelength Range | 450–530 nm & 630–1620 nm |
| Output Power | Up to 250 mW (LD-dependent) |
| Linewidth | <100 kHz (typical), down to 20 kHz (configuration-dependent) |
| Tuning Range | >20 GHz mode-hop-free scan (with MOGLabs controller) |
| Beam Diameter (1/e²) | ~0.6 mm × 0.3 mm |
| Polarization | >100:1 vertical linear |
| Modulation Bandwidth | 20 MHz (AC/DC-coupled, 20 ns delay optional) |
| RF Modulation | >2.5 GHz bandwidth via bias-tee |
| Piezo Feedback | High-bandwidth PZT actuation with user-replaceable Cateye module |
| Thermal Control | TEC (±14.5 V / 3.3 A |
| Cooling | Air-cooled standard |
| Compliance | Designed for GLP/GMP-aligned lab environments |
| Brand | Quantel |
|---|---|
| Origin | France |
| Model | 532 |
| Laser Type | Diode-Pumped Solid-State (DPSS) |
| Wavelengths | 1064 nm / 532 nm / 355 nm / 266 nm |
| Pulse Repetition Rate | 1–100 Hz |
| Pulse Width | 12 ± 2 ns |
| Power Supply | 48 V DC |
| Construction | Monolithic aerospace-grade aluminum housing, N₂-purged and fully rigidized optical cavity |
| Key Innovations | Suppressed first-pulse overshoot, square-top uniform beam profile |
| Application Scope | Array, Color Filter (COA), Cell, and Module-level repair in TFT-LCD and AMOLED manufacturing |
Show next
