| Brand | Photo Research |
|---|---|
| Origin | USA |

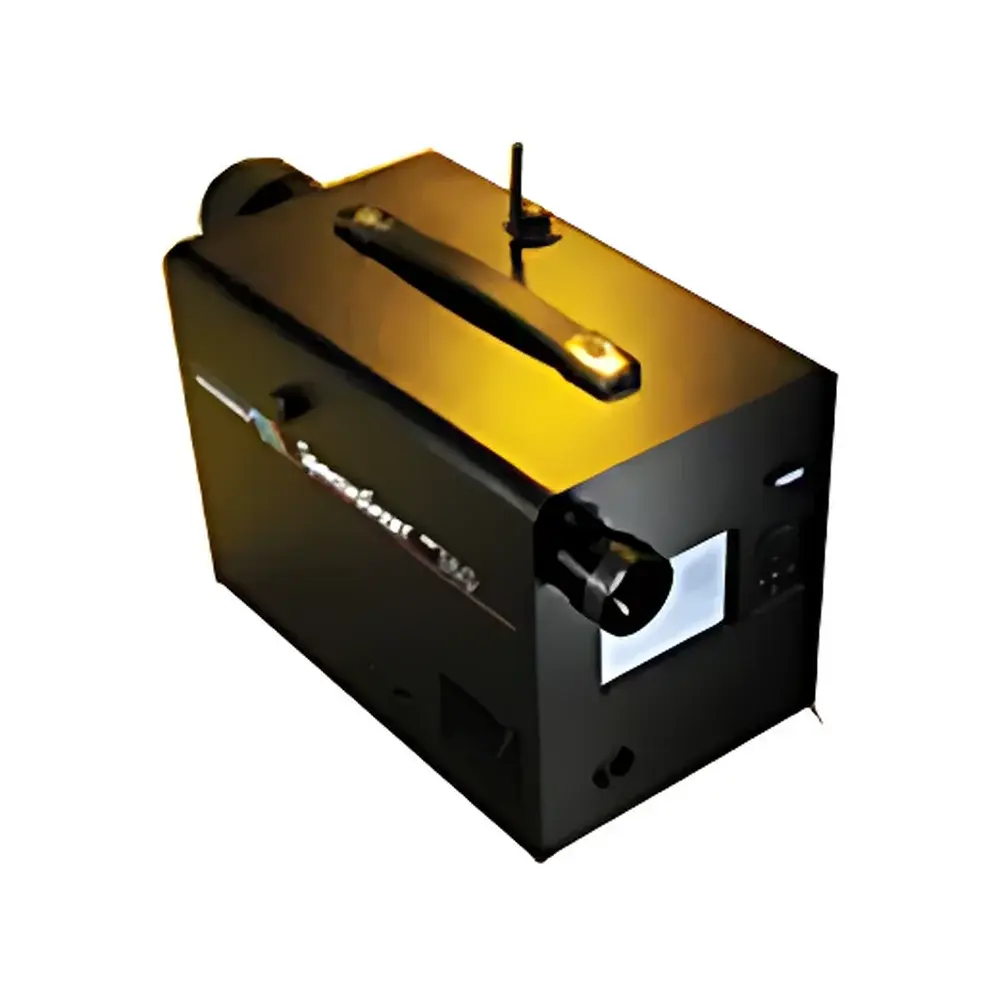

| Model | PR-740/745 |
| Detector Type | Cooled 512-pixel CCD |
| Spectral Resolution | Up to 0.781 nm/pixel |
| Minimum Luminance | 0.000017 cd/cm² |
| Spectral Bandwidth Options | 2 nm, 5 nm, 8 nm |
| Display | High-Resolution Full-Color Touchscreen |
| Interface Options | USB, RS-232, Bluetooth (up to 100 m range) |
| Calibration | User-performed via SpectraWin Remote Mode & Built-in Self-Calibration Software |
| Optical Accessories | Eight interchangeable apertures |
| Compliance | ASTM E308, CIE 15:2018, ISO/CIE 11664, USP <1058> (analytical instrument qualification framework) |
| Brand | Novanta |
|---|---|
| Origin | United Kingdom |
| Manufacturer | Cambridge Technology (a Novanta company) |

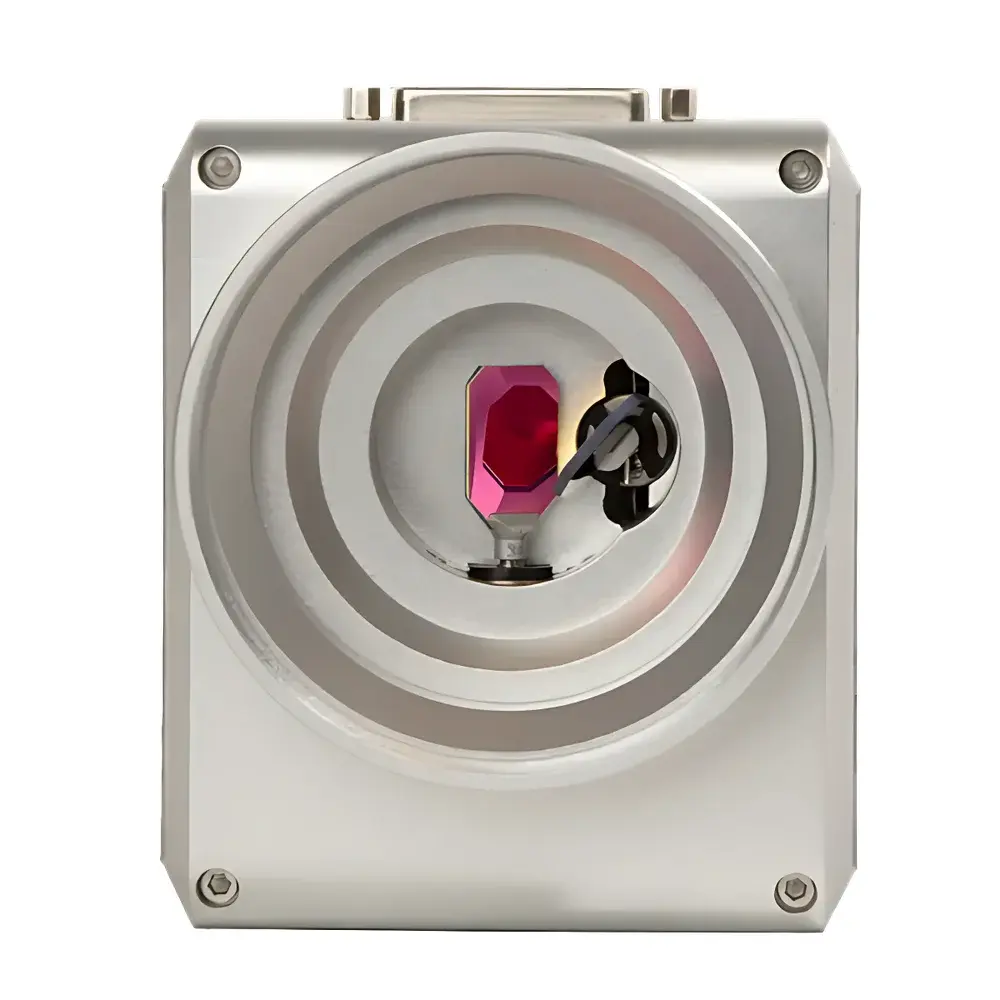

| Model | Versia-2D |
| Aperture | 14 mm |
| Scan Angle | ±21° |
| Repeatability | <2 µrad |
| Long-Term Drift | <25 µrad (24 h, single axis, after 30 min warm-up) |
| Thermal Drift | <10 µrad/°C (offset), <10 ppm/°C (gain) |
| Wavelength Range | CO₂ (9.2–10.6 µm, up to 200 W), Fiber (1040–1090 nm, up to 200 W), Green (532 nm), UV (353–357 nm) |
| Interface Options | XY2-100 (16-bit), NVL-100 (20-bit) |
| IP Rating | IP54 |
| Power Supply | 48 V DC, 5 A RMS |
| Operating Temperature | 15–40 °C |
| Weight | 2.12 kg |
| Dimensions (L×W×H) | 99 × 99 × 132.2 mm |
| Brand | TEO |
|---|---|
| Origin | Beijing, China |
| Manufacturer Type | Authorized Distributor |
| Product Origin | Domestic (China) |

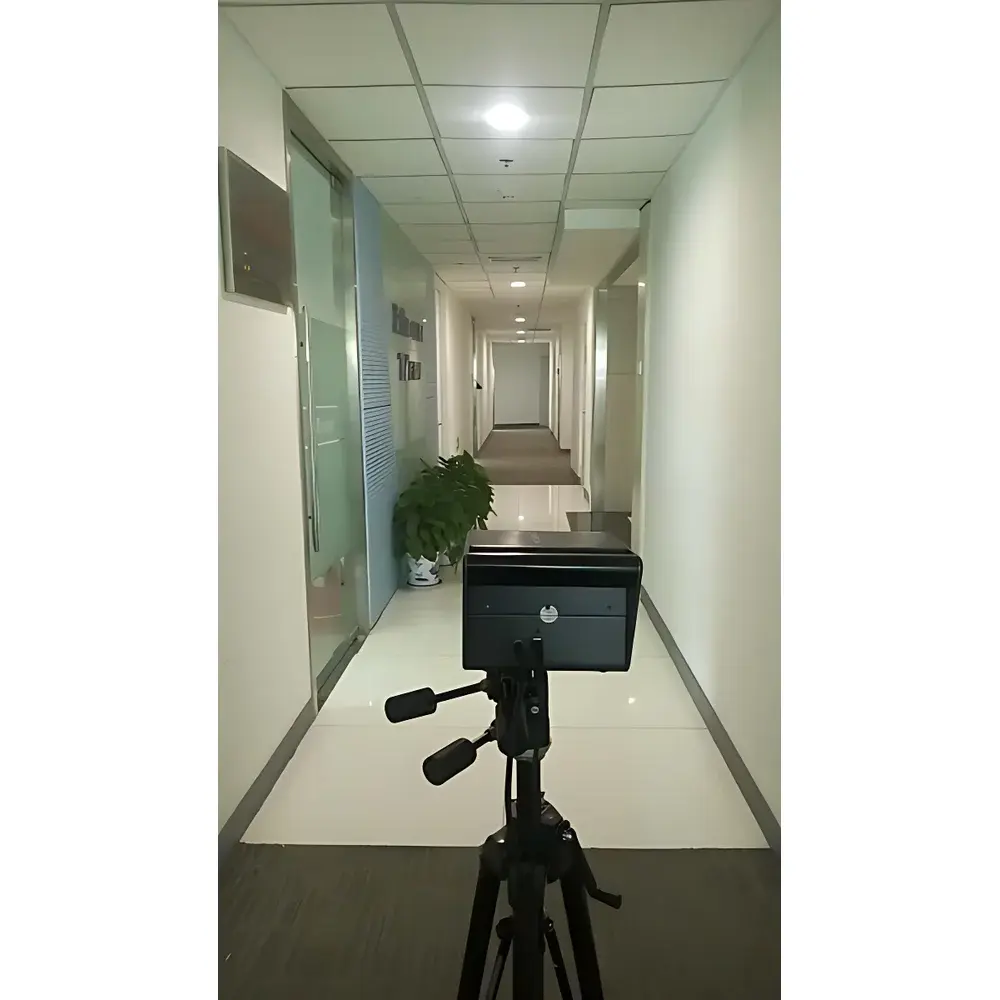

| Model | Ture8-based Integrated Glare Measurement System |
| Price | USD 27,500 (approx. ¥200,000) |
| Imaging Luminance Meter | Ture8 (PR-930 equivalent) |
| Sensor | Instrument-grade monochrome CCD |
| Resolution | 3296 × 2472 (≥8.1 MP) |
| FOV (8 mm lens) | 150° × 120° |
| FOV (14 mm lens) | 60° × 50° |
| Luminance Range | 0.005–5×10⁶ cd/m² (with ND filters) |
| Luminance Accuracy | ±5% (8 mm lens, CIE 1931-weighted) |
| Calibration Suite | Uniform-field, lens distortion, gradient, stray-light, illuminance, luminance/chrominance, and geometric scaling calibration |
| Compliant Standards | CIE 117:1995 (UGR), CIE 112:1994 (GR), CIE 140:2000 & CIE 150:2003 (TI), ISO/CIE joint guidance on glare assessment in lighting design |
| Brand | Spectro-UV |
|---|---|
| Origin | USA |

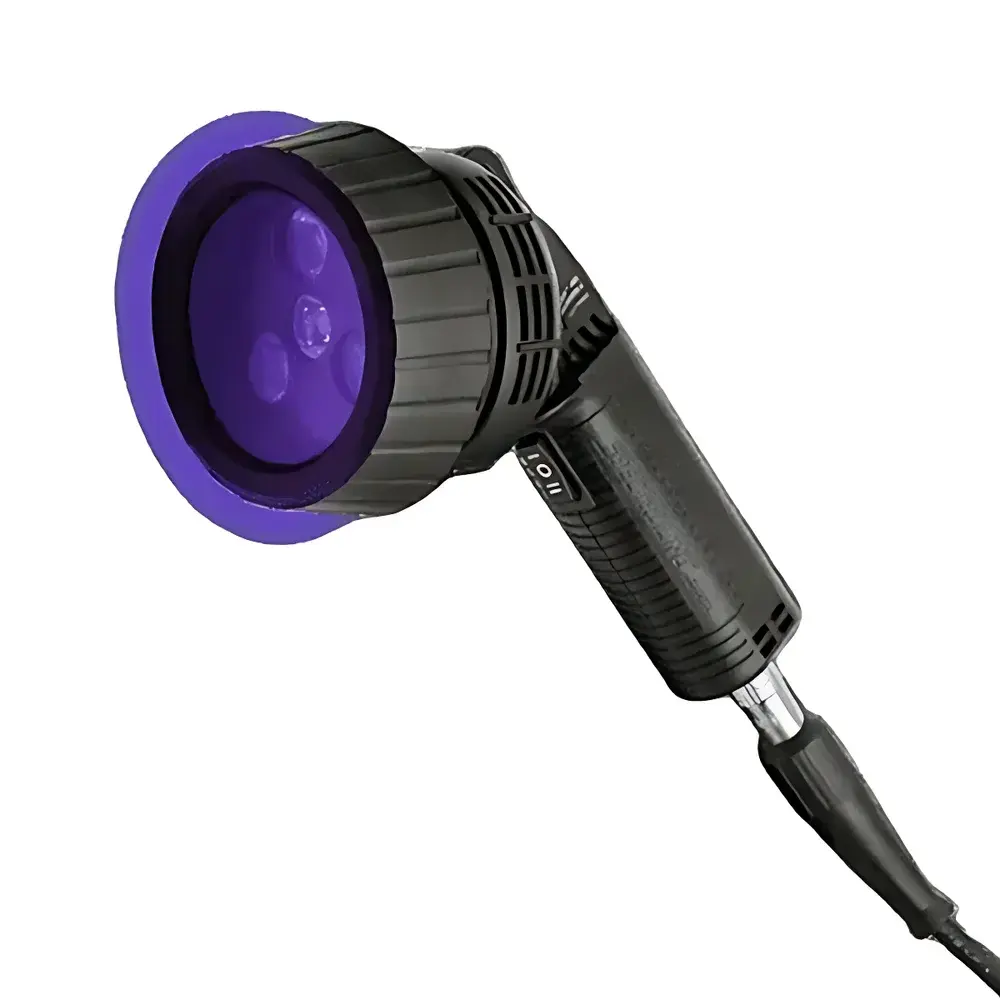

| Model Series | Tritan Series, Classic Series |
| UV-A Wavelength | 365 nm (peak), 360–370 nm range |
| FWHM | ≤15 nm (Tritan), ≤20 nm (Classic) |
| UV-A Intensity at 38 cm | 5,700–8,000 µW/cm² |
| Beam Diameter at 38 cm | 15–19 cm Ø |
| Visible Light Emission | ≤20 lux |
| IP Rating | IP68 (Classic), IP54 (Tritan) |
| Power Options | AC adapter, rechargeable Li-ion battery (up to 9 h runtime) |
| Thermal Protection | Auto-shutdown at critical temperature |
| Compliance | ASTM E3022-18, ISO 3059:2012, RRES 90061:2014, AITM6-1001 Issue 15, Rolls-Royce PRC-001 |

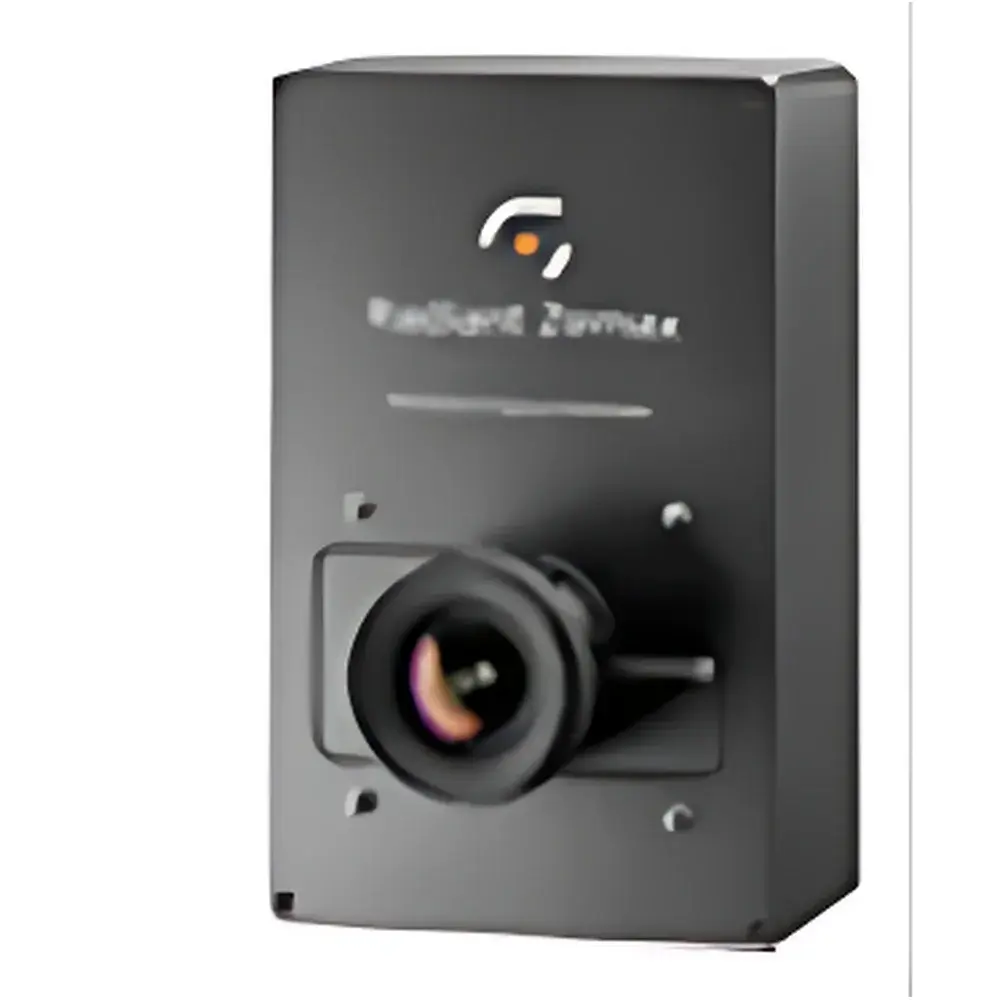

| Brand | Radiant Zemax |
|---|---|
| Origin | USA |
| Model | PM-1200 Series |
| Sensor Type | 12-bit CCD with CIE-matched optical filters |
| Measurement Capabilities | Luminance (cd/m²), Illuminance (lux), Radiance (W/sr·m²), Irradiance (W/m²), Luminous Intensity (cd), Radiant Intensity (W/sr) |
| Spatial Resolution | Up to 2.3 megapixels (configurable by model variant) |
| Dynamic Range | >1,000,000:1 (with electronic exposure control) |
| Compliance | ISO/CIE-compliant photometric and radiometric calibration traceable to NIST |
| Software Platform | ProMetric® v3.x or later (supports ASTM E308, CIE 15:2018, IEC 62368-1, and MIL-STD-3009 NVIS requirements) |
| Brand | Laser Quantum |
|---|---|
| Origin | United Kingdom |
| Manufacturer Type | Authorized Distributor |
| Product Type | Imported OEM Solid-State Laser System |
| Model | Gem473 / Gem532 / Gem561 / Gem660 / Gem671 |
| Wavelengths | 473 nm, 532 nm, 561 nm, 660 nm, 671 nm |
| Output Power Range | 50 mW to 2 W (model-dependent) |
| Beam Diameter | 0.75–1.0 mm ± tolerance |
| Spatial Mode | TEM₀₀ |
| Power Stability | ≤ 1.0% RMS |
| Beam Pointing Stability | < 10 µrad/°C |
| Noise Level | 0.6–1.5% (10 Hz–10 kHz) |
| Polarization Ratio | >100:1, Vertical |
| Coherence Length | ~7.5 mm (473/561 nm), ~25 µm (532/660/671 nm) |
| Spectral Bandwidth | 30–40 GHz |
| Divergence | < 0.8–1.5 mrad |
| Warm-up Time | 10–15 min |
| Operating Temperature | 15–40 °C |

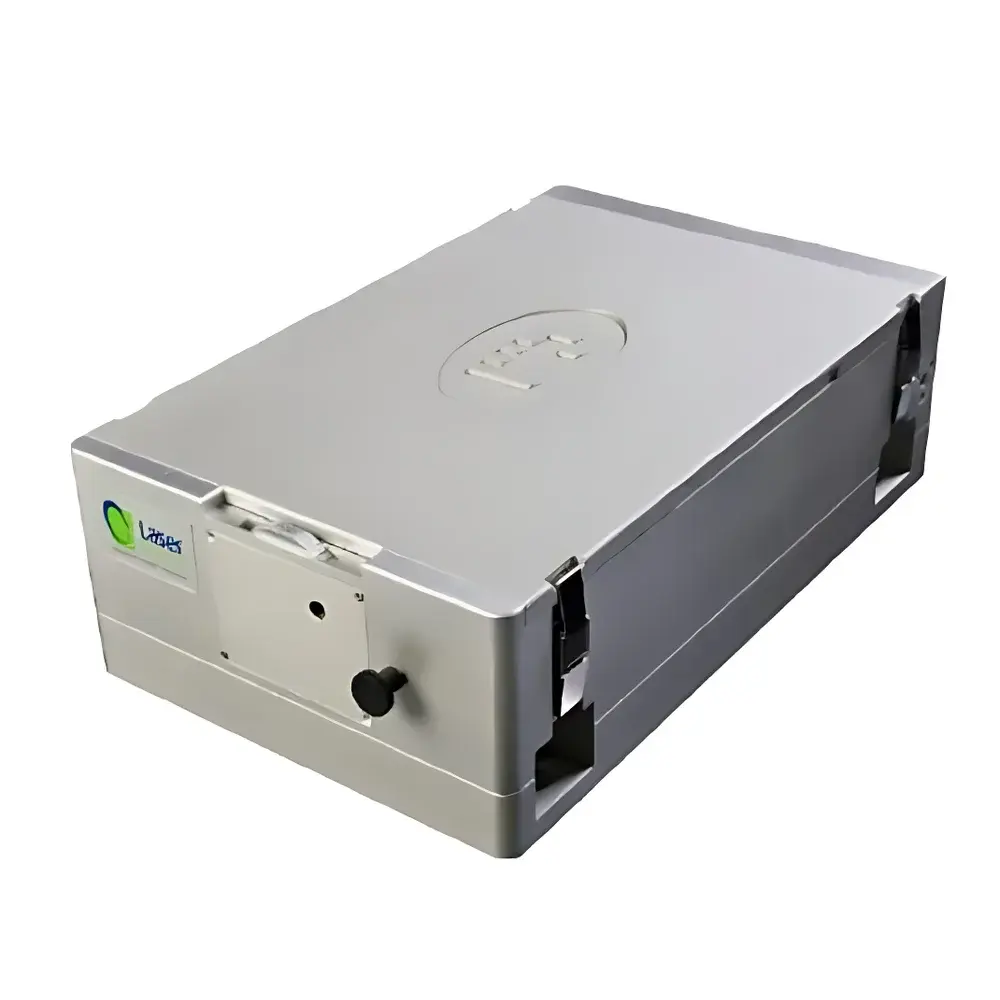

| Brand | Laser Quantum |
|---|---|
| Origin | United Kingdom |
| Model | GigaJet Series |
| Type | Solid-State Femtosecond Oscillator |
| Repetition Rate | 500 MHz or 1 GHz |
| Central Wavelength | 800 ± 20 nm (GigaJet & GigaJet Ultra), 750–850 nm tunable (GigaJet Tune) |
| Pulse Duration | ≤30 fs (GigaJet), ≤50 fs (GigaJet Tune), ≤15 fs (GigaJet Ultra) |
| Average Power | 0.8–1.8 W (GigaJet), 0.7–1.4 W (GigaJet Tune), 0.75–1.5 W (GigaJet Ultra) |
| Pulse Energy | 0.8–3.6 nJ (GigaJet), 0.7–1.4 nJ (GigaJet Tune), 0.75–1.5 nJ (GigaJet Ultra) |
| Beam Diameter (FWHM) | 0.8 ± 0.3 mm |
| Spatial Mode | Near TEM₀₀ |
| Beam Divergence | 2.0 ± 0.5 mrad |
| Polarization Ratio | >100:1, horizontal |
| Pump Requirement | 5 W, 532 nm, TEM₀₀, vertically polarized |
| Operating Temperature | 21 ± 5 °C |
| Origin | Germany |
|---|---|
| Manufacturer Type | Authorized Distributor |
| Origin Category | Imported |
| Model | InnoSlab |
| Core Technology | Solid-State Diode-Pumped Slab Laser |
| Beam Shaping Capability | Customizable (Gaussian, 1D Top-Hat, 2D Square Top-Hat) |
| Wavelength Options | 1064 nm / 532 nm / 355 nm / 266 nm |
| Pulse Energy | Up to 60 mJ |
| Pulse Width | < 4 ns |
| Peak Power | Up to 7 MW |
| Repetition Rate | Up to 150 kHz |
| Average Output Power | Up to 600 W |
| Beam Quality | M² < 2.0 |
| Polarization Ratio | >100:1 |
| Energy Stability (RMS) | ≤4% |
| Beam Ellipticity (Far-Field) | <10% |
| Beam Diameter | 3 mm (nominal) |
| Divergence (Full Angle) | 225–500 µrad |
| Warm-up Time | 15–30 min |

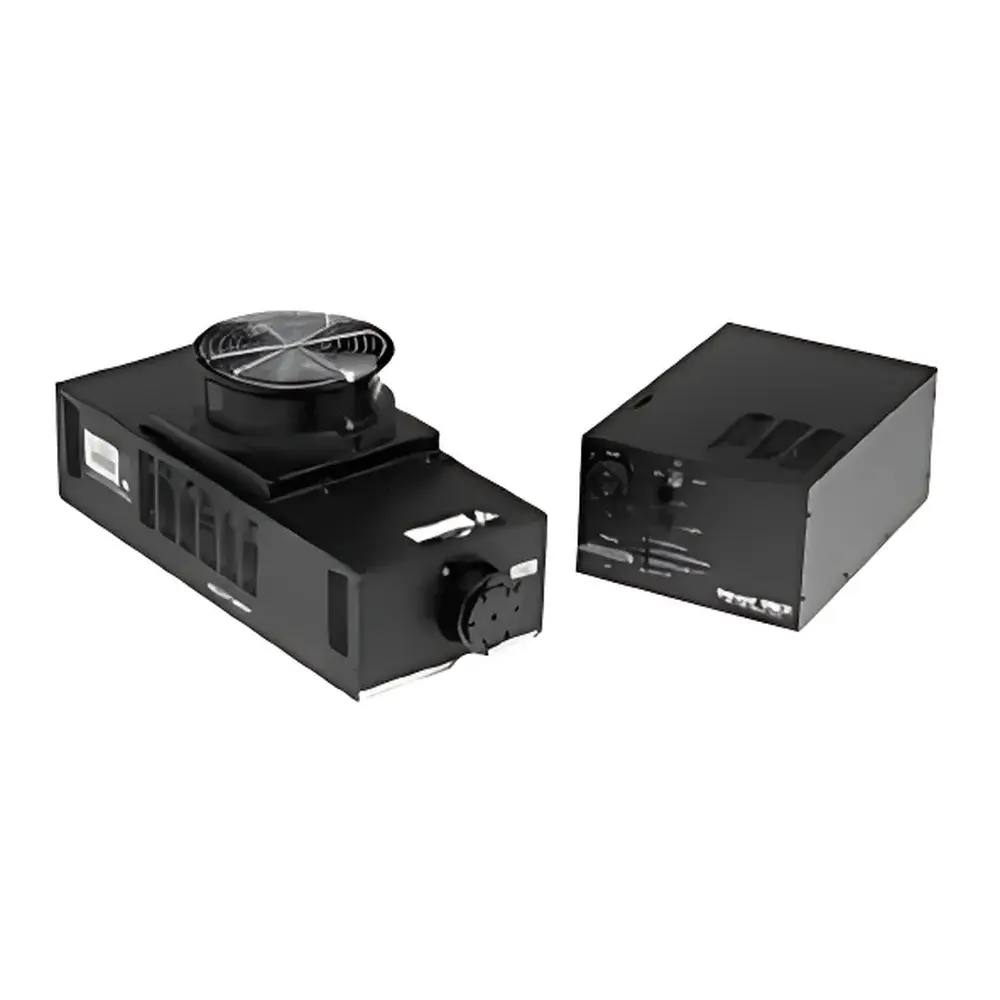

| Brand | CVI |
|---|---|
| Origin | USA |
| Manufacturer Type | Authorized Distributor |
| Origin Category | Imported |
| Model | 35LAS450 |
| Core Technology | Gas Laser System |
| Wavelength | 488 nm |
| Output Power | 50 mW |
| Gain Medium | Ar⁺ (Argon Ion) |
| Beam Mode | TEM₀₀ |
| Cooling Method | Forced-Air |
| Compliance | CE, RoHS, FDA 21 CFR Part 1040.10 |
| Brand | TEO |
|---|---|
| Origin | Beijing, China |
| Manufacturer Type | Authorized Distributor |
| Regional Classification | Domestic (PRC) |
| Model | TEO |
| Price Range | USD 70,000 – 112,000 |

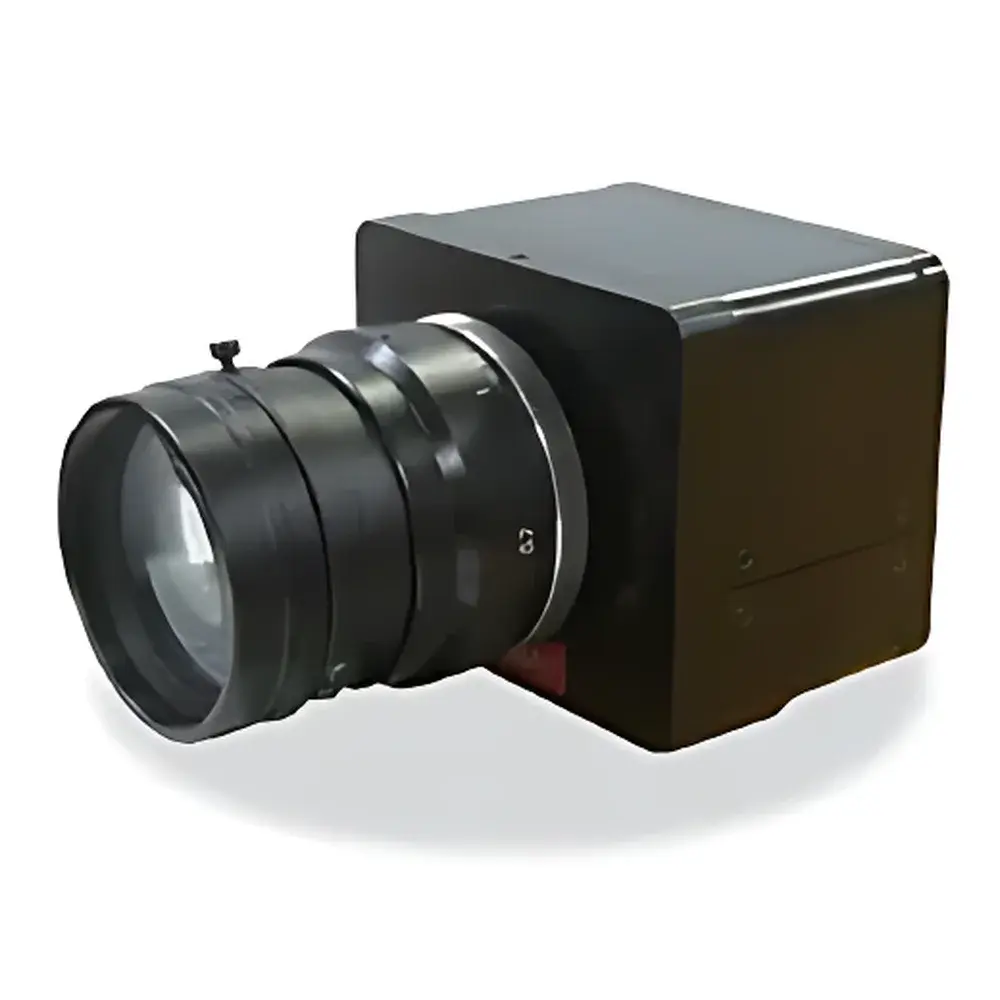

| Brand | Artray |
|---|---|
| Origin | Japan |
| Model | ARTCAM-2020UV-USB3 |
| Sensor Type | Back-Illuminated CMOS |
| Shutter Type | Rolling Shutter |
| Resolution | 2048 × 2048 |
| Pixel Size | 6.5 µm |
| A/D Bit Depth | 12-bit |
| Frame Rate | 45 fps |
| Spectral Range | 200–400 nm (UV) |
| Interface | USB 3.0 |
| Brand | Andor |
|---|---|
| Origin | United Kingdom |

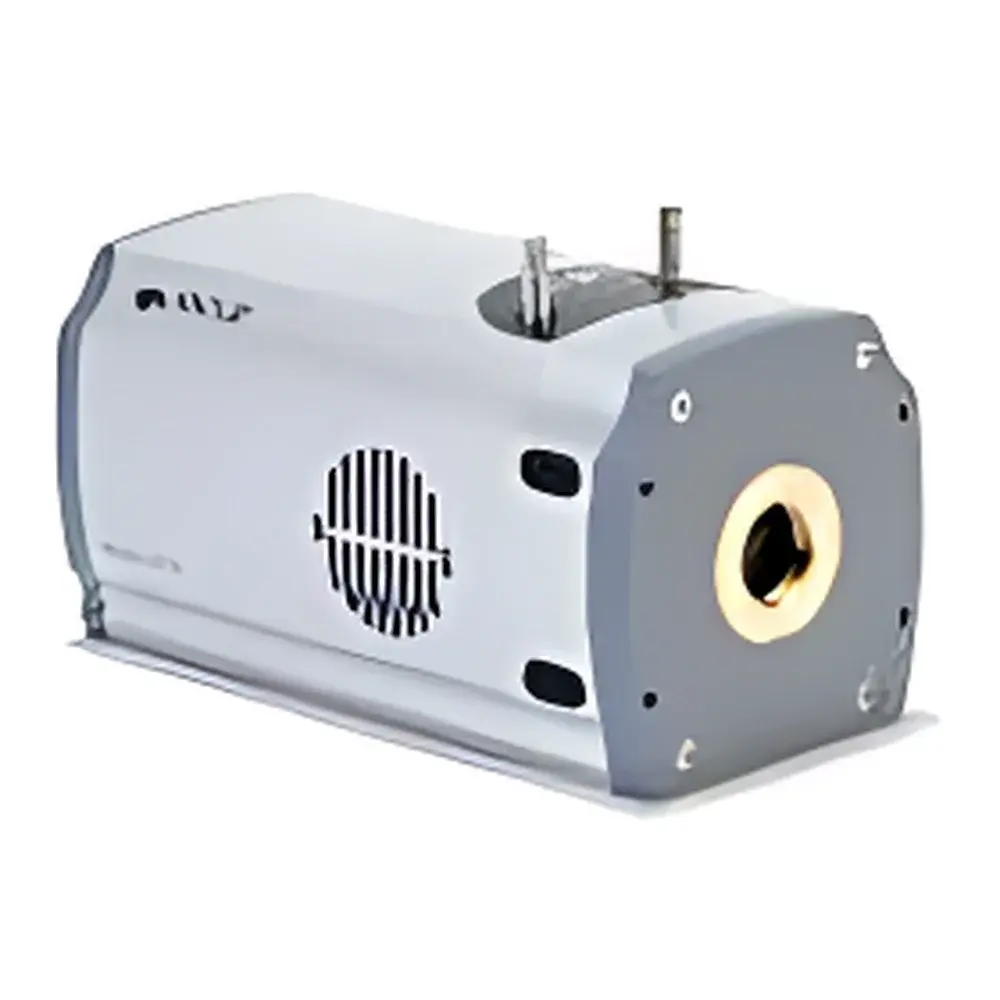

| Model | iKon-M Deep-Cooling |
| Cooling | UltraVac™ TE to –100 °C |
| Quantum Efficiency | up to 95% |
| Read Noise | exceptionally low (model-dependent, e.g., <3 e⁻ rms for 934) |
| Pixel Formats | 512×512, 1024×1024 |
| Pixel Size | 13 µm × 13 µm or 24 µm × 24 µm |
| Readout Speed | up to 8.0 MHz full-frame (model-specific) |
| Sensor Type | front-illuminated or deep-depletion back-illuminated CCD |
| Compliance | CE, RoHS, FDA 21 CFR Part 11-ready software support |
| Brand | Andor |
|---|---|
| Origin | United Kingdom |
| Model | iKon-L 936 Series |
| Sensor | E2V CCD, 2048 × 2048 pixels |
| Pixel Size | 13.5 µm × 13.5 µm |
| Active Area | 27.6 mm × 27.6 mm |
| Cooling | Thermoelectric (TE), down to −100 °C |
| Readout Noise | as low as 2.9 e⁻ |
| Full-Well Capacity | 100,000 e⁻ |
| Maximum Readout Speed | 5 MHz |
| Frame Rate | 0.95 fps (at full resolution) |
| Dynamic Range | 16-bit |
| Quantum Efficiency | up to 95% |
| Interface | USB 2.0 |
| Mount | Standard F-mount |
| Shutter | Integrated 45 mm mechanical shutter |
| Key Technologies | UltraVac™ vacuum sealing, Fringe Suppression Technology™ (FST™) for etalon artifact reduction (BR-DD variant) |
| Brand | Andor |
|---|---|
| Origin | United Kingdom |
| Model | iXon+ DU888 |
| Sensor Format | 1024 × 1024 Frame Transfer EMCCD |
| Active Area | 13.3 × 13.3 mm |
| Pixel Size | 13.3 µm |
| Readout Speed | 30 MHz |
| Full-Frame Frame Rate | 26 fps @ 1024 × 1024 |
| Binned Frame Rate | 93 fps @ 512 × 512 |
| Quantum Efficiency | Enhanced via EX2 coating (peak >95% in visible, extended NIR response) |
| Cooling | -95 °C thermoelectric with UltraVac™ vacuum seal |
| Dark Current | <0.0001 e⁻/pix/s at -95 °C |
| EM Gain Range | 1–3000× (linear, calibrated) |
| RealGain™ Technology | Real-time, hardware-based linear gain calibration |
| EMCAL™ | On-chip EM gain auto-calibration for long-term stability |
| CIC Suppression | Optimized pixel clocking + False Noise Filter (FNF) algorithm |
| Output Interface | USB 3.0 |
| Data Output Modes | Counts, electrons, photons (quantitative photon counting) |
| Etaloning Suppression | Edge-optimized coating & optical design for reduced NIR fringing |
| Baseline Stability | <0.5 ADU RMS over 1 hr |
| Vacuum Warranty | 7 years (UltraVac™) |
| Brand | Andor |
|---|---|
| Origin | United Kingdom |

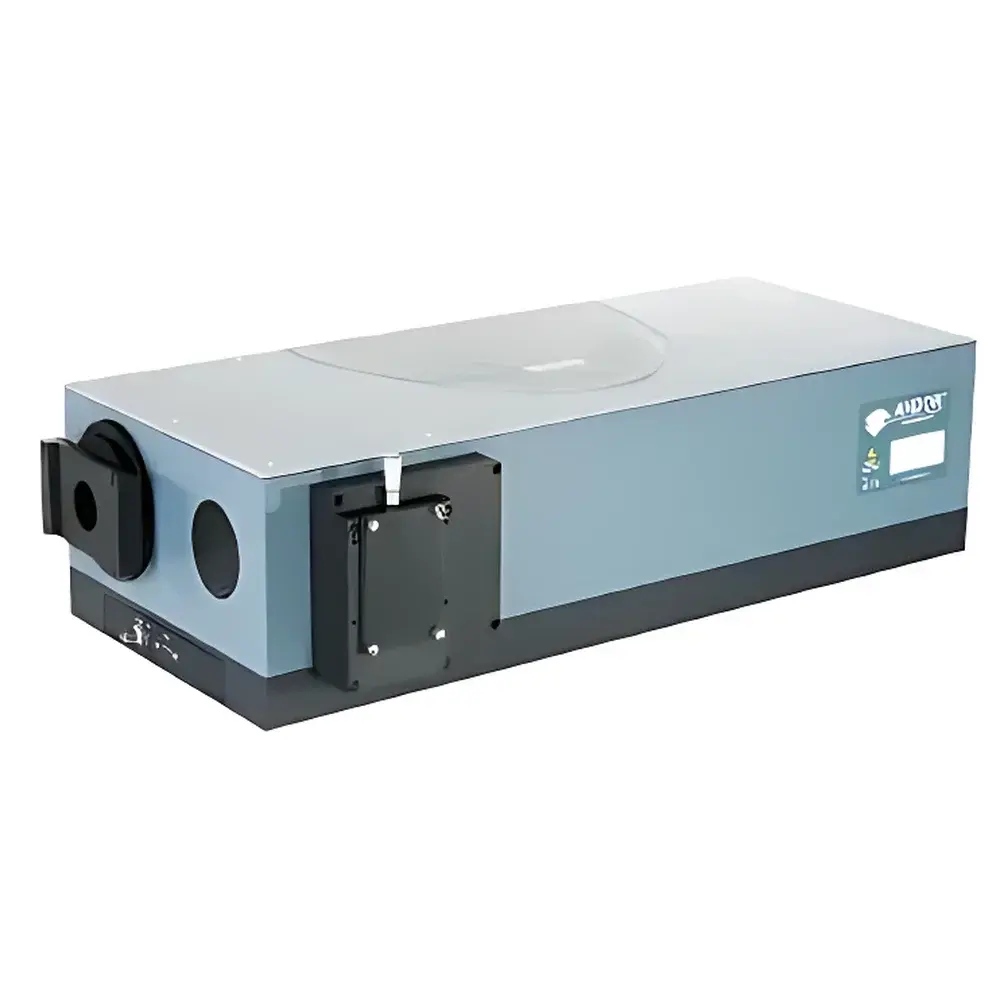

| Model | SR750 |
| Spectral Resolution | Up to 0.02 nm |
| Optical Design | Czerny-Turner |
| Grating Options | Triple-grating turret (user-recorded per unit) |
| Detector Interfaces | Dual-output ports (CCD/ICCD, InGaAs, MCT, etc.) |
| Wavelength Range | Up to 12 µm (with appropriate detector & silver-coated optics) |
| Stray Light Rejection | Optimized multi-path optical layout with low crosstalk |
| Optional Coating | Enhanced silver coating for improved IR reflectivity |
| Accessories | Fiber optic coupling, flange mounts, motorized slits, shutters, adjustable leveling feet |
| Compliance | Designed for integration into GLP/GMP and ISO/IEC 17025-compliant spectroscopic workflows |
| Brand | Andor |
|---|---|
| Origin | United Kingdom |
| Series | iKon-M912 |
| Sensor | E2V CCD, 512 × 512 pixels |
| Pixel Size | 24 µm × 24 µm |
| Imaging Area | 12.3 mm × 12.3 mm |
| Cooling | Thermoelectric (TE), down to −100 °C |
| Readout Speed | Up to 5 MHz |
| Frame Rate | 8 fps |
| Dynamic Range | 16-bit |
| Quantum Efficiency | Up to 95% |
| Vacuum Technology | UltraVac™ |
| Interface | USB 2.0 |
| Mount | C-mount |
| Noise Performance | Ultra-low read noise (typ. < 3 e⁻ RMS at slowest speed) |
| Brand | Powerlase |
|---|---|
| Origin | United Kingdom |
| Model | Polaris i200 |
| Wavelength | 1064 nm |
| Pulse Width | 10 ps |
| Average Power | up to 200 W |
| Pulse Energy | up to 1 mJ |
| Repetition Rate | 10–1000 kHz |
| Burst Mode | configurable (1–10 pulses per burst) |
| Long-Term Power Stability (RMS) | < 1.0% |
| Laser Type | Diode-Pumped Solid-State (DPSS), Nd:YAG-based |
| Brand | Spiricon |
|---|---|
| Origin | USA |
| Detector Type | Phosphor-Coated Silicon CCD |
| Spectral Response Range | 1440–1605 nm |
| Pixel Size | 9.9 × 9.9 µm (SP503-1550), 4.4 × 4.4 µm (SP620-1550 & GRAS20-1550), 8.4 × 9.8 µm (SP-1550MG) |
| Resolution | 640 × 480 (SP503-1550 & SP-1550MG), 1600 × 1200 (SP620-1550 & GRAS20-1550) |
| Active Area | 6.3 × 4.7 mm (SP503-1550), 7.1 × 5.4 mm (SP620-1550 & GRAS20-1550), 4.7 × 5.4 mm (SP-1550MG) |
| Dynamic Range | 30 dB |
| Minimum Detectable Irradiance | 70 nW/cm² |
| Interface | USB 2.0 (SP503-1550), USB 2.0 (SP620-1550), Frame Grabber (SP-1550MG), FireWire 1394b (GRAS20-1550) |
| Origin | UK |
|---|---|
| Manufacturer Type | Authorized Distributor |
| Origin Category | Imported |
| Model | SPARK-1040 |
| Output Power | 0.5–3 W |
| Wavelength | 1040 nm |
| Pulse Duration | 170 fs – 2.5 ps |
| Spectral Bandwidth | 20–40 nm |
| Repetition Rate | 100 MHz (standard), optional 80–200 MHz with lock-to-clock synchronization |
| Amplitude Noise | <140 Hz RMS (measured over 50 hours) |
| Beam Quality | M² < 1.1 |
| Polarization | Linear |
| Beam Divergence | <2 mrad |
| Beam Diameter (1/e²) | 0.5 mm (standard), optional 0.5–2 mm |
| Interface | Ethernet |
| Laser Head Dimensions | 404 × 249 × 65 mm |
| Controller Dimensions | 483 × 285 × 86 mm |
| Laser Head Weight | 7.5 kg |
| Controller Weight | 2 kg |
| Power Supply | 110–240 V AC, 50–60 Hz, 80 W max |
| Brand | Ophir |
|---|---|
| Origin | Israel |
| Model | SP503U-1550 |
| Detector Type | Phosphor-Converted Silicon CCD |
| Spectral Response Range | 1440–1605 nm (NIR) |
| Output Correction | BeamGage® Linearization Algorithm |
| Compliance | ASTM E1290, ISO 11146-1/-2, USP <857>, FDA 21 CFR Part 11 (Software Audit Trail Enabled) |
| Brand | Artray |
|---|---|
| Origin | Japan |
| Model | ARTCAM-407UV-WOM |
| Sensor Type | CCD |
| Shutter Type | Global Shutter |
| Spectral Response | 200–900 nm |
| Resolution | 1360 × 1024 |
| Pixel Size | 4.65 µm |
| A/D Bit Depth | 10-bit |
| Frame Rate | 12 fps |
| Interface | USB 2.0 (standard) |
| Sensor Format | 1/2.5″ optical format |
| Quantum Efficiency (peak UV) | >45% at 254 nm |
| Brand | Artray |
|---|---|
| Origin | Japan |

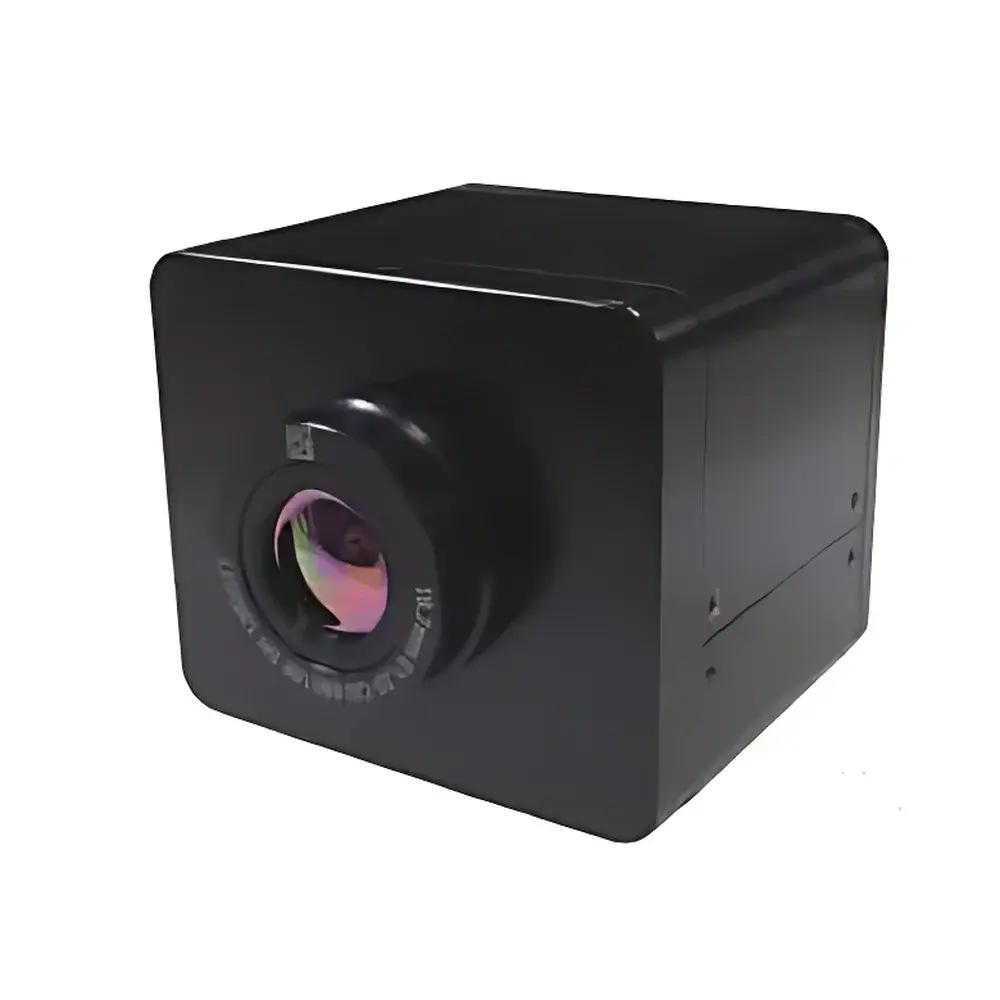

| Model | ARTCAM-640P-THERMO |
| Detector Type | Uncooled Microbolometer |
| Spectral Response Range | 8–14 µm |
| Pixel Pitch | 17 µm |
| Thermal Sensitivity (NETD) | <75 mK |
| Operating Pixel Ratio | >99.5% |
| Temperature Measurement Range | 0–150 °C |
| Interface | USB 3.0 / Gigabit Ethernet |
| Resolution | 640 × 480 (VGA) |
| Brand | Artray |
|---|---|
| Origin | Japan |

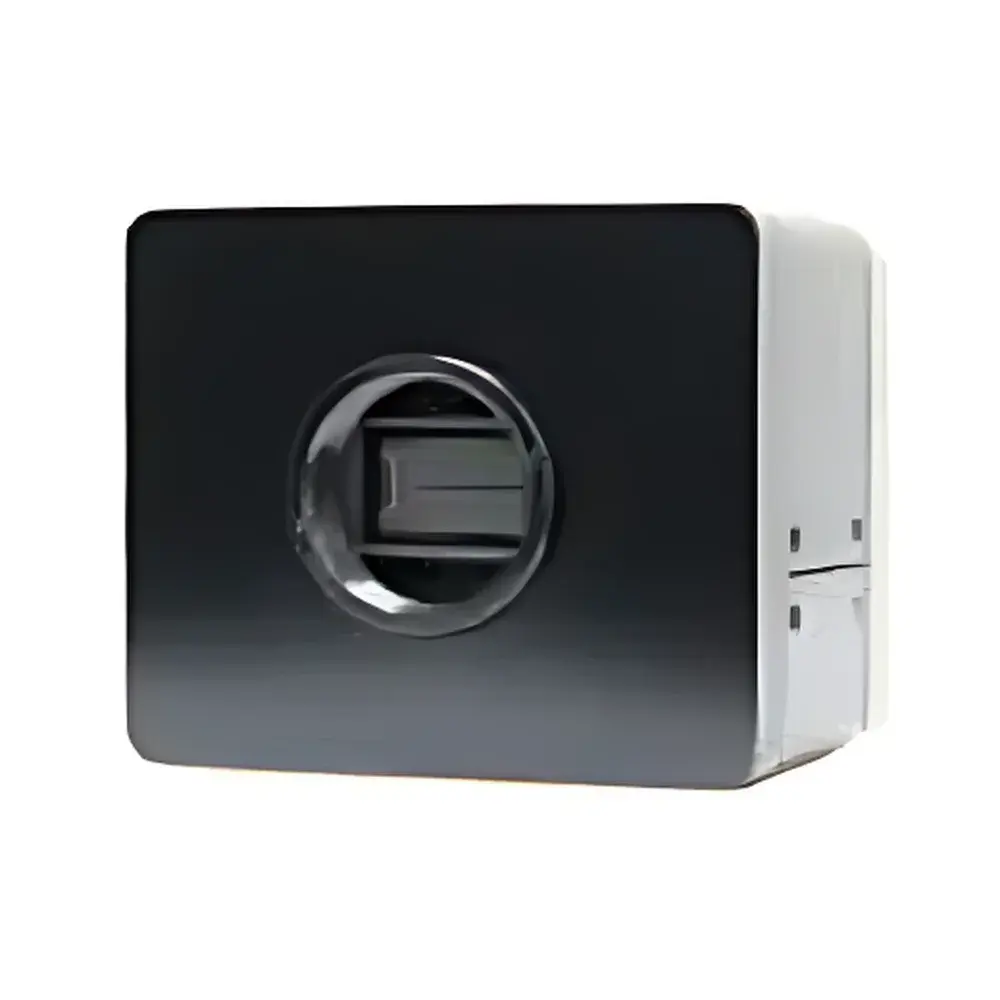

| Model | ARTCAM-L1024DTNIR, ARTCAM-L1024DBTNIR, ARTCAM-L512TNIR, ARTCAM-L256TNIR |
| Resolution | 1024 × 1, 1024 × 1, 512 × 1, 256 × 1 pixels |
| Pixel Size | 25 × 100 µm, 25 × 25 µm, 25 × 25 µm, 50 × 50 µm |
| Spectral Response Range | 900–1700 nm, 900–1700 nm, 950–1700 nm, 950–1700 nm |
| Detector Material | InGaAs |
| Cooling | Thermoelectric (TE) cooled (for DT/DB variants) |
| Interface | Camera Link or GigE Vision (model-dependent) |
| Compliance | CE, RoHS, ISO 9001-certified manufacturing |
| Brand | Artray |
|---|---|
| Origin | Japan |

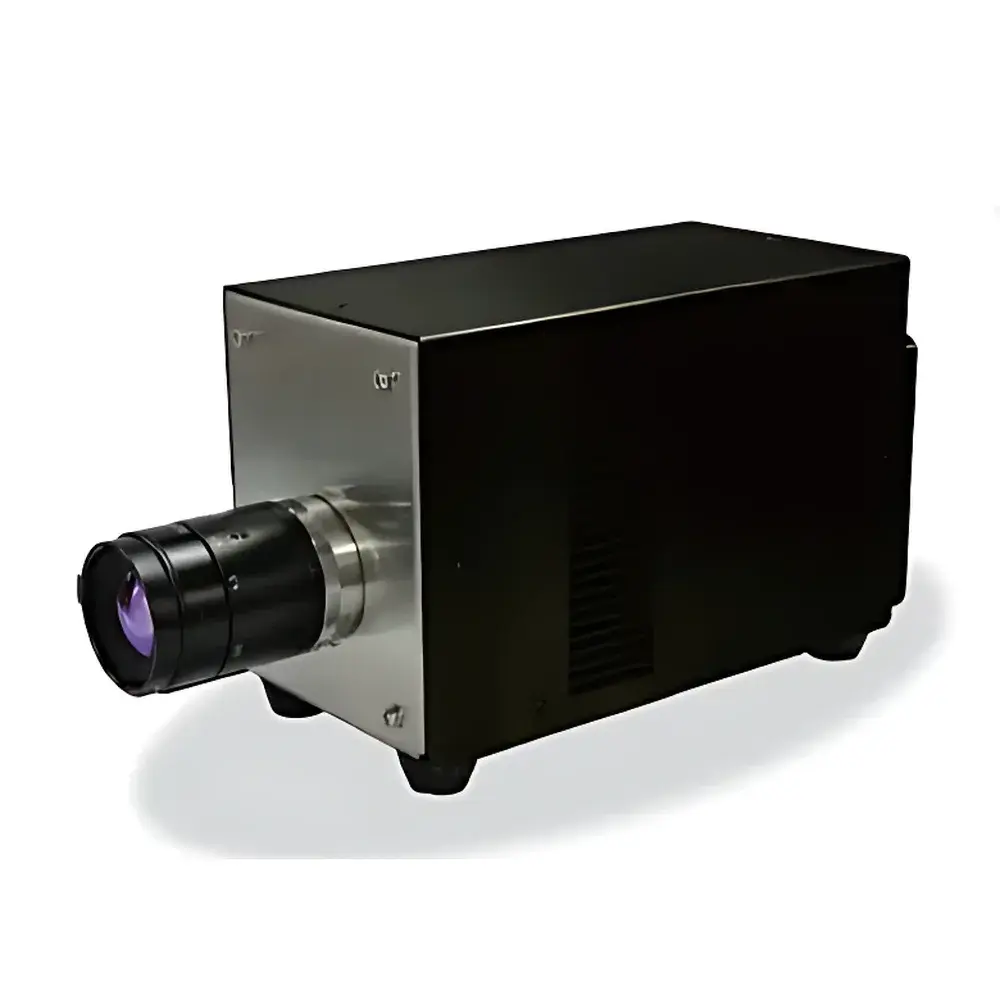

| Model | ARTCAM-2350SWIR |
| Spectral Range | 1000–2350 nm |
| Resolution | 320 × 256 pixels |
| Pixel Pitch | 30 µm × 30 µm |
| Interface | Camera Link |
| Max Frame Rate | 320 fps |
| Cooling Temperature | −75 °C (thermoelectric) |
| A/D Resolution | 16-bit |
Show next
