| Origin | Henan, China |
|---|---|
| Manufacturer Type | Authorized Distributor |
| Origin Category | Domestic (China) |
| Model | SGM3817 |
| Pricing | Available Upon Request |
| Max Operating Temperature | 1700 °C |
| Temperature Uniformity | ±6 °C |
| Temperature Stability | ±1 °C |
| Heating Rate | 5–20 °C/min |
| Control Accuracy | ±1 °C display resolution |
| Power Efficiency | >50% energy reduction vs. conventional muffle furnaces |
| Origin | Henan, China |
|---|---|
| Manufacturer Type | Authorized Distributor |
| Product Origin | Domestic (PRC) |
| Model | M1000–1200°C |
| Pricing | Available Upon Request |
| Heating Element | Kanthal A1 Resistance Wire |
| Thermocouple Types | K-type (≤1000°C), S-type (up to 1200°C) |
| Temperature Uniformity | ±2.9°C (at 1000°C, per SGM2825 configuration) |
| Control System | 30-Stage Programmable PID Controller with Auto-Tuning, Manual/Auto Seamless Switching, Over-Temperature Alarm, and Temperature Compensation/Calibration Functions |
| Display Accuracy | ±1°C |
| Ramp Rate | Adjustable |
| Thermal Insulation | Full-Ceramic Fiber Chamber (Low Thermal Mass, <30% Energy Consumption vs. Refractory Brick Furnaces) |
| Structural Design | Integrated “Full-Door” Enclosure with Ergonomic Handle and Safety Interlock |
| Origin | Henan, China |
|---|---|
| Manufacturer Type | Authorized Distributor |
| Origin Category | Domestic (China) |
| Model | SGM3818 |
| Pricing | Available Upon Request |
| Max Operating Temperature | 1800 °C (Oxidizing Atmosphere) |
| Standard Chamber Dimensions (W×D×H) | 200×100×120 mm to 500×200×250 mm (Model-Dependent) |
| Temperature Uniformity | ±8 °C |
| Temperature Stability | ±1 °C |
| Control Accuracy | ≤3 °C Overshoot |
| Control System | 50-Stage Programmable PID with Auto-Tuning, Manual/Auto Seamless Switching, Over-Temperature Alarm, Temp. Compensation & Calibration |
| Heating Architecture | Dual-Zone Independent Heating & Dual-Loop Temperature Control |
| Insulation | Patented Double-Layer Ceramic Fiber Chamber |
| Heating Element | Specialized High-Temperature Resistance Alloy (Oxidation-Stable up to 1800 °C) |
| Origin | Henan, China |
|---|---|
| Manufacturer Type | Authorized Distributor |
| Origin Category | Domestic (China) |
| Model | SGM3820 |
| Pricing | Available Upon Request |
| Max Operating Temperature | 2000 °C (oxidizing atmosphere) |
| Furnace Chamber Dimensions (SGM3820D) | 200 × 120 × 150 mm |
| Furnace Chamber Dimensions (SGM3820E) | 300 × 120 × 150 mm |
| Temperature Uniformity | ±8 °C |
| Temperature Stability | ±1 °C |
| Control Accuracy (overshoot) | ≤3 °C |
| Programmable Stages | Up to 50 segments |
| Control System | PID with self-tuning, manual/auto seamless switching, over-temperature alarm, temperature offset compensation & calibration capability |
| Heating System | Dual independent heating zones |
| Insulation Structure | Patented double-layer ceramic fiber chamber |
| Heating Element | Specialized high-purity molybdenum disilicide (MoSi₂) or silicon carbide (SiC), rated for continuous operation at 2000 °C in air |
| Origin | Henan, China |
|---|---|
| Manufacturer Type | Authorized Distributor |
| Origin Category | Domestic (China) |

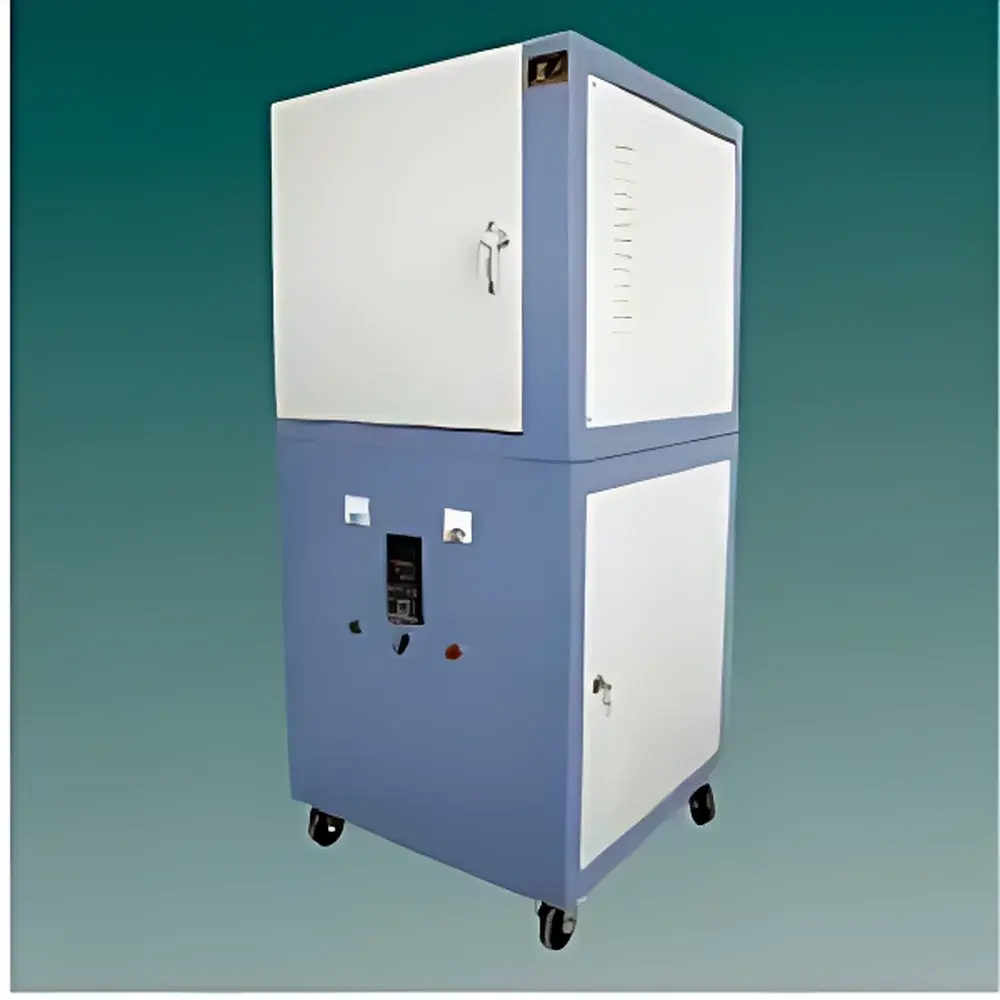

| Model | SGM3816 |
| Pricing | Available Upon Request |
| Max Temperature | 1600 °C |
| Temperature Uniformity | ±6 °C |
| Temperature Stability | ±1 °C |
| Heating Rate | 5–20 °C/min |
| Control Accuracy | ±1 °C display resolution |
| Programmable Ramp/Soak | Up to 50 segments |
| Power Efficiency | >50% reduction vs. conventional muffle furnaces |
