| Origin | Beijing, China |
|---|---|
| Manufacturer Type | Authorized Distributor |
| Origin Category | Domestic (PRC) |
| Model | JMP2000 |
| Pricing | Upon Request |
| Origin | Beijing, China |
|---|---|
| Manufacturer Type | Authorized Distributor |
| Origin Category | Domestic (PRC) |
| Model | JML04C3 |
| Price Range | USD 7,000 – 14,000 |
| Surface Tension Range | 0–150 mN/m |
| Resolution | 0.05 mN/m |
| Measurement Method | Wilhelmy Plate |
| Trough Material | PTFE (Full Fluoropolymer Construction) |
| Trough Dimensions | 300 mm × 200 mm |
| Compression Ratio | Up to 90% |
| Barrier Speed | 0.48–97 mm/min |
| Deposition Speed | 0.22–45 mm/min |
| Deposition Modes | Upstroke & Downstroke |
| Power Supply | AC 220 V ±10%, 50 Hz, 150 W Max |
| Operating Temp | Ambient (with optional external thermostatic bath interface) |
| RH Range | 30–85% |
| Compliance | ASTM D971, ISO 6295, ISO 1409, USP <721>, GLP-ready data audit trail capability |
| Origin | Shanghai, China |
|---|---|
| Manufacturer Type | Authorized Distributor |
| Origin Category | Domestic (PRC) |
| Model | JML04C1 |
| Price Range | USD 14,000 – 28,500 |
| Surface Tension Range | 0–150 mN/m |
| Resolution | 0.05 mN/m |
| Measurement Method | Wilhelmy Plate (Wilhelmy-Type) |
| Trough Material | PTFE (Fully Fluorinated) |
| Trough Dimensions | 200 mm × 80 mm |
| Compression Ratio | Up to 90% |
| Barrier Type | Leakproof Movable Barrier |
| Barrier Speed | 0.48–97 mm/min |
| Deposition Speed | 0.22–45 mm/min |
| Deposition Modes | Upward & Downward |
| Power Supply | AC 220 V ±10%, 50 Hz |
| Max. Power Consumption | 150 W |
| Operating Temperature | Ambient (with optional external thermostatic bath support) |
| Relative Humidity | 30–85% RH |
| Software Interface | Windows-based GUI with real-time A–π and A–γ curve acquisition, exportable ASCII/CSV, post-processing capability |
| Compliance | Designed for GLP-aligned laboratory workflows |
| Origin | Shanghai, China |
|---|---|
| Manufacturer Type | Authorized Distributor |
| Regional Origin | Domestic (PRC) |

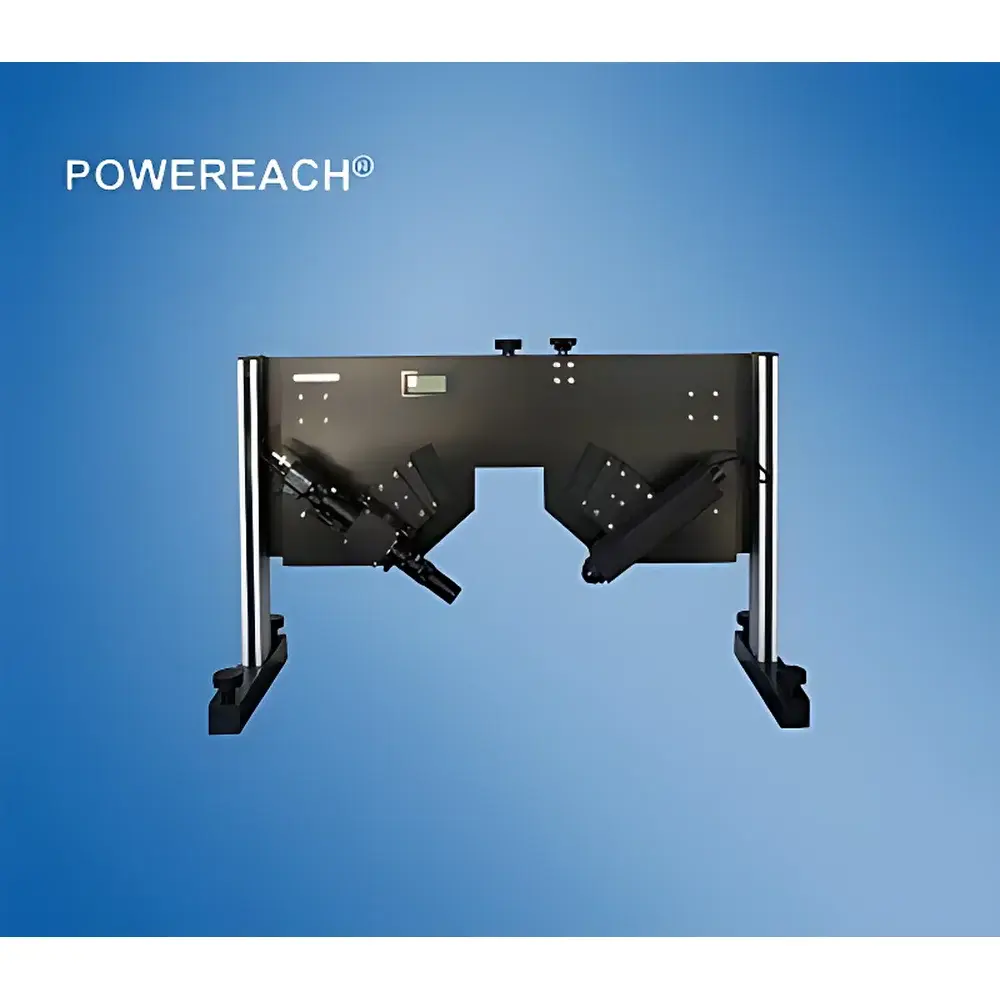

| Model | JB04 |
| Price Range | USD 14,000 – 28,000 |
| Light Source | 532 nm Green Laser (20 mW or 50 mW) |
| Laser Intensity Control | Continuous 1–100% Adjustment |
| Objective Lens | Nikon MS-01 Continuous Zoom, Working Distance 90 mm, Magnification Equivalent to 700–110 px/mm |
| Spatial Resolution | 2 µm |
| Incident Angle Range | 45°–60° |
| Polarization System | High-Extinction-Ratio Glan-Taylor or Wollaston Prism Polarizer |
| Imaging Sensor | Scientific-Grade CCD with Software-Controlled Electronic Shutter |
| Frame Acquisition | CG400 High-Speed Image Capture Card |
| Operating System | Windows 2000/XP-Compatible Native GUI Application |
| Origin | Beijing, China |
|---|---|
| Manufacturer Type | Authorized Distributor |
| Origin Category | Domestic (China) |
| Model | JML04S |
| Pricing | Available Upon Request |
| Origin | Beijing, China |
|---|---|
| Manufacturer Type | Authorized Distributor |
| Origin Category | Domestic (PRC) |

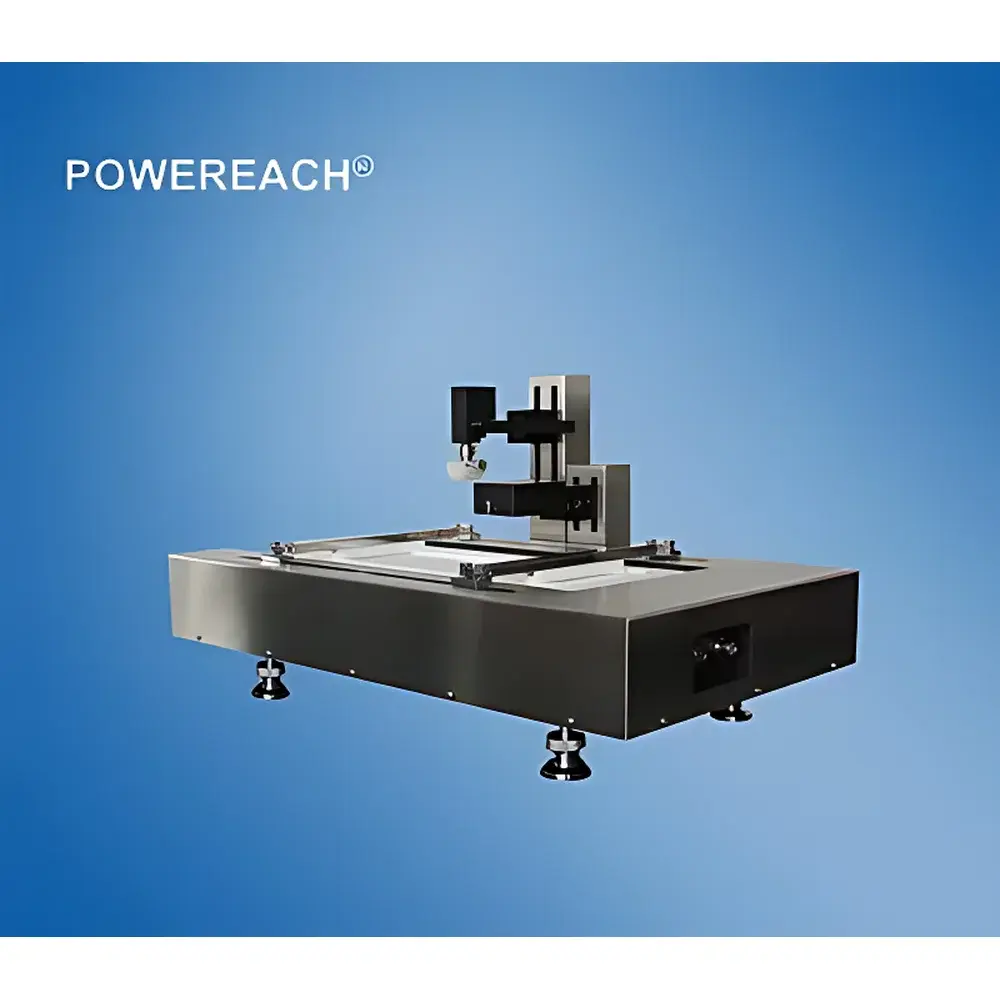

| Model | JML04C2 |
| Pricing | Available Upon Request |
| Surface Tension Range | 0–150 mN/m |
| Resolution | 0.05 mN/m |
| Measurement Method | Wilhelmy Plate (Wilhelmy Type) |
| Trough Configuration | Langmuir |
| Trough Material | Fully PTFE (Teflon®) |
| Trough Dimensions | 300 mm × 100 mm |
| Compression Ratio | Up to 90% |
| Barrier Type | Leakproof Barrier |
| Barrier Speed | 0.48–97 mm/min |
| Deposition Speed | 0.22–45 mm/min |
| Deposition Modes | Upward & Downward |
| Power Supply | AC 220 V ±10%, 50 Hz |
| Max Power Consumption | 150 W |
| Operating Temperature | Ambient (with optional external thermostatic bath support) |
| Operating Humidity | 30–85% RH |
| Software Interface | Windows-based GUI with data export, curve fitting, and post-processing capability |
| Compliance | Designed for GLP-compliant lab environments |
| Origin | Beijing, China |
|---|---|
| Manufacturer Type | Authorized Distributor |
| Origin Category | Domestic (PRC) |
| Model | JML15A |
| Price Range | USD 28,000 – 70,000 |
| Surface Tension Range | 0–150 mN/m |
| Resolution | < 0.05 mN/m |
| Measurement Method | Wilhelmy Plate (Du Noüy–Washburn Principle) |
| Trough Dimensions | 700 mm × 140 mm |
| Compression/Expansion Speed | 10–100 mm/min (infinitely variable) |
| Temperature Control | Dual independent thermostatic water jackets (30 L pure water reservoir + 10 L trough jacket), both stabilized at 35 ± 0.5 °C |
| Cleaning | Automated spray-based trough and plate cleaning with waste drainage |
| Data Acquisition | PC-hosted Windows software with real-time π–A and γ–A isotherm plotting, programmable barrier control, constant surface pressure mode, and audit-trail-capable data logging |
| Origin | Beijing, China |
|---|---|
| Manufacturer Type | Authorized Distributor |
| Origin Category | Domestic (PRC) |
| Model | SCI300C2 |
| Price Range | USD 14,000 – 28,500 |
| Surface Tension Range | 0–150 mN/m |
| Resolution | 0.05 mN/m |
| Measurement Method | Wilhelmy Plate (ISO 6295, ASTM D971) |
| Trough Material | PTFE (fully fluorinated) |
| Trough Dimensions | 300 mm × 100 mm |
| Compression Ratio | Up to 90% |
| Barrier Speed | 0.48–97 mm/min |
| Deposition Speed | 0.22–45 mm/min |
| Deposition Modes | Upstroke & Downstroke |
| Power Supply | AC 220 V ±10%, 50 Hz |
| Max. Power Consumption | 150 W |
| Operating Temp. | Ambient (compatible with external thermostatic bath) |
| RH Range | 30–85% |
| Optional Configurations | Dual-trough, multi-trough, or custom-area troughs |
| Origin | Beijing, China |
|---|---|
| Manufacturer Type | Authorized Distributor |
| Regional Origin | Domestic (PRC) |
| Model | JML15A |
| Price Range | USD 14,000 – 28,000 |
| Surface Tension Range | 0–150 mN/m |
| Resolution | < 0.05 mN/m |
| Measurement Principle | Wilhelmy Plate Method |
| Trough Dimensions | 700 mm × 140 mm |
| Compression/Expansion Speed | 10–100 mm/min (infinitely variable) |
| Temperature Control | Dual independent water jackets (30 L pure water tank & 10 L trough jacket), both stabilized at 35 ± 0.5 °C |
| Compliance | ASTM D971, ISO 6295, USP <721>, GLP-ready data logging |
