OriginGermany
Manufacturer TypeAuthorized Distributor
Origin CategoryImported Instrument
ModelAlcotest 9510
PricingUpon Request
Added to wishlistRemoved from wishlist 0
Add to compare
OriginShenzhen, China
Manufacturer TypeAuthorized Distributor
Origin CategoryDomestic (China)

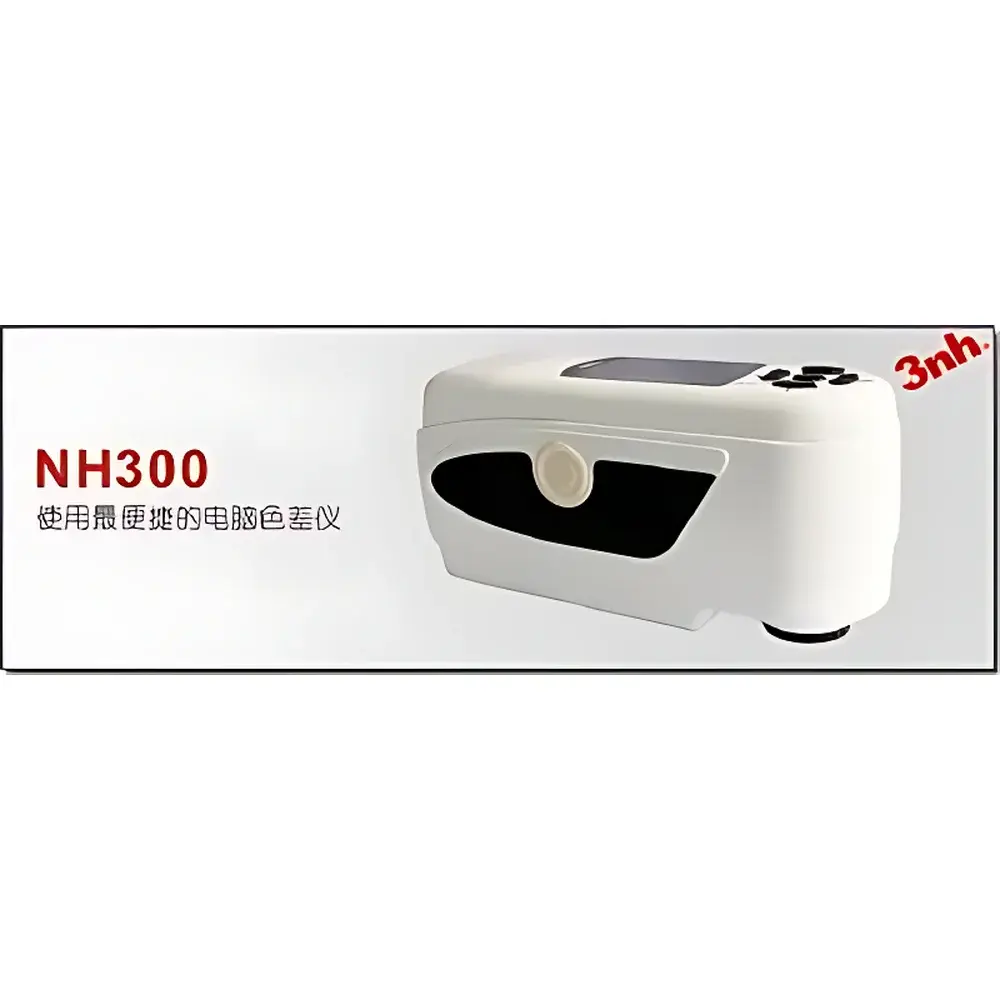

ModelNH300
PricingAvailable Upon Request
Measurement Geometry8°/diffuse
Aperture8 mm
DetectorSilicon Photodiode
IlluminantLED (Blue-LED Excited Phosphor)
Inter-instrument Agreement≤0.40 ΔE*ab
Repeatability0.10 ΔE*ab (30 measurements on white tile)
Memory Capacity100 standards / 8,000 samples
Weight500 g
Dimensions205 × 70 × 100 mm
Power SupplyRechargeable Li-ion Battery (3.7 V, 3200 mAh)
Lamp Lifetime>1.6 million measurements (≥5 years)
Charging Time~8 h for full charge
Measurements per Charge~3,000 in 8 h
Operating Conditions10–40 °C, 0–85% RH (non-condensing)
InterfaceUSB
Optional AccessoriesExtended Φ8 mm probe for concave surfaces, Thermal Mini Printer
Added to wishlistRemoved from wishlist 0
Add to compare
OriginPoland
Distribution ModelAuthorized Distributor
Import StatusImported
ModelMD-20 / MD-25
PriceUpon Request
Rope Diameter RangeMD-20: 8–22 mm
MD-2510–25 mm
Operating Speed0.1–2.5 m/s
Sensitivity Adjustment10-level potentiometer
IndicatorsLB (red, low battery), OK (green, no defect), D (yellow, defect detected, flashing), DM (red, defective rope, steady)
Audible AlarmYes
Power SupplyRechargeable 9 V battery
Operating TemperatureStandard models: −10 °C to +40 °C
MD-20L variant−25 °C to +40 °C
Dimensions (L×W×H)205 × 46 × 280 mm (with roller guide)
WeightMD-20: 4.5 kg
MD-254.9 kg
Added to wishlistRemoved from wishlist 0
Add to compare
OriginGermany
Manufacturer TypeAuthorized Distributor
Origin CategoryImported
ModelFMP30
PricingUpon Request
Added to wishlistRemoved from wishlist 0
Add to compare
[OriginBeijing, China
Manufacturer TypeAuthorized Distributor
Origin CategoryDomestic (China)
ModelCTS-8005Aplus
PricingAvailable Upon Request
Operating Frequency0.5–15 MHz (dual-band wide/narrow mode)
Gain Range110 dB with step options of 0.1 / 1.0 / 2.0 / 6.0 dB
Detection Range0–5000 mm (steel longitudinal wave)
Pulse Shift−20 to 3000 µs
Sound Velocity1000–9999 m/s
Pulse Repetition Frequency25–800 Hz (adjustable)
Vertical Linearity≤4%
Horizontal Linearity≤0.5%
Resolution≥28 dB
Sensitivity Margin≥60 dB (200 mm–φ2 mm flat-bottom hole)
Dynamic Range≥32 dB
Electrical Noise Level≤10%
Suppression0–80% (linear)
Detection ModesFull-wave, Positive half-wave, Negative half-wave
Alarm OutputAudio + visual
InterfaceHigh-speed USB 2.0, 25-pin parallel printer port
Display6.5″ TFT color LCD, 640×480 resolution, ambient-light-adaptive color scheme
Power SupplyAC 220 V charger + rechargeable lithium-ion battery (no memory effect, >6 h continuous operation)
Operating Temperature−30°C to +50°C
Dimensions (L×W×H)250 × 186 × 59 mm
Weight~2.0 kg]
Added to wishlistRemoved from wishlist 0
Add to compare
OriginPoland
Manufacturer TypeAuthorized Distributor
Origin CategoryImported Instrument
ModelWRD120B
PricingUpon Request
