| Brand | GreenPrima |
|---|---|
| Origin | Germany |
| Manufacturer | GreenPrima GmbH |
| Product Type | Ultrasonic Level Meter |
| Model | PROLEV500 |

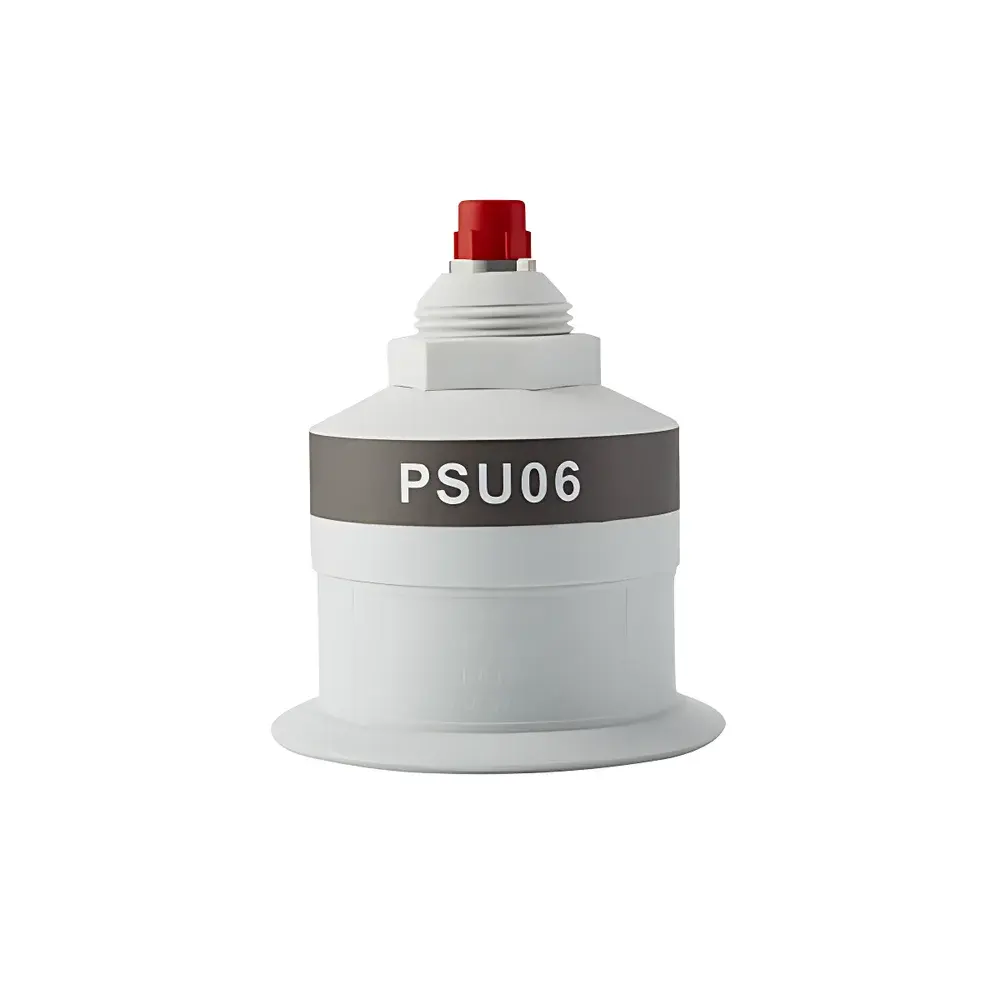

| Sensor Models | PSU06 (0.3–6 m range), PSU12 (0.5–12 m range) |
| Accuracy | ±0.2% FS |
| Resolution | 1 mm |
| Max Process Pressure | 1.0 bar |
| Operating Temperature (Sensor) | −30 to +70 °C |
| Operating Temperature (Controller) | −20 to +60 °C |
| Sensor Housing Material | PC/PP |
| Controller Housing Material | ABS |
| Display | 320 × 240 pixel color LCD with backlight |

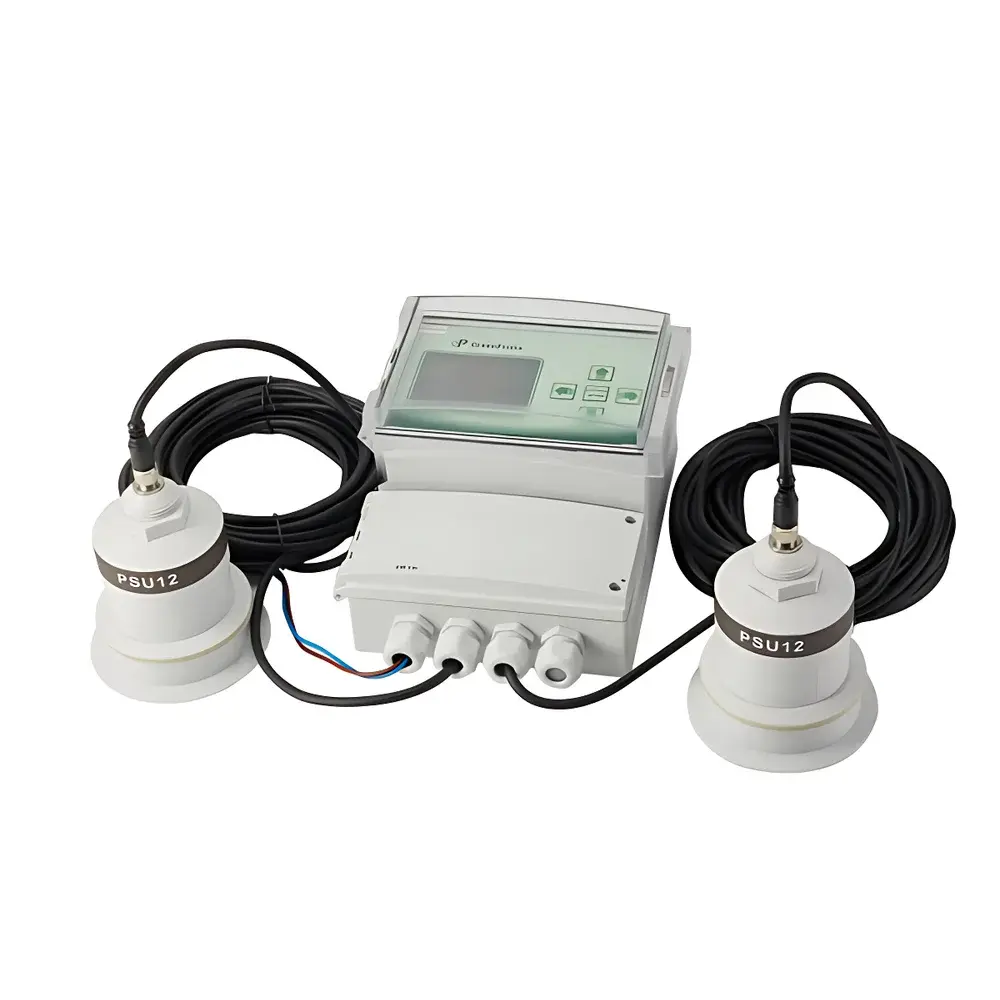

| Outputs | Dual 4–20 mA analog outputs + Modbus RTU (RS-485) + 2 relays (PROLEV500) or 5 relays (PROLEV500D) |
| Power Supply | 85–230 V AC or 24 V DC |
| Ingress Protection | IP66 (controller), IP68 (sensor) |
| Mounting Options | Wall, pipe, or DIN rail |
| Dimensions (Controller) | 184 × 223 × 130 mm |
| Cable Length | 10 m standard |
| Process Connection | G1" female thread |
| Sensor Diaphragm Material | ETFE or PVDF |
| Signal Processing | Microprocessor-based echo analysis with adaptive gain control, temperature compensation, and false-echo suppression |
