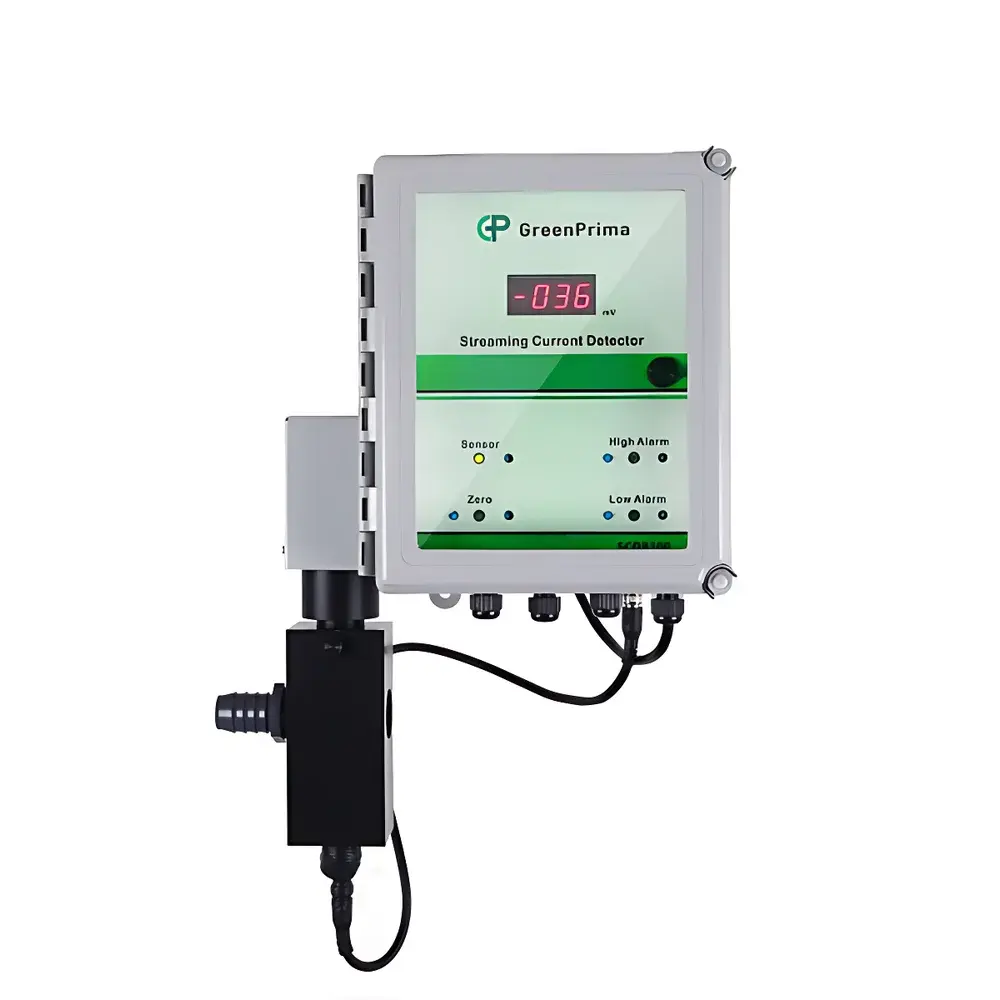

| Brand | GreenPrima |
|---|---|
| Origin | USA |
| Manufacturer Type | Manufacturer |
| Origin Category | Imported |
| Model | SCD8200 |
| Power Supply | 230 VAC |
| Measurement Range | −1000 to +1000 mV |
| Accuracy | ±0.1% of full scale |
| Response Time | 1 s |
| Flow Rate | 1 US gal/min (3.785 L/min) |
| Inlet Connection | 1/2" barbed |
| Outlet Connection | 3/4" barbed |
| Output Signals | 4–20 mA, −10 to +10 V, 0–10 V |
| Communication | Modbus RTU (optional) |
| Alarm Outputs | Hi/Lo relay contacts |
| Enclosure Rating | NEMA 4X, IP65 |
| Display | LED |
| Sensor Diagnostics | Integrated LED indicator |
| Weight | 9 kg |
| Dimensions | 11" × 6" × 6" (279 × 152 × 152 mm) |

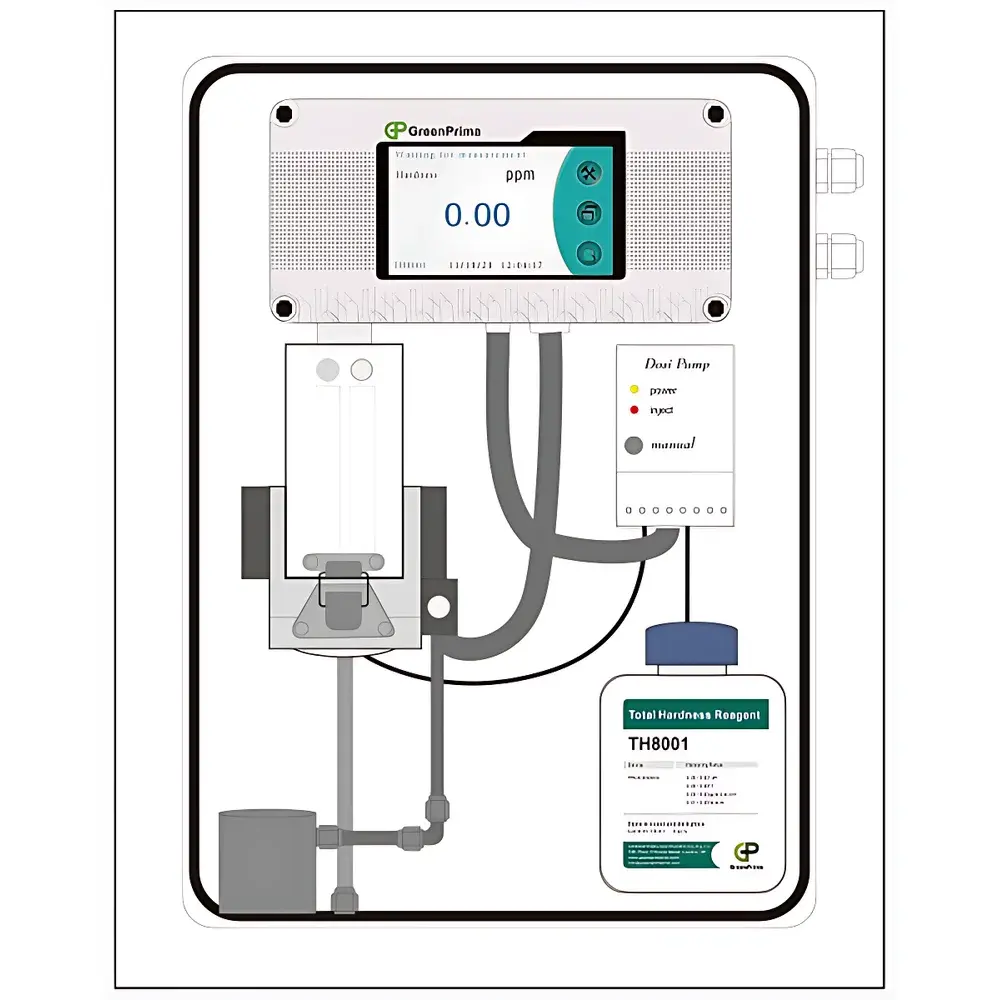

| Brand | GreenPrima |
|---|---|
| Origin | Germany |
| Manufacturer Type | Manufacturer |
| Origin Category | Imported |
| Model | PROCON 8000 |
| Measurement Principle | Titrimetric Colorimetry |
| Range | 0.89–448 mg/L as CaCO₃ |
| Accuracy | ±2% of selected reagent upper limit |
| Repeatability | ±1% of selected reagent upper limit |
| Measurement Time | ~3 min (hardness-dependent) |
| Display | Graphical backlit LCD |
| Power Supply | 230 V or 24 V ±10%, 50–60 Hz |
| Power Consumption | 25 VA (operational), 3.5 VA (standby) |
| Dimensions | 300 × 400 × 180 mm (W×H×D) |
| Enclosure Rating | IP65 |
| Installation | Wall-mounted |
| Output Interfaces | 2× programmable digital inputs, 4–20 mA analog output, RS485, CAN bus |
| Data Storage | SD card (fault logging, event history) |
| Sample Requirements | pH 4–10 |
| Sample Temp. | 5–40 °C |
| Ambient Temp. | 10–50 °C |
| Operating Pressure | 0.3–8 bar (recommended: 1–5 bar) |
| Flush Duration | 0–99 s (configurable) |
| Cycle Mode | Time-based (0–255 min), external trigger, or flow-synchronized |
| Units | °dH, °f, mg/L as CaCO₃, mmol/L |
| Brand | GreenPrima |
|---|---|
| Origin | Switzerland |
| Manufacturer Type | Original Equipment Manufacturer (OEM) |
| Import Status | Imported |
| Model | BSens 140T |
| Measurement Range | 0–14 pH |
| Operating Temperature | −5 to 100 °C |
| Resolution | 0.01 pH |
| Accuracy | ±0.01 pH |
| Max. Pressure Rating | 3.5 bar |
| Sensing Element | AH-Type Glass Bulb (Asymmetric Hydrogen-Responsive) |
| Reference System | Integrated Gel-Filled Ag/AgCl Reference |
| Body Material | Chemically Resistant Glass |
| Threaded Connection | PG13.5 (DIN 40430) |
| Cable Options | 5 m / 10 m / Custom Length |
| Electrolyte Type | Polymer-Gel Electrolyte (Maintenance-Free, Leakage-Resistant) |
| Brand | GreenPrima |
|---|---|
| Origin | Switzerland |
| Manufacturer Type | OEM Manufacturer |
| Origin Category | Imported |
| Model | BSens130 |
| Measuring Range | 0–14 pH |
| Operating Temperature | −5 to 135 °C |
| Resolution | 0.01 pH |
| Accuracy | ±0.01 pH |
| Max. Pressure Rating | 10 bar |
| Sensing Element | AH-Type Glass Bulb |
| Reference System | Integrated Gel-Filled Reference |
| Electrolyte | Polymer-Gel Electrolyte |
| Connector | S8 Plug |
| Thread Size | PG13.5 |
| Cable Length Options | 5 m, 10 m, or Custom |

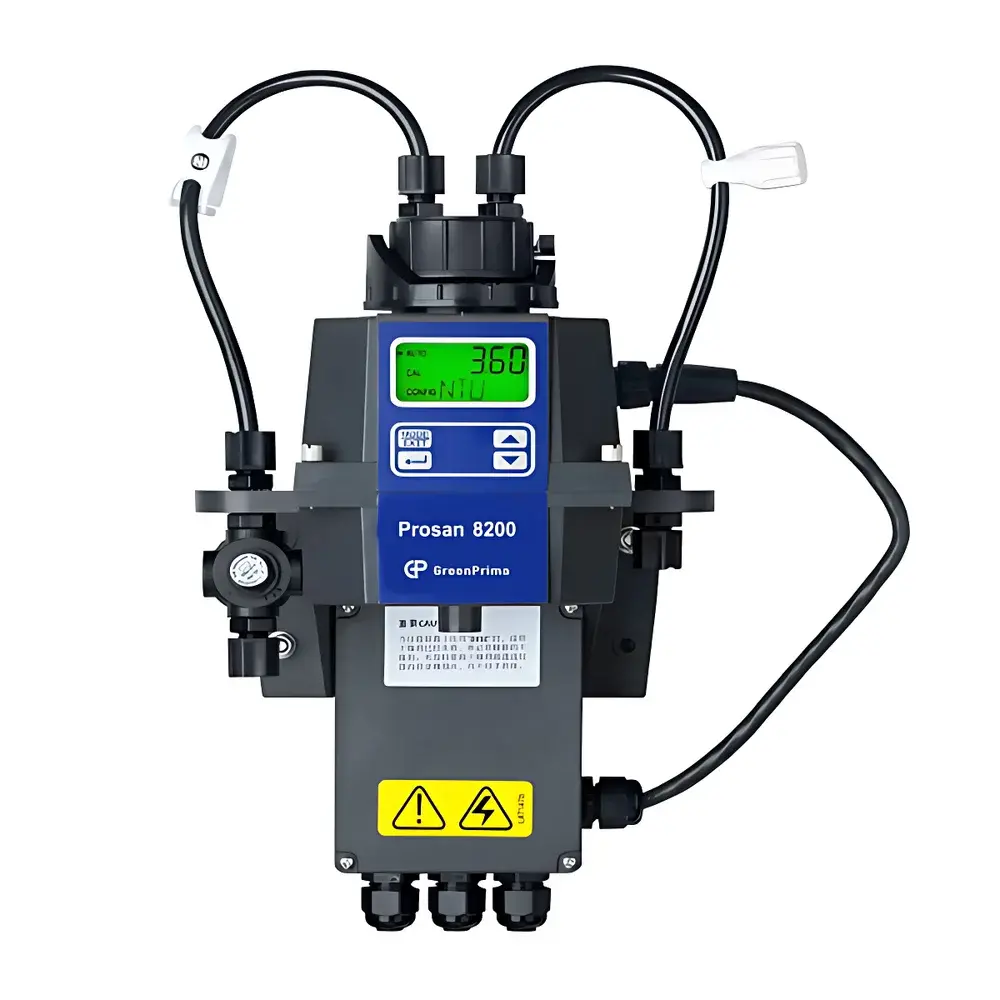

| Brand | GreenPrima |
|---|---|
| Origin | USA |
| Manufacturer Type | Manufacturer |
| Origin Category | Imported |
| Model | PROSAN8200 |
| Measurement Range | 0–1000.0 NTU (auto-ranging: 0.0001–10 NTU and 10–1000 NTU) |
| Accuracy | ±2% of reading or ±0.02 NTU at ≤40 NTU |
| Resolution | 0.0001 NTU (for values <10 NTU) |
| Response Time | 5–20 s (adjustable) |
| Light Source | White LED (7-year lifetime), IR LED (10-year lifetime) |
| Display | Backlit multi-line LCD |
| Analog Output | 4–20 mA (powered, max load 600 Ω) |
| Communication | Bidirectional RS-485, Modbus RTU |
| Max Operating Pressure | 1380 kPa (integrated pressure regulator) |
| Flow Rate | 100 mL/min – 1 L/min |
| Sample Temp. Range | +1 °C to +50 °C |
| Wetted Materials | Nylon, borosilicate glass, silicone, polypropylene, stainless steel (316) |
| Power Supply | 100–240 VAC, 47–63 Hz, 80 VA |
| Ingress Protection | IP66 / NEMA 4X |
| Certifications | US EPA Method 180.1 compliant, ISO 7027, CE, ETL Listed to UL 61010-1 & CSA C22.2 No. 1010.1-92 |

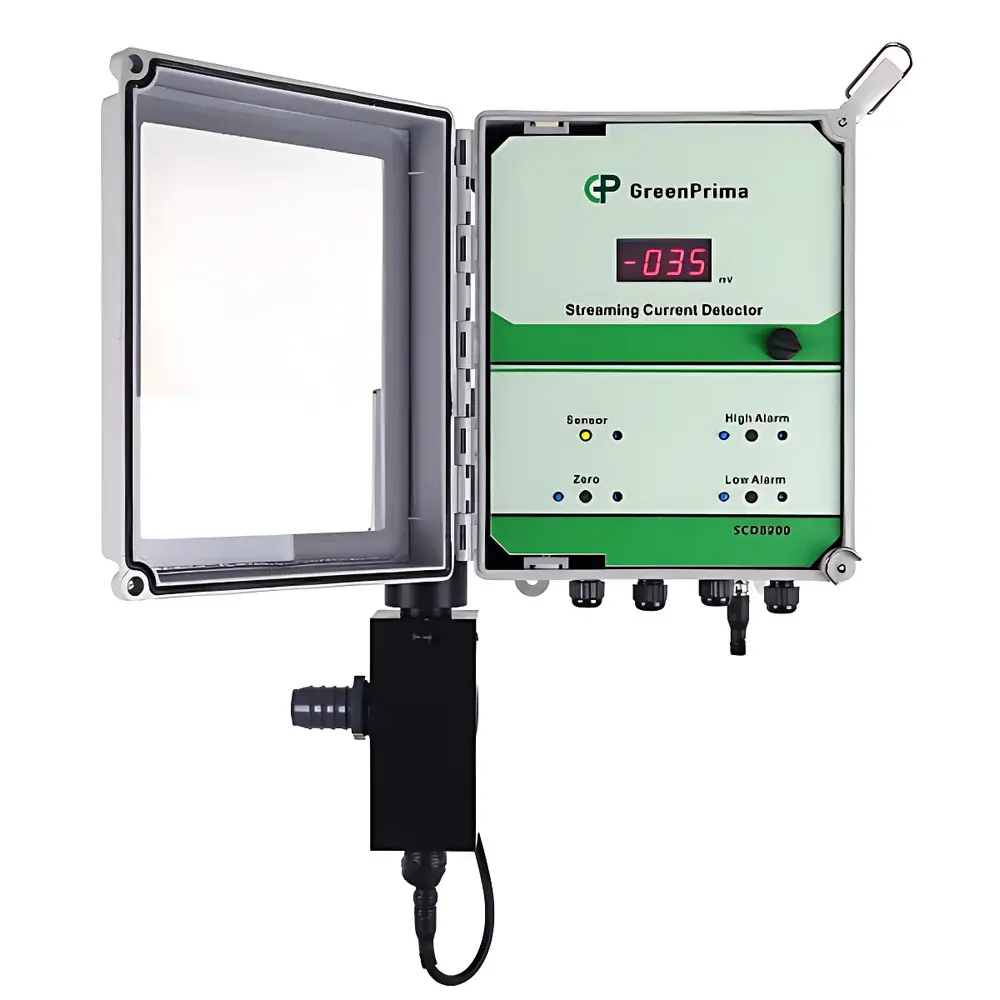

| Brand | GreenPrima |
|---|---|
| Origin | USA |
| Manufacturer | GreenPrima, Inc. |
| Model | SCD8200 |
| Measurement Principle | Streaming Current Detection |
| Output Signal | 4–20 mA / ±10 V / 0–10 V |
| Power Supply | 230 VAC |
| Measurement Range | −1000 to +1000 mV |
| Accuracy | ±0.1% of full scale |
| Response Time | 1 s |
| Sample Flow Rate | 1 US gal/min (≈3.785 L/min) |
| Inlet Connection | 1/2″ barbed fitting |
| Outlet Connection | 3/4″ barbed fitting |
| Enclosure Rating | NEMA 4X, IP65 |
| Operating Temperature | −10 °C to +50 °C |
| Weight | 9 kg |
| Alarm Outputs | Hi/Lo relay contacts |
| Brand | GreenPrima |
|---|---|
| Origin | United Kingdom |
| Manufacturer Type | Original Equipment Manufacturer (OEM) |
| Product Category | Imported Instrument |
| Model | PM8200I |
| Measurement Range | 0.00–20,000 ppm as CaCO₃ |
| Resolution | 0.01 / 0.1 / 1 ppm |
| Accuracy | ±0.01 / ±0.1 / ±1 ppm (depending on range) |
| Temperature Compensation | –10 to 130 °C (manual/automatic |
| Operating Temperature | 0 to 70.0 °C |
| Storage Temperature | –20 to 70.0 °C |
| Display | Backlit large-dot-matrix LCD with pH, temperature, time, and relay status |
| Data Storage | 600,000 records with query function |
| Output | Two isolated 4–20 mA outputs (max. loop resistance 500 Ω, accuracy 0.1% FS) |
| Communication | RS485 interface, MODBUS RTU protocol compliant |
| Relay Output | One multifunctional relay (for cleaning cycle control, periodic alarm, fault alarm) |
| Cleaning Control | Adjustable interval (0.1–1000 h) and duration (1–1000 s) |
| Power Supply | 90–260 VAC, 50/60 Hz or optional 24 VDC |
| Enclosure Rating | IP65 (fully sealed, dust-tight, water-resistant) |
| Mounting Options | Wall-mount, pole-mount, panel-mount |
| Dimensions | 144 × 144 × 106 mm |
| Panel Cutout | 138 × 138 mm |
| Weight | 0.86 kg |

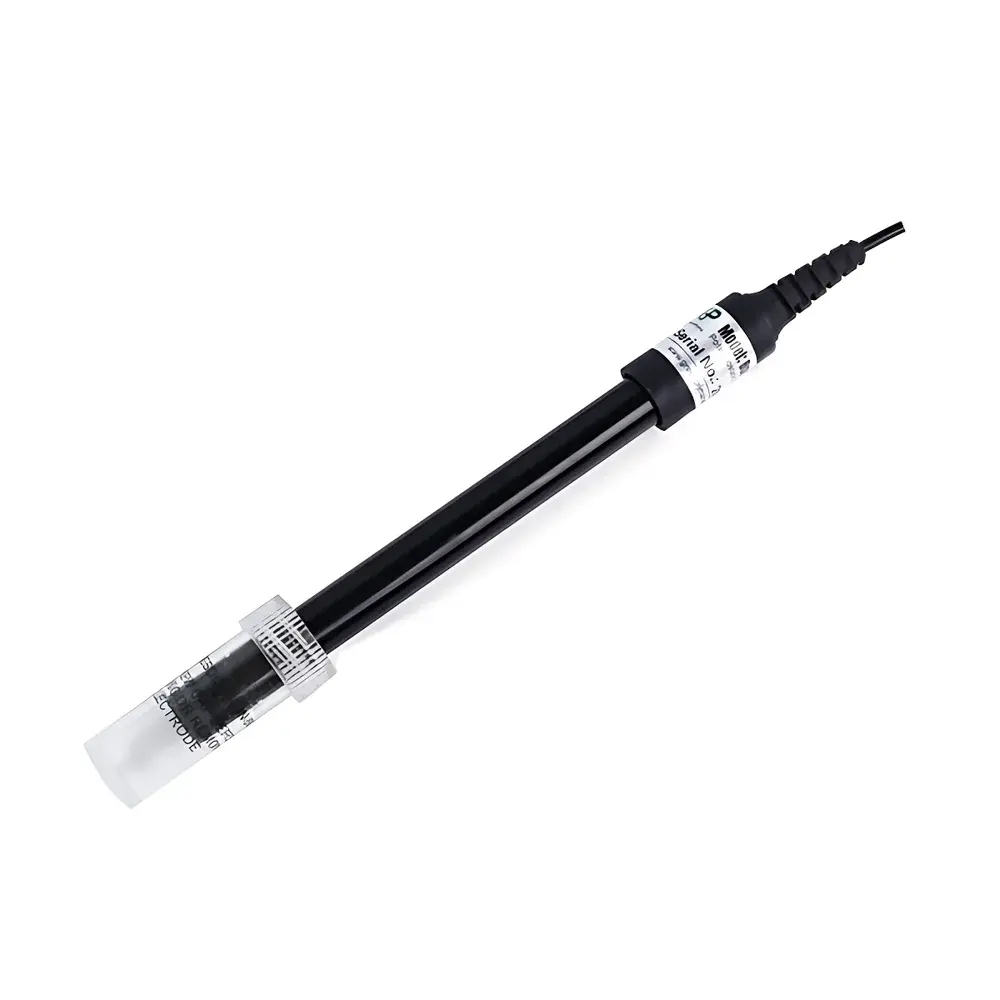

| Sensor Model | Bsens740 |
| Sensor Range | 0–40,000 mg/L as CaCO₃ |
| Sensor Resolution | 0.01 mg/L |
| Sensor Accuracy | ±3% FS |
| Sensor Material | Polyphenylsulfone (PPS) |
| Sensor Operating Temp. | –5 to 70.0 °C |
| Max. Pressure Rating | 3.5 bar |
| Sensor Connection | PG13.5 fixed thread |
| Cable Length | 5 m |
| Language Interface | Switchable English/Chinese menu |
| Auto-backlight Timeout | 3 min (configurable) |
| Contrast Adjustment | User-adjustable |
| Brand | GreenPrima |
|---|---|
| Origin | United Kingdom |
| Manufacturer Type | Original Equipment Manufacturer (OEM) |
| Product Category | Imported Instrument |
| Model | PM 8200I |
| Price Range | USD 1,400 – 7,000 (FOB UK) |
| Measurement Range | 0.00–20,000 ppm CaCO₃ equivalent |
| Resolution | 0.01 / 0.1 / 1 ppm |
| Accuracy | ±0.01 / ±0.1 / ±1 ppm (depending on range) |
| Temperature Compensation | −10 to 130 °C (manual/automatic |
| Operating Temperature | 0 to 70.0 °C |
| Storage Temperature | −20 to 70.0 °C |
| Display | Backlit graphic LCD (128 × 64 pixels) |
| Data Storage | 600,000 records with timestamped retrieval |
| Power Supply | 90–260 VAC, 50/60 Hz or optional 24 VDC |
| Enclosure Rating | IP65 |
| Communication | RS485, MODBUS RTU protocol |
| Analog Outputs | Two isolated 4–20 mA outputs (max. loop resistance 500 Ω, accuracy ±0.1% FS) |
| Relay Output | One multifunctional relay (configurable for cleaning control, periodic alarm, fault alarm) |
| Cleaning Control | Adjustable interval (0.1–1000 h) and duration (1–1000 s) |
| Electrode Model | Bsens740 |
| Electrode Range | 0–40,000 mg/L as CaCO₃ |
| Electrode Resolution | 0.01 mg/L |
| Electrode Accuracy | ±3% FS |
| Electrode Body Material | Polyphenylsulfone (PPS) |
| Electrode Max. Pressure | 3.5 bar |
| Electrode Temp. Range | −5 to 70.0 °C |
| Electrode Connection | PG13.5 threaded fitting |
| Cable Length | 5 m |
| Mounting Options | Wall-mount, pole-mount, panel-mount |
| Dimensions | 144 × 144 × 106 mm |
| Panel Cutout | 138 × 138 mm |
| Weight | 0.86 kg |

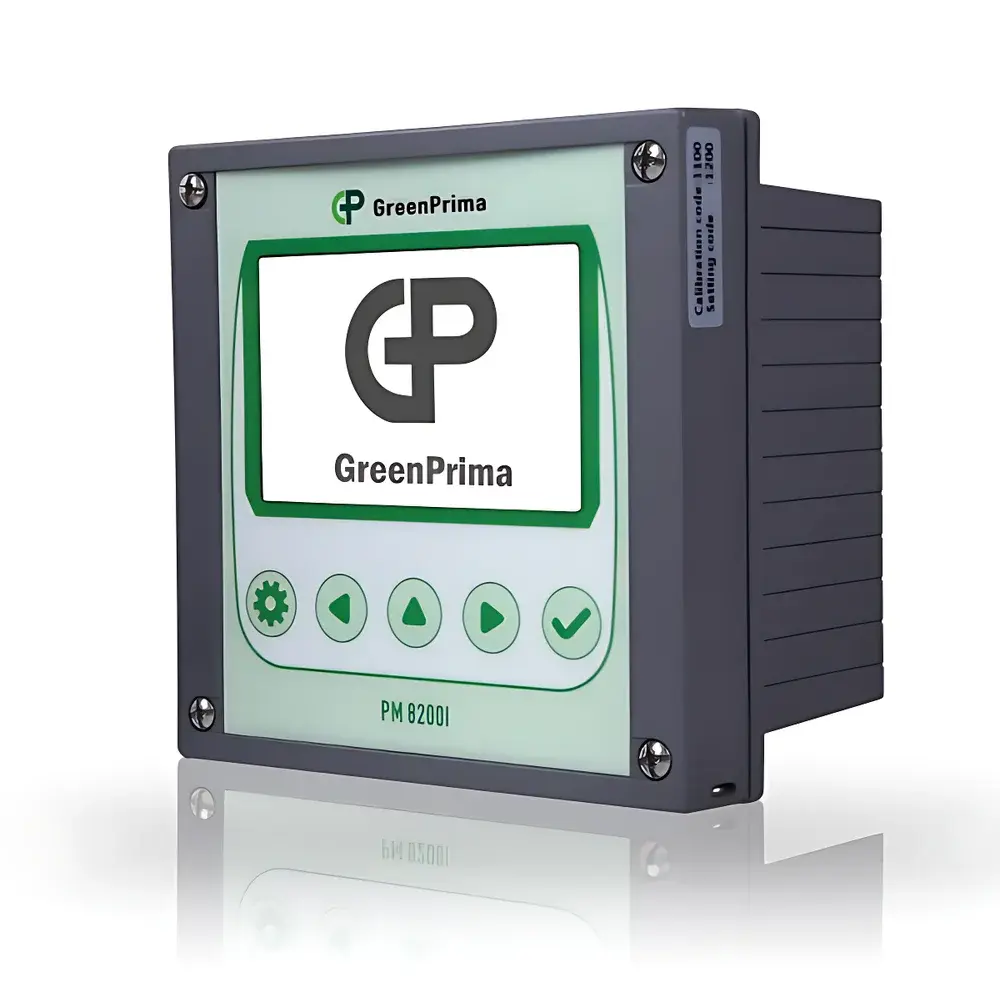

| Brand | GreenPrima |
|---|---|
| Origin | United Kingdom |
| Manufacturer Type | Original Equipment Manufacturer (OEM) |
| Product Category | Imported Instrument |
| Model | PM 8200 |
| Price Range | USD 1,400 – 7,000 (FOB UK) |

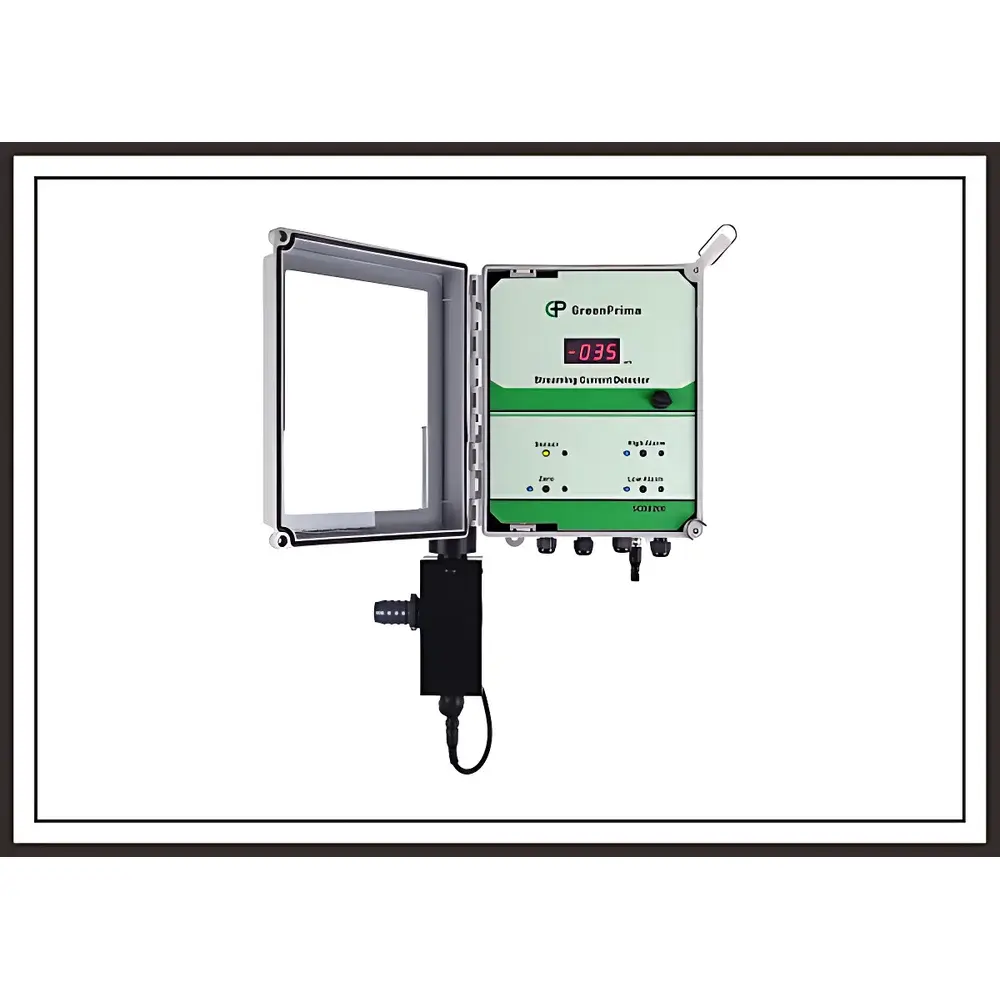

| Brand | GreenPrima |
|---|---|
| Origin | USA |
| Manufacturer Type | Original Equipment Manufacturer (OEM) |
| Product Category | Imported Instrument |
| Model | SCD8200 |
| Power Supply | 230 VAC |
| Measurement Range | −1000 to +1000 mV |
| Accuracy | ±0.1% of full scale |
| Flow Rate | 1 L/min |
| Response Time | 1 s |
| Output Signals | 4–20 mA, −10 to +10 V, 0–10 V |
| Communication | Modbus RTU (optional) |
| Enclosure Rating | NEMA 4X / IP65 |
| Inlet/Outlet | 1/2″ and 3/4″ barbed quick-connect fittings |
| Sensor Housing Material | Chemically resistant non-metallic polymer |
| Weight | 9 kg |
| Dimensions | 279 mm × 152 mm (11″ × 6″) |
| Brand | GreenPrima |
|---|---|
| Origin | USA |
| Manufacturer Type | Manufacturer |
| Origin Category | Imported |
| Model | 8200SCD |
| Price Range | USD 6,800 – 13,600 |
| Power Supply | 100–240 VAC, 50/60 Hz |
| Measurement Range | −1000 to +1000 mV |
| Accuracy | ±0.1% of full scale |
| Response Time | 1 second |
| Sample Flow Rate | 1 US gallon per minute (3.785 L/min) |
| Inlet Connection | 1/2" barbed quick-connect |
| Outlet Connection | 3/4" barbed quick-connect |
| Enclosure Rating | NEMA 4X / IP65 |
| Output Signals | 4–20 mA, ±10 V, 0–10 V |
| Communication Protocol | MODBUS RTU (optional) |
| Alarm Outputs | Dual SPDT relays (high/low) |
| Sensor Materials | Delrin®, 316 stainless steel, PTFE |
| Weight | 9 kg |
| Display | LED-based local interface |
| Auto-zero Calibration | Yes |
| Diagnostic Indicators | Integrated sensor LED status |
| Brand | GreenPrima |
|---|---|
| Origin | USA |
| Manufacturer | GreenPrima, Inc. |
| Model | SCD8200 |
| Measurement Principle | Streaming Current Detection via Piston-Driven Shear Flow |
| Output Signal | 4–20 mA / ±10 V / 0–10 V |
| Power Supply | 230 VAC |
| Measurement Range | –1000 to +1000 mV |
| Accuracy | ±0.1% of full scale |
| Response Time | 1 second |
| Sample Flow Rate | 1 US gallon per minute (3.785 L/min) |
| Inlet/Outlet | 1/2″ and 3/4″ barbed quick-connect fittings |
| Enclosure Rating | NEMA 4X / IP65 |
| Dimensions | 11″ × 6″ × 6″ (W×H×D) |
| Weight | 9 kg |
| Diagnostic Indicators | Sensor LED status |
| Communication Option | Modbus RTU (optional) |
| Alarm Outputs | Dual SPDT relays (Hi/Lo) |
| Zero & Gain Adjustment | Manual potentiometer-based calibration |
| Brand | GreenPrima |
|---|---|
| Origin | USA |
| Manufacturer | GreenPrima, Inc. |
| Type | Imported |
| Model | SCD 8200 |
| Power Supply | 230 VAC |
| Measurement Range | −1000 to +1000 mV |
| Accuracy | ±0.1% of full scale |
| Flow Rate | 1 L/min (≈0.264 GPM) |
| Response Time | 1 s |
| Sensor Inlet | 1/2″ barbed fitting |
| Sensor Outlet | 3/4″ barbed fitting |
| Enclosure | NEMA 4X non-metallic housing (IP65) |
| Output Signals | 4–20 mA, ±10 V, 0–10 V |
| Optional Communication | Modbus RTU |
| Alarm Outputs | High/Low relay contacts |
| Weight | 9 kg |

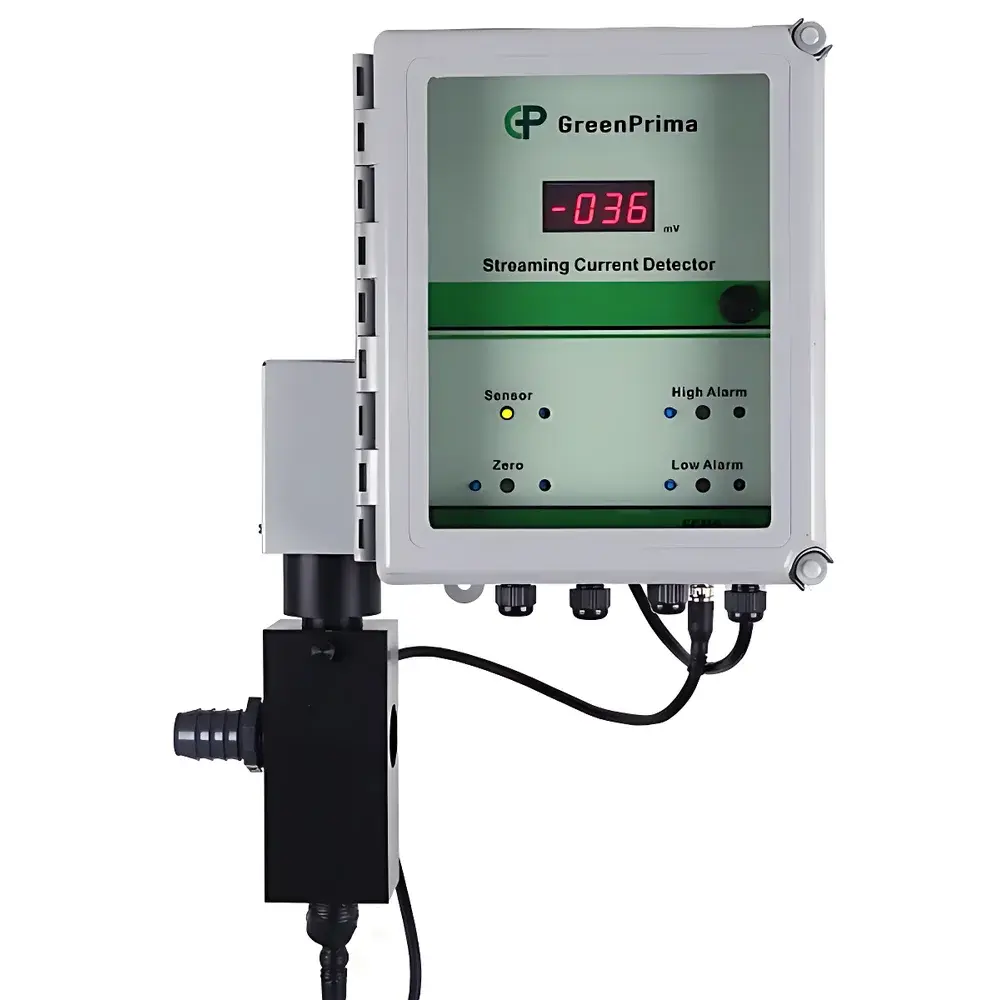

| Brand | GreenPrima |
|---|---|
| Origin | USA |
| Manufacturer | GreenPrima Instruments |
| Product Category | Imported |
| Model | SCD-8200 |
| Power Supply | 100–240 VAC, 50/60 Hz |
| Measurement Range | −1000 to +1000 mV |
| Accuracy | ±0.1% of full scale |
| Response Time | 1 second |
| Flow Rate | 1 US gallon per minute (3.785 L/min) |
| Inlet Connection | 1/2″ barbed quick-connect |
| Outlet Connection | 3/4″ barbed quick-connect |
| Enclosure Rating | NEMA 4X / IP65 |
| Output Signals | 4–20 mA, ±10 V, 0–10 V |
| Communication Protocol | MODBUS RTU (optional) |
| Alarm Outputs | Dual SPDT relays (high/low) |
| Sensor Materials | Delrin®, 316 stainless steel, PTFE |
| Weight | 9 kg |
| Display | LED |
| Brand | GreenPrima |
|---|---|
| Origin | United Kingdom |
| Manufacturer Type | OEM Manufacturer |
| Origin Category | Imported |
| Model | PM8200I |
| Measurement Range | 0.00–20,000 ppm (as CaCO₃) |
| Resolution | 0.01 / 0.1 / 1 ppm |
| Accuracy | ±0.01 / ±0.1 / ±1 ppm (depending on range) |
| Temperature Compensation | –10 to 130 °C (NTC10K or PT1000, manual/automatic) |
| Operating Temperature | 0 to 70.0 °C |
| Storage Temperature | –20 to 70.0 °C |
| Display | Backlit dot-matrix LCD with pH, temperature, time, relay status |
| Output | Dual isolated 4–20 mA (max. loop resistance 500 Ω, accuracy 0.1% F.S.) |
| Communication | RS485, MODBUS RTU protocol |
| Relay Output | 1 multifunctional relay (for cleaning, periodic alarm, fault alarm) |
| Data Logging | 600,000 records with query capability |
| Power Supply | 90–260 VAC, 50/60 Hz or optional 24 VDC |
| Enclosure Rating | IP65 |
| Installation Options | Wall-mount, pole-mount, panel-mount |
| Dimensions | 144 × 144 × 106 mm |
| Panel Cutout | 138 × 138 mm |
| Weight | 0.86 kg |
| Sensor Model | Bsens740 |
| Sensor Range | 0–40,000 mg/L (as CaCO₃) |
| Sensor Resolution | 0.01 mg/L |
| Sensor Accuracy | ±3% F.S. |
| Sensor Material | Polyphenylsulfone (PPS) |
| Sensor Operating Temp. | –5 to 70.0 °C |
| Max. Pressure Rating | 3.5 bar |
| Connection | PG13.5 fixed thread |
| Cable Length | 5 m |
| Brand | GreenPrima |
|---|---|
| Origin | USA |
| Manufacturer Type | Manufacturer |
| Origin Category | Imported |
| Model | SCD 8200 |
| Price Range | USD 6,800 – 13,600 |
| Power Supply | 100–240 VAC, 50/60 Hz |
| Measurement Range | −1000 to +1000 mV |
| Accuracy | ±0.1% of full scale |
| Response Time | 1 second |
| Sample Flow Rate | 1 US gallon per minute (3.785 L/min) |
| Inlet Connection | 1/2″ barbed quick-connect |
| Outlet Connection | 3/4″ barbed quick-connect |
| Enclosure Rating | NEMA 4X / IP65 |
| Output Signals | 4–20 mA, −10 to +10 V, 0–10 V |
| Communication Protocol | MODBUS RTU (optional) |
| Alarm Outputs | Dual SPDT relays (high/low) |
| Sensor Materials | Delrin®, 316 stainless steel, PTFE |
| Weight | 9 kg |
| Dimensions | 11.0″ × 6.0″ × 5.5″ (W × H × D) |
| Brand | GreenPrima |
|---|---|
| Origin | USA |
| Manufacturer | GreenPrima, Inc. |
| Type | Imported |
| Model | SCD8200 |
| Power Supply | 230 VAC |
| Measurement Range | −1000 to +1000 mV |
| Accuracy | ±0.1% of full scale |
| Flow Rate | 1 L/min (≈0.264 GPM) |
| Inlet/Outlet | 1/2″ and 3/4″ barbed quick-connect fittings |
| Response Time | 1 s |
| Output Signals | 4–20 mA, ±10 V, 0–10 V |
| Communication | Modbus RTU (optional) |
| Alarm Outputs | Hi/Lo relay contacts |
| Enclosure Rating | NEMA 4X / IP65 |
| Dimensions | 11″ × 6″ (279 × 152 mm) |
| Weight | 9 kg |
| Brand | GreenPrima |
|---|---|
| Origin | UK |
| Manufacturer | GreenPrima Ltd. |
| Model | PM8200I |
| Measurement Range | 0.00–20,000 ppm CaCO₃ |
| Resolution | 0.01 / 0.1 / 1 ppm |
| Accuracy | ±0.01 / ±0.1 / ±1 ppm (depending on range) |
| Temperature Compensation | –10 to 130 °C (NTC10K or PT1000 sensor, manual/automatic) |
| Operating Temperature | 0 to 70.0 °C |
| Storage Temperature | –20 to 70.0 °C |
| Display | Backlit graphical LCD |
| Data Storage | 600,000 records |
| Power Supply | 90–260 VAC, 50/60 Hz or 24 VDC (optional) |
| Enclosure Rating | IP65 |
| Communication | RS485, MODBUS RTU protocol |
| Analog Outputs | Two isolated 4–20 mA outputs (max. loop resistance 500 Ω, accuracy 0.1% FS) |
| Relay Output | One multifunction relay (for cleaning control, periodic alarm, fault alarm) |
| Cleaning Control | Adjustable interval (0.1–1000 h) and duration (1–1000 s) |
| Electrode Model | Bsens740 |
| Electrode Range | 0–40,000 mg/L as CaCO₃ |
| Electrode Resolution | 0.01 mg/L |
| Electrode Accuracy | ±3% FS |
| Electrode Material | PPS (polyphenylsulfone) |
| Electrode Max. Pressure | 3.5 bar |
| Electrode Connection | PG13.5 threaded fitting |
| Cable Length | 5 m |
| Mounting Options | Wall-mount, pole-mount, panel-mount |
| Dimensions | 144 × 144 × 106 mm |
| Panel Cutout | 138 × 138 mm |
| Weight | 0.86 kg |
| Brand | GreenPrima |
|---|---|
| Origin | USA |
| Manufacturer | GreenPrima Ltd. (UK) |
| Model | SCD8200 |
| Power Supply | 100–240 VAC, 50/60 Hz |
| Measurement Range | −1000 to +1000 mV |
| Accuracy | ±0.1% of full scale |
| Response Time | ≤1 s |
| Flow Rate | 1 US gal/min (3.78 L/min) |
| Inlet/Outlet | 1/2″ and 3/4″ barbed quick-connect fittings |
| Electrode Material | Delrin® housing / 316 stainless steel / PTFE seals |
| Output Signals | 4–20 mA, ±10 V, 0–10 V |
| Communication | Optional MODBUS RTU (RS-485) |
| Alarm Outputs | Dual SPDT relays (high/low) |
| Enclosure Rating | NEMA 4X / IP65 |
| Dimensions | 11.0″ × 6.0″ × 5.5″ (279 × 152 × 140 mm) |
| Weight | 9 kg |
| Auto-zero Calibration | Yes |
| Self-Diagnostic LED Indicator | Yes |
| Brand | GreenPrima |
|---|---|
| Origin | United Kingdom |
| Manufacturer Type | Original Equipment Manufacturer (OEM) |
| Product Category | Imported Instrument |
| Model | PM 8200I |
| Price Range | USD 1,400 – 7,000 (FOB UK) |
| Measurement Range | 0.00–20,000 ppm CaCO₃ equivalent |
| Resolution | 0.01 / 0.1 / 1 ppm |
| Accuracy | ±0.01 / ±0.1 / ±1 ppm (depending on range) |
| Temperature Compensation | -10 to 130 °C (NTC10K or PT1000 sensor input, manual/automatic) |
| Operating Temperature | 0 to 70.0 °C |
| Storage Temperature | -20 to 70.0 °C |
| Display | Backlit graphic LCD (128 × 64 pixels) |
| Data Storage | 600,000 records with timestamped retrieval |
| Power Supply | 90–260 VAC, 50/60 Hz or optional 24 VDC |
| Enclosure Rating | IP65 |
| Communication | RS485, MODBUS RTU protocol |
| Analog Outputs | Two isolated 4–20 mA outputs (max. loop resistance 500 Ω, accuracy ±0.1% FS) |
| Relay Output | One multifunction programmable relay (cleaning trigger, fault alarm, periodic alert) |
| Cleaning Control | Adjustable interval (0.1–1000 h) and duration (1–1000 s) |
| Mounting Options | Wall-mount, pole-mount, panel-mount |
| Dimensions | 144 × 144 × 106 mm |
| Panel Cutout | 138 × 138 mm |
| Weight | 0.86 kg |
| Compatible Electrode | GreenPrima Bsens740 hardness sensor (range: 0–40,000 mg/L as CaCO₃, resolution: 0.01 mg/L, accuracy: ±3% FS, PPS body, max. pressure: 3.5 bar, NTC10K temp. sensor integrated, 5 m cable, PG13.5 thread) |
| Brand | GreenPrima |
|---|---|
| Origin | USA |
| Manufacturer Type | Manufacturer |
| Origin Category | Imported |
| Model | SCD8200 |
| Power Supply | 230 VAC |
| Measurement Range | −1000 to +1000 mV |
| Accuracy | ±0.1% of full scale |
| Display | LED |
| Flow Rate | 1 L/min |
| Inlet Connection | 1/2" barbed fitting |
| Outlet Connection | 3/4" barbed fitting |
| Response Time | 1 s |
| Output Signals | 4–20 mA, −10 to +10 V, 0–10 V |
| Communication | Modbus (optional) |
| Alarm Outputs | Hi/Lo relay |
| Enclosure Rating | NEMA 4X, IP65 |
| Sensor Housing Material | Chemically resistant polymer |
| Motor Type | High-torque DC motor with continuous duty cycle |
| Dimensions | 11" × 6" × 5" (W×H×D) |
| Weight | 9 kg |
| Brand | GreenPrima |
|---|---|
| Origin | Switzerland |
| Manufacturer Type | Original Equipment Manufacturer (OEM) |
| Origin Category | Imported |
| Model | BSens 210 |
| Measurement Range | −1500 to +1500 mV |
| Operating Temperature | −5 to 70 °C |
| Resolution | 1 mV |
| Accuracy | ±1 mV |
| Maximum Pressure Rating | 3.5 bar |
| Electrode Body Material | Borosilicate Glass / Platinum Sensing Element |
| Reference System | Gel-Filled Ag/AgCl |
| Junction Type | Ceramic Frit |
| Electrolyte | Polymer-Gel Electrolyte |
| Connection | Fixed PG13.5 Threaded Cable Port |
| Cable Length | 3 m |
| Electrode Tip Geometry | AH Glass Ball (Asymmetric Hydrophilic Bulb) |
| Brand | GreenPrima |
|---|---|
| Origin | USA |
| Manufacturer Type | Original Equipment Manufacturer (OEM) |
| Product Category | Imported Instrument |
| Model | SCD8200 |
| Power Supply | 230 VAC |
| Measurement Range | −1000 to +1000 mV |
| Accuracy | ±0.1% of full scale |
| Flow Rate | 1 L/min (≈0.264 GPM) |
| Response Time | 1 second |
| Display | LED |
| Output Signals | 4–20 mA, −10 to +10 V, 0–10 V |
| Communication | Modbus RTU (optional) |
| Alarm Outputs | Hi/Lo relay contacts |
| Enclosure Rating | NEMA 4X / IP65 |
| Inlet Port | 1/2″ barbed fitting |
| Outlet Port | 3/4″ barbed fitting |
| Sensor Housing Material | Chemically resistant non-metallic polymer |
| Weight | 9 kg |
| Dimensions | 11″ × 6″ (279 mm × 152 mm) |
| Brand | GreenPrima |
|---|---|
| Origin | USA |
| Manufacturer Type | Manufacturer |
| Origin Category | Imported |
| Model | SCD8200 |
| Power Supply | 230 VAC |
| Measurement Range | −1000 to +1000 mV |
| Accuracy | ±0.1% of full scale |
| Flow Rate | 1 L/min (≈0.264 GPM) |
| Inlet/Outlet | 1/2″ and 3/4″ barbed quick-connect fittings |
| Response Time | 1 s |
| Output Signals | 4–20 mA, −10 to +10 V, 0–10 V |
| Communication | Modbus RTU (optional) |
| Alarm Outputs | Hi/Lo relay contacts |
| Enclosure Rating | NEMA 4X / IP65 |
| Display | LED |
| Self-Diagnostic | Sensor status LED |
| Dimensions | 11″ × 6″ × 6″ (W×H×D) |
| Weight | 9 kg |
Show next
