| Brand | Grabner |
|---|---|
| Origin | Austria |
| Model | MINITEST FFK |
| Test Principle | Corrosion-Resistant Capillary Extrusion (DIN 51805) |
| Temperature Range | −50 °C to +30 °C |
| Temp. Accuracy | ±0.1 °C |
| Pressure Range | 0–300 kPa |
| Pressure Accuracy | ±0.1 kPa |
| Dimensions | 196 × 315 × 175 mm |
| Weight | 10 kg |
| Power Supply | 100–240 V AC, 50/60 Hz, 200 W or 12 V DC (optional) |
| Brand | Spectro Scientific |
|---|---|
| Origin | USA |
| Model | FieldLab 58 |
| Product Type | Portable Instrument |
| Detection Capabilities | Elemental Analysis (XRF), Particle Counting, Kinematic Viscosity at 40 °C, FTIR-based Oxidation, Nitration, Soot, Water, TAN/TBN, Fuel & Glycol Contamination |
| Power Supply | Rechargeable Lithium-ion Battery |
| Dimensions | 487.68 × 386.08 × 228.6 mm (L × W × H) |
| Compliance | ASTM D6595, D7690, D7883, D7621, D7943, ISO 11171, ISO 4406, ISO 21468, ISO 21469, USP <1058>, FDA 21 CFR Part 11 (audit trail enabled in software) |
| Brand | Spectro Scientific |
|---|---|
| Origin | USA |
| Model | LaserNet 200 Series |
| Type | Portable Instrument |
| Detection Parameters | Particle Counting, Ferrous Particle Concentration & Count (>25 µm), Morphological Wear Debris Classification, Free Water (ppm), Bubble/Contaminant Discrimination |
| Standards Compliance | ASTM D7596, ISO 4406, NAS1638, SAE AS4059, ASTM D6786, ISO 11171 |
| Imaging Technology | Direct High-Resolution CCD Imaging with Laser Illumination |
| Particle Size Range | ≥2 µm (morphology-resolved), ≥20 µm (automated classification), ≥25 µm (ferrous count) |
| Max Sample Contamination Tolerance | 5,000,000 particles/mL |
| Max Soot Tolerance | 2% w/w |
| Auto-Gain Control (AGC) | Yes |
| Onboard Data Management | Asset Tracking, Trend Analysis, Custom Cleanliness Thresholds |
| Dimensions | 35.6 cm H × 36.8 cm W × 78.7 cm D |
| Weight | 8.5 kg |
| Brand | Koehler |
|---|---|
| Origin | USA |
| Model | NOACK |
| Standard Compliance | ASTM D5800, DIN 51581 |
| Temperature Range | 150–350 °C (±0.1 °C accuracy) |
| Heating Medium Options | Aluminum block (non-Wood’s alloy) or Wood’s alloy bath |
| Power Supply | 230 V, 50 Hz, 5.8 A |
| Dimensions (K44090) | 59 × 35 × 68 cm |
| Weight (K44090) | 26.7 kg |
| Dimensions (K44091) | 54 × 38 × 37 cm |
| Weight (K44091 with accessories) | 38.2 kg |
| Sample Mass | 65 g |
| Test Duration | 60 min at specified temperature |
| Air Flow Control | Manual (incl. inclined-tube manometer, 0–30 mm H₂O) or optional automated pressure regulation |
| Brand | Koehler |
|---|---|
| Origin | USA |
| Model | K39495 |
| Temperature Range | 25–84 °C |
| Temp. Stability | ±0.05 °C |
| Stirring Speed | 0–2000 rpm |
| Stirring Accuracy | ±1 rpm |
| Simultaneous Test Capacity | 7 × 100 mL samples |
| Bath Medium | Water or white mineral oil |
| Bath Volume | 15.15 L |
| Power Supply | 220–240 V / 50 Hz / 12 A |
| Dimensions (W×D×H) | 52.7 × 38.75 × 74.9 cm |
| Heating Power | 75 W (1/10 hp) |
| Bath Material | Transparent polycarbonate (25.5 × 28 × 24 cm) |
| Standards Compliance | ASTM D1401, D6074, D6158 |
| Brand | Koehler |
|---|---|
| Origin | USA |

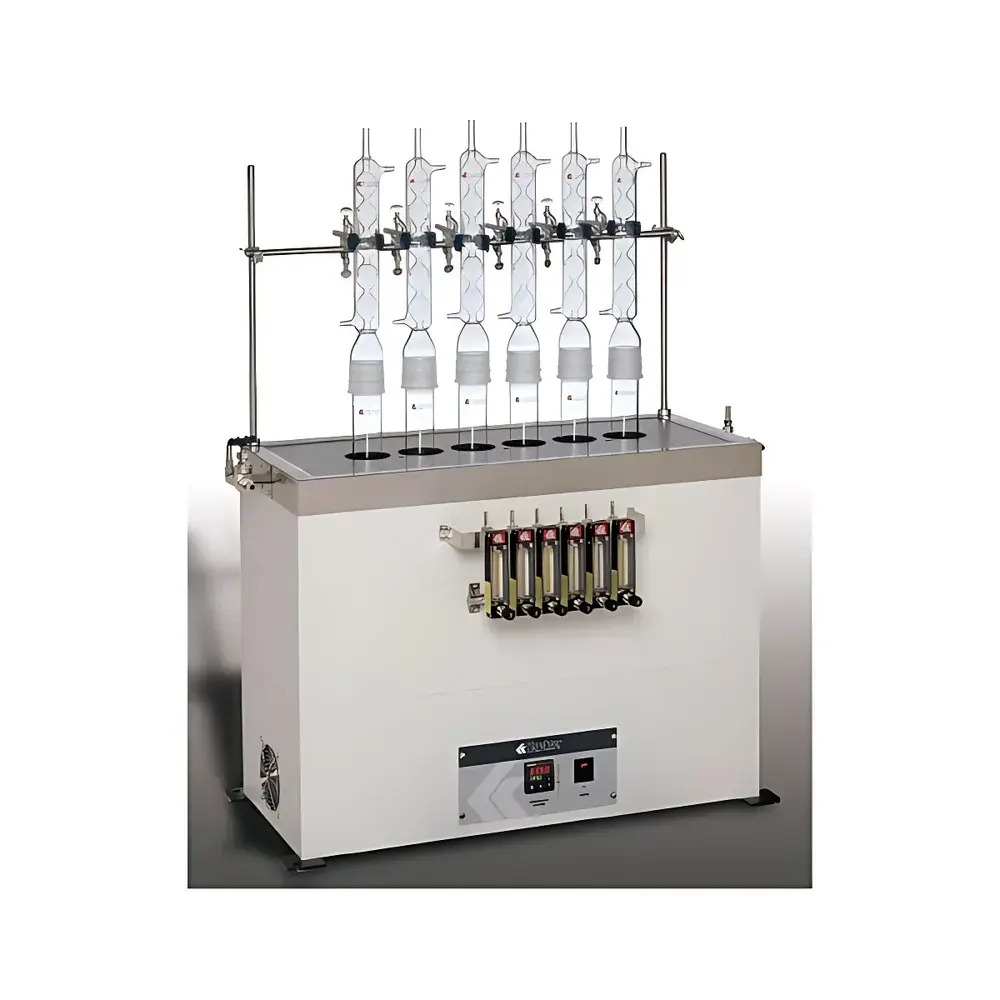

| Model | FK35100 |
| Sample Capacity | 6 |
| Temperature Range | 51.7–399 °C |
| Temperature Stability | ±0.5 °C (±1 °F) |
| Maximum Air Flow Rate | 10 L/h |
| Power Supply | 220–240 V, 50/60 Hz, Single-Phase, 15.9 A |
| Dimensions | 83 × 37 × 105 cm |
| Weight | 122.9 kg |
| Compliance | ASTM D4636, D5968, D6594 |
| Brand | Koehler |
|---|---|
| Origin | USA |
| Model | K26210-3 |
| Standard Compliance | ASTM D6082 |
| Test Temperature | 150 °C |
| Temperature Uniformity | ±0.5 °C |
| Bath Volume | 38.5 L |
| Air Flow Rate | 200 mL/min |
| Power Supply | 220–240 V, 50 Hz |
| Dimensions (W×D×H) | 82 × 38 × 79.4 cm |
| Weight | 28.1 kg |
| Heating System | Immersed copper heater with PID-controlled microprocessor |
| Temperature Display | Dual LED, selectable ℃/°F |
| Construction | Steel base with chemical-resistant polyimide enamel coating |
| Includes | Two 1000 mL calibrated test cylinders, two calibrated antifoam heads, two air inlet tubes, two exhaust tubes, two rubber stoppers, one bath tank, one support stand |
| Brand | Koehler |
|---|---|
| Origin | USA |
| Model | K18200 Series Oxidation Stability Tester |
| Standards Compliance | ASTM D2112, D2272, D4742 |
| Operating Pressure | 90 psi (620 kPa) initial, up to 500 psi (3450 kPa) burst rating |
| Temperature Range | Ambient to 200 °C |
| Control Stability | ±0.02 °C |
| Rotation Speed | 100 rpm ± 1 rpm |
| Bath Capacity | 68 L (2-cell), 95 L (3-cell), 121 L (4-cell) |
| Heating Power | 0–2750 W (2/3-cell), 0–3750 W (4-cell) |
| Drive Motor | 0.5 hp continuous-duty, spherical bearing, integrated gear reduction |
| Bearing Type | PTFE-coated carbon fluoropolymer |
| Pressure Sensing | Direct-mount transducer on oxygen bomb |
| Safety | Auto-shutdown at >177 °C or >16.7 °C above setpoint |
| Software | Oxidata™ v5.x (Windows-based, FDA 21 CFR Part 11–ready audit trail, GLP-compliant data archiving) |
| Brand | Koehler |
|---|---|
| Origin | USA |
| Model | K50119 |
| Test Plate Temperature Range | Up to 400 °C |
| Sample Oil Temperature Range | Up to 210 °C |
| Spray Speed | 0–1800 rpm (digital display) |
| Timer Range | 0–99.9 hours (adjustable countdown) |
| Acid Gas Flow Rate | 0.2–1.0 L/h |
| Oil Capacity | 0.35 L |
| Power Supply | 220–240 V, 50/60 Hz, 5 A |
| Test System Dimensions | 81 × 46 × 53 cm, 22.7 kg |
| Control Unit Dimensions | 46 × 30 × 46 cm, 11.3 kg |
| Temperature Display Units | °C or °F selectable |
| Compliance | FTM 791-3462 |
| Brand | Koehler |
|---|---|
| Origin | USA |
| Model | FK12190 |
| Sample Capacity | 6 positions |
| Test Temperature Range | Ambient to 127 °C |
| Bath Medium | 9.5 L white mineral oil |
| Temperature Control Accuracy | ±0.5 °C at 110 °C |
| Air Flow Rate | 1.0 ±0.1 L/h (independent flowmeter & control valve) |
| Stirring Motor | 1/20 hp recirculating agitator |
| Compliance | ASTM D2440, D4636, D5968, D6594 |
| Display | Dual-scale digital LED (°C/°F), real-time and setpoint |
| Safety | Over-temperature cut-off with automatic power disconnection |
| Brand | Koehler |
|---|---|
| Origin | USA |
| Model | K18650 |
| Standard Compliance | ASTM D5074, STP512A L-60-1 (formerly CRC L-60), FTM 791-2504 |
| Test Temperature | 162.8 ± 0.6 °C |
| Air Flow Rate | 1.1 L/h |
| Drive Speed | 1725 rpm |
| Load | 128 W |
| Power Supply | 220–240 V, 50 Hz, single-phase, 15 A |
| Dimensions (Test Chamber) | 61 × 61 × 37 cm |
| Dimensions (Control Cabinet) | 60 × 60 × 44 cm |
| Weight | 149.7 kg |
| Brand | Spectro Scientific |
|---|---|
| Origin | USA |
| Manufacturer Type | Authorized Distributor |
| Origin Category | Imported |
| Model | FDM 6000 Series |
| Product Type | Portable Instrument |
| Detection Parameter | Fuel Dilution in Engine Oil |
| Detection Principle | Surface Acoustic Wave (SAW) Sensor + Headspace Vapor Analysis per Henry’s Law |
| Detection Range | 0.2–15% v/v |
| Repeatability | ≤5% RSD |
| Analysis Time | ≤120 s |
| Sample Volume | <1 mL |
| Power Supply | Rechargeable Li-ion Battery |
| Operating Temperature | 10–40 °C |
| Storage Temperature | −30–85 °C |
| Relative Humidity | 10–90% RH (non-condensing) |
| Weight | >3 kg |
| Dimensions | 17 × 20 × 13 cm |
| Environmental Rating | IP34, NEMA Enclosure |
| Shock & Vibration Compliance | MIL-STD-810G |
| Electrical Safety Certifications | FCC Class B, CE |
| Brand | Koehler |
|---|---|
| Origin | USA |
| Model | K88501 |
| Standards Compliance | ASTM D3427, IP 313, DIN 51381, NF E48-614 |
| Temperature Range | Ambient to 75 °C |
| Temperature Control | Microprocessor-based LED digital controller |
| Power Supply | 230 V, 50 Hz, 1.5 A |
| Dimensions (W×D×H) | 61 × 71 × 97 cm |
| Weight | 103 kg |
| Sample Volume | Standard 200 mL test vessel |
| Air Flow Control | Regulated compressed air supply with pressure gauge |
| Safety | Overheat protection circuit |
| Optional | Windows-based data acquisition software, heated sample sleeve, baffle kit, air bath circulator with calibrated thermometer and sinker |
| Brand | Koehler |
|---|---|
| Origin | USA |
| Model | K38590 |
| Sample Capacity | 10 positions |
| Temperature Range | +80 °C to –40 °C |
| Temperature Control Accuracy | ±0.1 °C |
| Refrigeration Rate | up to 5.0 °C/min |
| Refrigerant | R-507 |
| Compressor Power | 1/3 hp |
| Heating Power | 600 W |
| Power Supply | 220 V, 50/60 Hz, 7 A |
| Dimensions | 39 × 32 × 34 cm |
| Weight | 47.6 kg |
| Construction | Stainless steel housing and durable thermoplastic components |
| Compliance | ASTM D4684, D3829, D6896, D6821*, SAE J300, ILSAC GF-3/GF-4 |
| Brand | Spectro Scientific |
|---|---|
| Origin | USA |
| Model | MiniLab 153 |
| Detection Capabilities | Elemental Analysis (ICP-OES), Particle Counting & Ferrography, Viscosity, Fluid Health Assessment (Oxidation, Nitration, Sulfation, TAN, TBN, Water Content) |
| Standards Compliance | ASTM D6595, D7596, D8092, D7889 |
| Analysis Time | ≤20 minutes per sample |
| Sample Throughput | Full suite of 4 test modules in single workflow |
| Vector-Based Diagnostic Framework | Tri-Vector Analysis (Wear, Contamination, Fluid Degradation) |
| Control System | TDC (Tri-Vector Diagnostic Controller) |
| Operating Environment | Industrial field site (non-laboratory) |
| Brand | Koehler |
|---|---|
| Origin | USA |
| Model Series | K12290, K12219, K12339, K12395 |
| Sample Capacity | 8 / 12 / 30 / 60 positions |
| Temperature Range | Ambient to 100 °C |
| Temperature Stability | ±0.1 °C (±0.2 °F) |
| Bath Volume | 37.8 L (8-pos) / 71.9 L (12-pos) / 227 L (30-pos) / 432 L (60-pos) |
| Bath Medium | White Mineral Oil |
| Compliance | ASTM D943, D2274, D2893, D4310, D6158 |
| Brand | Spectro Scientific |
|---|---|
| Origin | USA |
| Model | FluidScan 1000 |
| Product Type | Portable Instrument |
| Detection Principle | Direct Reading Infrared (DIR) Spectroscopy |
| Compliance | ASTM D7889, ASTM E2412, ASTM D4739, ASTM D664, ASTM E1655 |
| Key Parameters | TAN (mg KOH/g), TBN (mg KOH/g), Oxidation (Abs/0.1 mm), Nitration (Abs/mm²), Sulfation (Abs/mm²), Water (ppm), Glycol (%), Soot (%), FAME (%), Residual Carbon, Additive Depletion, Fuel Dilution, Oil Mismatch Index, FFA (%), Total Glycerin, Antioxidant Content (%) |
| Sample Volume | 1–2 drops |
| Measurement Time | ~60 seconds |
| Power | Rechargeable Li-ion battery (≥6 h operation) |
| Dimensions | 240 × 140 × 70 mm |
| Weight | 1.4 kg |
| Software | FluidScan Manager (PC-based, with trend analysis, asset management, automated reporting, audit trail, and data synchronization) |
| Brand | LISICO |
|---|---|
| Origin | Shanghai, China |
| Model | LS-O (Rotating Bomb Oxidation Method) |
| Detection Parameter | Oxidation Stability |
| Temperature Control Points | 140.0 ± 0.1 °C and 150.0 ± 0.1 °C |
| Rotation Speed | 100 ± 5 rpm |
| Pressure Range | 0–1.6 MPa (Pressure Sensor Accuracy: ±0.1% FS |
| Precision Gauge | 0.25 Class) |
| Power Consumption | ≤1400 W |
| Dimensions | 300 × 500 × 500 mm (W × D × H) |
| Weight | 40 kg |
| Compliance Standards | SH/T 0193, ASTM D2272 |
| Interface | Ethernet for LIMS integration |
| Data Storage | Local HDD with persistent multi-test archive |
| Max Concurrent Units per PC | 4 |
| Brand | Koehler |
|---|---|
| Origin | USA |
| Model | FK39199 |
| Temperature Range | Up to 100 °C |
| Bath Capacity | 38.5 L (water) |
| Power Supply | 220–240 V, 50/60 Hz |
| Dimensions | 52.7 × 38.75 × 74.9 cm |
| Construction | Stainless steel wetted parts |
| Standards Compliance | ASTM D2711, DIN 51353, ASTM D1401 (via configuration) |
| Control System | Microprocessor-based LED digital temperature controller with dual independent stirrer speed control and digital RPM display |
| Illumination | Integrated LED lighting with transparent front viewport |
| Brand | Koehler |
|---|---|
| Origin | USA |
| Model | K56190 (1 L/h per sample) / K56290 (15 L/h per sample) |
| Sample Capacity | 12 positions |
| Temperature Range | 80–200 °C |
| Control Stability | ±0.2 °C |
| Heating Medium | Aluminum Block |
| Standards Compliance | IP 48, IP 280, IP 306, IP 307, IP 331, IP 335 |
| Display | Dual-line LED, ℃/°F selectable |
| Overheat Protection | Automatic power cutoff above setpoint |
| Air Flow Control | Independent precision mass flow regulation per station |
| Brand | Koehler |
|---|---|
| Origin | USA |
| Model | K30165NACE |
| Sample Capacity | 6 positions |
| Bath Volume | 41.6 L |
| Temperature Range | Ambient to 104°C (220°F) |
| Temperature Stability | ±0.5°C (±1°F) |
| Stirring Speed | 1000 rpm |
| Heating Medium | White mineral oil |
| Power Supply | 220–240 V, 50 Hz, 6.8 A, Single-phase |
| Dimensions (W×D×H) | 83 × 36 × 69 cm |
| Weight | 35.8 kg |
| Construction | Stainless steel housing with chemical-resistant polyurethane coating |
| Motor Type | Explosion-proof ball-bearing induction motor, 1/12 hp |
| Control System | Microprocessor-based with °C/°F toggle and digital setpoint display |
| Overtemperature Protection | Integrated safety circuit |
| Compliance | ASTM D665, D6158, D3603, IP 135, ISO 7120, DIN 51585, FTM 791-4011, NFT 60-151 |
| Brand | Koehler |
|---|---|
| Origin | USA |
| Model | K12239 |
| Temperature Range | Ambient to 200 °C |
| Temperature Stability | ±0.1 °C (±0.2 °F) |
| Bath Medium | Silicone Oil |
| Sample Capacity | Up to 12 glass vessels (10 for ASTM D5968 / FTM 791-5307/5308) |
| Air Flow Control | Optional analog flowmeter or digital mass flow controller |
| Temperature Display | Dual-line LED, °C/°F selectable |
| Power Supply | 220–240 V, 50/60 Hz |
| Dimensions (W×D×H) | 65 × 61 × 107 cm |
| Weight | 96.6 kg |
| Compliance | ASTM D943, D2274, D2440, D2893, D4310, D4636, D5968, D6594 |
| Brand | Spectro Scientific |
|---|---|
| Origin | USA |
| Model | MiniVisc 3000 Series (10–350 cSt @ 40 °C) / MiniVisc 3050 Series (1–700 cSt @ 40 °C) |
| Measurement Principle | Gravity-driven capillary flow in split-cell microchannel |
| Temperature Control | 40 °C ± 0.1 °C (PID-regulated) |
| Sample Volume | 60 µL |
| Power | Rechargeable Li-ion battery (≥6 h runtime) |
| Display | Integrated high-resolution touchscreen |
| Weight | 1.8 kg |
| Dimensions | 152 × 127 × 203 mm (H × W × L) |
| Compliance | ASTM D445, ISO 3104, IP 71 |
| Brand | Koehler |
|---|---|
| Origin | USA |
| Model | KLA-1-TS / KLA-2-TS / KLA-3-TS |
| Temperature Range | +80 °C to –80 °C |
| Resolution | 0.06 °C |
| Accuracy | ±0.1 °C |
| Repeatability | Compliant with or better than ASTM D2500, D97, D5771–D5773, D5853, D5950 |
| Cooling System | Dual-stage thermoelectric (Stage 1: –40 °C |
| Stage 2 | –80 °C) |
| Display | 6.4″ TFT/LCD touchscreen (640 × 480, 262K color) |
| Data Storage | >60,000 test records in Microsoft Excel-compatible format |
| Compliance | ASTM, ISO, DIN, IP standards per model configuration |
| Sample Detection Method | Coaxial fiber-optic pulse photometry (cloud point) |
| Max. Test Heads | 6 |
| Power Supply | 220 V ±15%, 50–60 Hz |
| Dimensions | 66 × 60 × 80 cm |
| Weight | 80 kg |
Show next
