| Brand | ILSHIN Autoclave |
|---|---|
| Origin | South Korea |
| Model | NLM100 |
| Instrument Type | High-Pressure Homogenizer |
| Dimensions (W×D×H) | 583 × 576 × 435 mm |
| Processing Flow Rate | 100 mL/min |
| Operating Pressure | 1,500 bar |
| Inlet Reservoir Capacity | 300 mL |
| Motor | 1 HP, 220 VAC, 1-Phase, 60 Hz |
| Weight | ~45 kg |
| Brand | IKA |
|---|---|
| Origin | Germany |
| Model | T18 digital ULTRA-TURRAX® |
| Instrument Type | Probe-type Rotating Rotor-Stator Homogenizer |
| Dimensions (W×D×H) | 87 × 271 × 106 mm |
| Processing Volume Range | 1–1500 mL |
| Motor Input Power | 500 W |
| Motor Output Power | 300 W |
| Speed Range | 3000–25,000 rpm |
| Speed Accuracy | ±1 % |
| Speed Display | LED Digital |
| Speed Control | Continuous (Stepless) Electronic Regulation |
| Max. Viscosity | 5000 mPa·s |
| Min. Sample Volume (H₂O) | 0.001 L |
| Max. Sample Volume (H₂O) | 1.5 L |
| Noise Level (without dispersing tool) | 75 dB(A) |
| Extension Arm Diameter | 13 mm |
| Extension Arm Length | 160 mm |
| Operating Temperature Range | 5–40 °C |
| Relative Humidity Limit | ≤80 % RH |
| Ingress Protection | IP20 (per DIN EN 60529) |
| Electrical Supply | 220–240 V, 50/60 Hz |
| Continuous Duty Cycle | 100 % |
| Weight | 2.5 kg |
| Interface | RS232 |
| Analog Output | None |
| Cleaning | Tool-free disassembly of stainless-steel dispersing tools |
| Disposable Tools | Two standard sizes available |
| Error Code Display | Yes |
| Acoustic Design | Optimized for low-noise laboratory operation |
| Brand | IKA |
|---|---|
| Origin | Germany |
| Model | ULTRA-TURRAX® Tube Drive |
| Instrument Type | Probe-type Rotor-Stator Homogenizer |
| Dimensions (W×D×H) | 100 × 40 × 160 mm |
| Weight | 0.75 kg |
| Processing Volume | 2–15 mL (small tube), 15–50 mL (large tube) |
| Speed Range | 300–6,000 rpm |
| Speed Accuracy | ±10% |
| Max. Viscosity | 5,000 mPa·s |
| Motor Input Power | 20 W |
| Motor Output Power | 17 W |
| Operating Voltage | 100–240 V AC / 24 V DC |
| Current Consumption | 800 mA |
| Noise Level (no dispersing tool) | 50 dB(A) |
| Protection Class | IP20 (DIN EN 60529) |
| Ambient Temperature | 5–40 °C |
| Relative Humidity | ≤80% RH |
| Safety | 24 V low-voltage operation |
| Compliance | CE, RoHS, IEC 61010-1 |
| Brand | IlshinAutoclave |
|---|---|
| Origin | South Korea |
| Model | NH300 |
| Instrument Type | High-Pressure Homogenizer |
| Dimensions (W×D×H) | 850×800×1500 mm |
| Processing Capacity | 1 L |
| Operating Pressure | 40,000 psi (2758 bar) |
| Flow Rate | 300 mL/min @ 40,000 psi |
| Orifice Nozzle Options | Z-type or Y-type |
| Feed Reservoir | 500 mL (auto/manual) |
| Hydraulic Power Unit | 5 HP |
| Weight | ~200 kg |
| Electrical Requirement | 220/380 VAC, 3-phase, 60 Hz |
| Cooling | Optional water line |
| Brand | MICCRA |
|---|---|
| Origin | Germany |
| Model | D-9 |
| Instrument Type | Probe-type Rotor-Stator Homogenizer |
| Dimensions (W×D×H) | 92 × 183 × 177 mm |
| Processing Volume | 0.1–20,000 mL (H₂O) |
| Speed Range | 3,000–25,000 rpm |
| Motor | Brushless DC (BLDC) |
| Input/Output Power | 950 W / 760 W |
| Speed Display | LED TFT |
| Speed Control | PID-regulated |
| Speed Accuracy | ±100 rpm |
| Housing Material | Anodized Hard-Aluminum Alloy |
| Noise Level | ≤55 dB(A) |
| Protection Rating | IP20 |
| Overload & Thermal Protection | Yes |
| Soft Start/Stop | Yes |
| Continuous Duty Cycle | 100% |
| Power Supply | 230 V, 50/60 Hz |
| Operating Ambient Temperature | 5–45 °C |
| Relative Humidity Limit | ≤85% RH |
| Brand | TRILOS |
|---|---|
| Origin | USA |
| Model | ND100 |
| Instrument Type | High-Pressure Microfluidic Homogenizer |
| Dimensions (W×D×H) | 650 × 650 × 1350 mm |
| Processing Capacity | 5 L/h |
| Maximum Operating Pressure | 3000 bar (300 MPa / 43,500 psi) |
| Design Pressure | 3500 bar (350 MPa / 50,750 psi) |
| Minimum Sample Volume | 30 mL |
| Max. Feed Particle Size | ≤300 µm |
| Max. Feed Viscosity | ≤2000 cP |
| Temperature Control Range | 4–10 °C (during homogenization) |
| Max. Inlet Temperature | ≤90 °C |
| Homogenizing Chamber Material | 100% Synthetic Diamond |
| Control Interface | 10-inch Industrial Touchscreen PLC System |
| Compliance | CE Machinery Directive 2006/42/EC |
| Data Interface | USB for real-time curve logging and audit-ready export |
| Brand | MICCRA |
|---|---|
| Origin | Germany |
| Instrument Type | Probe-type Rotor-Stator Homogenizer |
| Dimensions (W×D×H) | 50 × 245 mm |
| Processing Volume | 0.1–500 mL |
| Speed Range | 3,000–30,000 rpm |
| Input Power | 145 W |
| Output Power | 95 W |
| Weight | 900 g |
| Protection Rating | IP20 / Class II |
| Speed Control | Electronic, Stepless, and Stability-Regulated |
| Brand | TRILOS |
|---|---|
| Origin | USA |
| Model | DV-1200 |
| Type | Benchtop Continuous High-Speed Homogenizer |
| Output Power | 1200 W |
| Sample Throughput | 18 mL per pass |
| Speed Range | 3,000–25,000 rpm |
| Voltage | 220 VAC |
| Motor | Brushless DC |
| Dispersion Chamber Volume | 18 mL |
| Sealing | Cleanroom-Compatible Hermetic Design |
| Compliance | Designed for GLP-aligned lab environments |

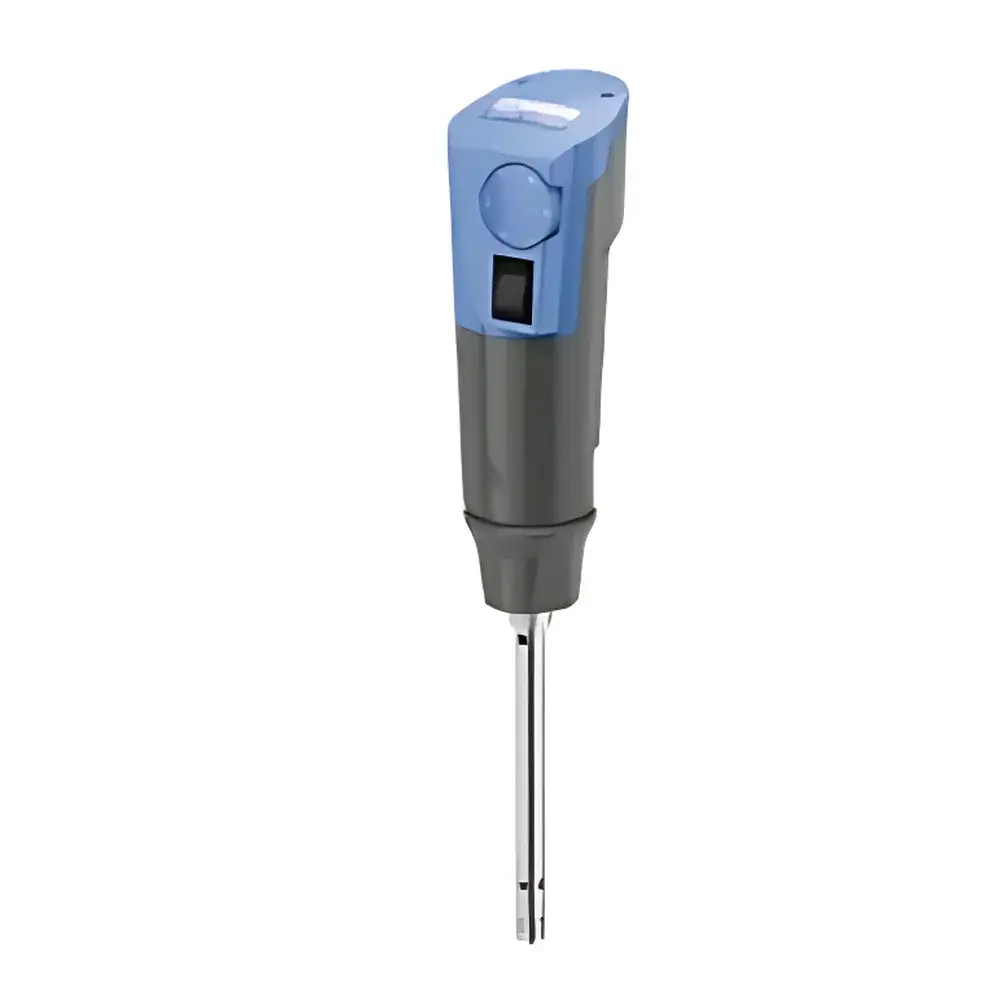

| Brand | IKA |
|---|---|
| Origin | Germany |
| Model | T10 basic ULTRA-TURRAX® |
| Instrument Type | Handheld Homogenizer |
| Instrument Category | Adjustable High-Speed Disperser |
| Sample Volume Range | 0.5–100 mL |
| Motor Input Power | 125 W |
| Motor Output Power | 75 W |
| Speed Range | 8,000–30,000 rpm |
| Speed Control | Continuously Variable |
| Speed Display | Graduated Scale |
| Max. Viscosity | 5,000 mPa·s |
| Noise Level (no dispersing head) | 65 dB(A) |
| Shaft Diameter | 8 mm |
| Shaft Length | 100 mm |
| Dimensions (W × H × D) | 56 × 178 × 66 mm |
| Weight | 0.5 kg |
| Operating Temperature | 5–40 °C |
| Relative Humidity Limit | 80 % |
| Ingress Protection | IP30 (DIN EN 60529) |
| Voltage | 230 / 115 / 100 V |
| Frequency | 50/60 Hz |
| Duty Cycle | 10 min ON / 5 min OFF |
| Minimum Sample Volume (H₂O) | 0.0005 L |
| Maximum Sample Volume (H₂O) | 0.1 L |
| Brand | IKA |
|---|---|
| Origin | Germany |
| Model | EUROSTAR 20 High-Speed Digital |
| Instrument Type | Probe-type Rotor-Stator Homogenizer |
| Dimensions (W×D×H) | 86 × 325 × 208 mm |
| Maximum Processing Volume | 20 L (Water) |
| Motor Input Power | 176 W |
| Motor Output Power | 125 W |
| Speed Range | 0/150–6000 rpm |
| Speed Display | LED, 7-segment |
| Speed Control | Continuous (Stepless) |
| Speed Accuracy | ±1 rpm (n > 300 rpm) |
| Speed Deviation | ±1% (n > 300 rpm) |
| Max. Torque | 20 N·cm |
| Max. Viscosity | 10,000 mPa·s |
| Duty Cycle | 100% continuous operation |
| Shaft Type | Hollow shaft (insertion possible at standstill) |
| Clamping Diameter | 16 mm |
| Extension Arm Length | 220 mm |
| Enclosure Material | Die-cast aluminum housing with thermoplastic polymer coating |
| Weight | 5.3 kg |
| Ambient Temperature Range | 5–40 °C |
| Relative Humidity Limit | 80% |
| Protection Rating | IP42 (per DIN EN 60529) |
| Power Supply | 230 / 115 / 100 V, 50/60 Hz |
| Motor Type | Brushless DC motor |
| Brand | TRILOS |
|---|---|
| Origin | USA |
| Model | ND1000 |
| Instrument Type | High-Pressure Homogenizer |
| Dimensions (W×D×H) | 920 × 680 × 1150 mm |
| Maximum Batch Volume | < 5000 mL |
| Throughput | 60 L/h |
| Operating Pressure | 2000 bar (200 MPa) |
| Inlet Particle Size | < 500 µm |
| Max. Feed Viscosity | < 10,000 cP |
| Feed Temperature Range | < 90 °C |
| Online Temperature Control Range | 10–90 °C |
| Minimum Single-Batch Volume | 5000 mL |
| Homogenization Stage | Single-stage |
| Ambient Operating Conditions | 3–40 °C, ≤90% RH |
| CIP Cycle | 30 min @ ≤90 °C, 60 L/h water consumption |
| Brand | ILSHIN Autoclave |
|---|---|
| Origin | South Korea |
| Instrument Type | High-Pressure Homogenizer |
| Model Series | NH2000 / NH4000 / NH8000 |
| Maximum Operating Pressure | 2,000 bar |
| Recommended Operating Pressure | 1,500 bar |
| Flow Rate | 2 L/h (NH2000) |
| Hydraulic Power Unit | 30 HP (NH2000) / 40 HP (NH4000) / 50 HP (NH8000) |
| Voltage/Frequency | 220/380/440 VAC, 50/60 Hz |
| Interaction Chamber Orifice Sizes | 75 µm, 100 µm, 200 µm, 400 µm |
| Chamber Configuration | Z-type or Y-type |
| Weight | 1,500 kg (NH2000) / 1,700 kg (NH4000) / 2,000 kg (NH8000) |
| Dimensions (L×W×H) | 2350×1000×2100 mm (NH2000 & NH4000) / 3100×1100×2100 mm (NH8000) |
| Brand | IKA |
|---|---|
| Origin | Germany |
| Model | T 50 digital ULTRA-TURRAX® |
| Instrument Type | Probe-type Rotor-Stator Homogenizer |
| Dimensions (W×D×H) | 115 × 355 × 139 mm |
| Processing Volume Range | 0.25 – 30 L (H₂O) |
| Speed Range | 600 – 10,000 rpm |
| Speed Accuracy | ±1 % |
| Max. Viscosity | 5,000 mPa·s |
| Input Power | 1,100 W |
| Output Power | 700 W |
| Noise Level (without dispersing head) | 72 dB(A) |
| Protection Class | IP20 |
| Operating Temperature | 5 – 40 °C |
| Relative Humidity | ≤80 % |
| Voltage | 220–240 V, 50/60 Hz |
| Weight | 5.76 kg |
| Extension Arm Diameter | 16 mm |
| Extension Arm Length | 220 mm |
| Duty Cycle | Continuous Operation (100 %) |
| Brand | MicCRA |
|---|---|
| Origin | Germany |
| Model | D-27 |
| Instrument Type | Probe-type Rotor-Stator Homogenizer |
| Dimensions (H×W×D) | 120 × 275 × 220 mm |
| Processing Volume Range | 0.1 mL to 50 L |
| Motor | 3-Phase Asynchronous, 2.7 kW |
| Max Speed | 36,000 rpm |
| Noise Level | 63 dB(A) |
| IP Rating | IP54 (Motor Unit), IP20 (HFU-27 Inverter) |
| Cooling | Integrated Circulating Water Cooling |
| Sealing | Pneumatic Air-Seal System with Lifetime Grease Lubrication |
| Drive Duty Cycle | S1 (Continuous Operation) |
| Inverter Output | 3×0–220 V AC, 3.8 kVA, 50–400 Hz (up to 600 Hz) |
| USB Interface | Yes |
| Weight | 9.5 kg (Motor Unit), 4.9 kg (HFU-27 Inverter) |
| Brand | ILSHIN Autoclave |
|---|---|
| Origin | South Korea |
| Model | NH500 |
| Instrument Type | Microfluidic (Microjet) Homogenizer |
| Operating Pressure | 1,500 bar (Max. 2,000 bar) |
| Flow Rate | 500 mL/min |
| Interaction Chamber Sizes | 75 µm, 100 µm, 200 µm, 400 µm |
| Interaction Chamber Types | Z-type and Y-type |
| Dimensions (W×D×H) | 850 × 800 × 1500 mm |
| Weight | ~350 kg |
| Power Supply | 220/380/440 VAC, 50/60 Hz, 5 HP |
| Cooling System | Integrated standard cooling unit |
| Continuous Operation Capability | Yes |
| Processing Capacity Range | 75–30,000 mL/h |
| Brand | MICCRA |
|---|---|
| Origin | Germany |
| Model | D-4 / D-4P / D-4P Mul |
| Type | Probe-type Rotational Homogenizer |
| Dimensions (W×D×H) | 80 × 175 × 230 mm |
| Weight | 3 kg |
| Max. Sample Volume (H₂O) | 2 L (D-4), 5 L (D-4P & D-4P Mul) |
| Max. Viscosity | 8,000 mPa·s |
| Motor | Brushless DC |
| Input/Output Power | 450 / 360 W |
| Speed Range | 3,000–25,000 rpm (D-4), 1,500–15,000 rpm (D-4P/D-4P Mul) |
| Speed Setting Resolution | ±100 rpm |
| Timing Range | 0–999 h 59 min 59 sec |
| Programmable Steps | 6-segment (speed + time per step) |
| Temperature Monitoring | Yes (external probe optional), ±0.5 °C accuracy |
| Screen | 3.5″ TFT capacitive touchscreen |
| IP Rating | IP42 |
| Power Supply | 230 V AC, 50/60 Hz |
| Continuous Duty Cycle | 100% |
| Safety Features | Overload & thermal protection, soft start/stop, screen lock, max. temperature cutoff |
| Connectivity | Integrated Wi-Fi for remote monitoring and control via mobile device |

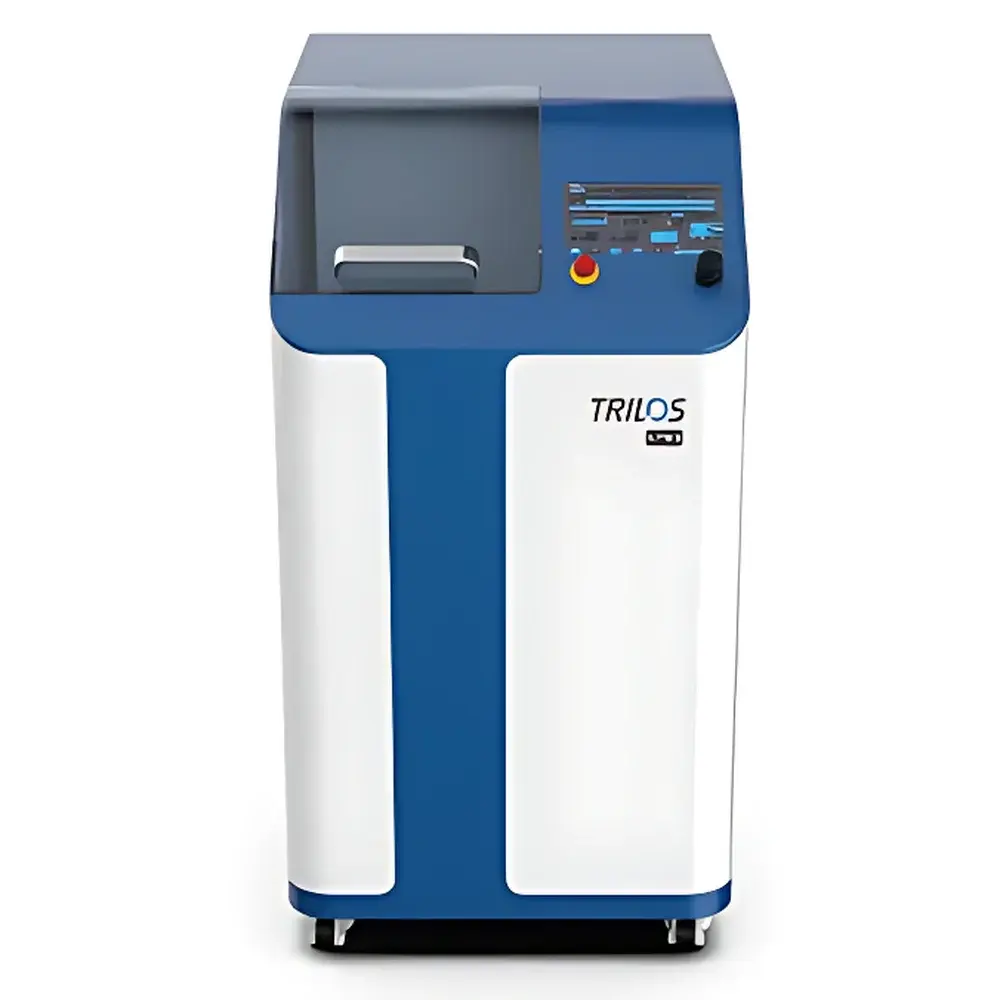

| Brand | TRILOS |
|---|---|
| Origin | USA |
| Model | ND500 |
| Instrument Type | High-Pressure Microfluidic Homogenizer |
| Dimensions (W×D×H) | 850 × 680 × 1050 mm |
| Processing Capacity | <1000 mL per batch |
| Throughput | 30 L/h |
| Maximum Operating Pressure | 2000 bar (200 MPa) |
| Inlet Temperature Range | Up to 90 °C |
| Online Temperature Control Range | 10–90 °C |
| Minimum Batch Volume | 1000 mL |
| Homogenization Stage | Single-stage |
| Cleaning Water Consumption | 30 L/h |
| CIP Cycle Time | 30 min |
| Max. CIP Temperature | <90 °C |
| Ambient Operating Conditions | 3–40 °C, ≤90% RH |
| Brand | ART |
|---|---|
| Origin | Germany |
| Manufacturer Type | Authorized Distributor |
| Origin Category | Imported |
| Model | DFK |
| Pricing | Upon Request |
| Brand | ART |
|---|---|
| Origin | Germany |
| Model | MICCRA D-3/PA |
| Power Source | Rechargeable Lithium-Ion Battery |
| Drive Type | Planetary Gear Motor |
| Maximum Speed | 12,000 rpm |
| Shaft Diameter Compatibility | Up to 10 mm |
| Weight (without tool) | 1.8 kg |
| IP Rating | IP54 |
| Operating Temperature Range | 5–40 °C |
| Compliance | CE, RoHS, ISO 9001-certified manufacturing |
Show next
