| Brand | EXAKT |
|---|---|
| Origin | Germany |
| Model | 80Eplus |
| Instrument Type | Three-Roll Mill |
| Sample Compatibility | Soft, paste-like, and viscous materials (e.g., inks, paints, cosmetics, battery slurries) |
| Feed Particle Size | 5–180 µm |
| Final Output Particle Size | ≤1 µm |
| Minimum Achievable Gap | 5 µm |
| Maximum Line Pressure | 26 N/mm (gap-dependent) |
| Throughput at 10 µm Gap | 10 mL–18 L/hr |
| Roller Surface Options | Chrome-plated steel, tungsten carbide, aluminum oxide, or silicon carbide |
| Dimensions (W × D × H) | 591 × 608 × 602 mm |
| Installed Footprint Recommendation (W × D) | 1200 × 700 mm |
| Weight | 112–125 kg |
| Cooling Interface | 10 mm inlet / 13 mm outlet |
| Max Inlet Coolant Temperature | 55 °C |
| Operating Ambient Temperature | 10–30 °C |
| Power Supply Option 1 | 3 × 380–420 V / 50–60 Hz, 1300 W |
| Power Supply Option 2 | 3 × 200–240 V / 50–60 Hz, 1300 W |
| Control Interface | 8.4″ color TFT touchscreen with real-time parameter logging (gap, torque, roller temperature, motor power, time stamp) |
| Brand | EXAKT |
|---|---|
| Origin | Germany |
| Model | Basic Model 80 |
| Instrument Type | Three-Roll Mill |
| Sample Suitability | Soft to semi-viscous materials |
| Feed Particle Size | 5–180 µm |
| Final Output Particle Size | ≤1 µm |
| Throughput Capacity | 0.02–45 L/h |
| Roll Diameter | 80 mm |
| Roll Length | 250 mm |
| Roll Speed Ratio | 3.3 : 1.8 : 1 |
| Roll Material | Hard-chromed stainless steel & alumina-coated surfaces |
| Blade Material | Stainless steel & polymer (ceramic blades optional) |
| Drive | Dual-speed or continuously variable motor (0.3 / 0.45 kW) |
| Dimensions (W×D×H, incl. hopper & blade) | 635 × 400 × 560 mm |
| Power Supply | 230 V / 50 Hz or 400 V / 50 Hz |
| Optional | ATEX-compliant explosion-proof configuration, roll heating/cooling (up to 80 °C standard, up to 100 °C on request), PFA-coated universal blade system |
| Brand | FRITSCH |
|---|---|
| Origin | Germany |
| Model | Pulverisette 13 |
| Sample Hardness | Hard to Very Hard |
| Max. Feed Size | 20 mm |
| Final Particle Size Range | 0.1–12 mm |
| Adjustable Grinding Gap | Yes |
| Throughput Capacity | Up to 150 kg/h |
| Grinding Disc Materials | Cast Iron (11–12% Cr), Manganese Steel (12–13% Mn), Tungsten Carbide (90.3% WC + 9.5% Co), Zirconia (94.8% ZrO₂) |
| Motor | 3-phase, 400 V, 50–60 Hz, 1830 W |
| Rotational Speed | 439 rpm |
| Net Weight | 140 kg |
| Dimensions (L×W×H) | 44 × 87 × 40 cm |
| Collection Container Volume | 1.8 L |
| Brand | EXAKT |
|---|---|
| Origin | Germany |
| Model | Basic Model 50 |
| Instrument Type | Three-Roll Mill |
| Sample Applicability | Soft materials |
| Feed Particle Size | 5–180 µm |
| Final Output Particle Size | ≤5 µm |
| Throughput | 0.5 L/h |
| Minimum Output Particle Size | <0.01 mm |
| Drive Configuration | Dual-speed, adjustable timing belt (replaces V-belt) |
| Roll Dimensions | 150 mm length |
| Roll Speed Ratio | 3.3 : 1.8 : 1 |
| Roll Material | Hard-chrome-plated stainless steel or anodized aluminum |
| Blade Material Options | Stainless steel, PFA-coated, or anodized aluminum |
| Motor | Single-speed (0.12 kW) or variable-speed option (output power 0.08 kW) |
| Dimensions (W×D×H, including blade and hopper) | 320 × 280 × 320 mm |
| Electrical Supply | 230 V / 50 Hz or 400 V / 50 Hz |
| Optional Accessories | Solvent dispenser, roll-gap guard, stainless-steel hopper, PFA-coated universal blade holder, temperature-controlled rolls (cooling/heating to 80 °C standard |
| Safety Features | Magnetic safety switch on hopper, splash-resistant tray with emergency stop button, adjustable gap guard with pointer-scale indication, dust shields, IP-rated enclosure components |
| Brand | TRILOS |
|---|---|
| Origin | USA |
| Model | TR80A |
| Roller Diameter | 80 mm |
| Roller Length | 200 mm |
| Speed Ratio | 1:3:9 |
| Throughput Capacity | 0.02–20 L/h |
| Final Particle Size | ≤1 µm (material-dependent) |
| Feed Particle Size | >1 µm |
| Roller Material Options | SiC, Al₂O₃, ZrO₂, Stainless Steel |
| Doctor Blade Material Options | Al₂O₃, ZrO₂, Stainless Steel, PVC |
| Motor Power | 1.5 kW |
| Dimensions (L×W×H) | 750 × 340 × 490 mm |
| Integrated Cooling Circuit | Yes |
| Control Interface | Full-touch industrial HMI |
| Gap Adjustment | Real-time online correction |
| Compliance | Designed for GLP-compliant lab environments |
| Software Features | Recipe-based operation with audit-trail-capable parameter logging |
| Brand | EXAKT |
|---|---|
| Origin | Germany |
| Model | 80Splus |
| Instrument Type | Three-Roll Mill |
| Sample Applicability | Hard and Brittle Materials |
| Feed Particle Size | 5–180 µm |
| Final Output Particle Size | ≤1 µm |
| Throughput Capacity | 10 mL–18 L/hr |
| Adjustable Roll Gap Range | 5–230 µm |
| Roll Material Options | Chromium-Plated Stainless Steel, Tungsten Carbide, Aluminum Oxide (Al₂O₃), Silicon Carbide (SiC) |
| Housing Material Options | Stainless Steel, Sandblasted Finish, Electropolished Finish |
| Safety Compliance | CE, Exceeds ANSI B11.19 Requirements |
| Dimensions (W × D × H) | 512 × 621 × 603 mm |
| Recommended Installation Footprint | 1200 × 700 mm |
| Weight | 112–125 kg |
| Cooling System | External Circulating Water (Inlet Ø10 mm, Outlet Ø13 mm |
| Max Inlet Temp | 55 °C |
| Operating Ambient | 10–30 °C) |
| Electrical Supply | 3 × 200–240 V / 50–60 Hz |
| Power Consumption | 1300 W |
| Brand | Fritsch |
|---|---|
| Origin | Germany |
| Model | Pulverisette 23 |
| Instrument Type | Vibratory Micro Ball Mill |
| Sample Type | Dry or Suspended Solids (including Emulsions) |
| Max. Feed Size | < 6 mm |
| Final Particle Size | ≤ 10 µm |
| Batch Capacity | 5 mL |
| Vibration Frequency | 3000 min⁻¹ |
| Amplitude | 9 mm |
| Power Supply | 100–240 V, 50–60 Hz, 100 W |
| Net Weight | 15 kg |
| Dimensions (L×W×H) | 20 × 30 × 30 cm |
| Safety Certification | CE |
| Brand | IKA |
|---|---|
| Origin | Germany |
| Model | Tube Mill 100 control |
| Instrument Type | Batch Grinder |
| Sample Applicability | Hard, brittle, dry materials (max. hardness 5 Mohs) |
| Feed Particle Size | ≤10 mm |
| Final Particle Size | <10 µm |
| Batch Capacity | 100 mL |
| Speed Range | 5,000–25,000 rpm |
| Speed Accuracy | ±2% |
| Max. Peripheral Speed | 65 m/s |
| Motor Input Power | 100 W |
| Motor Output Power | 80 W |
| Operating Time per Cycle | Up to 3 min |
| Cooling Options | Ambient air, dry ice, or liquid nitrogen (external cooling of grinding chamber) |
| Dimensions (W×D×H) | 180 × 212 × 300 mm |
| Weight | 2.8 kg |
| Ambient Operating Conditions | 5–40 °C, ≤80% RH |
| Protection Class | IP 30 (DIN EN 60529) |
| Interface | USB (data logging & remote control), no RS232 or analog output |
| Voltage | 220–240 V / 100–120 V, 50/60 Hz |
| Display | Multilingual OLED with error code reporting |
| Programmable Parameters | Speed, time, pause intervals, safety thresholds |
| Included Grinding Cups | 1 × MT 40, 1 × MT 100, 1 × MMT 40 |

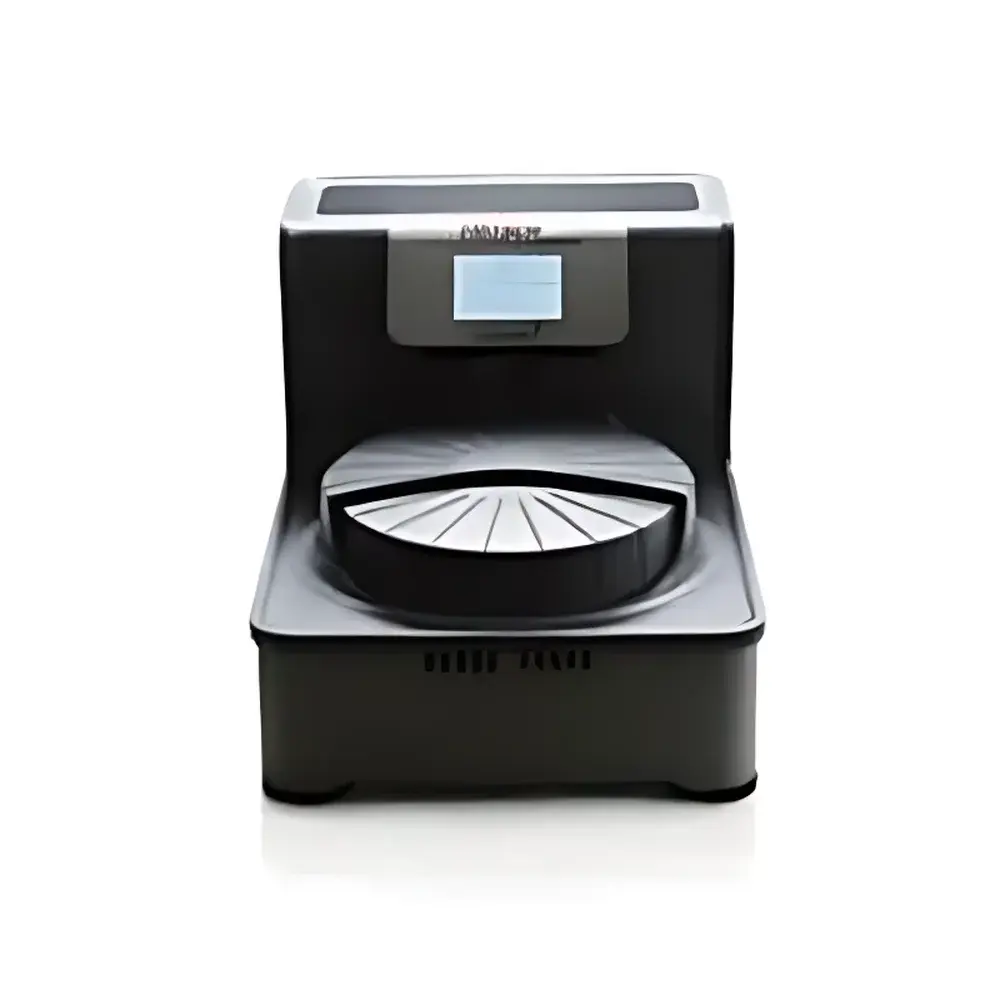

| Brand | FRITSCH |
|---|---|
| Origin | Germany |
| Model | Pulverisette 7 Premium Line |
| Maximum Feed Size | 5 mm |
| Batch Capacity | 70 mL |
| Final Particle Size | < 0.1 µm |
| Grinding Modes | Dry and Wet |
| Main Drive Speed | 100–1100 rpm |
| Application Scope | Hard, brittle, medium-hard, and fibrous materials |
| Compliance | CE, ISO 9001-certified manufacturing |
| Brand | IKA |
|---|---|
| Origin | Germany |
| Model | Tube Mill control |
| Instrument Type | Grinder |
| Sample Applicability | Hard and brittle samples (max. hardness 5 Mohs) |
| Feed Particle Size | ≤10 mm |
| Final Particle Size | 0.01–0.5 mm (with <100 µm achievable under optimized conditions) |
| Batch Volume | 40 mL |
| Speed Range | 5,000–25,000 rpm |
| Speed Accuracy | ±2% |
| Max. Peripheral Speed | 65 m/s |
| Motor Input Power | 100 W |
| Motor Output Power | 80 W |
| Operating Time | Up to 3 min continuous |
| Cooling Options | Ambient air only (no integrated water/liquid nitrogen cooling ports) |
| Dimensions (W×D×H) | 180 × 170 × 300 mm |
| Weight | 2.7 kg |
| Ambient Operating Conditions | 5–40 °C, ≤80% RH |
| Protection Rating | IP30 (per DIN EN 60529) |
| Interface | USB (for remote control & data logging) |
| RS-232 | No |
| Analog Output | No |
| Voltage | 220–240 V / 100–120 V AC |
| Frequency | 50/60 Hz |
| Brand | EXAKT |
|---|---|
| Origin | Germany |
| Model | 120EH-450 |
| Instrument Type | Three-Roll Mill |
| Sample Applicability | Soft and semi-viscous materials |
| Feed Particle Size | 5–180 µm |
| Final Output Particle Size | ≤1 µm |
| Throughput Capacity | 1–60 L/h |
| Roller Diameter | 120 mm |
| Roller Length | 450 mm |
| Speed Ratio | 9:3:1 |
| Roller Material | Hard-chrome-plated stainless steel / Alumina / Polished alumina / Silicon carbide |
| Doctor Blade Material | Stainless steel / Plastic / Alumina / Zirconia |
| Drive | Inverter-controlled electronic speed regulation |
| Motor Power | 3 kW |
| Roller Temperature Control | Cooled or heated up to 80 °C |
| Dimensions (W×D×H) | 1070 × 950 × 1320 mm |
| Weight | 390 kg |
| Brand | EXAKT |
|---|---|
| Origin | Germany |
| Model | 120EH-250 |
| Roller Diameter | 120 mm |
| Roller Length | 250 mm |
| Speed Ratio (n₁ | n₂:n₃): 9:3:1 |
| Feed Particle Size | 5–180 µm |
| Final Output Particle Size | ≤1 µm |
| Throughput Capacity | 0.5–30 L/h |
| Roller Material Options | Hard-chrome-plated stainless steel / Alumina / Polished alumina / Zirconia / Silicon carbide |
| Doctor Blade Material Options | Stainless steel / Plastic / Alumina / Zirconia |
| Motor Power | 3.0 kW |
| Max. Roller Temperature | 80 °C (heating/cooling capable) |
| Dimensions (W×D×H, incl. blade & hopper) | 870 × 950 × 1320 mm |
| Weight | 320 kg |
| Brand | Fritsch |
|---|---|
| Origin | Germany |
| Model | Pulverisette 14 |
| Sample Type | Soft to Medium-Hard Materials |
| Feed Size | ≤ 10 mm |
| Final Particle Size (D50) | ≤ 40 µm |
| Output Granularity Range | 0.01–0.5 mm |
| Throughput | 0.5–5 L/h |
| Rotor Speed | 6,000–20,000 rpm |
| Motor Power | 550 W (bearing motor), 1150 W (total electrical input) |
| Voltage/Frequency | 200–240 V / 1~ / 50–60 Hz |
| Net Weight | 23 kg |
| Dimensions (L×W×H) | 31 × 48 × 47 cm |
| Compliance | EN 61010, CE Marked |
| Construction | Stainless Steel Housing & Rotor, Titanium Rotor Option Available |
| Safety Certification | TÜV-tested per EN 61010 |
| Brand | Fritsch |
|---|---|
| Origin | Germany |
| Model | Pulverisette 6 |
| Instrument Type | Planetary Ball Mill |
| Sample Suitability | Hard and brittle materials |
| Feed Size | ≤ 10 mm |
| Final Particle Size | < 1 µm |
| Batch Capacity | 225 mL |
| Operating Speed | Up to 600 rpm (sun wheel), planetary ratio 1:2 |
| Power Supply | 100–240 V, 50–60 Hz, 1100 W |
| Noise Level | ~70 dB(A) (250 mL bowl, 10 mm balls) |
| Net Weight | 63 kg |
| Dimensions (L×W×H) | 37 × 53 × 50 cm |
| Compliance | EN 61010, CE Marked |
| Optional Accessories | GTM Gas Temperature & Pressure Monitoring System, inert gas-compatible lids, 8 bowl/ball material options, 3 bowl volumes (80/250/500 mL), 6 ball diameters (5–40 mm) |
| Brand | Fritsch |
|---|---|
| Origin | Germany |
| Model | Pulverisette 5 |
| Type | Planetary Ball Mill |
| Sample Type | Hard, brittle, fibrous, or temperature-sensitive materials |
| Max. Feed Size | < 10 mm |
| Final Particle Size | < 1 µm |
| Batch Capacity | 4 × 225 mL (900 mL total) |
| Grinding Bowl Volume Options | 80, 250, 500 mL |
| Grinding Media Diameters | 10–40 mm |
| Power Supply | 100–120 / 200–240 V, 1~ , 50–60 Hz |
| Motor Output | 0.37 kW (VDE 0530 / EN 60034 compliant) |
| Weight | 120 kg (net), 180 kg (gross) |
| Dimensions (L×W×H) | 58 × 67 × 57 cm |
| Noise Level | ~70 dB(A) (measured with 250 mL bowl + 10 mm balls) |
| Brand | TRILOS |
|---|---|
| Origin | USA |
| Model | TR120A |
| Instrument Type | Three-Roll Mill |
| Sample Applicability | Soft and semi-viscous pastes, slurries, and dispersions |
| Final Particle Size | ≤0.01 mm (≤10 µm) |
| Feed Particle Size | >1 µm |
| Typical Output Particle Size | ~1 µm |
| Batch Processing Capacity | 0.5–60 L |
| Roll Diameter | 120 mm |
| Roll Length | 450 mm |
| Roll Speed Ratio | 1:3:9 |
| Roll Materials | Silicon Carbide (SiC), Alumina (Al₂O₃), Zirconia (ZrO₂), or Stainless Steel |
| Doctor Blade Materials | Al₂O₃, ZrO₂, Stainless Steel, or PVC |
| Motor Power | 3.5 kW |
| Dimensions (L×W×H) | 1150 × 660 × 1280 mm |
| Weight | 350 kg |
| Cooling System | Integrated recirculating coolant loop |
| Control Interface | Touchscreen HMI with programmable recipe management |
| Operational Modes | Gap Mode & Pressure Mode |
| Safety Features | Interlocked dust cover, emergency stop, roll gap limit sensors, thermal overload protection |
| Brand | EXAKT |
|---|---|
| Origin | Germany |
| Model | 80S Surface-Polished (S-Type) |
| Instrument Type | Three-Roll Mill |
| Sample Applicability | Soft Materials |
| Feed Particle Size | 5–180 µm |
| Final Output Particle Size | 1–9 µm |
| Discharge Particle Size Range | <0.01 mm |
| Batch Throughput | 10 mL–18 L/hr |
| Roll Diameter | 80 mm |
| Roll Length | 200 mm |
| Roll Speed Ratio | 9:3:1 |
| Standard Drive | Single-Speed Motor (0.3/0.45 kW) or Optional Dual-Speed Motor (1.0/1.5 kW) |
| Power Supply | AC 230 V / 50 Hz or 400 V / 50 Hz |
| Roll Temperature Control | Ambient to +80 °C (up to +100 °C on request) |
| Roll Surface Options | Hard-Chrome-Plated Stainless Steel, Anodized Aluminum, Zirconia (for 250 mm rolls only), Silicon Carbide |
| Blade Material Options | Stainless Steel, Engineering Plastic (e.g., POM), Aluminum Oxide, Zirconia |
| Optional Features | Solvent Dispenser, Explosion-Proof Design (ATEX), PFA-Coated Blade Holder, Magnetic Safety Switch on Hopper, Roll Gap Guard, Splash-Resistant Tray with Safety Interlock, Adjustable Width Retaining Plate |
| Brand | IKA |
|---|---|
| Origin | Germany |
| Model | A 10 basic |
| Grinding Type | Batch |
| Motor Input Power | 300 W |
| Motor Output Power | 240 W |
| Max Speed | 25,000 rpm |
| Speed Tolerance | ±500 rpm |
| Max Peripheral Speed | 73 m/s |
| Max Feed Hardness | 5 Mohs |
| Max Feed Size | 6 mm |
| Final Particle Size | 125–250 µm |
| Minimum Output Size | >0.5 mm |
| Batch Capacity | 50 mL |
| Grinding Chamber Material | Stainless Steel 1.4301 |
| Cutting/Impact Blade Material | Stainless Steel 1.4034 |
| Cooling Options | Water, Dry Ice, Liquid Nitrogen |
| Duty Cycle | 5 min ON / 10 min OFF |
| Dimensions (W×H×D) | 130 × 250 × 145 mm |
| Weight | 2.9 kg |
| Ambient Temperature Range | 5–40 °C |
| Relative Humidity Limit | 80 % |
| Ingress Protection | IP 41 (DIN EN 60529) |
| Voltage | 220–240 V AC |
| Frequency | 50/60 Hz |
| Safety Interlock | Yes |
| Timer Display | Digital |
| Drive Type | Brushless Electronic Motor |
| Lid Locking Mechanism | Snap-fit Quick-Release |
| Blade Exchange | Tool-free |
| Compliance | CE, RoHS, IEC 61000-6-3, IEC 61000-6-4 |
| Brand | FRITSCH |
|---|---|
| Origin | Germany |
| Model | Pulverisette 0 |
| Instrument Type | Vibratory Disc Mill (not ball mill — corrected per ISO/ASTM classification) |
| Sample Compatibility | Cryogenic, wet, oily, fatty, polymeric, and heat-sensitive materials |
| Feed Size | ≤ 5 mm |
| Final Particle Size | 1–10 µm (typical median D₅₀) |
| Batch Volume | 1–10 mL |
| Power Supply | 100–240 V AC, 50–60 Hz, 50 W |
| Net Weight | 21 kg |
| Dimensions (L×W×H) | 37 × 40 × 20 cm |
| Safety Certification | TÜV-tested, CE-compliant |
| Grinding Chamber Material Options | Agate, Silicon Nitride, Alumina, Zirconia, Stainless Steel, Hardened Steel, Tungsten Carbide |
| Optional Accessories | Cryo-Box (liquid nitrogen compatible), Acoustic Enclosure, Transparent Viewing Window, Digital Timer with 0.01 s resolution |
| Brand | EXAKT |
|---|---|
| Origin | Germany |
| Model | 120S-450 |
| Instrument Type | Three-Roll Mill |
| Sample Applicability | Soft to semi-viscous materials |
| Feed Particle Size | 5–180 µm |
| Final Output Particle Size | 1–9 µm |
| Throughput Capacity | 0.01–5.7 L/hr |
| Roll Diameter | 120 mm |
| Roll Length | 450 mm |
| Roll Speed Ratio | 2.9 : 1.7 : 1 |
| Roll Material | Hard-chrome-plated stainless steel, polished alumina, or zirconia |
| Roller Surface Finish | Polished alumina or chemically treated zirconia |
| Scraper Materials | Stainless steel, PTFE, alumina, zirconia |
| Drive Options | Single-speed (1.5 kW), dual-speed (0.55/1.1 kW), or inverter-controlled variable-speed (1.5 kW) |
| Cooling/Heating Capability | Standard — up to 80 °C |
| Dimensions (W×D×H, with scraper & hopper) | 820 × 650 × 660 mm |
| Electrical Supply | 230 V / 50 Hz or 400 V / 50 Hz |
| Safety Certification | CE-compliant |
| Optional | ATEX-certified explosion-proof configuration, PFA-coated universal scraper system |
| Brand | TRILOS |
|---|---|
| Model | TR50M |
| Origin | USA |
| Equipment Type | Three-Roll Mill (Laboratory-Scale) |
| Roller Diameter | 50 mm |
| Roller Length | 150 mm |
| Roller Speed Ratio | 1:2:4 |
| Roller Material | Al₂O₃ / ZrO₂ / Stainless Steel |
| Doctor Blade Material | Al₂O₃ / ZrO₂ / Stainless Steel / PVC |
| Adjustable Gap | Manual |
| Speed Control | Stepless (Variable) |
| Feed Particle Size | >1 µm |
| Final Output Particle Size | <0.01 mm (10 µm) |
| Batch Throughput | 0.02–5 L/h |
| Motor Power | 0.12 kW |
| Dimensions (L×W×H) | 390 × 275 × 310 mm |
| Weight | 20 kg |
| Sample Compatibility | Soft, paste-like, and semi-viscous materials (e.g., polymer dispersions, ointments, pastes, conductive inks) |
| Brand | Fritsch |
|---|---|
| Origin | Germany |
| Model | Pulverisette 7 Classic |
| Grinding Principle | Planetary Ball Milling |
| Maximum Jar Rotation Speed | 800 rpm |
| Jar-to-Sun-Disk Speed Ratio | 1:2 |
| Feed Size | < 5 mm |
| Final Particle Size | < 1 µm |
| Batch Capacity | 2 × 20 mL (max) |
| Grinding Modes | Dry & Wet |
| Power Supply | 100–240 V, 50–60 Hz, 880 W |
| Motor Output | 0.37 kW |
| Net Weight | 35 kg |
| Dimensions (L×W×H) | 82 × 52 × 71 cm |
| Compliance | EN 61010, CE Marked |
Show next
