| Brand | CUBIC INSTRUMENTS |
|---|---|
| Origin | Hubei, China |
| Manufacturer Type | Authorized Distributor |
| Country of Origin | China |
| Model | LRGA-6000 |
| Instrument Type | Grating-Based Raman Spectrometer |
| Spectral Range | 400–700 nm |
| Spectral Resolution | 0.01% |
| Spatial Resolution | 1 µm (lateral), 2 µm (axial) |
| Minimum Wavenumber | 10 cm⁻¹ |
| Spectral Reproducibility | ≤1% (dependent on configured measurement range) |
| Brand | CUBIC INSTRUMENTS |
|---|---|
| Origin | Hubei, China |
| Manufacturer Type | Authorized Distributor |
| Product Category | Domestic |
| Type | Online Dew Point Analyzer |
| Accuracy | ±2% F.S. |
| Repeatability | ≤1.5% F.S. |
| Measurement Principle | Tunable Diode Laser Absorption Spectroscopy (TDLAS) |
| Measurement Range | 0–6000 ppmv H₂O |
| Resolution | 0.1 ppmv |
| Explosion Protection | Ex db IIC T6 Gb / Ex tb IIIC T80°C Db |
| Ingress Protection | IP66 |
| Operating Temperature | −10°C to +50°C |
| Operating Humidity | 0–98% RH (non-condensing) |
| Sample Pressure | Inlet: 140–310 kPa |
| Measurement Cell | 800–1200 mbara |
| Power Supply | 24 VDC ±20% or 100–240 VAC ±10%, 50/60 Hz, 10 W |
| Communication Interfaces | RS-485, 4–20 mA, Modbus RTU/TCP, Ethernet |
| Dimensions (L×W×H) | 400 × 400 × 250 mm |
| Weight | 36 kg |
| Brand | CUBIC INSTRUMENTS |
|---|---|
| Origin | Hubei, China |
| Manufacturer Type | Authorized Distributor |
| Country of Origin | China |

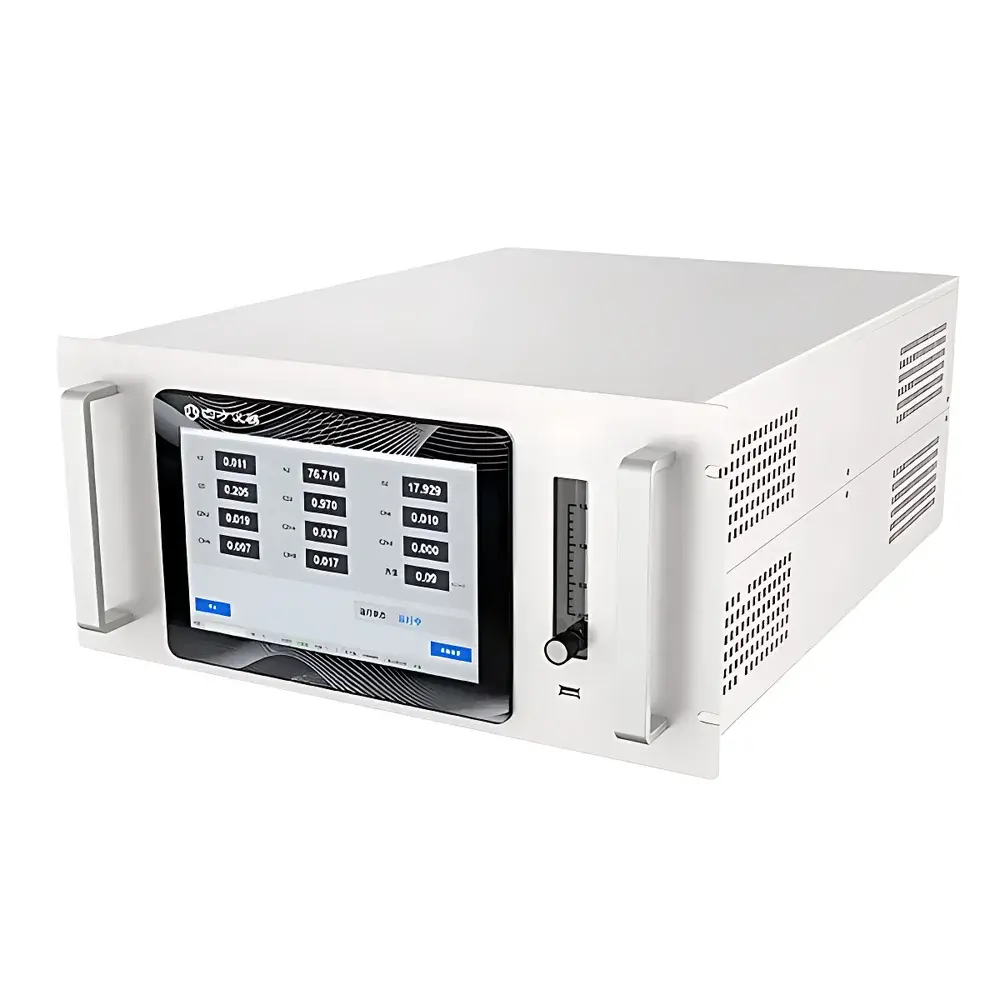

| Model | LRGA-3100 |
| Price Range | USD 140,000 – 280,000 |
| Instrument Type | Grating-Based Raman Spectrometer |
| Spectral Repeatability | ≤1% |
| Measurement Principle | Laser Raman Scattering |
| Response Time | ≤10 s |
| Accuracy | ≤±1% F.S. |
| Detection Range | 0–100% (full-scale, configurable) |
| Operating Temperature | 10–35 °C |
| Power Supply | AC 220 V / 50 Hz, <70 W |
| Interfaces | USB, RS-232, RS-485, Ethernet |
| Dimensions (L×W×H) | 605 × 483 × 220 mm |
| Brand | CUBIC INSTRUMENTS |
|---|---|
| Origin | Hubei, China |
| Manufacturer Type | Authorized Distributor |
| Country of Origin | China |

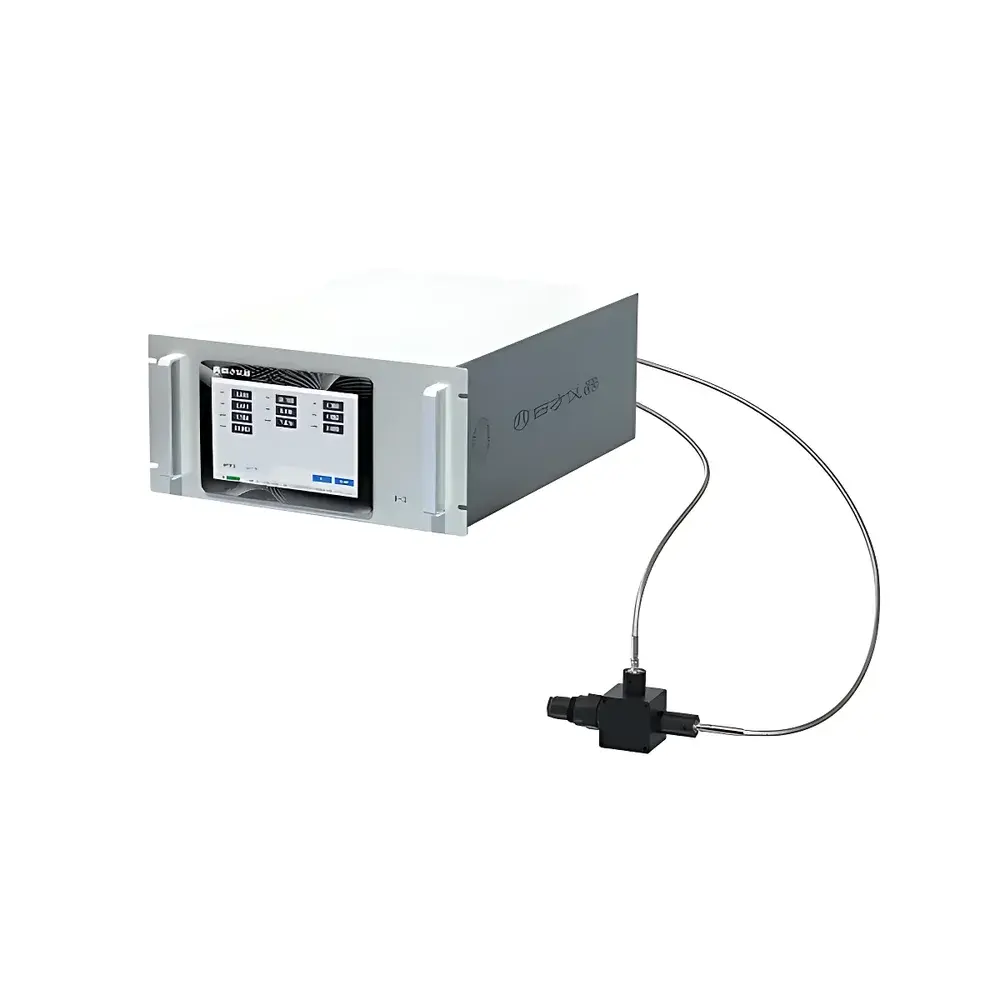

| Model | LRGA-3200 |
| Instrument Type | Portable/Handheld Raman Spectrometer |
| Spectral Repeatability | ≤1% F.S. |
| Measurement Accuracy | ≤±1% F.S. |
| Response Time | ≤30 s |
| Operating Temperature (Analyzer) | 10–35 °C |
| Operating Humidity | ≤95% RH (non-condensing) |
| Input Voltage | 100–240 VAC, 50–60 Hz |
| Communication Interfaces | RS-232 / RS-485 / TCP/IP / USB |
| Display | Color Touchscreen |
| Probe Quantity | 1 Fiber-Optic Probe |
| Probe Temperature Range | 0–200 °C |
| Probe Pressure Range | 80–4000 kPa |
| Measured Gases | H₂, N₂, O₂, CO, CO₂, CH₄, C₂H₂, C₂H₄, C₃H₆ |
| Brand | CUBIC INSTRUMENTS |
|---|---|
| Origin | Hubei, China |

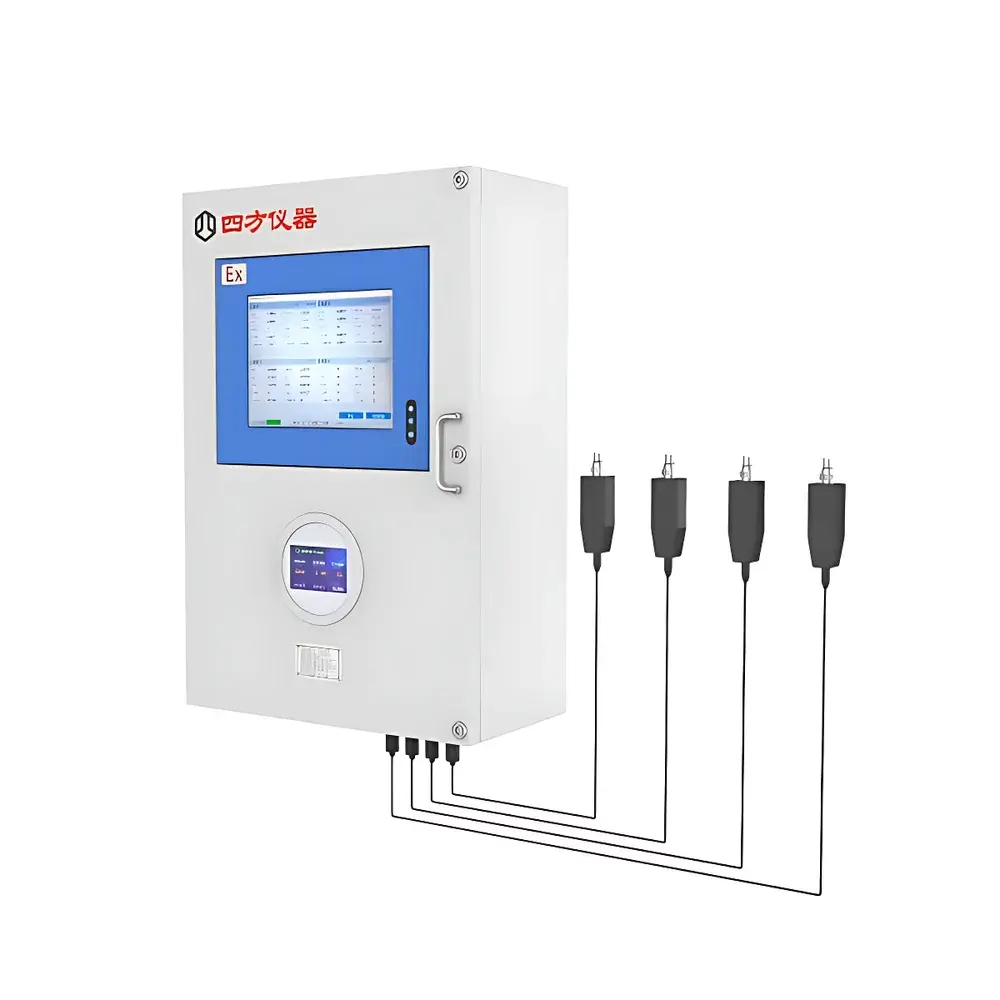

| Model | LRGA-3200EX |
| Type | Online Raman Spectrometer |
| Spectral Range | 0–100% (v/v) |
| Spectral Repeatability | 1% F.S. |
| Accuracy | ±1% F.S. |
| Response Time | <1 s |
| Operating Pressure | up to 4 MPa |
| Probe Quantity | 4 |
| Fiber Optic Cable Length | 5 m (standard, customizable) |
| Enclosure Rating | IP65 |
| Explosion Protection | Ex d II C T4 Gb |
| Ambient Operating Temperature (Analyzer) | 10–35 °C |
| Probe Operating Temperature | –20–200 °C |
| Humidity | 0–95% RH (non-condensing) |
| Power Supply | 100–240 VAC, 50–60 Hz |
| Max. Power Consumption | <200 W |
| Communication Interfaces | RS-232, RS-485, TCP/IP Ethernet, USB, 4–20 mA analog output |
| Dimensions (L×W×H) | 540 × 300 × 900 mm |
| Weight | 75 kg |
| Brand | CUBIC INSTRUMENTS |
|---|---|
| Origin | Hubei, China |
| Model | LRGA-3200 |
| Instrument Type | Portable Raman Spectrometer |
| Spectral Repeatability | ≤1% F.S. |
| Measurement Range | 0–100% (selectable by application) |
| Accuracy | ≤±1% F.S. |
| Response Time | ≤30 s |
| Operating Temperature (Analyzer) | 10–35 °C |
| Operating Humidity | ≤95% RH (non-condensing) |
| Input Voltage | 100–240 VAC, 50–60 Hz |
| Communication Interfaces | RS-232 / RS-485 / TCP/IP / USB |
| Display | Color Touchscreen |
| Probe Quantity | 1 Raman Fiber Probe |
| Probe Temp. Range | 0–200 °C |
| Probe Pressure Range | 80–4000 kPa |
| Measured Gases | H₂, N₂, O₂, CO, CO₂, CH₄, C₂H₂, C₂H₄, C₃H₆ |
| Brand | CUBIC INSTRUMENTS |
|---|---|
| Origin | Hubei, China |
| Manufacturer Type | Authorized Distributor |
| Country of Origin | China |
| Model | LRGA-6000 |
| Instrument Type | Grating-Based Raman Spectrometer |
| Spectral Range | 400–700 nm |
| Spectral Resolution | 0.01% |
| Spatial Resolution | 1 µm (lateral), 2 µm (axial) |
| Minimum Wavenumber Shift | 10 cm⁻¹ |
| Spectral Repeatability | ≤1% (dependent on configured concentration range) |
| Measurement Range | 0–10% to 0–100% (gas volume %) |
| Linearity Error | ≤±1% FS |
| Response Time | ≤30 s |
| Dimensions | 1000 × 800 × 1780 mm |
| Brand | CUBIC INSTRUMENTS |
|---|---|
| Origin | Hubei, China |
| Model | LRGA-3200EX |
| Spectral Range | 0–100% (relative intensity) |
| Spectral Repeatability | ±1% F.S. |
| Measurement Accuracy | ±1% F.S. |
| Response Time | <1 s |
| Operating Pressure (probe) | up to 4 MPa |
| Probe Operating Temperature | −20 to 200 °C |
| Analyzer Operating Temperature | 10–35 °C |
| Humidity | 0–95% RH (non-condensing) |
| Power Input | 100–240 VAC, 50–60 Hz |
| Max. Power Consumption | <200 W |
| Enclosure Rating | IP65 |
| Explosion Protection | Ex d II C T4 Gb |
| Probe Quantity | 4 |
| Standard Fiber Length | 5 m (customizable) |
| Dimensions (L×W×H) | 540 × 300 × 900 mm |
| Weight | 75 kg |
| Communication Interfaces | RS-232, RS-485, TCP/IP Ethernet, USB, 4–20 mA analog outputs |
| Brand | CUBIC INSTRUMENTS |
|---|---|
| Origin | Hubei, China |
| Model | LRGA-3200EX |
| Spectral Range | 400–700 nm |
| Spectral Resolution | 0.01% |
| Spatial Resolution | 1 µm (lateral), 2 µm (axial) |
| Minimum Wavenumber | 10 cm⁻¹ |
| Spectral Repeatability | 1% F.S. |
| Measurement Accuracy | ±1% F.S. |
| Operating Pressure | up to 4 MPa |
| Explosion Protection | Ex d II C T4 Gb |
| IP Rating | IP65 |
| Power Supply | 100–240 VAC, 50–60 Hz |
| Max Power Consumption | <200 W |
| Communication Interfaces | RS-232, RS-485, TCP/IP, USB, 4–20 mA analog output |
| Probe Quantity | 4 |
| Standard Fiber Length | 5 m (customizable) |
| Dimensions (L×W×H) | 540 × 300 × 900 mm |
| Weight | 75 kg |
| Ambient Operating Temperature (Analyzer) | 10–35 °C |
| Probe/Process Temperature | −20 to +200 °C |
| Relative Humidity | 0–95% RH (non-condensing) |
| Brand | CUBIC INSTRUMENTS |
|---|---|
| Origin | Hubei, China |
| Manufacturer Type | Authorized Distributor |
| Country of Origin | China |
| Model | LRGA-3100 |
| Price Range | USD 140,000–280,000 |
| Instrument Type | Grating-Based Raman Spectrometer |
| Spectral Repeatability | ≤1% |
| Measurement Accuracy | ≤±1% F.S. |
| Response Time | ≤10 s |
| Operating Temperature | 10–35 °C |
| Power Supply | AC 220 V / 50 Hz, <70 W |
| Dimensions (L×W×H) | 605 × 483 × 220 mm |
| Communication Interfaces | USB, RS-232, RS-485, Ethernet |
| Gas Measurement Range | 0–100% (full-scale, configurable per application) |
| Detectable Gases | H₂, N₂, O₂, CO, CO₂, CH₄, C₂H₂, C₂H₄, C₂H₆, C₃H₆, C₃H₈, H₂S |
| Brand | CUBIC INSTRUMENTS |
|---|---|
| Origin | Hubei, China |
| Model | LRGA-3200EX |
| Type | Online Raman Spectrometer |
| Spectral Range | 0–100% (v/v) |
| Spectral Repeatability | 1% F.S. |
| Measurement Accuracy | ±1% F.S. |
| Response Time | <1 s |
| Operating Pressure (Probe) | Up to 4 MPa |
| Probe Temperature Range | –20 °C to +200 °C |
| Analyzer Ambient Temp. | 10–35 °C |
| Humidity | 0–95% RH, non-condensing |
| Power Input | 100–240 VAC, 50–60 Hz |
| Max. Power Consumption | <200 W |
| Communication Interfaces | RS-232 / RS-485 / TCP/IP / USB / 4–20 mA analog output |
| Enclosure Rating | IP65 |
| Explosion Protection | Ex d II C T4 Gb |
| Dimensions (L×W×H) | 540 × 300 × 900 mm |
| Weight | 75 kg |
| Standard Fiber Optic Cable Length | 5 m |
| Number of Probes | 4 |
| Brand | CUBIC INSTRUMENTS |
|---|---|
| Origin | Hubei, China |
| Manufacturer Type | Authorized Distributor |
| Country of Origin | China |
| Model | LRGA-3100 |
| Instrument Type | Grating-Based Raman Spectrometer |
| Spectral Repeatability | ≤1% |
| Measurement Range | 0–100% (full-scale) |
| Accuracy | ≤±1% F.S. |
| Response Time | ≤10 s |
| Operating Temperature | 10–35 °C |
| Power Supply | AC 220 V / 50 Hz, <70 W |
| Interfaces | USB, RS-232, RS-485, Ethernet |
| Dimensions (L×W×H) | 605 × 483 × 220 mm |
| Detectable Gases | H₂, N₂, O₂, CO, CO₂, CH₄, C₂H₂, C₂H₄, C₂H₆, C₃H₆, C₃H₈, H₂S |
| Brand | CUBIC INSTRUMENTS |
|---|---|
| Origin | Hubei, China |
| Model | LRGA-3200EX |
| Spectral Range | 0–100% (v/v) |
| Spectral Repeatability | ±1% F.S. |
| Measurement Accuracy | ±1% F.S. |
| Response Time | <1 s |
| Operating Pressure | up to 4 MPa |
| Probe Quantity | 4 |
| Fiber Optic Cable Length | 5 m (standard, customizable) |
| Enclosure Rating | IP65 |
| Explosion Protection | Ex d II C T4 Gb |
| Ambient Operating Temperature (Analyzer) | 10–35 °C |
| Probe Operating Temperature | –20 to +200 °C |
| Humidity | 0–95% RH (non-condensing) |
| Power Supply | 100–240 VAC, 50–60 Hz |
| Max. Power Consumption | <200 W |
| Communication Interfaces | RS-232, RS-485, TCP/IP Ethernet, USB, 4–20 mA analog output |
| Dimensions (L×W×H) | 540 × 300 × 900 mm |
| Weight | 75 kg |
| Brand | CUBIC INSTRUMENTS |
|---|---|
| Origin | Hubei, China |
| Model | LRGA-6000 |
| Spectrometer Type | Grating-Based Raman Spectrometer |
| Spectral Range | 400–700 nm |
| Spectral Resolution | 0.01% |
| Spatial Resolution | 1 µm (lateral), 2 µm (axial) |
| Minimum Wavenumber | 10 cm⁻¹ |
| Spectral Repeatability | ≤1% (dependent on configured measurement range) |
| Measurement Range | 0–10% to 0–100% (gas concentration, full-scale) |
| Linearity Error | ≤±1% F.S. |
| Response Time | ≤30 s |
| Dimensions | 1000 × 800 × 1780 mm |
| Brand | CUBIC INSTRUMENTS |
|---|---|
| Origin | Hubei, China |
| Manufacturer Type | Authorized Distributor |
| Product Category | Domestic |
| Model | LRGA-6000 |
| Price Range | USD 140,000–280,000 |
| Instrument Type | Grating-Based Raman Spectrometer |
| Spectral Range | 400–700 nm |
| Spectral Resolution | 0.01% |
| Minimum Wavenumber | 10 cm⁻¹ |
| Spectral Repeatability | Not Specified |
| Spatial Resolution | Not Applicable |
| Brand | CUBIC INSTRUMENTS |
|---|---|
| Origin | Hubei, China |
| Model | LRGA-6000 |
| Spectrometer Type | Grating-based Raman Spectrometer |
| Spectral Range | 400–700 nm |
| Spectral Resolution | 0.01% |
| Spatial Resolution | Lateral 1 µm, Axial 2 µm |
| Minimum Wavenumber Shift | 10 cm⁻¹ |
| Spectral Repeatability | ≤1% (dependent on configured measurement range) |
| Measurement Range | 0–10% to 0–100% (user-selectable per gas) |
| Linearity Error | ≤±1% FS |
| Response Time | ≤30 s |
| Dimensions | 1000 × 800 × 1780 mm |
| Brand | CUBIC INSTRUMENTS |
|---|---|
| Origin | Hubei, China |
| Manufacturer Type | Authorized Distributor |
| Country of Origin | China |
| Model | LRGA-3200 |
| Price Range | USD 140,000–280,000 |
| Instrument Type | Portable/Handheld Raman Spectrometer |
| Spectral Repeatability | ≤1% F.S. |
| Measurement Components | H₂, N₂, O₂, CO, CO₂, CH₄, C₂H₂, C₂H₄, C₃H₆ |
| Concentration Range | 0–100% (configurable) |
| Accuracy | ≤±1% F.S. |
| Response Time | ≤30 s |
| Input Voltage | 100–240 VAC, 50–60 Hz |
| Communication Interfaces | RS-232, RS-485, TCP/IP Ethernet, USB |
| Display | Color Touchscreen Interface |
| Probe Quantity | 1 Raman Fiber Optic Probe |
| Probe Operating Temperature | 0–200 °C |
| Probe Pressure Rating | 80–4000 kPa |
| Analyzer Ambient Operating Temperature | 10–35 °C |
| Humidity Limit | 95% RH, non-condensing |
| Brand | CUBIC INSTRUMENTS |
|---|---|
| Origin | Hubei, China |
| Model | LRGA-3100 |
| Spectrometer Type | Grating-Based Raman Spectrometer |
| Spectral Range | 400–700 nm |
| Spectral Resolution | 0.01% |
| Spatial Resolution | 1 µm (lateral), 2 µm (axial) |
| Minimum Wavenumber | 10 cm⁻¹ |
| Spectral Repeatability | ≤1% |
| Measurement Accuracy | ≤±1% F.S. |
| Response Time | ≤10 s |
| Operating Temperature | 10–35 °C |
| Power Supply | AC 220 V / 50 Hz, <70 W |
| Dimensions (L×W×H) | 605 × 483 × 220 mm |
| Interface Options | USB, RS-232, RS-485, Ethernet |
| Measured Gases | H₂, N₂, O₂, CO, CO₂, CH₄, C₂H₂, C₂H₄, C₂H₆, C₃H₆, C₃H₈, H₂S |
| Brand | CUBIC INSTRUMENTS |
|---|---|
| Origin | Hubei, China |
| Manufacturer Type | Authorized Distributor |
| Regional Category | Domestic (China) |
| Model | LRGA-3100 |
| Price Range | USD 140,000 – 280,000 |
| Instrument Type | Grating-Based Raman Spectrometer |
| Spectral Repeatability | ≤1% |
| Brand | CUBIC INSTRUMENTS |
|---|---|
| Origin | Hubei, China |
| Model | LRGA-6000 |
| Spectrometer Type | Grating-based Raman Spectrometer |
| Spectral Range | 400–700 nm |
| Spectral Resolution | 0.01% |
| Spatial Resolution | 1 µm (lateral), 2 µm (axial) |
| Minimum Wavenumber | 10 cm⁻¹ |
| Spectral Repeatability | ≤1% (dependent on configured measurement range) |
| Measurement Range | 0–10% to 0–100% (gas concentration, full-scale) |
| Linearity Error | ≤±1% F.S. |
| Response Time | ≤30 s |
| Dimensions | 1000 × 800 × 1780 mm |
Show next
