| Brand | Cubic |
|---|---|
| Origin | Hubei, China |
| Model | OPC-6510DS |
| Instrument Type | Online Particle Counter |
| Flow Rate | 28.3 L/min |
| Channel Sizes | 0.3 µm, 0.5 µm, 1.0 µm, 5.0 µm, 10.0 µm |
| Counting Efficiency | 50% at 0.3 µm |
| Measurement Range | 0–1,000,000 pcs/28.3 L |
| Accuracy Compliance | JJF 1190–2008 |
| Display | 3.5-inch color TFT screen |
| Power Supply | DC 24.0 V ±15%, ≤3 A avg. |
| Communication Interfaces | RS485 (standard), RJ45 Ethernet (standard) |
| Protocol Support | TCP/IP, MQTT |
| Unit Options | pcs/28.3 L or pcs/m³ |
| Operating Temp. | 0–45°C |
| RH | 0–95% non-condensing |
| Storage | −20–60°C, 0–95% RH non-condensing |
| Warm-up Time | ≤8 s |
| Data Update Interval | 1 s |
| Sampling Probe | Isokinetic probe with Ø10 mm internal diameter tubing (≤3 m length) |
| Duty Cycle | Configurable (default: 2 min active / 28 min sleep) |
| Lifetime | ≥3 years |
| Calibration Standard | JJF 1190–2008 |
| Brand | Cubic |
|---|---|
| Origin | Hubei, China |
| Manufacturer Type | Authorized Distributor |
| Origin Category | Domestic (China) |
| Model | PM5100 |
| Instrument Type | Online |
| Flow Range | High-Flow (28.3 L/min) |
| Flow Accuracy | Compliant with JJF 1190 |
| Timing Accuracy | Compliant with JJF 1190 |
| Counting Repeatability | ≤5% |
| Size Distribution Accuracy | Compliant with JJF 1190 |
| Indication Error | Compliant with JJF 1190 |
| Detection Principle | Optical Light Scattering |
| Detectable Particle Sizes | 0.3, 0.5, 1.0, 5.0, and 10.0 µm |
| Counting Efficiency | 50% at 0.3 µm |
| Maximum Allowable Concentration | 1,000,000 pcs/28.3 L @ 0.3 µm |
| Self-Cleaning Time | ≤5 min |
| Data Update Interval | 1 s |
| Operating Temperature | 0–40°C |
| Operating Humidity | 5–95% RH (non-condensing) |
| Storage Conditions | −10–50°C, 5–95% RH (non-condensing) |
| Power Supply | DC 5 V ±0.2 V, Ripple <100 mV |
| Average Current Draw | <250 mA |
| Communication Interface | UART-TTL (3.3 V logic level) |
| Dimensions | 99.2 × 66 × 41.7 mm (W × H × D) |
| Brand | Cubic |
|---|---|
| Origin | Hubei, China |

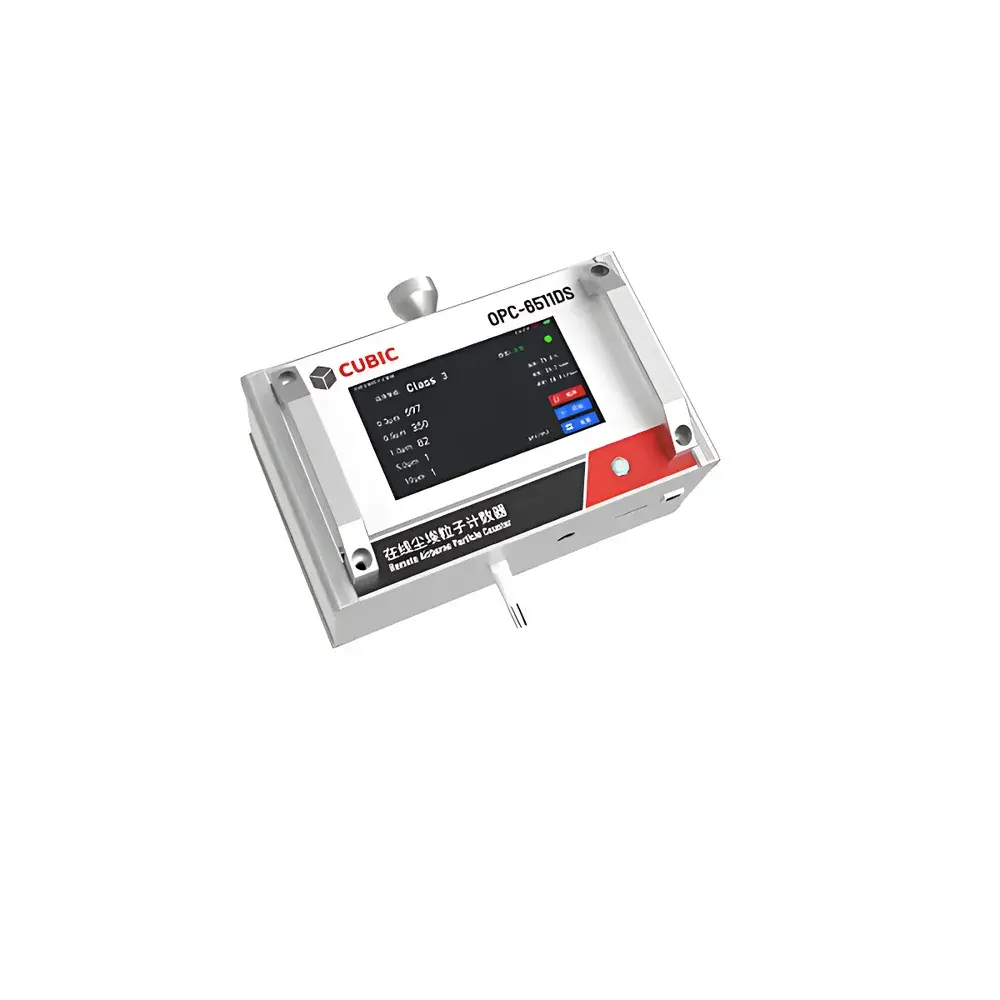

| Model | OPC-6511DS |
| Instrument Type | Handheld |
| Flow Rate | 28.3 L/min |
| Counting Channels | 0.3 µm, 0.5 µm, 1.0 µm, 5.0 µm, 10.0 µm |
| Counting Efficiency | 50% @ 0.3 µm, 100% @ ≥0.5 µm (25±2°C, 50±10% RH) |
| Measurement Range | 0–1,000,000 pcs/28.3 L |
| Display | 7-inch color TFT LCD |
| Power Supply | DC 24.0 V ±15% |
| Battery Standby Duration | >5 h (2 min active / 28 min sleep cycle) |
| Communication Interfaces | RS485 (standard), RJ45 Ethernet (standard) |
| Compliance | JJF 1190–2008 |
| Warm-up Time | ≤8 s |
| Data Refresh Interval | 1 s |
| Operating Temperature | 0–45°C |
| Operating Humidity | 0–95% RH (non-condensing) |
| Storage Conditions | −20–60°C, 0–95% RH (non-condensing) |
| Sampling Probe | Isokinetic, external tube ID φ10 mm, max length 3 m |
| Lifetime | ≥3 years |
| Unit Options | pcs/28.3 L or pcs/m³ (switchable) |
| Protocol Support | TCP/IP, MQTT |
| Calibration Support | Standard source coefficient correction |
| Language Interface | English / Chinese toggle |
| Brand | Cubic |
|---|---|
| Origin | Hubei, China |

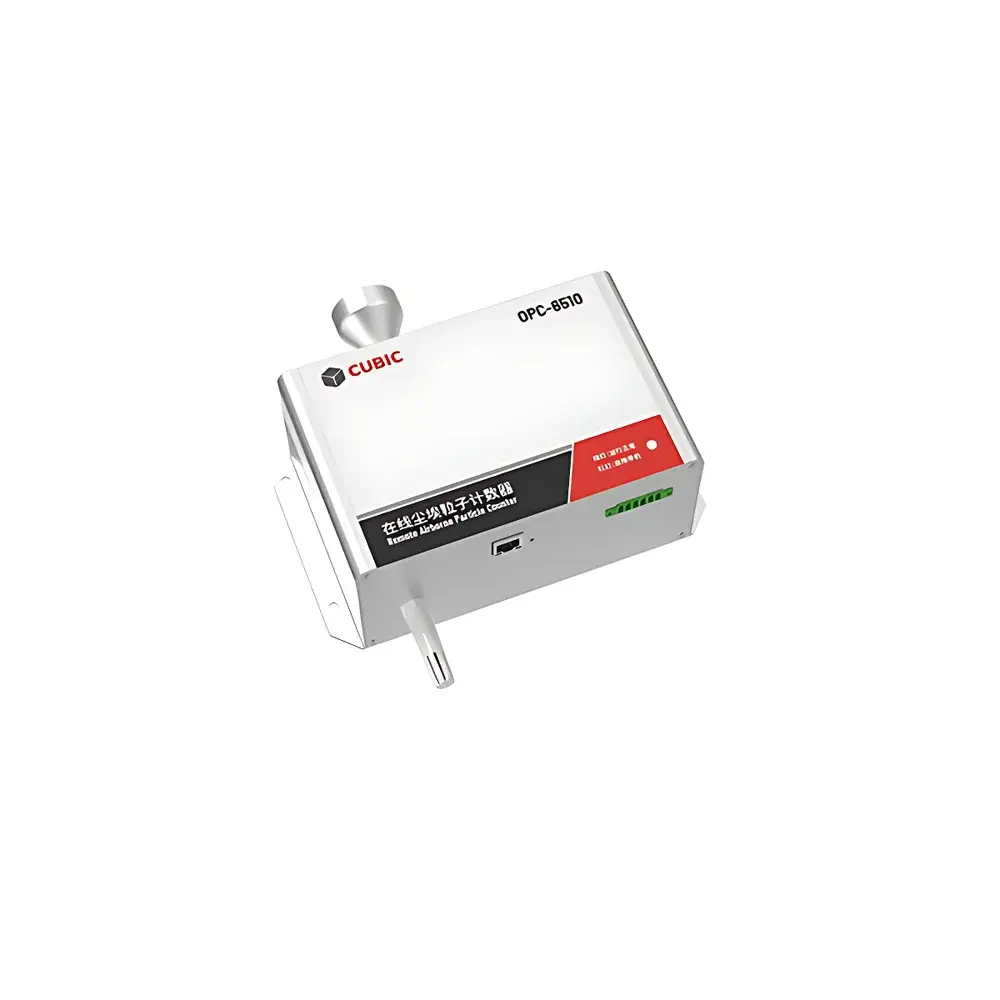

| Model | OPC-6510 |
| Flow Rate | 28.3 L/min |
| Flow Accuracy | Compliant with JJF-1190 |
| Timing Accuracy | Compliant with JJF-1190 |
| Size Distribution Accuracy | Compliant with JJF-1190 |
| Indication Error | Compliant with JJF-1190 |
| Detection Principle | Light Scattering |
| Channel Count | 6 (0.3, 0.5, 1.0, 2.5, 5.0, 10.0 µm) |
| Counting Efficiency | 50% at 0.3 µm |
| Measurement Range | 0–1,000,000 particles per 28.3 L |
| Warm-up Time | ≤8 s |
| Data Update Interval | 1 s |
| Operating Temp. | 0–45°C |
| Operating RH | 0–95% non-condensing |
| Storage Temp./RH | −20–60°C / 0–95% non-condensing |
| Power Supply | DC 24 V |
| Avg. Current Draw | ≤3 A |
| Communication | RS485 (standard), RJ45 (optional) |
| Service Life | ≥3 years |
| Brand | Cubic |
|---|---|
| Origin | Hubei, China |
| Model | OPC-6303DS |
| Instrument Type | Online |
| Flow Rate | 2.83 L/min |
| Detection Principle | Light Scattering |
| Particle Size Channels | 0.3, 0.5, 1.0, 2.5, 5.0, 10.0 μm |
| Counting Efficiency | 50% @ 0.3 μm, 100% @ ≥0.5 μm (25±2°C, 50±10% RH) |
| Accuracy Compliance | JJF 1190 |
| Power Supply | DC 12–24 V |
| Operating Temp. | 0–45°C |
| Operating Humidity | 0–95% RH (non-condensing) |
| Display | 3.5-inch color LCD |
| Communication Interfaces | RS485 (standard), RJ45 Ethernet (standard), 4–20 mA output (standard), MQTT/TCP/IP support |
| Data Update Interval | 1 s |
| Warm-up Time | ≤8 s |
| IP Rating | IP44 |
| Lifetime | ≥3 years |
| Optional | Visual/audible alarm module (LED strobe + 110 dB siren) |
| Brand | Cubic |
|---|---|
| Origin | Hubei, China |
| Model | OPC-6303M |
| Instrument Type | Online |
| Detection Principle | Optical Scattering |
| Particle Size Range | 0.3–10 μm |
| Counting Efficiency | 50% at 0.3 μm, 100% ≥0.5 μm (per TSI 9306 reference, 25±2°C, 50±10% RH) |
| Warm-up Time | ≤8 s |
| Data Update Interval | 1 s |
| Operating Temperature | 0–45°C |
| Operating Humidity | 0–95% RH (non-condensing) |
| Storage Temp/Humidity | −20–60°C / 0–95% RH (non-condensing) |
| Power Supply | DC 12 V |
| Avg. Current Draw | ≤1 A |
| Flow Rates | 2.83 L/min (Class 10,000 cleanroom), 28.3 L/min (Class 1,000 cleanroom) |
| Output Channels | 0.3, 0.5, 1.0, 2.5, 5.0, 10.0 μm (pcs/L) |
| Compliance | JJF 1190 |
| Standard Interface | RS485 |
| Optional Interfaces | RJ45 Ethernet, 4–20 mA analog output |
