| Brand | Carbolite Gero |
|---|---|
| Origin | United Kingdom |
| Model | ABA-7/35B |
| Temperature Range | 750 °C |
| Temperature Uniformity | ±0.5 °C |
| External Dimensions | 980 × 600 × 775 mm |
| Internal Chamber Dimensions | 220 × 350 × 450 mm |
| Chamber Lining Material | Epoxy Resin Coated Steel |
| Heating Method | Calibrated Resistive Wire Elements |
| Weight Measurement Resolution | 0.1 g |
| Maximum Sample Mass | 4.5 kg |
| Typical Test Duration (6 mm Aggregate) | 20 min |
| Typical Test Duration (40 mm Aggregate) | 45 min |
| Data Output | USB, CSV-compatible |
| Safety Compliance | Dual Interlocked Door, Independent Forced-Air Combustion Zone Control, Power-Fail Locking Mechanism |
| Brand | Carbolite Gero |
|---|---|
| Origin | Germany |
| Model | LGP |
| Instrument Type | Precision Forced-Air Circulating Oven |
| Max Operating Temperature | 250°C / 425°C / 625°C / 700°C (configurable per model) |
| Chamber Volume | 500 L to 13,820 L |
| Chamber Material | Ferritic Stainless Steel (AISI 430) |
| Heating Method | Forced-air convection with adjustable vertical airflow |
| Controller | 3216 PID Digital Controller with Over-Temperature Protection |
| Compliance Options | AMS 2750F (NADCAP) compliant configurations available |
| Communication Interface | Optional Ethernet port (specify at order) |
| Construction | Heavy-duty galvanized stainless steel outer casing |
| Door Configuration | Single or double vertical lift doors |
| Optional Accessories | Heavy-duty crucible racks (up to 5,830 L support), explosion relief panel, temperature-limited interior lighting, sample inlet/outlet ports, multi-segment programmable controller with data logging |
| Brand | Carbolite Gero |
|---|---|
| Origin | United Kingdom |
| Model | HTCR (95 L & 28 L variants) |
| Temperature Range | 400°C, 500°C, 600°C |
| Temperature Uniformity | ±0.5°C |
| External Dimensions | 880 × 675 × 885 mm |
| Internal Chamber Dimensions | 305 × 305 × 305 mm |
| Chamber Material | Polished Stainless Steel (AISI 304) |
| Heating Method | Forced Air Circulation with Low-Thermal-Mass Insulation |
| Compliance Options | ISO 14644-1 Class 5 Cleanroom Configuration Available |
| Controller | PID301 Single-Stage Programmable Controller |
| Safety Features | Independent Over-Temperature Protection, Silicone Door Seal with Particle-Resistant Compression Design |
| Enclosure Finish | White Epoxy-Coated Steel Exterior |
| Fan System | Brushless DC Motor with Sealed Bearing Assembly |
| Insulation | Dual-Layer Ceramic Fiber Blanket with Hermetic Sealing to Prevent Fiber Shedding |
| Brand | Carbolite Gero |
|---|---|
| Origin | Germany |
| Model | AX |
| Temperature Range | Up to 250 °C |
| Temperature Uniformity | ±5.0 °C @ 250 °C (measured in empty chamber with ventilation off) |
| Internal Dimensions (H×W×D, mm) | 295×300×320 / 395×400×420 / 495×500×520 |
| External Dimensions (H×W×D, mm) | 440×590×465 / 540×690×565 / 640×790×665 |
| Chamber Volume | 28 L / 66 L / 128 L |
| Chamber Material | Stainless steel (corrosion-resistant) |
| Heating Method | Forced-air convection via internal fan |
| Controller | R38 digital PID temperature controller |
| Safety Compliance | BS EN 61010-2-010:2003 |
| Optional Features | Over-temperature protection, digital countdown timer, additional shelves & supports, lockable door, low-voltage version (<220 V), spare parts kit, extra crucible racks |
| Brand | Carbolite Gero |
|---|---|
| Origin | United Kingdom |
| Model | GP 450A & GP 220A |
| Temperature Range | Up to 300 °C |
| Temperature Uniformity | ±0.5 °C |
| External Dimensions (H×W×D) | 1850 × 862 × 850 mm |
| Internal Chamber Dimensions (H×W×D) | 1220 × 610 × 610 mm |
| Chamber Material | 430-grade ferritic stainless steel |
| Heating Method | Forced-air convection with vertical (A) or horizontal (B) airflow configuration |
| Controller | PID301 single-segment programmable controller |
| Insulation | Low-thermal-mass mineral wool |
| Heating Elements | Mineral-insulated metal-sheathed (MIMS) resistive elements |
| Compliance Options | AMS 2750E-compliant configurations available upon customization |
| Brand | Carbolite Gero |
|---|---|
| Origin | United Kingdom |
| Model | CR 70 & CR 30 |
| Temperature Range | Up to 250 °C |
| Temperature Uniformity | ±0.2 °C |
| External Dimensions | 685 × 460 × 670 mm |
| Internal Chamber Dimensions | 310 × 310 × 310 mm |
| Chamber Volume | 30 L (CR 70) / 1790 L (CR 30 variants available) |
| Control System | PID301 Single-Stage Programmable Controller |
| Construction | Stainless Steel Interior, Epoxy-Coated White Exterior |
| Door Seal | Particle-Resistant Silicone Rubber Gasket |
| Fan Type | Fully Enclosed Brushless Motor |
| Brand | Carbolite Gero |
|---|---|
| Origin | United Kingdom |
| Model | HRF 7/22/301 |
| Max Operating Temperature | 750 °C |
| Temperature Uniformity | ±1 °C |
| External Dimensions | 590 × 450 × 870 mm |
| Internal Chamber Dimensions | 220 × 200 × 495 mm |
| Chamber Material | Stainless Steel (AISI 304) |
| Heating Method | Forced-Air Convection |
| Insulation | Low-thermal-mass ceramic fiber + firebrick composite |
| Controller | PID301 Single-Stage Programmable Controller |
| Safety | Independent Over-Temperature Protection (DIN 12880 Compliant) |
| Brand | Carbolite Gero |
|---|---|
| Origin | United Kingdom |
| Model | HT 6/220 |
| Temperature Range | 400 °C / 500 °C / 600 °C (configurable) |
| Temperature Uniformity | ±0.5 °C |
| Internal Chamber Dimensions | 610 × 610 × 610 mm |
| External Dimensions | 1160 × 1030 × 1280 mm |
| Chamber Volume | 220 L |
| Construction | Stainless Steel Interior |
| Controller | PID301 Single-Stage Programmable Controller |
| Optional Compliance Upgrades | Nadcap AMS 2750E Thermal Processing Certification Support |
| Brand | Carbolite Gero |
|---|---|
| Origin | Germany |

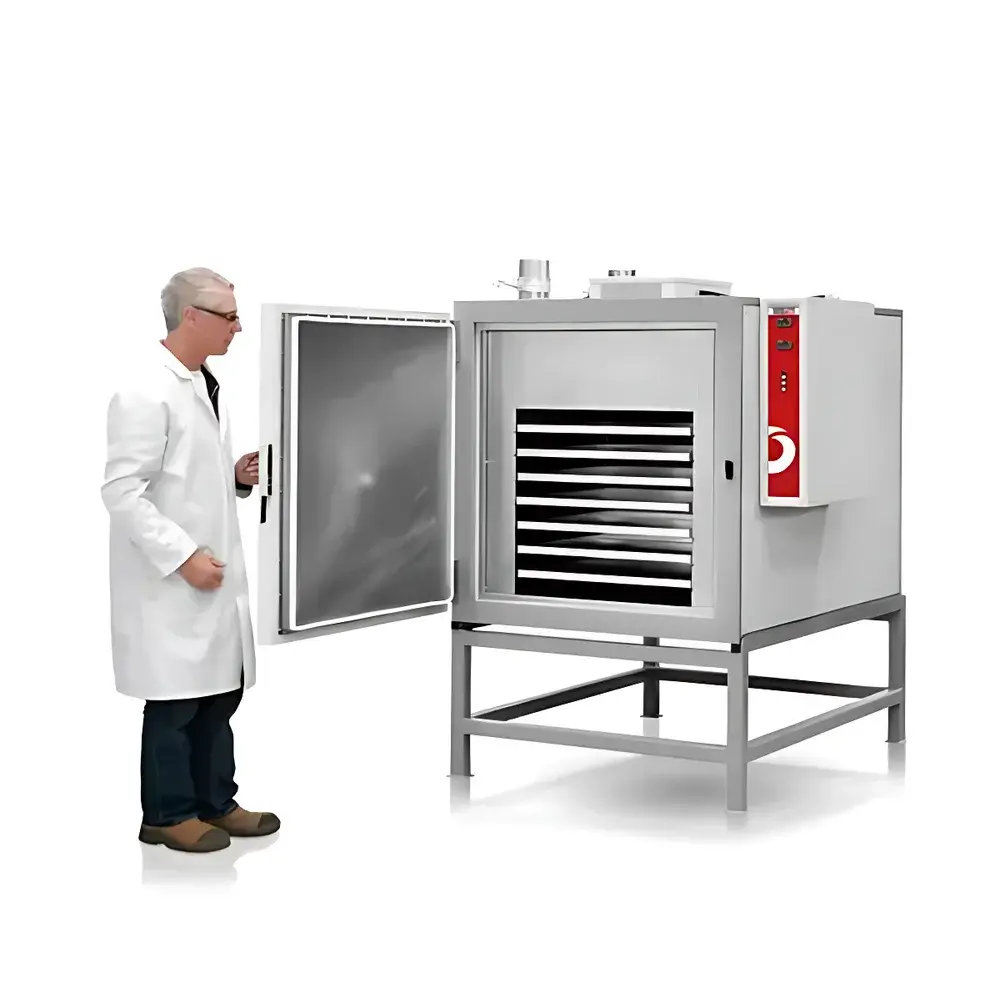

| Model | CDLT / CDHT |
| Instrument Type | Precision Laboratory Drying Oven |
| Temperature Range | CDLT: Ambient to 50 °C |
| CDHT | Ambient +10 to 200 °C |
| Temperature Stability | ±1 °C |
| Temperature Uniformity | ±5 °C |
| Internal Dimensions (H×W×D) | 610 × 610 × 1220 mm |
| External Dimensions (H×W×D) | 1715 × 1345 × 1455 mm (incl. integral floor stand) |
| Chamber Volume | 454 L |
| Tray Configuration | 14 trays across 7 levels (2 per level) |
| Total Tray Surface Area | 5.0 m² |
| Heating Power | CDLT: 4500 W |
| CDHT | 9000 W |
| Supply Voltage | 380 V, 3-phase, 50/60 Hz |
| Controller | PID-based 132-series digital temperature controller with secondary overtemperature protection |
| Chamber & Air Duct Material | Corrosion-resistant AISI 304 stainless steel |
| Heating Element | Mineral-insulated metal-sheathed (MIMS) resistive elements |
| Airflow System | Horizontal high-velocity forced convection with pre-heated inlet air and dedicated exhaust for moisture removal |
| Compliance Standards | ASTM D2013/D2013M-12, ASTM D2691-01, ASTM D2961-11, ASTM D3302/D3302M-10, BS 1016-1:1973, BS 1016-102:2000, BS ISO 13909-1:2001, BS ISO 13909-2:2001 |
| Brand | Carbolite Gero |
|---|---|
| Origin | United Kingdom |
| Model | HTMA 6/28 |
| Temperature Range | 400 °C / 500 °C / 600 °C (configurable) |
| Temperature Uniformity | ±0.5 °C |
| Chamber Dimensions (W×D×H) | 305 mm × 305 mm × 305 mm |
| External Dimensions (W×D×H) | 880 mm × 675 mm × 885 mm |
| Chamber Volume | 28 L |
| Chamber Material | Corrosion-Resistant Stainless Steel (AISI 310S or equivalent) |
| Heating Method | Forced-Convection Horizontal Airflow via Rear-Mounted Fan and Side-Directed Gas Channels |
| Atmosphere Sealing | Dual-Seal Door (Metal Heat-Resistant Gasket + Elastomeric Airtight Seal) |
| Gas Flow Control | Manual Nickel-Copper Needle Valve & Flowmeter (50–500 mL/min), O₂ Residual ≤50 ppm after purge |
| Safety | Independent Over-Temperature Protection, PID301 Single-Stage Controller with Ramp/Soak Function |
| Brand | Carbolite Gero |
|---|---|
| Origin | United Kingdom |

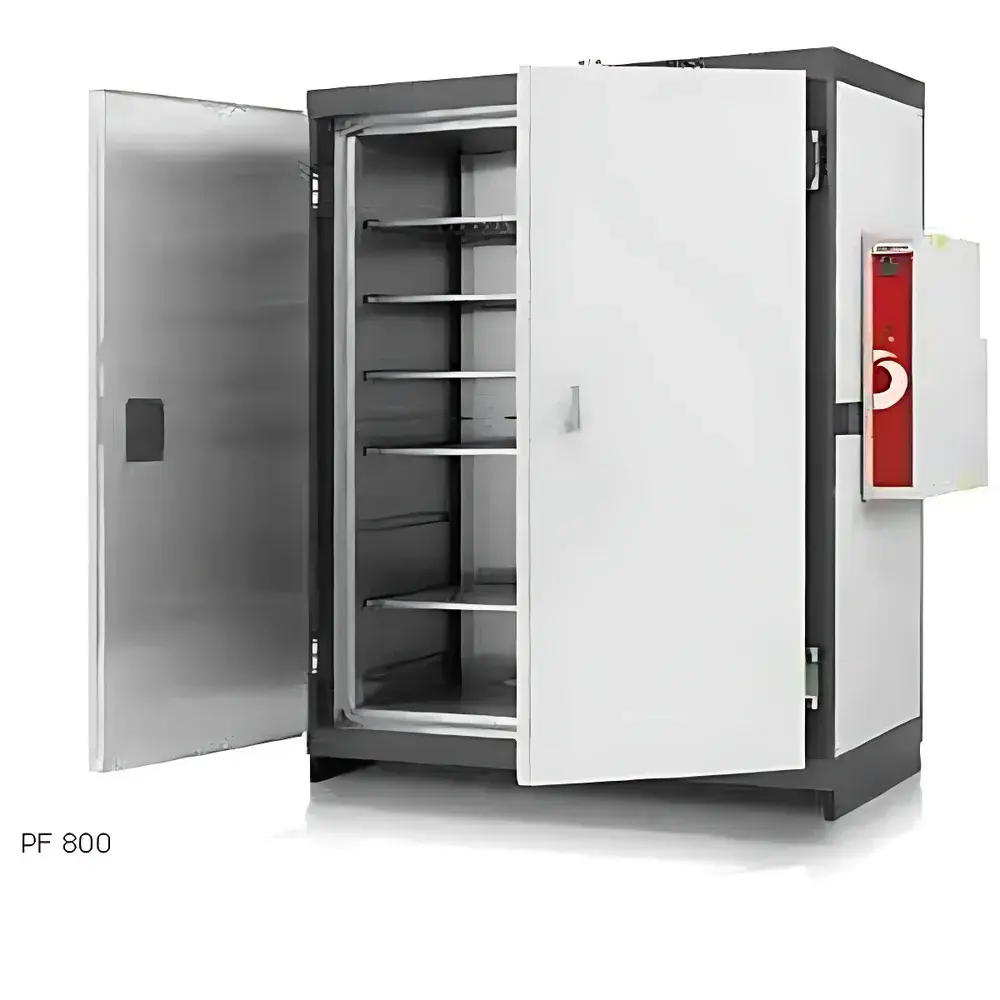

| Model | PF Series |
| Temperature Range | Up to 300 °C (PF30–PF200) / 250 °C (PF400 & PF800) |
| Temperature Uniformity | ±0.5 °C |
| Internal Chamber Dimensions | 300 × 300 × 305 mm |
| External Dimensions | 570 × 860 × 550 mm |
| Chamber Volume | 28–910 L |
| Control System | PID Controller (R38 for PF30–PF200 |
| Construction | Chemical-resistant stainless-steel interior |
| Safety Compliance | BS EN 61010-2-010:2003 |
| Brand | Carbolite Gero |
|---|---|
| Origin | United Kingdom |
| Model | LGP 2/3370 |
| Temperature Range | 250°C / 425°C / 625°C / 700°C |
| Temperature Uniformity | ±0.5°C |
| External Dimensions | 1900 × 2100 × 1700 mm |
| Internal Chamber Dimensions | 1500 × 1500 × 1500 mm |
| Chamber Material | Ferritic Stainless Steel (Grade 430) |
| Heating Method | Forced-Air Circulation |
| Chamber Volume | 3370 L |
| Controller | 2216 PID Digital Programmable Controller |
| Brand | Carbolite Gero |
|---|---|
| Origin | United Kingdom |
| Model | Apex AX Series |
| Instrument Type | Precision Drying Oven |
| Temperature Range | Up to 250°C |
| Temperature Uniformity | ±0.5°C |
| External Dimensions | 440 × 590 × 465 mm |
| Internal Chamber Dimensions | 295 × 300 × 320 mm |
| Chamber Material | Stainless Steel (AISI 304) |
| Heating Method | Forced-Air Convection |
| Controller | R38 Digital PID Temperature Controller |
| Compliance | BS EN 61010-2-010:2003 |
| Brand | Carbolite Gero |
|---|---|
| Origin | United Kingdom |
| Model | PN Series |
| Temperature Range | 300 °C |
| Temperature Uniformity | ±0.5 °C |
| External Dimensions | 470 × 665 × 470 mm |
| Internal Chamber Dimensions | 255 × 330 × 320 mm |
| Control System | R38 PID Controller |
| Chamber Material | Chemically Resistant Stainless Steel |
| Door Seal | Silicone Gasket with Lever-Action Lock |
| Safety Compliance | BS EN 61010-2-010:2003 |
| Brand | Carbolite Gero |
|---|---|
| Origin | United Kingdom |
| Model | LHT 6/30 |
| Temperature Range | 400°C / 500°C / 600°C (configurable) |
| Temperature Uniformity | ±0.5°C |
| Internal Chamber Dimensions | 300 × 300 × 305 mm (L × W × H) |
| External Dimensions | 570 × 860 × 550 mm (L × W × H) |
| Chamber Volume | 27.5 L |
| Controller | R38 PID with programmable ramp-soak profiles |
| Construction | Stainless steel interior (brushed finish), low-thermal-mass insulation, galvanized & epoxy-polyester coated exterior |
| Standard Accessories | Dual multi-position crucible racks, heavy-duty convection fan |
| Optional | Over-temperature protection, RS232/RS485/Ethernet data interface, multi-segment programmable controller with data logging, viewport (not compatible with solvent removal kit), solvent evaporation/curing kit (not compatible with viewport), variable-speed fan, floor stand with casters, exhaust fan (may affect temperature uniformity), standard spare parts kit |
| Brand | Carbolite Gero |
|---|---|
| Origin | Germany |
| Model | MFS |
| Instrument Type | Precision Drying Oven |
| Max Temperature | 210 °C |
| Chamber Dimensions (W × H × D) | 25 × 195 × 290 mm (depth reduced by 22 mm for thermocouple insertion) |
| External Dimensions (H × W × D) | 185 × 490 × 450 mm |
| Chamber Volume | 1.4 L |
| Temperature Uniformity | ±5.0 °C @ 210 °C |
| Temperature Stability | ±0.5 °C |
| Heating Power | 500 W |
| Atmosphere Options | Nitrogen or Air |
| Compliance | BS ISO 687:2010, BS ISO 11722:2013, BS 1016-104.2:1991 (MFS/1 ISO) |
| Chamber Material | Corrosion- and oxidation-resistant anodized aluminum |
| Door | Side-hinged, gas-tight, single-hand operable |
| Gas Flow Control | Integrated preheated flowmeter with adjustable flow rate |
| Optional Accessories | Welded steel nitrogen-purged desiccator, crucibles with lids, voltage variants |
