| Brand | Retsch |
|---|---|
| Origin | Germany |
| Model | MM500 Vario |
| Instrument Type | Vibratory Ball Mill |
| Sample Applicability | Hard, medium-hard, brittle, soft, elastic, and fibrous materials |
| Final Particle Size | ≤5 µm |
| Feed Particle Size | ≤8 mm |
| Batch Capacity | 6 × 20 mL |
| Maximum Frequency | 35 Hz |
| Processing Time Range | 0.1–99 h |
| Compatible Vial Sizes | 1.5–50 mL (including 1.5/2/5 mL Eppendorf tubes with adapters) |
| Grinding Jar Materials | Hardened steel, stainless steel, tungsten carbide, agate, zirconia, PTFE |
| Compliance | Designed for ISO/IEC 17025-compliant laboratories |
| Brand | Retsch |
|---|---|
| Origin | Germany |
| Model | MM500 NANO |
| Sample Type | Hard materials |
| Final Particle Size | ~0.1 µm |
| Max Feed Size | ≤ 10 mm |
| Batch Capacity | 2 × 45 mL |
| Frequency Range | 3–35 Hz (180–2100 min⁻¹) |
| Power Input | 750 W |
| Dimensions (W×H×D) | 690 × 375 × 585 mm |
| Weight | ~60 kg |
| Protection Class | IP 30 |
| Compliance | CE |
| Brand | Retsch |
|---|---|
| Origin | Germany |
| Model | PM100 |
| Instrument Type | Planetary Ball Mill |
| Sample Suitability | Hard, brittle, and medium-hard materials |
| Feed Size | < 10 mm |
| Final Particle Size | < 1 µm |
| Maximum Batch Volume | 1 × 220 mL (or 2 × 50 mL stacked) |
| Sun Wheel Speed | 100–650 rpm |
| Effective Sun Wheel Diameter | 141 mm |
| Drive Power | 750 W |
| Dimensions (W × H × D) | 630 × 468 × 415 mm |
| Net Weight | ~80 kg |
| Safety Certification | CE compliant |
| Compliance | Designed to meet ISO 17025-relevant operational requirements for sample preparation in accredited laboratories |
| Brand | Retsch |
|---|---|
| Origin | Germany |
| Model | SM400 |
| Instrument Type | Cutting Mill |
| Sample Type | Soft, medium-hard, elastic, fibrous, and heterogeneous materials |
| Maximum Feed Size | < 170 × 220 mm |
| Final Particle Size Range | 1–20 mm |
| Sieve Aperture Options | Trapezoidal holes (1.00 / 2.00 mm) |
| Grinding Chamber Volume | ~7.45 L |
| Rotor Diameter | 152 mm |
| Rotor Tip Speed | 2.25 m/s |
| Nominal Speed | 280 rpm (50/60 Hz) |
| Drive Motor | Three-phase, 3 kW |
| Collection Capacity | 5 L container |
| Protection Rating | IP54 |
| Dimensions (W × H × D) | 695 × 1399 × 719 mm |
| Net Weight | ~180 kg |
| Compliance | CE-marked, designed and manufactured in accordance with EU Machinery Directive 2006/42/EC and Low Voltage Directive 2014/35/EU |
| Brand | Retsch |
|---|---|
| Origin | Germany |
| Model | BB50 |
| Crusher Type | Jaw Crusher |
| Sample Type | Hard and Brittle Materials |
| Feed Size | < 40 mm |
| Final Particle Size (d90) | < 0.5 mm |
| Output Granularity Range | 0.01–0.5 mm |
| Batch Capacity | 3 L |
| Drive Motor | 1100 W, Three-Phase Asynchronous Motor with Frequency Inverter |
| Jaw Speed | 550–950 min⁻¹ (adjustable) |
| Jaw Gap Display | Digital |
| Jaw Motion Reversal | Yes |
| Zero-Point Calibration | One-Touch Automated |
| Jaw Plate Materials | 5 Options (incl. ZrO₂, Stainless Steel, Hardened Steel, Tungsten Carbide, Anti-Heavy-Metal-Contamination Alloy) |
| Dust-Tight Sealing | Yes |
| Maintenance-Free Operation | Yes |
| Brand | Retsch |
|---|---|
| Origin | Germany |
| Model | SR200 |
| Instrument Type | Impact Mill |
| Sample Hardness | Soft to Medium-Hard |
| Max Feed Size | ≤15 mm |
| Final Particle Size | ≤80 µm |
| Throughput | 120 kg/h |
| Sieve Aperture Range | 0.01–0.5 mm |
| Motor Speed (50 Hz) | 2850 rpm |
| Peripheral Rotor Speed | 20.5 m/s |
| Drive Power | 1.1 kW |
| Chamber Material | Grey Cast Iron |
| Receiving Container Volume | 5 L or 30 L |
| Dimensions (W×H×D, with base) | 560 × 1150 × 700 mm |
| Net Weight (with base) | ~57 kg |
| Compliance | CE certified |
| Safety Features | Electromagnetic brake (stopping time <0.5 s), splash-proof inlet/outlet design, interlocked access shielding |
| Brand | Retsch |
|---|---|
| Origin | Germany |
| Model | ZM200 |
| Sample Type | Hard, brittle, fibrous, and medium-hard materials |
| Feed Size | < 10 mm |
| Final Particle Size | ≤ 40 µm |
| Sieve Cut-Off Range | 0.01–0.5 mm |
| Batch Capacity | 900 mL |
| Rotational Speed | 6,000–18,000 rpm |
| Peripheral Tip Speed | 30.9–92.8 m/s |
| Dimensions (W×H×D) | 410 × 515 × 365 mm |
| Net Weight | ~38 kg |
| Compliance | CE, RoHS-compliant design, dust-protected electronics, integrated electronic safety lock |
| Brand | Retsch |
|---|---|
| Origin | Germany |

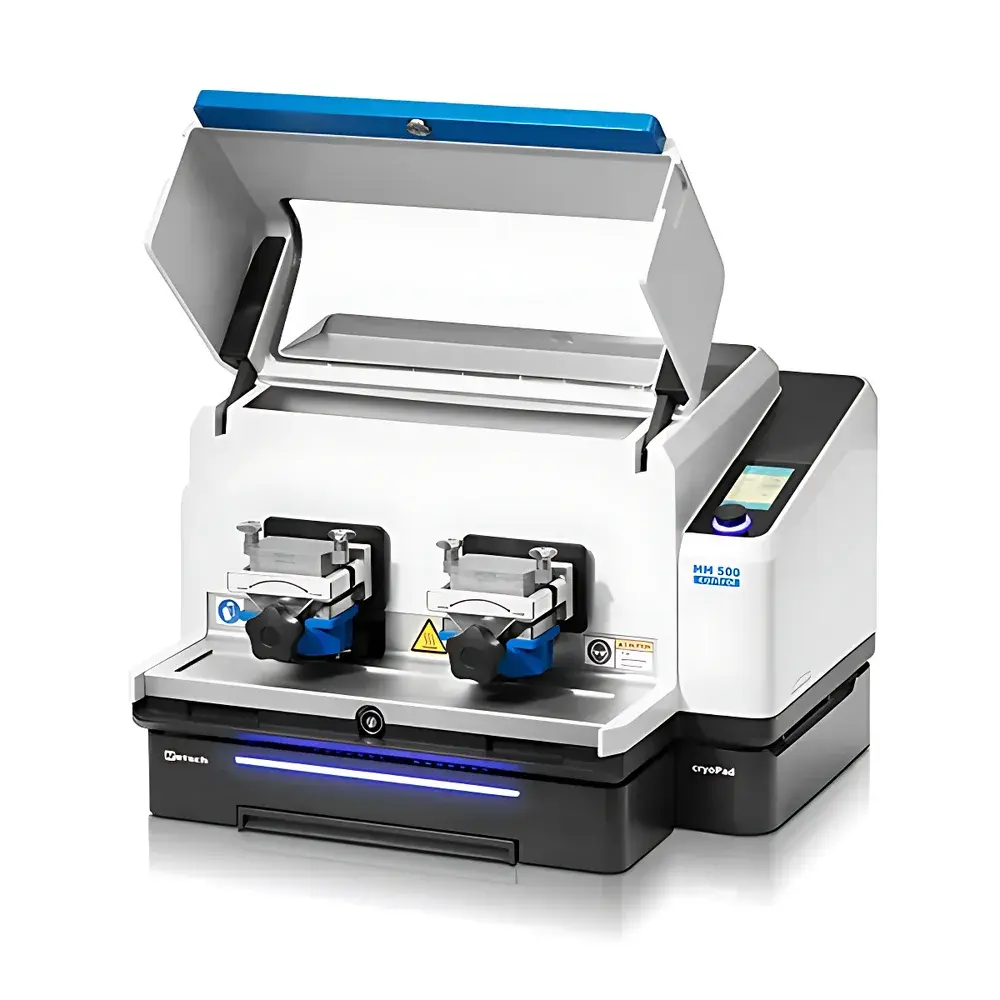

| Model | MM500 |
| Instrument Type | Ball Mill |
| Sample Suitability | Hard, Medium-Hard, Brittle, Fibrous, Elastic & Soft Materials |
| Feed Size | ≤ 10 mm |
| Final Particle Size | < 100 nm |
| Batch Capacity | 2 × 45 mL |
| Operating Frequency | 3–35 Hz (180–2100 min⁻¹) |
| Grinding Modes | Dry, Wet & Cryogenic Grinding |
| Sealing Pressure | Up to 5 bar |
| Programmable SOPs | 12 |
| Linked Programs | 4 (each up to 99 cycles) |
| Brand | Retsch |
|---|---|
| Origin | Germany |
| Model | PM400MA |
| Instrument Type | Planetary Ball Mill |
| Sample Applicability | Hard and Brittle Materials (e.g., Alloys, Carbides, Metals) |
| Final Particle Size | ≤1 µm |
| Feed Size | <10 mm |
| Batch Capacity | Up to 4 × 220 mL |
| Sun Wheel Diameter | 300 mm |
| Display | Large LED Digital Interface |
| Dimensions (W×H×D) | 836 × 1220 × 780 mm |
| Weight | ~290 kg |
| Certification | CE |
| Programmable Memory | 3 Preset Methods |
| Parameter Lock Function | Yes |
| Grinding Jar Volumes Available | 12, 25, 50, 80, 125, 250, 500 mL |
| Brand | Retsch |
|---|---|
| Origin | Germany |
| Model | RS300 |
| Instrument Type | Disc Vibratory Mill |
| Sample Type | Hard, brittle, fibrous materials |
| Feed Size | < 20 mm |
| Final Particle Size (d90) | < 75 µm |
| Batch Volume | 35–2000 mL |
| Speed | 912 rpm |
| Power | 2200 W |
| Dimensions (off) | 1150 × 1400 × 810 mm (W × H × D) |
| Dimensions (operational) | 1150 × 2100 × 810 mm (W × H × D) |
| Net Weight | ~415 kg |
| Grinding Principle | Combined impact and shear forces via 3D orbital vibration |
| Brand | Retsch |
|---|---|
| Origin | Germany |
| Model | DM400 |
| Instrument Type | Disc Mill |
| Sample Suitability | Medium-hard to hard and brittle materials |
| Maximum Feed Size | < 20 mm |
| Final Particle Size | < 50 µm |
| Throughput | up to 150 kg/h |
| Grinding Gap Adjustment Range | 0.1–5 mm (motorized, digital display) |
| Motor Power | 1.5 kW |
| Drive | Three-phase AC geared motor |
| Speed | 440 min⁻¹ (50 Hz) / 528 min⁻¹ (60 Hz) |
| Receiving Container Volume | 2.5 L |
| Dimensions (W×H×D) | 520 × 630 × 1050 mm |
| Net Weight | ~240 kg |
| Protection Class | IP 55 |
| Compliance | CE-marked |
| Brand | Retsch |
|---|---|
| Origin | Germany |
| Model | RS200 |
| Grinding Principle | Horizontal circular vibration (700–1500 rpm) |
| Sample Type | Hard and brittle materials |
| Feed Size | ≤ 8 mm |
| Final Particle Size | ≤ 20 µm |
| Batch Volume | 10–190 mL |
| Grinding Chamber Volume | 50–250 mL |
| Motor Power | 400/700 W (3-phase AC, pole-switching) |
| Safety Features | Interlocked lid, acoustic shielding, automatic agate detection & speed limitation |
| Display | Large LCD with single-button control |
| Dimensions (W×D×H) | 836 × 1220 × 780 mm |
| Weight | ~210 kg |
| Rated Power | 1500 W |
| Brand | Retsch |
|---|---|
| Origin | Germany |
| Model | RM200 |
| Grinding Principle | Mortar-and-pestle compression and shear |
| Sample Type | Soft, brittle, fibrous, pasty, or powdered materials |
| Feed Size | ≤ 8 mm |
| Final Particle Size | < 10 µm |
| Batch Volume | 10–190 mL |
| Speed | 100 rpm (50/60 Hz) |
| Grinding Time | 0–99 min or continuous |
| Pestle Pressure | Adjustable via calibrated scale |
| Compliance | CE, EN 61000-6-2/-6-3, EN 61000-3-2/-3-3 |
| Brand | Retsch |
|---|---|
| Origin | Germany |
| Model | GM200 |
| Sample Type | Soft to moderately hard, elastic, fibrous, moist/fatty/oily, dry |
| Max Feed Size | 40 mm |
| Final Particle Size | <300 µm |
| Batch Volume (Standard Lid) | 700 mL |
| Chamber Volume (Standard Lid) | 1000 mL |
| Speed Range | 2,000–10,000 rpm (BOOST up to 14,000 rpm) |
| Motor Power | ~1000 W |
| Drive | Digital intermittent motor |
| Programmable Methods | 8 SOPs, 4 sequential programs |
| Compliance | CE-certified |
| Enclosure Rating | IP42 |
| Dimensions (W×H×D) | 350 × 275 × 392 mm (open: 350 × 410 × 553 mm) |
| Weight | ~10 kg |
| Brand | Retsch |
|---|---|
| Origin | Germany |
| Model | PM100 CM |
| Instrument Type | Planetary Ball Mill |
| Sample Suitability | Hard, brittle, fibrous, soft materials (dry or wet grinding) |
| Max. Feed Size | < 10 mm |
| Final Particle Size | < 0.1 µm (colloidal grinding) |
| Batch Volume | up to 1 × 220 mL |
| Grinding Mechanism | Impact and friction forces |
| Sun Wheel Speed | 100–650 rpm |
| Effective Sun Wheel Diameter | 141 mm |
| Relative Centrifugal Force (RCF) | 33.3 g |
| Grinding Jar Capacity Options | 12, 25, 50, 80, 125, 250, 500 mL |
| Jar Materials | Stainless steel, hardened steel, tungsten carbide, agate, sintered corundum, silicon nitride, zirconium oxide |
| Drive | 750 W three-phase AC motor with frequency inverter |
| Power Consumption | ~1250 VA |
| Dimensions (W × H × D) | 640 × 480 (780) × 420 mm |
| Net Weight | ~86 kg |
| Protection Class | IP 30 |
| Compliance | CE-marked |
| Patents | DE 20307741 (counterweight), DE 20310654 (FFCS), DE 202008008473 (safety slider) |
| Interface | RS-232 / RS-485 |
| Programmable Modes | 10 stored protocols |
| Time Control | Grind, pause, reverse rotation — all digitally adjustable from 00:00:01 to 99:59:59 |
| Jar Fixation | “Comfort” type with safety locking mechanism |
| Brand | Retsch |
|---|---|
| Origin | Germany |
| Model | Emax |
| Instrument Type | High-Energy Ball Mill |
| Sample Suitability | Hard, brittle, fibrous, and medium-hard materials |
| Feed Size | < 5 mm |
| Final Particle Size (d90) | < 80 nm |
| Batch Capacity | 2 × 45 mL (dual grinding stations) |
| Speed Range | 300–2000 rpm |
| Cooling | Integrated water-cooled grinding chamber with external chiller interface |
| Programmable Runtime | 00:01:00–99:59:99 |
| Stored Methods | Up to 10 user-defined protocols |
| Drive Power | 2600 W |
| Dimensions (W×H×D) | 625 × 525 × 645 mm |
| Net Weight | ~120 kg |
| Grinding Jar Materials | Stainless steel, tungsten carbide, agate, zirconium oxide, PTFE-lined options available |
| Brand | RETSCH |
|---|---|
| Origin | Germany |
| Model | BB 250 |
| Instrument Type | Jaw Crusher |
| Sample Suitability | Medium-hard to hard, brittle materials |
| Max. Feed Size | < 120 × 90 mm |
| Final Particle Size | < 2 mm |
| Adjustable Crushing Gap | 0–30 mm (graduated scale, zero-point calibrated) |
| Throughput Capacity | up to 300 kg/h |
| Batch Volume | 10 L |
| Grinding Chamber Liner Materials | Manganese steel, stainless steel 316L, NiHard 4, tungsten carbide, heavy-metal-free grinding steel |
| Jaw Plate Width | 120 × 90 mm |
| Wear Indicator | Yes (down to −10 mm) |
| Feed Hopper | Spring-damped, front-access, removable |
| Optional Accessories | Dust extraction interface, central lubrication system, continuous-feed base frame |
| Drive | Three-phase motor, 3.0 kW |
| Power Supply | Variable voltage, three-phase |
| Protection Rating | IP 55 |
| Dimensions (W × H × D) | 695 × 1399 × 719 mm |
| Net Weight | ~350 kg |
| Compliance | CE-marked, designed and manufactured in accordance with EU Machinery Directive 2006/42/EC and EN 61000-6-2/-6-4 electromagnetic compatibility standards |
| Brand | Retsch |
|---|---|
| Origin | Germany |
| Model | Twister |
| Instrument Type | Cyclone Mill |
| Maximum Feed Size | < 10 mm |
| Final Particle Size | < 250 µm |
| Batch Volume | < 250 mL |
| Rotational Speeds | 10,000 / 12,000 / 14,000 rpm |
| Rotor Tip Speed | 52 / 62 / 72 m/s |
| Rotor Diameter | 98.5 mm |
| Sieve Aperture Options | 1 mm, 2 mm |
| Motor Power | 900 W |
| Dimensions (W×H×D) | 449 × 427 × 283 mm |
| Net Weight | 14 kg |
| Compliance | CE |
| Brand | Retsch |
|---|---|
| Origin | Germany |
| Model | BB200 |
| Crusher Type | Jaw Crusher |
| Sample Type | Hard, brittle, and medium-hard materials |
| Max. Feed Size | < 90 mm |
| Final Particle Size (d90) | < 2 mm |
| Throughput | 300 kg/h |
| Jaw Plate Dimensions | 100 × 100 mm |
| Adjustable Gap Range | 0–30 mm |
| Gap Indication | Analog scale |
| Receiving Container Volume | 5 L |
| Motor Power | 1500 W |
| Dimensions (W × H × D) | 450 × 1160 × 900 mm |
| Net Weight | ~300 kg |
| Compliance | CE certified |
| Optional Features | Dust extraction interface, reversible funnel, central lubrication kit, mounting frame |
| Brand | Retsch |
|---|---|
| Origin | Germany |
| Model | XRD-Mill McCrone |
| Grinding Principle | Linear Impact and Planar Shear |
| Sample Capacity | 2–4 mL (typical), up to 160 mL (batch) |
| Feed Size | ≤ 0.5 mm |
| Final Particle Size | 10 µm (d₅₀, typical) |
| Grinding Vessel | 125 mL polypropylene jar with polyethylene lid (seal-free design) |
| Grinding Media | 48 cylindrical media (agate, zirconia, or alumina) |
| Grinding Time Range | 3–30 min (optimized for XRD) |
| Power Adjustment | 4-step variable amplitude |
| Operation Modes | Dry grinding and wet grinding |
| Compliance | Designed for ISO/IEC 17025-compliant labs |
| Brand | Retsch |
|---|---|
| Origin | Germany |
| Model | GM300 |
| Motor Power | 1.1 kW continuous / >3 kW peak |
| Speed Range | 500–4000 rpm (100 rpm increments) |
| Grinding Chamber Volume | 5000 mL (reducible to 4000–4500 mL with gravity lid) |
| Max Feed Size | <130 mm |
| Final Particle Size | <300 µm |
| Batch Capacity | 4500 mL (with gravity lid) |
| Grinding Time | 5 s – 3 min (digital timer) |
| Compliance | CE, IP20 |
| Materials in Contact | Stainless steel 1.4034 blades, stainless steel 1.4435 container, PVDF knife holder, EPDM/FKM seals |
| Sterilization | Autoclavable components |
| Optional | Cryo-grinding kit with vented cryo-lid, dry ice compatibility |
| Programmable SOPs | 10 stored methods |
| Drive | Inverter-controlled three-phase AC motor |
| Dimensions (W×H×D) | 440 × 340 × 440 mm |
| Net Weight | ~30 kg |
| Brand | Retsch |
|---|---|
| Origin | Germany |
| Model | SM300 |
| Drive Power | 3 kW |
| Adjustable Speed Range | 700–3000 rpm |
| Feed Size | up to 60 × 80 mm |
| Final Particle Size | 0.25–20 mm (via interchangeable bottom sieves) |
| Throughput Capacity | up to 5 L per batch |
| Sample Type | Soft to medium-hard, heat-sensitive, and non-metallic materials |
| Thermal Load | Low during operation |
| Cleaning | Tool-free access to rotor knives and sieve plates |
| Brand | Retsch |
|---|---|
| Origin | Germany |
| Model | MM500 control |
| Instrument Type | Planetary Ball Mill |
| Sample Compatibility | Cryogenic, Dry & Wet Grinding |
| Maximum Feed Size | ≤ 10 mm |
| Final Particle Size | down to ~0.1 µm |
| Batch Volume Options | 50 / 80 / 125 mL |
| Temperature Control Range | –100 °C to +100 °C |
| Operating Frequency | up to 30 Hz |
| Cooling/Heating Interface | Integrated Heat-Exchange Platform with External Chiller or Liquid Nitrogen (cryoPad optional) |
| Brand | RETSCH |
|---|---|
| Origin | Germany |
| Model | PM 300 |
| Instrument Type | Planetary Ball Mill |
| Sample Applicability | Soft, Hard, Brittle, Fibrous (Dry/Wet Grinding) |
| Max Feed Size | < 10 mm |
| Final Particle Size | < 0.1 µm (colloidal grinding) |
| Batch Capacity | up to 2 × 220 mL |
| Sun Wheel Speed | 50–800 rpm |
| Effective Sun Wheel Diameter | 180 mm |
| Gravitational Force | up to 64 g |
| Number of Grinding Stations | 2 |
| Jar Volume Options | 12–500 mL (stackable for 12/25/50/80 mL) |
| Grinding Media Materials | Hardened Stainless Steel, Tungsten Carbide, Agate, Sintered Alumina, Zirconium Oxide |
| Drive | Frequency-Controlled Three-Phase AC Motor (2.5 kW) |
| Power Supply | 200–240 V, 50/60 Hz, Single-Phase |
| Dimensions (W×H×D) | 745 × 525 × 580 mm |
| Net Weight | ~118 kg |
| Protection Class | IP 20 |
| Compliance | CE Certified |
| Optional Accessories | GrindControl (temperature & pressure monitoring), Aeration Lids, Safety Closure Devices |
Show next
