| Brand | Carbolite Gero |
|---|---|
| Origin | Germany |
| Model | V-L |
| Type | Vertical Lift Tube Furnace |
| Max Operating Temperature | 1050 °C (under vacuum) |
| Heating Element | FeCrAl Resistance Wire |
| Insulation | High-Purity Ceramic Fiber |
| Chamber Material | Fused Quartz Tube (sealed, bottom-opening) |
| Internal Dimensions | Ø180 mm × 300 mm (H) |
| Effective Heating Volume | ~2 L |
| Ultimate Vacuum | <5×10⁻⁶ mbar |
| Atmosphere Control | Precision Mass Flow Controllers for Inert/Reducing/Reactive Gases |
| Cooling Modes | Controlled Quench in Vacuum, Inert Gas, or Ambient Air |
| Temperature Uniformity | Optimized via Triple-Zone Heating & Software-Driven Thermal Profiling |
| Safety Compliance | Integrated Over-Temperature Protection, Interlocked Vacuum/Gas Valves, Emergency Stop, CE Marked per EU Machinery Directive 2006/42/EC |
| Brand | Carbolite Gero |
|---|---|
| Origin | Germany |
| Model | CAF G5 |
| Instrument Type | Box-type Muffle Furnace |
| Max Temperature | 1600 °C |
| Temperature Precision | ±3 °C above 800 °C |
| Ramp Rate | 7 °C/min |
| Heating Elements | Six silicon carbide rods |
| Work Tube ID | 79 mm |
| Tube Material | RCA (refractory ceramic alloy) |
| Max Sample Load (Auto) | 6 samples |
| Max Sample Load (Manual) | 8 samples |
| Image Resolution | 1280 × 1024 pixels |
| Gas Options | N₂/CO₂ (purge), O₂/air (oxidizing), CO+CO₂ or H₂+CO₂ (reducing) |
| Power Supply | 380–415 V, 50/60 Hz, two-phase, 25 A/phase or 220–240 V, 50/60 Hz, single-phase, 50 A |
| Max Power Consumption | 7 kW |
| Dimensions (H×W×D) | 790 × 505 × 970 mm |
| Weight | 84 kg |
| Overtemperature Protection | Digital with high-alarm relay |
| Compliance | ISO 540:2008, ASTM D1857/D1857M–04(2010), DIN 51730:2007-09, DD CEN/TS 15370-1:2006, PD CEN/TR 15404:2010 |
| Brand | Carbolite Gero |
|---|---|
| Origin | United Kingdom |
| Instrument Type | Box-Type Muffle Furnace |
| Model | AAF 12/18 |
| Maximum Temperature | 1200 °C |
| Temperature Uniformity | ±5 °C |
| Rated Power | 7080 W |
| Heating Time to Max Temp | 70 min |
| Heating Element | Resistance Wire (SiC-Protected) |
| Internal Chamber Dimensions | 235 × 196 × 400 mm (W × H × D) |
| Construction | Dual-Shelf Configuration |
| Brand | Carbolite Gero |
|---|---|
| Origin | Germany |
| Model | SNF |
| Furnace Type | Benchtop Box Furnace |
| Max Temperature | 900 °C |
| Continuous Operating Temperature | 850 °C |
| Internal Chamber Dimensions (H×W×D) | 260 × 170 × 170 mm |
| External Dimensions (H×W×D) | 330 × 410 × 300 mm |
| Crucible External Height | 26 mm |
| Crucible External Diameter | 41 mm |
| Crucible Internal Bottom Diameter | 11 mm |
| Power Supply | 220–240 V, 50–60 Hz, Single-Phase with Protective Earth |
| Max Power | 800 W |
| Thermocouple Type | K |
| Weight | 26 kg |
| Safety | 30 mA RCD Protection |
| Temperature Controller | PID-based 132-series digital controller |
| Compliant Standards | BS ISO 501:2012, ASTM D720 / D720M–15 |
| Brand | Carbolite Gero |
|---|---|
| Origin | United Kingdom |
| Model | ABA-7/35B |
| Temperature Range | 750 °C |
| Temperature Uniformity | ±0.5 °C |
| External Dimensions | 980 × 600 × 775 mm |
| Internal Chamber Dimensions | 220 × 350 × 450 mm |
| Chamber Lining Material | Epoxy Resin Coated Steel |
| Heating Method | Calibrated Resistive Wire Elements |
| Weight Measurement Resolution | 0.1 g |
| Maximum Sample Mass | 4.5 kg |
| Typical Test Duration (6 mm Aggregate) | 20 min |
| Typical Test Duration (40 mm Aggregate) | 45 min |
| Data Output | USB, CSV-compatible |
| Safety Compliance | Dual Interlocked Door, Independent Forced-Air Combustion Zone Control, Power-Fail Locking Mechanism |
| Brand | Carbolite Gero |
|---|---|
| Origin | Germany |
| Instrument Type | Tube Furnace |
| Max Temperature | 3000 °C (Graphite), 2200 °C (Tungsten), 1600 °C (Molybdenum) |
| Atmosphere Options | High Vacuum (down to 1×10⁻⁶ mbar) or Controlled Protective Gases (e.g., H₂, Ar, N₂) |
| Pressure Control Range | 10–1000 mbar |
| Safety Certification | TÜV-certified for operation with toxic and flammable gases |
| Control System Options | Manual operation or fully automated Siemens PLC + WinCC SCADA interface |
| Data Logging | Integrated process data recording compliant with GLP/GMP traceability requirements |
| Heating Element Materials | Graphite, Molybdenum, or Tungsten |
| Chamber Construction | Customizable internal dimensions |
| Compliance | Designed to meet ISO 9001 manufacturing standards |
| Brand | Carbolite Gero |
|---|---|
| Origin | Germany |
| Model | LGP |
| Instrument Type | Precision Forced-Air Circulating Oven |
| Max Operating Temperature | 250°C / 425°C / 625°C / 700°C (configurable per model) |
| Chamber Volume | 500 L to 13,820 L |
| Chamber Material | Ferritic Stainless Steel (AISI 430) |
| Heating Method | Forced-air convection with adjustable vertical airflow |
| Controller | 3216 PID Digital Controller with Over-Temperature Protection |
| Compliance Options | AMS 2750F (NADCAP) compliant configurations available |
| Communication Interface | Optional Ethernet port (specify at order) |
| Construction | Heavy-duty galvanized stainless steel outer casing |
| Door Configuration | Single or double vertical lift doors |
| Optional Accessories | Heavy-duty crucible racks (up to 5,830 L support), explosion relief panel, temperature-limited interior lighting, sample inlet/outlet ports, multi-segment programmable controller with data logging |
| Brand | Carbolite Gero |
|---|---|
| Origin | Germany |
| Instrument Type | Box-Type Muffle Furnace |
| Max Operating Temperature | 600 °C / 900 °C / 1100 °C |
| Chamber Material | AISI 314 (1.4841) Stainless Steel |
| Internal Temperature Uniformity | ΔT ≤ 6 K (GLO../6 & GLO../9) |
| Brand | Carbolite Gero |
|---|---|
| Origin | United Kingdom |
| Model | HTCR (95 L & 28 L variants) |
| Temperature Range | 400°C, 500°C, 600°C |
| Temperature Uniformity | ±0.5°C |
| External Dimensions | 880 × 675 × 885 mm |
| Internal Chamber Dimensions | 305 × 305 × 305 mm |
| Chamber Material | Polished Stainless Steel (AISI 304) |
| Heating Method | Forced Air Circulation with Low-Thermal-Mass Insulation |
| Compliance Options | ISO 14644-1 Class 5 Cleanroom Configuration Available |
| Controller | PID301 Single-Stage Programmable Controller |
| Safety Features | Independent Over-Temperature Protection, Silicone Door Seal with Particle-Resistant Compression Design |
| Enclosure Finish | White Epoxy-Coated Steel Exterior |
| Fan System | Brushless DC Motor with Sealed Bearing Assembly |
| Insulation | Dual-Layer Ceramic Fiber Blanket with Hermetic Sealing to Prevent Fiber Shedding |
| Brand | Carbolite Gero |
|---|---|
| Origin | United Kingdom |
| Model | CF24 |
| Instrument Type | Box-Type Muffle Furnace |
| Maximum Temperature | 1200 °C |
| Temperature Uniformity | ±1 °C (at 1000 °C, per ISO 11426) |
| Rated Power | 9000 W |
| Internal Chamber Dimensions | 125 × 220 × 350 mm (L × W × H) |
| Chamber Volume | 9.6 L |
| Heating Elements | Silicon Carbide (SiC) Rods, Top & Bottom Mounted |
| Airflow Control | Adjustable Preheated Air Inlet Valve |
| Exhaust System | Insulated Vertical Flue with Condensate-Collecting Removable Trap |
| Compliance | ISO 11426:1997, Assay Standards for Precious Metals by Cupellation |
| Timer Function | 7-Day Programmable Cycle Controller |
| Brand | Carbolite Gero |
|---|---|
| Origin | Germany |
| Instrument Type | Vertical Tube Furnace (Bridgman Configuration) |
| Model | BV-HTRV |
| Maximum Operating Temperature | 1600 °C / 1700 °C / 1800 °C |
| Heating Element | Molybdenum Disilicide (MoSi₂) |
| Temperature Gradient Control | Precision Vertical Thermal Profile |
| Lift Mechanism | Dual-Motor Driven, Adjustable Speed (10 nm/s to 10 mm/s) |
| Chamber Atmosphere | High-Vacuum (≤10⁻³ mbar) or Inert Gas (Ar/N₂) |
| Cooling | Water-Cooled Double Flanges |
| Thermocouple Type | Type B (Pt/Rh) |
| Compliance | Designed for GLP/GMP-aligned crystal growth workflows |
| Data Logging | PC-Interface Enabled (Position, Temp, Time, Vacuum, Flow) |
| Brand | Carbolite Gero |
|---|---|
| Origin | Germany |
| Model | TSO |
| Furnace Type | Horizontal Tube Furnace |
| Max Temperature | 1100 °C |
| Heating Zones | 1 or 3 |
| Tube Diameter | Ø120 mm |
| Heating Length Options | 400, 600, 800, 1000 mm |
| Oscillation Angle | ±15° |
| Oscillation Frequency | 1–8 cycles/min |
| External Dimensions (H×W×D) | up to 445 × 1715 × 575 mm (closed), 705 × 1715 × 655 mm (open) |
| Max Power | 1860–3810 W |
| Weight | 88–137 kg |
| Controller | EPC3016P1 (single-zone) or CC-T1 touchscreen (triple-zone) |
| Communication | Ethernet-enabled |
| Safety | Overtemperature protection (standard on 1600 °C models) |
| Brand | Carbolite Gero |
|---|---|
| Origin | United Kingdom |
| Instrument Type | Box-type Muffle Furnace |
| Maximum Temperature | 1200 °C |
| Temperature Uniformity | ±5 °C (at setpoint) |
| Rated Power | 7080 W |
| Heating Rate to Max Temp | ~70 min |
| Heating Method | Resistance Wire (NiCr Alloy) |
| Internal Chamber Dimensions | 235 × 196 × 400 mm (W × H × D) |
| Air Exchange Rate | 4–5 air changes per minute |
| Chamber Lining | Rigid Alumina Refractory Brick |
| Heating Element Protection | Silicon Carbide (SiC) Refractory Bricks |
| Compliance Standards | BS 1016-104.4:1998, ISO 1171:1997, ASTM D2361-02, ASTM D3174-04 |
| Brand | Carbolite Gero |
|---|---|
| Origin | Germany |
| Model | HTRH-H2 |
| Maximum Temperature | 1600 °C |
| Gas Compatibility | 100% H₂ (certified) |
| Safety Certification | SIL2-compliant |
| Cooling | Water-cooled ceramic tube ends with leak-tight flanges |
| Purge System | Automated inert gas (N₂ or Ar) pre-purge via mass flow controllers |
| Exhaust Treatment | Heated catalytic tail-gas burner (propane/air-driven) |
| Control Interface | Industrial-grade touchscreen HMI with audit-trail-capable data logging |
| Compliance | Designed to meet EN 13445, PED 2014/68/EU, ATEX Directive 2014/34/EU (Zone 1), and IEC 61508 for functional safety |

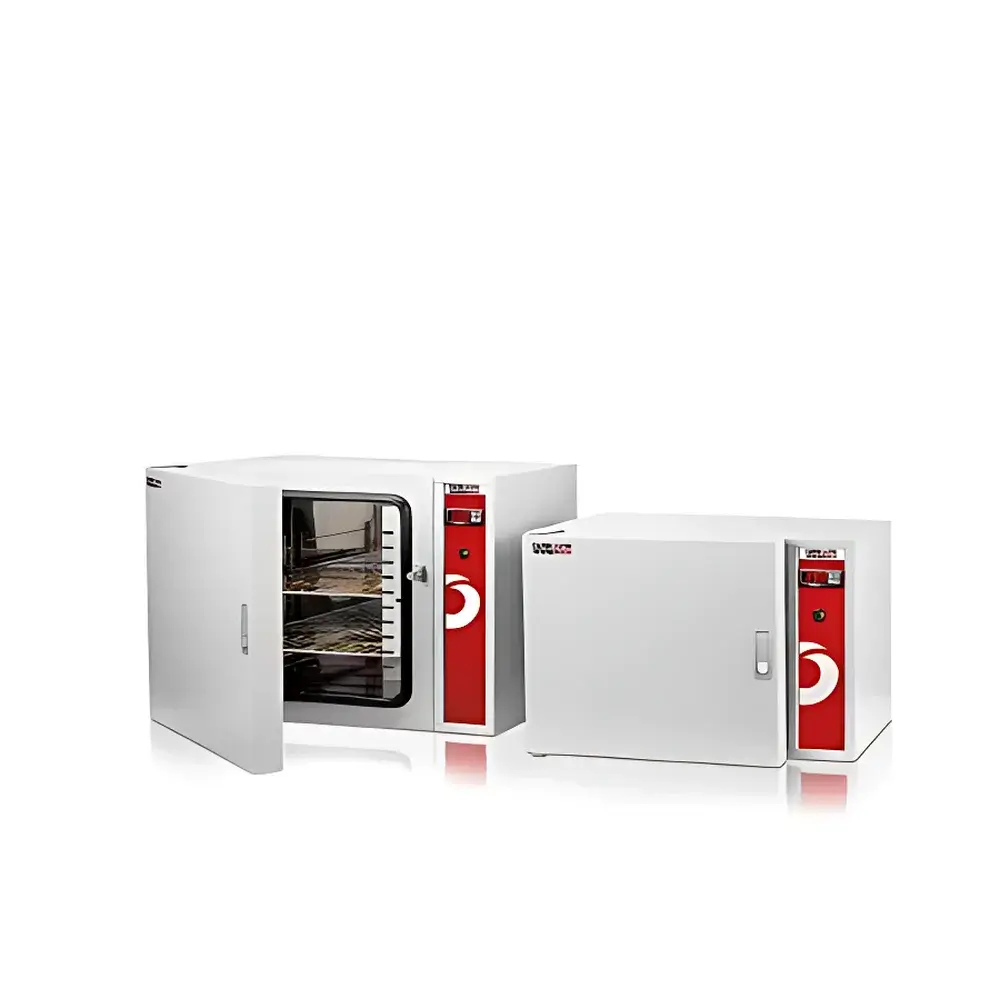

| Brand | Carbolite Gero |
|---|---|
| Origin | Germany |
| Model | AX |
| Temperature Range | Up to 250 °C |
| Temperature Uniformity | ±5.0 °C @ 250 °C (measured in empty chamber with ventilation off) |
| Internal Dimensions (H×W×D, mm) | 295×300×320 / 395×400×420 / 495×500×520 |
| External Dimensions (H×W×D, mm) | 440×590×465 / 540×690×565 / 640×790×665 |
| Chamber Volume | 28 L / 66 L / 128 L |
| Chamber Material | Stainless steel (corrosion-resistant) |
| Heating Method | Forced-air convection via internal fan |
| Controller | R38 digital PID temperature controller |
| Safety Compliance | BS EN 61010-2-010:2003 |
| Optional Features | Over-temperature protection, digital countdown timer, additional shelves & supports, lockable door, low-voltage version (<220 V), spare parts kit, extra crucible racks |
| Brand | Carbolite Gero |
|---|---|
| Origin | Germany |
| Model | CAF 16/38 |
| Instrument Type | Box-Type Muffle Furnace |
| Max Temperature | 1600 °C |
| Max Power | 4800 W |
| Working Tube Internal Diameter | 38 mm |
| External Dimensions (H×W×D) | 700 × 505 × 650 mm |
| Max Recommended Heating Rate | 8 °C/min |
| Thermocouple Type | Pt / Pt–13% Rh |
| Power Supply | 220–240 V, Single-Phase + N |
| Atmosphere Compatibility | Reducing (50% H₂ + 50% CO₂ v/v), Oxidizing (CO₂), Flushing (CO₂) |
| Sample Capacity | 1 per run |
| Compliance | ASTM D1857-04, ISO 540:2008 |
| Brand | Carbolite Gero |
|---|---|
| Origin | United Kingdom |
| Model | GP 450A & GP 220A |
| Temperature Range | Up to 300 °C |
| Temperature Uniformity | ±0.5 °C |
| External Dimensions (H×W×D) | 1850 × 862 × 850 mm |
| Internal Chamber Dimensions (H×W×D) | 1220 × 610 × 610 mm |
| Chamber Material | 430-grade ferritic stainless steel |
| Heating Method | Forced-air convection with vertical (A) or horizontal (B) airflow configuration |
| Controller | PID301 single-segment programmable controller |
| Insulation | Low-thermal-mass mineral wool |
| Heating Elements | Mineral-insulated metal-sheathed (MIMS) resistive elements |
| Compliance Options | AMS 2750E-compliant configurations available upon customization |
| Brand | Carbolite Gero |
|---|---|
| Origin | United Kingdom |
| Model | CR 70 & CR 30 |
| Temperature Range | Up to 250 °C |
| Temperature Uniformity | ±0.2 °C |
| External Dimensions | 685 × 460 × 670 mm |
| Internal Chamber Dimensions | 310 × 310 × 310 mm |
| Chamber Volume | 30 L (CR 70) / 1790 L (CR 30 variants available) |
| Control System | PID301 Single-Stage Programmable Controller |
| Construction | Stainless Steel Interior, Epoxy-Coated White Exterior |
| Door Seal | Particle-Resistant Silicone Rubber Gasket |
| Fan Type | Fully Enclosed Brushless Motor |
| Brand | Carbolite Gero |
|---|---|
| Origin | Germany |
| Model | MTT |
| Instrument Type | Two-Zone Programmable Tube Furnace |
| Max Temperature | 1200 °C |
| Max Power | 3100 W |
| External Dimensions (H×W×D) | 430 × 900 × 375 mm |
| Heating Tube Length | 850 mm |
| Furnace Body Length | 900 mm |
| Weight | 60 kg |
| Power Supply | 220–240 V, 50–60 Hz, Single Phase |
| Thermocouple Type | Type N |
| Catalyst | Copper-based (Ref. No. x63508P1) |
| Standard Configuration | 2 quartz working tubes, 6 combustion boats, 3 glass bubblers (12 total), molecular sieve traps, aerosol scrubber, RS485 interface, Eurotherm iTools software compatibility |
| Brand | Carbolite Gero |
|---|---|
| Origin | UK |
| Model | GPCMA |
| Furnace Type | Box Furnace |
| Max Temperature | 1150 °C |
| Temperature Uniformity | ±1 °C |
| Max Power | 36 kW |
| Internal Dimensions | 428/495 × 500 × 815 mm (W×D×H) |
| Chamber Volumes | 37–245 L |
| Atmosphere Purity | O₂ ≤ 30 ppm |
| Heating Method | Resistance Wire (NiCr Alloy) |
| Thermocouple Types | R-type (control), K-type (≤1100 °C), N-type (>1100 °C) |
| Cooling | Optional Forced Air / Water-Cooled Door Seal (Silicone) |
| Compliance | Nadcap AMS2750F Class 1 Qualified (Custom Configurable) |
| Brand | Carbolite Gero |
|---|---|
| Origin | Germany |
| Model | FHA (Single-Zone) / FHC (Triple-Zone) |
| Max Operating Temperature | 1350°C |
| Heating Element | 5 mm APM alloy wire embedded in low-heat-capacity ceramic fiber insulation |
| Temperature Uniformity | ±5°C over specified hot zone length |
| Thermocouple Type | High-stability Type S (Platinum/Rhodium) |
| Controller Options | EPC3016P1 (FHA), CC-T1 (FHC) |
| Over-Temperature Protection | Independent safety limiter |
| Atmosphere Compatibility | Air, inert gas (N₂, Ar), reducing (H₂), vacuum (optional mechanical or turbo-molecular pumping) |
| Power Supply Options | 3-phase 200–415 V or 480 V AC |
| Communication Interface | Ethernet (optional, specified at order) |
| Hot Zone Lengths | 200–1250 mm |
| Tube OD Options | 32–110 mm |
| External Dimensions (L×W×H) | up to 1450 × 520 × 590 mm |
| Control Cabinet Dimensions | up to 1200 × 700 × 1100 mm |
| Weight Range | 25–130 kg (furnace), 50–90 kg (cabinet) |
| Brand | Carbolite Gero |
|---|---|
| Origin | United Kingdom |
| Model | HRF 7/22/301 |
| Max Operating Temperature | 750 °C |
| Temperature Uniformity | ±1 °C |
| External Dimensions | 590 × 450 × 870 mm |
| Internal Chamber Dimensions | 220 × 200 × 495 mm |
| Chamber Material | Stainless Steel (AISI 304) |
| Heating Method | Forced-Air Convection |
| Insulation | Low-thermal-mass ceramic fiber + firebrick composite |
| Controller | PID301 Single-Stage Programmable Controller |
| Safety | Independent Over-Temperature Protection (DIN 12880 Compliant) |
| Key | Brand: Carbolite Gero |
|---|---|
| Origin | Germany |
| Model | TSR |
| Type | Rotary Tube Furnace |
| Max Temperature | 1150 °C |
| Tube Diameter | 125 mm |
| Heating Zone Length | 1000 mm |
| Work Tube Length | 2000 mm |
| External Dimensions (H×W×D) | 1830 × 3150 × 700 mm |
| Max Power | 3810 W |
| Rotation Speed | Up to 10 rpm |
| Tilt Angle | Adjustable up to 6° |
| Gas Compatibility | Optional integrated gas system |
| Control Zones | 1 or 3 independent zones |
| Capacity | 5 L vibratory feeder with integrated collection hopper |
| Brand | Carbolite Gero |
|---|---|
| Origin | United Kingdom |
| Model | HT 6/220 |
| Temperature Range | 400 °C / 500 °C / 600 °C (configurable) |
| Temperature Uniformity | ±0.5 °C |
| Internal Chamber Dimensions | 610 × 610 × 610 mm |
| External Dimensions | 1160 × 1030 × 1280 mm |
| Chamber Volume | 220 L |
| Construction | Stainless Steel Interior |
| Controller | PID301 Single-Stage Programmable Controller |
| Optional Compliance Upgrades | Nadcap AMS 2750E Thermal Processing Certification Support |
Show next
