| Brand | QATM |
|---|---|
| Origin | Germany |
| Model | Qcut 350A |
| Instrument Type | Metallographic Cutting Machine |
| Maximum Sample Diameter | Ø135 mm |
| Cutting Wheel Diameter | Up to Ø356 mm (14") |
| Flange Size | Ø32 mm |
| Auto X-Axis Travel | 260 mm |
| Auto Y-Axis Travel | 180 mm |
| Optional Z-Axis Travel | 140 mm |
| Z-Axis Positioning Accuracy | 0.1 mm |
| Stage Dimensions (without Z) | 500 × 300 mm, Stainless Steel |
| Stage Dimensions (with Z) | 400 × 300 mm, Stainless Steel |
| T-Slot Width | 12 mm |
| Variable Speed Range | 800–3400 rpm |
| Power Supply | 9.5 kVA |
| Rated Output (S1) | 4 kW |
| Rated Output (S3) | 5.5 kW |
| Dimensions (W×H×D) | 1015 × 760 × 810 mm |
| Weight | ~200 kg |
| Brand | QATM |
|---|---|
| Origin | Germany |
| Model | Qcut 200A (formerly ATM Brillant 220) |
| Cutting Wheel Diameter | 203 mm (8") |
| Max. Cutting Height (Y-axis) | 75 mm |
| Y-axis Travel (Auto Mode) | 80 mm |
| Z-axis Feed Travel | 80 mm |
| Stage Dimensions (w × d, excl. Z) | 300 × 210 mm |
| Stage Dimensions (w × d, incl. Z) | 280 × 210 mm |
| T-slot Width | 8 mm |
| Power Supply | 2.3 kVA |
| Rated Motor Power (S1) | 0.75 kW |
| Adjustable Speed Range | 300–5000 rpm |
| Overall Dimensions (w × h × d) | 710 × 485 × 570 mm |
| Cutting Chamber Dimensions (w × d) | 405 × 500 mm |
| Weight | ~82 kg |
| Brand | QATM |
|---|---|
| Origin | Germany |
| Model | Qcut 500 A (formerly ATM BRILLANT 275) |
| Cutting Wheel Diameter | 508 mm (20") |
| Flange Size | Ø32/40 mm |
| X-Axis Automatic Travel | 420 mm |
| Y-Axis Automatic Travel | 280 mm |
| Z-Axis Optional Travel | 200 mm |
| Z-Axis Positioning Accuracy | 0.1 mm |
| Sample Table (with Z-axis) | 550 × 500 mm, Stainless Steel |
| Sample Table (without Z-axis) | 700 × 500 mm, Stainless Steel |
| T-Slot Width | 12 mm |
| Adjustable Spindle Speed | 1000–2800 rpm (or 1000–2400 rpm, depending on configuration) |
| Main Motor Power | 15 kW, Water-Cooled, Integrated in Swivel Arm |
| Max. Traverse Speed (X/Y) | 80 mm/sec |
| Power Supply | 30 kVA, 15 kW S1 duty cycle |
| Dimensions (W×H×D) | 1300 × 1820 × 1250 mm |
| Weight | ~1000 kg |
| Compliance | CE, ISO 12100, EN 692, EN 60204-1 |
| Optional | Laser-Assisted Alignment, Centrifugal Mist Extraction System, Pneumatic Central Lubrication (6 bar required) |
| Brand | QATM |
|---|---|
| Origin | Germany |
| Model | Qcut 150 M |
| Instrument Type | Manual Precision Cutting Machine |
| Cutting Wheel Diameter | 75–203 mm (3"–8") |
| Adjustable Speed | 150–3000 rpm |
| Max Cutting Capacity | Ø 40 mm |
| Adjustable Cutting Force | 0–10 N |
| Y-Axis Feed (Vertical) | 120 mm (Manual) |
| Z-Axis Feed (Parallel to Wheel) | 25 mm (Manual) |
| Motor Power | 0.37 kW (S1) |
| Power Supply | 0.75 kVA |
| Dimensions (W×H×D) | 591 × 391 × 590 mm |
| Weight | ~45 kg |
| Cooling Systems | 4 configurable options |
| Frame Material | Powder-coated stainless steel |
| Brand | QATM |
|---|---|
| Origin | Germany |
| Model | Qcut 400A (formerly ATM Brillant 265) |
| Cutting Wheel Diameter | Up to 406 mm (16") |
| Max. Cutting Capacity | Ø150 mm |
| X-Axis Travel | 345 mm |
| Y-Axis Travel | 200 mm |
| Z-Axis Travel | 150 mm (manual or optional motorized) |
| Z-Axis Positioning Accuracy | 0.1 mm |
| T-Slot Width | 12 mm |
| Power Supply | 17 kVA, 7 kW (S1 duty cycle) |
| Dimensions (W×H×D) | 1100 × 1610 × 930 mm |
| Weight | ~480 kg |
| Brand | QATM |
|---|---|
| Origin | Germany |
| Model | Qcut 600 A |
| Type | Wet Abrasive Cutting Machine |
| Max Wheel Diameter | 600 mm (24") |
| Max Cutting Capacity | Ø244 mm |
| Max Cut Depth | 190 mm (with 500 mm wheel) |
| X-Axis Travel | 550 mm |
| Y-Axis Travel | 360 mm |
| Z-Axis Travel | 550 mm |
| Z-Axis Positioning Accuracy | 0.1 mm |
| Table Size | 750 × 600 mm (stainless steel T-slots, 12 mm) |
| Spindle Speed | 1000–2000 rpm (variable) |
| Main Motor | 15 kW water-cooled (integrated in cantilever arm) |
| Power Supply | 30 kVA, 3-phase |
| Dimensions (W×H×D) | 1488 × 1960 × 1477 mm |
| Weight | ~1600 kg |

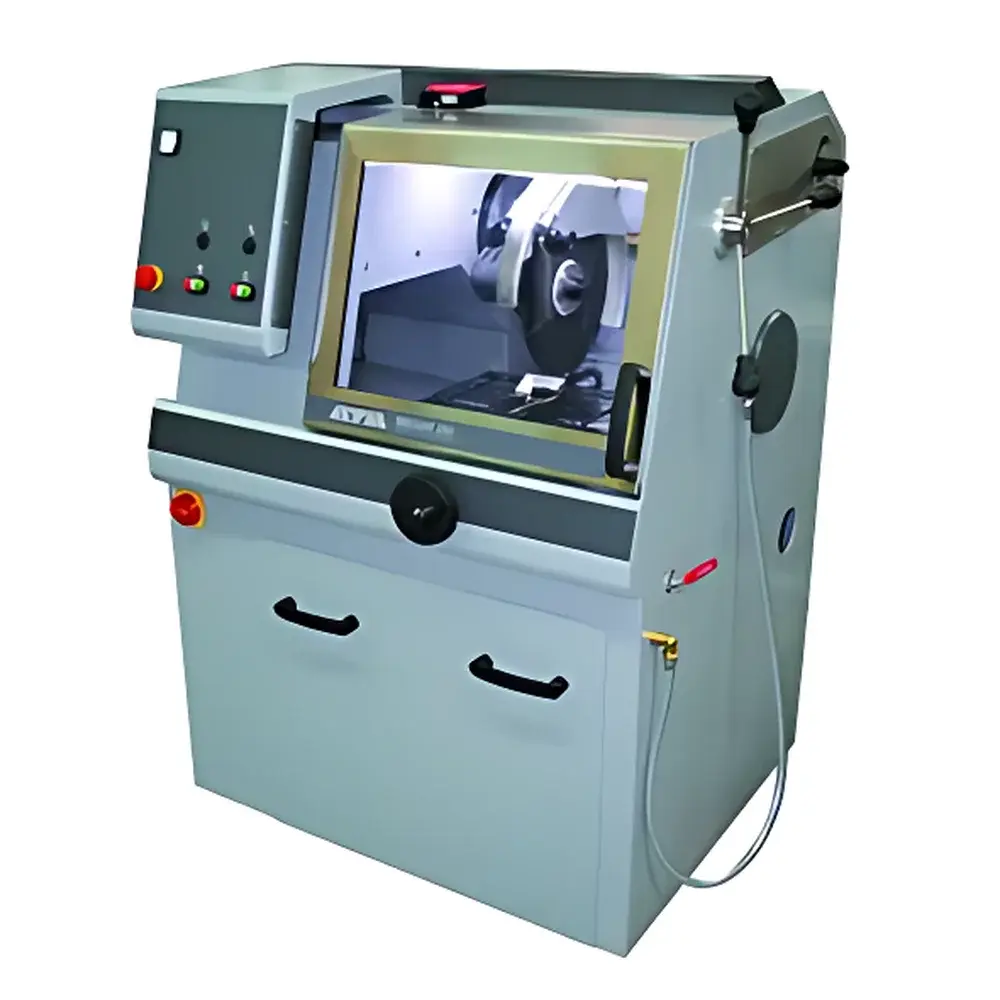

| Brand | QATM |
|---|---|
| Origin | Germany |
| Model | Brillant 255 |
| Cutting Method | Wet abrasive cutting |
| Drive Type | Manual feed (Y/X axes) with optional manual Z-axis for parallel sectioning |
| Frame Material | Powder-coated aluminum alloy |
| Cutting Chamber | Side-access, large-volume |
| Clamping System | T-slot table with modular fixture compatibility |
| Force Control | Gear-disk regulated longitudinal feed |
| Height Adjustment | Stepless gear-disk locking for wheel vertical positioning |
| Illumination | Integrated LED lighting |
| Alignment Aid | Built-in laser positioning system |
| Safety Interlock | Motorized door interlocked with wheel rotation status |
| Compliance | Designed per EN ISO 12100, EN 60204-1, and EN 62061 for mechanical and electrical safety in laboratory environments |
| Brand | QATM |
|---|---|
| Origin | Germany |
| Model | Qcut 800 A |
| Cutting Wheel Diameter | Up to 800 mm (32") |
| Max. Sample Diameter | 295 mm |
| Max. Sample Dimensions (W×H×D) | 1100 × 450 × 800 mm |
| Max. Cutting Distance | 225 mm (with 600 mm wheel) |
| Flange Size | Ø32/40 mm |
| Auto X-Axis Travel | 700 mm |
| Auto Y-Axis Travel | 450 mm |
| Auto Z-Axis Travel | 700 mm |
| Z-Axis Positioning Accuracy | 0.1 mm |
| Table Size (W×D) | 1150 × 800 mm |
| T-Slot Width | 12 mm |
| Spindle Speed Range | 1000–2000 rpm |
| Motor Power | 30 kW (S1 continuous duty) |
| Supply Requirement | 50 kVA, 3-phase |
| Machine Dimensions (W×H×D) | 2200 × 2175 × 1840 mm |
| Weight | ~3500 kg |
| Cooling | Integrated Closed-Loop Water Circulation System |
| Lubrication | Centralized Automatic Pneumatic Lubrication (6 bar required) |
| Control Interface | Touchscreen HMI with QATM Software Suite |

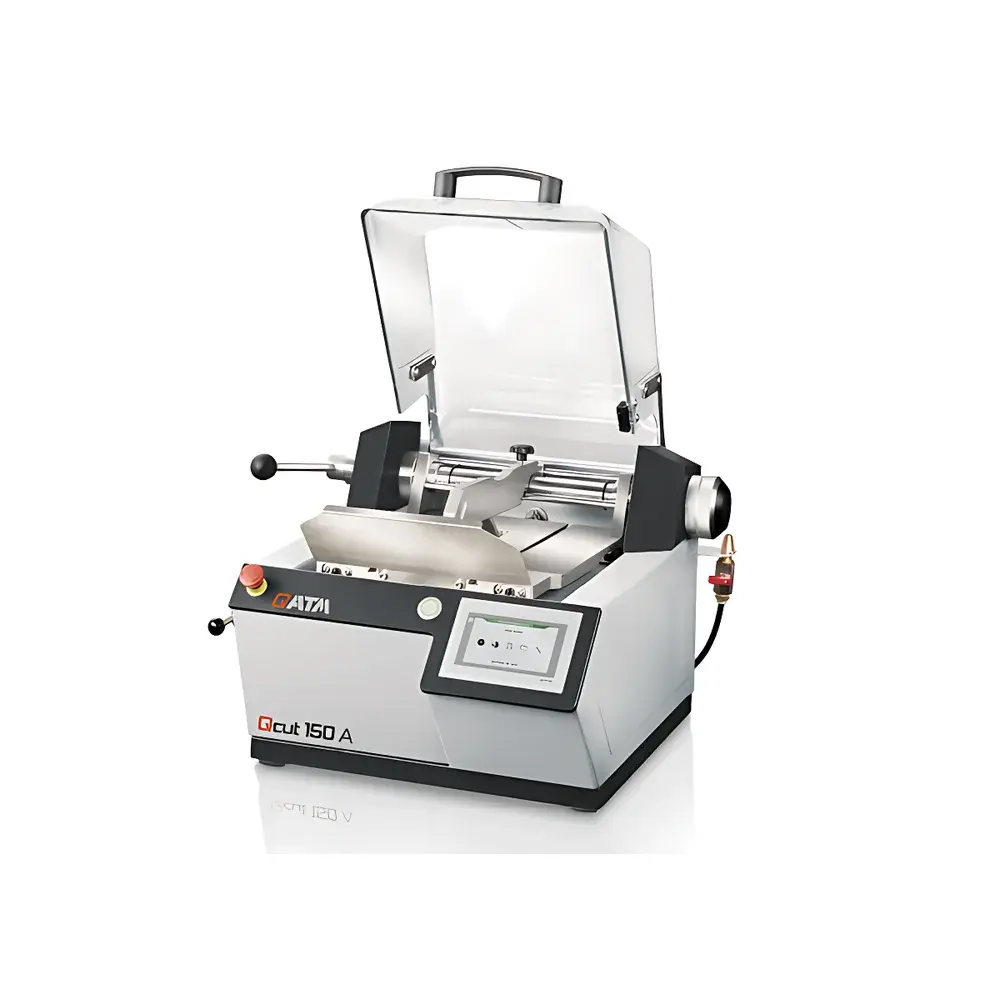

| Brand | QATM |
|---|---|
| Origin | Germany |
| Model | Qcut 150 A (formerly ATM BRILLANT 210 A) |
| Cutting Wheel Diameter | up to 203 mm (8") |
| Maximum Sample Height | 40 mm |
| Force-Controlled Feed Range | 0–10 N (adjustable in 0.5 N increments) |
| Feed Speed | 0.01–20 mm/s |
| Vertical (Y-axis) Travel | 120 mm (manual or motorized) |
| Horizontal (Z-axis) Travel | 25 mm |
| Z-axis Positioning Accuracy | ±0.005 mm |
| Spindle Speed | 300–3000 rpm (variable) |
| Motor Power | 0.75 kW (peak), 0.37 kW (S1 continuous rating) |
| Dimensions (W×H×D) | 545 × 391 × 566 mm |
| Weight | 45 kg |
| Display | 4.3" capacitive touchscreen |
| Programmable Protocols | 200 user-defined cutting methods |
| Cooling Options | 4 types (flood, mist, jet, dry) |
| Compliance | CE, ISO 12100, EN 60204-1 |
| Enclosure | Stainless steel housing with powder-coated, pneumatically damped safety cover |
| Lighting | Integrated LED illumination in cutting chamber |
| Accessories | Quick-mount platform attachments, optional force-sensing clamping arm, grinding mode module |

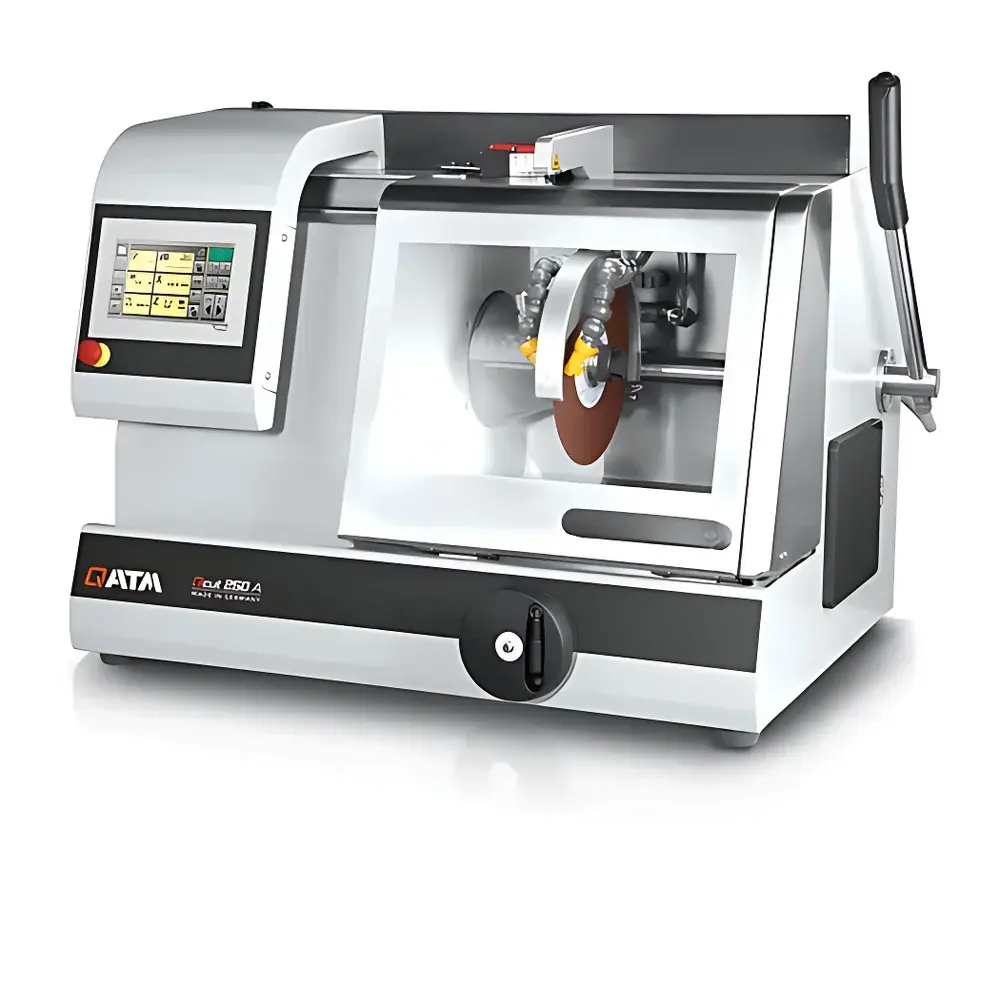

| Brand | QATM |
|---|---|
| Origin | Germany |
| Model | Qcut 250 A (formerly ATM Brillant 240) |
| Cutting Wheel Diameter | Up to 254 mm (10") |
| Max Sample Diameter | 95 mm |
| X-Axis Travel | 225 mm (Automatic & Manual) |
| Y-Axis Travel | 170 mm (Manual) |
| Z-Axis Travel | 120 mm (Optional Automatic) |
| Z-Axis Positioning Accuracy | 0.1 mm |
| Stage Dimensions (w × d) | 380 × 270 mm (without Z-axis), 300 × 270 mm (with Z-axis) |
| T-Slot Width | 12 mm |
| Power Supply | 5.5 kVA |
| Rated Power | 3 kW (S1), 4 kW (S3/60%) |
| Motor Speed | 3015 rpm (50 Hz), 3100 rpm (60 Hz) |
| Dimensions (W × H × D) | 925 × 676 × 756 mm |
| Weight | ~130 kg |
| Application | Metallographic Sample Preparation |
| Brand | QATM |
|---|---|
| Origin | Germany |
| Model | Brillant 200 |
| Cutting Wheel Diameter | Ø250 mm |
| Mounting Hole | Ø32 mm |
| Vertical Travel | 155 mm |
| Max. Sample Diameter | Ø90 mm (solid) / Ø55 mm (continuous-length) |
| Worktable Dimensions (W×D) | 350 × 288 mm |
| T-Slot Width | 12 mm |
| Speed | 2850 rpm (50 Hz) / 3420 rpm (60 Hz) |
| Power Supply Options | 400 V/50 Hz (3/N/PE), 480 V/60 Hz (3/PE), or 220 V/60 Hz (3/PE) |
| Rated Power | 4.5 kVA |
| Overall Dimensions (W×H×D) | 810 × 735 × 650 mm |
| Weight | 75 kg |

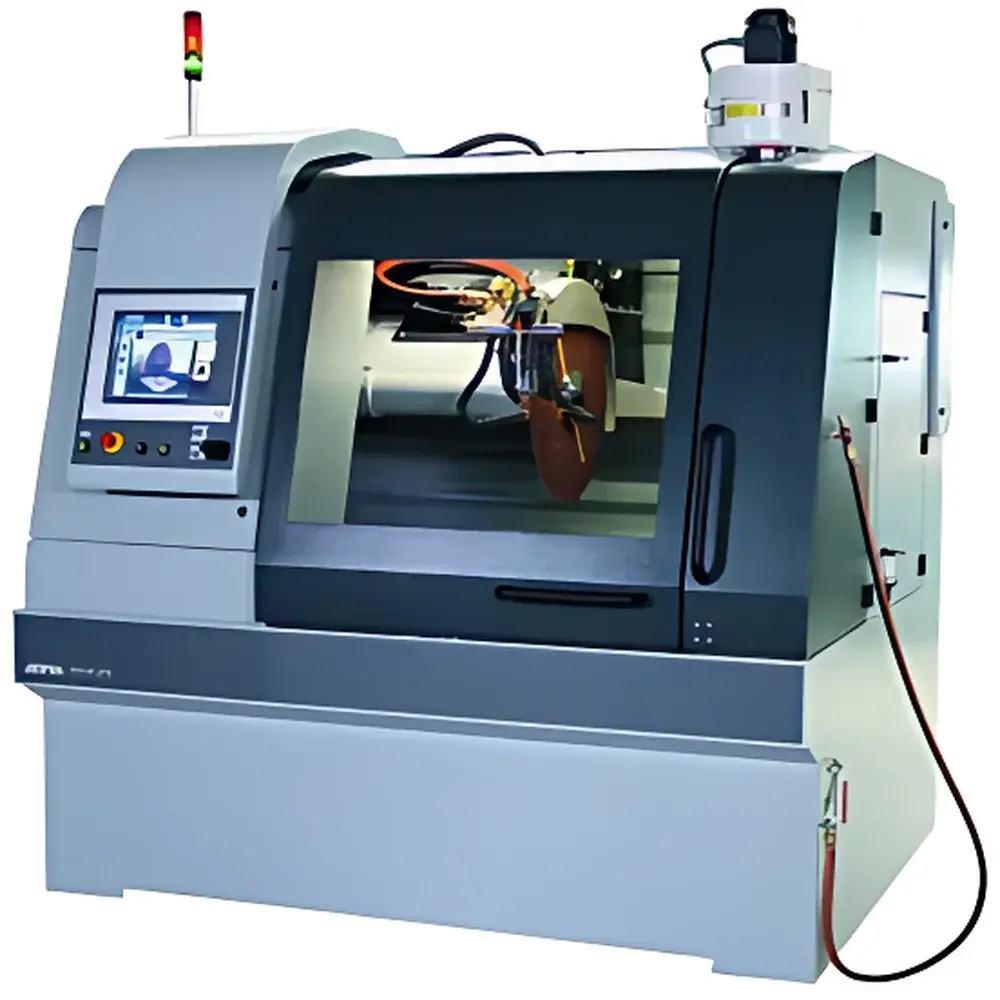

| Brand | QATM |
|---|---|
| Origin | Germany |
| Model | Brillant 2000 |
| Cutting Principle | Motorized Linear & Diagonal Feed with Adjustable Pulse/Saw-Mode Operation |
| Optional Features | Laser Alignment Guidance, Rotational Feed Module, Programmable Coolant Delivery |
| Compliance | Designed to meet ISO 14971 (Risk Management), EN 61000-6-2/6-4 (EMC), and EN 60204-1 (Safety of Machinery) requirements |
| Software Control | Integrated touchscreen HMI with recipe-based workflow management |
| Brand | QATM |
|---|---|
| Origin | Germany |
| Model | Qcut 200 A |
| Cutting Wheel Max Diameter | Ø 203 mm (8") |
| Max Cutting Height | 75 mm (with Ø 200 mm wheel) |
| X-Axis Travel | 210 mm (manual/automatic) |
| Y-Axis Travel | 80 mm (automatic) |
| Z-Axis Travel (optional) | 80 mm (automatic) |
| Z-Axis Positioning Accuracy | 0.005 mm |
| T-Slot Width | 8 mm |
| Spindle Speed Range | 300–5000 rpm |
| Motor Power (S1 duty) | 0.75 kW |
| Input Power Rating | 2.2 kW |
| Dimensions (W×H×D) | 725 × 535 × 675 mm |
| Weight | ~82 kg |

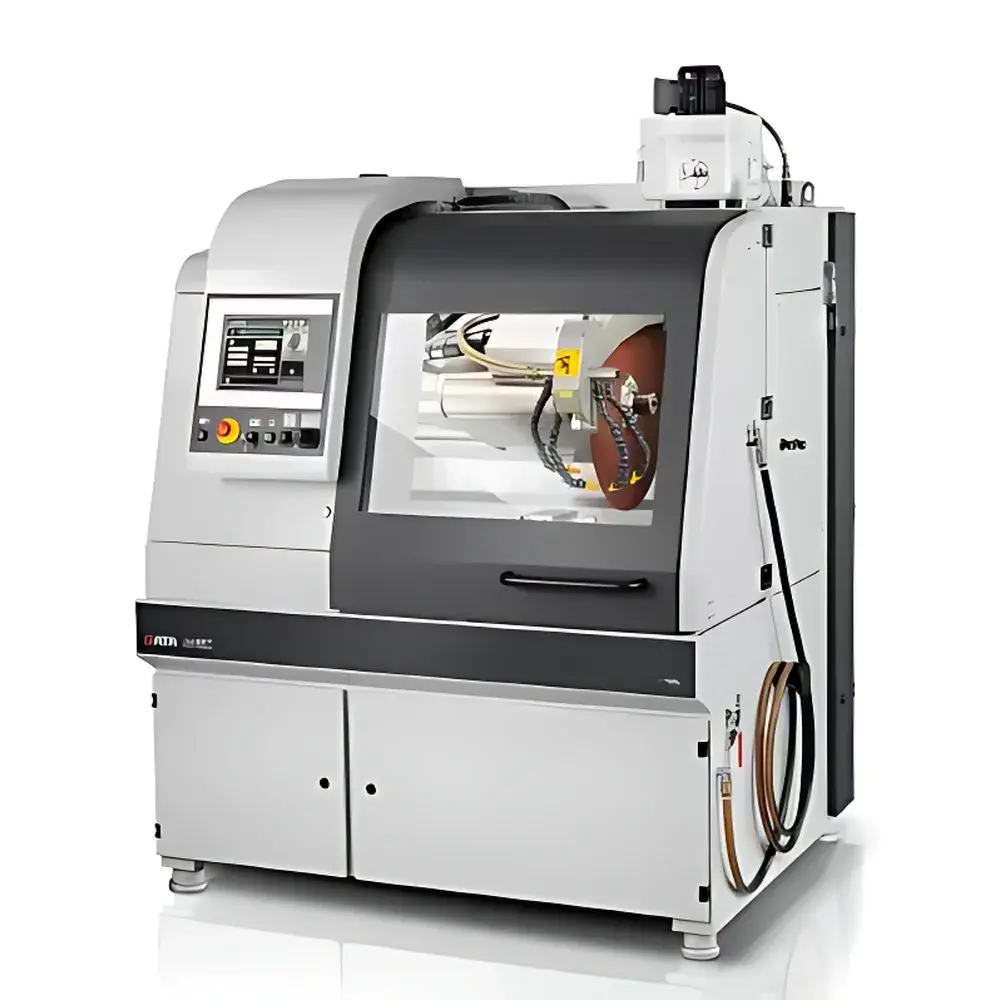

| Brand | QATM |
|---|---|
| Origin | Germany |
| Model | Qcut 600 BOT |
| Instrument Type | Wet Abrasive Wheel Cutting Machine |
| Maximum Wheel Diameter | 610 mm (24") |
| Max Cutting Depth | 244 mm |
| X-Axis Travel | 550 mm |
| Y-Axis Travel | 360 mm |
| Z-Axis Travel | 550 mm |
| Z-Axis Positioning Accuracy | 0.1 mm |
| B-Axis Rotation Range | ±200° (5-axis), 360° (4-axis) |
| C-Axis Rotation Range | 360° |
| Table Diameter | Ø600 mm, Stainless Steel |
| T-Slot Width | 12 mm |
| Spindle Speed | 1000–2400 rpm (variable) |
| Main Motor Power | 15 kW (S1 duty) |
| Electrical Supply | 30 kVA |
| Dimensions (W×H×D) | 1640 × 2200 × 1480 mm |
| Approx. Weight | 1600 kg |

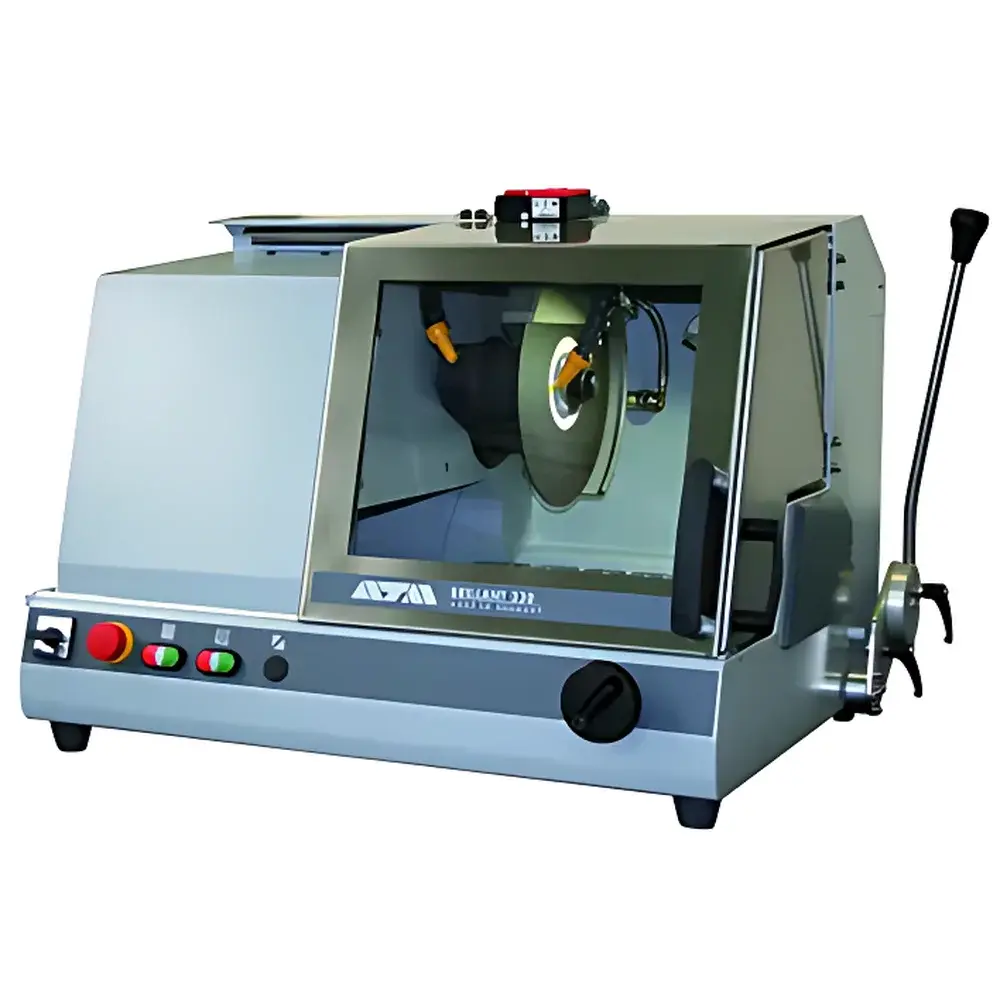

| Brand | QATM |
|---|---|
| Origin | Germany |
| Model | Brillant 230 |
| Cutting Method | Wet abrasive wheel cutting |
| Max Sample Diameter | Ø110 mm |
| Z-axis Adjustment Resolution | 0.01 mm |
| Frame Material | Cast aluminum |
| Safety Features | Interlocked sliding front door and side doors |
| Illumination | Energy-efficient LED lighting in cutting chamber |
| Wheel Drive | Gear-controlled manual feed mechanism |
| Wear Protection | Replaceable wear ring on main spindle |
| Chamber Access | Dual-side openings (left & right) for extended workpieces |
| Clamping Options | Compatible with multiple standard sample holders |
| Brand | QATM |
|---|---|
| Origin | Germany |
| Model | Qcut 250 M |
| Cutting Wheel Diameter | Up to Ø250 mm (10") |
| Max. Cutting Capacity | Ø55 mm (solid) / Ø90 mm (continuous cut, up to 25 mm length) |
| Spindle Flange Size | Ø32 mm |
| Y-axis (Vertical Stroke) | 145 mm |
| Worktable Dimensions | 350 × 288 mm (stainless steel, T-slot 12 mm) |
| Power Supply | 4.5 kVA |
| Rated Output (S6, 40% duty cycle) | 3 kW |
| Overall Dimensions (W×H×D) | 810 × 735 × 650 mm |
| Weight | ~75 kg |
| Safety | Interlocked transparent enclosure, integrated wheel coolant delivery, arc-shaped viewing window, powder-coated aluminum housing |
