| Brand | ZOLIX |
|---|---|
| Origin | Beijing, China |
| Manufacturer Type | OEM Manufacturer |
| Regional Category | Domestic (China) |
| Model | FLG-Series |
| Light Source Type | Broadband Lamp-Based Tunable Monochromatic Source Compatible |
| Key Components | FLG-SMA905-F35 Fiber Focusing Assembly, BFC-447 Spectrometer–Fiber Adapter, 74-UV Collimating Lens |
| Optical Material | UV Fused Silica |
| Fiber Interface | SMA905 |
| Focal Spot Size | <1 mm (at 1 mm core diameter quartz fiber) |
| Numerical Aperture (NA) | 0.22 |
| Full Divergence Angle | 25° |
| Wavelength Range | 200–1100 nm |
| Fiber Bundle Core Diameter Options | Ø3 mm cylindrical / SMA905 |
| Adjustability | XY Planar Translation + Axial Focus Distance Control |
| Brand | ZOLIX |
|---|---|
| Origin | Beijing, China |
| Manufacturer Type | Direct Manufacturer |
| Product Category | Domestic |
| Model | LSH-T50 |
| Light Source Type | Tungsten-Halogen Lamp |
| Illumination Mode | Internal Illumination |
| Spectral Range | 250–2700 nm (effective 300–2500 nm) |
| Color Temperature | ≥3000 K |
| Luminous Efficacy | 20–30 lm/W |
| Luminous Flux Stability | 0.12–1% (when paired with ZOLIX LSP-series constant-current supply) |
| Lamp Life | Extended operational lifetime with <5% lumen depreciation over service life |
| Optical Axis Height Adjustment | 134–154 mm |
| Power Rating | 50 W (lamp + driver system) |
| Brand | ZOLIX |
|---|---|
| Origin | Beijing, China |
| Manufacturer Type | Direct Manufacturer |
| Model | GLORIA-T150A / GLORIA-T250A |
| Light Source Type | Tungsten-Halogen (Broadband) |
| Illumination Mode | External (Collimated Beam) |
| Output Beam Diameter | 46 mm |
| Vertical Adjustment Range | 137–173 mm |
| Cooling Method | Forced-air Fan Cooling |
| Reflector Configuration | Rear-mounted Ellipsoidal Reflector |
| Current Stability | ±0.05% |
| Input Voltage | 110/220 V AC ±10% |
| Lamp Life | 2000 h (T150), 2000 h (T250) |
| Color Temperature | 3200 K (T150), 3000 K (T250) |
| Luminous Flux | 3200 lm (T150), 9000 lm (T250) |
| Lamp Voltage | 24 V (T150), 24 V (T250) |
| Max. Operating Current | 6.5 A (T150), 10.8 A (T250) |
| Brand | Energetiq |
|---|---|
| Origin | USA |
| Manufacturer Type | Authorized Distributor |
| Origin Category | Imported |
| Model | EQ-99X |
| Light Source Type | Laser-Driven Plasma Light Source |
| Illumination Mode | External Illumination |
| Spectral Range | 170–2100 nm |
| Numerical Aperture (NA) | up to 0.47 |
| Typical Lamp Lifetime | >9,000 hours |
| Output Options | Free-Space or Fiber-Coupled |
| Source Dimensions | 82.3 × 85.7 × 76.2 mm |
| Source Weight | 0.7 kg |
| Power Supply Dimensions | 107 × 111 × 254 mm (excl. feet) |
| Power Supply Weight | 1.4 kg |
| Brand | ZOLIX |
|---|---|
| Model | LSDS-30 |
| Origin | Beijing, China |
| Manufacturer Type | Original Equipment Manufacturer (OEM) |
| Light Source Type | High-Power Tunable LED Array |
| Control Interface | RS232, Digital TTL, Manual Knob |
| Output Regulation | 0–100% PWM (120 Hz), Adjustable Exposure Time up to 9999.9 s |
| Cooling Method | Forced Air |
| Input Power | AC 110–220 V, DC 12 V / 4 A |
| Operating Temperature | +5 to +35 °C |
| Storage Temperature | −10 to +55 °C (non-condensing) |
| Humidity Range | 20–80% RH (non-condensing) |
| Weight | ~3.5 kg (packaged), ~1.5 kg (controller only) |
| Compliance | CE-marked for laboratory use |
| Brand | ZOLIX |
|---|---|
| Model | Sirius-300P |
| Light Source Type | Xenon Arc Lamp |
| Illumination Mode | External Irradiation |
| Spectral Range | 200–2500 nm (UV-Vis-NIR) |
| Total Optical Output Power | 50 W |
| UV Output (<390 nm) | 2.6 W (Sirius-300P-F) / 6.6 W (Sirius-300P-UV) |
| Visible Output (390–770 nm) | 5000 lm / 4500 lm |
| IR Output (>770 nm) | 28.8 W / 26.8 W |
| Radiant Power Density | 5–15 Sun @ 50 mm (measured with Si reference cell, 1 Sun = 1000 W/m²) |
| Beam Collimation | Avg. 5° divergence |
| Adjustable Working Height | 70–220 mm |
| Lamp Lifetime | 1000 h (rated), up to 6000 h (maximum) |
| Cooling Method | Forced-air radial heat dissipation |
| Stability (Constant Power Mode) | <1% RMS fluctuation |
| Dimensions | 341 × 244 × 290 mm |
| Weight | 11 kg |
| Input Voltage | AC 190–240 V, 50 Hz |
| Lamp Operating Voltage/Current | DC 14 V (13–16 V) / 21 A (10–22 A) |
| Color Temperature | 5600 K (Sirius-300P-F) / 5050 K (Sirius-300P-UV) |
| Brand | ZOLIX |
|---|---|
| Origin | Beijing, China |
| Manufacturer Type | OEM Manufacturer |
| Product Category | Domestic |
| Model | Light Source Accessories |
| Light Source Type | Xenon Lamp |
| Illumination Mode | External (Side-Illumination) |
| Output Port Diameter | 59 mm |
| Compatible Instruments | GLORIA Series Lamps, Omni-λ Spectrometers, SR540 Chopper, SD Filter Wheels |
| Optical Interface Standard | M3/M6 Threaded Mounting |
| Compliance | Designed for ISO/IEC 17025-aligned optical laboratories, compatible with GLP/GMP-relevant experimental workflows |
| Brand | ZOLIX |
|---|---|
| Origin | Beijing, China |
| Manufacturer Type | Direct Manufacturer |
| Product Category | Domestic |
| Model | GLORIA-X150A |
| Light Source Type | Xenon Lamp |
| Illumination Mode | External (Collimated Beam) |
| Collimated Beam Diameter | 46 mm |
| Adjustable Optical Height Range | 137–173 mm |
| Spectral Range (with LSB-X150AUV lamp) | 200–2500 nm |
| Lamp Cooling | Forced-air convection via integrated fan |
| Reflector Design | Rear-mounted elliptical reflector (60% collection efficiency gain) |
| Current Stability | ≤0.5% RMS fluctuation |
| Ignition | High-voltage pulse trigger (≥25 kV) |
| Lamp Positioning | External fine-adjustment knob for filament alignment |
| Safety Compliance | CE-marked enclosure, interlocked lamp chamber, UV/IR shielding compatible |
| Brand | ZOLIX |
|---|---|
| Origin | Beijing, China |
| Manufacturer Type | OEM Manufacturer |
| Origin Category | Domestic (China) |
| Model | Gloria-SC-P |
| Light Source Type | Supercontinuum Laser (ps-pulsed, fiber-based) |
| Cut-in Wavelength | 420 nm |
| Total Output Power | 7.5 W |
| Visible Power (350–850 nm) | 2.2 W |
| Spectral Range | 420–2200 nm |
| Power Stability (RMS) | < 0.5% |
| Repetition Rate Tunability | 160 kHz – 80 MHz |
| Beam Quality (M²) | < 1.1 |
| Polarization | Random |
| Output Fiber Length | 1.5 m |
| Synchronization Output | BNC, TTL-compatible |
| Operating Voltage | 100–240 V AC, 50/60 Hz |
| Power Consumption | < 150 W |
| Dimensions (W×H×L) | 600 × 400 × 200 mm |
| Weight | < 25 kg |
| Brand | ZOLIX |
|---|---|
| Origin | Beijing, China |
| Manufacturer Type | Direct Manufacturer |
| Product Origin | Domestic (China) |
| Model | LHM254 |
| Light Source Type | Low-Pressure Mercury Discharge Lamp |
| Illumination Mode | External Illumination |
| Characteristic Emission Lines | 253.65 nm, 312.57 nm, 313.15 nm, 313.18 nm, 365.02 nm, 404.66 nm, 435.84 nm, 546.07 nm, 576.96 nm, 579.07 nm |
| Ignition Voltage | ≤500 V |
| Rated Power | 254 W |
| Operating Current | 310 mA |
| Lamp Type | Cold-Cathode Low-Pressure Mercury Vapor Lamp |
| Brand | ZOLIX |
|---|---|
| Origin | Beijing, China |
| Manufacturer Type | Direct Manufacturer |
| Product Category | Domestic |
| Model | GLORIA-X500A |
| Light Source Type | Xenon Arc Lamp |
| Illumination Mode | External Irradiation |
| Spectral Range | 250–2500 nm |
| Output Beam Diameter | 46 mm |
| Optical Axis Height Adjustment Range | 157–193 mm |
| Light Collection Efficiency Gain | >60% (vs. standard parabolic reflector) |
| Intensity Stability | ≤2% (with imported lamp bulb, under constant-current power supply) |
| Max. Envelope Temperature (Bulb Wall) | <500 °C at 600 W equivalent load |
| Max. Anode Temperature | <180 °C |
| Lamp Replacement & Realignment Time | ≤5 minutes |
| Safety Features | Interlocked lid cutoff, thermal shutdown, ignition timeout protection (10 s) |

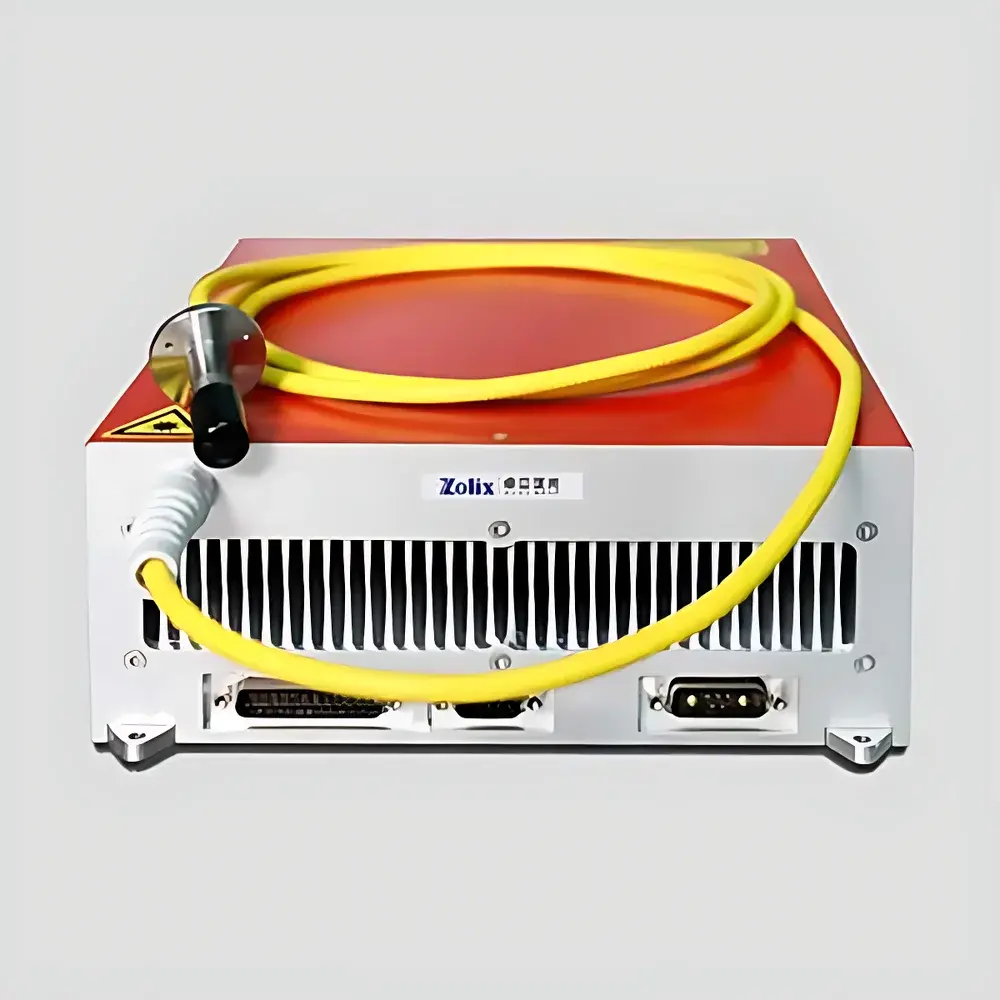

| Brand | ZOLIX |
|---|---|
| Model | Gloria-SC-N |
| Wavelength Range | 420–2300 nm |
| Cut-in Wavelength | ≥420 nm (intensity >0.1 mW/nm) |
| Total Output Power | 7 W |
| Visible Power (350–850 nm) | 1.1 W |
| Power Stability | <0.5% RMS |
| Repetition Rate Tunability | 100 kHz – 1 MHz |
| Beam Quality (M²) | <1.1 |
| Polarization | Random |
| Output Fiber Length | 1.5 m |
| Synchronization Signal | BNC, TTL-compatible |
| Input Voltage | 100–240 V AC, 50/60 Hz |
| Power Consumption | <120 W |
| Dimensions (W×H×L) | 387 × 301 × 100 mm |
| Weight | 11 kg |
| Brand | ZOLIX |
|---|---|
| Origin | Beijing, China |
| Manufacturer Type | Direct Manufacturer |
| Light Source Type | Xenon Lamp (X150A/X500A) / Tungsten-Halogen Lamp (T250A) |
| Illumination Mode | External Illumination |
| Spectral Range | 200–2500 nm (dependent on lamp and grating selection) |
| Grating Options | 1200 g/mm (200–600 nm), 600 g/mm (330–1000 nm), 300 g/mm (800–2500 nm) |
| Slit Width Options | 0.5–4.5 mm |
| Spectral Bandwidth (FWHM) | 1.35–36.5 nm (varies with grating and slit width) |
| Output Coupling | Direct interface to spectrometer slit or optional accessories (collimator, integrating sphere, diffuser) |
| Brand | ZOLIX |
|---|---|
| Model | LSH-SiC200 |
| Power | >200 W |
| Spectral Range | 1–16 µm |
| f-number | f/4 |
| Emissive Area | 5 × 14 mm |
| Rated Current | 18 A |
| Lifetime | >400 h |
| Optical Center Height | 128–168 mm (adjustable) |
| Operating Temperature | 900–1200 K |
| Mirror Reflectivity | >98% (Au-coated) |
| Cooling | Recirculating Water |
| Compliance | Designed for ISO/IEC 17025-compliant optical labs |
| Sample Interface | Compatible with FTIR, dispersive IR spectrometers, and radiometric calibration setups |
| Brand | ZOLIX |
|---|---|
| Model | Omni-λBright300 |
| Light Source Type | 75 W Xenon Lamp |
| Wavelength Range | 260–1000 nm |
| Spectral Bandwidth | 1–22 nm (continuously adjustable) |
| Wavelength Accuracy | ±0.2 nm |
| Wavelength Repeatability | ±0.1 nm |
| Output Power | 22 mW (at 90° port, dependent on grating, slit width, and wavelength) |
| Optical Output | SMA905 fiber connector (quartz fiber, UV-VIS-NIR grade) |
| Beam Height | 160 mm (185 mm with base plate and rubber feet) |
| Dimensions | 870 × 320 × 335 mm |
| Weight | 30 kg |
| Stability | ±0.5% (rms over 8 hours) |
| Interface | USB 2.0 |
| Compliance | CE-marked, RoHS-compliant, GLP-ready documentation provided |
| Brand | ZOLIX |
|---|---|
| Origin | Beijing, China |
| Manufacturer Type | Direct Manufacturer |
| Model | GLORIA-X450A |
| Light Source Type | Xenon Arc Lamp |
| Spectral Range | 250–2500 nm |
| Output Stability | ≤1% (with imported lamp) |
| Lamp Housing Temperature | <500 °C (at 20% overload) |
| Anode Temperature | <180 °C |
| Collimated Beam Diameter | 46 mm |
| Optical Axis Height Adjustment Range | 157–193 mm |
| Reflective Collector Efficiency Gain | >60% (vs. standard parabolic design) |
| Safety Features | Interlocked lid cutoff, thermal shutdown (>safe threshold), ignition timeout (10 s) |
| Brand | ZOLIX |
|---|---|
| Origin | Beijing, China |
| Manufacturer Type | Direct Manufacturer |
| Product Category | Domestic |
| Model | Gloria-SC-P-UVE |
| Light Source Type | Supercontinuum Laser (Fiber-Based, UV-Extended) |
| Pulse Width | 450 ps |
| Repetition Rate Range | 1.5–3 MHz |
| Spectral Coverage | 380–2400 nm |
| Max. Average Output Power | 7 W |
| Polarization | Unpolarized |
| Beam Profile | Near-Gaussian, Fundamental Mode (M² ≈ 1.1 @ >430 nm) |
| Beam Diameter | ~1.5 mm @ 530 nm, ~2.5 mm @ 1100 nm |
| Power Stability (RMS) | ≤0.5% over 8 hours at full output |
| Brand | ZOLIX |
|---|---|
| Model | TLSE1805i-EQ |
| Light Source Type | Laser-Driven Light Source (LDLS) |
| Spectral Range (recommended) | 200–1500 nm |
| Output Bandwidth (recommended) | 1–10 nm |
| Output Bandwidth Tuning Range | 0.3–20 nm |
| Monochromator | Omni-λ1805i Imaging-Corrected Monochromator |
| Grating Options | 1200 g/mm @ 300 nm, 600 g/mm @ 750 nm |
| UV-Enhanced Optics | Yes (200–400 nm), with N₂ purge capability |
| Output Power | ≥1 mW (@ 500 nm, 5 nm bandwidth, 1200 g/mm grating) |
| Power Stability | <0.5% RMS (over 8 hours) |
| Enclosure | Fully enclosed, integrated monolithic design |
| Optional LDLS Modules | EQ99 (standard power), EQ1500 (high-power) |
| Brand | ZOLIX |
|---|---|
| Origin | Beijing, China |
| Manufacturer Type | OEM Manufacturer |
| Product Origin | Domestic (China) |
| Model | Omni-λBright 600 |
| Light Source Type | 75 W Xenon Arc Lamp |
| Illumination Mode | Internal Illumination Configuration |
| Output Port Diameter | 25 mm |
| Spectral Range | 260–1000 nm |
| Spectral Bandwidth | 1–22 nm (continuously adjustable) |
| Wavelength Accuracy | ±0.2 nm |
| Wavelength Repeatability | ±0.1 nm |
| Irradiance Uniformity | ≥98% (measured at integrating sphere exit port) |
| Power Stability | ≤0.5% RMS over 8 hours |
| Minimum Spot Size | 1 mm (collimated free-space output) |
| Optical Axis Height | 160 mm (185 mm including base plate and rubber feet) |
| Dimensions (L×W×H) | 870 × 320 × 335 mm |
| Weight | 30 kg |
| Communication Interface | USB 2.0 |
| Standard Configuration | Monochromator, 75 W xenon lamp housing, six-position filter wheel, 25 mm exit integrating sphere, control software SDK |
| Brand | ZOLIX |
|---|---|
| Origin | Beijing, China |
| Manufacturer Type | Direct Manufacturer |
| Model | TLSE1815i-SiN40 |
| Spectral Range (recommended) | 2–12 µm |
| Output Bandwidth (recommended) | 15–50 nm |
| Output Bandwidth Tuning Range | 3–150 nm |
| Grating #1 | 150 grooves/mm @ 3 µm |
| Grating #2 | 75 grooves/mm @ 8 µm |
| Filter Transmission Range | 1–12 µm |
| Source Type | SiN Microheater IR Emitter (LSSiN-40) |
| Output Stability | <5% RMS over 1 hour |
| Brand | ZOLIX |
|---|---|
| Model | MLED4 |
| Origin | Beijing, China |
| Manufacturer | ZOLIX (Producer) |
| Light Source Type | High-Power Tunable LED Array |
| Illumination Mode | External (Epi-Illumination) |
| Dimensions (L×W×H) | 185 × 100 × 125 mm |
| Weight (Host) | ~1.5 kg |
| Power Supply | AC 100–222 V, 50/60 Hz → DC 24 V / 4 A |
| Operating Temperature | +5 to +35 °C |
| Storage Temperature | −10 to +55 °C (non-condensing) |
| Humidity Range | 20–80 % RH (non-condensing) |
| Cooling | Passive + Fan-Assisted |
| Control Interface | RS-232, Digital I/O (4-channel TTL-compatible), Footswitch & Manual Toggle |
| Max Exposure Time | 9999.9 s |
| Intensity Control | 1–100 % digital PWM |
| Programmable Stages | Up to 8 steps per channel |
| LED Wavelength Options | 245–780 nm (discrete peaks including 245, 290, 325, 365, 375, 385, 395, 405, 410, 420, 430, 450, 470, 490, 500, 505, 525, 535, 550, 565, 570, 580, 590, 600, 610, 625, 630, 645, 660, 670, 680, 690, 700, 720, 735, 750, 760, 780 nm) |
| Output Configurations | Spot (Φ3–Φ10 mm), Linear, and Custom Area Illuminators |
| Compliance | CE-marked design principles |
| Brand | Energetiq |
|---|---|
| Origin | USA |
| Model | EQ-77 LDLS™ |
| Light Source Type | Laser-Driven Plasma Light Source |
| Illumination Mode | External Illumination |
| Spectral Range | 170–2100 nm |
| Numerical Aperture (NA) | up to 0.5 |
| Typical Lamp Lifetime | >9,000 hours |
| Lamp Dimensions | 135.6 × 144.9 × 56 mm |
| Lamp Weight | 2.7 kg |
| Power Supply Dimensions | 132.6 × 482.6 × 583.6 mm |
| Power Supply Weight | 18.8 kg |
| Output Configuration | Single- or Dual-Beam Optional |
| Radiance | >40 mW/mm²·sr·nm (wavelength-dependent) |
| Brand | ZOLIX |
|---|---|
| Origin | Beijing, China |
| Manufacturer Type | Direct Manufacturer |
| Product Category | Domestic |
| Model | Gloria-LDLS-A |
| Light Source Type | Laser-Driven Plasma White Light Source |
| Spectral Range | 170–2100 nm |
| Spectral Radiance | 40 mW/(mm²·sr·nm) @ 400 nm |
| Output Mode | Free-Space |
| Numerical Aperture | 0.47 |
| Power Stability | RMS < 0.3% over 30 s |
| Typical Lamp Lifetime | 10,000 hours |
| Emission Spot Size | 97 × 194 µm |
| Source Dimensions | 82 × 86 × 76 mm |
| Power Supply Dimensions | 113 × 111 × 209 mm |
| Cooling | Passive (Natural Convection) |
| DUV Operation Requirement | Nitrogen Purge Required |
| Brand | ZOLIX |
|---|---|
| Origin | Beijing, China |
| Manufacturer Type | Direct Manufacturer |
| Product Category | Domestic |
| Model | LSSiN-40 |
| Light Source Type | Infrared Source |
| Power | ≥40 W |
| Spectral Range | 1–14 µm (extendable to 1–16 µm) |
| f/# | f/4 |
| Emissive Area | 4 mm × 15 mm |
| Rated Voltage | 8 V |
| Rated Current | 6 A |
| Operating Temperature of SiN Element | 900–1200 °C |
| Lifetime | ≥2000 h |
| Output Port Optical Center Height | 128–168 mm (adjustable) |
| Power Supply Max Output | 350 W |
| Current Regulation Range | 0–10 A |
| Voltage Regulation Range | 0–35 V |
| Current Stability | 1×10⁻⁵ + 10 mA |
| Voltage Stability | 1×10⁻⁴ + 1 mV |
| Input Power Requirement | 220 V ±10%, 50 Hz ±5% |
Show next
