| Brand | Kimmon |
|---|---|
| Origin | Japan |

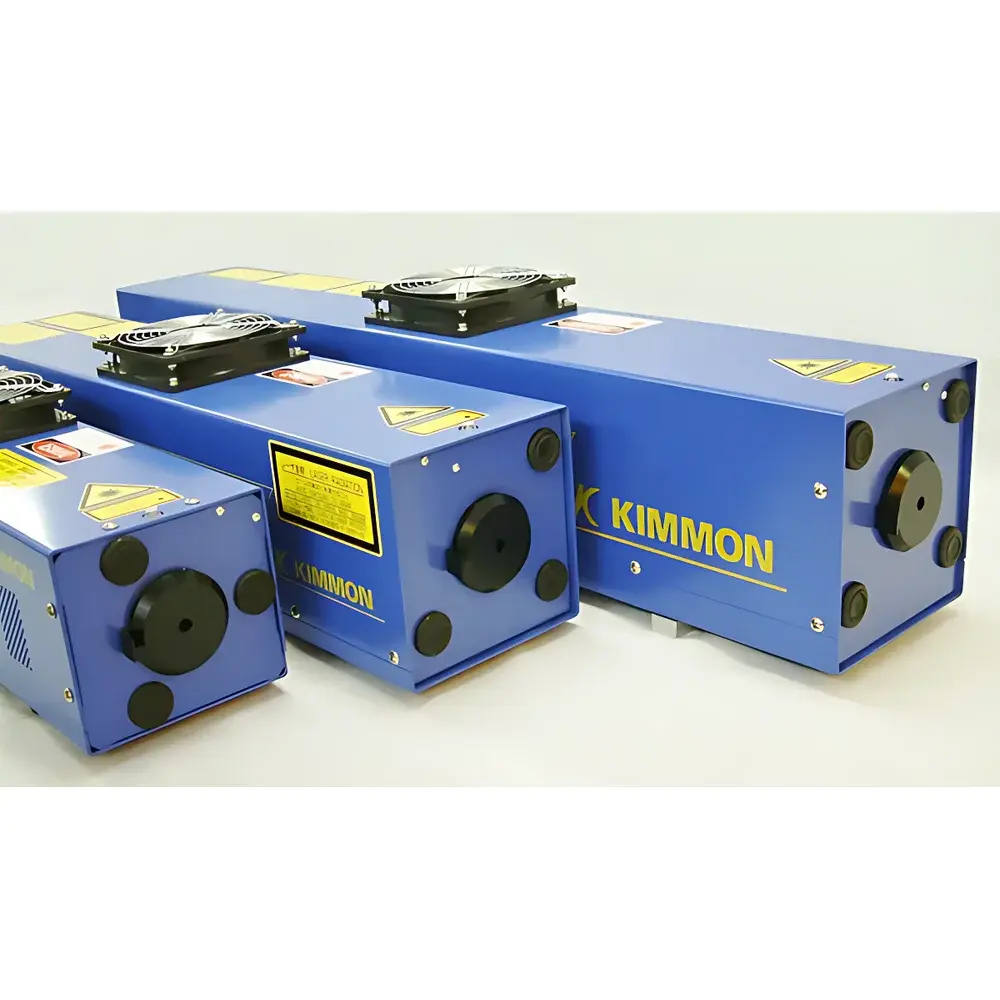

| Model | IK3301R-G |
| Wavelength | 325 nm |
| Output Power | 35 mW |
| Transverse Mode | TEM₀₀ |
| Polarization | Linear, >500:1 |
| Beam Diameter (1/e²) | <1.2 × 1 mm |
| Beam Divergence | <0.5 mrad |
| Beam Pointing Stability | ≤±25 µrad (at 25 °C, stabilized) |
| Power Stability | ≤±2% (4 h, 25 °C), <20% (10–40 °C) |
| RMS Noise (30 kHz–2 MHz) | <15% peak-to-peak |
| Warm-up Time to 90% Power | 20 min |
| Operating Temperature | 10–40 °C |
| Storage Temperature | −10–50 °C |
| Humidity | ≤90% RH (non-condensing) |
| Shock Resistance (packaged) | 20 g × 3 shocks |
| Dimensions (W×H×L) | 146 × 197 × 1420 mm |
| Weight | 23.5 kg |
| Laser Class | 3B (IEC 60825-1) |
| Brand | ZOLIX |
|---|---|
| Origin | Beijing, China |
| Manufacturer Type | Original Equipment Manufacturer (OEM) |
| Product Category | Domestic |
| Model | DUV-FS Series |
| Pricing | Available Upon Request |
| Wavelength Range | 192–300 nm (continuously tunable) |
| Fundamental Options | Ti:Sapphire (780 nm, tunable), Yb-based (1030/1064 nm) |
| Pulse Width | ≤500 fs (at DUV output, dependent on harmonic generation stage) |
| Repetition Rate | 80 MHz |
| Beam Pointing Stability | <5 µrad RMS over 8 hours |
| Control Interface | Motorized wavelength tuning with GUI-based software |
| Output Power | Up to ~4 mW at 195 nm (with ≥2.5 W fundamental @ 780 nm) |
| Dimensions (L×W×H) | 1300 × 600 × 200 mm³ (laser head only, excluding fundamental source) |
| Brand | Ophir |
|---|---|
| Origin | France |
| Model | StarBright |
| Sensor Compatibility | Thermopile, BeamTrack, Pyroelectric (PE-C series), Photodiode |
| Display | 320×240 color TFT LCD |
| Measurement Modes | Digital bar graph, analog needle, real-time line plot (for laser tuning), pulse waveform, Pass/Fail, beam position, stability index, live statistics |
| Sampling Rate | Up to 5 kHz (with pyroelectric sensors) |
| Data Processing | Baseline normalization, density scaling, ratio functions, composite mathematical operations |
| Data Storage | USB flash drive support (unlimited capacity) |
| Interfaces | USB 2.0, RS-232 |
| Software | StarLab PC application, scriptable command files |
| Instrument Drivers | LabVIEW VIs, COM object API |
| Advanced Capabilities | Pulse power measurement (thermopile), exposure energy integration (photodiode) |
| Origin | Japan |
|---|---|
| Manufacturer Type | Authorized Distributor |
| Origin Category | Imported |
| Model | IK4123R-B |
| Price | Upon Request |
| Wavelength | 442 nm |
| Output Power | 14 mW |
| Transverse Mode | TEM₀₀ |
| Beam Diameter | 0.9 mm |
| Beam Divergence | 0.5 mrad |
| Weight | 8.5 kg |
| Compatible Power Supply | IM120C |
| Brand | Ophir |
|---|---|
| Origin | Israel |
| Model | VEGA |
| Probe Compatibility | Thermopile, Pyroelectric, Photodiode, BeamTrack, RP Sensors |
| Display | 320×240 TFT Color LCD |
| Data Storage Capacity | 250,000 readings |
| Sampling Rate (with Pyroelectric Probes) | Up to 4,000 Hz |
| Interface | USB 2.0, RS232, Optional GPIB |
| Software Integration | StarLab, StarCom, LabVIEW, COM Object, ActiveX |
| Compliance | CE, RoHS, ISO/IEC 17025 traceable calibration support |
| Brand | ZOLIX |
|---|---|
| Origin | Beijing, China |
| Manufacturer Type | Original Equipment Manufacturer (OEM) |
| Product Category | Domestic |
| Model | FFL-25 |
| Core Architecture | Solid-State Amplified Chirped Pulse Amplification (CPA) Laser System |
| Output Configuration | Free-Space Beam Delivery |
| Laser Class | Class 4 |
| Central Wavelengths | 1030 ± 5 nm (fundamental), 515 ± 3 nm (second harmonic) |
| Average Power | >20 W (1030 nm), >2.5 W (515 nm) |
| Pulse Energy | >200 µJ @ 100 kHz (1030 nm), >25 µJ @ 100 kHz (515 nm) |
| Pulse Duration | Adjustable from 600 fs to 10 ps |
| Repetition Rate | Single-shot to 1 MHz (software-tunable) |
| Beam Quality | M² < 1.3 |
| Beam Pointing Stability | <25 µrad (rms, 8 hrs) |
| Power Stability | <0.5% rms (24 hrs) |
| Beam Divergence | <1 mrad |
| Polarization Extinction Ratio | 100:1 |
| Dimensions (Amplifier Unit) | 750 × 500 × 156 mm |
| Dimensions (SHG Module) | 210 × 500 × 93 mm |
| Origin | Japan |
|---|---|
| Manufacturer Type | Authorized Distributor |
| Origin Category | Imported |

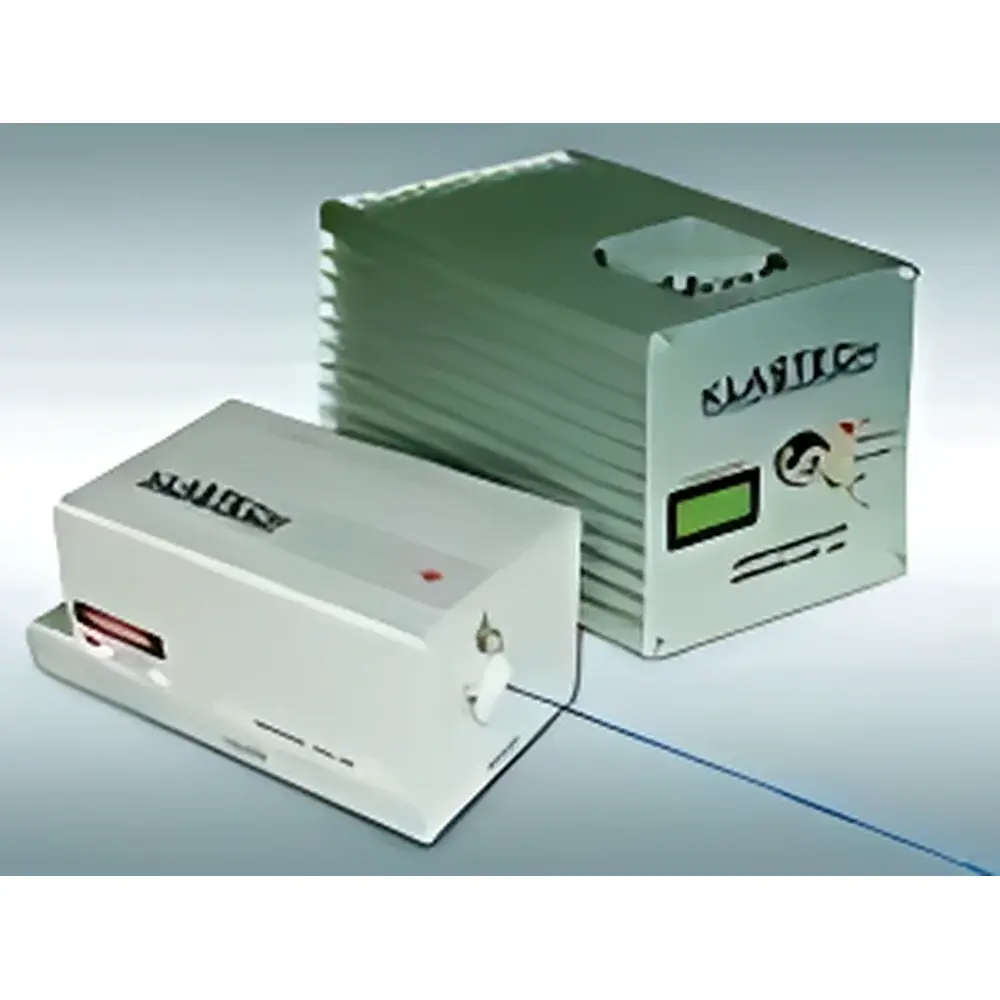

| Model | DENICAFC-266-100 |
| Price | Upon Request |
| Wavelength | 266 nm |
| Output Power | 100 mW |
| Transverse Mode | TEM₀₀ |
| Beam Diameter | 1 mm |
| Power Stability (4 h) | ±2% |
| Laser Head Dimensions | 216 × 80 × 66 mm |
| Brand | ZOLIX |
|---|---|
| Model | ZL-OPA |
| Type | Optical Parametric Amplifier (OPA) |
| Pump Compatibility | Yb-based ultrafast solid-state or fiber lasers |
| Pump Energy Range | 10 µJ – 2 mJ |
| Pump Pulse Duration | 35 fs – 1.5 ps |
| Tuning Range (Signal/Idler) | 630–1030 nm / 1030–2500 nm (ZL-OPA-HP) |
| Output Pulse Width | <500 fs (ZL-OPA-HP), <100 fs (ZL-OPA-HE) |
| Long-Term Power Stability | <1% RMS @ 750 nm over 8 h |
| Peak Output Energy | >15 µJ @ 750 nm (ZL-OPA-HP), >10 µJ @ 750 nm (ZL-OPA-HE) |
| Polarization | Linear |
| Optional UV Extension | 325–515 nm (via SHG/SFG), Green Extension: 515–650 nm (ZL-OPA-HP) |
| Origin | Beijing, China |
| Manufacturer | ZOLIX (Zhongli Han Guang Co., Ltd.) |
| Brand | ZOLIX |
|---|---|
| Origin | Beijing, China |
| Manufacturer Type | Original Equipment Manufacturer (OEM) |
| Product Category | Domestic |
| Model | Femtosecond Micromachining System |
| Pricing | Available Upon Request |
