| Brand | ZOLIX |
|---|---|
| Origin | Beijing, China |
| Manufacturer Type | Original Equipment Manufacturer (OEM) |
| Model | Omni-λ300i |
| Application System | Universal |
| Grating Capacity | Triple-Grating Turret |
| Focal Length | 320 mm |
| Optical Design | Czerny-Turner with Toroidal Imaging Correction |
| Stray Light Rejection | 1×10⁻⁵ |
| Grating Size | 68×68 mm (or 68×84 mm optional) |
| Entrance/Exit Options | Side or Dual Input/Output Configurable |
| Slit | Manual (0.01–3 mm width, 2/4/14 mm height), Motorized Slit Optional |
| Detector Interface | Dual CCD Output Standard |
| Control Interface | USB 2.0 (RS-232 Optional) |
| Wavelength Accuracy | ±0.1–±3.2 nm (dependent on grating) |
| Wavelength Reproducibility | 0.015–0.8 nm |
| Spectral Resolution (PMT) | 0.04–1.28 nm |
| Spectral Resolution (15 µm-pixel CCD) | 0.069–3.05 nm |
| Linear Dispersion (@435.83 nm) | 0.91–40.43 nm/mm |
| Scan Range | 0–19,200 nm (grating-dependent) |
| Scan Step | 0.0025–0.08 nm |
| F/# | f/4.2 |
| Image Plane Dimensions | 30 mm (W) × 14 mm (H) |
| Optical Axis Height | 146 mm |
| Dimensions | 420 × 295 × 232 mm |
| Weight | 16 kg |
| Max Power Consumption | 100 W @ 24 V DC |
| Brand | ZOLIX |
|---|---|
| Origin | Beijing, China |
| Manufacturer Type | Original Equipment Manufacturer (OEM) |
| Product Origin | Domestic (China) |
| Model | HiperS-320i |
| Application System | Universal |
| Grating Mount | Triple-grating in-axis rotating turret |
| Spectral Resolution | 0–1430 nm range (with resolution down to 0.06 nm @ 1200 g/mm grating, PMT detection) |
| Linear Dispersion | 2.29 nm/mm (@ 435.83 nm) |
| Wavelength Accuracy | ±0.2 nm |
| Stray Light Level | 5×10⁻⁵ |
| Brand | ZOLIX |
|---|---|
| Origin | Beijing, China |
| Manufacturer Type | Original Equipment Manufacturer (OEM) |
| Product Category | Domestic |
| Model | Omni-λ750S |
| Application System | Universal |
| Grating Capacity | Triple-grating turret |
| Focal Length | 750 mm |
| Optical Design | Czerny-Turner with toroidal image correction |
| Stray Light Rejection | 1×10⁻⁵ |
| Entrance/Exit Options | Dual entrance, dual exit |
| Standard Interface | USB 2.0 |
| Grating Size | 68×68 mm (optional 68×84 mm) |
| Slit Width Range | 0.01–3 mm (manual), motorized slit optional |
| Slit Height Options | 2 mm / 4 mm / 14 mm |
| Focal Plane Dimensions | 30 mm (W) × 14 mm (H) |
| Optical Axis Height | 146 mm |
| Relative Aperture | f/9.7 |
| Minimum Scan Step | 0.0025 nm (with 2400 g/mm grating) |
| Wavelength Accuracy | ±0.1 nm (at 435.83 nm, 2400 g/mm) |
| Wavelength Repeatability | ±0.015 nm (at 435.83 nm, 2400 g/mm) |
| CCD Spectral Resolution (15 µm pixel) | 0.026 nm (2400 g/mm) |
| Single-shot CCD Spectral Coverage | 12.9 nm (30 mm CCD, 2400 g/mm, 435.83 nm center) |
| Infrared Optimization | Gold-coated optics for >1 µm operation |
| UV Optimization | Optional UV-enhanced coatings |
| Power Supply | 24 V DC, peak 100 W |
| Dimensions (L×W×H) | 800 × 338 × 230 mm |
| Weight | 40 kg |
| Brand | ZOLIX |
|---|---|
| Origin | Beijing, China |
| Manufacturer Type | Original Equipment Manufacturer (OEM) |
| Product Type | Grating-Based Monochromator for Spectroscopy |
| Model | SSM100 / SSM301 / SSM330 |
| Focal Length | 100 mm / 300 mm / 300 mm |
| Optical Design | Asymmetric Horizontal Mount / Symmetric Czerny–Turner |
| Mechanical Wavelength Range | 0–1100 nm |
| Resolution (FWHM) | 0.5 nm (SSM100) / 0.1 nm (SSM301 & SSM330) |
| Reciprocal Linear Dispersion | 8.1 nm/mm (SSM100) / 2.7 nm/mm (SSM301 & SSM330) |
| Wavelength Accuracy | ±0.5 nm (SSM100) / ±0.2 nm (SSM301 & SSM330) |
| Wavelength Repeatability | ±0.5 nm (SSM100) / ±0.1 nm (SSM301 & SSM330) |
| Input/Output Slit Height | 5 mm (fixed) / 2, 4, 10, 14 mm (selectable) |
| Slit Width | Fixed options (100, 300, 500, 1000 µm) or continuously adjustable (0.01–3 mm manual |
| Grating Size | 30×30 mm² (SSM100) / 55×55 mm² (SSM301 & SSM330) |
| Grating Tower | Single-grating standard / Triple-grating turret optional |
| Aperture Ratio | f/3 (SSM100) / f/6 (SSM301 & SSM330) |
| Optical Axis Height | 101 mm (SSM100) / 164 mm (SSM301 & SSM330) |
| Dimensions (L×W×H) | 220×215×135 mm³ (SSM100) / 388×292×282 mm³ (SSM301 & SSM330) |
| Weight | 5 kg (SSM100) / 15 kg (SSM301 & SSM330) |
| Wavelength Drive | Precision handwheel with digital counter |
| Grating Options | UV–VIS–NIR broadband gratings (e.g., 1200 g/mm standard) |
| Brand | ZOLIX |
|---|---|
| Model | Omni-λxxxD Series |
| Type | Dual-stage grating monochromator |
| Focal Length Options | 300 mm, 500 mm, or 750 mm per stage |
| Configuration Modes | Additive dispersion (high-resolution) and subtractive dispersion (low-stray-light) |
| Grating | 1200 g/mm standard |
| Slit Width | 0.01–3 mm (manual), motorized slit optional |
| Slit Height | 2 / 4 / 10 / 14 mm selectable |
| Wavelength Accuracy | ±0.2 nm |
| Wavelength Repeatability | ±0.1 nm |
| Relative Aperture | F/3.9 (300 mm), F/6.5 (500 mm), F/9.7 (750 mm) |
| Linear Dispersion (1200 g/mm) | 1.35 / 2.7 nm/mm (Omni-λ300D, additive/subtractive) |
| Resolution (1200 g/mm) | 0.05 / 0.1 nm (Omni-λ300D, additive/subtractive) |
| Interface | USB 2.0 standard, RS-232 optional |
| Brand | ZOLIX |
|---|---|
| Origin | Beijing, China |
| Manufacturer Type | Original Equipment Manufacturer (OEM) |
| Product Category | Domestic |
| Model | LSZJQ |
| Pricing | Upon Request |
| Compatible Systems | Universal Microscope–Spectrometer–Camera Integration |
| Brand | ZOLIX |
|---|---|
| Origin | Beijing, China |
| Manufacturer Type | Original Equipment Manufacturer (OEM) |
| Product Origin | Domestic (China) |
| Model | Triplex |
| Application System | Universal |
| Spectral Resolution | 3 cm⁻¹ |
| Spectral Range | 200–800 nm |
| Wavenumber Range (relative, @ 325 nm excitation) | 50–18,000 cm⁻¹ |
| Repeatability | ±5 cm⁻¹ |
| Single-Capture Imaging Range | 700 cm⁻¹ |
| Brand | ZOLIX |
|---|---|
| Origin | Beijing, China |
| Manufacturer Type | OEM Manufacturer |
| Product Origin | Domestic (China) |
| Model | Omni-λXi |
| Application Systems | Transmission/Reflection Spectroscopy |
| Grating Configuration | Triple-Grating Turret |
| Spectral Resolution | 0.35 nm (@1200 g/mm) |
| Linear Dispersion | 3.68 nm/mm |
| Wavelength Range | 400–1000 nm |
| F-number | f/1 |
| Wavelength Accuracy | ±0.25 nm (@1200 g/mm) |
| Stray Light | ≤0.1% (1×10⁻³) |
| Brand | ZOLIX |
|---|---|
| Origin | Beijing, China |
| Manufacturer Type | Original Equipment Manufacturer (OEM) |
| Product Category | Domestic |
| Model | Omni-V200 |
| Price | USD 42,000 (FOB Beijing) |
| Spectral Resolution | 0.1 nm |
| Wavelength Range | 80–300 nm |
| Optical Design | Aberration-Corrected Imaging S-N System |
| Incidence Angle | 32° |
| Focal Length | 200 mm |
| Wavelength Accuracy | ±0.1 nm (@1200 g/mm grating) |
| Wavelength Repeatability | ±0.1 nm (@1200 g/mm grating) |
| Operating Vacuum | ≤1×10⁻⁶ Torr |
| Grating Groove Density | 1200 lines/mm |
| Brand | ZOLIX |
|---|---|
| Origin | Beijing, China |
| Manufacturer Type | Direct Manufacturer |
| Origin Category | Domestic (China) |

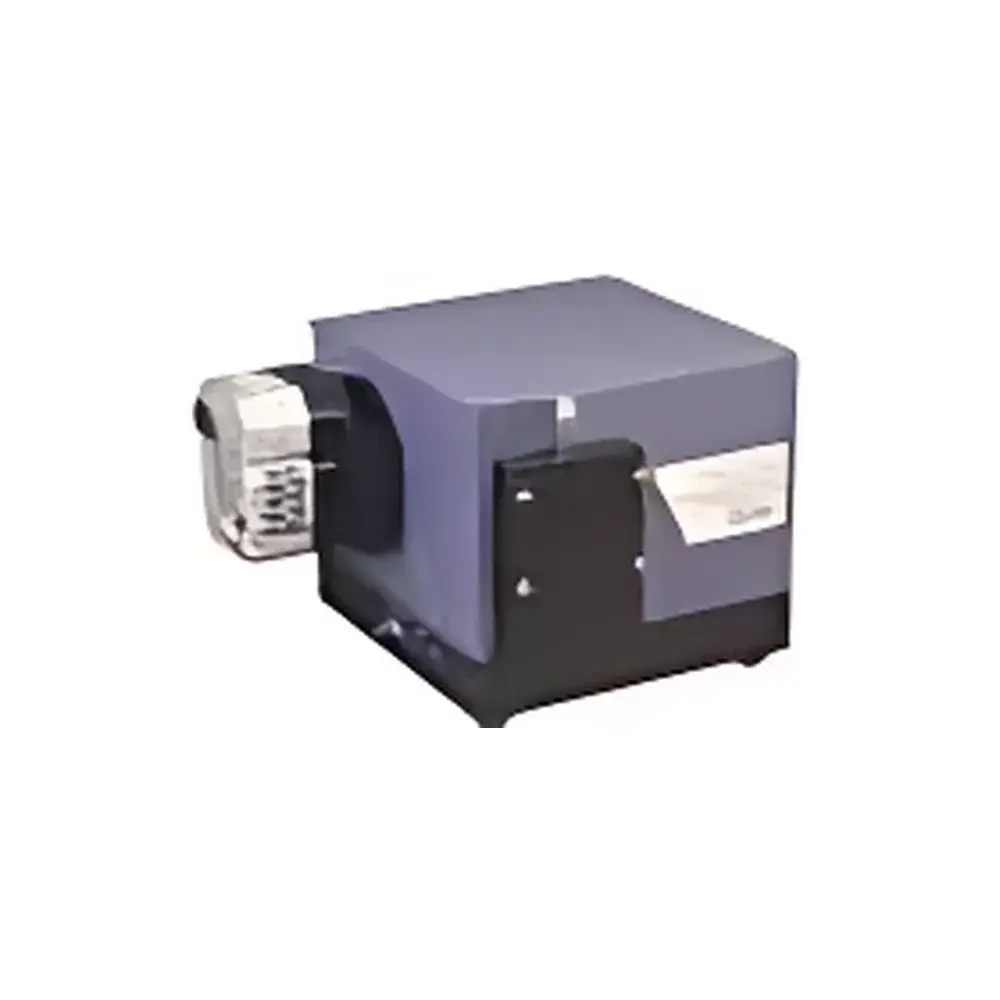

| Model | OmniEvo |
| Pricing | Upon Request |
| Brand | ZOLIX |
|---|---|
| Origin | Beijing, China |
| Manufacturer Type | Original Equipment Manufacturer (OEM) |
| Product Type | Domestic |
| Model | Omni-λ180D |
| Price Range | USD 1,400 – 7,000 |
| Application Systems | Transmission & Reflection Spectroscopy |
| Grating Configuration | Dual-grating turret |
| Spectral Resolution | 0.25 nm (at 1200 g/mm grating) |
| Dispersion | 3.7 nm/mm (linear dispersion, at 1200 g/mm grating) |
| Wavelength Range | 190–1100 nm (dependent on grating selection) |
| F-number | F/3.9 |
| Wavelength Accuracy | ±0.2 nm |
| Wavelength Repeatability | ±0.1 nm |
| Stray Light Level | <1×10⁻⁹ |
| Brand | ZOLIX |
|---|---|
| Origin | Beijing, China |
| Manufacturer Type | Direct Manufacturer |
| Product Origin | Domestic (China) |
| Model | Omni-λ500i |
| Application System | Universal |
| Number of Gratings | Triple-grating turret |
| Focal Length | 500 mm |
| Optical Design | Czerny-Turner with toroidal imaging correction |
| Stray Light Level | 1×10⁻⁵ |
| Grating Size | 68×68 mm (or 68×84 mm optional) |
| Entrance/Exit Configuration | Side entrance, dual出口 (CCD + slit), configurable multi-port options |
| Slit Width Range | 0.01–3 mm (manual standard |
| Slit Height Options | 2 mm, 4 mm, or 14 mm |
| Focal Plane Dimensions | 30 mm (W) × 14 mm (H) |
| Optical Axis Height | 146 mm |
| Weight | 22 kg |
| Power Consumption | ≤100 W @ 24 V DC |
| Communication Interface | USB 2.0 (standard), RS-232 (optional) |
| Control Architecture | DSP-based motorized turret & port selection |
| Wavelength Accuracy | ±0.1 nm to ±3.2 nm (dependent on grating) |
| Wavelength Repeatability | 0.015–0.8 nm (grating-dependent) |
| Spectral Resolution (with point detector) | 0.03–0.8 nm |
| Spectral Resolution (with 15 µm-pixel CCD) | 0.045–1.97 nm |
| Linear Dispersion (@435.83 nm) | 0.6–26.05 nm/mm |
| Mechanical Scan Range | 0–19,200 nm (grating-dependent) |
| Minimum Step Size | 0.0025–0.08 nm (grating-dependent) |
| CCD Single-Capture Spectral Range (@30 mm sensor) | 18–781.5 nm (grating-dependent) |
| Brand | ZOLIX |
|---|---|
| Origin | Beijing, China |
| Manufacturer Type | Original Equipment Manufacturer (OEM) |
| Product Category | Domestic |
| Model | Omni-λ180D |
| Application System | Universal |
| Spectral Resolution | 0.25 nm |
| Linear Dispersion | 3.7 nm/mm |
| Wavelength Accuracy | ±0.2 nm |
| F-number | F/3.9 |
| Stray Light Level | <1×10⁻⁹ |
| Brand | ZOLIX |
|---|---|
| Origin | Beijing, China |
| Manufacturer Type | Original Equipment Manufacturer (OEM) |
| Product Origin | Domestic (China) |

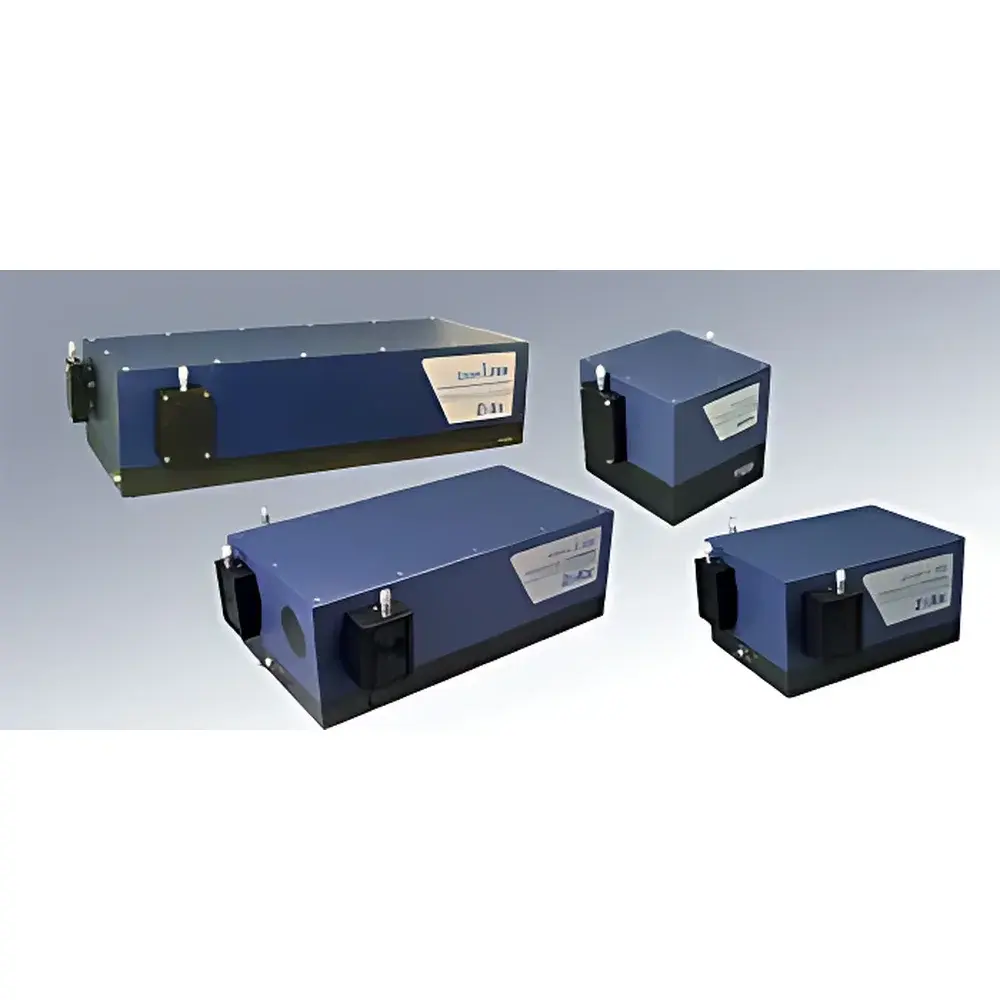

| Model | Omni-λ |
| Pricing | Upon Request |
| Focal Length Options | 150 mm, 300 mm, 500 mm, 750 mm |
| Optical Design | Czerny–Turner (C-T) |
| Grating Mount | Dual-grating turret (Omni-λ150/300), Triple-grating turret (Omni-λ500/750) |
| Grating Size | 68 × 68 mm (standard for ≥300 mm models) |
| Wavelength Range | UV-VIS-NIR (190–2500 nm, dependent on grating and detector selection) |
| Resolution (with 1200 g/mm grating) | 0.4 nm (Omni-λ150) to 0.03 nm (Omni-λ750) |
| Wavelength Accuracy | ±0.25 nm (Omni-λ150) to ±0.2 nm (Omni-λ300+) |
| Wavelength Repeatability | ±0.1 nm |
| Minimum Scan Step | 0.005 nm |
| Entrance/Exit Configuration | Motorized dual-input/dual-output port selection |
| Interface | USB 2.0 (standard), RS-232 (optional) |
| Slit Options | Manual (0.01–3 mm width, 2/4/10/14 mm height) or motorized automatic slit |
| Optional Accessories | Motorized filter wheel, electronic shutter, CCD array or single-point detector integration |
| Brand | ZOLIX |
|---|---|
| Model | Omni-λ Series |
| Type | Triple-stage grating monochromator |
| Focal Length | 500 mm per stage |
| Configuration | Two-stage subtractive dispersion + one-stage additive dispersion |
| Spectral Range | 200–800 nm |
| Wavenumber Range (at 325 nm excitation) | 50–18,000 cm⁻¹ |
| Resolution | 3 cm⁻¹ |
| Repeatability | ±5 cm⁻¹ |
| Imaging Range (single acquisition) | 700 cm⁻¹ |
| Grating Mounts | Three gratings per stage (9 total) |
| Grating Options | 1800, 1200, 600, 3600, and 2400 grooves/mm |
| Blaze Wavelengths | 250 nm, 300 nm, 500 nm |
| Grating Size | 68 × 68 mm |
| Reflectivity (peak) | ~70% across UV–Vis |
| Input/Output | Stage 1 & 2 — side-entry dual-output |
| Detector Compatibility | CCD array detectors, PMT, and other single-channel photodetectors |
| Origin | Beijing, China |
| Manufacturer | ZOLIX (Beijing Zolix Instruments Co., Ltd.) |
| Brand | ZOLIX |
|---|---|
| Origin | Beijing, China |
| Manufacturer Type | OEM Manufacturer |
| Model | Omni-λ200i |
| Application Systems | Transmission & Reflection Spectroscopy |
| Number of Gratings | Triple-grating turret mount |
| Spectral Resolution (CCD, 26 µm pixel) | 0.28 nm |
| Linear Dispersion | 3.6 nm/mm |
| Wavelength Range | 400–1000 nm |
| F-number | f/3.5 |
| Wavelength Accuracy | ±0.2 nm |
| Stray Light Level | 1×10⁻⁵ |
| Brand | ZOLIX |
|---|---|
| Origin | Shanghai, China |
| Manufacturer Type | Direct Manufacturer |
| Regional Classification | Domestic (PRC) |
| Model | Omni-λ2002i |
| Application Systems | Transmission/Reflection Spectroscopy |
| Grating Configuration | Dual-grating turret |
| Stray Light Level | 5 × 10⁻⁵ |
| Focal Length | 200 mm |
| f-number | f/3.5 |
| Optical Design | Czerny–Turner with Toroidal Imaging Correction |
| Entrance/Exit | Side-mounted entrance, side-mounted CCD exit |
| Grating Size | 50 × 50 mm |
| Slit Width Range | 0.01–3 mm (manual, motorized optional) |
| Slit Height Options | 2 mm / 4 mm / 14 mm |
| 焦 Plane Dimensions | 30 mm (W) × 14 mm (H) |
| Optical Axis Height | 146 mm |
| Wavelength Accuracy | ±0.1 nm (@1200 g/mm, 435.83 nm) |
| Wavelength Repeatability | 0.05 nm (@1200 g/mm, 435.83 nm) |
| Minimum Scan Step | 0.005 nm (@2400 g/mm) |
| Spectral Resolution (PMT) | 0.08 nm (@2400 g/mm, 435.83 nm) |
| Spectral Resolution (15-µm-pixel CCD) | 0.106 nm (@2400 g/mm, 435.83 nm) |
| CCD Single-Capture Spectral Range | 42 nm (@2400 g/mm, 30-mm CCD) |
| Mechanical Scan Range | 0–19,200 nm (dependent on grating) |
| Stray Light Suppression Ratio | 5 × 10⁻⁵ |
| Power Requirement | 100 W peak @ 24 V DC |
| Standard Interface | USB 2.0 |
| Brand | ZOLIX |
|---|---|
| Model | Imspector Series |
| Type | Grating-Based Imaging Spectrometer |
| Wavelength Ranges | UV (200–400 nm), VIS (380–780 nm), VNIR (400–1000 nm), NIR (900–1700 nm), SWIR (1000–2500 nm), MWIR (3000–5000 nm), LWIR (8000–12000 nm) |
| Detector Interface | Compatible with 2/3″ and larger area array detectors |
| Frame Rate (Fast Version) | Up to 1500 spectra/s |
| Optical Design | Transmissive grating-based, Czerny-Turner or Offner relay architecture (model-dependent) |
| Compliance | Designed for laboratory and field-deployable spectroscopic imaging applications in accordance with ISO 17025-aligned calibration practices |
| Brand | ZOLIX |
|---|---|
| Model | ZLX-AS |
| Detector Options | MCT (2–10 µm), InSb (1–5.5 µm) |
| Time Resolution | <50 ns (MCT), <25 ns (InSb) |
| IR Source | SiC blackbody emitter (1–16 µm) |
| Optical Collection | Gold-coated reflective optics |
| Dual-Function Source | Simultaneous spectral illumination and sample heating |
| Measurement Modes | Continuous-transmission absorption spectroscopy & time-resolved IR transient spectroscopy |
| Origin | Beijing, China |
| Manufacturer Type | Original Equipment Manufacturer (OEM) |
| Brand | ZOLIX |
|---|---|
| Origin | Beijing, China |
| Manufacturer Type | OEM Manufacturer |
| Model | Omni-iSpecT |
| Application Modes | Transmission & Reflection Spectroscopy |
| Grating Mount | Motorized Grating Turret |
| Spectral Resolution | As per Manual |
| Dispersion | As per Manual |
| Wavelength Range | 532–680 nm (Visible) / 0–4100 cm⁻¹ (Raman Shift) |
| F/# | f/1.8 |
| Wavelength Accuracy | ±0.2 nm (typ. at 532 nm), ±1 cm⁻¹ (typ. in Raman shift domain) |
| Stray Light | <0.01% (typ., 532 nm excitation) |
| Brand | ZOLIX |
|---|---|
| Origin | Beijing, China |
| Manufacturer Type | Original Equipment Manufacturer (OEM) |
| Product Category | Domestic |
| Model | Omni-λ Series |
| Application Systems | Transmission & Reflection Spectroscopy |
| Number of Gratings | Dual-grating turret |
| Spectral Resolution | 0.4 nm (FWHM, @1200 g/mm grating, 10 µm slit) |
| Linear Dispersion | 3.68 nm/mm |
| Wavelength Range | 400–1000 nm (standard configuration) |
| F-number | f/4.2 |
| Wavelength Accuracy | ±0.25 nm |
| Stray Light Level | ≤0.1% (typical), down to 1×10⁻⁵ with optimized gratings and baffling |
| Brand | ZOLIX |
|---|---|
| Origin | Beijing, China |
| Manufacturer Type | Direct Manufacturer |
| Model | Omni-FD Series |
| Price | USD 56,000 (FOB Beijing) |
| Grating Configuration | Triple-Grating Turret |
| Incidence Angle | 87° |
| Vacuum Compatibility | ≤1×10⁻⁵ Pa |
| Grating Size | 50 mm × 30 mm |
| Detector Interface | MCP or Vacuum-Compatible CCD/CMOS Camera Mount |
| Spectral Ranges | 1–5 nm (2400 g/mm), 5–20 nm (1200 g/mm), 20–80 nm (300 g/mm) |
| Resolution (FWHM) | 0.02 nm @ 1–5 nm, 0.03 nm @ 5–20 nm, 0.15 nm @ 20–80 nm |
| Energy Range | 12.4–1240 eV |
| Stray Light Suppression | Optimized Entrance Optics with Baffling & Zero-Order Rejection Architecture |
| Focal Plane Adjustment | Continuous Translation Mechanism (±5 mm range) |
| Calibration | In-situ Wavelength Reference via He/Ne/Ar Plasma Lines or Synchrotron White Beam |
| Brand | ZOLIX |
|---|---|
| Origin | Beijing, China |
| Manufacturer Type | Original Equipment Manufacturer (OEM) |
| Product Category | Domestic |
| Model | Omni-λ750i |
| Application System | Universal |
| Number of Gratings | Triple-grating turret |
| F/# | F/9.7 |
| Focal Length | 750 mm |
| Optical Design | Czerny-Turner with toroidal imaging correction |
| Stray Light Rejection | 1×10⁻⁵ |
| Grating Size | 68×68 mm (optional 68×84 mm) |
| Slit Width Range | 0.01–3 mm (manual standard |
| Slit Height Options | 2 mm, 4 mm, or 14 mm |
| Entrance/Exit Configuration | Side entrance |
| Wavelength Accuracy | ±0.1–±3.2 nm (dependent on grating) |
| Wavelength Reproducibility | 0.015–0.8 nm |
| Spectral Resolution (PMT) | 0.02–0.36 nm |
| Spectral Resolution (15 µm-pixel CCD) | 0.033–1.329 nm |
| Linear Dispersion (@435.83 nm) | 0.43–17.58 nm/mm |
| Mechanical Scan Range | 0–19,200 nm (grating-dependent) |
| Minimum Step Size | 0.0025 nm |
| CCD Single-Capture Span (@30 mm sensor) | 12.9–527.4 nm |
| Interface | USB 2.0 (standard), RS-232 (optional) |
| Control Architecture | Embedded DSP-based motion and port logic |
| Coating Options | Standard Al+MgF₂ (UV-VIS), gold (IR >1 µm), enhanced UV (e.g., MgF₂ overcoat) |
| Brand | ZOLIX |
|---|---|
| Origin | Beijing, China |
| Manufacturer Type | Original Equipment Manufacturer (OEM) |
| Product Category | Domestic |
| Model Series | Omni-λ Imaging Monochromator Series |
| Pricing | Available Upon Request |
| Focal Length Options | 180 mm, 320 mm, 500 mm, 750 mm |
| Optical Design | Czerny-Turner with Aspheric Image Correction |
| Grating Mount | Dual- or Triple-Grating Turret |
| Grating Sizes | 40×40 mm, 68×68 mm (or 68×84 mm) |
| Wavelength Range | UV–VIS–NIR (190–2500 nm), Optimized for IR (>1 µm) with Gold-Coated Optics |
| Stray Light Suppression | ≤1×10⁻⁵ |
| Control Interface | USB 2.0 (standard), RS-232 (optional) |
| Drive System | DSP-Based Motorized Control |
| Slit Options | Manual (0.01–3 mm width, 2/4/10/14 mm height) or Motorized Adjustable Slit |
| Detector Compatibility | PMT, CCD (26 µm pixel pitch), InGaAs, MCT |
| Entrance/Exit Port Configuration | Single or Dual Input/Output (software-selectable) |
| Typical Resolution (1200 g/mm grating) | 0.028–0.35 nm (CCD/PMT dependent) |
| Wavelength Accuracy | ±0.1–±0.2 nm |
| Wavelength Repeatability | ±0.01–±0.1 nm |
| Scan Step Size | 0.0025–0.01 nm |
| Focal Plane Dimensions | 30 mm (w) × 10–14 mm (h) |
| Optical Axis Height | 146.5 mm |
| Relative Aperture | f/4 to f/9.7 |
Show next
