| Origin | UK |
|---|---|
| Manufacturer Type | Distributor |
| Origin Category | Imported |
| Model | PixelCam™ |
| Pricing | Upon Request |
| Brand | ZOLIX |
|---|---|
| Origin | Beijing, China |
| Manufacturer Type | OEM Manufacturer |
| Region of Origin | Domestic (China) |
| Model | DField-VS-A2 |
| Price | Upon Request |
| Effective Pixels | 2000 × 256 |
| Pixel Size | 15 µm × 15 µm |
| Spectral Range (typ.) | 200–1100 nm |
| Sensor Format | 30 mm × 3.8 mm |
| Peak Quantum Efficiency | 95% @ 780 nm |
| Cooling Temperature | −60 °C (ambient 25 °C) |
| Full-Well Capacity | 300,000 e⁻ (typ.) |
| Read Noise | 3 e⁻ (typ.) |
| Dark Current | 0.1 e⁻/pixel/s @ −60 °C |
| A/D Resolution | 16-bit |
| Interface | USB 2.0 |
| Max. Spectral Acquisition Rate | 88 spectra/s (Full Vertical Bin, VSS 16 µm) |
| Brand | ZOLIX |
|---|---|
| Origin | Beijing, China |
| Manufacturer Type | Original Equipment Manufacturer (OEM) |
| Product Origin | Domestic (China) |

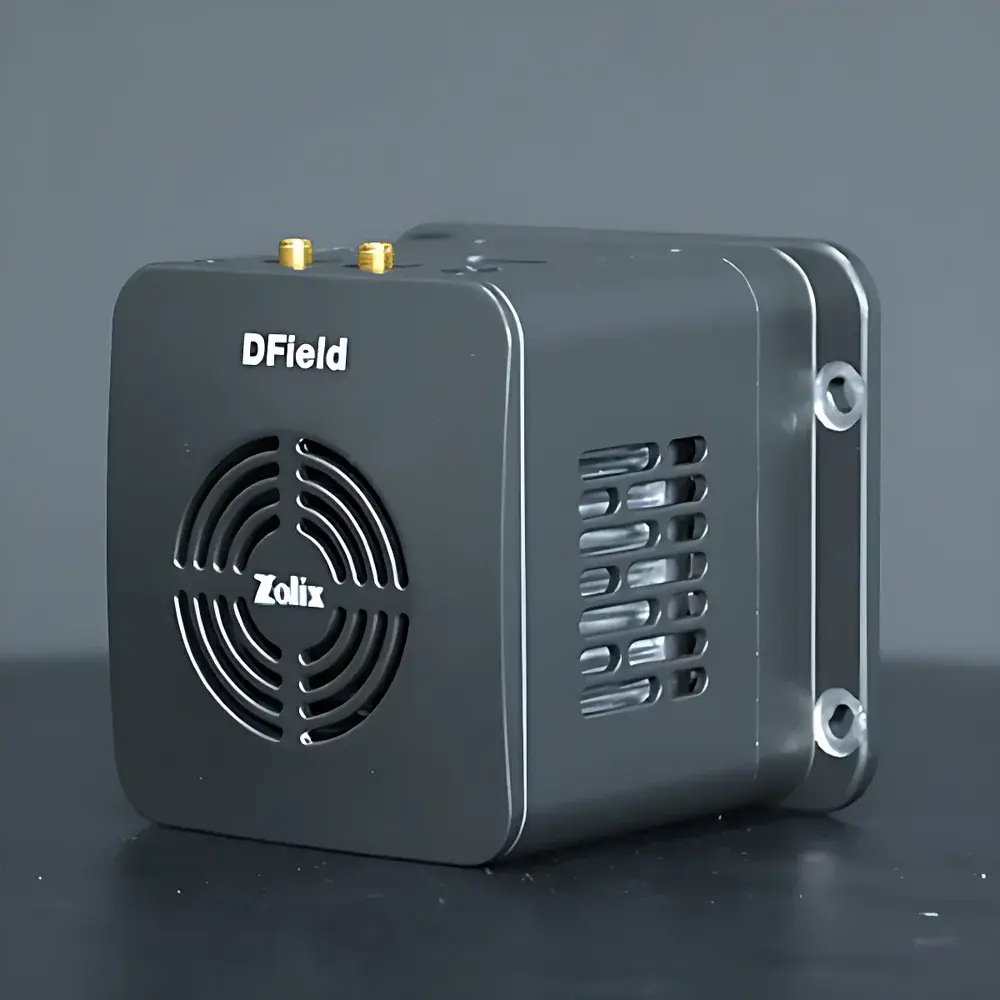

| Model | DField-VS-A4 |
| Pricing | Upon Request |
| Effective Pixels | 2048 × 264 |
| Pixel Size | 15 × 15 µm |
| Origin | Beijing, China |
|---|---|
| Manufacturer Type | Authorized Distributor |
| Origin Category | Domestic (China) |
| Model | SWIR Spectral Camera |
| Pricing | Upon Request |
| Spectral Range | 1000–2500 nm |
| Spectral Resolution | 12 nm (with 30 µm slit) |
| Spectral Sampling Interval | 5.6 nm |
| Spatial Resolution | <15 µm (RMS) |
| F/# | F/2.0 |
| Slit Width | 30 µm (50 µm and 80 µm optional) |
| Effective Slit Length | 9.2 mm |
| Sensor | Stirling-cooled MCT |
| Spectral Channels | 288 |
| Max Frame Rate | 400 fps |
| Spatial Dimension | 384 pixels |
| Output Format | 16-bit Camera Link |
| SNR (peak) | 900:1 |
| Exposure Time | 0.1–20 ms |
| Power Consumption | <50 W (24 V DC input) |
| Operating Temperature | +5 to +40 °C |
| Storage Temperature | −20 to +50 °C |
| Origin | UK |
|---|---|
| Manufacturer Type | Authorized Distributor |
| Origin Category | Imported |
| Model | SpectroCAM SWIR |
| Pricing | Available Upon Request |
| Brand | ZOLIX |
|---|---|
| Origin | Beijing, China |
| Manufacturer Type | Original Equipment Manufacturer (OEM) |
| Imaging Sensor | 6 MP CCD (2750 × 2200), 4.54 µm pixel pitch |
| Spectral Range | 200–900 nm |
| Optical Gate Width | <3 ns (Ultra-Fast Mode) |
| Delay & Gate Timing Resolution | 10 ps |
| Cathode Gating Sync Frequency | Up to 300 kHz |
| Spatial Resolution | >30 lp/mm (fiber-optic coupling), >50 lp/mm (lens coupling) |
| Cooling | Thermoelectrically cooled to 35 °C below ambient |
| Bit Depth | 16-bit |
| Read Noise | 5 e⁻ |
| Dark Current | 0.02 e⁻/pixel/s @ –10 °C |
| Compliance | CE, RoHS, ISO 9001-certified manufacturing |
| Brand | ZOLIX |
|---|---|
| Origin | Beijing, China |
| Manufacturer Type | OEM/ODM Manufacturer |
| Product Origin | Domestic (China) |
| Model | IIM-A125 / IIM-A225 / IIM-B125 / IIM-B225 / IIM-C125 / IIM-C225 |
| Pricing | Upon Request |
| Cathode Diameter | 25 mm |
| Photocathode Options | S20, Solar-Blind, Bialkali, LNS20, S25 |
| MCP Configuration | Single-Stage (MCP125) or Dual-Stage (MCP225) |
| Phosphor Screen | P20 (high-brightness) or P46 (ultra-fast decay <300 ns) |
| Spatial Resolution | ≥35 lp/mm (MCP125), ≥20 lp/mm (MCP225) |
| Radiant Gain @500 nm | ≥10⁴ W/W (MCP125/P20), ≥2.5×10⁵ W/W (MCP225/P46) |
| Gating Width | Fast mode ≤3 ns, Slow mode ≥50 ns |
| Internal Trigger Frequency Range | 0.01 Hz – 100 kHz |
| External Trigger Frequency Range | 0.01 Hz – 300 kHz |
| Trigger Edge | Selectable rising/falling |
| Relay Lens | 50 mm f/1.0, 1:1 or 2:1 magnification, low-distortion, high-NA design |
| Input/Output Interface | Nikon F-mount (C-mount optional) |
| Control Interface | Integrated touchscreen (IIM-A/B), remote control box (IIM-B), manual knobs (IIM-C) |
| USB 2.0 Remote Desktop Control | Supported (IIM-A/B only) |
| Mechanical Shutter | Integrated, electrically actuated |
| Filter Slot | 25 mm diameter, slide-in type |
| Anode Current Monitoring | Optional real-time readout |
