| Brand | ZOLIX |
|---|---|
| Model | FC Series |
| Type | Multi-Channel Gated Intensified Framing Camera |
| Channel Count | 2 / 4 / 8 |
| Spatial Resolution | >30 lp/mm |
| Spectral Response | 350–850 nm |
| Gating Width | 3 ns to DC |
| Gating & Delay Precision | 1 ns |
| Delay Range | 0–10 s |
| Intrinsic Trigger Latency | <120 ns |
| Image Intensifier Cathode Diameter | 18 mm |
| Max Intensifier Gain | 1×10⁴ |
| Sensor | 2048×2048 sCMOS, 6.5 µm pixel pitch, 13.3×13.3 mm active area |
| ADC Depth | 16-bit |
| Software | Integrated Acquisition & Synchronization Suite |
| Brand | ZOLIX |
|---|---|
| Origin | Beijing, China |
| Manufacturer Type | Original Equipment Manufacturer (OEM) |
| Product Category | Domestic High-Performance Scientific Imaging System |
| Model | SIC Series |
| Image Resolution | 4.0 MP (2048 × 2048), Back-Illuminated sCMOS Sensor |
| Pixel Size | 6.5 µm × 6.5 µm |
| Quantum Efficiency | >95% @ 600 nm |
| Optical Gate Width | <3 ns (Ultra-Fast Mode) |
| Delay & Gating Accuracy | 10 ps |
| Cathode Gating Repetition Rate | Up to 300 kHz |
| Fiber-Optic Taper Coupling (1 | 1) |
| Cooling | −35 °C below ambient |
| Readout Noise | 1.1 e⁻ (median), 1.2 e⁻ (RMS) @ −15 °C |
| Dark Current | 0.15 e⁻/pixel/s @ −15 °C |
| Bit Depth | 16-bit |
| Max Frame Rate | 35 fps (full frame, 1 ms exposure) |
| Spectral Response | 190–950 nm (configurable photocathode options: S20, S20B, S25Q) |
| Interface | USB 3.0 |

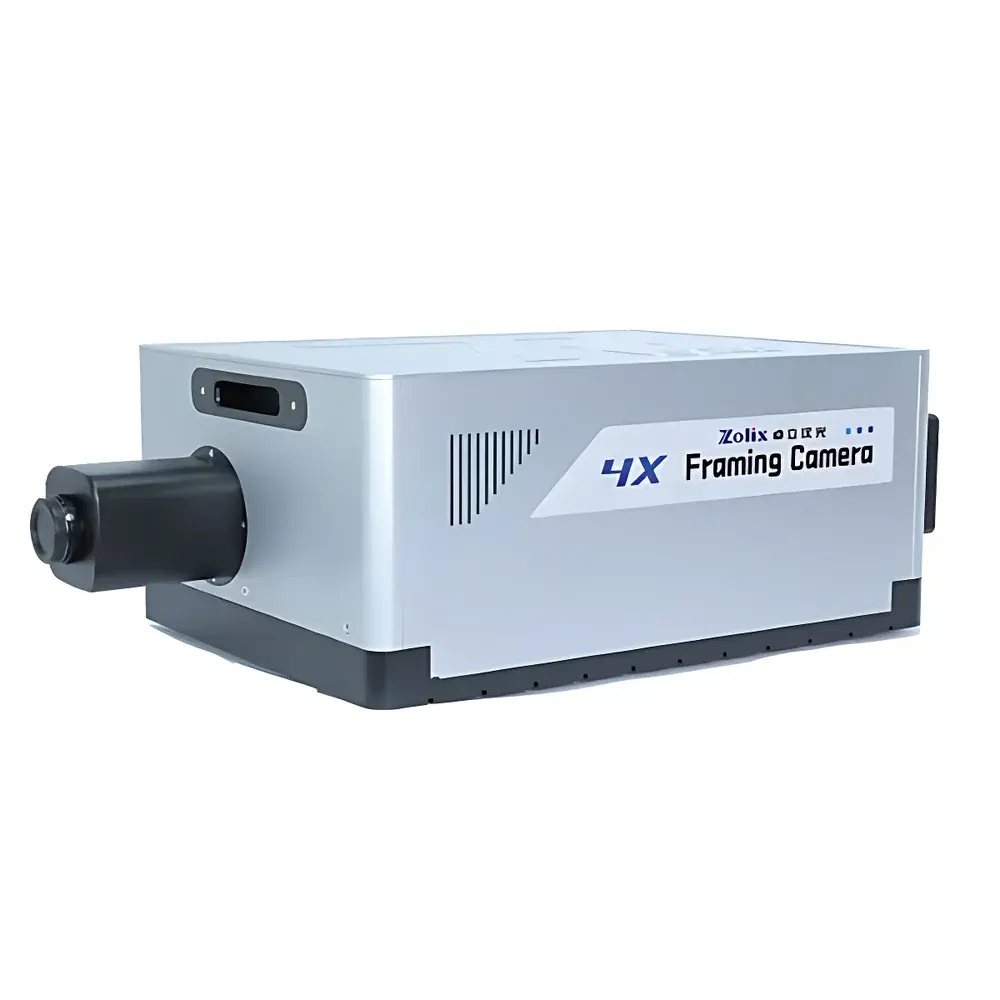

| Brand | ZOLIX |
|---|---|
| Model | FC Series |
| Type | Dual-Exposure Visible-Light Framing Camera |
| Channel Count | 4 |
| Frame Count Options | 4-frame & 8-frame modes |
| Spatial Resolution | >25 lp/mm |
| Spectral Response | 350–850 nm |
| Gating Width | 3 ns to DC |
| Gating & Delay Resolution | 1 ns |
| Delay Range | 0–1 s |
| Image Intensifier Cathode Diameter | 18 mm |
| Max Intensifier Gain | 1×10⁴ |
| Sensor Format | 1932 × 1452 (4× readout) |
| ADC Depth | 12-bit |
| Pixel Size | 4.5 µm × 4.5 µm |
| Trigger Jitter (input-to-output) | <100 ps (typ.), <200 ps (max.) |
| Minimum Inter-Frame Interval | 1 ns (frames 1–4 and 5–8), 250 ns (between frame 4 and frame 5 in 8-frame dual-exposure mode) |
| Coupling | Fiber-optic faceplate |
| Phosphor Screen | P47 |
| Native Delay | <36.5 µs + 4 µs |
