| Brand | ZOLIX |
|---|---|
| Origin | Beijing, China |
| Manufacturer Type | Manufacturer |
| Origin Category | Domestic (China) |
| Model | DSR600 |
| Pricing | Upon Request |
| Spectral Range | 200–2400 nm (configurable per variant) |
| Calibration Method | Substitution Method (NIM-traceable) |
| Optical Design | All-reflective, dual off-axis parabolic beam path |
| Spot Size | 1 mm (uniform across spectrum) |
| Measurement Capabilities | Spectral Responsivity (R(λ)), Bias-dependent R(λ), External Quantum Efficiency (EQE), Internal Quantum Efficiency (IQE), Reflectance/Transmittance, Short-Circuit Current Density (J<sub>sc</sub>), I–V Characterization |
| Light Sources | 150 W Xe lamp, 250 W Tungsten-Halogen lamp, EQ-99XFC broadband source |
| Detection | Lock-in amplifier (Stanford Research Systems SR240/SR830 compatible) |
| Imaging Aid | Integrated CCD-based monitoring optical path for real-time beam visualization and sample alignment |
| Brand | ZOLIX |
|---|---|
| Model | DSR300 Series |
| Origin | Beijing, China |
| Manufacturer Type | Direct Manufacturer |
| Automation Level | Semi-Automatic |
| Effective Test Area | > Ø40 µm |
| Current Measurement Resolution | 10 pA |
| Light Spot Size | 40 µm (diffraction-limited) |
| Compatible Light Sources | Supercontinuum White-Light Laser, Picosecond Pulsed Lasers, Semiconductor Lasers, Halogen Lamps, Xenon Arc Lamps |
| Key Measurement Functions | Spectral Responsivity (A/W), Monochromatic & Power-Variable I–V, Irradiance-Dependent I–t (200 ms resolution), Bias-Dependent I–t, LBIC Mapping, Linearity Analysis, Response Speed (Transient Photovoltage/Photocurrent) |
| Brand | ZOLIX |
|---|---|
| Model | SolarIV Series |
| Origin | Beijing, China |
| Manufacturer | ZOLIX (OEM/ODM Producer) |
| Type | Domestic |
| Automation Level | Semi-Automatic |
| Price Range | USD 14,000 – 72,000 (based on configuration) |
| Compliance | IEC 60904-9:2020 (Class A Solar Simulator), ASTM E927-22 |
| Core Instrumentation | Keithley 2400/2450 SourceMeter® (optional), QE-B1 Reference Cell (calibrated to NREL traceability), IV-Software v3.x |

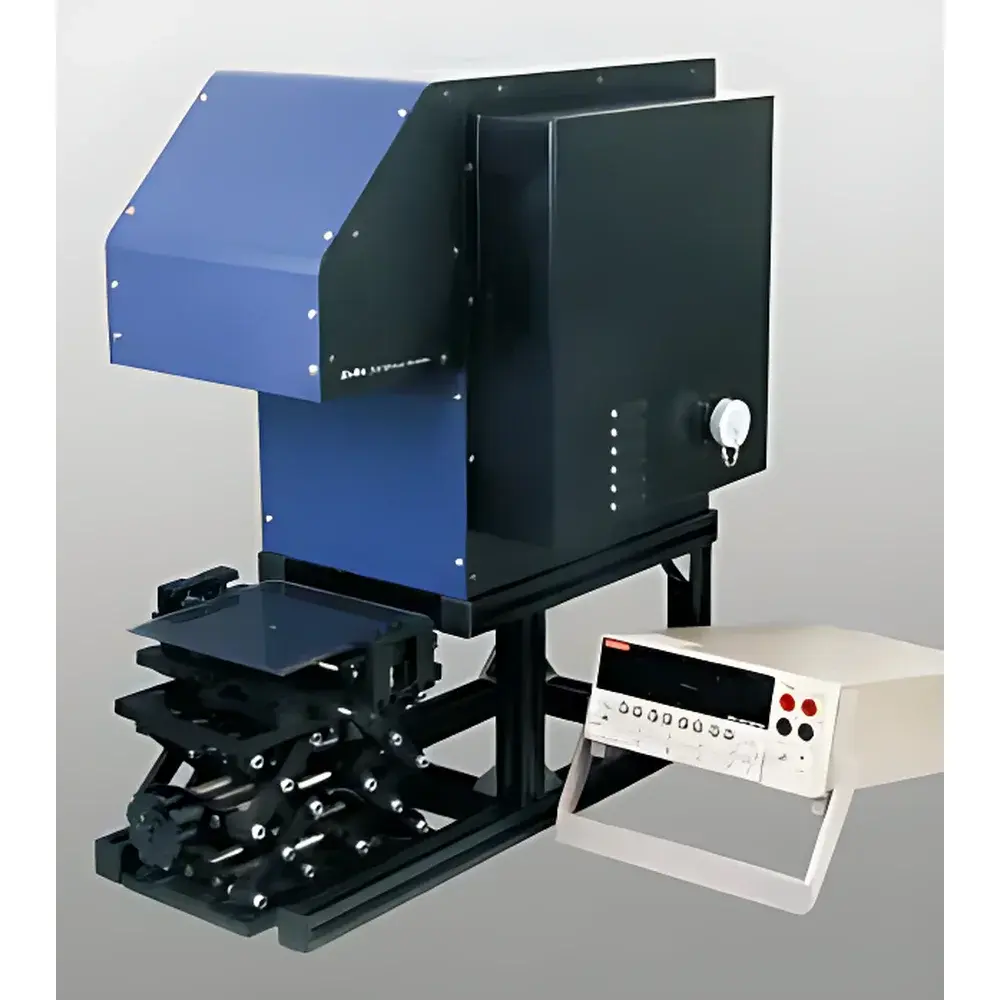

| Brand | ZOLIX |
|---|---|
| Origin | Beijing, China |
| Manufacturer Type | Original Equipment Manufacturer (OEM) |
| Product Origin | Domestic (PRC) |
| Model | SolarIV 100 |
| Automation Level | Semi-Automatic |
| Compliance | IEC 60904-1, IEC 60904-9 (Class AAA/ABA Simulators), ISO/IEC 17025-aligned testing workflow |
