Showing 1–30 of 40 results
| Brand | Hiden |
|---|---|
| Origin | United Kingdom |

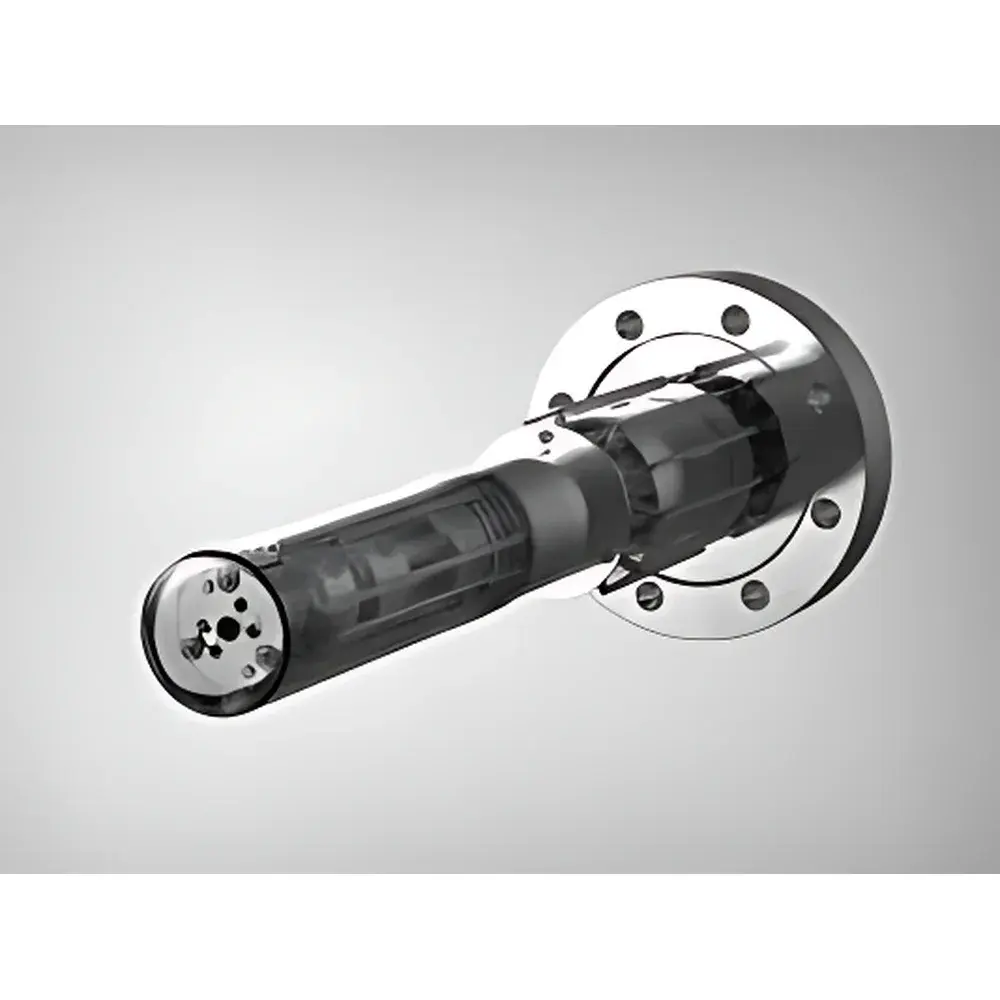

| Model | 3F 1000/2000 Series |
| Mass Range | 1–300 amu (standard), up to 2500 amu (optional) |
| Detection Speed | 500 points/s |
| Resolution | 0.1% valley, 1% valley |
| Dynamic Range | 10⁷ |
| Minimum Detectable Partial Pressure | 2 × 10⁻¹⁴ mbar |
| Electron Energy Control | 0–150 eV (fully programmable) |
| Stability | < ±0.5% peak height drift over 24 h |
| Quadrupole Rod Diameters | 6 mm, 9 mm, or 12 mm (user-selectable) |
| Detector Options | SEM, PIC, dual Faraday/SEM, or Faraday/PIC |
| Interface | RS232, USB, Ethernet |
| Software | MASsoft Professional |
| Brand | Hiden |
|---|---|
| Origin | United Kingdom |
| Model | CATLAB |
| Instrument Type | Chemisorption Analyzer / Catalytic Characterization System |
| Temperature Range | −196 °C to 1000 °C (selectable furnace options) |
| Heating Rate | 1–20 °C/min |
| Pressure Range | Ambient (atmospheric) |
| Gas Flow Range | 3–100 mL/min (up to 500 mL/min optional) |
| Mass Range | 1–200 amu (300 amu optional) |
| Response Time | <500 ms |
| Scan Speed | up to 100 amu/s |
| Detection Units | %, ppm, ppb |
| Gas Inlet Channels | 4 standard (8 optional) |
| Catalyst Cartridge System | Interchangeable, thermocouple-integrated |
| Reactor–MS Interface | Dead-volume-free, heated transfer line |
| Brand | Hiden |
|---|---|
| Origin | United Kingdom |
| Model | EPIC |
| Mass Range | 1–300 amu (standard), up to 2500 amu (optional) |
| Detection Limit | 5 × 10⁻¹⁵ mbar (standard), 1 × 10⁻¹⁶ mbar (optional) |
| Energy Range | ±100 eV (standard), ±1000 eV (optional) |
| Resolution | 0.1% valley, 1% valley |
| Dynamic Range | 10⁷ |
| Measurement Speed | 500 points/s |
| Signal Gating Resolution | 0.1 µs |
| Stability | < ±0.5% peak height drift over 24 h |
| Quadrupole Diameter Options | 6 mm, 9 mm, 12 mm |
| Ion Source Control | Adjustable extraction voltage for soft ionization and appearance potential spectroscopy |
| Detector Options | Pulse ion counting (7-decade dynamic range), Faraday cup (up to 5 × 10¹⁰ ions/s) |
| UHV Compatibility | Standard UHV housing |
| Software | MASsoft Professional Suite |
| Upgrade Path | Compatible with Hiden Plasma/SIMS platforms (EQP, EQS, PSM, Maxim) via energy filter integration (Bessel Box, 45° sector, or electrostatic energy analyser) |
| Brand | Hiden |
|---|---|
| Origin | United Kingdom |
| Model | EQP |
| Mass Range | up to 2500 amu |
| Energy Resolution | 0.05 eV step / 0.25 eV FWHM |
| Ion Detection | Pulse-counting detector with 7-decade dynamic range |
| Signal Gating Resolution | 1 µs |
| Optional Floating Voltage | up to 10 kV |
| Interface | RS232, RS485, or Ethernet LAN |
| Detector Options | Faraday cup (high-density plasmas), electron attachment source (for apparent potential spectroscopy) |
| Vacuum System | Triple-differentially pumped quadrupole with 45° electrostatic sector energy analyser |
| Shielding Options | Mu-metal and radio-metal shielding available |
| Safety | Integrated Penning gauge and interlock system for overpressure protection |
| Brand | Hiden |
|---|---|
| Origin | United Kingdom |
| Manufacturer Type | Authorized Distributor |
| Origin Category | Imported |
| Model | EQS |
| Instrument Type | Quadrupole Mass Spectrometer |
| Mass Range | Up to 2500 u |
| Analyzer Type | 45° Electrostatic Sector |
| Energy Resolution | 0.05 eV step / 0.25 eV FWHM |
| Detection | High-Sensitivity Pulsed Ion Counting Detector (7-decade dynamic range) |
| Pumping | Three-Stage Differential Pumping System |
| Ion Optics | Grating-Controlled Depth Profiling Capability |
| Interface | UHV-Compatible “Bolt-On” Mounting for Existing Surface Science Chambers |
| Compatibility | Fully Integrated with Hiden SIMS Workstation and MASsoft Control Software |
| Safety | Penning Gauge Interlock for Overpressure Protection |
| Communication | RS232, RS485, or Ethernet LAN |
| Brand | Hiden |
|---|---|
| Origin | United Kingdom |
| Model | ESPion |
| Probe Type | Electrically Compensated, RF-Shielded Langmuir Probe |
| Operating Frequency Range | DC to 13.56 MHz |
| Maximum Scan Rate | 15 sweeps per second |
| Probe Drive Options | 300 mm / 600 mm / 915 mm motorized linear actuators, optional linear-rotary combi-drive |
| Cooling | Gas-cooled multi-sensor chain for high-temperature plasma operation |
| Compensation | Passive RF compensation (4.25 MΩ @ 13.56 MHz), reference probe for low-frequency drift & noise rejection |
| Data Interface | RS232, RS485, Ethernet LAN |
| Software | ESPsoft v5.x with pulse-gating, EEDF reconstruction, and automated plasma parameter extraction |
| Compliance | Designed for GLP-compliant plasma diagnostics |
| Brand | Hiden |
|---|---|
| Origin | United Kingdom |
| Model | HAL 201 RC |
| Mass Range | 200 / 300 amu |
| Scan Speed | 100 amu/s |
| Minimum Step Size | 0.01 amu |
| Sensitivity | 0.1–1 ppm |
| Long-Term Stability | < ±0.5% peak height over 24 h |
| Minimum Detectable Partial Pressure | 5 × 10⁻¹⁴ mbar |
| Maximum Operating Pressure | 1 × 10⁻⁴ mbar |
| Ion Source | Gold-Plated Dual-Iridium Oxide Filament |
| Detector | Dual Faraday/Channeltron Electron Multiplier |
| Brand | Hiden |
|---|---|
| Origin | United Kingdom |
| Model | HAL/3F |
| Mass Range | 1–50 amu (high-resolution quadrupole) |
| Detection Sensitivity | ppm-level |
| Long-term Stability | < ±0.5% peak height drift over 24 h |
| Ionization Modes | Electron Impact (EI), Threshold Ionization (e.g., D₂/He selective detection) |
| Software Control | MASsoft v6.x |
| Data Output | ASCII, DDE-compatible (Excel, SPC-IV, custom SCADA/HMI systems) |
| Compliance | CE-marked, RoHS-compliant, designed for vacuum system integration per ISO 27893 and ASTM E1940-20 |
| Brand | Hiden |
|---|---|
| Origin | United Kingdom |
| Model | HALO 201 MBE |
| Mass Range | 1–300 amu |
| Scan Speed | 100 amu/s |
| Minimum Scan Step | 0.01 amu |
| Sensitivity | 0.1–1 ppm |
| Long-Term Stability | < ±0.5% peak height drift over 24 h |
| Minimum Detectable Partial Pressure | 2 × 10⁻¹³ mbar |
| Maximum Operating Pressure | 1 × 10⁻⁴ mbar |
| Detector | Dual Faraday/Channelplate Electron Multiplier |
| Ion Source Shield | Contamination-Resistant |
| Filament Wiring | Molybdenum-Copper Alloy |
| Brand | Hiden |
|---|---|
| Origin | United Kingdom |
| Model | HPR-40 DEMS |
| Mass Range | 50–300 amu |
| Resolution | < 1 amu |
| Sensitivity | 0.1 ppm (standard quadrupole) or 5 ppb (triple-filtered quadrupole option) |
| Electrode Interface | User-coatable Pt/C working electrode + 4 additional electrode ports |
| Membrane | Replaceable nanoscale hydrophobic membrane |
| Ionization | Soft ionization capability |
| Brand | Hiden |
|---|---|
| Origin | United Kingdom |
| Model | HPR-40 |
| Mass Range | 200 / 300 / 510 amu (selectable) |
| Detection Limit | 5 ppb |
| Stability | < ±0.5% peak height over 24 h |
| Ion Source | Liquid Nitrogen-cooled cold trap |
| Inlet Options | 4-channel or 8-channel multiplexed membrane probes |
| Vacuum Protection | Penning gauge + interlock system |
| Control Interface | RS232, RS485, Ethernet LAN |
| Software | MASsoft v6.x |
| Compliance | Designed for GLP/GMP-aligned workflows |
| Brand | Hiden |
|---|---|
| Origin | United Kingdom |
| Model | HPR-80 |
| Mass Range | up to 2500 amu |
| Detection Limit | 5 ppb |
| Inlet Pressure Range | 1 mtorr to atmospheric pressure |
| Ion Source Temperature | Heated, electropolished stainless steel |
| Stability | < ±0.5% peak height over 24 h |
| Calibration | Viscous-flow QIC-corrected inlet with purge capability |
| Control Software | MASsoft |
| Compliance | Designed for UHV/HP vacuum interfaces, compatible with ASTM E1943 (standard guide for mass spectrometry in process analysis), supports GLP/GMP data integrity requirements via audit trail and user access control |
| Brand | Hiden |
|---|---|
| Origin | Austria |
| Model | HPR20 QIC TMS |
| Mass Range | 1–50 / 100 / 200 / 300 / 500 / 1000 amu |
| Sampling Pressure | 100 mbar–2 bar (standard) |
| Response Time | <150 ms |
| Dynamic Range | 7 decades (pulse-counting detector) |
| Detection Limit | 5 ppb |
| Quantification Range | ppm to 100% |
| Stability | ±0.5% peak height over 24 h |
| Scan Speed | 100 amu/s |
| Measurement Rate | 500 data points/sec |
| Capillary | 0.9 m heated quartz inert capillary (up to 200 °C) |
| Ionization | APSI-MS soft ionization |
| External Analog Outputs | 2 standard, up to 16 optional |
| Brand | Hiden |
|---|---|
| Origin | United Kingdom |
| Model | HPR20 |
| Mass Range | up to 510 amu |
| Detection Limit | down to 5 ppb |
| Response Time | < 500 ms |
| Sample Flow Rate | 1–20 cm³/min |
| Sampling Pressure Range | 10 mbar to 2 bar (optional high-pressure inlet up to 30 bar) |
| Capillary Temperature | up to 200 °C |
| Ion Source Pressure Control | Automatic via integrated mass flow controller |
| Cryogenic Trap | Liquid nitrogen-cooled cold finger for condensable species |
| Ionization | Soft electron ionization (EI) with adjustable electron energy |
| Long-Term Stability | ±0.5% peak height drift over 24 h |
| Communication Interfaces | RS232, RS485, Ethernet |
| Software | MASsoft Professional v6.x with GLP-compliant audit trail and calibration management |
| Brand | Hiden |
|---|---|
| Origin | United Kingdom |
| Model | HPR30 |
| Mass Range | Up to 1000 amu |
| Detection Limit | Down to 5 ppb |
| Operating Pressure Range | 1×10⁻⁴ mbar to 1 mbar |
| Ionization | Soft Electron Ionization (EI) with Tunable Energy |
| Sensitivity Optimization | Direct re-entrant sampling orifice + differential pumping stage |
| Stability | < ±0.5% peak height drift over 24 h |
| Control Software | MASsoft v6.x (Windows-based, LAN-capable) |
| Safety Interlocks | Pneumatic isolation valve with pressure- and power-failure actuation |
| Data Acquisition | Simultaneous real-time acquisition, spectral processing, and alarm triggering |
| Brand | Hiden |
|---|---|
| Origin | United Kingdom |
| Model | HPR40 |
| Mass Range | 1–200 amu (optional 300 amu) |
| Detection Limit | 0.1 ppm (or 5 ppb) |
| Minimum Scan Step | 0.01 amu |
| Detector | Faraday Cup / Electron Multiplier |
| Quantitative Output Units | ppm, ppb, % |
| Ionization Mode | Soft Ionization |
| Software | Windows-based acquisition, real-time display & spectral analysis |
| Safety Feature | Fast-acting isolation valve for membrane breach protection |
| Sample Interface | Gas-permeable membrane probe or recirculating water sampler |
| Brand | Hiden |
|---|---|
| Origin | United Kingdom |
| Model | HPR60 |
| Mass Range | 1–2500 amu |
| Sampling Pressure | 20 mbar to 1 bar |
| Detection Limit | 5 ppb to 100% |
| Response Time | <300 ms |
| Stability | ±0.5% peak height over 24 h |
| Data Acquisition Rate | 500 points/s |
| Electron Energy | 100–1000 eV |
| Dynamic Range | 7 decades (pulse-counting detector) |
| Interface | RS232 / RS485 / Ethernet LAN |
| Ion Source Cooling | Liquid nitrogen cryo-panel (optional water-cooled variant) |
| Vacuum Architecture | Integrated vacuum manifold with dedicated backing pump |
| Safety | Built-in Penning gauge and interlock system for overpressure protection |
| Brand | Hiden |
|---|---|
| Origin | United Kingdom |
| Model | HTP1-V |
| Instrument Type | Physical/Chemical Adsorption Analyzer |
| Measurement Principle | Volumetric (Pressure-Step) Method |
| Gas Inlet Ports | 8 |
| Temperature Range | LN₂ (–196 °C) to 500 °C |
| Isothermal Stability | ±0.1 °C |
| Heating Rate | 1–20 °C/min |
| Pressure Range | Ultra-High Vacuum (UHV, <1×10⁻⁹ mbar) to 200 bar (20 MPa) |
| Primary Function | High-Pressure Hydrogen Adsorption/Desorption Characterization |
| Optional Mass Spectrometer | m/z 1–200 amu (300 amu optional), response time <300 ms, quantitative output in ppm/ppb/%, scan speed up to 100 amu/s |
| Brand | Hiden |
|---|---|
| Origin | United Kingdom |
| Model | IDP |
| Mass Range (Standard) | 1–300 amu |
| Mass Range (Optional) | 500 / 1000 / 2500 amu |
| Detection Speed | 500 points/s |
| Resolution | 0.1% Valley, 1% Valley |
| Dynamic Range | 10⁷ |
| Detection Limit | 5 ppb to 100% |
| Ion Energy Range (Standard) | ±100 eV |
| Ion Energy Range (Optional) | ±1000 eV |
| Gated Signal Resolution | 0.1 µs |
| Long-Term Stability | < ±0.5% peak height drift over 24 h |
| Detector | Pulsed Ion Counting |
| Ion Optics | Four-stage ion lens system with integrated electron/ion source and UHV-compatible housing |
| Interface | RS232, USB, Ethernet |
| Software | MASsoft Professional Control Suite |
| Brand | Hiden |
|---|---|
| Origin | United Kingdom |
| Manufacturer Type | Authorized Distributor |
| Origin Category | Imported |
| Model | IG5C |
| Price | Upon Request |
| Ion Energy Range | 500 eV – 5 keV |
| Maximum Beam Current | 200 nA |
| Minimum Spot Size | 20 µm |
| Ion Source Lifetime | ~500 hours |
| Flange Type | DN-35 CF Conflat Wedge Flange |
| Power Consumption | 8 W |
| Filament Configuration | Dual-filament |
| Vacuum Compatibility | Optimized for UHV systems (<1×10⁻⁹ mbar) |
| Beam Blanking | Integrated electrostatic blanking for rapid beam on/off switching in grating applications |
| Brand | Hiden |
|---|---|
| Origin | United Kingdom |
| Model | IGA |
| Balance Capacity | 1 g (5 g optional) |
| Sample Mass Range | 0–100 mg (0–200 mg with 5 g balance) |
| Mass Resolution | 0.1 µg (0.2 µg with 5 g balance) |
| Mass Stability | ±1 µg (long-term, static), ±0.1 µg (short-term) |
| Vacuum Base Pressure | <1×10⁻⁶ mbar |
| Maximum Operating Pressure | 10 bar (20 bar optional) |
| Pressure Resolution | 1/16,000 of full scale |
| Pressure Accuracy | ±0.02% of full scale |
| Temperature Range | −270 °C to 1000 °C |
| Temperature Resolution/Accuracy | ±1 °C (Type K thermocouple), ±0.01–0.1 °C (PRT) |
| Temperature Response Time | 0.05 s (Type K), 1 s (PRT) |
| Pressure Vessel Certification | ASME Section VIII Div. 1 / BS 5500 Category III |
| Brand | Hiden |
|---|---|
| Origin | United Kingdom |
| Model | IGAsorp |
| Measurement Principle | Gravimetric (Microbalance-Based Dynamic Vapor Sorption) |
| Sample Capacity | Up to 4.5 g |
| Minimum Sample Mass | ~1 mg |
| Microbalance Resolution | 0.1 µg (at 100 mg range) |
| Long-Term Stability | ±1 µg/week |
| RH Control Range | 0–95% RH |
| RH Accuracy | ±0.1% RH (control), ±1% RH (0–90% RH), ±2% RH (90–100% RH) |
| RH Response Time | <15 s to 90% of step change |
| RH Ramp Rate | 0.1–100% RH/hour |
| Temperature Range | 5–85 °C (ambient-controlled chamber) |
| Temp Stability | ±0.05–±0.1 °C |
| Carrier Gas | Dry air or N₂ |
| Flow Rate | 100–500 mL/min |
| Humidification Reservoir | 200 mL |
| Sample Holders | Borosilicate glass or stainless-steel mesh crucibles |
| Brand | Hiden |
|---|---|
| Origin | United Kingdom |
| Model | IMP |
| Pump Configuration | Integrated Differential Pumping Manifold |
| Mass Range | Up to 300 amu (Triple-Filtered Quadrupole) |
| Detector | Pulsed Ion Counting System |
| Energy Analyzer | Built-in with Ion Optics |
| Pressure Protection | Penning Gauge + Interlock Circuitry |
| Long-Term Stability | < ±0.5% peak height drift over 24 h |
| Communication Interfaces | RS232, RS485, Ethernet |
| Control Software | MASsoft with DDE support, Parallel Digital I/O |
| Compliance | Designed for integration into ISO/IEC 17025-compliant process monitoring environments |
| Application Scope | Real-time endpoint detection, target purity verification, residual gas analysis, leak detection, SPC-driven etch process control |
| Brand | Hiden |
|---|---|
| Origin | United Kingdom |
| Model | ABR |
| Operating Pressure Range | 0.1–50 bar (configurable) |
| Temperature Control Range | 0–300 °C |
| Temperature Stability | ±0.025 °C |
| Flow Rate Range | 3–1000 mL/min |
| Sample Bed Volume | 2 cm³ (interchangeable) |
| Mass Spectrometer | Hiden DSMS, m/z 1–200 amu, response time ≤200 ms |
| Vacuum Option | UHV pump station (1×10⁻⁸ mbar) |
| Compliance | Fully compatible with GLP/GMP data integrity requirements |
| Brand | Hiden |
|---|---|
| Origin | United Kingdom |
| Model | MBR |
| Instrument Type | Physical/Chemical Adsorption Analyzer |
| Operating Pressure Range | Up to 10 bar |
| Temperature Range | 120°C to 300°C |
| Flow Configuration Modes | Co-current and Cross-flow |
| Integrated Detection | Close-coupled Quadrupole Mass Spectrometer (QMS) |
| Valve Architecture | Pneumatically Actuated, Ultra-Low-Dead-Volume Switching Valves |
| Control System | Fully Programmable, Automated Sequence Execution |
| Membrane Cell | Precision-Machined, Integral Support Structure |
| Compliance | Designed for ASTM D1434, ISO 15105-1, and ISO 2556 gas permeation test protocols |
| Brand | Hiden |
|---|---|
| Origin | United Kingdom |
| Manufacturer Type | Authorized Distributor |
| Origin Category | Imported |
| Model | LAS |
| Pricing | Available Upon Request |
| Brand | Hiden |
|---|---|
| Origin | United Kingdom |
| Model | MAXIM |
| Mass Range Options | 300 amu / 500 amu / 1000 amu |
| Mass Analyzer | 3F Quadrupole (9 mm rod diameter) |
| Detector | Pulse-counting ion detector, dual-polarity (positive/negative ions), max. count rate 10⁷ cps |
| Ion Source | Electron Impact (single-filament), configurable for SNMS and Residual Gas Analysis (RGA) |
| Sample Stage Heating | Up to 250 °C |
| Optical Acceptance Angle | 30° for planar particle sampling in SIMS/SNMS geometry |
| Ion Transmission | Optimized for minimal trajectory perturbation across full energy range |
| Depth Profiling Capability | Enhanced via grating-controlled beam optics |
| Brand | Hiden |
|---|---|
| Origin | United Kingdom |
| Model | Proteus |
| Port Configurations | 20 / 40 / 80 (customizable) |
| Operating Pressure Range | 10 mbar to 2 bar |
| Flow Rate Range | 0.01–10 L/min |
| Actuation | Direct-drive high-torque micro-stepping motor with incremental rotary encoder |
| Positioning Feedback | Closed-loop Z-axis localization |
| Motion Profile | Bidirectional travel with intelligent acceleration/deceleration and endpoint holding |
| Sealing Endurance | >6 × 10⁶ cycles |
| Temperature Control | Integrated heater and sensor, up to 120 °C |
| Dead Volume | Minimized for rapid response |
| Memory Effect | Negligible |
| Compatibility | Designed for seamless integration with HPR20 QMS and other analytical gas systems |
| Brand | Hiden |
|---|---|
| Origin | United Kingdom |
| Model | PSM |
| Mass Range | 0–2500 u |
| Detection | Pulsed Ion Counting Detector (7-decade dynamic range) |
| Energy Analysis Option | Standard ±100 eV (up to ±1000 eV optional) |
| Signal Gating Resolution | 1 µs |
| Quadrupole | Triple-stage filtered, high-stability |
| Ion/Neutral Analysis | Simultaneous positive/negative ion and neutral/radical detection |
| Vacuum Interface | Differential pumping manifold with flanged process chamber coupling |
| Control Interface | RS232, RS485, or Ethernet LAN |
| Software | MASsoft Professional Suite |
| Optional Features | Electron Attachment Ion Source (tunable appearance potential MS), Penning gauge + interlock for overpressure protection, Mu-Metal/Radio-Metal magnetic shielding, High-voltage operation capability |
| Brand | Hiden |
|---|---|
| Origin | United Kingdom |
| Model | QGA 2.0 |
| Detection Range | 100 ppb to 100% |
| Scan Speed | Up to 1000 spectra per second |
| Form Factor | Benchtop, Compact Design |
| Compliance | CE-marked, RoHS-compliant construction |
| Software | QGA 2.0 Quantitative Analysis Suite (Windows-based, FDA 21 CFR Part 11 ready) |
