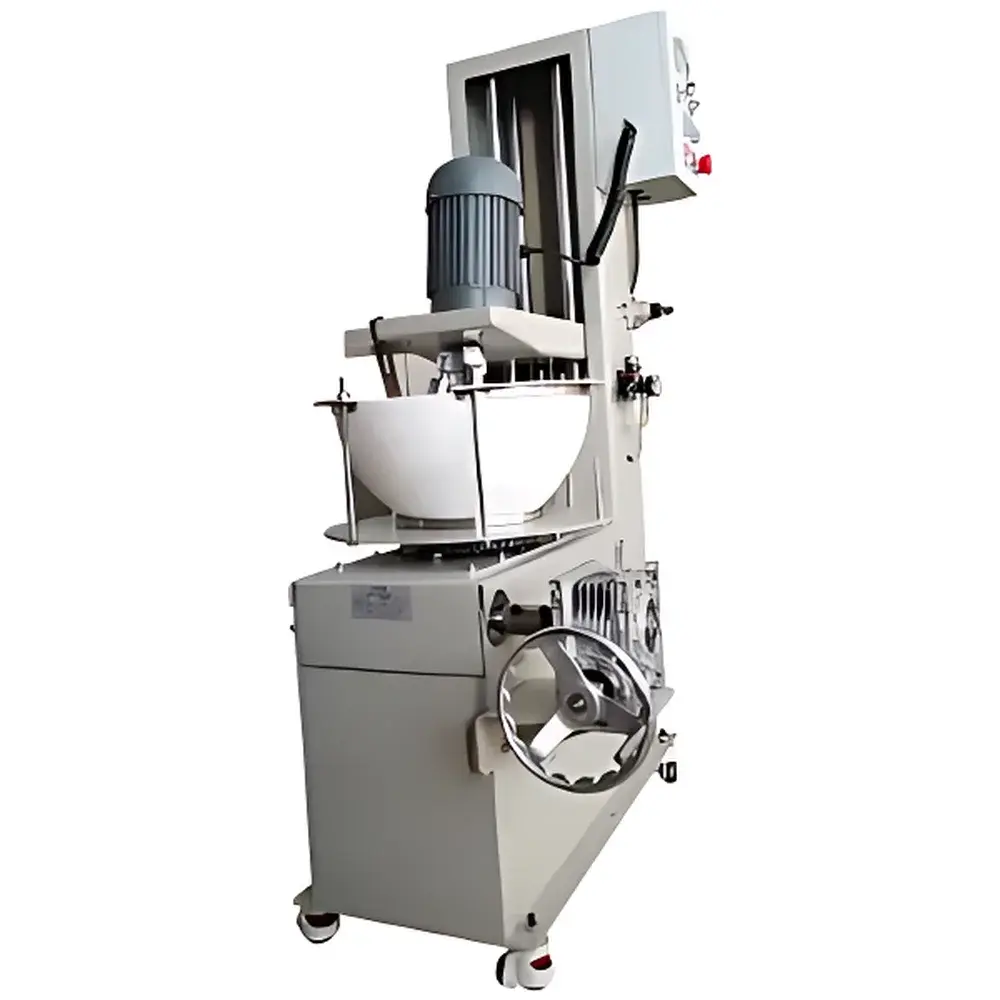

| Brand | Jiubin Instruments |
|---|---|
| Model | JB-400 |
| Type | Mortar-and-Pestle Grinder |
| Drive | Pneumatic Lift Mechanism |
| Grinding Chamber Material | Alumina Ceramic (95% Al₂O₃) |
| Pestle Quantity | 3 |
| Pestle Rotation Speed | 0–180 rpm (Variable-Frequency Control) |
| Mortar Rotation Speed | 7 rpm (Fixed) |
| Pestle Motor Power | 750 W |
| Mortar Motor Power | 200 W |
| Mortar Dimensions | Ø400 mm × Depth 200 mm |
| Maximum Batch Capacity | 5 L |
| Final Particle Size | <0.01 mm (10 µm) |
| Sample Compatibility | Hard & Brittle Solids,膏-like Pastes (Wet Grinding) |
| Operating Pressure | 0.5 MPa (Recommended) |
| Grinding Time Range | 0–99 h 99 min |
| Overall Dimensions | 700 mm (L) × 1000 mm (W) × 1500 mm (H) |
| Net Weight | 200 kg |
| Electrical Supply | AC 220 V, 50/60 Hz |
| Brand | Jiubin Instruments |
|---|---|
| Origin | Shanghai, China |
| Model | JB-400H |
| Compliance | GB/T 3682.1–2018, ASTM D1238, ISO 1133–1 |
| Temperature Control Range | 100–400 °C (±0.2 °C) |
| Load Options | 0.325 kg, 1.2 kg, 2.16 kg, 5.0 kg, 10.0 kg, 21.6 kg |
| Piston Travel Detection | High-resolution optical encoder (0.01 mm resolution) |
| Extrudate Cutting | Automatic timed or manual mode |
| Sample Preheating Time | Programmable (0–999 s) |
| Data Output | USB and RS232 interfaces |
| Display | 7-inch TFT touchscreen with real-time melt flow curve visualization |
| Brand | Jiubin Instruments |
|---|---|
| Origin | Shanghai, China |
| Model | JB-400H |
| Compliance | GB/T 3682.1–2018, ISO 1133–1:2011, ASTM D1238 |
| Temperature Control Range | Ambient to 400 °C (±0.2 °C stability) |
| Load Options | 0.325–21.6 kg (standard weights per ISO/ASTM) |
| Extrudate Cutting | Automatic timer-based or manual |
| Piston Travel Resolution | 0.01 mm |
| Data Output | MFR (g/10 min), MVR (cm³/10 min), flow rate curve |
| Power Supply | AC 220 V ±10%, 50/60 Hz |
| Brand | Jiubin Instruments |
|---|---|
| Origin | Shanghai, China |
| Manufacturer Type | Authorized Distributor |
| Country of Origin | China |
| Model | JB-512 |
| Pricing | Available Upon Request |
| Chamber Volume | 0.5 m³ |
| Electrode Dimensions | 5 mm (L) × 2 mm (W) × 12 mm (H) |
| Electrode Material | Platinum |
| Electrode Edge Angle | 30° bevel |
| Electrode Spacing | 4.0 mm |
| Electrode Contact Force | 1.0 N |
| Test Voltage Range | 100–600 V (adjustable) |
| Power Supply Rating | 2100 W |
| Voltage Drop at 1.0 A Short-Circuit Current (600 V) | ≤50 V |
| Tracking Detection Threshold | ≥0.5 A sustained for 2 s |
| Droplet Height Adjustment Range | 30–40 mm |
| Droplet Density | 44–55 drops/cm³ |
| Droplet Interval | 30 ± 5 s |
| Brand | Jiubin Instruments |
|---|---|
| Model | JB-512B |
| Control System | Taiwan Weinview 7-inch color HMI touchscreen |
| Electrode Material | Copper base with platinum-tipped electrodes |
| Electrode Force | 1.0 ± 0.05 N per electrode |
| Droplet Interval | 30.0 ± 0.1 s |
| Test Voltage Range | 100–600 V AC (48–60 Hz), voltage drop ≤10% at short-circuit current of 1.0 ± 0.1 A |
| Droplet Height | 30–40 mm |
| Droplet Volume | 44–55 drops per cm³ (≈18.2–22.7 µL/drop) |
| Short-Circuit Detection | Relay cutoff triggered when current >0.5 A sustained for ≥2 s |
| Chamber Internal Volume | 0.5 m³ (optional 0.75 m³ or 1.0 m³) |
| External Dimensions | 1170 mm (W) × 630 mm (D) × 1330 mm (H) |
| Enclosure Material | Powder-coated steel plate |
| Exhaust Port Diameter | 100 mm |
| Power Supply | AC 220 V / 50 Hz / 10 A |
| Compliance | IEC 60112:2009, GB/T 4207–2012, UL 746A, ASTM D3638–2007, DIN 53480 |
| Key | Brand: Jiubin Instruments |
|---|---|
| Model | JB-600 |
| Origin | Shanghai, China |
| Processor | STMicroelectronics STM32 (ARM Cortex-M3 core) |
| Input Channels | 1 vehicle speed + 4 wheel speed + 1 external control |
| Output Interfaces | USB 2.0, RS-232, SD card slot, external display port |
| Power Supply | 12 V DC (vehicle battery powered) |
| Dimensions | 370 × 260 × 90 mm |
| Weight | 2.0 kg |
| Vehicle Speed Sensing | GPS or non-contact photoelectric sensor |
| Wheel Speed Sensing | High-precision optical pulse encoder (200 pulses/rev), mountable on 4-/5-/6-bolt wheel hubs |
| Compliance | GB/T 13594–2003, UNECE Regulation No. 13 Annex 13 |
| Brand | Jiubin Instruments |
|---|---|
| Origin | Shanghai, China |
| Model | JB-60L |
| Measurement Principle | Photometric Method (based on acetylacetone derivatization) |
| Chamber Volume | 1 m³ |
| Internal Dimensions | Approx. 1000 mm × 1000 mm × 1000 mm |
| Temperature Control Range | 15–30 °C (±0.5 °C uniformity) |
| Relative Humidity Control Range | 30–70 %RH (±3 %RH stability) |
| Air Exchange Rate | Adjustable from 0.5 to 1.5 h⁻¹ (±5 % accuracy) |
| Chamber Wall Material | Stainless Steel 304 with electropolished interior |
| Seal Integrity | ≤ 0.5 % volume loss per hour |
| Power Supply | 220 V AC, 50 Hz |
| Compliance | GB/T 17657–2013, GB 18580–2017, ISO 12460-1:2007, ASTM D6007–21 |
| Brand | Jiubin Instruments |
|---|---|
| Origin | Shanghai, China |
| Manufacturer Type | Authorized Distributor |
| Country of Origin | China |
| Model | JB-60L |
| Pricing | Upon Request |
| Brand | Jiubin Instruments |
|---|---|
| Origin | Shanghai, China |
| Model | JB-6100-B |
| Dispersion Method | Dry & Wet |
| Instrument Type | Laboratory Laser Diffraction Particle Size Analyzer |
| Measurement Range | 0.01 µm – 2000 µm |
| Repeatability | <1% (D50 of standard reference material) |
| Measurement Time | <10 s typical |
| Compliance | ISO 13320:2009, GB/T 19077–2016 |
| Detector Channels | 87-channel high-density crossed array with area compensation |
| Optical Model | Full-range Mie scattering theory with dynamic multiple-scattering correction |
| Laser Source | Sealed fiber-coupled semiconductor laser, λ = 650 nm, P > 10 mW |
| Data Acquisition | 16-bit, 200 kHz sampling rate |
| Feed System | Motorized stepless-speed feeder with software-controlled oil-free silent air compressor (integrated moisture and particulate filtration) |
| Operating Environment | 0–45 °C, 10–85% RH (non-condensing) |
| Power Supply | 110–240 V AC ±20 V, 50–60 Hz |
| Dimensions | 700 × 495 × 300 mm |
| Weight | 35 kg |
| Brand | Jiubin Instruments |
|---|---|
| Origin | Shanghai, China |
| Model | JB-611A |
| Instrument Type | Electromechanical Universal Testing Machine |
| Max Load Capacity | 20 kN / 50 kN / 100 kN (configurable) |
| Force Accuracy | ±0.5% FS |
| Displacement Resolution | 0.001 mm |
| Crosshead Speed Range | 0.001–500 mm/min |
| Effective Test Space | 1000 mm × 1000 mm × 1000 mm (customizable) |
| Force Resolution | 1/500,000 |
| Power Supply | AC 220 V, 50 Hz |
| Compliance Standards | ASTM D642, ISO 12048, GB/T 4857.3–4, GB/T 4857.16, GB/T 8167–8168, TAPPI T804, JIS Z 20212, QB/T 1048, BS EN ISO 12048 |
| Key | Brand: Jiubin Instruments |
|---|---|
| Model | JB-630C |
| Origin | Shanghai, China |
| Power Supply (Main Unit) | DC 9.6 V (8 × 1.2 V / 800 mAh Ni-MH batteries) |
| Power Supply (Wireless Sensor) | DC 8.4 V (7 × 1.2 V / 600 mAh Ni-MH batteries) |
| Acceleration Range | ±1.5 g |
| Time Measurement Range | ≤12 s |
| Acceleration Resolution | 0.001 m/s² |
| Speed Resolution | 0.01 km/h |
| Time Resolution | 0.001 s |
| Distance Resolution | 0.001 m |
| Tilt Angle Resolution | 0.01° |
| Accuracy | ±1.5% |
| Wireless Transmission Range | 200 m (line-of-sight, open field) |
| Dimensions (Main Unit) | 205 × 145 × 55 mm |
| Weight (Main Unit, incl. battery) | 0.4 kg |
| Display | 192 × 64 dot-matrix LCD |
| Data Storage Capacity | 999 test records |
| Interface | RS232 (9-pin, 9600 bps, 8N1), USB 2.0 |
| Compliance | GB/T 28945–2012, GB 7258–2012 |
| Key | Brand: Jiubin Instruments |
|---|---|
| Origin | Shanghai, China |
| Model | JB-630N |
| Power Supply | DC 7.4 V (dual 18650 Li-ion, 2200 mAh each) |
| Dimensions | 205 × 145 × 55 mm |
| Weight | 0.4 kg (incl. battery) |
| Acceleration Range | ±1.5 g |
| Time Range | ≤12 s |
| Acceleration Resolution | 0.001 m/s² |
| Speed Resolution | 0.01 km/h |
| Time Resolution | 0.001 s |
| Distance Resolution | 0.001 m |
| Accuracy | ±1.5% |
| Interfaces | RS232 (9-pin), USB 2.0 |
| Data Storage | 999 test records with time-acceleration curves |
| Brand | Jiubin Instruments |
|---|---|
| Origin | Shanghai, China |
| Model | JB-768 |
| Power Supply | AC/DC 100–240 V |
| Counting Pulse Width | 16.7 ms (30 Hz), 0.17 ms (3 kHz), 0.33 ns (1.5 kHz) |
| Count Range | 0–999,999 |
| Input Signal Type | Non-contact or Contact |
| Input Impedance | ≥4.7 kΩ |
| Input Voltage Range | 0–2 V (low-level), 4–30 V (high-level) |
| Reset Modes | Front-panel button, external terminal, auto-reset (adjustable 0.01–9.99 s) |
| DC Power Output | 12 V / 100 mA (dual channels for sensor powering) |
| Relay Output Rating | 3 A / 250 V AC (resistive load) |
| Data Retention | ~5 years during power loss |
| Power Consumption | ≤4 VA |
| Transistor Output | 500 mA / 30 V |
| Key | Brand: Jiubin Instruments |
|---|---|
| Model | JB-810 |
| Origin | Shanghai, China |
| Power Consumption | <10 W (static: 5 W) |
| Built-in Power | DC 9.6 V (8 × 1.2 V / 4 Ah Ni-Cd battery) |
| External Power Input | DC 12 V |
| Communication Interface | RS232 (9-pin, TTL-level, 9600 bps, 8N1) |
| Dimensions | 370 × 260 × 90 mm |
| Weight | 4.5 kg (including battery) |
| Operating Temperature | −15 °C to +45 °C |
| Relative Humidity | 30–80 % RH |
| Display | 240 × 128 dot-matrix LCD with Chinese UI |
| Integrated Printer | 40-column thermal micro-printer |
| Self-test Signal | 2.048 kHz TTL square wave (calibration reference: 1.0000 photoelectric coefficient → 29.5 km/h) |
| Key | Brand: Jiubin Instruments |
|---|---|
| Origin | Shanghai, China |
| Model | JB-820/830 Series |
| Display | 240×128 LCD with Chinese UI |
| Speed Resolution | 0.01 km/h |
| Power Supply | Internal DC 9.6 V (8×1.2 V / 800 mAh Ni-MH) or External DC 12 V / 5 A |
| Static Power Consumption | ≤1 W |
| Max Power Consumption | <3 W |
| Dimensions (JB-820) | 330 × 220 × 75 mm |
| Dimensions (CTM-830) | 210 × 150 × 60 mm |
| Weight (JB-820) | 2.0 kg (incl. battery) |
| Weight (CTM-830) | 0.6 kg (incl. battery) |
| Operating Temperature | −20 °C to +45 °C |
| Relative Humidity | 30–80 % RH |
| Data Storage | SD card + USB interface |
| Analog Output | 1 channel (0–5 V or 4–20 mA, configurable) |
| Optional Sensors | Non-contact photoelectric speed sensor, GPS-based speed sensor, dual-channel fuel flow sensor (for high-return diesel engines), pull-force transducer, rotational speed sensor, wheel speed sensor |
| Wireless Option | Bluetooth 4.0 module (optional) |
| Built-in Printer | Yes (JB-820) |
| Brand | Jiubin Instruments |
|---|---|
| Origin | Shanghai, China |
| Manufacturer Type | Authorized Distributor |
| Country of Origin | China |
| Model | JB-830 |
| Pricing | Available Upon Request |
| Brand | Jiubin Instruments |
|---|---|
| Model | JB-850 |
| Origin | Shanghai, China |
| Power Supply | DC 9.6 V (internal Ni-MH battery) / DC 12 V (external) |
| Dimensions | 330 × 220 × 75 mm |
| Weight | 1.2 kg (incl. battery) |
| Operating Temperature | −20 °C to +45 °C |
| Humidity Range | 30–80 % RH |
| Speed Range | 0–500.0 km/h (resolution: 0.01 km/h, accuracy: ±0.5 %) |
| Distance Range | 0–999999.999 m (resolution: 1 mm, accuracy: ±0.2 %) |
| Time Range | 0–99999.999 s (resolution: 1 ms, accuracy: ±0.1 %) |
| Deceleration Range | 0–14.9 m/s² (resolution: 0.01 m/s², accuracy: ±1 %) |
| MFDD Range | 0–9.999 m/s² (resolution: 0.001 m/s², accuracy: ±1 %) |
| Pedal Force Range | 0–999 N (resolution: 1 N, accuracy: ±1 %) |
| Fuel Consumption Range | 0–999.999 L/100 km (resolution: 0.001 L/100 km, accuracy: ±2 %) |
| Voltage Input | 0–300 V (resolution: 0.1 V, accuracy: ±0.5 %) |
| Current Input | 0–500 A (resolution: 0.1 A, accuracy: ±0.5 %) |
| Display | 240 × 128 dot-matrix LCD with Chinese UI |
| Data Storage | SD card (file-based, unlimited capacity) and USB export |
| Interfaces | Dual RS232, USB, SD slot, built-in thermal printer |
| Real-time OS | µC/OS-II |
| CPU Core | ARM Cortex-based 32-bit microcontroller |
| Brand | Jiubin Instruments |
|---|---|
| Model | JB-850 |
| Origin | Shanghai, China |
| Power Supply | DC 12 V (internal Ni-MH battery pack: 9.6 V / 8 × 1.2 V / 800 mAh) |
| Dimensions | 330 × 220 × 75 mm |
| Weight | 1.2 kg (incl. battery) |
| Operating Temperature | −20 °C to +45 °C |
| Humidity Range | 30–80 % RH |
| Speed Range | 0–500.0 km/h (resolution: 0.01 km/h, accuracy: ±0.5 %) |
| Distance Range | 0–999999.999 m (resolution: 1 mm, accuracy: ±0.2 %) |
| Time Range | 0–99999.999 s (resolution: 1 ms, accuracy: ±0.1 %) |
| Deceleration Range | 0–14.9 m/s² (resolution: 0.01 m/s², accuracy: ±1 %) |
| MFDD Range | 0–9.999 m/s² (resolution: 0.001 m/s², accuracy: ±1 %) |
| Brake Pedal Force | 0–999 N (resolution: 1 N, accuracy: ±1 %) |
| Fuel Consumption | 0–999.999 L/100 km (resolution: 0.001 L/100 km, accuracy: ±2 %) |
| Hourly Fuel Flow | 0–999.999 L/h (resolution: 0.001 L/h, accuracy: ±2 %) |
| Voltage Input | 0–300 V (resolution: 0.1 V, accuracy: ±0.5 %) |
| Current Input | 0–500 A (resolution: 0.1 A, accuracy: ±0.5 %) |
| Data Storage | SD card (FAT32 formatted, user-replaceable), USB host/device interface |
| Real-time OS | µC/OS-II |
| Display | 240 × 128 monochrome LCD with Chinese character UI |
| Interface Options | Dual RS-232 ports, built-in thermal printer, optional pedal force sensor, optional GPS/non-contact optical speed sensor, optional electronic fuel injection (EFI) flow sensor |
| Brand | Jiubin Instruments |
|---|---|
| Model | JB-860 |
| Origin | Shanghai, China |
| Power Supply | DC 9.6 V (Ni-MH battery pack, 8 × 1.2 V / 800 mAh) or DC 12 V external |
| Dimensions | 330 × 220 × 75 mm |
| Weight | 1.2 kg (including battery) |
| Operating Temperature | −20 °C to +45 °C |
| Relative Humidity | 30–80 % RH |
| Static Power Consumption | ≤1 W |
| Max. Power Consumption | <3 W |
| Speed Range | 0–500.0 km/h |
| Speed Resolution | 0.01 km/h |
| Speed Accuracy | ±0.5 % |
| Distance Range | 0–999999.999 m |
| Distance Resolution | 1 mm |
| Distance Accuracy | ±0.2 % |
| Time Range | 0–99999.999 s |
| Time Resolution | 1 ms |
| Time Accuracy | ±0.1 % |
| Deceleration Range | 0–14.9 m/s² |
| Deceleration Resolution | 0.01 m/s² |
| Deceleration Accuracy | ±1 % |
| MFDD Range | 0–9.999 m/s² |
| MFDD Resolution | 0.001 m/s² |
| MFDD Accuracy | ±1 % |
| Pedal Force Range | 0–999 N |
| Pedal Force Resolution | 1 N |
| Pedal Force Accuracy | ±1 % |
| Voltage Input Range | 0–300 V (sensor-dependent) |
| Voltage Resolution | 0.1 V |
| Voltage Accuracy | ±0.5 % |
| Current Input Range | 0–500 A (sensor-dependent) |
| Current Resolution | 0.1 A |
| Current Accuracy | ±0.5 % |
| Display | 240 × 128 dot-matrix LCD with Chinese character interface |
| Data Storage | SD card (FAT32 formatted, up to 32 GB) and internal non-volatile memory |
| Communication Interfaces | Dual RS232 ports, USB 2.0 host/device, built-in thermal printer |
| Optional Sensors | Non-contact photoelectric speed sensor, GPS-based velocity sensor |
| Brand | Jiubin Instruments |
|---|---|
| Model | JB-894B |
| Control System | Weinview 7-inch color touchscreen + PLC |
| Ignition Method | Automatic piezoelectric ignition |
| Burner Tip Diameter | 9.5 mm ± 0.5 mm, length ~100 mm from air inlet |
| Burner Tilt Angle | 0–45° (manually adjustable with scale) |
| Ignition Substrate | Medical-grade cotton wadding |
| Fuel Gas | 98% methane (or propane / natural gas at 37 MJ/m³ ± 1 MJ/m³) |
| Flame Temperature Ramp | 100°C ± 2°C to 700°C ± 3°C in 44 s ± 2.0 s or 54 s ± 2.0 s (validated via calibration system) |
| Temperature Calibration System | Imported controller with standard copper calibration blocks (φ5.5 mm, 1.76 ± 0.01 g or φ9 mm, 10.00 ± 0.05 g |
| Thermocouple | K-type, insulated, high-temperature armored, Ø0.5 mm (optional) |
| Timing Range | 1.0 s – 999.9 s (digital display, presettable) |
| Repetitive Ignition Cycles | 1 – 9999 (presettable) |
| Chamber Volume | 0.75 m³ (1.0 m³ optional) |
| Enclosure Material | Stainless steel |
| Exhaust Port | Ø100 mm |
| Power Supply | AC 220 V, 50 Hz, 5 A |
| Safety Features | Integrated gas leakage alarm, automatic flame failure detection |
| Brand | Jiubin Instruments |
|---|---|
| Origin | Shanghai, China |
| Model | JB-A |
| Frequency Range | 10 kHz – 70 MHz |
| Main Capacitance Tuning Range | 30–500 pF |
| Capacitance Resolution | ±0.2 pF |
| Q Factor Range | 1–1000 (auto/manual range switching) |
| Q Measurement Accuracy | <5% |
| Q Resolution | 0.1 (4-digit display) |
| Capacitance Measurement Range | 1–460 pF |
| Loss Tangent (tan δ) Determination Method | Resonant Q-shift comparison using dual-variable capacitor system |
| Dielectric Constant (εᵣ) Calculation | Based on parallel-plate capacitance ratio with/without sample |
| Brand | Jiubin Instruments |
|---|---|
| Origin | Shanghai, China |
| Model | JB-60L |
| Measurement Principle | Photometric Method (Based on Acetylacetone Reaction) |
| Chamber Volume | 60 L |
| Internal Dimensions | 400 × 400 × 375 mm (W × D × H) |
| Temperature Control Range | 15–40 °C (±0.5 °C stability) |
| Relative Humidity Control Range | 30–80 % RH (±3 % RH uniformity) |
| Air Exchange Rate | 0.5–2.0 h⁻¹ (adjustable, calibrated per ISO 12460-1 & ASTM D6007) |
| Construction | Stainless Steel 304 inner chamber, double-wall insulated design with tempered glass observation window |
| Touch Interface | 7-inch capacitive touchscreen with embedded control firmware |
| Data Logging | Internal SD card storage + USB export |
| Compliance | Designed to meet ISO 12460-1, ISO 16000-9, ASTM D6007, JIS A 1460, GB/T 17657–2013 Annex D |
| Brand | Jiubin Instruments |
|---|---|
| Origin | Shanghai, China |
| Model | JB-121A-B |
| Instrument Type | Electromechanical Universal Testing Machine |
| Load Capacity | 20 kN / 50 kN |
| Effective Test Height | 1000 mm |
| Effective Test Width | 380 mm (customizable) |
| Force Accuracy | ±0.5% |
| Displacement Resolution | 0.001 mm |
| Speed Range | 0.001–500 mm/min |
| Force Resolution | 1/500,000 |
| Power Supply | AC 220 V, 50 Hz |
| Machine Weight | ~350 kg |
| Force Sensor | Transcell (USA) |
| Drive System | Panasonic Servo Motor (Japan) + ABBA Precision Ball Screw (Taiwan) |
| Dust Protection | Taiwan Yidi Foldable Bellows Cover |
| Control Interface | Dual-mode — Industrial Touchscreen LCD + PC-based Software |
| Compliance Standards | GB/T, ASTM D3574, ASTM E8/E9, ISO 7500-1, DIN 50104, JIS Z2241 |
| Brand | JiuBin Instruments |
|---|---|
| Origin | Shanghai, China |
| Manufacturer Type | Authorized Distributor |
| Country of Origin | China |
| Model | JB-300 |
| Price | USD 19,200 (FOB Shanghai) |
| Brand | Jiubin Instruments |
|---|---|
| Origin | Shanghai, China |
| Manufacturer Type | Authorized Distributor |
| Country of Origin | China |
| Model | JB-4000 |
| Price | Upon Request |
| Power Supply | 220 V AC ±10% |
| Max Operating Pressure | 2.5 MPa |
| Burst Pressure | 2.7–3.3 MPa |
| Temperature Control Range | Ambient to 200 °C |
| Chamber Dimensions | 560 × 420 × 670 mm |
| Bomb Volume | 4000 mL |
| Heating Power | 2.4 kW |
| Temperature Alarm Range | 0–200 °C (adjustable) |
| Temperature Uniformity | ±0.5 °C |
| Display | Digital LED |
| Control System | Microprocessor-based Intelligent PID Controller |
| Bomb Construction | Inner chamber – AISI 304 stainless steel |
| Brand | Jiubin Instruments |
|---|---|
| Origin | Shanghai, China |
| Manufacturer Type | Authorized Distributor |
| Country of Origin | China |
| Model | JB-JM7 |
| Pricing | Available Upon Request |
| Brand | Jiubin Instruments |
|---|---|
| Origin | Shanghai, China |
| Model | JB-JM8 |
| Test Pressure Range | 0–100 MPa (customizable) |
| Pulse Frequency | 0–2 Hz (customizable) |
| Test Media | Water, Brake Fluid, Hydraulic Oil |
| Media Temperature Range | −40 °C to +150 °C (customizable) |
| Cycle Count Capacity | >10⁷ cycles (user-definable) |
| Channel Configuration | 1 channel (expandable) |
| Waveform Options | Square, T-shaped, Triangular, Sine |
| Control Architecture | Dual-level PC-based electro-hydraulic servo control with independent modular controllers |
| Pressure Regulation Method | Accumulator-assisted passive pressure maintenance |
| Safety Features | Overpressure cutoff, overload protection, automatic depressurization upon rupture, auto-degassing at startup, post-test fluid containment |
| Brand | Jiubin Instruments |
|---|---|
| Origin | Shanghai, China |
| Model | JB-D |
| Pressure Range | 0–1000 Pa |
| Differential Pressure Limit | ≤42 Pa |
| Flow Measurement Range | 10–800 L/h (selectable units: L/h or kg/h) |
| Minimum Detectable Leak Rate | 0.08 L/min |
| Resolution | 0.001 L/min |
| Test Duration Programmable | 1 s to 9999 h/min/s |
| Sample Capacity | 1 vent per cycle |
| Compliance | TPV 8221-75m300, GMW15448 (Apr 2010), IP-0118 V4 |
| Brand | Jiubin Instruments |
|---|---|
| Origin | Shanghai, China |
| Model | JB-DL2 |
| Drop Height Range | 400–1500 mm |
| Test Orientation | Face, Edge, Corner |
| Load Capacity | 60 kg |
| Height Display | LED Digital Indicator (Accuracy ≤ ±2% of set height or ±10 mm) |
| Test Chamber Dimensions | 800 × 800 × 800 mm |
| Angular Accuracy | ≤5° deviation from horizontal base plate |
| Power Supply | AC 380 V, 50 Hz, 10 A |
| Motor Power | 0.5 HP |
| Machine Dimensions (L×W×H) | ≈1400 × 1200 × 2515 mm |
| Net Weight | 400 kg |
| Compliance | ISO 2248, JIS Z0202-87, GB/T 4857.5-92 |
| Brand | Jiubin Instruments |
|---|---|
| Origin | Shanghai, China |
| Model | JB-DSC-200L |
| Temperature Range | −100 °C to 600 °C (with LN₂ cooling) |
| Temperature Accuracy | ±0.1 °C |
| Heating/Cooling Rate | 1–80 °C/min |
| Heat Flow Sensitivity | 0.1 μW |
| Compliance | ASTM E794, ISO 11357, USP <1163>, GB/T 29549 |
