Zhuochi
Filter
Showing 91–115 of 115 results

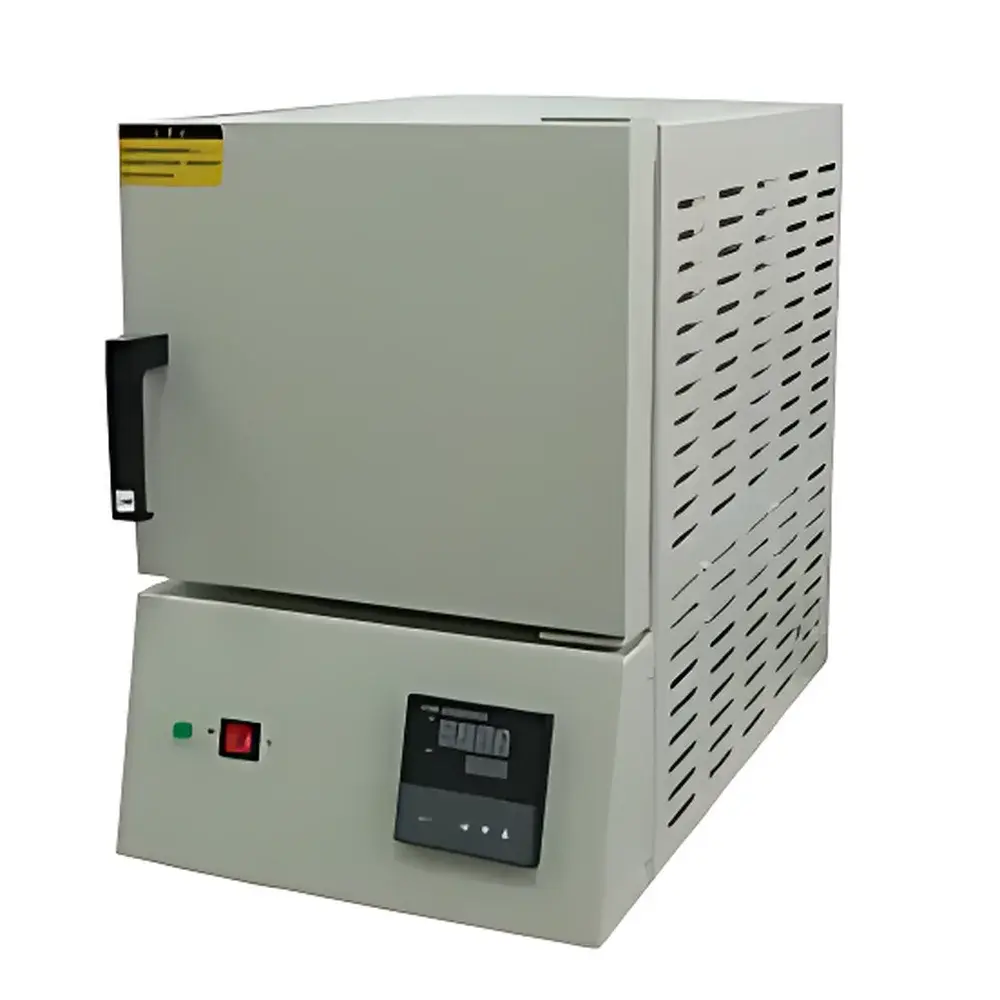

| Brand | Zhuochi |
|---|---|
| Origin | Zhejiang, China |
| Model | SX3-3-10 |
| Chamber Dimensions | 300 × 200 × 150 mm |
| Max Operating Temperature | 1000 °C |
| Rated Power | 3 kW |
| Voltage/Frequency | 220 V / 50 Hz |
| Heating Element | U-shaped Silicon Carbide Rods |
| Insulation | Dual-shell Construction with High-Purity Ceramic Fiber |
| Temperature Uniformity | ±1 °C |
| Ramp Rate Adjustable | 1.5–10 °C/min |
| Control System | LTDE-Based 30-Stage Programmable PID Controller with Auto-Hold, Auto-Shutdown, and Slope Compensation |

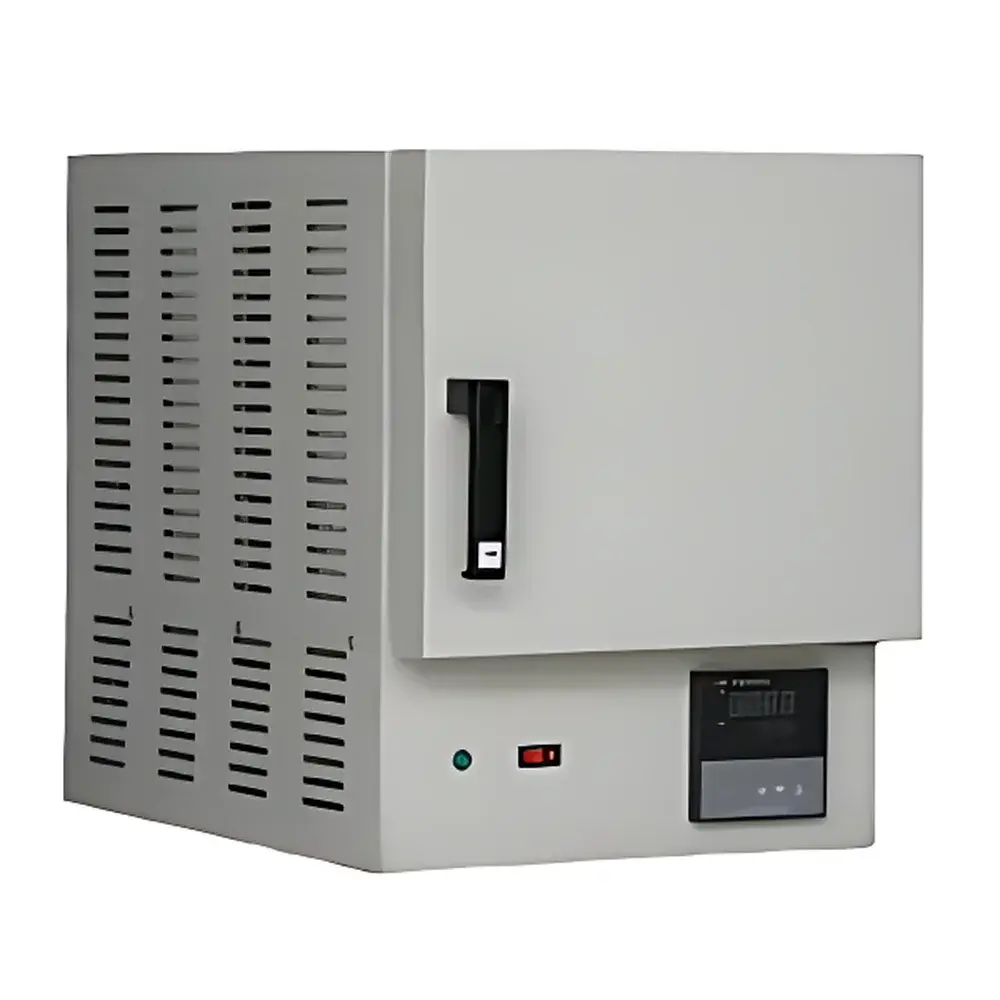

| Brand | Zhuochi |
|---|---|
| Origin | Zhejiang, China |
| Model | SX3-3-10 |
| Type | Box-type Muffle Furnace |
| Max Temperature | 1000 °C |
| Temperature Uniformity | ±1 °C |
| Display Resolution | 1 °C |
| Heating Element | High-Temperature Resistance Wire |
| Internal Chamber Dimensions | 300 × 200 × 150 mm |
| External Dimensions | 540 × 365 × 525 mm |
| Rated Power | 3 kW |
| Voltage/Frequency | 220 V, 50 Hz |
| Ramp Rate | Up to 50 °C/min (fully adjustable) |
| Net Weight | ~32 kg |
| Control System | LTDE 30-Stage Programmable PID Controller with Dual Over-Temperature Protection |
| Insulation | Six-Sided High-Emissivity Ceramic Fiber Board |
| Thermocouple Type | K-Type (Chromel–Alumel) |
| Brand | Zhuochi |
|---|---|
| Origin | Zhejiang, China |
| Model | SX3-3-10 |
| Type | Box-Type Muffle Furnace |
| Max Temperature | 1000 °C |
| Temperature Uniformity | ±1 °C |
| Display Resolution | 1 °C |
| Heating Rate | ≤50 °C/min (adjustable) |
| Power Rating | 3000 W |
| Chamber Dimensions | 300 × 200 × 150 mm |
| Nominal Volume | 9 L |
| Heating Element | High-Temperature Resistance Wire |
| Insulation | Six-Sided Modular Ceramic Fiber Board |
| Weight | ~32 kg |
| Voltage/Frequency | 220 V, 50 Hz |
| Brand | Zhuochi |
|---|---|
| Origin | Zhejiang, China |
| Model | SX3-3-10 |
| Instrument Type | Box-Type Muffle Furnace |
| Max Temperature | 1000 °C |
| Temperature Uniformity | ±1 °C |
| Heating Rate | Up to 50 °C/min (adjustable) |
| Power Rating | 3 kW |
| Internal Chamber Dimensions | 300 × 200 × 150 mm (L×W×H) |
| Heating Element | High-Temperature Resistance Wire |
| Insulation Material | Lightweight Ceramic Fiber Board |
| Weight | ~32 kg |
| Power Supply | 220 V, 50 Hz |
| Control System | LTDE 30-Stage Programmable PID Controller with Dual Over-Temperature Protection |
| Compliance | Designed for ASTM D3174, ISO 287, ISO 15171, and GB/T 8306–2013 (Tea – Determination of Ash) |
| Brand | Zhuochi |
|---|---|
| Origin | Zhejiang, China |
| Model | SX3-3-11 |
| Type | Box-Type Muffle Furnace |
| Max Temperature | 1100 °C |
| Temperature Uniformity | ±1 °C |
| Power Rating | 3 kW |
| Max Ramp Rate | ≤50 °C/min |
| Heating Method | Kanthal A1 Resistance Wire |
| Internal Chamber Dimensions | 300 × 200 × 150 mm |
| External Dimensions | 580 × 360 × 520 mm |
| Net Weight | ~32 kg |
| Voltage/Frequency | 220 V, 50 Hz |
| Temperature Sensor | K-type Thermocouple |
| Control System | LTDE 30-Stage Programmable PID Controller with SSR Output |
| Safety | Dual Independent Over-Temperature Protection (OT1 + OT2) |
| Insulation | High-Emissivity Low-Heat-Capacity Ceramic Fiber Board (Six-Sided Modular Assembly) |
| Brand | Zhuochi |
|---|---|
| Origin | Zhejiang, China |
| Model | SX3-3-12 |
| Type | Box-Type Muffle Furnace |
| Max Temperature | 1200 °C |
| Temperature Uniformity | ±1 °C |
| Power Rating | 3 kW |
| Max Heating Rate | ≤50 °C/min |
| Internal Chamber Dimensions | 300 × 200 × 150 mm |
| Heating Element | High-Temperature Resistance Wire |
| Insulation Material | High-Emissivity, Low-Heat-Capacity Ceramic Fiber Board |
| Control System | LTDE Programmable PID Controller (30-Stage Ramp/Soak) |
| Voltage/Frequency | 220 V, 50 Hz |
| Net Weight | ~45 kg |
| Brand | Zhuochi |
|---|---|
| Origin | Zhejiang, China |
| Instrument Type | Box-Type Muffle Furnace |
| Maximum Temperature | 1300 °C |
| Temperature Uniformity | ±1 °C |
| Rated Power | 3 kW |
| Heating Rate (to max temp) | ≤50 °C/min |
| Internal Chamber Dimensions | 300 × 200 × 150 mm |
| Heating Element | U-shaped Silicon Carbide Rods |
| Control System | LTDE Programmable PID Controller (30-Stage Ramp/Soak) |
| Thermal Insulation | High-Efficiency Ceramic Fiber Board (6-Sided Modular Construction) |
| Weight | ~43 kg |
| Power Supply | 220 V, 50 Hz |
| Brand | Zhuochi |
|---|---|
| Origin | Zhejiang, China |
| Type | Box-Type Muffle Furnace |
| Max Temperature | 1000 °C |
| Temperature Uniformity | ±1 °C |
| Power Rating | 4 kW |
| Ramp Rate (to max temp) | ≤50 °C/min |
| Heating Method | Kanthal A1 resistance wire |
| Chamber Dimensions | 300 × 300 × 300 mm |
| External Dimensions | 615 × 520 × 720 mm |
| Net Weight | ~70 kg |
| Voltage/Frequency | 220 V, 50 Hz |
| Temperature Sensor | K-type thermocouple |
| Controller | LTDE 30-segment programmable PID controller with dual overtemperature protection |
| Insulation | Six-sided modular ceramic fiber board (low thermal mass, high emissivity) |
| Housing | Phosphated and powder-coated cold-rolled steel (computer gray) |
| Brand | Zhuochi |
|---|---|
| Origin | Zhejiang, China |
| Model | SX3-4-11 |
| Instrument Type | Box-Type Muffle Furnace |
| Maximum Temperature | 1100 °C |
| Temperature Control Accuracy | ±1 °C |
| Rated Power | 4 kW |
| Heating Time to Max Temp | 60 min |
| Heating Method | Resistance Wire Heating |
| Internal Chamber Dimensions | 300 × 300 × 300 mm |
| Nominal Volume | 27 L |
| Temperature Range | 100–1100 °C |
| Temperature Uniformity | ±1 °C (at 1000 °C) |
| Heating Rate Adjustment | 0–50 °C/min (continuously variable) |
| Chamber Material | High-Radiation, Low-Heat-Capacity Ceramic Fiber Panels |
| Thermocouple Type | K-Type (Chromel–Alumel) |
| Controller | LTDE Programmable PID Controller with 30-Stage Ramp-Soak Programming |
| Safety Protection | Dual-Stage Overtemperature Cut-Off |
| Power Supply | 220 V, 50 Hz |
| Brand | Zhuochi |
|---|---|
| Origin | Zhejiang, China |
| Manufacturer Type | Authorized Distributor |
| Equipment Type | Box-Type Muffle Furnace |
| Model | SX3-4-16 |
| Max Temperature | 1600 °C |
| Temperature Control Accuracy | ±1 °C |
| Rated Power | 4000 W |
| Heating Element | Silicon Molybdenum (MoSi₂) Rods |
| Internal Chamber Dimensions | 200 × 150 × 150 mm |
| Voltage | 220 V, 50 Hz |
| Heating Rate to Max Temp | ~50 min |
| Control System | LTDE-Based 30-Stage Programmable PID Controller with Ramp/Soak, Power % Output, Slope Correction, Auto-Hold, and Auto-Shutdown |
| Brand | Zhuochi |
|---|---|
| Origin | Zhejiang, China |
| Manufacturer Type | Authorized Distributor |
| Product Category | Domestic |
| Model | SX3-5-10 |
| Instrument Type | Box-Type Muffle Furnace |
| Max Temperature | 1000 °C |
| Temperature Control Accuracy | ±1 °C |
| Max Power | 5 kW |
| Heating Rate (to Max Temp) | ≤50 °C/min |
| Heating Element | High-Temperature Resistance Wire |
| Internal Chamber Dimensions | 400 × 400 × 400 mm |
| External Dimensions | 690 × 610 × 810 mm |
| Net Weight | ~88 kg |
| Temperature Range | 100–1000 °C |
| Temperature Uniformity | ±1 °C (at 1000 °C) |
| Display Resolution | 1 °C |
| Control System | LTDE Programmable PID Controller (30-Stage Ramp/Soak) |
| Thermal Insulation | Air-Cooled Dual-Layer Ceramic Fiber |
| Thermocouple Type | K-Type (Chromel-Alumel) |
| Power Supply | 220 V, 50 Hz |
| Safety | Dual-Stage Overtemperature Protection |
| Cooling Method | Natural Convection + Forced-Air Auxiliary |
| Brand | Zhuochi |
|---|---|
| Origin | Zhejiang, China |
| Model | SX3-5-10D |
| Type | Box Furnace |
| Max Temperature | 800 °C |
| Temperature Uniformity | ±1 °C |
| Max Power | 5 kW |
| Heating Rate (to max temp) | 30 °C/min |
| Heating Method | Resistance Wire (NiCr Alloy) |
| Internal Dimensions | 350 × 350 × 350 mm |
| Nominal Volume | 40 L |
| Voltage | 380 V, 50 Hz |
| Thermocouple Type | K-type (Chromel–Alumel) |
| Control System | Yudian Touchscreen Programmable PID Controller with SSR Output |
| Weight | 177 kg |
| Insulation | High-Emissivity Lightweight Ceramic Fiber Panels |
| Air Circulation | Integrated Forced-Air Fan for Uniform Thermal Distribution |
| Brand | Zhuochi |
|---|---|
| Origin | Zhejiang, China |
| Model | SX3-5-10D-2 |
| Furnace Type | Box-Type Muffle Furnace |
| Max Operating Temperature | 800 °C |
| Temperature Uniformity | ±1 °C |
| Heating Rate (to max temp) | ≤30 °C/min (adjustable) |
| Internal Chamber Dimensions | 350 × 350 × 350 mm (W × D × H) |
| Nominal Volume | 40 L |
| Rated Power | 5 kW |
| Heating Element | Nickel-Chromium Resistance Wire |
| Insulation | High-Emissivity, Low-Heat-Capacity Ceramic Fiber Board |
| Control System | Yudian Touchscreen Programmable PID Controller with SSR Output |
| Temperature Sensor | K-Type Thermocouple |
| Power Supply | 380 V, 50 Hz |
| Net Weight | ~177 kg |
| Brand | Zhuochi |
|---|---|
| Origin | Zhejiang, China |
| Model | SX3-5-10DG |
| Type | Box-Type Muffle Furnace |
| Max. Temperature | 800 °C |
| Temperature Uniformity | ±1 °C |
| Heating Rate (to max temp) | ≤30 °C/min |
| Rated Power | 5 kW |
| Internal Dimensions | 350 × 350 × 350 mm |
| Nominal Volume | 40 L |
| Heating Element | Ni-Cr Resistance Wire |
| Insulation | High-Emissivity Ceramic Fiber Board |
| Circulation | Integrated Forced-Air Blower |
| Temp. Sensor | K-Type Thermocouple |
| Control System | Yudian Touchscreen Programmable PID Controller with SSR Output |
| Compliance | Designed for GLP-compliant thermal processing environments |
| Power Supply | 380 V, 50 Hz |
| Brand | Zhuochi |
|---|---|
| Origin | Zhejiang, China |
| Model | SXL-1008 |
| Chamber Dimensions | 300 × 200 × 120 mm |
| Maximum Operating Temperature | 1000 °C |
| Temperature Uniformity | ±1 °C |
| Power Rating | 4 kW |
| Voltage | 220 V AC, 50 Hz |
| Control System | 30-Stage Programmable Microcomputer Controller |
| Safety Features | Dual Over-Temperature Protection, Earth Leakage & Electric Shock Protection |
| Construction | Matte Powder-Coated Steel Enclosure, Stainless Steel Door Liner and Front Panel |
| Heating Element | High-Durability Resistance Wire |
| Compliance | Designed for GLP-compliant thermal processing environments |
| Brand | Zhuochi |
|---|---|
| Origin | Zhejiang, China |
| Model | SXL-1016 |
| Chamber Dimensions | 400 × 250 × 160 mm |
| Maximum Operating Temperature | 1000 °C |
| Temperature Uniformity | ±1 °C |
| Power Rating | 8 kW |
| Voltage | 380 V AC, 50 Hz |
| Control System | 30-Stage Programmable Microprocessor Controller |
| Heating Element | High-Durability Resistance Wire |
| Safety Features | Dual Over-Temperature Protection, Earth Leakage & Electric Shock Protection |
| Surface Finish | Matte Epoxy Powder Coating (European Standard) |
| Interior Lining | Stainless Steel (Front Door & Chamber Rim) |
| Optional Data Logging | RS485/USB Interface for PC Connectivity |
| Brand | Zhuochi |
|---|---|
| Origin | Zhejiang, China |
| Model | SXL-1202 |
| Chamber Dimensions | 200 × 120 × 80 mm |
| Maximum Temperature | 1200 °C |
| Temperature Uniformity | ±1 °C |
| Power Rating | 2.5 kW |
| Voltage | 220 V AC, 50 Hz |
| Control System | 30-Stage Programmable Microcomputer Controller |
| Heating Element | High-Purity Resistance Wire |
| Chamber Lining | Stainless Steel (Interior Door & Front Panel) |
| Safety Features | Dual Over-Temperature Protection, Earth Leakage & Electric Shock Protection |
| Surface Finish | Matte Electrostatic Powder Coating (EU Standard) |
| Brand | Zhuochi |
|---|---|
| Origin | Zhejiang, China |
| Model | SXL-1304 |
| Chamber Dimensions | 250 × 150 × 100 mm |
| Maximum Operating Temperature | 1300 °C |
| Temperature Uniformity | ±1 °C |
| Power Supply | 220 V, 50 Hz |
| Rated Power | 4 kW |
| Heating Element | Silicon Carbide Rods |
| Control System | 30-Stage Programmable Microcomputer Controller |
| Safety Features | Dual Over-Temperature Protection, Earth Leakage & Electric Shock Protection |
| Compliance | Designed to meet general laboratory safety and thermal stability requirements per IEC 61000-6-3 (EMC) and GB/T 10066.1–2004 (Industrial Furnaces) |
| Brand | Zhuochi |
|---|---|
| Origin | Zhejiang, China |
| Model | SXL-1313 |
| Chamber Dimensions | 400 × 200 × 160 mm |
| Maximum Operating Temperature | 1300 °C |
| Temperature Uniformity | ±1 °C |
| Power Rating | 8 kW |
| Voltage | 380 V AC, 50 Hz |
| Control System | 30-Stage Programmable Microprocessor Controller |
| Heating Element | Silicon Carbide Rods |
| Chamber Lining | High-Density Ceramic Fiber Insulation |
| Exterior Finish | Matte Electrostatic Powder Coating (European Standard) |
| Safety Features | Dual-Stage Over-Temperature Protection, Earth Leakage Circuit Breaker (ELCB), Touch-Safe Surface Design |
| Brand | Zhuochi |
|---|---|
| Origin | Zhejiang, China |
| Model | SXL-1616 |
| Chamber Dimensions | 200 × 150 × 150 mm |
| Maximum Operating Temperature | 1600 °C |
| Temperature Accuracy | ±1 °C |
| Power Rating | 5 kW |
| Voltage | 220 V AC, 50 Hz |
| Heating Element | Silicon Molybdenum (MoSi₂) Rods |
| Insulation | Energy-Efficient Lightweight Refractory Ceramic Fiber |
| Control System | 30-Stage Programmable Microprocessor Controller |
| Safety Features | Dual-Stage Over-Temperature Protection, Earth Leakage & Electric Shock Protection |
| Brand | Zhuochi |
|---|---|
| Model | WK-3 |
| Origin | Zhejiang, China |
| Compliance | GB/T 34845-2017 |
| Detection Principle | Microcoulometric Titration |
| AOX Range | 0.5–5000 mg/L as Cl⁻ |
| Combustion Temp | 500–1000 °C (±1% ±5 °C) |
| Generator Current | ±2 mA |
| Amplifier Output | ±30 V |
| Bias Voltage | 0–500 mV (adjustable) |
| Repeatability | ≤5% (≥10 mg/L), ≤10% (1–10 mg/L), ≤50% (<1 mg/L) |
| Power | 220 V AC ±10%, 50 Hz, 3000 W |
| Brand | Zhuochi |
|---|---|
| Origin | Zhejiang, China |
| Model | WK-S |
| Measurement Principle | Combustion–Coulometric Titration |
| Detection Range | 0.02 mg/kg – 2 mg/kg |
| Accuracy | ±1 µg Cl⁻ |
| Repeatability | ≤10% RSD at sample concentrations <2 mg/kg |
| LOD | 0.028 mg/L |
| Resolution | 1 µg |
| Compliance | HJ 1214–2021 (PRC National Ecological and Environmental Standard for AOX in Water) |
| Brand | Zhuochi |
|---|---|
| Origin | Zhejiang, China |
| Model | XL-2A |
| Instrument Type | Box-Type Muffle Furnace |
| Maximum Temperature | 1000 °C |
| Temperature Control Accuracy | ±1 °C (in steady-state) |
| Temperature Uniformity | ±2 °C (at 1000 °C) |
| Display Resolution | 1 °C |
| Heating Rate | Adjustable up to 10 °C/min |
| Programmable Segments | 30-step ramp-soak profile |
| Internal Chamber Dimensions | 300 × 200 × 120 mm |
| Nominal Volume | 8 L |
| Power Rating | 4 kW |
| Supply Voltage | 220 V, 50 Hz |
| Net Weight | ~110 kg |
| Heating Element | High-Temperature Resistance Wire |
| Insulation | Refractory Brick + Ceramic Fiber Insulation |
| Thermocouple Type | K-type, rear-mounted |
| Safety Features | Dual-stage overtemperature protection, earth leakage circuit breaker (ELCB), insulated enclosure with powder-coated cold-rolled steel casing |
| Brand | Zhuochi |
|---|---|
| Origin | Zhejiang, China |
| Model | ZCSK3-12-8 |
| Max Temperature | 1200 °C |
| Temperature Uniformity | ±1 °C |
| Max Power | 12 kW |
| Heating Rate (to max temp) | ≤20 °C/min |
| Heating Method | Resistance wire (0Cr27Al7Mo2 alloy) |
| Chamber Dimensions | Ø200 × 1300 mm |
| Effective Tube Length | 1200 mm |
| Tube OD | Ø200 mm |
| Vacuum Level | −0.1 MPa |
| Control System | LTDE 30-segment programmable PID controller with K-type thermocouple |
| Power Supply | 380 V, 50 Hz |
| Compliance | CE-marked electrical architecture, GLP-ready temperature logging interface |
| Brand | Zhuochi |
|---|---|
| Origin | Zhejiang, China |
| Manufacturer Type | Authorized Distributor |
| Country of Origin | China |
| Model | ZSG-GL1200K |
| Instrument Type | Rotary Tube Furnace |
| Max Temperature | 1200 °C |
| Temperature Uniformity | ±1 °C |
| Max Power | 2.5 kW |
| Max Heating Rate | 30 °C/min |
| Heating Method | Resistance Wire (0Cr27Al7Mo2 Alloy) |
| Internal Chamber Dimensions | 60 mm (ID) × 400 mm (Heating Zone Length) |
| Effective Tube Volume | ~1.13 L (based on Φ60 mm × 400 mm) |
| Vacuum Capability | –0.1 MPa (absolute) |
| Tilt Angle | 15° |
| Rotation Function | Yes |
| Sealing | Stainless Steel Flange with Quartz Tube |
| Gas Inlet | Equipped with Float Flowmeter |
| Thermal Insulation | Dual-layer Al₂O₃ Polycrystalline Fiber + Ceramic Fiber Blanket |
| Temperature Sensor | S-Type Platinum-Rhodium Thermocouple |
| Controller | LTDE Programmable PID Controller (50-Stage Ramp/Soak) |
| Safety | Dual-Stage Over-Temperature Protection |
| Power Supply | 220 V, 50 Hz |
