| Brand | HEL |
|---|---|
| Origin | United Kingdom |

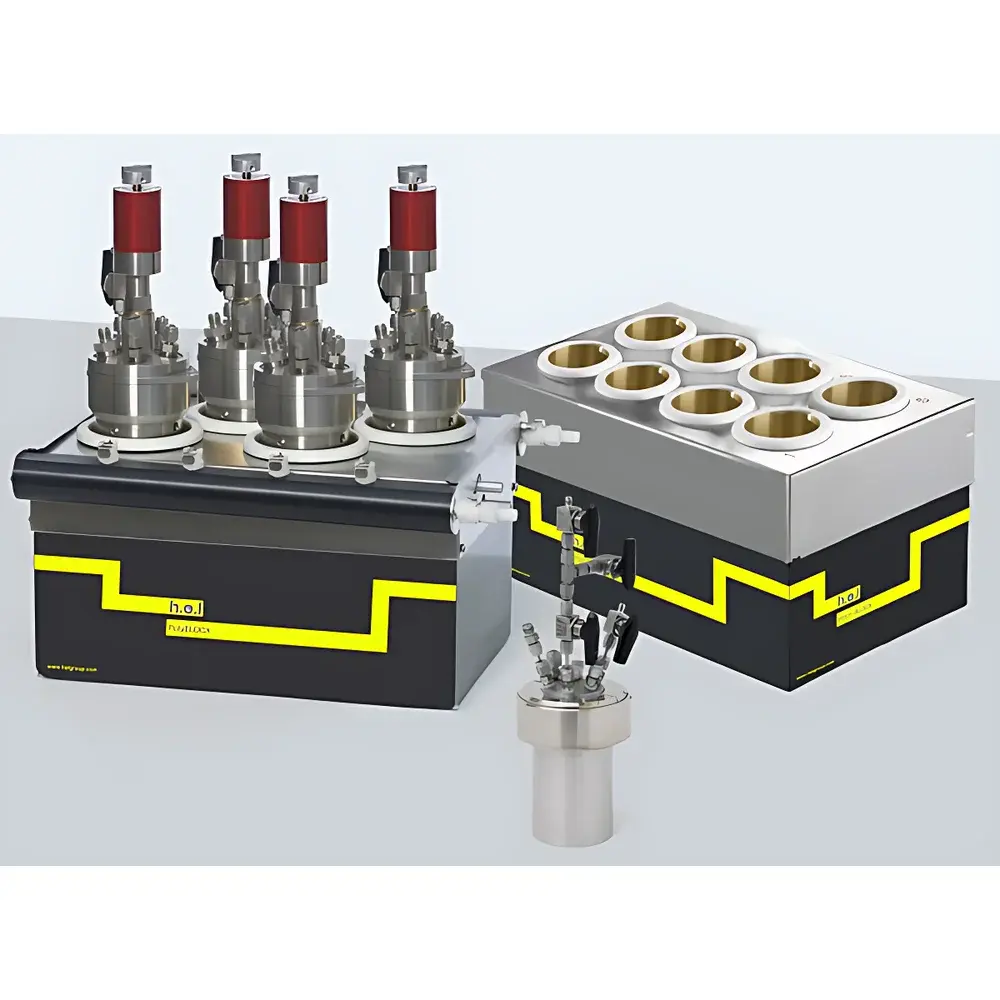

| Model | PolyBLOCK 8 |
| Reactor Type | Modular Parallel Reaction System |
| Number of Independent Zones | 8 |
| Temperature Range | –60 °C to +230 °C (per zone) |
| Max. Inter-Zone ΔT | 100 °C |
| Vessel Compatibility | Standard and custom vessels (1–500 mL) |
| Vessel Diameter Limit | 48 mm |
| Vessel Depth Limit | 58 mm |
| Platform Dimensions | 350 × 200 × 200 mm |
| Stirring | Hovering mechanical stirrer (standard), configurable for heterogeneous systems and crystallization |
| Software | WinISO v7+ (Windows-based, FDA 21 CFR Part 11 compliant audit trail optional) |
| Data Export | Native .csv, .xlsx, and time-stamped binary formats |
| Optional Modules | Automated liquid dosing (multi-channel syringe pumps + multi-port valves), inline calorimetry (reaction heat flow), reflux & inert gas manifolds, pH/turbidity/pressure sensor integration |
| Brand | HEL |
|---|---|
| Origin | United Kingdom |
| Model | BioVIS |
| Construction Material | Stainless Steel (316L) |
| Maximum Working Pressure | 0.1 MPa (gauge) |
| Vacuum Range | 0–1 MPa (absolute) |
| Compatible Vessel Capacity | Up to 5 L |
| Sterilization | Autoclavable (121 °C, 20 min, steam) |
| Probe Length Options | Standard 100 mm, 150 mm, 200 mm, or custom-engineered lengths |
| Measurement Principle | In-situ optical backscatter at multiple wavelengths (650 nm & 850 nm) with temperature-compensated signal processing |
| Output Interface | 4–20 mA analog + RS-485 Modbus RTU |
| IP Rating | IP68 |
| Compliance | CE-marked, RoHS-compliant, compatible with ISO 13485 and FDA 21 CFR Part 11–enabled SCADA/HMI systems |
| Brand | HEL (UK) |
|---|---|
| Origin | United Kingdom |
| Model | ChemSCAN & ChemSCAN Custom |
| Operating Pressure | 200 bar |
| Operating Temperature | −60 °C to 200 °C |
| Catalyst Bed Volume | 120 mL |
| Reactor Configuration | 8 independently controlled parallel reactors |
| Standard Vessel Capacity | 16 mL |
| Optional Vessel Capacities | 25 mL, 50 mL, 75 mL, 120 mL, 160 mL, 300 mL, 400 mL |
| Stirring Options | Magnetic suspension stirring, overhead mechanical stirring (optional), stir-controlled per reactor |
| Gas Consumption Monitoring | Real-time, reactor-specific calculation |
| Liquid Dosing | Optional automated high-pressure liquid injection |
| Compliance | Designed for GLP/GMP-aligned R&D environments |
| Brand | HEL |
|---|---|
| Origin | United Kingdom |
| Model | BioXplorer Modular Automated Benchtop Bioreactor Platform |
| Vessel Material | Borosilicate Glass |
| Working Pressure | Low-Pressure (0–1 MPa vacuum range) |
| Nominal Volume | 5 L |
| Configuration | Modular, Supports 1–4 Parallel Vessels |
| Temperature Range | 25–60 °C |
| Agitation | Magnetic Stirring (200–1200 rpm) or Top-Drive Mechanical Stirring (50–1500 rpm) |
| pH & Redox Monitoring | Integrated |
| Optional Features | In-situ Turbidity Detection, Reaction Calorimetry, Spectral Product Tracking, Computer-Controlled Circulating Chiller |
| Brand | HEL (UK) |
|---|---|
| Origin | United Kingdom |
| Model | CAT 7 / CAT 18 / CAT 24 |
| Max. Operating Pressure | 100 bar |
| Max. Operating Temperature | 300 °C |
| Catalyst Bed Volume | 10 mL |
| Vessel Material | 316 Stainless Steel or Hastelloy® Alloy |
| Sample Capacity Options | 2–10 mL per vessel |
| Heating Method | External (hotplate, oil bath, or PolyBlock™ heater block) |
| Stirring | Magnetic stirring integrated |
| Temperature Monitoring | Integrated micro thermocouple |
| Cooling Option | Finger-type condenser (CAT 7 & CAT 24 only) |
| HPLC Vial Compatibility | 2 mL vials (CAT 18 only) |
| Purge & Pressurization | Manual valve-controlled inert gas purge and reactant gas pressurization (e.g., H₂) |
| Brand | HEL (UK) |
|---|---|
| Origin | United Kingdom |
| Model | CrystalSCAN & CrystalSCAN Custom |
| Reactor Type | Parallel Batch Crystallization Reactor |
| Construction Material | Stainless Steel (316 SS) |
| Operating Pressure | Up to 20 bar (High-Pressure Capable) |
| Working Volume Range | 2–500 mL |
| Temperature Range | –80 °C to +250 °C |
| Number of Independent Reaction Zones | 4 or 8 |
| Stirring Method | Suspended Mechanical Impeller (configurable) / Magnetic Stirring (for small vials) |
| Max. Viscosity Handling | 1000 cP |
| Compliance | Designed for GLP/GMP-aligned process development environments |
| Software Control | Integrated PC-based control with real-time data logging and audit trail capability |
| Brand | HEL |
|---|---|
| Origin | UK |
| Model | DigiCAT 96 |
| Max. Reaction Pressure | 100 bar |
| Max. Reaction Temperature | 200 °C |
| Catalyst Loading Volume | 1 mL per vial |
| Throughput | 96 parallel reactors |
| Heating Block Material | Aluminum |
| Stirring | Synchronized magnetic stirring per vial |
| Safety Valve Setpoint | ~35 bar (standard configuration) |
| Dimensions (W×D×H) | 350 × 300 × 400 mm |
| Pressure Vessel Dimensions | 125 × 85 × 60 mm |
| Control Interface | PC-connected software with real-time monitoring and automated sequence programming |
| Actuation | Solenoid feed & vent valves |
| Temperature Control | PID-regulated, sensor-integrated aluminum heating block |
| Compliance | Designed to meet CE marking requirements for laboratory pressure equipment (PED 2014/68/EU applicable to < 200 bar systems under Category I) |
| Brand | HEL (UK) |
|---|---|
| Origin | United Kingdom |
| Model | Tandem PRO |
| Construction Material | Stainless Steel |
| Operating Pressure | Low-Pressure System |
| Vessel Capacity | 5 L |
| Vacuum Range | 0–1 MPa |
| Gas Measurement | CO₂ (IR Absorption), O₂ (Electrochemical Sensor) |
| CO₂ Range Options | 5%, 10%, 20%, 50%, 60%, 100% |
| O₂ Range Options | 25%, 30%, 50%, 60%, 100% |
| Resolution | 0.01% (both gases) |
| Accuracy | ±2% of Full Scale |
| Drift | <0.05% FS/month |
| Response Time (T90) | <50 s (CO₂), <10 s (O₂) |
| Flow Rate | 25–1000 mL/min |
| Operating Temperature | 0–45 °C |
| Temperature Compensation | Integrated |
| Local Display | Yes |
| Calibration | Manual & Auto |
| Internal Sample Pump | Yes |
| Analog Outputs | Dual 0–10 V and 4–20 mA |
| Digital Interface | RS232 |
| Compatibility | Scalable from lab-scale (250 mL) to industrial bioreactors (up to 100 m³) |
| Brand | HEL |
|---|---|
| Origin | United Kingdom |
| Manufacturer Type | Authorized Distributor |
| Origin Category | Imported |
| Model | BioXplorer 5000 |
| Reactor Type | Jacketed Glass Vessel |
| Working Volume | 5 L |
| Operating Pressure | Low-Pressure (0–1 MPa Vacuum Range) |
| Construction Material | Borosilicate Glass (DIN/ISO Compliant) |
| Temperature Range | 25–60 °C |
| Agitation | Electromagnetic (200–1200 rpm) or Top-Drive Mechanical (50–1500 rpm) |
| pH & Redox Monitoring | Integrated In-Line Sensors |
| Sterilization Compatibility | Autoclavable Sensors & Vessels |
| Parallel Operation Capacity | Up to 4 × 5 L Vessels |
| Control Architecture | Fully Independent Channel Management |
| Software Modules | Entry-Level Simulation, Programmable Multi-Step Sequencing, Full Logic-Based Execution |
| Brand | HEL |
|---|---|
| Origin | United Kingdom |
| Model | PolyBLOCK 4 |
| Reactor Type | Modular Parallel Reaction System |
| Number of Independent Reaction Zones | 4 |
| Temperature Range | –60 °C to +230 °C (per zone) |
| Max. Temperature Differential Between Zones | 100 °C |
| Vessel Capacity | 1 mL to 500 mL (standard), up to 1000 mL (with optional adapters) |
| Construction Material | Stainless Steel (316 SS) |
| Pressure Rating | High-Pressure Compatible (up to 100 bar, dependent on vessel configuration) |
| Stirring | Hovering Mechanical Stirring (standard), with torque and speed monitoring |
| Dimensions (Platform) | 350 × 200 × 200 mm |
| Software | WinISO v8.x (Windows-based, FDA 21 CFR Part 11 compliant audit trail option) |
| Brand | HEL (UK) |
|---|---|
| Origin | United Kingdom |
| Model | AutoMATE High Pressure & AutoMATE Custom |
| Reactor Type | Tubular & Batch Reactor |
| Working Volume | 10–1000 mL |
| Operating Pressure | 0–10 MPa (0–100 bar, configurable up to 200 bar) |
| Temperature Range | −80 °C to 250 °C (oil bath), up to 500 °C with external circulator |
| internal heating | RT to 250 °C |
| Stirring Options | Magnetic, overhead mechanical, or dual-mode |
| Stirring Speed | 0–2000 rpm (magnetic: max torque 800 N·cm |
| overhead | max torque 80 N·cm) |
| Liquid Dosing | HPLC-grade precision pump (0.01–50 mL/min, high-pressure) |
| Gas Dosing | Mass flow controller (MFC), pressure-regulated, or volumetric metering |
| Solid Dosing | Auger feeder (350/500 mL capacity) |
| Interface Ports | Up to 5 per reactor head (customizable) for probes (pH, FTIR, turbidity, particle size), condensers, sampling, and reagent addition |
| Compliance | Designed for GLP/GMP environments |
| Brand | HEL (UK) |
|---|---|
| Origin | United Kingdom |
| Model | AutoLAB & AutoLAB Custom |
| Reactor Volume | 500 mL – 5 L |
| Material | Borosilicate Glass (Pyrex®), Stainless Steel, Corrosion-Resistant Alloys |
| Operating Pressure | Up to 200 bar (customizable) |
| Configuration | 1–8 parallel reactors |
| Modular PAT Integration | Yes |
| Software | WinISO v6.x (FDA 21 CFR Part 11 compliant, audit trail enabled) |
| Temperature Control Range | −80 °C to +250 °C (dependent on jacketed reactor & circulator) |
| Stirring | Independent digital torque-controlled overhead stirring per reactor |
| Automation Level | Fully programmable multi-parameter sequence control (T, P, agitation, dosing, sampling, pH, spectroscopy) |
| Brand | HEL (UK) |
|---|---|
| Origin | United Kingdom |
| Model | AutoMATE 4 |
| Reactor Type | Modular Parallel Reactor System |
| Volume Range | 10–1000 mL |
| Pressure Rating | Up to 200 bar (customizable) |
| Temperature Range | −80 °C to 250 °C |
| Control Precision | ±0.1 °C |
| Stirring Options | Magnetic, Overhead Mechanical, or Dual-mode |
| Liquid Dosing Accuracy | ±0.1% (volumetric), ±0.01 g (gravimetric) |
| Gas Dosing | Mass Flow Controlled |
| Vacuum Capability | Up to 10 MPa (absolute) |
| Construction Materials | 316 stainless steel, Hastelloy®, inert polymer seals, Pyrex® glass vessels |
| Compliance | Designed for GLP/GMP environments |
| Brand | HEL |
|---|---|
| Origin | United Kingdom |
| Model | FlowCAT & FlowCAT Custom |
| Operating Pressure | 200 bar |
| Operating Temperature | 550 °C |
| Catalyst Bed Volume | 30 mL |
| Reactor Materials | 316 Stainless Steel or Hastelloy |
| Standard Reactor Internal Diameter | 6 mm (¼") or 12 mm (½") |
| Active Heating Zone Length | 10 cm |
| Liquid Feed Rate Range | 0.001–10 mL/min or 0.01–50 mL/min |
| Gas Feed Control | Mass Flow Controllers (e.g., H₂) |
| Flow Modes | Trickle-Bed, Bubble-Column, Fixed-Bed Continuous Flow |
| Optional Configurations | Single or Parallel Reactor Systems |
| Compliance | Designed for GLP/GMP-aligned operation with audit-trail-capable software |
| Brand | HEL |
|---|---|
| Origin | UK |
| Model | BioXplorer 5000 High Pressure |
| Reactor Type | Jacketed Glass Vessel |
| Working Volume | 5 L |
| Operating Pressure | Up to 1 MPa (10 bar) |
| Vacuum Range | 0–1 MPa |
| Material | Borosilicate Glass 3.3 |
| Temperature Control Range | 25–60 °C |
| Agitation | Magnetic (200–1200 rpm) or Top-Drive Mechanical (50–1500 rpm) |
| Sensor Compatibility | pH, DO, Redox, Turbidity, Level, Biomass (optical), Gas Flow (MFC), Heat Flow (optional) |
| Compliance | Designed for GLP/GMP-aligned workflows |
| Software | HEL WinISO Control Suite with 21 CFR Part 11–ready audit trail, multi-step protocol editor, real-time data visualization, and remote monitoring |
| Brand | HEL (UK) |
|---|---|
| Origin | United Kingdom |
| Model | Tandem MULTI |
| Construction Material | Stainless Steel |
| Operating Pressure | Low-Pressure System |
| Working Volume | 5 L |
| Vacuum Range | 0–1 MPa |
| CO₂ Measurement Principle | Non-Dispersive Infrared (NDIR) Absorption |
| O₂ Measurement Principle | Electrochemical Sensor |
| CO₂ Range Options | 5%, 10%, 20%, 50%, 60%, 100% |
| O₂ Range Options | 25%, 30%, 50%, 60%, 100% |
| CO₂/O₂ Resolution | 0.01% |
| Accuracy | ±2% of Full Scale |
| Drift | <0.05% FS/month |
| Response Time (T90) | <50 s (CO₂), <10 s (O₂) |
| Sample Flow Rate | 25–1000 mL/min |
| Operating Temperature | 0–45 °C |
| Temperature Compensation | Integrated |
| Output Signals | Dual 0–10 V and 4–20 mA analog outputs |
| Digital Interface | RS232 |
| Internal Sampling Pump | Yes |
| Local Display | Yes |
| Calibration | Manual and Auto-calibration support |
| Channel Capacity | Up to 12 multiplexed gas streams |
| Sampling Interval | User-definable from 30 seconds |
| Compliance | Designed for GLP/GMP-aligned bioprocess environments |
| Software Integration | Compatible with SCADA, DCS, and LabVIEW via RS232 and analog I/O |
| Brand | HEL |
|---|---|
| Origin | United Kingdom |
| Model | DigiCAT |
| Reaction Pressure | 100 bar (max. 200 bar) |
| Reaction Temperature | 200 °C (max. 300 °C) |
| Catalyst Bed Volume | 75 mL |
| Compatible Reactor Formats | CAT-7, CAT-18, CAT-24, and custom vessels (16–75 mL) |
| Control Interface | PC-based software with integrated electromagnetic inlet/outlet valves, real-time T&P monitoring, safety relief valve setpoint: ~35 bar |
| Heating Method | Bottom-mounted aluminum heating block with PID temperature control |
| Stirring Mechanism | Internal magnetic stirrer drive coupled to external motor via high-strength permanent magnet array |
| Brand | HEL |
|---|---|
| Origin | United Kingdom |
| Model | PolyBLOCK High Pressure |
| Reactor Type | Modular Parallel Reaction System |
| Number of Independent Reaction Zones | 4 or 8 |
| Temperature Range | –60 °C to +230 °C (per zone) |
| Max. Inter-Zone ΔT | 100 °C |
| Pressure Rating | High-Pressure Compatible (up to 100 bar, per standard configuration) |
| Vessel Capacity | 1 mL to 500 mL (standard), extendable to 1000 mL with custom vessels |
| Vessel Material | 316 Stainless Steel (standard) |
| Stirring | Magnetic and overhead mechanical stirring (hover-drive, torque-controlled) |
| Control Interface | WinISO v6.x Software (Windows-based, FDA 21 CFR Part 11 compliant audit trail option) |
| Data Output Format | CSV, Excel (.xlsx), XML |
| Compliance | CE, UKCA, ISO 9001-certified manufacturing |
| Module Compatibility | Fully modular—supports liquid dosing, inline calorimetry (RC1e-style), pH/DO/turbidity probes, reflux condensers, inert gas purging, and automated venting |
| Dimensions (4-zone base unit) | 520 × 420 × 310 mm (W × D × H) |
| Brand | HEL (UK) |
|---|---|
| Origin | United Kingdom |

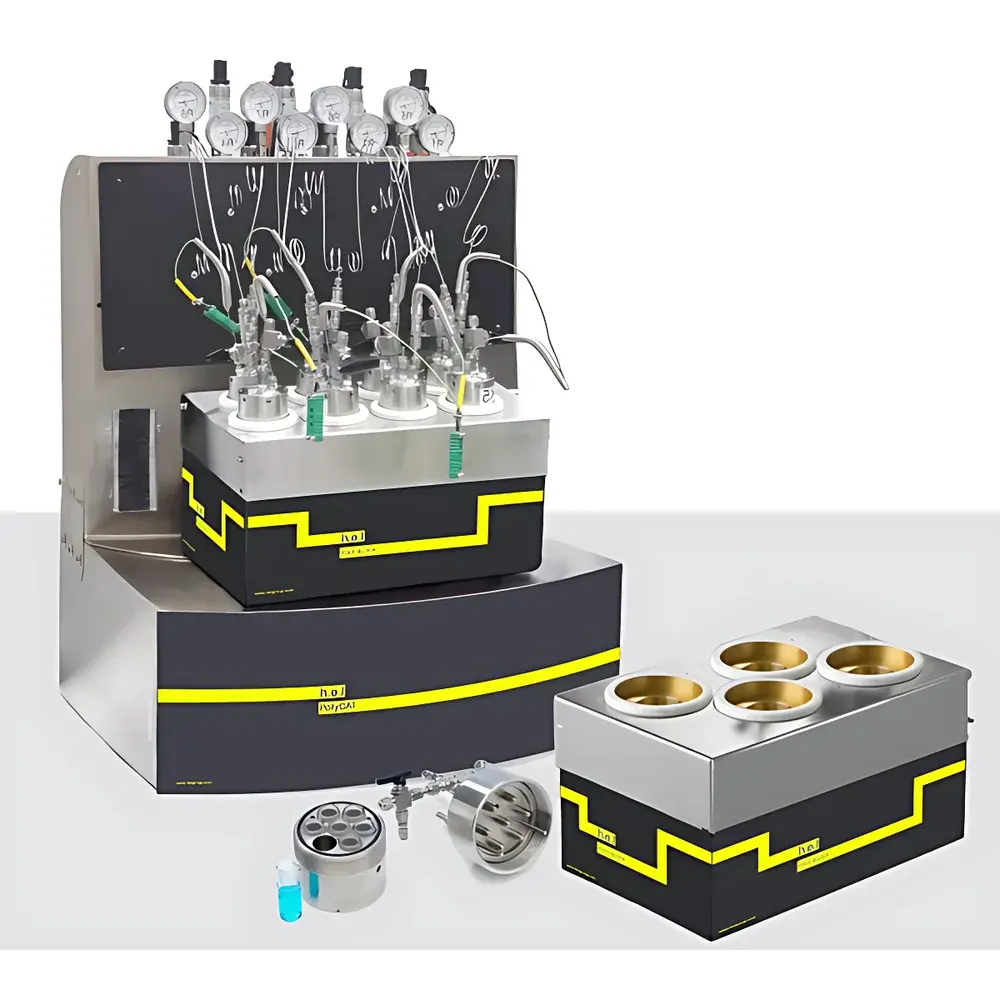

| Model | PolyCAT 4, PolyCAT 8 |
| Maximum Operating Pressure | 200 bar |
| Maximum Operating Temperature | 550 °C |
| Catalyst Bed Volume | 30 mL |
| Reactor Volume | 16 mL (standard) |
| Temperature Control Range | 25–250 °C (inter-reactor ΔT ≤ 100 °C) |
| Liquid Feed Rate | 0.001–10 mL/min or 0.01–50 mL/min |
| Gas Feed | Mass-flow controlled (e.g., H₂), continuously adjustable |
| Configuration Options | 4-channel parallel or 8-channel parallel |
Show next
