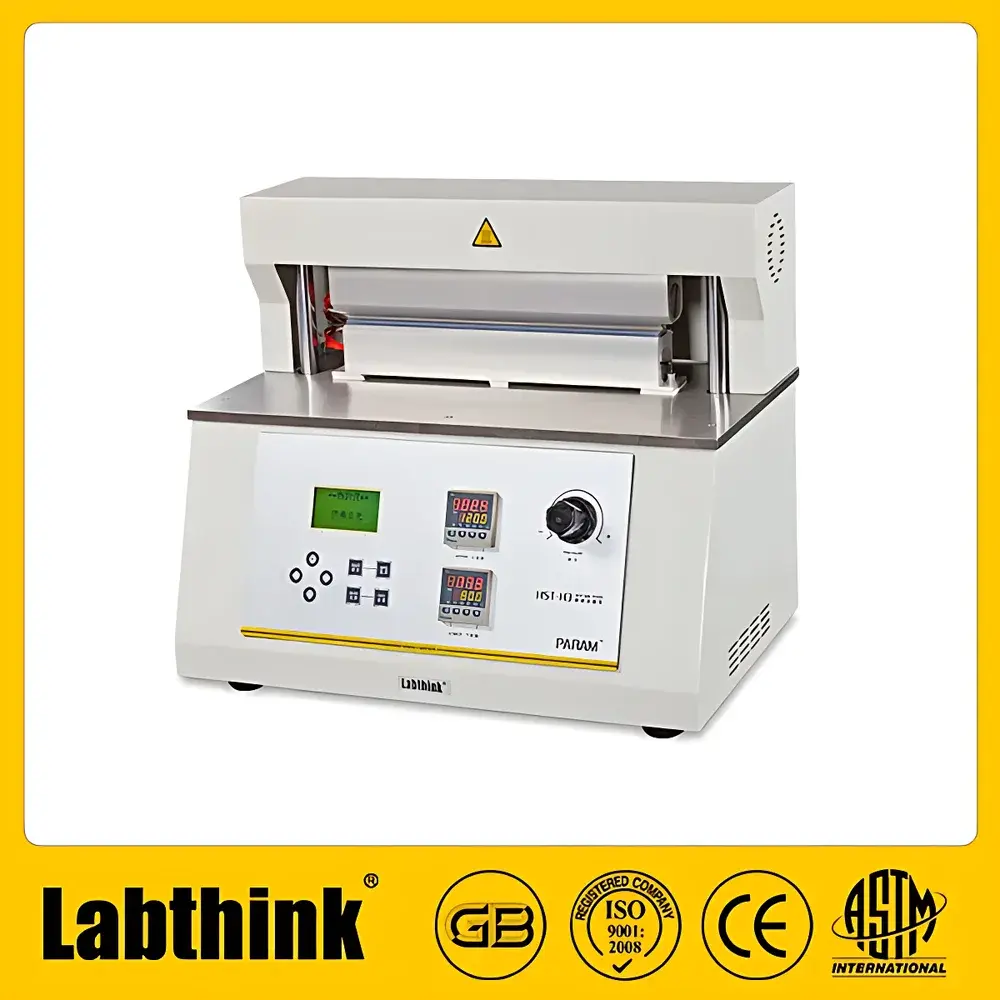

| Brand | Labthink |
|---|---|
| Origin | Shandong, China |
| Manufacturer | Labthink Instruments Co., Ltd. |
| Model | HST-H3 |
| Temperature Range | Ambient to 300 °C |
| Temperature Control Accuracy | ±0.2 °C |
| Sealing Time | 0.1–999.9 s |
| Sealing Pressure | 0.05–0.7 MPa |
| Sealing Surface Dimensions | 330 mm × 10 mm (customizable) |
| Heating Configuration | Independent dual-zone heating (top and bottom jaws) |
| Pneumatic Supply Requirement | 0.5–0.7 MPa (user-supplied air source, Ø6 mm polyurethane tubing) |
| Power Supply | 220 VAC 50 Hz / 120 VAC 60 Hz |
| Net Weight | 43 kg |
| Compliance Standards | QB/T 2358, ASTM F2029, YBB00122003 |
| Brand | Labthink |
|---|---|
| Origin | Shandong, China |
| Manufacturer Type | Direct Manufacturer |
| Region of Origin | Domestic (China) |
| Model | HST-H3 Dual-Head Independent Temperature-Controlled Heat Sealer |
| Price Range | USD 1,400 – 8,500 |
| Heat Seal Temperature Range | Ambient to 300 °C |
| Temperature Control Accuracy | ±0.2 °C |
| Seal Time Range | 0.1–999.9 s |
| Seal Pressure Range | 0.05–0.7 MPa |
| Seal Jaw Dimensions | 330 mm × 10 mm (customizable) |
| Heating Mode | Single or Dual Independent Heating |
| Pneumatic Supply Requirement | 0.5–0.7 MPa |
| Air Inlet Fitting | Φ6 mm Polyurethane Tubing |
| Overall Dimensions | 536 mm (L) × 335 mm (W) × 413 mm (H) |
| Power Supply | AC 220 V, 50 Hz |
| Net Weight | 43 kg |
| Compliance Standards | QB/T 2358, ASTM F2029, YBB00122003 |

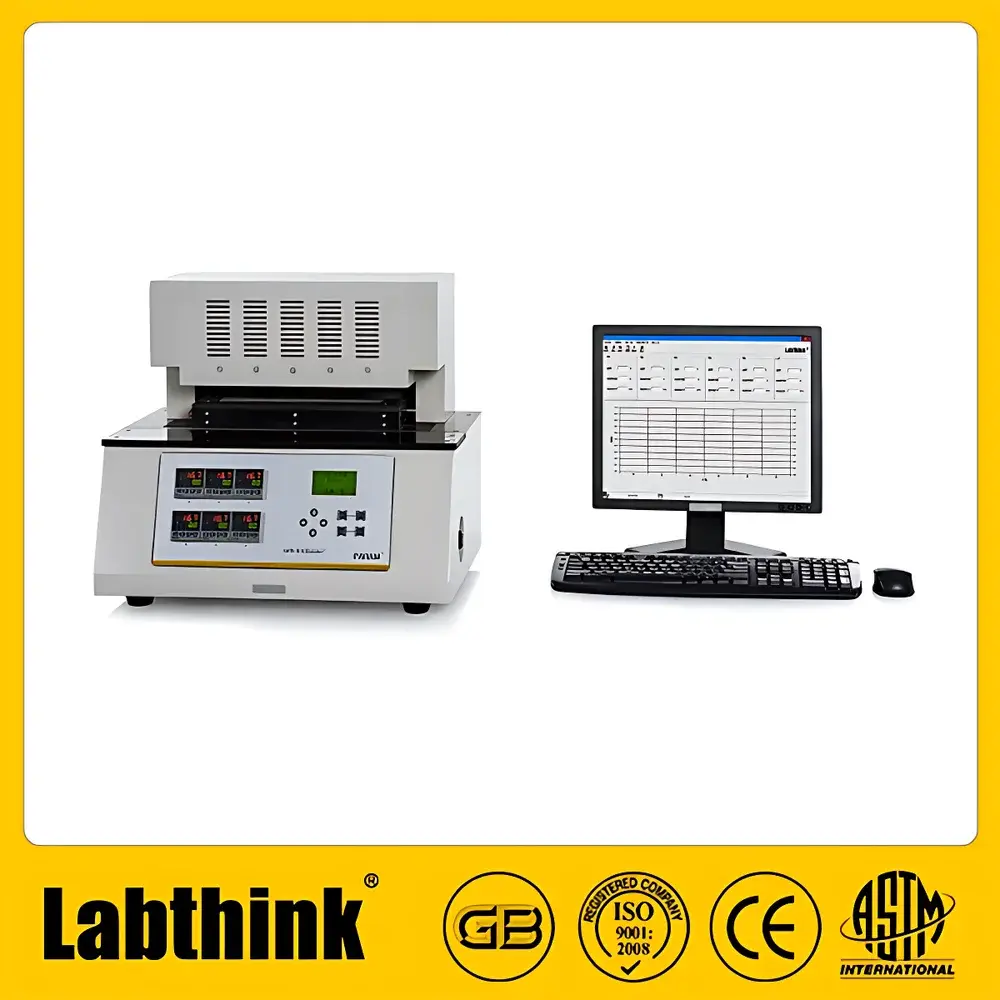

| Brand | Labthink |
|---|---|
| Model | GHS-03 |
| Origin | Shandong, China |
| Manufacturer | Labthink Instruments Co., Ltd. |
| Application | Heat seal parameter optimization for flexible packaging films and laminates |
| Heat Seal Temperature Range | 25–250 °C |
| Temperature Control Accuracy | ±0.2 °C |
| Temperature Gradient Across Five Stations | ≤20 °C |
| Heat Seal Pressure Range | 0.1–0.7 MPa |
| Heat Seal Time Range | 0.1–999.9 s |
| Sealing Surface Dimensions | 40 mm × 10 mm × 5 stations |
| Power Supply | AC 220 V, 50 Hz |
| Net Weight | 72 kg |
| Dimensions (L×W×H) | 576 × 430 × 510 mm |
| Compressed Air Requirement | 0.1–0.7 MPa via Ø8 mm polyurethane tubing (user-supplied) |
| Brand | Labthink |
|---|---|
| Origin | Shandong, China |
| Manufacturer | Jinan Labthink Electromechanical Technology Co., Ltd. |
| Model | C630H |
| Temperature Range | 25–300 °C |
| Sealing Pressure | 0.05–0.70 MPa (Resolution: 0.001 MPa) |
| Sealing Time | 0.10–999.99 s (Resolution: 0.01 s) |
| Temperature Accuracy | ±0.5 °C (single-point calibration) |
| Temperature Uniformity | ≤20 °C across 5 sealing bars |
| Sealing Surface | 40 mm × 10 mm per bar |
| Independent Dual-Zone Heating | 5 upper + 5 lower sealing heads |
| Power Supply | 220 VAC ±10%, 50 Hz or 120 VAC ±10%, 60 Hz |
| Dimensions | 375 × 360 × 518 mm (L×W×H) |
| Weight | 55 kg |
| Compressed Air Requirement | 0.7 MPa, Ø8 mm polyurethane tubing |
| Brand | Labthink |
|---|---|
| Origin | Shandong, China |
| Manufacturer Type | Direct Manufacturer |
| Country of Origin | China |
| Model | HST-H3 |
| Price Range | USD 4,200 – 8,400 |
| Temperature Range | Ambient to 300 °C |
| Temperature Control Accuracy | ±0.2 °C |
| Sealing Time | 0.1–999.9 s |
| Sealing Pressure | 0.05–0.7 MPa |
| Sealing Surface Dimensions | 330 mm × 10 mm (customizable) |
| Heating Configuration | Single- or Dual-Zone Heating |
| Pneumatic Supply | 0.5–0.7 MPa (user-supplied air source, Φ6 mm polyurethane tubing) |
| Power Supply | 220 VAC 50 Hz / 120 VAC 60 Hz |
| Net Weight | 43 kg |
| Dimensions (L×W×H) | 536 × 335 × 413 mm |
| Brand | Labthink |
|---|---|
| Model | C632B |
| Origin | Shandong, China |
| Manufacturer Type | Direct Manufacturer |
| Country of Origin | China |
| Force Sensor Options | 30 N (standard), 50 N / 100 N / 200 N (optional) |
| Force Accuracy | ±1% of reading (10–100% FS), ±0.1% FS (0–10% FS) |
| Force Resolution | 0.01 N |
| Test Speeds | 150 / 200 / 300 / 500 mm/min |
| Hot Tack modes | 1500 / 2000 mm/min |
| Specimen Width | 15 mm / 25 mm / 25.4 mm |
| Stroke | 500 mm |
| Sealing Temperature Range | Ambient to 250 °C |
| Temperature Stability | ±0.2 °C |
| Temperature Accuracy | ±0.5 °C (single-point calibration) |
| Sealing Time | 0.1–999.9 s |
| Hot Tack Time | 0.1–999.9 s |
| Sealing Pressure | 0.05–0.7 MPa |
| Sealing Jaw Dimensions | 100 mm × 5 mm |
| Pneumatic Interface | Φ4 mm polyurethane tubing |
| Required Air Supply | 0.7 MPa (101.5 psi), user-supplied |
| Power | 220 VAC ±10%, 50 Hz / 120 VAC ±10%, 60 Hz |
| Dimensions (L×W×H) | 1120 × 380 × 330 mm |
| Net Weight | 45 kg |
| Compliance | GB/T 34445–2017, ASTM F1921, ASTM F2029, QB/T 2358, YBB 00122003 |
| Brand | Labthink |
|---|---|
| Origin | Shandong, China |
| Manufacturer Type | Manufacturer |
| Regional Category | Domestic |
| Model | C630H |
| Price Range | USD 4,200 – 9,800 |
| Heat Seal Temperature Range | 25–300 °C |
| Heat Seal Pressure Range | 0.05–0.7 MPa |
| Pressure Resolution | 0.001 MPa |
| Seal Time Range | 0.1–999.99 s |
| Time Resolution | 0.01 s |
| Temperature Resolution | 0.1 °C |
| Temperature Stability | ±0.2 °C |
| Temperature Accuracy | ±0.5 °C (single-point calibration) |
| Temperature Gradient Across Heads | ≤20 °C |
| Seal Area per Head | 40 mm × 10 mm |
| Number of Independent Seal Heads | 10 (5 upper + 5 lower, individually temperature-controlled) |
| Power Supply | 220 VAC ±10%, 50 Hz or 120 VAC ±10%, 60 Hz |
| Net Weight | 55 kg |
| Dimensions (L×W×H) | 375 × 360 × 518 mm |
| Air Supply Requirement | 0.7 MPa dry compressed air (user-supplied, Ø8 mm polyurethane tubing) |
| Brand | Labthink |
|---|---|
| Origin | Shandong, China |
| Manufacturer Type | Direct Manufacturer |
| Country of Origin | China |
| Model | GHS-03 |
| Temperature Range | Ambient to 250 °C |
| Sealing Pressure Range | 0.1–0.7 MPa |
| Sealing Time Range | 0.1–999.9 s |
| Temperature Control Accuracy | ±0.2 °C |
| Maximum Temperature Gradient Across Five Zones | ≤20 °C |
| Pneumatic Interface | Ø8 mm polyurethane tubing |
| Sealing Surface Dimensions | 40 mm × 10 mm × 5 zones |
| Power Supply | AC 220 V, 50 Hz |
| Net Weight | 72 kg |
| Dimensions (L×W×H) | 576 × 430 × 510 mm |
| Compliance Standards | QB/T 2358, ASTM F2029, YBB 00122003 |
| Brand | Labthink |
|---|---|
| Origin | Shandong, China |
| Manufacturer | Jinan Labthink Electromechanical Technology Co., Ltd. |
| Model | PARAM Boyou HST-H3 |
| Thermal Sealing Temperature Range | Ambient to 300 °C |
| Temperature Control Accuracy | ±0.2 °C |
| Sealing Time Range | 0.1–999.9 s |
| Sealing Pressure Range | 0.05–0.7 MPa |
| Sealing Jaw Dimensions | 330 mm × 10 mm (customizable) |
| Heating Mode | Single or Dual Heating |
| Pneumatic Supply Requirement | 0.5–0.7 MPa (user-supplied) |
| Air Inlet Fitting | Φ6 mm polyurethane tubing |
| Power Supply | 220 VAC 50 Hz / 120 VAC 60 Hz |
| Net Weight | 43 kg |
| Dimensions (L×W×H) | 536 × 335 × 413 mm |
| Brand | Labthink |
|---|---|
| Origin | Shandong, China |
| Manufacturer Type | Direct Manufacturer |
| Regional Classification | Domestic (China) |
| Model | XLW Tensile Tester |
| Price Range | USD 4,200 – 8,400 |
| Load Capacity Options | 100 N / 200 N / 500 N |
| Accuracy Class | Class 1 |
| Test Speeds | 50–500 mm/min (7 discrete settings) |
| Standard Jaw Width | 30 mm |
| Optional Jaw Width | 50 mm |
| Maximum Travel | 600 mm |
| Dimensions (L×W×H) | 450 × 450 × 980 mm |
| Compliance Standards | YBB00152002, GB 13022, GB 8808, GB 1040, ASTM F88, ASTM F904, ISO 37, JIS P8113, QB/T 2358 |
| Brand | Labthink |
|---|---|
| Model | XLW |
| Type | Heat Seal Strength Tester / Universal Tensile & Peel Tester |
| Capacity Options | 100 N, 200 N, 500 N |
| Accuracy Class | Class 1 (per ISO 7500-1) |
| Test Speeds | 50–500 mm/min (7 discrete settings) |
| Standard Jaw Width | 30 mm |
| Optional Jaw Width | 50 mm |
| Maximum Travel | 600 mm |
| Power Supply | AC 220 V, 50 Hz |
| Net Weight | 65 kg |
| Dimensions (L×W×H) | 450 × 450 × 980 mm |
| Compliance | ASTM F88, ASTM F904, ISO 37, GB/T 2792, GB/T 8808, QB/T 2358, and 15+ additional international and national standards |
| Brand | Labthink |
|---|---|
| Model | C630H |
| Origin | Shandong, China |
| Manufacturer Type | Direct Manufacturer |
| Country of Origin | China |
| Temperature Range | 25–300 °C |
| Sealing Pressure Range | 0.05–0.7 MPa |
| Pressure Resolution | 0.001 MPa |
| Sealing Time Range | 0.1–999.99 s |
| Time Resolution | 0.01 s |
| Temperature Resolution | 0.1 °C |
| Temperature Stability | ±0.2 °C |
| Temperature Accuracy | ±0.5 °C (single-point calibration) |
| Temperature Gradient Across Sealing Heads | ≤20 °C |
| Sealing Surface Dimensions | 40 mm × 10 mm |
| Number of Independent Sealing Heads | 10 (5 upper + 5 lower, each individually temperature-controlled) |
| Power Supply | 220 VAC ±10%, 50 Hz or 120 VAC ±10%, 60 Hz |
| Net Weight | 55 kg |
| Overall Dimensions | 375 mm (L) × 360 mm (W) × 518 mm (H) |
| Air Source Interface | Ø8 mm polyurethane tubing |
| Required External Air Supply | 0.7 MPa clean, dry compressed air |
| Brand | Labthink |
|---|---|
| Origin | Shandong, China |
| Manufacturer Type | Manufacturer |
| Country of Origin | China |
| Model | HTT-L1 |
| Price Range | USD 7,000 – 14,000 |
| Heat Seal Temperature Range | 20–250 °C |
| Temperature Control Accuracy | ±0.2 °C |
| Heat Seal Time | 0.1–999.9 s |
| Hot Tack Time | 0.1–999.9 s |
| Seal Pressure | 0.05–0.7 MPa |
| Seal Jaw Dimensions | 100 mm × 5 mm |
| Load Capacity Options | 30 N / 50 N / 100 N / 200 N |
| Force Resolution | 0.01 N |
| Force Accuracy | Class 1 |
| Test Speed Options | 100 / 150 / 200 / 300 / 500 mm/min (plus hot tack mode) |
| Specimen Width Options | 15 mm / 25 mm / 25.4 mm |
| Stroke | 500 mm |
| Power Supply | AC 220 V, 50 Hz |
| Net Weight | 45 kg |
| Dimensions (L×W×H) | 1170 mm × 360 mm × 460 mm |
| Pneumatic Interface | Φ6 mm polyurethane tubing |
| Air Supply Requirement | 0.5–0.7 MPa (user-provided) |
| Brand | Labthink |
|---|---|
| Model | GHS-03 |
| Origin | Shandong, China |
| Manufacturer Type | Direct Manufacturer |
| Country of Origin | China |
| Heat Seal Temperature Range | 25–250 °C |
| Heat Seal Pressure Range | 0.1–0.7 MPa |
| Seal Time Range | 0.1–999.9 s |
| Temperature Control Accuracy | ±0.2 °C |
| Temperature Uniformity (Gradient) | ≤20 °C across sealing surface |
| Sealing Surface Dimensions | 40 mm × 10 mm × 5 independent heads |
| Pneumatic Interface | Ø8 mm polyurethane tubing |
| Required Air Supply | 0.1–0.7 MPa (user-supplied) |
| Power Supply | AC 220 V, 50 Hz |
| Net Weight | 72 kg |
| Dimensions (L×W×H) | 576 × 430 × 510 mm |
| Brand | Labthink |
|---|---|
| Model | C632B |
| Application | Heat seal strength, hot tack strength, peel strength, tensile strength testing of flexible packaging materials |
| Standards Compliance | GB/T 34445-2017, ASTM F1921, ASTM F2029, QB/T 2358, YBB 00122003 |
| Temperature Range | Ambient to 250 °C |
| Temp. Accuracy | ±0.5 °C (single-point calibration) |
| Temp. Stability | ±0.2 °C |
| Seal Time | 0.1–999.9 s |
| Hot Tack Time | 0.1–999.9 s |
| Seal Pressure | 0.05–0.7 MPa |
| Seal Area | 100 mm × 5 mm |
| Force Sensor Options | 30 N (standard), 50/100/200 N (optional) |
| Force Accuracy | ±1% of reading (10–100% FS), ±0.1% FS (0–10% FS) |
| Force Resolution | 0.01 N |
| Test Speeds | 150, 200, 300, 500, 1500, 2000 mm/min |
| Sample Width | 15 mm, 25 mm, or 25.4 mm |
| Stroke | 500 mm |
| Power Supply | 220 VAC ±10% 50 Hz / 120 VAC ±10% 60 Hz |
| Dimensions | 1120 × 380 × 330 mm (L×W×H) |
| Net Weight | 45 kg |
| Pneumatic Interface | Φ4 mm polyurethane tubing |
| Required Air Supply | 0.7 MPa (user-provided) |
| Brand | Labthink |
|---|---|
| Origin | Shandong, China |
| Manufacturer Type | Direct Manufacturer |
| Country of Origin | China |
| Model | PARAM HST-H3 |
| Price Range | USD 4,200 – 7,000 |
| Thermal Sealing Temperature Range | Ambient to 300 °C |
| Temperature Control Accuracy | ±0.2 °C |
| Sealing Time Range | 0.1–999.9 s |
| Sealing Pressure Range | 0.05–0.7 MPa |
| Sealing Jaw Dimensions | 330 mm × 10 mm (customizable) |
| Heating Mode | Single- or Dual-Side Heating |
| Pneumatic Supply Requirement | 0.5–0.7 MPa (user-supplied) |
| Air Inlet Fitting | Φ6 mm Polyurethane Tubing |
| Overall Dimensions | 536 mm (L) × 335 mm (W) × 413 mm (H) |
| Power Supply | AC 220 V, 50 Hz |
| Net Weight | 43 kg |
| Brand | Labthink |
|---|---|
| Origin | Shandong, China |
| Manufacturer Type | Direct Manufacturer |
| Product Category | Domestic |
| Model | HST-H3 Soft Tube Tail Heat Sealing Tester |
| Price Range | USD 4,200 – 8,400 |
| Heat Seal Temperature Range | Ambient to 300 °C |
| Temperature Control Accuracy | ±0.2 °C |
| Seal Time Range | 0.1–999.9 s |
| Seal Pressure Range | 0.05–0.7 MPa |
| Seal Area Dimensions | 330 mm × 10 mm (customizable) |
| Heating Mode | Single- or Dual-Zone Heating |
| Compliance Standards | QB/T 2358 (ZBY 28004), ASTM F2029, YBB 00122003 |
| Brand | Labthink |
|---|---|
| Model | HST-H3 |
| Origin | Shandong, China |
| Manufacturer | Jinan Labthink Electromechanical Technology Co., Ltd. |
| Temperature Range | Ambient to 300 °C |
| Temperature Control Accuracy | ±0.2 °C |
| Sealing Time Range | 0.1–999.9 s |
| Sealing Pressure Range | 0.05–0.7 MPa |
| Sealing Surface Dimensions | 330 mm × 10 mm (customizable) |
| Heating Configuration | Single- or Dual-Zone Independent Heating |
| Pneumatic Interface | Ø6 mm polyurethane tubing (air supply not included) |
| Power Supply | 220 VAC 50 Hz / 120 VAC 60 Hz |
| Net Weight | 43 kg |
| Compliance | QB/T 2358, ASTM F2029, YBB00122003 |
| Brand | Labthink |
|---|---|
| Model | HST-H3 |
| Origin | Shandong, China |
| Manufacturer Type | Direct Manufacturer |
| Country of Origin | China |
| Temperature Range | Ambient to 300 °C |
| Temperature Control Accuracy | ±0.2 °C |
| Sealing Time Range | 0.1–999.9 s |
| Sealing Pressure Range | 0.05–0.7 MPa |
| Sealing Surface Dimensions | 330 mm × 10 mm (customizable) |
| Heating Configuration | Single- or Dual-Zone Independent Heating |
| Pneumatic Supply Requirement | 0.5–0.7 MPa (user-supplied air source, Φ6 mm polyurethane tubing) |
| Power Supply | 220 VAC 50 Hz / 120 VAC 60 Hz |
| Net Weight | 43 kg |
| Dimensions (L×W×H) | 536 × 335 × 413 mm |
| Compliance Standards | QB/T 2358, ASTM F2029, YBB00122003 |
| Brand | Labthink |
|---|---|
| Model | C630H |
| Origin | Shandong, China |
| Manufacturer Type | Direct Manufacturer |
| Country of Origin | China |
| Price Range | USD 4,200 – 9,800 (FOB) |
| Heat Seal Temperature Range | Ambient to 300 °C |
| Heat Seal Pressure Range | 0.05–0.7 MPa (Resolution: 0.001 MPa) |
| Seal Time Range | 0.1–999.99 s (Resolution: 0.01 s) |
| Temperature Resolution | 0.1 °C |
| Temperature Stability | ±0.2 °C |
| Temperature Accuracy | ±0.5 °C (single-point calibration) |
| Temperature Gradient Across Seal Heads | ≤20 °C |
| Seal Face Dimensions | 40 mm × 10 mm |
| Number of Independent Seal Heads | 10 (5 upper + 5 lower, each individually temperature-controlled) |
| Power Supply | 220 VAC ±10%, 50 Hz or 120 VAC ±10%, 60 Hz (user-selectable) |
| Weight | 55 kg |
| Overall Dimensions | 375 mm (L) × 360 mm (W) × 518 mm (H) |
| Pneumatic Interface | Ø8 mm polyurethane tubing |
| Required Air Supply | Clean, dry compressed air at 0.7 MPa (user-supplied) |
| Brand | Labthink |
|---|---|
| Origin | Shandong, China |
| Manufacturer Type | Direct Manufacturer |
| Country of Origin | China |
| Model | C630H |
| Price Range | USD 4,200 – 11,200 (FOB Qingdao) |
| Heat Seal Temperature Range | 25–300 °C |
| Heat Seal Pressure Range | 0.05–0.7 MPa (Resolution: 0.001 MPa) |
| Seal Time Range | 0.10–999.99 s (Resolution: 0.01 s) |
| Temperature Accuracy | ±0.5 °C (single-point calibration) |
| Temperature Uniformity | ≤20 °C across sealing surface |
| Temperature Stability | ±0.2 °C |
| Sealing Surface Dimensions | 40 mm × 10 mm per head |
| Number of Independent Sealing Heads | 10 (5 upper + 5 lower, each individually PID-controlled) |
| Power Supply | 220 VAC ±10%, 50 Hz or 120 VAC ±10%, 60 Hz (user-selectable) |
| Net Weight | 55 kg |
| Dimensions (L×W×H) | 375 × 360 × 518 mm |
| Air Supply Requirement | 0.7 MPa clean, dry compressed air (user-supplied, Ø8 mm polyurethane tubing) |
| Brand | Labthink |
|---|---|
| Origin | Shandong, China |
| Manufacturer | Jinan Labthink Electromechanical Technology Co., Ltd. |
| Model | HST-H3 |
| Temperature Range | Ambient to 300 °C |
| Temperature Control Accuracy | ±0.2 °C |
| Sealing Time | 0.1–999.9 s |
| Sealing Pressure | 0.05–0.7 MPa |
| Sealing Surface Dimensions | 330 mm × 10 mm (customizable) |
| Heating Configuration | Single- or Dual-Zone Independent Heating |
| Pneumatic Interface | Ø6 mm polyurethane tubing |
| Power Supply | AC 220 V, 50 Hz |
| Net Weight | 43 kg |
| Compliance Standards | QB/T 2358, ASTM F2029, YBB00122003 |
| Brand | Labthink |
|---|---|
| Origin | Shandong, China |
| Manufacturer Type | OEM Manufacturer |
| Region Classification | Domestic (China) |
| Model | C632M Hot Tack Tester |
| Price Range | USD 4,200 – 9,800 |
| Pressure Range | 0.05–0.7 MPa |
| Pressure Resolution | 0.001 MPa |
| Temperature Range | Ambient to 250 °C |
| Temperature Stability | ±0.2 °C |
| Force Sensor Capacity | 50 N |
| Force Accuracy | Class 0.5 |
| Force Resolution | 0.001 N |
| Seal Time Range | 0.1–999.9 s |
| Delay Time Range | 0.01–999.99 s |
| Test Speed | 1500, 2000–12000 mm/min |
| Seal Head Dimensions | 100 mm × 10 mm |
| Sample Width Options | 15 mm / 25 mm / 25.4 mm |
| Jaw Spacing | 350 mm |
| Air Supply Requirement | Dry compressed air, 0.7 MPa (101.5 PSI), Φ6 mm PU tubing |
| Power Input | 120 VAC ±10% 60 Hz or 220 VAC ±10% 50 Hz |
| Net Weight | 60 kg |
| Dimensions (H×W×D) | 81 cm × 43 cm × 48 cm |
| Compliance Standards | ASTM F1921, GB/T 34445 |
| Brand | Labthink |
|---|---|
| Origin | Shandong, China |
| Manufacturer Type | Direct Manufacturer |
| Country of Origin | China |
| Model | GHS-03 Multi-Head Heat Sealer |
| Price Range | USD 4,200 – 8,500 |
| Heat Seal Temperature Range | 20–250 °C |
| Heat Seal Pressure Range | 0.1–0.7 MPa |
| Seal Time Range | 0.1–999.9 s |
| Temperature Control Accuracy | ±0.2 °C |
| Temperature Gradient Across Heads | ≤20 °C |
| Pneumatic Interface | Ø8 mm polyurethane tubing |
| Seal Area per Head | 40 mm × 10 mm (5 heads) |
| Dimensions (L×W×H) | 576 × 430 × 510 mm |
| Weight | 72 kg |
| Power Supply | AC 220 V, 50 Hz |
| Compliance Standards | QB/T 2358, ASTM F2029, YBB 00122003 |
Show next
