| Brand | PULUODY |
|---|---|

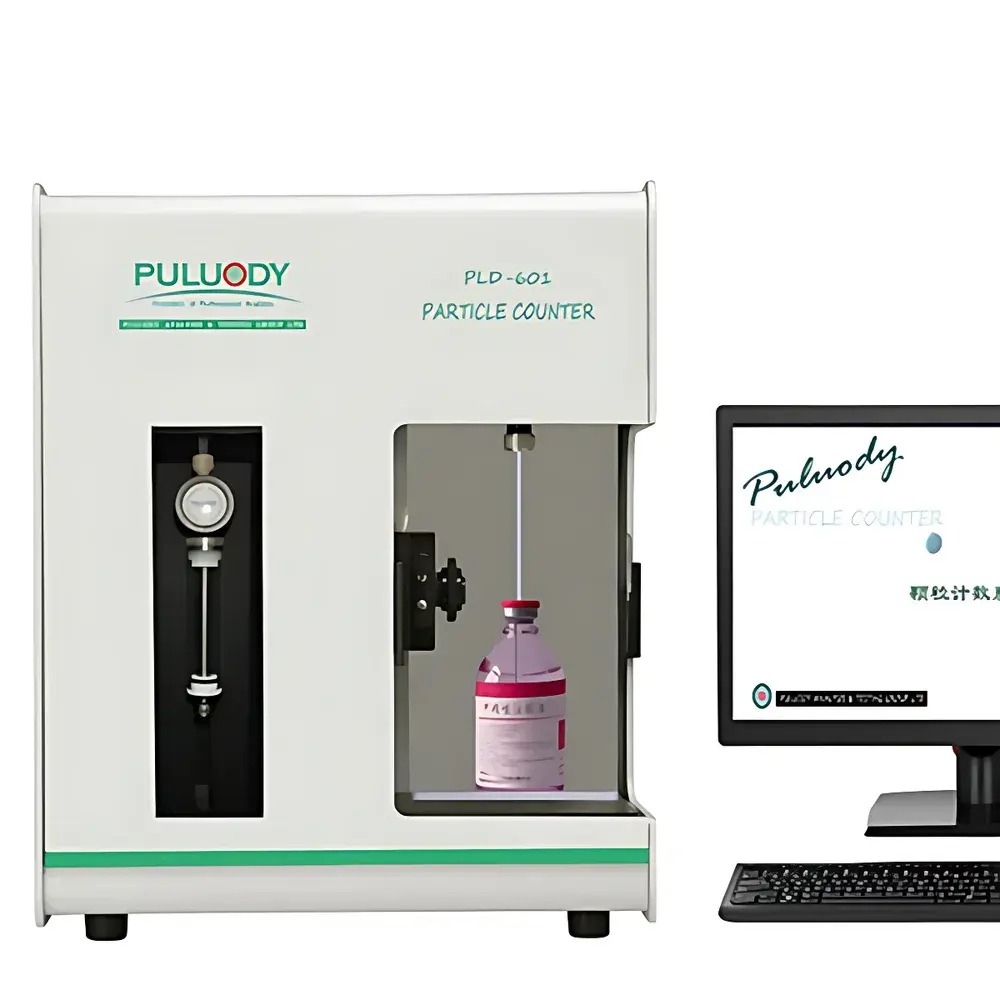

| Model | PLD-601jc |
| Origin | Shaanxi, China |
| Sensor Technology | 8th-generation dual-laser narrow-beam particle detection |
| Flow Control | Precision metering piston pump + ultra-precise electromagnetic flow control |
| Detection Range | 1–450 µm (optional: 0.03–3000 µm) |
| Resolution | 1000 user-definable channels down to 0.01 µm |
| Accuracy | ±5% typical (per ChP 2015/2020) |
| Counting Threshold | Customizable channel thresholds from 1–100 µm or 4–70 µm (c), including 0.1 µm (c) mode |
| Sample Flow Rate | 5–150 mL/min |
| Rinse Flow Rate | 5–500 mL/min |
| Fluid Temperature Range | 0–80 °C |
| Ambient Operating Temperature | 0–50 °C |
| Compliance | FDA 21 CFR Part 11 (audit trail, electronic signature, role-based 5-level access), GLP/GMP-ready |
| Calibration Standards | JJG1061, ISO 21501, NIST-traceable latex spheres |
| Software | PULUODY V8.9 Analysis Suite (PC & embedded touchscreen) |
| Regulatory Alignment | USP <788>, <789>, <797> |
| Brand | PULUODY |
|---|---|

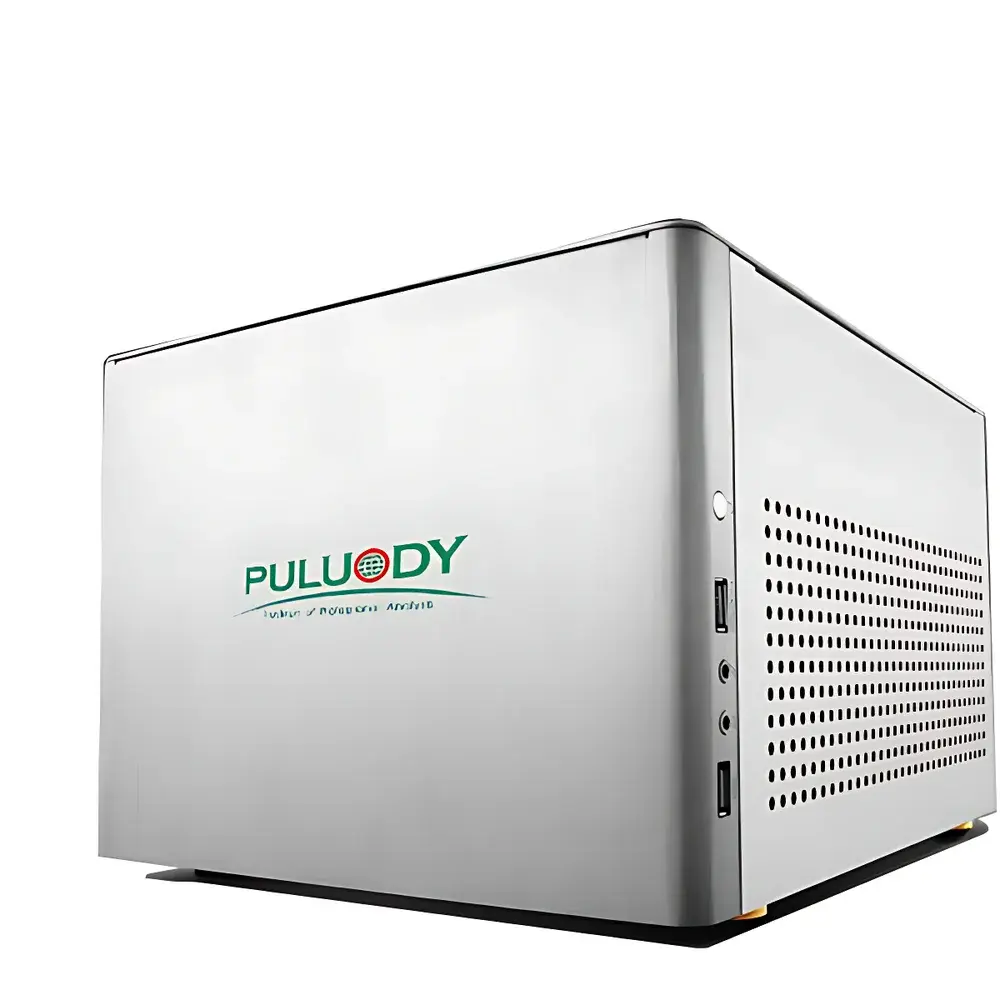

| Model | PMT-2DC |
| Detection Principle | Dual-laser narrow-beam light scattering |
| Detection Range | 0.5–20.0 µm (standard), customizable 1–100 µm or 4–70 µm(c), down to 0.1 µm(c) |
| Sample Flow Control | Precision piston pump + electromagnetic flow regulation |
| Accuracy | ±3% typical |
| Sampling Precision | <±1% |
| Coincidence Limit | ≤2.5% error at 1000 particles/mL |
| Calibration Standards | JJG 1061, ISO 21501-4, NIST-traceable latex spheres |
| Output | 4–20 mA analog signal,超标 alarm (customizable) |
| Data Interface | iPad-compatible acquisition system |
| Software | V8.3 Integrated Analysis & Calibration Software (PC version) |
| Compliance | Designed for ISO 14644-1 cleanroom monitoring, USP <788> / <789>, ASTM F3231, and GLP/GMP-relevant audit trails |
| Power Input | 100–265 VAC, 50–60 Hz |
| Display | Color LCD touchscreen + optional wireless keyboard/mouse |
