| Brand | PULUODY |
|---|---|
| Origin | Shaanxi, China |
| Manufacturer Type | Authorized Distributor |
| Country of Origin | China |

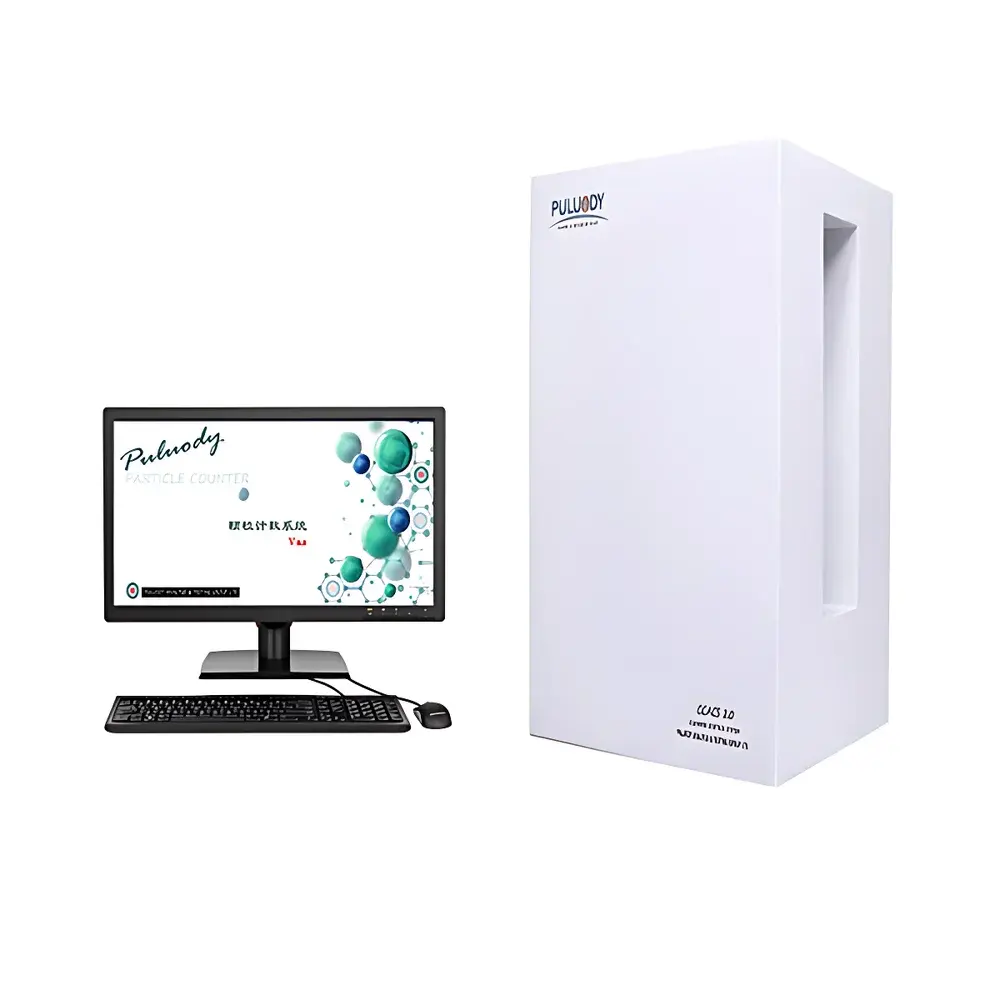

| Model | PSD-250C |
| Price | USD 1,700 (est.) |
| Particle Detection Range | 0.05–10 µm |
| Sample Throughput Capacity | 1,000 configurable size channels |
| Flow Rate | 5–1500 mL/min |
| Flow Accuracy | < ±1% |
| Sample Volume Handling | 100 mL – 100 L |
| Viscosity Range | 0–99 cSt (offline), up to 500 cSt (pressurized) |
| Fluid Temperature Range | 0–80 °C |
| Ambient Operating Temperature | −15–50 °C |
| Detection Principle | Dual-Laser Obstruction (Light Blockage) |
| Sensor Generation | 8th-Generation Dual-Narrow-Beam Laser Particle Sensor |
| Calibration Standards | GBW Reference Materials, CN-PSL, CN-ISO, CN-NIST Traceable |
| Compliance | ISO 11171, ISO 4406, ASTM D7619, USP <788>, JIS B 9921, SEMI F39, IEC 60404-16 |
| Output Interfaces | RS232 / RS485 (MODBUS RTU), USB, LAN, 4–20 mA analog |
| Software Platform | CCACS 2.0 Integrated Analysis Suite |
| Control Architecture | Industrial PC or Embedded IPC with Military-Grade HMI |
| Display | Color LCD Touchscreen + Keyboard/Mouse Support |
| Reporting | Particles/mL + ISO 4406 / NAS 1638 / SAE AS4059 / GJB 420B Class Codes |
