| Brand | PULUODY |
|---|---|
| Origin | Shaanxi, China |
| Manufacturer Type | Authorized Distributor |
| Product Origin | Domestic (China) |
| Model | PLD-MPCS2.0-B |
| Price | USD 53,800 (approx.) |
| Microscope Configuration | Upright |
| Integrated Image Analysis System | Yes |
| Total Magnification Range | 40× to 1000× |
| Eyepiece | 10× |
| Objective Lenses | 10× (standard), with optional 4×, 20×, 40×, 100× oil immersion |
| Camera Resolution | 3 MP CCD |
| Optical Resolution | 0.1 µm |
| Measurement Accuracy | ±3% (typical) |
| Repeatability Error | <5% (excluding sample preparation variability) |
| Particle Detection Resolution | >95% (calibrated per ChP 2020) |
| Coincidence Limit | 10,000 particles/mL (5% coincidence error) |
| Image Segmentation Speed | <1 sec per frame |
| Segmentation Success Rate | >93% |
| Calibration Validation | Certified by Northwest National Metrology & Testing Center (Civil Products) |
| Software Compatibility | Windows 2000/XP (legacy support) |
| Analytical Outputs | Particle size distribution (1–500 µm), aspect ratio distribution, circularity distribution, particle count per volume, length-weighted mean diameter, projected area equivalent diameter |
| Brand | PULUODY |
|---|---|
| Origin | Shaanxi, China |
| Model | PLD-MPCS2.0-C |
| Microscope Type | Upright Metallurgical Microscope |
| Image Analysis System | Integrated |
| Total Magnification Range | 40× to 1000× |
| Eyepiece | 10× |
| Objective Lenses | 20× (standard), with full parfocal objective set supporting 4×, 10×, 40×, 100× oil immersion |
| Resolution | 0.1 µm |
| Measurement Accuracy | ±3% (typical, per ChP 2020 calibration) |
| Repeatability Error | <5% (excluding sample preparation variability) |
| Digital CCD Camera | 3 MP |
| Particle Detection Efficiency | >95% (per ChP 2020) |
| Particle Concentration Limit | Up to 10,000 particles/mL (5% coincidence error threshold) |
| Automatic Segmentation Speed | <1 s per field-of-view |
| Segmentation Success Rate | >93% |
| Calibration Standard Traceability | Certified by Northwest National Metrology & Testing Center (Civil Products) |
| Compliance Standards | ChP 0903 (2015/2020), USP <788>, <789>, EP 6.0–8.0, BP 2009–2013, JP 14–16, IP 2010, WHO IntPh V, GB/T 11446.9–2013, ISO 21510, ISO 11171, GB 8368 |
| Brand | PULUODY |
|---|---|
| Origin | Shaanxi, China |
| Manufacturer Type | Authorized Distributor |
| Country of Origin | China |
| Model | PMT-2YC |
| Price | USD 75,000 (FOB) |
| Detection Principle | Dual-Laser Narrow-Beam Light Scattering |
| Measurement Range | 0.5–20.0 µm (standard) |
| Sensor Generation | 8th-Generation Dual-Laser Particle Sensor |
| Flow Control | Precision Piston Pump + Electromagnetic Flow Regulation |
| Accuracy | ±3% typical |
| Sampling Precision | <±1% |
| Coincidence Limit | 1000 particles/mL (2.5% coincidence error) |
| Calibration Standards | JJG 1061, ISO 21501-4, NIST-traceable latex spheres |
| Output Interface | 4–20 mA analog output with programmable alarm thresholds |
| Data Reporting | Particles per mL and ISO 4406 / NAS 1638 contamination codes |
| Software | PULUODY V8.3 Analysis & Calibration Suite (PC + iPad-compatible) |
| Display & Control | Color LCD touchscreen + optional wireless keyboard/mouse |
| Power Input | 100–265 VAC, 50–60 Hz |
| Compliance | Designed for GLP/GMP environments |
| Brand | PULUODY |
|---|---|
| Origin | Shaanxi, China |
| Model | PLD-MPCS2.0-A |
| Microscope Type | Upright |
| Image Analysis System | Integrated |
| Total Magnification Range | 40× to 1000× |
| Detection Range | 1 μm – 500 μm |
| Resolution | 0.1 μm |
| Repeatability Error | < 5% (excluding sample preparation variability) |
| CCD Camera | 3 MP |
| Calibration Accuracy | ±3% (typical) |
| Particle Segmentation Speed | < 1 s |
| Segmentation Success Rate | > 93% |
| Software Platform | Windows 2000 / XP |
| Interface | RS232 or USB |
| Compliance Standards | USP <788>, USP <789>, EP, JP, ChP 2020, GB/T 11446.9-2013, ISO 21501, ISO 21510, ASTM F312, ISO 4406 (adapted) |

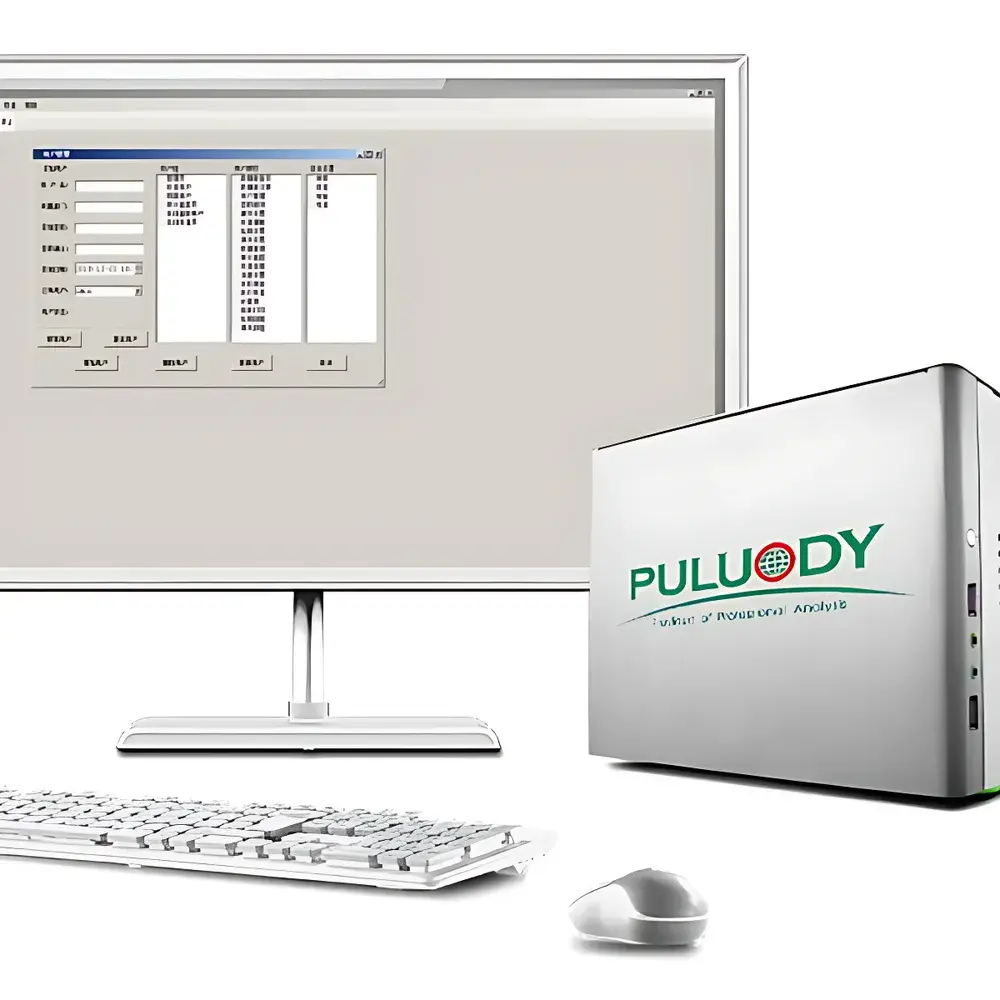

| Brand | PULUODY |
|---|---|
| Origin | Shaanxi, China |
| Manufacturer Type | Authorized Distributor |
| Country of Origin | China |
| Model | PMT-2GJ |
| Price | USD 75,000 (FOB) |
| Detection Principle | Dual-Laser Narrow-Beam Light Scattering |
| Calibration Standards | ISO 21501-4, JJG 1061, NIST-Traceable Latex Spheres |
| Detection Range | 0.1–100 µm (configurable sub-ranges: 0.1–0.5 µm, 4–70 µm(c), or user-defined 1–100 µm) |
| Sample Flow Control | Precision Piston Pump + Electromagnetic Flow Regulation |
| Accuracy | ±3% typical |
| Sampling Precision | <±1% |
| Coincidence Limit | ≤2.5% error at 1000 particles/mL |
| Output | 4–20 mA analog signal,超标 alarm relay (customizable) |
| Data Interface | iPad-compatible wireless acquisition, USB, RS232 |
| Display & Control | Color LCD touchscreen + optional wireless keyboard/mouse |
| Reporting | Particles per mL and ISO 4406 / NAS 1638 contamination codes |
| Power Input | 100–265 VAC, 50–60 Hz |
| Software | PULUODY V8.3 Analysis & Calibration Suite (PC & embedded) |
